10 Вт 975 нм 0 22 на Неохлаждаемый многорежимный лазерный диодный модуль для деталей лазерного оборудования
- Категория: >>>
- Поставщик: Wuhan CS Tec Co. Ltd.Wuhan Ltd.
Сохранить в закладки 1601296066732:
Описание и отзывы
Характеристики
Product Description
TY-975+/-10NM-10.0W-25C-2PIN-1064-0.22NA-DF-01diode lasers employing professional coupling technology, that enjoy multiple advantages, e.g., compact design, stable output power, high power, high efficiency and convenient packaging. These laser diode modules can provide solutions for fiber laser applications and direct suppliers.
The performance and aging tests have been performed upon the production line to guarantee reliable, stable and long lifetime of products. To provide customers with high-quality, high cost performance products is the company’s goal.
The performance and aging tests have been performed upon the production line to guarantee reliable, stable and long lifetime of products. To provide customers with high-quality, high cost performance products is the company’s goal.
Product Parameters
Specification：
Functional parameters are tested at the temperature of the heat sink is 25 degree, contact resistance of the component and heat sink is less than 1 CM2 K/W.
Functional parameters are tested at the temperature of the heat sink is 25 degree, contact resistance of the component and heat sink is less than 1 CM2 K/W.
Parameter | Min | Typ | Max | Unit | Conditions |
Output Power | 10 | w | |||
Centre Wavelength TY975-DG | 975+10 | nm | HR@ 1050-1150> 25dB, HR@ 1060-1100> 30dB | ||
Spectral Width (FWHM) | 3.5 | 7 | nm | ||
Threshold Current | 0.55 | 0.9 | A | ||
Operating Current | - | 11.0 | 12.5 | A | |
Operating Voltage | - | 1.75 | 2.2 | V | |
Conversion Efficiency | - | 48 | % | ||
90% Power | 0.15 | 一 | NA | ||
Wavelength shift vs. Temperature | - | 0.3 | 一 | nm/"C | |
Slop Efficiency | - | 0.9 | - | W/A | |
Storage Temperature | -40 | 25 | 85 | 。C | Non-Condensing |
Operating Temperature | -40 | 25 | 55 | 。C | |
Fiber Bend Radius | 37.5 | - | mm | ||
Buffer Diameter | - | 250 | - | um | |
Cladding Diameter | - | 125 | - | um | |
Core Diameter | - | 105 | - | um | |
Numeric Aperture | - | 0.22 | - | - | |
Fiber Connector | - | CO | - | - | SMA905,FC |
Product Structure
Company Profile
Wuhan CS Tec Co., Ltd
Wuhan CS Tec Co., Ltd.,(also known as "CS"), is a high-tech company located in the heart of Wuhan's Optical Valley. We are a dedicated enterprise specializing in laser-related equipment and customized products, offering an expansive portfolio of services that cater to the diverse needs of our clients. With over a decade of international experience in the laser industry, CS Tec is an established industry leader. Our expertise is deeply rooted in providing a wide array of cost-effective laser products, ranging from fiber laser core devices to comprehensive solutions tailored to our customers' unique needs.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing.Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser technology,constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need.Trust in CS Tec to provide the laser technology that helps shape your future.
"Capture the laser, Shape the future" - with CS Tec, you're in capable hands.
Wuhan CS Tec Co., Ltd.,(also known as "CS"), is a high-tech company located in the heart of Wuhan's Optical Valley. We are a dedicated enterprise specializing in laser-related equipment and customized products, offering an expansive portfolio of services that cater to the diverse needs of our clients. With over a decade of international experience in the laser industry, CS Tec is an established industry leader. Our expertise is deeply rooted in providing a wide array of cost-effective laser products, ranging from fiber laser core devices to comprehensive solutions tailored to our customers' unique needs.
At CS Tec, we pride ourselves on our access to global resources of high-quality, high-power fiber laser products suitable for all types of industrial processing.Our understanding of the market is global in scope. We continuously gather market information from all corners of the world to understand the unique needs of each region, equipping us to serve a wide variety of customers with precision and excellence.
At CS Tec, we are more than a supplier; we are a partner in innovation. We strive to stay at the forefront of laser technology,constantly innovating and refining our offerings to ensure our customers have the cutting-edge solutions they need.Trust in CS Tec to provide the laser technology that helps shape your future.
"Capture the laser, Shape the future" - with CS Tec, you're in capable hands.
Exhibition
FAQ
Q:What does Wuhan CS TEC Co do?
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are
A: Wuhan CS TEC Co is a high-tech company located in the heart of Wuhan's Optical Valley, specializing in
laser-related equipment and customized products. They offer a wide range of services to meet the
diverse needs of their clients.
Q: What products does Wuhan CS TEC Co offer?
A: The company's products include laser diodes, laser components and fiber processing equipment, single-
mode continuous wave (CW) fiber lasers, special wavelength fiber lasers, direct diode lasers, and more.
Q: What are the features of Wuhan CS TEC Co's laser diodes?
A: The laser diodes offered by the company have multiple advantages such as high reliability, stable output
power, high power,high efficiency, long lifespan, and high compatibility. They are wavelength-selectable,
covering a wide spectral range from 405 to 1550nm, and are available in different power levels to suit
various application needs.
Q: What are the advantages of Wuhan CS TEC Co's fiber lasers?
A: The company's fiber lasers boast high beam quality, high energy density, and high electro-optical
efficiency, making them suitable for various fields such as precision machining, deep penetration
welding, and scientific research.
Q: What are the characteristics of Wuhan CS TEC Co's special wavelength fiber lasers?
A: The company's special wavelength fiber lasers feature a complete fiber design, a wide selection of
wavelengths, and an optimized OEM solution, catering to the needs of the industrial, medical, and R&D
markets.
Q: What are the benefits of Wuhan CS TEC Co's direct diode lasers?
A: The company's direct diode lasers have a wall-plug efficiency approaching 35% and are used across a
variety of applications.such as soft soldering, metal hardening, plastics welding, silicon surface
modification, and Flat Panel Display (FPD) bonding.They also serve as an excellent source for optical
laser pumping.
Q: What system solutions does Wuhan CS TEC Co provide?
A: The company provides comprehensive solutions for all laser systems, with a particular emphasis on
traditional laser applications for marking and cutting.
Q: What are the features of Wuhan CS TEC Co's marking machines?
A: The company's marking machines include both table and portable types, equipped with either fiber laser
or UV laser technology.These marking machines cover the full range of power, making them suitable for
a wide array of applications, from small-scale marking tasks to high-volume industrial projects.
Q: What are the advantages of Wuhan CS TEC Co's cutting machines?
A: The company's cutting machines offer several standard types, each tailored for specific applications.
Their precision cutting machines are designed for tasks requiring high levels of accuracy. The single
table and double table models cater to different work volume requirements, while their full enclosure
machines provide an extra level of safety for operators.
Q: What are the characteristics of Wuhan CS TEC Co's welding machines and cleaning machines?
A: The company's welding machines come in two standard types: handheld and platform models. They are
equipped with Continuous Wave(CW), Quasi Continuous Wave (QCW), or Yttrium-Aluminum-Garnet
(YAG) lasers, covering the full range of power to suit different welding tasks. Their cleaning machines
offer two types based on their source of power. The first type is equipped with a Continuous Wave (CW)
fiber laser with power up to 3000W, ideal for intense cleaning operations. The second type employs a
pulsed fiber laser with power up to 500W, which is perfect for tasks requiring controlled and precise
cleaning.
Похожие товары
Лазерный диод ctp cron лазерные диоды для
22 845,13-25 141,12 ₽
Устройство для лазерной маркировки
41 327,86 ₽

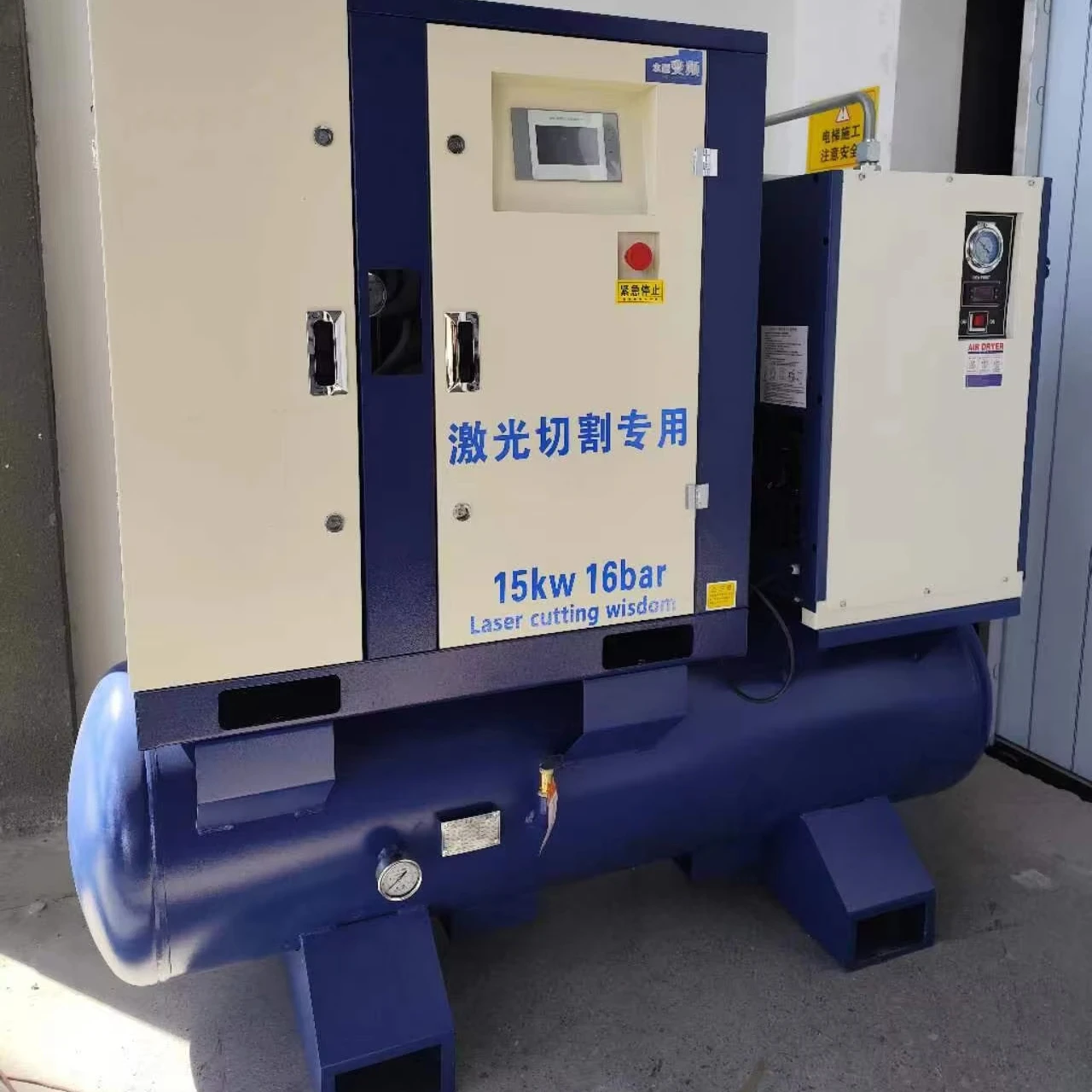

Компрессор пневматической подвески двухступенчатый компрессор компрессора воздуха сжатия
275 404,25 ₽

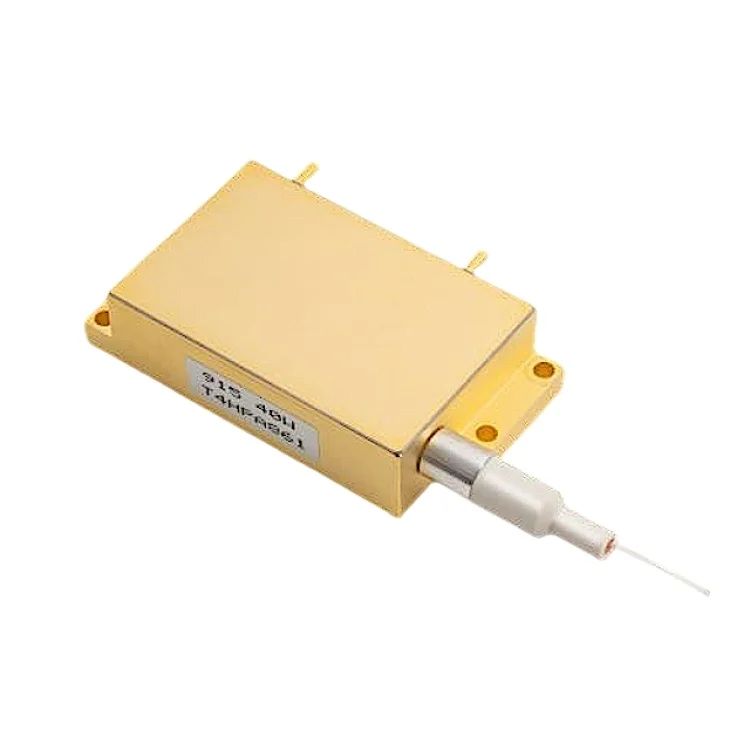

Нм/нм 30 Вт многомодовый волоконно-связанный лазерный диод
68 764,97 ₽

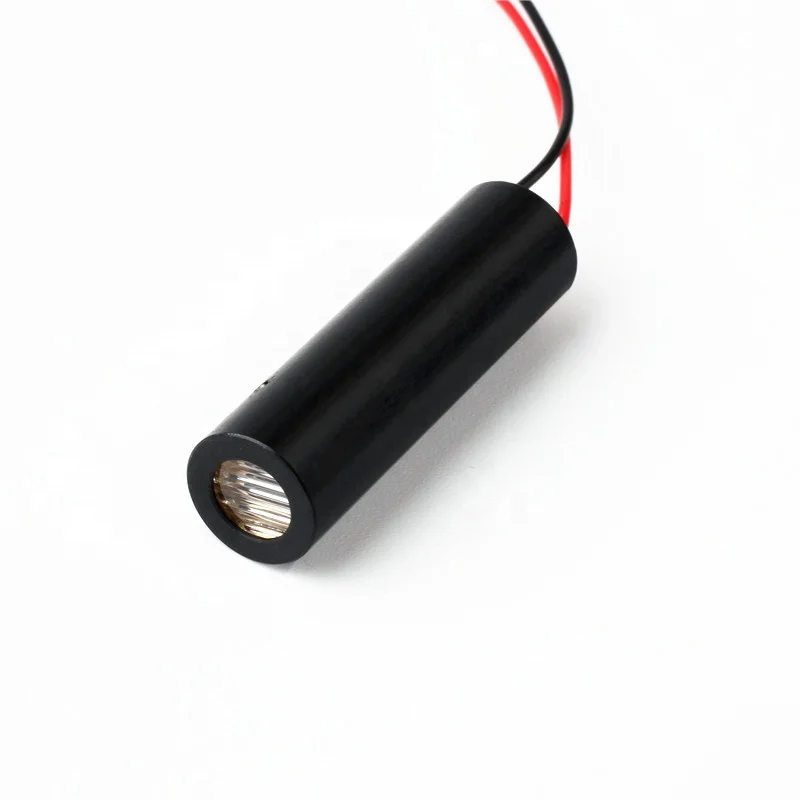

D10x35 мм High End 520 нм 5 МВт 10 30 50 80 зеленая линия/поперечная линия 3 В DC лазерный диодный модуль промышленного класса APC драйвер
Yongli высокомощная DLT-280 280W CO2 лазерного луча комбинации источник для резки листового металла

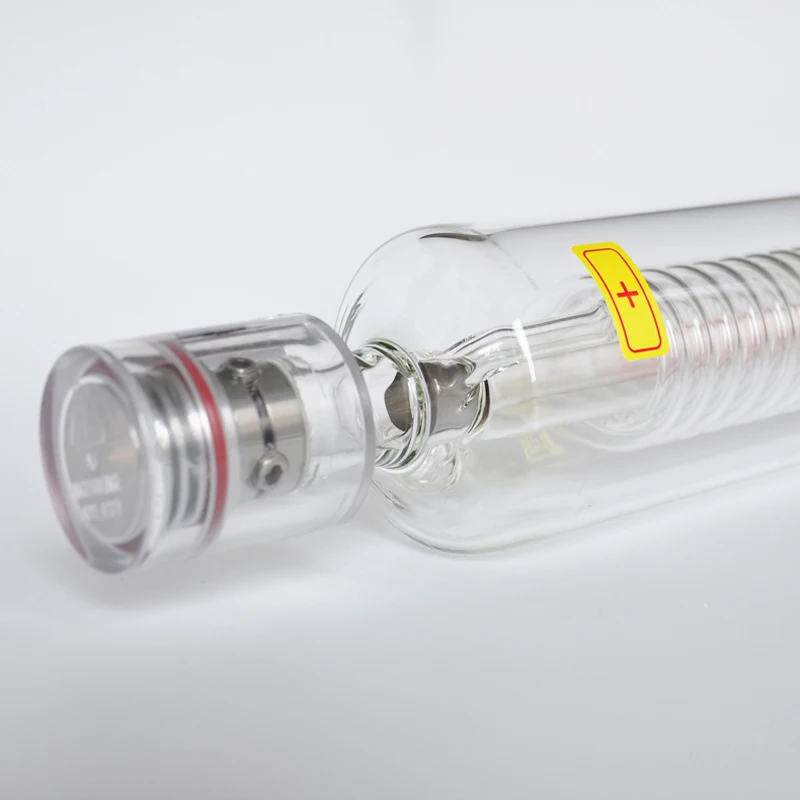

Хорошая стабильность 10000h Long Life 100w Co2 Лазерная трубка Стеклянный прозрачный источник 50w
