Интеллектуальная коническая труба с открытой конструкцией стальной волоконный лазерный резак 3d Пятиосевой 12 кВт 15 м I луча H станок для резки
4 719 413,05-6 614 926,74 ₽
Китай волоконно лазерная машина для резки листового металла продажи 6060 6090 1390 стол лазерная
- Категория: >>>
- Поставщик: Jinan Looke Intelligent Equipment Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601296368265:
Описание и отзывы
Характеристики
Product Description
Fiber laser cutting machine adopting world famous Germany fiber laser source and USA laser cutting head and dynamic focus system,it can cut and punch different kinds of metal material with high precision and high speed. Since laser is transmitted by fiber ,it is no need to maintenance or adjusts the laser optical path , it greatly reduces the machines fault rate and prolongs the working life. Large format cutting area meets the demands of various kinds of metal processing.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
It is widely used for carbon steel, stainless steel, aluminum and other metal materials cutting and forming, with high speed, high precision, high efficiency, cost-effective and energy saving. It is the first choice of the metal processing industry.
Specification
Model | LOOKE-1390 1310 1313 Fiber laser cutting machine |
Working area | 1300*900mm working area |
Laser source | 1000/1500/2000/3000W Raycus/ MAX fiber laser source |
Laser cutting head | Raytools or WSX laser head |
Bed structure | High rigidity welded steel framework |
Table surface | Blade table |
Guide rail | Taiwan Hiwin linear square guide rail 25mm |
Transmission | X,Y with helical gear rack ,Z with TBI ball screw |
Motors and drivers | FUJI servo motor & driver, X,Y axis 750w, Z axis 400w |
Control system | FSCUT 1000S/2000C control system |
Software | CypOne laser cutting software with BMC 1603 control card |
Chiller | S&A, Dual Temperature Control or Hanli brand chiller |
Reducer | Japan imported SHIMPO reducer |
Tool sensor | Automatic tool sensor |
Lubrication system | Electric automatic lubrication system |
Pressure valves | High-pressure(N2,air):2.5MPa(Shuoda) |
Low-pressure(O2):1MPa(SMC) | |
Electronic Proportional Valve | SMC from Japan |
Electronic Components | SCHNERDER, Omron |
Max. idling speed | 80m/min |
Positioning Accuracy | ±0.03mm |
Re-Positioning Accuracy | ±0.02mm |
Instruction format | G code *.u00 *.mmg *.plt |
Working voltage | AC380V, 3 phase,50-60hz(for more than 1000w) AC220V, single phase, 50-60hz(for 1000w) |
Others | Tool box, English Manual, Exhaust fan, cutting nozzle, protection mirrors etc |

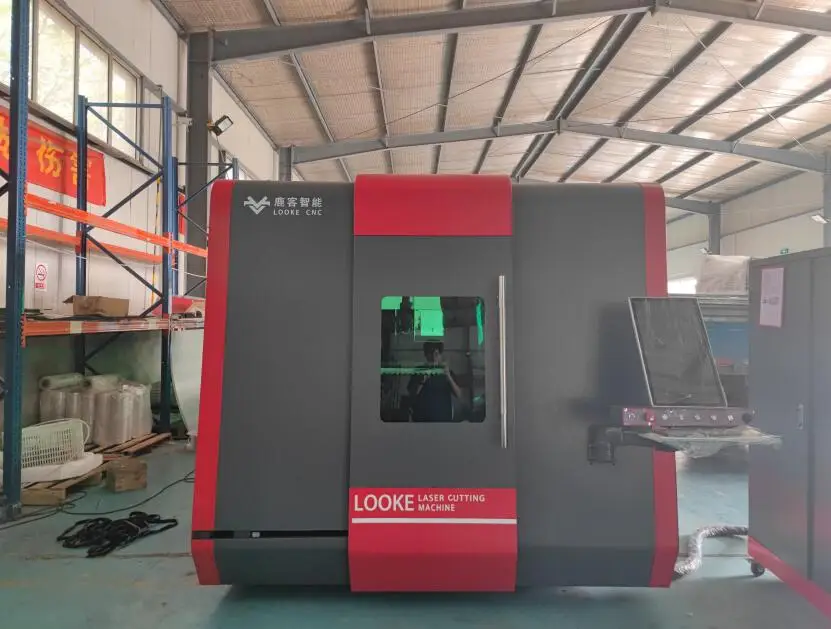

Sample exbition
Packing & Delivery
Company Profile
Jinan LOOKE Intelligent Equipment Co.,ltd is famous in fiber laser cutting equipment, located in Jinan, Shandong Province. Our company integrates the R&D production, sale and maintenance services. We depend on high tech and high quality products to build the world brand LOOKE CNC & JN LOOKE.
Certifications
FAQ
1. who are we?
We are based in Shandong, China, start from 2019,sell to Southern Europe(13.00%),Central America(12.00%),Northern Europe(12.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Asia(9.00%),Mid East(9.00%),Oceania(6.00%),Western Europe(6.00%),South America(5.00%),Eastern Europe(5.00%),Africa(2.00%),South Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ATC CNC Router Machine, Fiber Laser Cutting Machine, 5 Axis CNC Router, Fiber Laser Tube Cutting Machine, Panel Furniture CNC Production Line
4. why should you buy from us not from other suppliers?
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in C N C Router and Fiber laser equipment and located in Jinan city, Shandong Province. Our company integrates the R &D, sale and maintenance services. We depend on high-tech and high-quality products
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Russian,Italian
We are based in Shandong, China, start from 2019,sell to Southern Europe(13.00%),Central America(12.00%),Northern Europe(12.00%),North America(10.00%),Southeast Asia(10.00%),Eastern Asia(9.00%),Mid East(9.00%),Oceania(6.00%),Western Europe(6.00%),South America(5.00%),Eastern Europe(5.00%),Africa(2.00%),South Asia(1.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
ATC CNC Router Machine, Fiber Laser Cutting Machine, 5 Axis CNC Router, Fiber Laser Tube Cutting Machine, Panel Furniture CNC Production Line
4. why should you buy from us not from other suppliers?
Jinan LOOKE Intelligent Equipment Co., Ltd. is famous in C N C Router and Fiber laser equipment and located in Jinan city, Shandong Province. Our company integrates the R &D, sale and maintenance services. We depend on high-tech and high-quality products
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Portuguese,German,Russian,Italian
Contact
Contact:Angelia
Email:sales03@ltcnc.cn
Whatsapp:+86 18560199536
Whatsapp:+86 18560199536
