500-800 кг/ч охладитель и сушилка для древесных гранул корма птицы на биомассе
1 000,00-1 500,00 $
Nuoside 1 т 2 3 в час завод по производству кормов для животных ферма сбалансированная линия и порошков
- Категория: >>>
- Поставщик: Zhengzhou Nuoside Husbandry Technology Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601296420306:
Описание и отзывы
Характеристики
Product Description
production line description:SZLH25 ring die pelletizer with a production capacity of 1 - 2 T/H
1. Low investment cost: It adopts a screw conveyor, an imitation vertical crusher, a single-shaft double-ring belt mixer
(discharging at one end), an SZLH25 pelletizer, finished product packaging system.
(discharging at one end), an SZLH25 pelletizer, finished product packaging system.
2. The entire production line can be controlled through the control cabinet.
3. It can be used to produce various pellet feeds for poultry and aquatic products, for chickens, ducks, geese, rabbits, ostriches, pigeons, fish, shrimp, etc.
4. It is suitable for production methods such as small feed mills, family pastures, family farms, breeding farms, family workshops, etc. It is applicable to animal husbandry, aquaculture, etc.
system | Power(kw) | Main equipment |
Raw material crushing and mixing system | 30.45 | Screw conveyor, screw conveyor, crusher, single-shaft double-ring belt mixer (discharging at one end), electric gate, bucket elevator, pneumatic three-way |
Pelletizing and cooling system | 35.39 | Pelletizing bin to be processed, SZLH25pelletizer (including speed-regulating feeder, single-layer conditioner, pelletizer), belt conveyor, buffer hopper, airlock valve, cooler, vibrating grading screen, fan, cyclone separator, airlock valve, bucket elevator |
Finished product packaging system | 6.2 | screw conveyor, buffer bin, packaging scale |
Electrical control center | Control cabinet,Computer system,Cables, wires, hoses, standard cable trays |

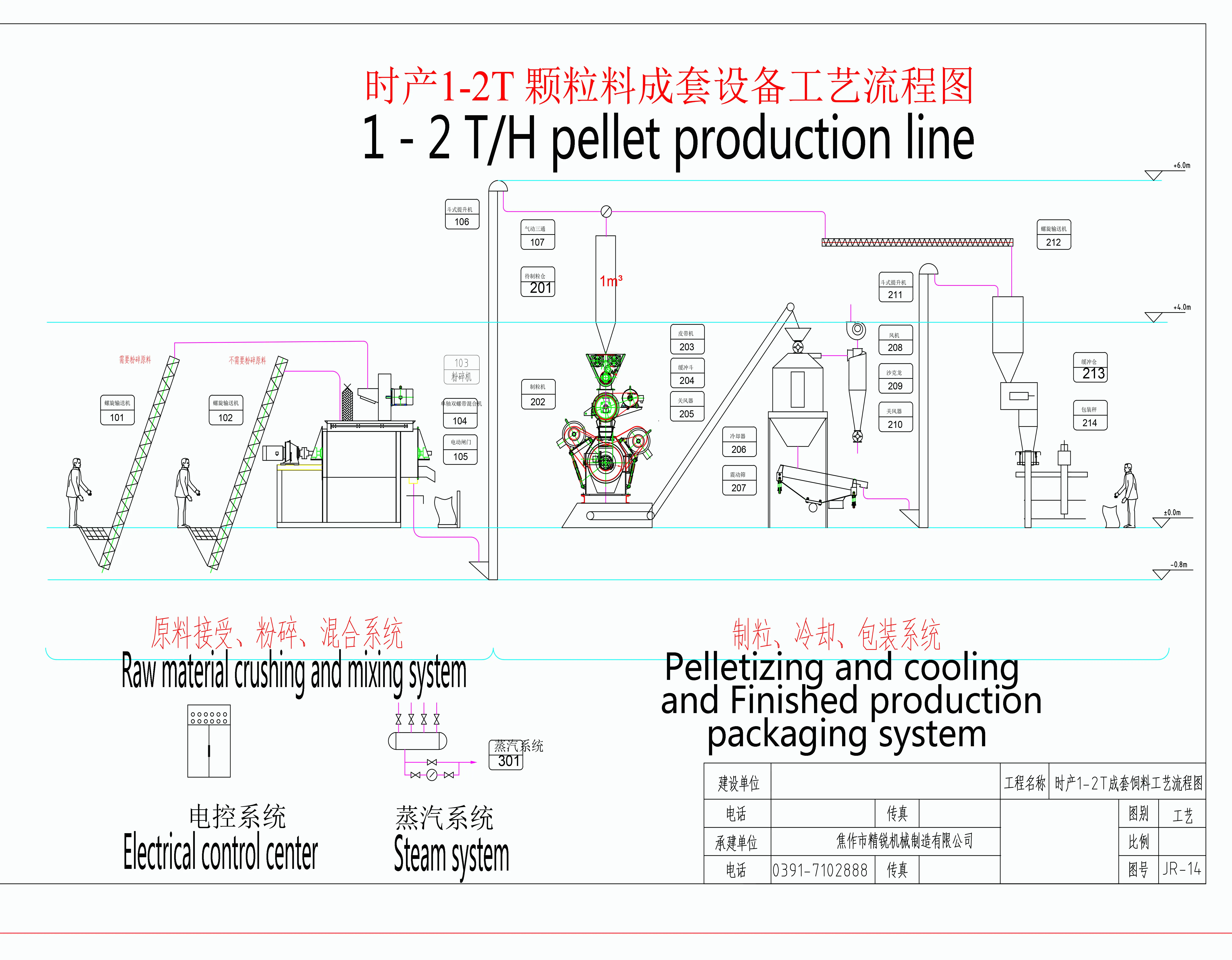

production line description: SZLH32 ring die pelletizer with a production capacity of 1 - 3 T/H
1. Low investment cost: It adopts a screw conveyor, an imitation vertical crusher, a single-shaft double-ring belt mixer
(discharging at one end), an SZLH32 pelletizer, finished product packaging system. 2. The entire production line can be controlled through the control cabinet.
3. It can be used to produce various pellet feeds for poultry and aquatic products, for chickens, ducks, geese, rabbits,
ostriches, pigeons, fish, shrimp, etc.
4. It is suitable for production methods such as small feed mills, family pastures, family farms, breeding farms, family
workshops, etc. It is applicable to animal husbandry, aquaculture, etc.
(discharging at one end), an SZLH32 pelletizer, finished product packaging system. 2. The entire production line can be controlled through the control cabinet.
3. It can be used to produce various pellet feeds for poultry and aquatic products, for chickens, ducks, geese, rabbits,
ostriches, pigeons, fish, shrimp, etc.
4. It is suitable for production methods such as small feed mills, family pastures, family farms, breeding farms, family
workshops, etc. It is applicable to animal husbandry, aquaculture, etc.
The production process of this production line is:
The raw materials that need to be crushed are conveyed to the crusher through the screw conveyor for crushing. After crushing,they directly enter the mixer. The raw materials that do not need to be crushed are directly conveyed to the mixer through thescrew conveyor. The materials are controlled automatically. The mixing time for each batch is 3 - 5 minutes. After fully and evenly stirred and mixed, the raw materials that need to be pelletized are conveyed to the pelletizing bin to be processed through the elevator. After being pelletized, they are conveyed to the cooler through the belt conveyor. The temperature of the cooled pellets is 3 - 5 °C lower than the room temperature. After cooling, the finished products go through the vibrating grading screen to screen out the powder. The finished pellet materials are lifted to the finished product bin through the bucket elevator. Finally, the finished products are packaged through the automatic packaging scale. The finished products that do not need to be pelletized, after passing through the mixer, are directly conveyed to the finished product bin through the lifting equipment and then lowered to the automatic packaging scale for packaging.
system | Power(kw) | Main equipment |
Raw material crushing and mixing system | 30.45 | Screw conveyor, screw conveyor, crusher, single-shaft double-ring belt mixer (discharging at one end), electric gate, bucket elevator, pneumatic three-way |
Pelletizing and cooling system | 46.69 | Pelletizing bin to be processed, SZLH32pelletizer (including speed-regulating feeder, single-layer conditioner, pelletizer), belt conveyor, buffer hopper, airlock valve, cooler, vibrating grading screen, fan, cyclone separator, airlock valve, bucket elevator |
Finished product packaging system | 6.2 | screw conveyor, buffer bin, packaging scale |
Electrical control center | Control cabinet,Computer system,Cables, wires, hoses, standard cable trays |
Production line application:
1. It can be used to produce various pellet feeds for poultry and aquatic products, for chickens, ducks, geese, rabbits,ostriches,pigeons, fish, shrimp, etc.
2. It is suitable for production methods such as small feed mills, family pastures, family farms, breeding farms, family
workshops, etc. It is applicable to animal husbandry, aquaculture, etc.
2. It is suitable for production methods such as small feed mills, family pastures, family farms, breeding farms, family
workshops, etc. It is applicable to animal husbandry, aquaculture, etc.

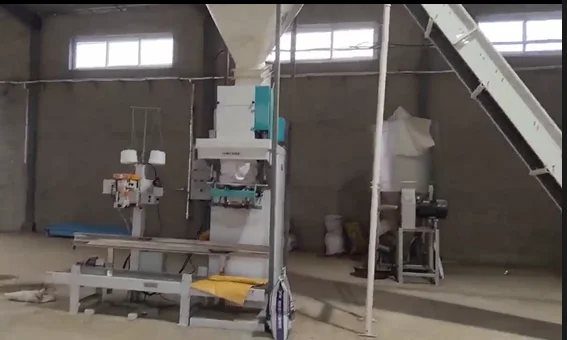

Finished production
packaging system
packaging system
This production line is equipped with an automatic packaging system. The main equipment is the packaging scale and the bag sealing conveyor, this system can greatly improve the operation efficiency.
Related Products
Feed mill plant
1.Pellet feed making plant 2. Powder feed making plant
Farms and small feed mill plant
S series powder feed plant 1-3 ton feed production line
Grinding machine
1.water drop hammer mill 2.Imitation vertical pulverizer
Mixing machine
1.Single-shaft double-paddle mixer 2.Double-shaft paddle mixer 3.Single-shaft double-screw belt mixer
Pellet mill
1.Double Belt Feed Pelletizer. 2.Double Belt Sawdust Pelletizer
Auxiliary equipment
1.Pellet feed cooler 2.Screen 3. Silos 4.Dust Removal Equipment
1.Pellet feed making plant 2. Powder feed making plant
Farms and small feed mill plant
S series powder feed plant 1-3 ton feed production line
Grinding machine
1.water drop hammer mill 2.Imitation vertical pulverizer
Mixing machine
1.Single-shaft double-paddle mixer 2.Double-shaft paddle mixer 3.Single-shaft double-screw belt mixer
Pellet mill
1.Double Belt Feed Pelletizer. 2.Double Belt Sawdust Pelletizer
Auxiliary equipment
1.Pellet feed cooler 2.Screen 3. Silos 4.Dust Removal Equipment
More Products
Company Profile
We have the design, production and installation capacity of the whole production line;
We have a wealth of problem-solving capabilities in equipment installation and operation practice.
The above picture is part of the display of our production workshop

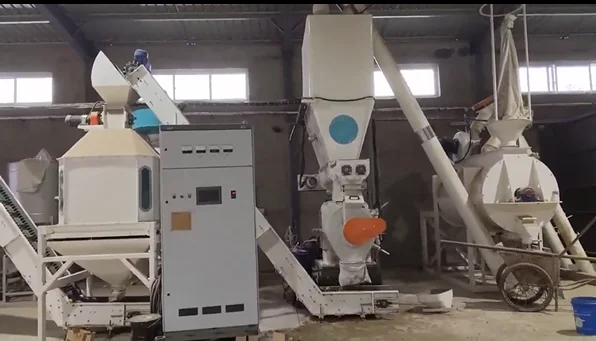

Production line display
The above are some pictures of the feed production line that we designed ourselves and completed the construction independently.
FAQ
1、Q: How is your factory experience?
A:We are a manufacturer of feed equipment, responsible for design and installation. We have rich practical experience.
A:We are a manufacturer of feed equipment, responsible for design and installation. We have rich practical experience.
2、Q: Where is your factory?
A:We are located in Jiaozuo City, Henan Province, and our marketing team is located in Zhengzhou, Henan Province. The flight can be Zhengzhou International Airport, and then we will pick you up at the airport to the factory.
3、Q: What products can you provide??
A: Feed equipment production lines and supporting stand-alone machines. We design independently and produce core equipment independently.
4、Q: What is the delivery time?
A: It is usually 30 to 45 days. The specific situation is negotiated by both parties.
5、Q: Will you send an engineer for installing the factory?
A: Yes, but the customer pays for the extra cost.
A:We are located in Jiaozuo City, Henan Province, and our marketing team is located in Zhengzhou, Henan Province. The flight can be Zhengzhou International Airport, and then we will pick you up at the airport to the factory.
3、Q: What products can you provide??
A: Feed equipment production lines and supporting stand-alone machines. We design independently and produce core equipment independently.
4、Q: What is the delivery time?
A: It is usually 30 to 45 days. The specific situation is negotiated by both parties.
5、Q: Will you send an engineer for installing the factory?
A: Yes, but the customer pays for the extra cost.
