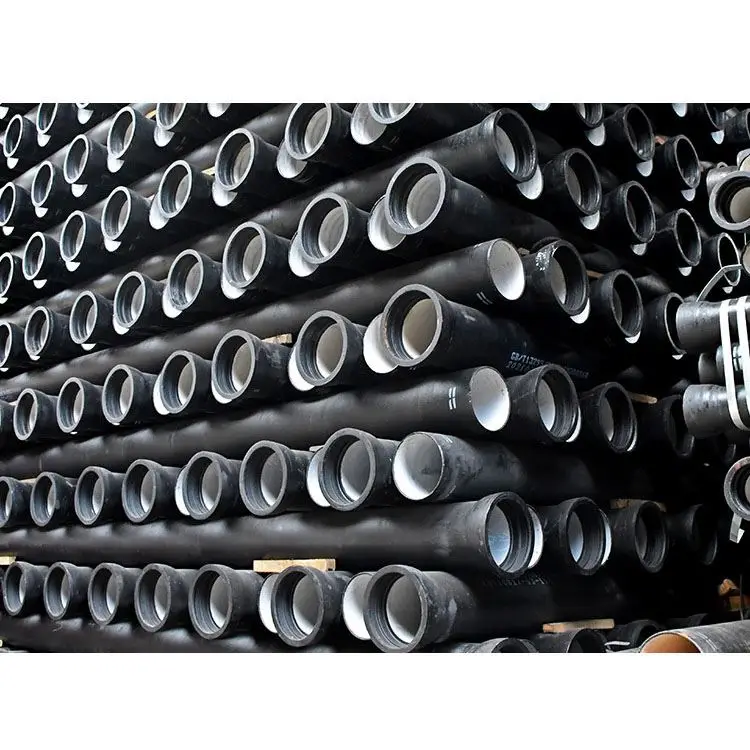

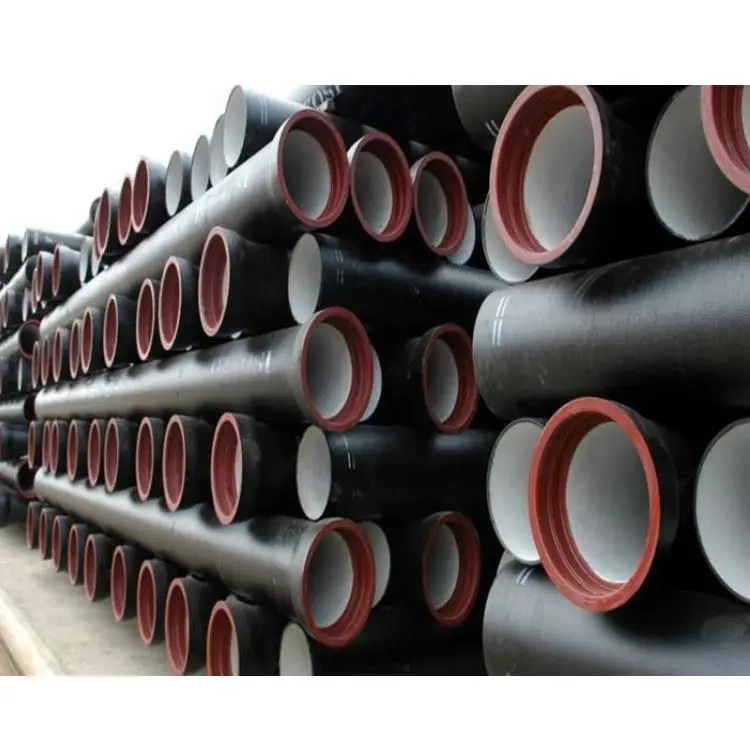

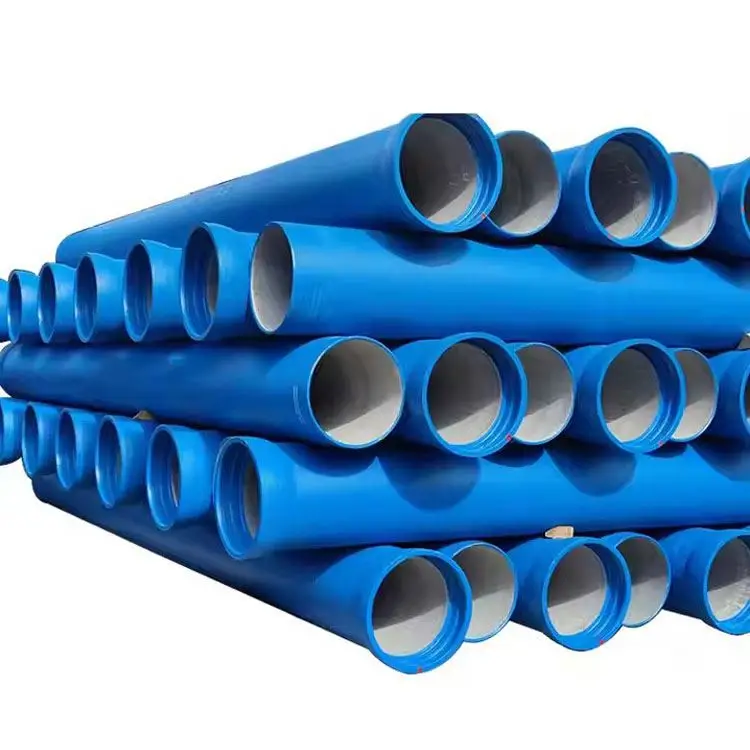

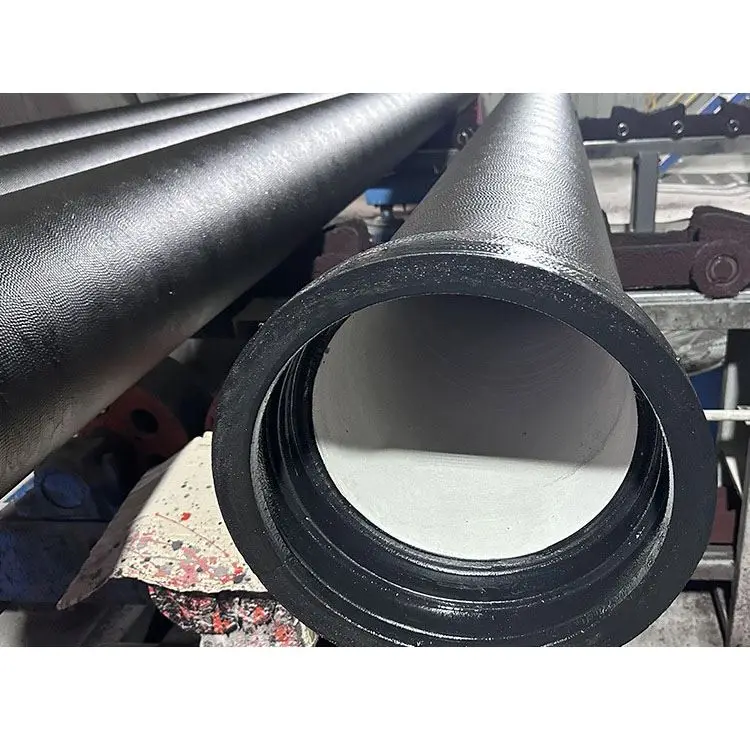

Ductile Cast Iron Pipe
Products Description
Name | Ductile iron pipe |
Material | Ductile Cast Iron GGG50 |
Class | K9, K10, K11, K12，K9, K8, C25, C30, C40, etc. |
Length | 6m or customized |
Pipe Joint | push-on joint(Tyton joint), K type joint, self-restrained joint |
Size | Outside Diameter: 98mm-1255mm Inside Diameter: 80mm-1200mm Wall Thickness: 6mm-153mm Length: 6m, cut to 5.7m, or as required. |
Surface | External bitumen coating, or as required. |
Pressure | PN10, PN16, PN25, PN40 |
Advantage | Anti-corrosion; Various types; Anti-infiltration; Anti-aging; Good duralbility |
Application | Water supply project, drainage, sewage, irrigation, water pipeline |
Nominal diameter | Wall Thickness | ||||||||||||||
DN | Pipe | Finttings | |||||||||||||
ClassC | K8 | K9 | K10 | K12 | K12 | K14 | |||||||||
80 | 4.4 | 6.O | 6.0 | 7.0 | 8.1 | ||||||||||
100 | 4.4 | 6.1 | 7.2 | 8.4 | |||||||||||
125 | 4.5 | 6.3 | 7.5 | 8.8 | |||||||||||
150 | 4.5 | 6.3 | 7.8 | 9.1 | |||||||||||
200 | 4.7 | 6.4 | 8.4 | 9.8 | |||||||||||
250 | 5.5 | 6.8 | 7.5 | 9.0 | 9.0 | 10.5 | |||||||||
300 | 6.2 | 6.4 | 7.2 | 8.0 | 9.6 | 9.6 | 11.2 | ||||||||
350 | 6.3 | 6.8 | 7.7 | 8.5 | 10.2 | 10.2 | 11.9 | ||||||||
400 | 6.5 | 7.2 | 8.1 | 9.0 | 10.8 | 10.8 | 12.6 | ||||||||
450 | 6.9 | 7.6 | 8.6 | 9.5 | 11.4 | 11.4 | 13.3 | ||||||||
500 | 7.5 | 8.0 | 9.0 | 10.0 | 12.0 | 12.0 | 14.0 | ||||||||
600 | 8.7 | 8.8 | 9.9 | 11.0 | 13.2 | 13.2 | 15.4 | ||||||||
700 | 8.6 | 9.6 | 10.8 | 12.0 | 14.4 | 14.4 | 16.8 | ||||||||
800 | 9.6 | 10.4 | 11.7 | 13.0 | 15.6 | 15.6 | 18.2 | ||||||||
900 | 11.6 | 11.2 | 12.6 | 14.0 | 16.8 | 16.8 | 19.6 | ||||||||
1000 | 12.6 | 12.0 | 13.5 | 15.0 | 18.0 | 18.0 | 21.0 | ||||||||
1200 | 13.6 | 13.6 | 15.3 | 17.0 | 20.4 | 20.4 | 22.8 | ||||||||
1400 | 15.7 | 15.2 | 17.1 | 19.0 | 22.8 | 22.8 | 26.6 | ||||||||
1500 | 16.7 | 16.0 | 18.0 | 20.0 | 24.0 | 24.0 | 31.0 | ||||||||
1600 | 17.7 | 18.8 | 18.9 | 21.0 | 25.2 | 25.2 | 29.4 | ||||||||
1800 | 19.7 | 18.4 | 20.7 | 23.0 | 27.6 | 27.6 | 32.2 | ||||||||
2000 | 21.8 | 20.0 | 22.5 | 25.0 | 30.0 | 30.0 | 35.0 | ||||||||
Application:
Ductile iron pipes, with qualities like iron essence and steel properties including good mechanical performance, excellent
corrosion resistance, great ductility, effective sealing and easy installation, are widely used.
Ductile iron pipes, with qualities like iron essence and steel properties including good mechanical performance, excellent
corrosion resistance, great ductility, effective sealing and easy installation, are widely used.
They are applied in municipal engineering for water supply and drainage, in industrial production for transporting industrial materials, as water diversion pipes for cities, in agricultural irrigation, in the petroleum industry for drilling and transporting oil and gas, and as main risers in large high-rise buildings. They can meet different needs in various fields and different scenarios require different types to meet technical requirements and standards.
Quality Control
Product Packaging
Packing: bundled with steel belts or in bulk Shipment: in bulk or container
Company Profile
Shanxi Huazhan Wear-resistant Material Technology Co., Ltd. is located in Gudan Industrial Park, Taiyuan City, Shanxi Province. Covering an area of 25,000 square meters, there are more than 80 engineering and technical personnel.
In the past 20 years, we have been committed to the customization, production and service of wear-resistant steel products, professionally providing solutions for wear-resistant products in industries such as electric power, metallurgy, mining, steel mills, petrochemicals, and new energy. A major breakthrough has been made; advanced production technology has been introduced, the monthly output of wear-resistant pipes is 1,300 tons, and advanced testing equipment is equipped. Our products involve more than 110 varieties in 12 categories, and we are currently the largest manufacturer of wear-resistant pipe fittings in China.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
The company has an independent research and development design team, 70% of the front-line employees have 10 years of casting experience, the products have passed the ISO9001 quality system certification, and have a number of invention patents.
Huazhan has always pursued the enterprise management policy of "quality first, reputation first", strictly controlled quality, and formed a strict quality control mechanism and a reliable quality assurance operation system. Because of reliable product quality, honest business philosophy, and scientific technical effects, it has won the trust of users, and the scale of the enterprise is developing rapidly. The products are sold to engineering projects in 31 regions across the country, and are widely used in mines, power generation, chemicals, etc. project.
Certification:
Service:
* Provide 7 * 24-hour service. Feel free to contact us by phone, email, instant messaging and social media.
* After receiving your inquiry, reply within 8 hours, and provide the price plan within 24 hours.
* After receiving your inquiry, reply within 8 hours, and provide the price plan within 24 hours.
* Review and monitor project details and progress at no cost by a professional team of sales, engineers
and QC personnel.
* In the cost, production, inspection, packaging, delivery and other aspects to provide a full range of intimate services.
* Provides professional support and assurance at all stages of sales.
and QC personnel.
* In the cost, production, inspection, packaging, delivery and other aspects to provide a full range of intimate services.
* Provides professional support and assurance at all stages of sales.
FAQ
1. Can I get free samples?
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
A: Yes, we can provide you the free samples, but you need to bear their own delivery costs.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
3. Can I request to advance the shipment?
A: It should be depends on whether there is sufficient inventory in our warehouse.
4. Can I have my own Logo on the product?
A: Yes, you can send us your drawing and we can make your logo, but you have to bear their own the cost.
5. Can you produce the products according to my own drawings?
A: Yes, we can produce the products according to your drawings that will be most satisfy you.
6. What's your terms of payment?
A: T/T, L/C , Alibaba Trade Assurance available, full protection for your orders.
7.Do you accept custom design on size?
A: Yes, if the size is reasonable
8.Transportation
Transported by DHL, UPS, EMS, Fedex, SF, by Air, by Sea.
