5.0 Inch LCD Screen 1MP 6mm Wide-Angle Industri  endoscope 1080P videoscope  CMOS  steam engine  Inspection



Product Description

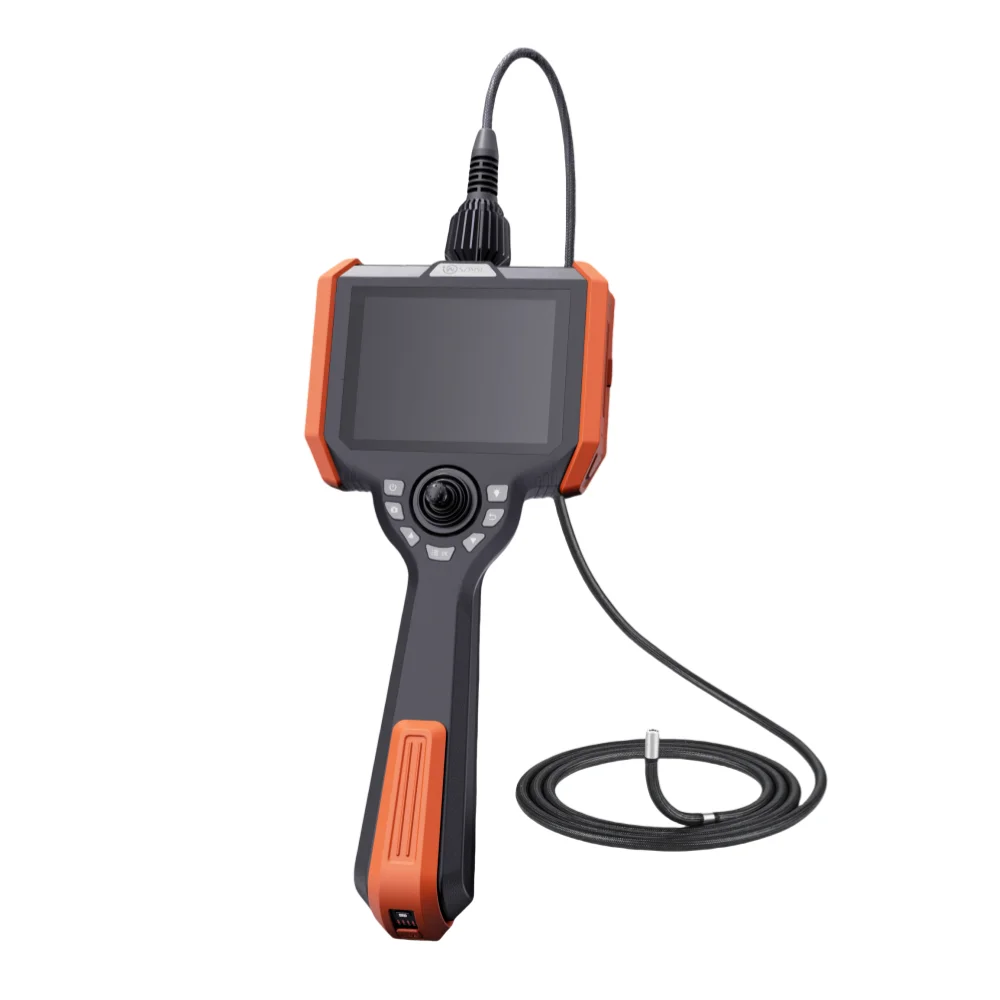

VSNDT VS-K6030 industrial video endoscope, equipped with 5-inch high-definition liquid crystal display, 360-degree omnidirectional guidance function, 720p million high-definition camera, can intuitively judge whether the observation part is qualified, support photo and video archiving, clear picture and video, this series of industrial video endoscope can be applied to precision casting, pharmaceutical manufacturing, automobile manufacturing and other application scenarios.










Technical Parameter






































































































Product Model



VS-K6030



Host Size



350*155*59mm



Display



5 inch high-definition liquid crystal display



Storage



32G

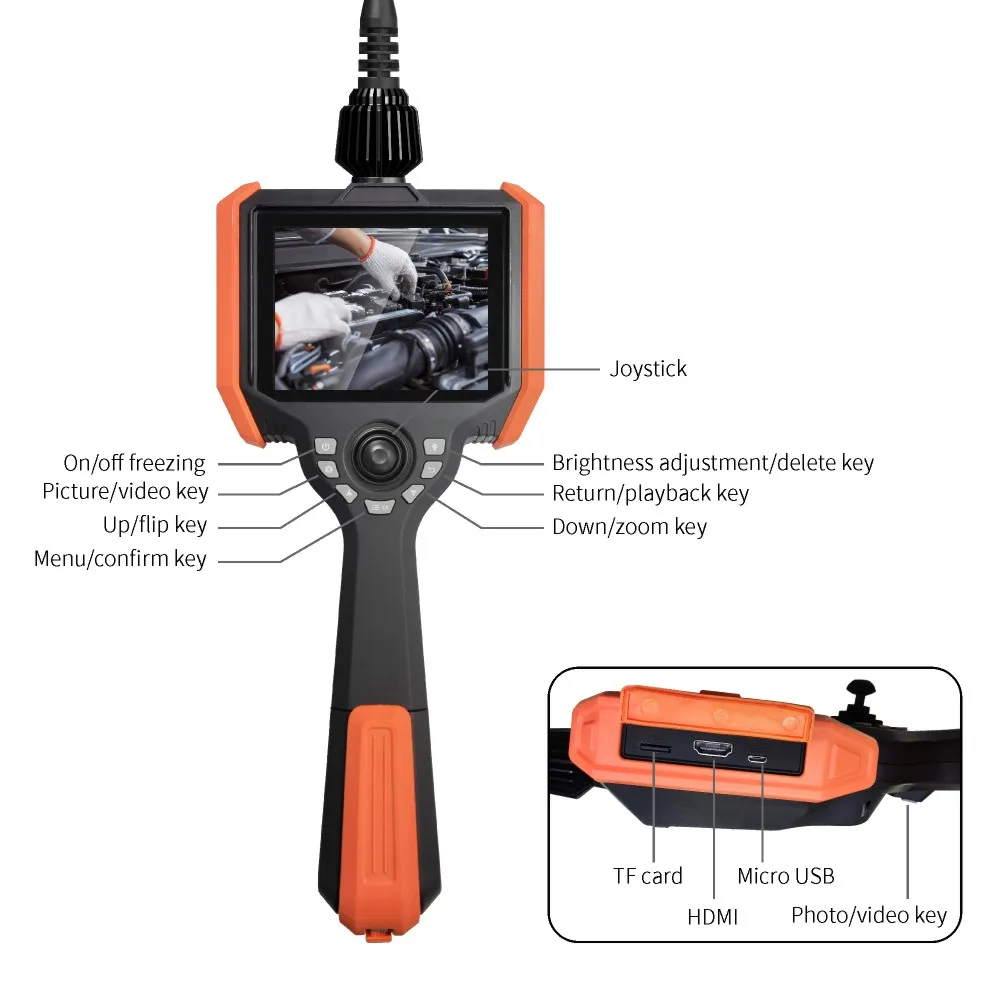

Output Port



HDMI video output,Micro USB,TF card slot



Image/video format



Picture/video format: JPEG (JPG)/AVI



Support Function



With freeze, zoom, photo, flip, video playback, analog ruler functions



Support Language



Chinese (Simplified and Traditional), French, English, German, Spanish, Italian, Japanese



Power



Special rechargeable lithium battery pack, online charging, battery life >4 hours



Bending angle



160°±10°



Pixels



1000,000pixels



Probe length



3meters



Diameter



6mm



View angle



90º/120º/140º



DOF



3~70mm/5~100mm



Articulation



360 ° full way articulation



System operating temperature



-10~50



Storage temperature



-20~60



Relative humidity



Maximum 90%, no condensing



Degree of protection



Insertion tube (IP67)



Lens Illumination



LED Integrated lighting



Insert Tube Materials



Flexible (tungsten braided tube)



Packing Case Weight



3.9kg



Packing  L*W*H



47.9*38.7*15.5cm










Product Details

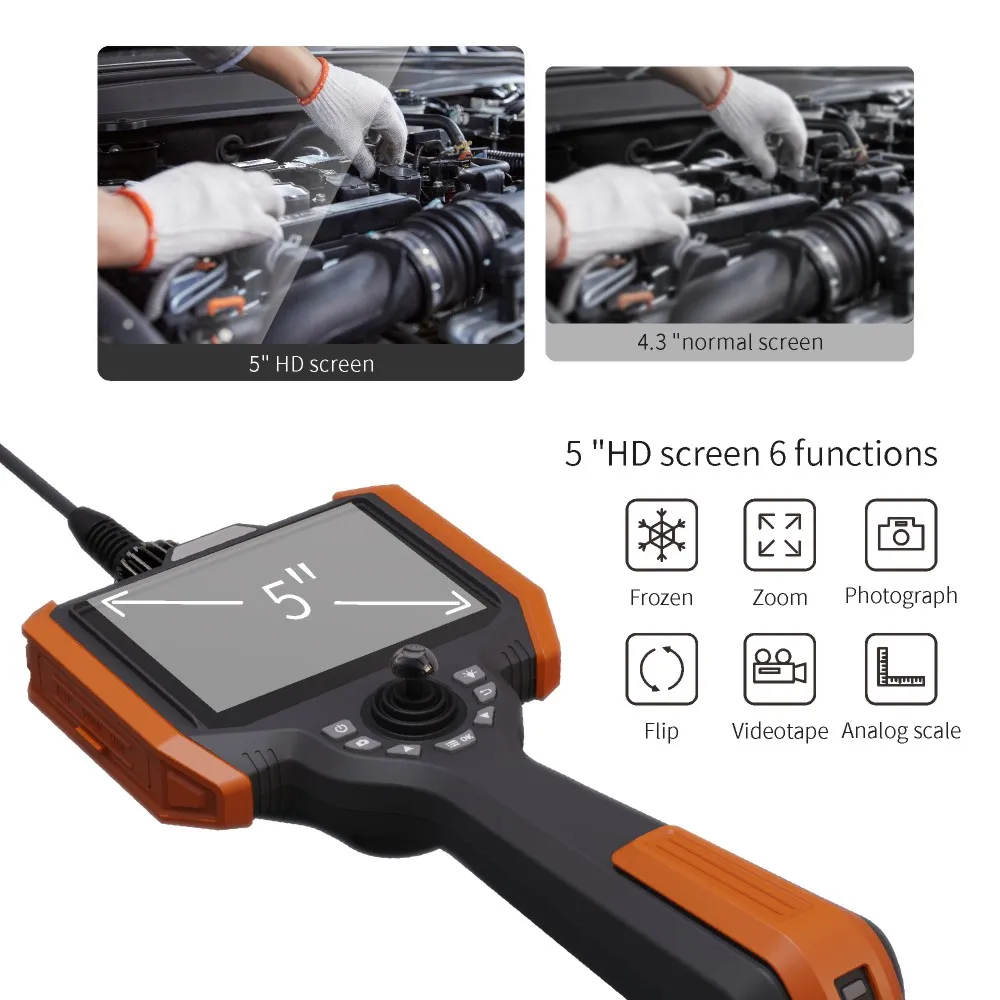

[5 inch high definition liquid crystal display] VSNDT Industrial Endoscopes use 5 inch HD LCD screen, and show you clearly 720P photo and video.

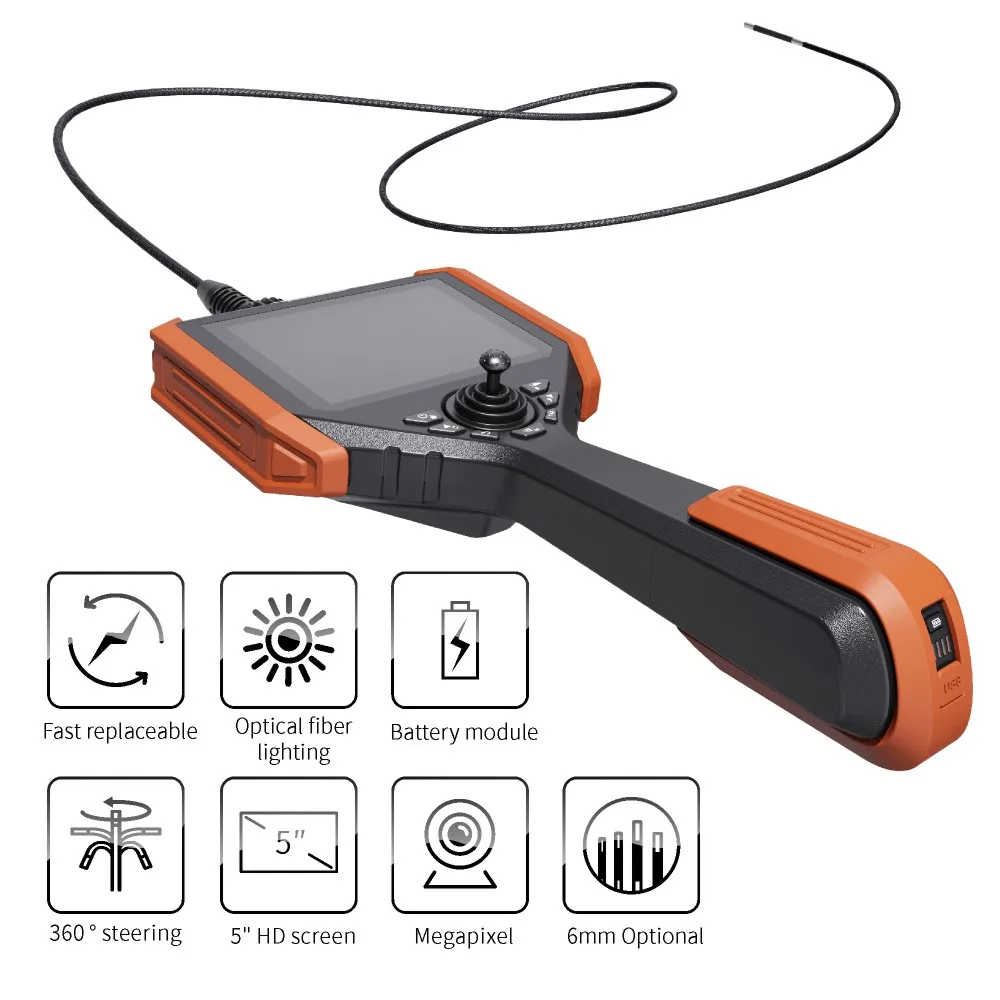

[6mm megapixel micro camera probe] VSNDT industrial endoscope adopts 6mm detection camera micro probe, so that it can easily enter various narrow and closed places, and megapixel can clearly and intuitively capture every detail. Meet different use needs.









[High-power rear LED optical fiber illumination] VSNDT industrial video mirror lens adopts high-power rear LED optical fiber illumination with 8-degree brightness adjustment to adapt to different dark conditions. Provides you with a clearer view.









[Bidirectional 360 ° articulation &high-density tungsten wire material] VSNDT industrial endoscope adopts damping design positioning, 360 ° lens rotation, which can freely control the lens direction, easily pass through narrow bending gaps, and view more flexibly. High tungsten wire weaving material has good durability and corrosion resistance.









[IP67 Waterproof and oil proof] VSNDT Industrial Endoscope snake tube has the performance ofheat onsulation and chemical corrosionp rotection line,and can easily cope with the working environment with oil and water stains.









[Dedicated rechargeable lithium battery pack] The VSNDT endoscope has a built-in dedicated rechargeable lithium battery pack, which supports up to 4 hours of use time and can be easily charged through the USB data cable. Easy to carry.

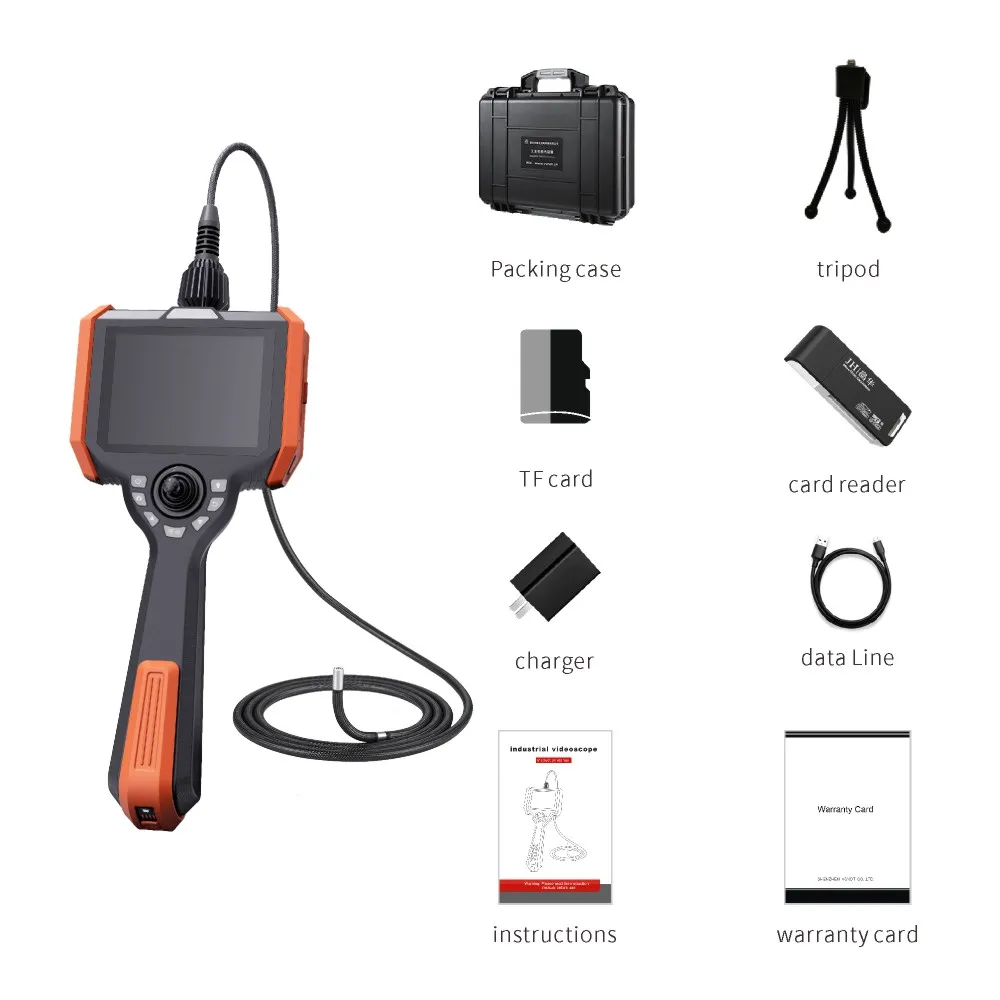

[Product list] Product list: Device host , Packing casa,tripod,TF card,card reader,charger,data line,instructions,warranty card,Probe wire
