HW CloudEngine S5735 S24T4XE C V2 24 портовый гигабитный коммутатор с портами 24*10/100/1000BASE T 4 * 10GE SFP
- Категория: >>>
- Поставщик: Chongqing Yujia Technology Co. Ltd.Chongqing Ltd.
Сохранить в закладки 1601296512923:
Описание и отзывы
Характеристики
Product Description
The S5700 series Ethernet switches are next-generation energy-saving switches developed by HW to meet the demand for high-bandwidth access and Ethernet multi-service aggregation. Based on
cutting-edge hardware and HW Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.
cutting-edge hardware and HW Versatile Routing Platform (VRP) software, the S5700 provides a large switching capacity, high reliability (double power slots and hardware Ethernet OAM), and high-density GE ports to accommodate 10 Gbit/s upstream transmissions. It also supports Energy Efficient Ethernet (EEE) and iStack. The S5700 can be used in various enterprise network scenarios. For example, it can function as an access or aggregation switch on a campus network, a gigabit access switch in an Internet data center (IDC), or a desktop switch to provide 1000 Mbit/s access for terminals.
Part Number | 98012394 |
Model | S5735-S24T4XE-C-V2 |
Description | S5735-S24T4XE-C-V2 (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, 2*12GE stack ports, enhanced corrosion protection, without power module) |

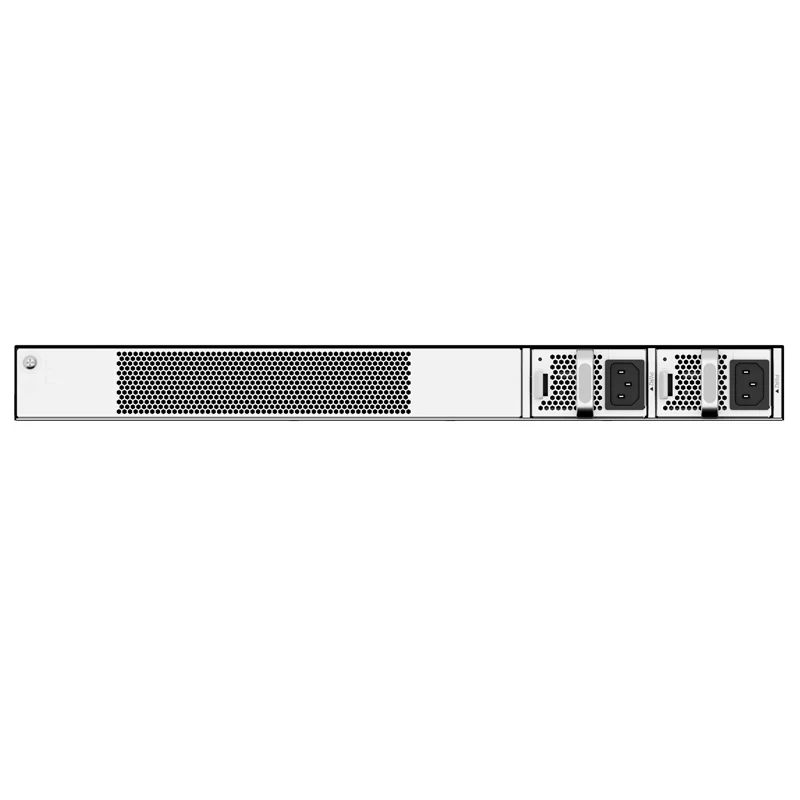

Details Images
Specification
Chassis material | Metal |
Height [mm] | 43.6 mm |
Depth [mm] | 420.0 mm |
Wide [mm] | 442.0 mm |
Chassis height [U] | 1 |
Weight with packaging [kg(lb)] | 7.48 kg (16.49 lb) |
Weight without packaging [kg(lb)] | 4.34 kg (9.57 lb) |
Maximum power consumption [W] | 33.10 W (with two 80 W AC power modules) |
Typical power consumption [W] | 26.20 |
Heat dissipation mode | Natural heat dissipation at room temperature, air cooling for heat dissipation at high temperature, and intelligent fan speed adjustment |
Maximum heat dissipation [BTU/hour] | 112.94 (with two 80 W AC power modules) |
Typical heat dissipation [BTU/hour] | 89.40 |
Power supply mode | Pluggable power supply |
Input voltage range [V] | AC input: 90–290 V AC; 45–65 Hz |
Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
Number of power slots | 2 |
Number of card slots | 0 |
Memory | 2 GB |
Flash memory | Physical space: 1 GB |
Redundant power supply | 1+1 |
Types of fans | Built-in |
Noise at normal temperature (acoustic power) [dB(A)] | The device is silent and has fans. At room temperature, the fans stop running after the device is registered. |
Noise at normal temperature (acoustic pressure) [dB(A)] | The device is silent and has fans. At room temperature, the fans stop running after the device is registered. |
Airflow direction | Air flows in from the left, front, and right sides and exhausts from the rear in high-temperature environments. |
Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). |
Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
MTBF [year] | 168.93 |
MTTR [hour] | 2 |
Availability | > 0.99999 |
Maximum number of physical ports on the entire device | 30 |
Maximum number of 100GE ports | 0 |
Maximum number of 40GE ports | 0 |
Maximum number of 25GE ports | 0 |
Maximum number of 10GE ports | 4 |
Maximum number of GE ports | 28 |
Maximum number of FE ports | 24 |
10GE optical interface | 4 |
1000M electrical interface | 24 |
USB | Supported |
Console port | RJ45 |
Eth Management port | Not supported |
Service port surge protection [kV] | Common mode: ±7 kV |
Power supply surge protection | Differential mode: ±6 kV; common mode: ±6 kV |
RPS input | Not supported |
PoE | Not supported |
