Машина для лазерной резки металла 6 кВт 1500*6000 мм
- Категория: >>>
- Поставщик: Jinan Gold Mark Cnc Machinery Co. Ltd.Jinan Ltd.
Сохранить в закладки 1601296541714:
Описание и отзывы
Характеристики

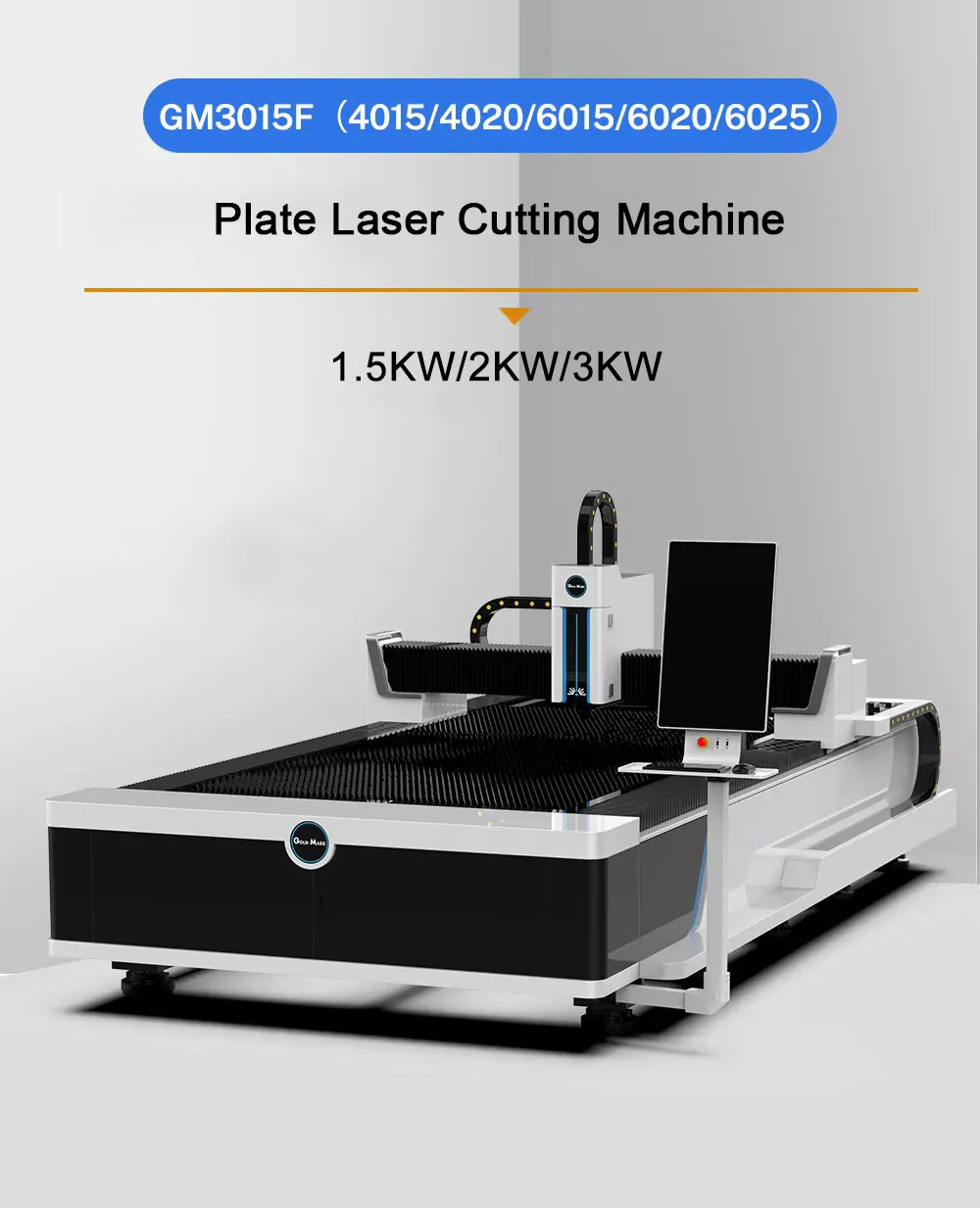

3015 Fiber laser cutting machine
Contact sales, get more free gifts and discount.
Product Overview
Why Choose US ?
A. 3 years warranty!
B.16 hours online service!
C. 20 years experience in laser machine area!
D. Factory direct sale, price cheap!
E. Support OEM and ODM service!
F. 16 hours work life span
C. 20 years experience in laser machine area!
D. Factory direct sale, price cheap!
E. Support OEM and ODM service!
F. 16 hours work life span
FEATURES AT A GLANCE
Front elevation
Left elevation
Right elevation
* Working Area: 3000*1500mm

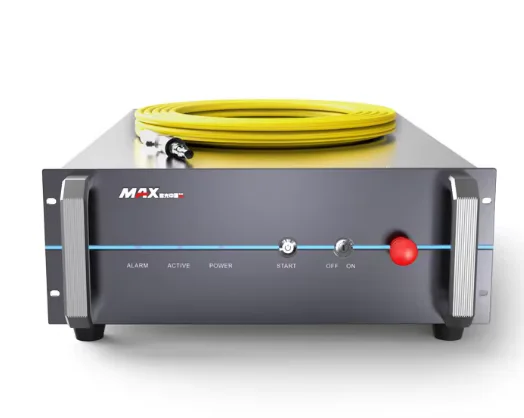

* Laser Source: MAX Raycus JPT IPG
* Control System: CYPCUT CNC Control System
* Laser Head: [SWISS] RAYTOOLS laser head
* Gear and Rack: [TAIWAN] YYC gear and rack
* Servo Motor: [Japan] Fuji Y axis and X axis and Z axis
* Machine Reducer: [Japan] Shimpo Reducer
* Machine Rail: [Taiwan] HIWIN square rail (Flangle Type)
* Electronic Components: [France] SCHNEIDER
* Pneumatic Components: [Japan] SMC Pneumatic Components
* Machine Screw: DLY screw

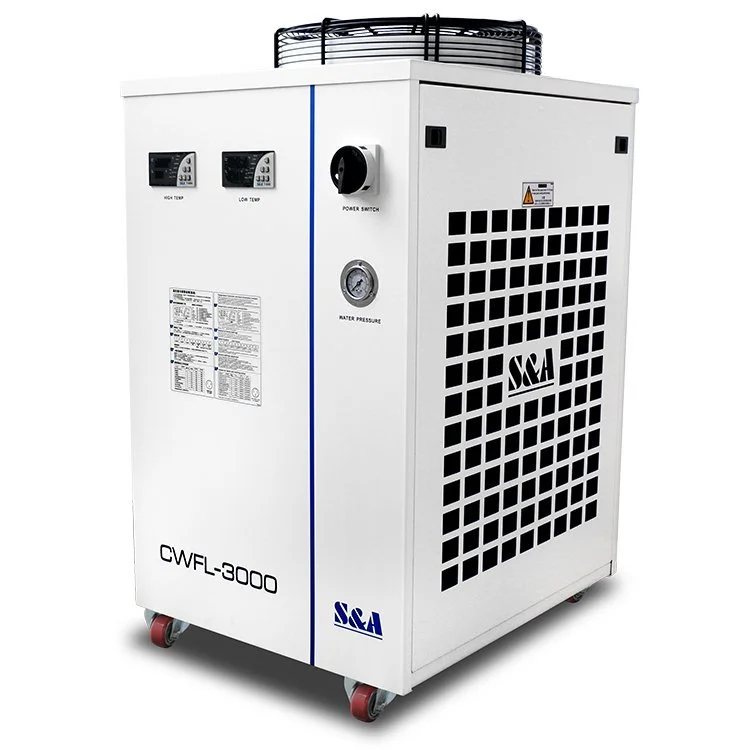

* Water Chiller: China best brand S&A water chiller
* Machine Bed: Tube welding machine bed
* Machine Beam: Aviation Aluminum beam (newest generation)
* Automatic Rail Lubrication System
* Dual temperature water cooling system & environmentally carbon.
* Laser Source: MAX Raycus JPT IPG
* Control System: CYPCUT CNC Control System
* Laser Head: [SWISS] RAYTOOLS laser head
* Gear and Rack: [TAIWAN] YYC gear and rack
* Servo Motor: [Japan] Fuji Y axis and X axis and Z axis
* Machine Reducer: [Japan] Shimpo Reducer
* Machine Rail: [Taiwan] HIWIN square rail (Flangle Type)
* Electronic Components: [France] SCHNEIDER
* Pneumatic Components: [Japan] SMC Pneumatic Components
* Machine Screw: DLY screw
* Water Chiller: China best brand S&A water chiller
* Machine Bed: Tube welding machine bed
* Machine Beam: Aviation Aluminum beam (newest generation)
* Automatic Rail Lubrication System
* Dual temperature water cooling system & environmentally carbon.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model | LM3015 |
2 | Laser power | 1KW 1500W 2KW 3KW |
3 | Dimension | 4600*2450*1700mm |
4 | Working area for metal sheet | 3000*1500mm |
5 | Y-axis stroke | 3000mm |
6 | X-axis stroke | 1500mm |
7 | Z-axis stroke | 120mm |
8 | X/Y axis position accuracy | ±0.03mm |
9 | X/Y axis reposition accuracy | ±0.02mm |
10 | Max. Moving speed | 80m/min |
11 | Maximum acceleration | 1.0G |
12 | Max. Working capacity of sheet table | 900kg |
13 | Specified voltage and frequency | 380V/50Hz/60Hz/60A |
14 | Continuous working time | 24h |
PRODUCT CONFIGURATION

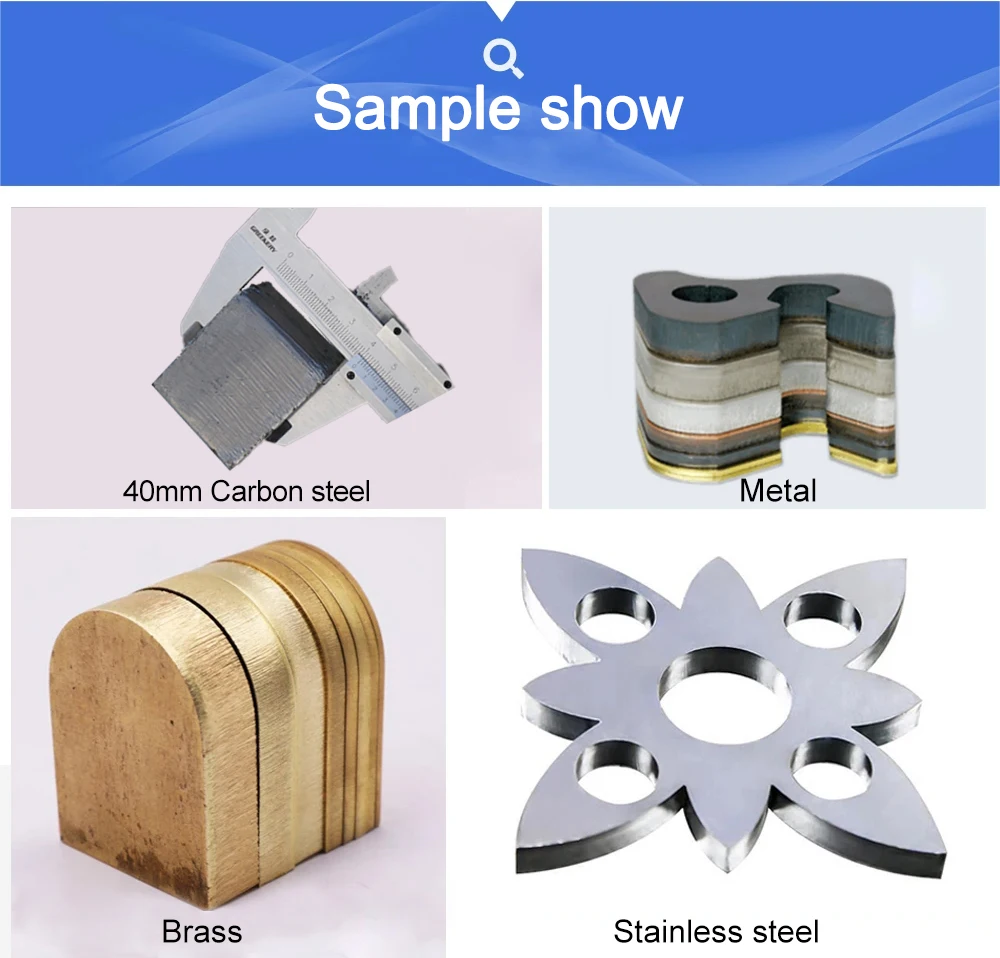

Sample show

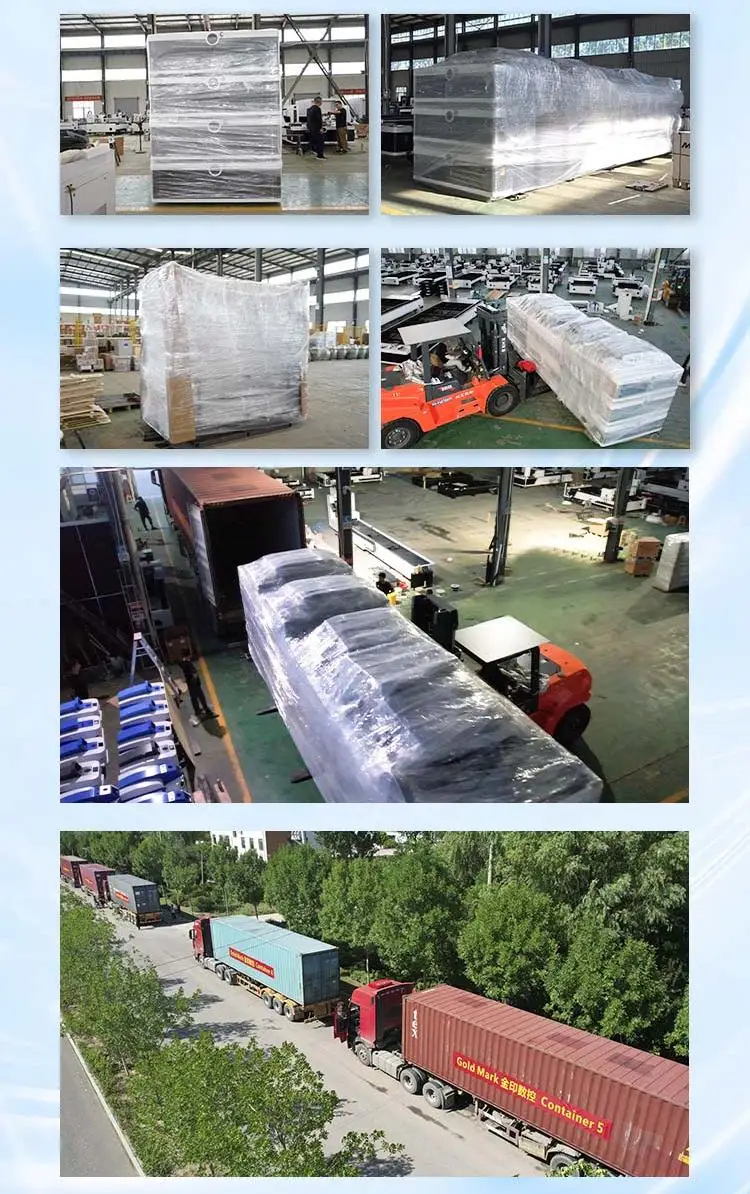

Packing & Delivery
1)Packaging:
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide
train transport, especially to Russia, Ukraine and other inland countries.
Whole film packaging machine; anti-collision package edge; fumigation-free plywood wooden box and pallets with iron binding belt.
2)Shipping:
We cooperate with the company whose experience in the ocean transportation will guarantee your machine safety. We also provide
train transport, especially to Russia, Ukraine and other inland countries.
Company Profile
FAQ
Q1:What is the cutting size of this machine?
A:1500*3000mm For plate and tube,it also can be customized as needed.
Diameter:20-215mm,Maximum length 6M Round/Square tube.
Q2:Is the cutting speed of the tube the same as cutting plate?
A: Cutting speed is similar, the maximum cutting speed is 60m/min.
Q3:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
Q4:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
Q5:Pro, please be sure to note that the price of this machine does not include the generator,because we support product
customization,different generator prices are not the same, for more information, welcome to contact us.
A:1500*3000mm For plate and tube,it also can be customized as needed.
Diameter:20-215mm,Maximum length 6M Round/Square tube.
Q2:Is the cutting speed of the tube the same as cutting plate?
A: Cutting speed is similar, the maximum cutting speed is 60m/min.
Q3:How long is your delivery time?
A: Generally it is a week days if the goods are in stock. or it is 15 working days if the goods are not in stock, it is according
to quantity.
Q4:What is your after-sale service?
A: Complete machine operation instruction manuals and videos,providing on-site training services.
7*24h, 30 technicians online technical support.
3-year warranty, parts can be replaced or repaired.
Q5:Pro, please be sure to note that the price of this machine does not include the generator,because we support product
customization,different generator prices are not the same, for more information, welcome to contact us.
Похожие товары
6 кВт 10 12 высокой мощности волоконно-лазерная машина для резки с поворотной и обменной платформой
16 800,00-17 500,00 $
3D Galvohead планшетный автоматический волоконно-лазерный гравировальный станок лазерный резак защита экрана на стекле кристаллах акриле

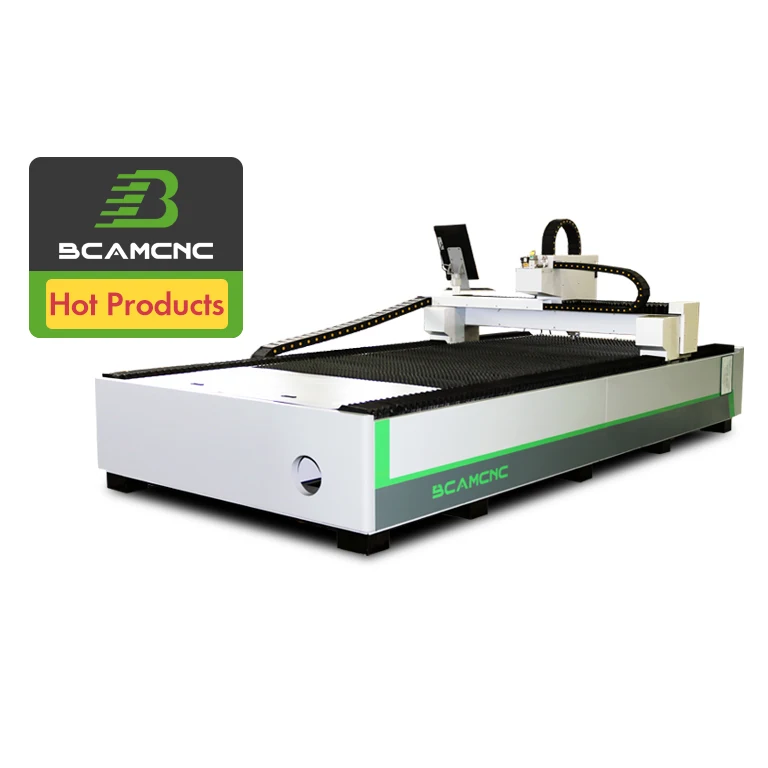

BCAMCNC волоконно-оптический лазерный режущий станок faiber 1530

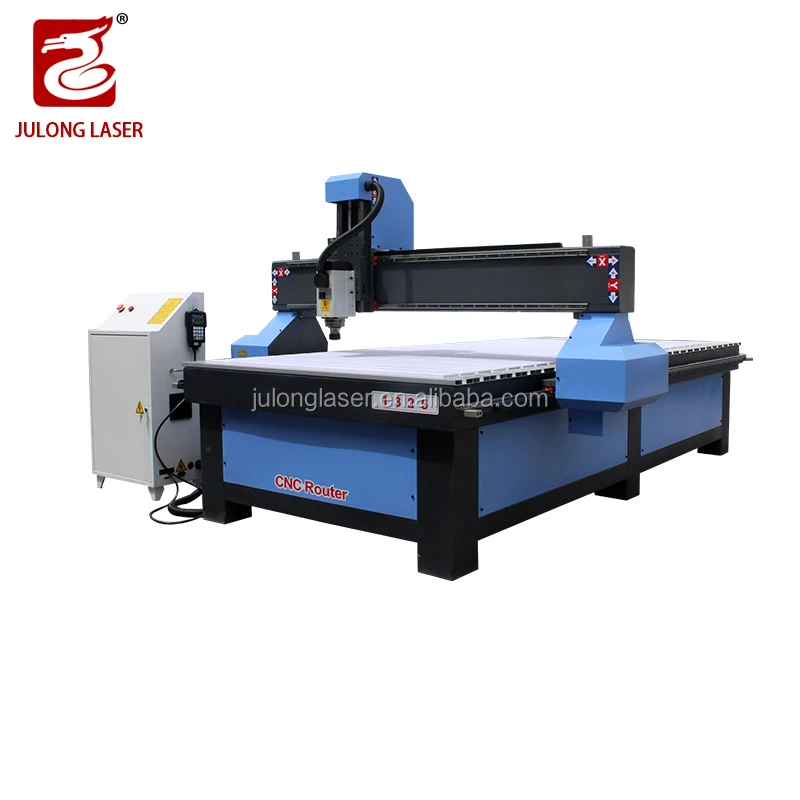

1325 4*8 футов гравировальный станок для деревообрабатывающих вывесок Заводская поставка 1300*2500*300 мм
1 750,00-2 100,00 $

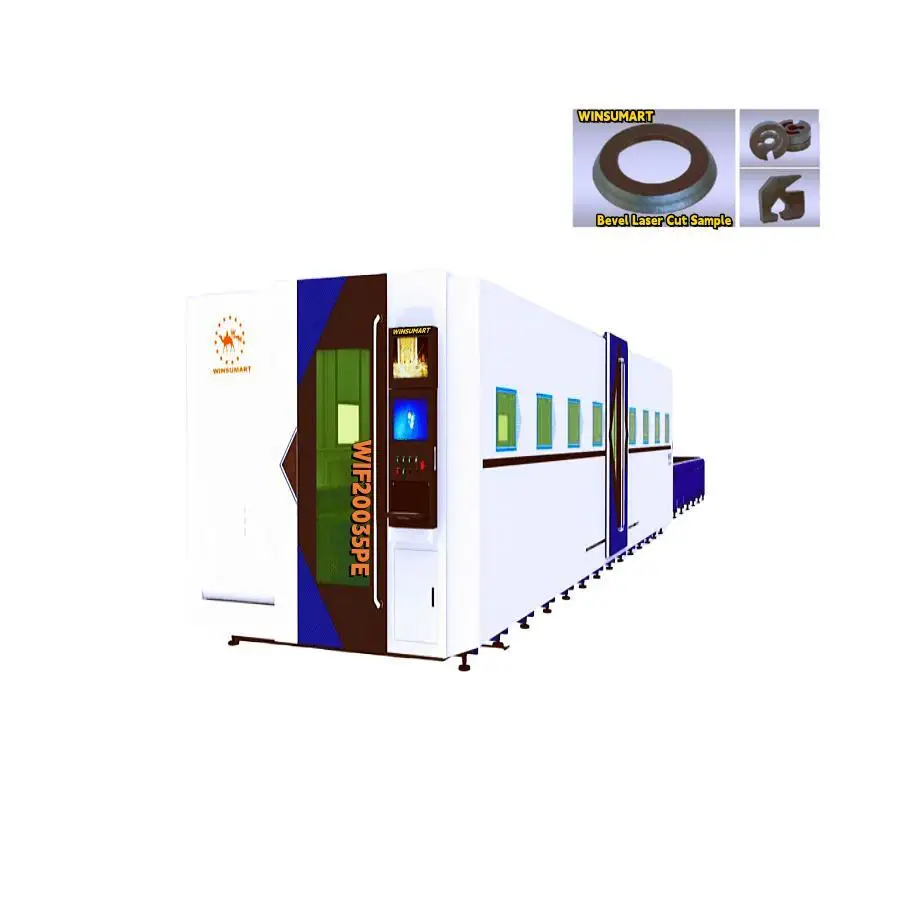

Быстрая доставка Winsumart современные технологии 3 кВт 6 8 волоконно-лазерная машина для резки меди и латуни с заводским контроллером автобуса
17 500,00-86 500,00 $

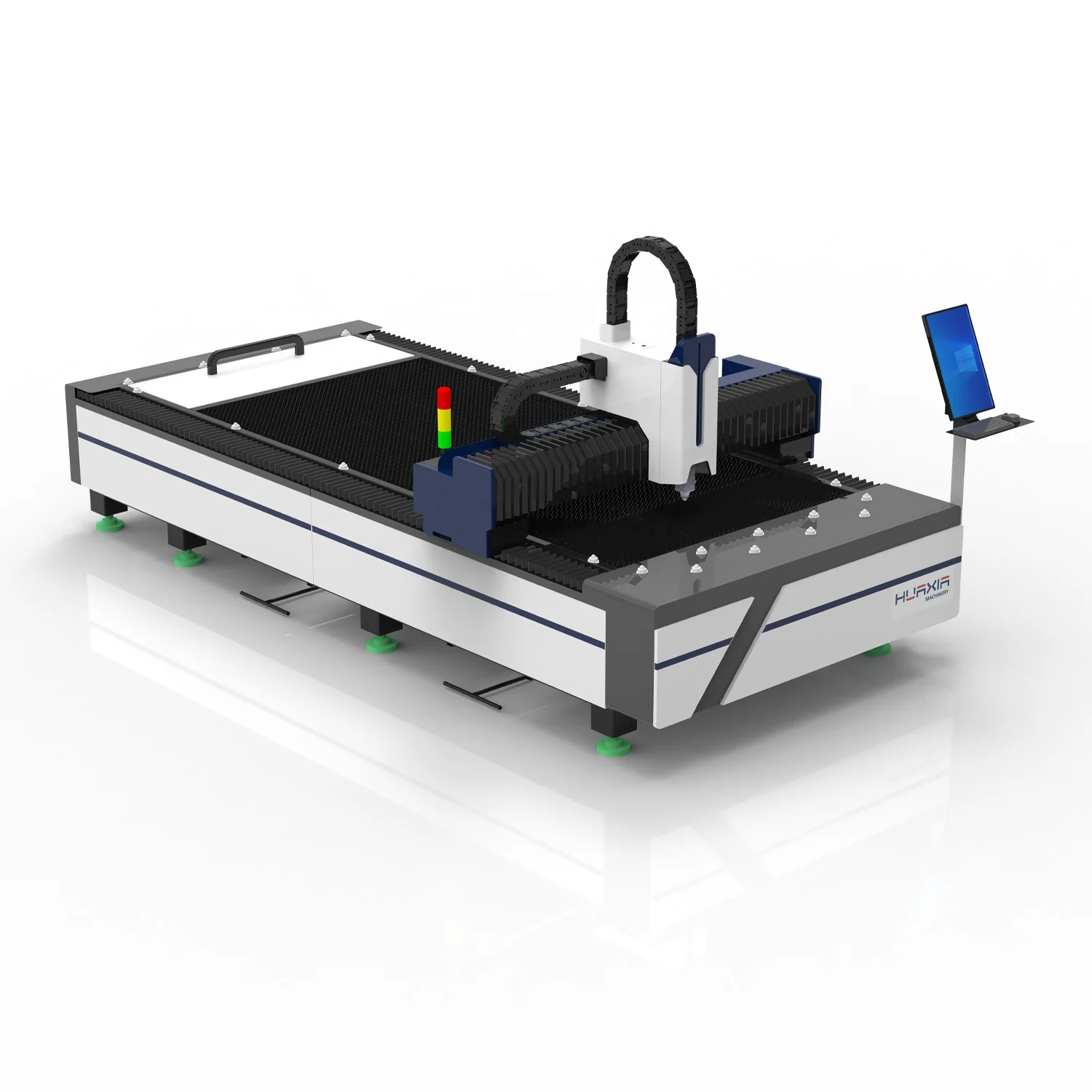

Новый продукт HUAXIA волоконно-лазерная резка мощность 2000 Вт 4000 6000 металлическая лазерная новый рабочая зона
