Цементная почвенная глина машина для изготовления кирпича резиновый автоматический экструдер производства кирпичей европейского уровня

Цементная почвенная глина машина для изготовления кирпича резиновый автоматический экструдер производства кирпичей европейского уровня

Категория: >>>
Поставщик: Nanjing Brickmac Engineering Co. Ltd.Nanjing Ltd.

Цена:*

Количество:

В избранное

Описание и отзывы

Характеристики

PRODUCTION OVERVIEW

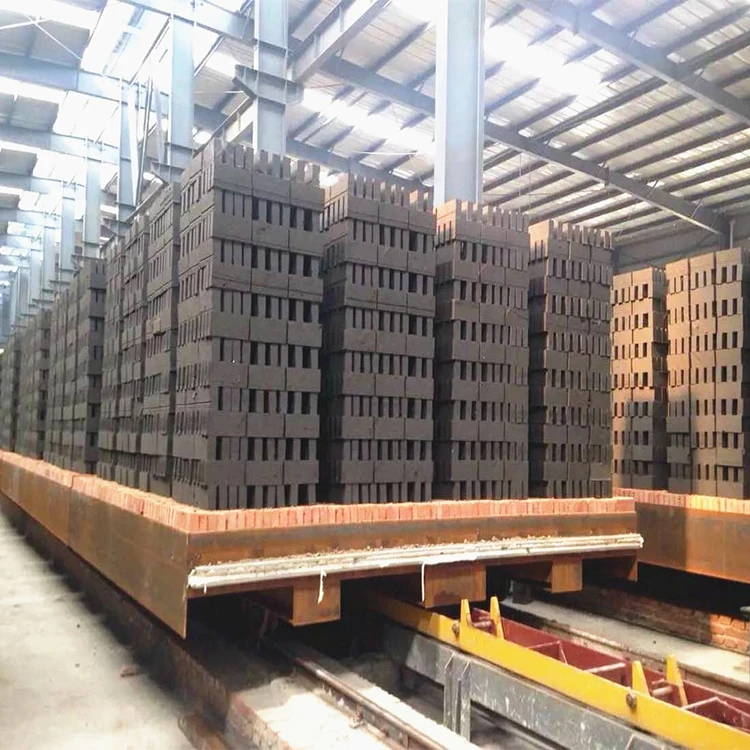

MODULAR TUNNEL KILN

MODULAR TYPE TUNNEL KILN

is based on a modular concept which combines the advantages of the well-established, durable wall and roof construction proven in hundreds of Tunnel kilns with a new type of quick construction method.

Due to the prefabricated wall elements, this kiln, which from its outward appearance is hardly distinguishable from a common tunnel kiln, could be erected within a fraction of the normal construction time – a great advantage in situations when a short construction time is unavoidable.

Moreover, the separate prefabrication of the modules allows the building site and the construction area to be kept almost free from building materials, easily accessible and clean.

Another advantage also contributed to convincing BRICKMAC module system: In case of a factory relocation the modular kiln construction system facilitates the non-destructive dismantling and the dispatch of the individual elements.

Scope of application:
Modern tunnel kiln is widely used in building materials manufacturing industries of all types of high-end ceramics, clay bricks, clay tiles and porous blocks, cement and other building materials extrusion, the kiln and handling system control are highly intellectualized and integrated, technology is tested by market, which assure stable performance and high efficiency.

FEATURES AT A GLANCE

QUICK CONSTRUCTION TIME

Short construction time: traditional tunnel kiln takes over 40 workers and 6-10 months for masonry work, while modular kiln takes merely 6-10 workers and 1-2 months.

COST SAVING

1)Light weight kiln body (total weight of tunnel kiln is approx. 300 tons), so the foundation are simple ans less concrete, while normal tunnel kiln use heavy refractory bricks which over 500 tons and need a lot of building materials. 2)Transport cost is less due to light weight.

3)Less than 10 technicians within two months construction period which could save a lot of labor cost ,tickets fee, accommodation, visa fee and management cost .

SUPERIOR FIRING PERFORMANCE

All modular tunnel kiln has standard assemblies , and all the firing holes with accurate position exactly as design which ensure the accurate operation. Normal masonry tunnel kiln: constructed by labor and not easy for quality control

ENERGY SAVING

the separate prefabrication of the modules allows the building site and the construction area to be kept almost free from building

materials, easily accessible and clean. Moreover, uniform module provides better sealing for kiln, ensure superior heat isolation and less energy consumption.

POSSIBILITY OF RELOCATION

Another advantage is in case of a factory relocation the modular kiln construction system facilitates the non-destructive dismantling and the dispatch

of the individual elements. The traditional tunnel kiln is not possible to relocation due to masonry structure.

PRODUCT SPECIFICATIONS

Model	Capacity	Firing Cycle (h)	Firing pass(%)	Suitable for the products
2.5 m (W) * 120 m (L)	150-180 Ton/Day	35 ~ 45	＞95	good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding
3.6 m (W) * 130 m (L)	180-260 Ton/Day	35 ~ 45	＞95	good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding
4.8 m (W) * 140 m (L)	260-350 Ton/Day	35 ~ 45	＞95	good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding
7.6m (W) * 150 m (L)	350-460 Ton/Day	35 ~ 45	＞95	good quality solid bricks/tiles，perforated bricks and porous blocks, or any kinds of Facing Bricks, wall cladding
