Сварщики Mig 220v многофункциональные сварочные 3 в 1 машины TIG MMA аппараты портативные
- Категория: >>>
- Поставщик: Beijing Aland Welding Co. Ltd.Beijing Ltd.
Сохранить в закладки 1601296913358:
Описание и отзывы
Характеристики
1. Introduction to welding machine
The MIG-180S2 series is a portable multi-functional welding machine with MIG/TIG/MMA that can meet a variety of needs. The welding machine is an air-cooled welding machine that supports gas and gasless welding. The welding machine has a handle for easier movement. ALAND Mechanical and Electrical Co., Ltd. can provide buyers with welding machines for a variety of welding needs, as well as accessories and consumables for various welding machines. Welcome to inquire at any time.

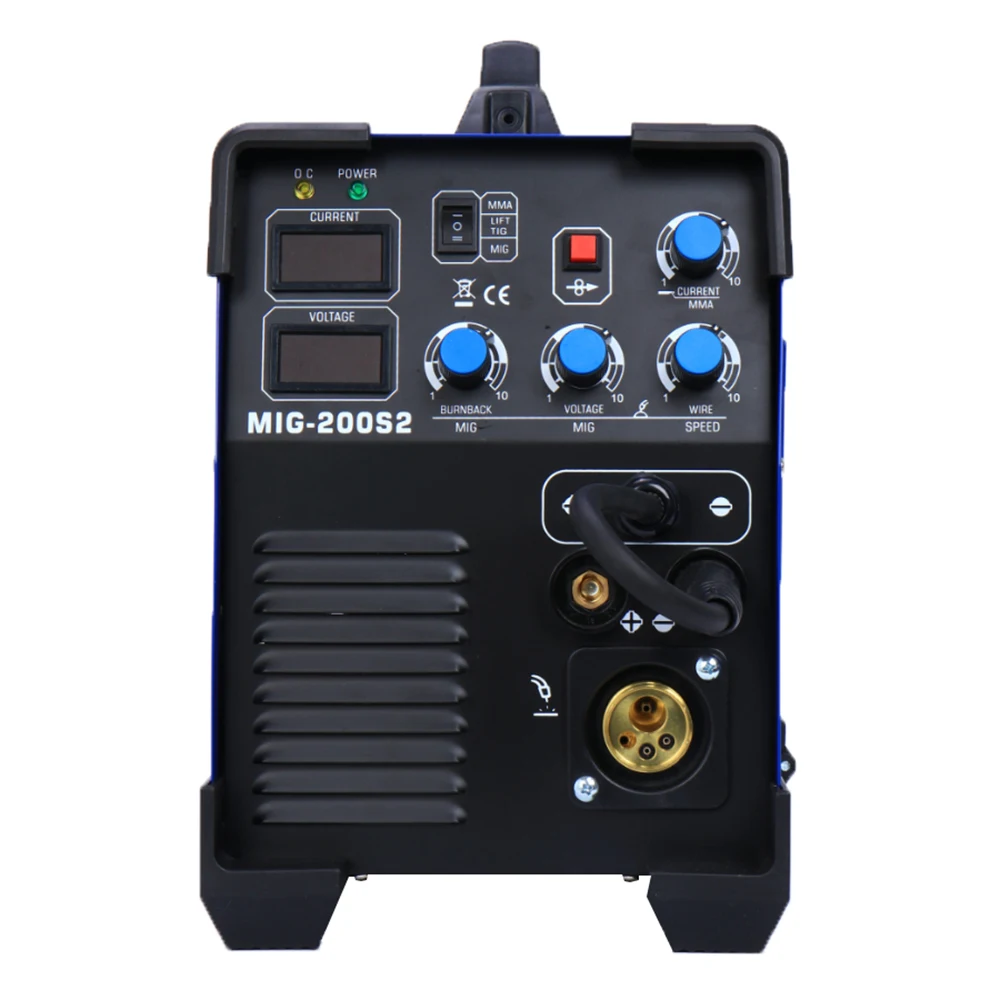

2. Introduction to machine panel
3. Attribute table
MIG-180S2 | MIG-200S2 | MIG-250S2 | |
Power supply voltage | AC110/230V±10%(50/60HZ) | AC110/230V±10%(50/60HZ) | AC110/230V±10%(50/60HZ) |
Max.Power consumption | 4.3KVA | 5.2KVA | 6.1KVA |
Rated input current | 110V:37.0A 230V:27.6A | 110V:41.1V 230V:38.0V | 110V:43.1A 230V:38.5A |
No-load voltage | 16.5-23V | 16.5-24V | 16.5-25.5V |
Wire Size | 0.8mm,0.9mm,1.0mm | 0.8mm,0.9mm,1.0mm | 0.8mm,0.9mm,1.0mm |
Protective class | IP21S | IP21S | IP21S |
Wire Feeder | Inside | Inside | Inside |
Weight | 14Kg | 14.5Kg | 14.5Kg |
Output current | 110V:30-130A 230V:40-180A | 110V:40-140A 230V:40-200A | 110V:40-150A 230V:40-250A |
Wire feeding speed | 2.5-14m/min | 2.5-14m/min | 2.5-14m/min |
Usable thickness | 0.8above(mm) | 0.8above(mm) | 0.8above(mm) |

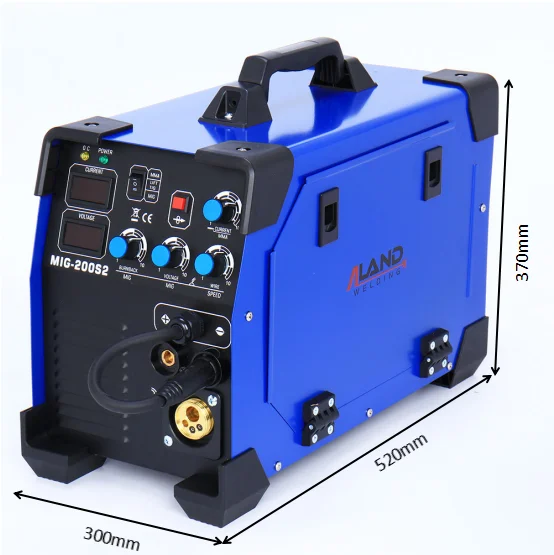

Dimension | 520mm*300mm*370mm | 520mmx300mmx370mm | 520mmx300mmx370mm |
Power factor | Insulation class | Duty Cycle at 40℃ | Efficiency |
0.85 | F | 0.3 | 0.85 |
4. Analysis of product buying points
* Adopt Advanced IGBT inverter and PWM technology.
* MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start.

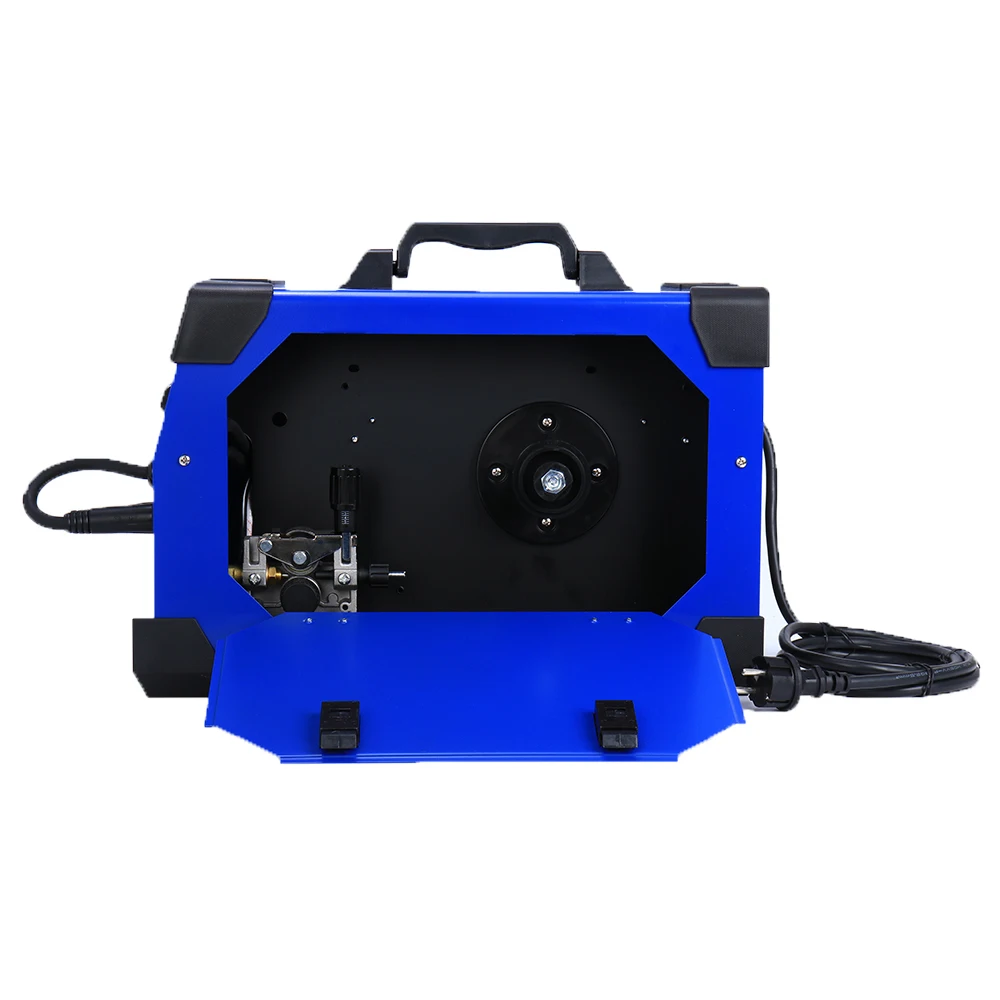

* Internal wire feeder, gear driven, support MAX 5kgs wire feeding
* Burn-back function is adjustable, easy to remove tip ball.
* With GAS(solid) and GASLESS (flux) wire function.
* 3PCstructure is available, high duty cycle and easy to repair.
* MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start.
* Internal wire feeder, gear driven, support MAX 5kgs wire feeding
* Burn-back function is adjustable, easy to remove tip ball.
* With GAS(solid) and GASLESS (flux) wire function.
* 3PCstructure is available, high duty cycle and easy to repair.
5. Product features

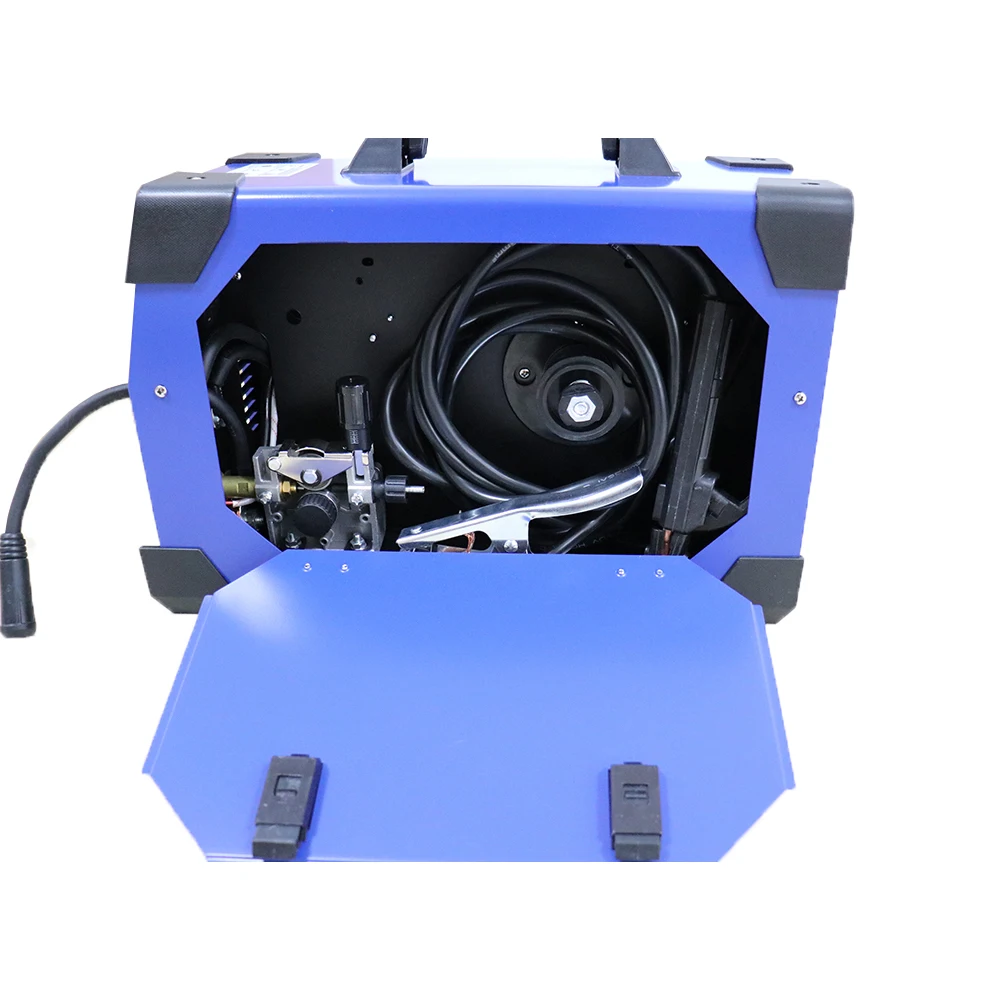

6. Product configuration
Serial Number | Name | Specification | Quantity |
1 | MlG torch | 3m | 1 |
2 | Electrode Holder | 3m | 1 |
3 | Earth Clamp | 3m | 1 |
7. Application scenarios
1、Market positioning: It belongs to civilian grade; small gas shielded welding market, such as containers, small steel structures,
doors and windows, guardrails and stage frames, sheet metal and other mechanical processing, manufacturing, furniture
manufacturing, electric/bicycle industry, fire-fighting equipment and other industries.
2、Suitable for welding carbon steel, stainless steel, alloy steel, etc., and can achieve rapid spot welding.
doors and windows, guardrails and stage frames, sheet metal and other mechanical processing, manufacturing, furniture
manufacturing, electric/bicycle industry, fire-fighting equipment and other industries.
2、Suitable for welding carbon steel, stainless steel, alloy steel, etc., and can achieve rapid spot welding.
8. Buyer comments
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding solutions.
We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality Products, Competitive Price,
On-time Delivery and Excellent Services.
On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
Похожие товары

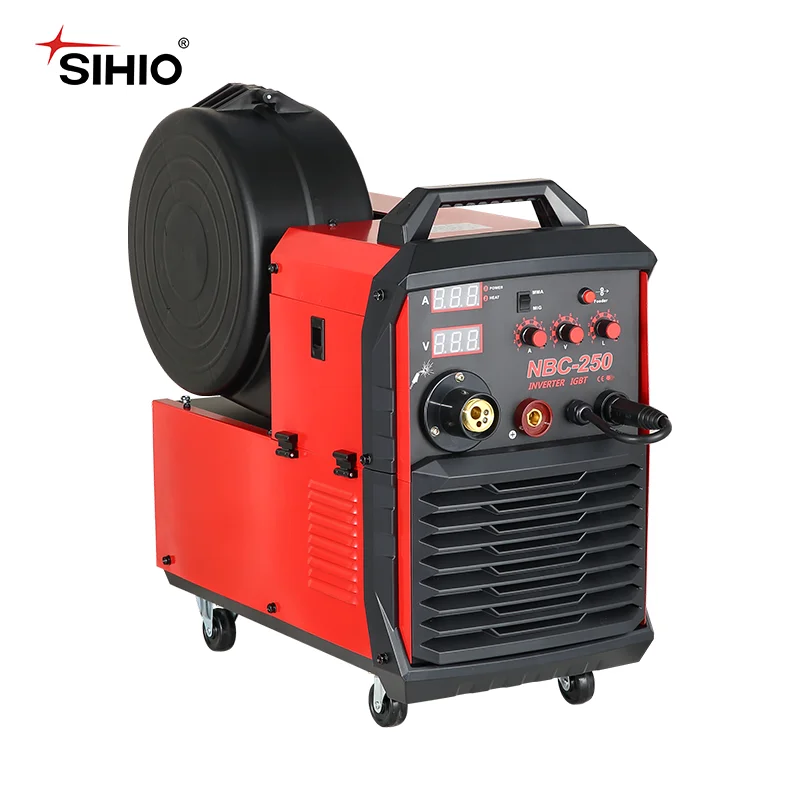

Прямая Продажа с завода в Китае высокое качество Igbt инвертор Co2 Mig СВАРОЧНЫЙ АППАРАТ Nbc
