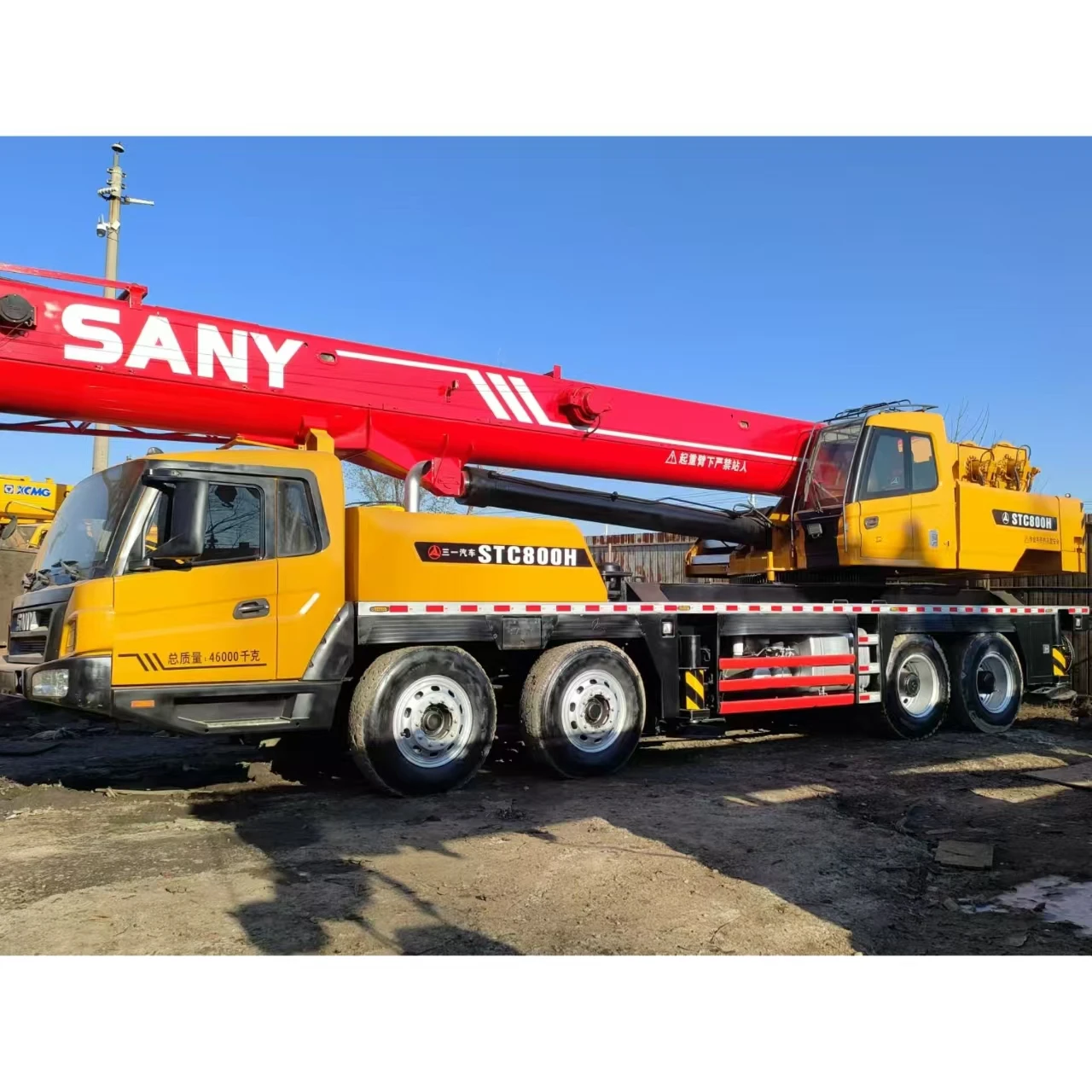

Подержанный STC800T5 80-тонный мобильный автомобильный кран подержанная строительная машина вездеходный строительное
4 651 114,72-4 675 213,76 ₽
Водонепроницаемые цифровые сервоприводы 20 кг до 35 металлические 25 т для радиоуправляемых автомобилей грузовиков вертолетов 180 градусов большой крутящий момент
- Категория: >>>
- Поставщик: PREMIERPRO DIGITAL TECHNOLOGY SDN BHDPREMIERPRO BHD
Сохранить в закладки 1601297218533:
Описание и отзывы
Характеристики
Product Description
Waterproof 20KG 25KG 30KG 35KG Servo 180 Degree Large Torque Digital Servo Metal Gears 25T Servo Arm For RC Car Truck Helicopter
Waterproof 20KG 25KG 30KG 35KG Servo 180 Degree 270 Degree Large Torque Digital Servo Metal Gears 25T Servo Arm For RC Car Truck

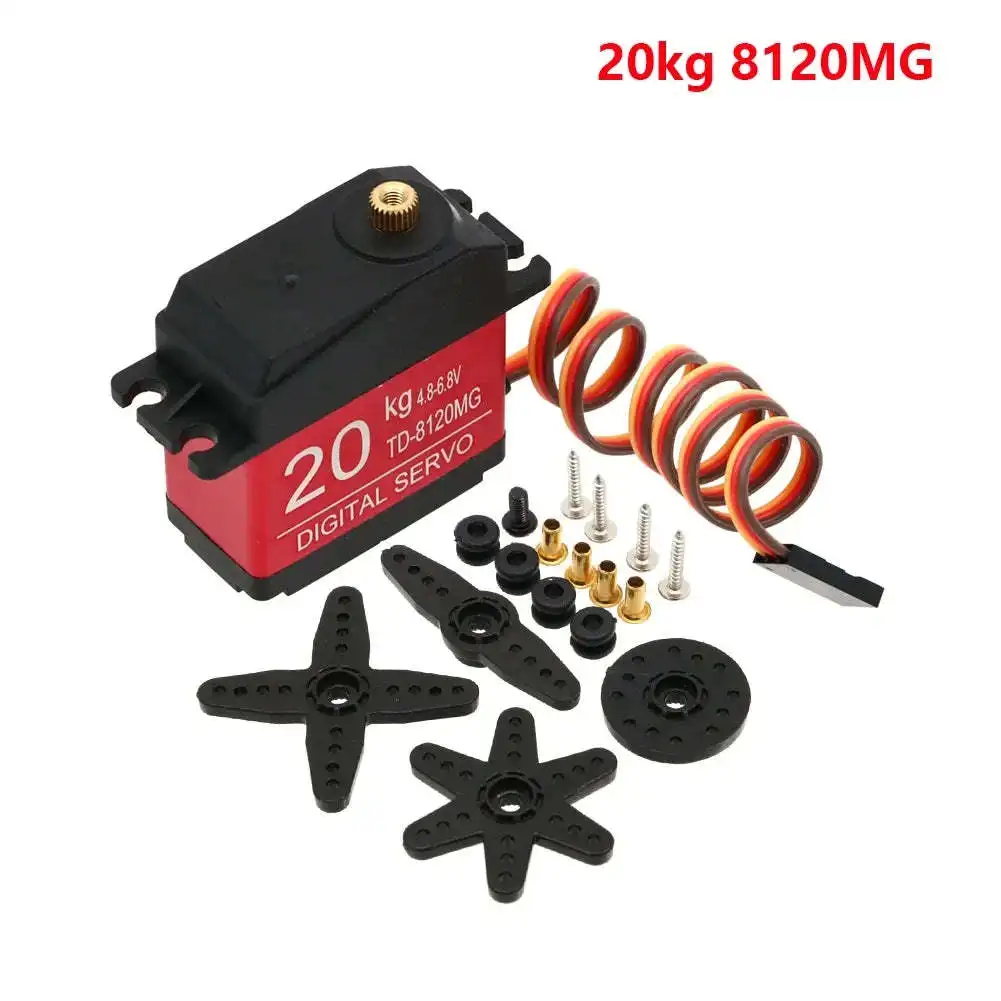

20KG Servo:
High-precision metal gears with hard anodizing
CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm, 6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg, 6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 /360degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital
Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

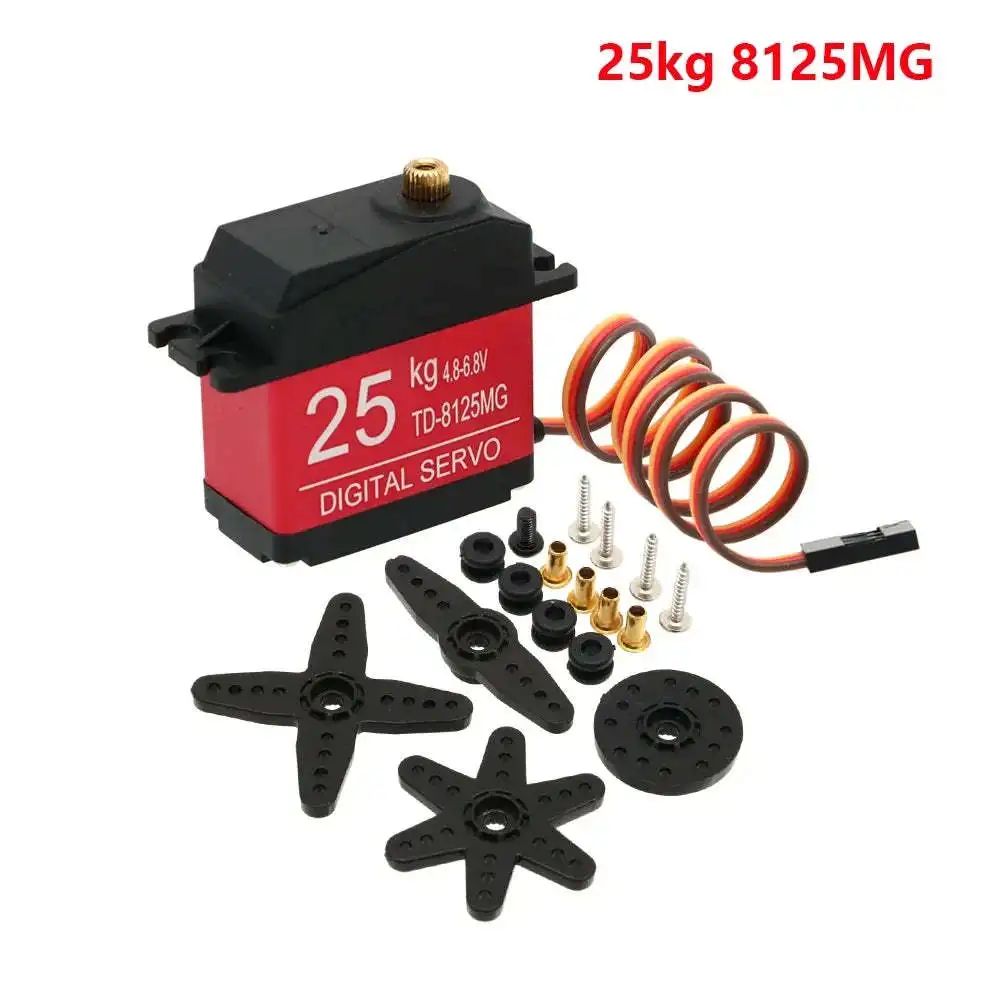

25KG Servo:
Apply Environmental Conditon:
1.Storage Temperature Range: -30°C～80°C
2.Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 60g±2g
3. Gear type: 5 Metal
4. Steering angle: 180 / 270 /360degree
5.Bearing: 2BB
6. Horn gear spline:
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Electrical Specification:
1.Operat voltage: 4.8V - 7.2V
2.No load speed: 0.18sec/60° - 0.14sec/60°
3.Running current: 140mA - 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% - 3400mA±10%
6.Working voltage range: 4.8 - 7.2V
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500～2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000～2000usec)

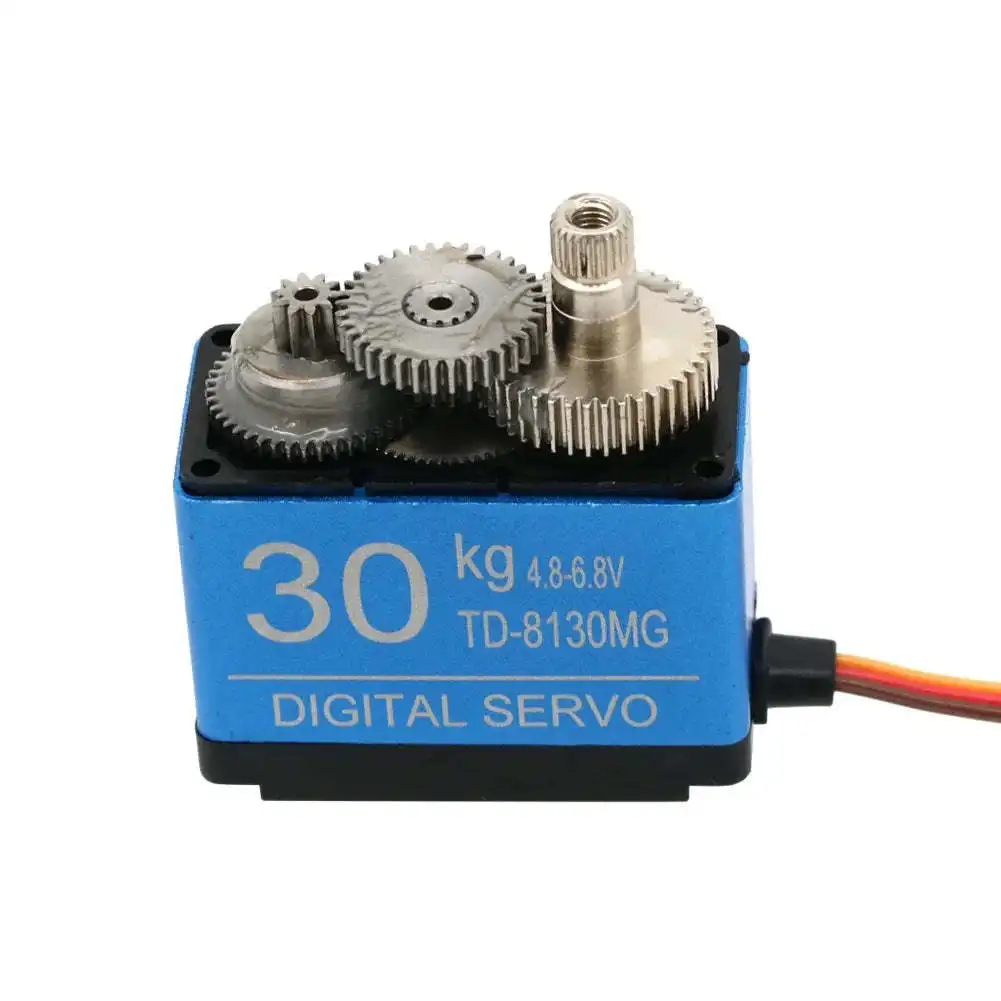

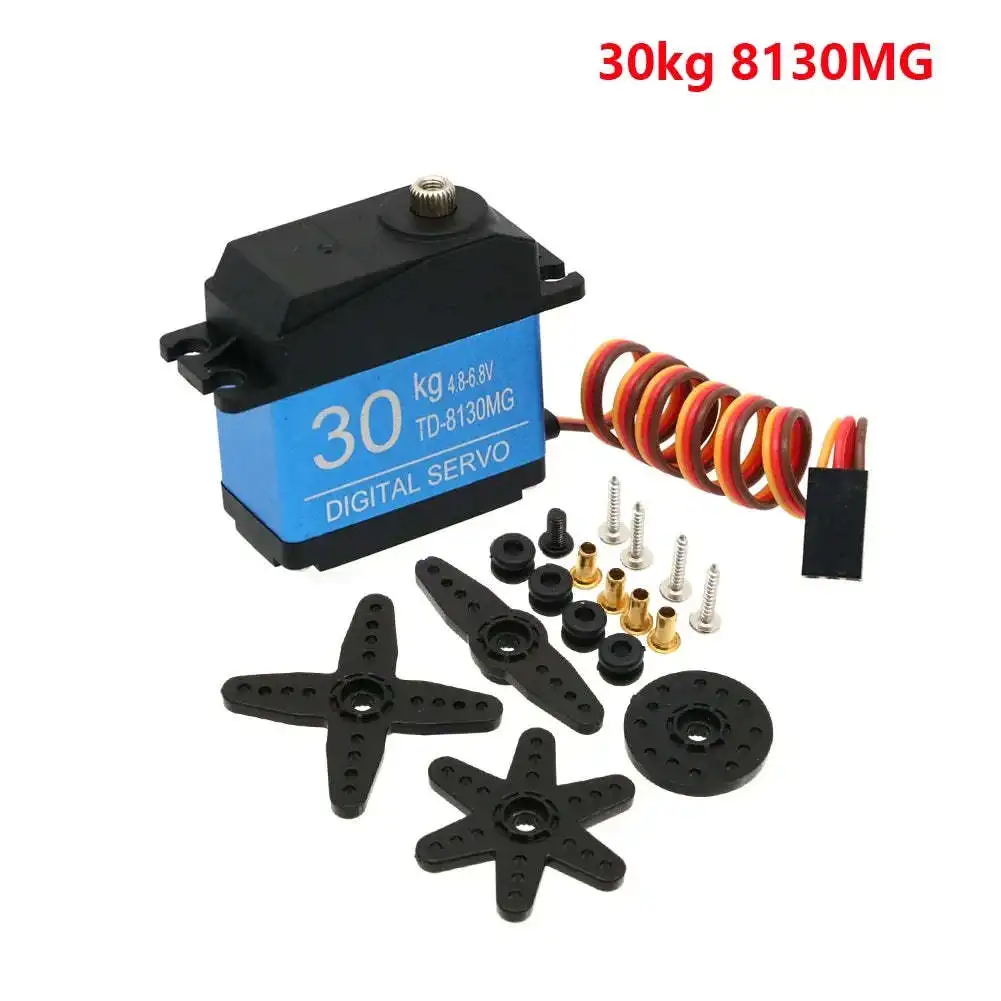

30KG Servo:
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: 25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Steering angle: 180 / 270 /360degree
5. Bearing:2BB
6. Horn type: Plastic, POM
7. Case: Engineering plastics(PBT)+Aluminum alloy
8. Connector wire320mm±5mm
9. MotorCarbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.24sec/60° - 0.17sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque:29.5kg.cm - 32kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4. Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)

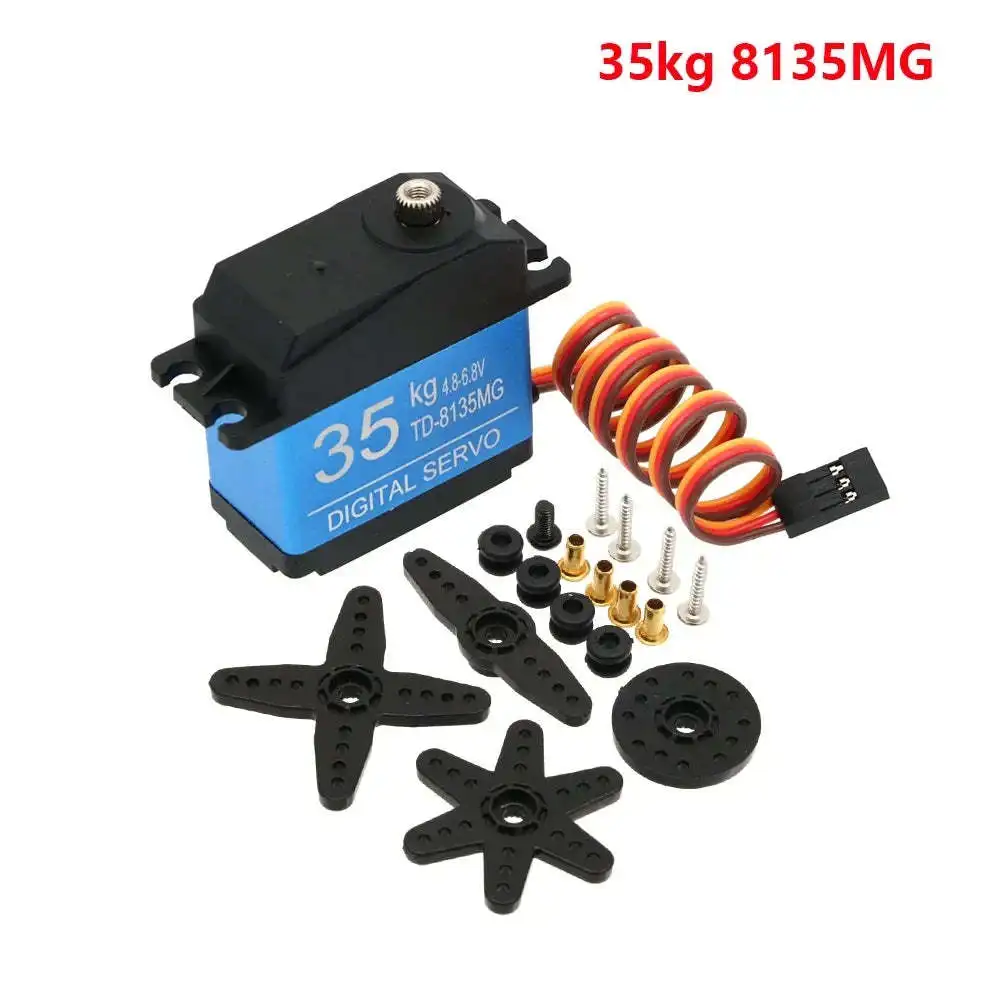

35KG Servo:
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1. Temperature Range: -25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4.Steering angle: 180 / 270 /360degree
5. Bearing: 2BB
6. Horn type: Plastic, POM
7. Case: Engineering plastics(PBT)+Aluminum alloy
8. Connector wire: 320mm±5mm
9. Motor: Carbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.32sec/60° - 0.22sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque: 32.7kg.cm - 35.2kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)
Packing and Shipping
Always Safe and Fast Shipping with U-angel |
We are working with reliable shipping companies, you order will be delivered to your |
We will find out the BEST logistics solutionsfor you! 2. By Air or by Sea, for FCL; Airport / Port receiving; 3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods; We choose thebest and safe packaging material to make sure your orders won’t be damaged during delivery. |
Company Profile
Our Company is an international trading Company of
Rc Simulator,
Rc Drone,
Rc boat,
RC Car & parts,
Rc Toys,
Motor and ESC,
RC Transmitter,
RC Servo,
Rc Antenna,
RC Flight Control,
RC GPS,
Battery Charger,
RC Frame,
FPV Camera,
RC Tool,
RC Connecter,
RC Propellers and other
RC accs and parts.
We have our own brand ,own factory. Also we sell many of other famous brand items. Our headquates is in Shenzhen. In order to cope with our rapidly expanding business,we estab-lished our operations in shenzhen in 2010 with office, warehouse and showroom. Hope to build Win-Win cooperation relationship with customers all over the world.
FAQ
Q1. How can we know the product quality?
A1: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
Q2. How can we guarantee quality?
A2: Always a pre-production
sample before mass production; Always final Inspection before shipment;
Q3. Is it the final price in the price list?
A3: No,the price depends on the qty to order and also the customize service. Let us talk in details about the order price.
Q4. Can you offer OEM/ODM service?
A4: Yes. The OEM/ODM is welcomed. We will be able to provide molding new product and OEM service , including
print logo , product color , customize package , change user manual...etc.
Q5. Why should you buy from us not from other suppliers?
A5: Our Company is an international trading Company of rc helicopter,rc drone,toys,electronic componts,accessoires and
spare parts. we have our own brand ,own factory.also we sell many of other famous brand items.
Q6. What services can you provide?
A6: Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow and Alibaba Trade Assurance.
Language Spoken:English,Chinese
Q7. How can I send inquiry?
A7: When you find something you are interested, you can click “CHAT NOW”, or you can leave your information to us.
Specifications
Attributes
| Variant Weight Unit | ,kg |
| Variant Grams | ,50.0 |
| Variant Inventory Policy | ,continue |
| color | 20KG |
| Variant Inventory Tracker | ,shopify |
| Variant Fulfillment Service | ,manual |
Похожие товары
Известный бренд SANY 25 тонн небольшой кран Подержанный автокран Телескопический рычаг для продажи STC250Известный
3 434 113,20-4 048 638,72 ₽
LHD Пикап 4x2 Новый Huang Hai N1S пикап 5MT мини-грузовик
1 289 298,64-1 650 784,24 ₽
Сексуальное длинное атласное платье Mikydely с открытой спиной и диагональным плечом однотонное
2 409,91 ₽
Промышленные перчатки латексные черные с защитой от кислот и
39,77-50,61 ₽
Одноразовые пластиковые салфетки для вилочных ножей ISO22000 и HACCP Сделано в

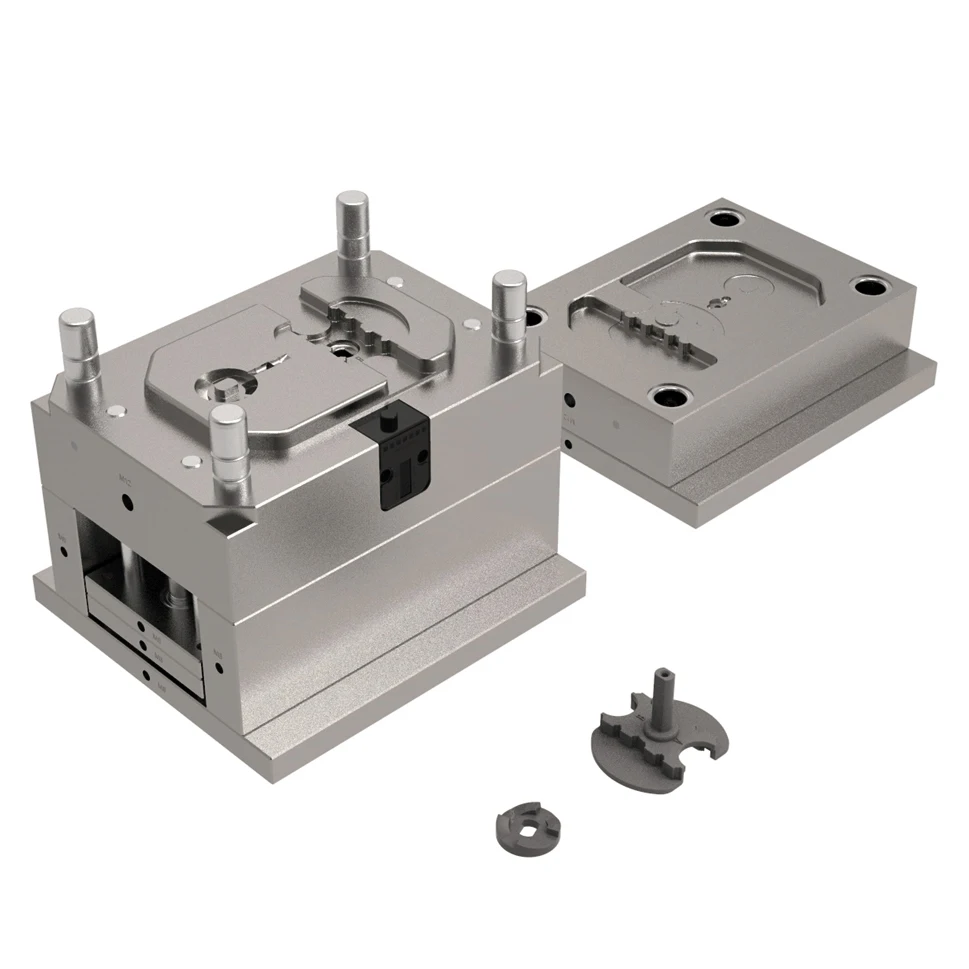

Услуги по изготовлению пресс-форм индивидуальный логотип бытовое производство пластиковых литьевых
