4 в 1 автоматическая заводская цена ручной лазерный сварочный аппарат красивый сварной шов
388 022,65-413 278,56 ₽
Лазерная сварочная машина 1500 Вт 2000 3000
- Категория: >>>
- Поставщик: Shandong Igolden CNC Technology Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601297465730:
Описание и отзывы
Характеристики

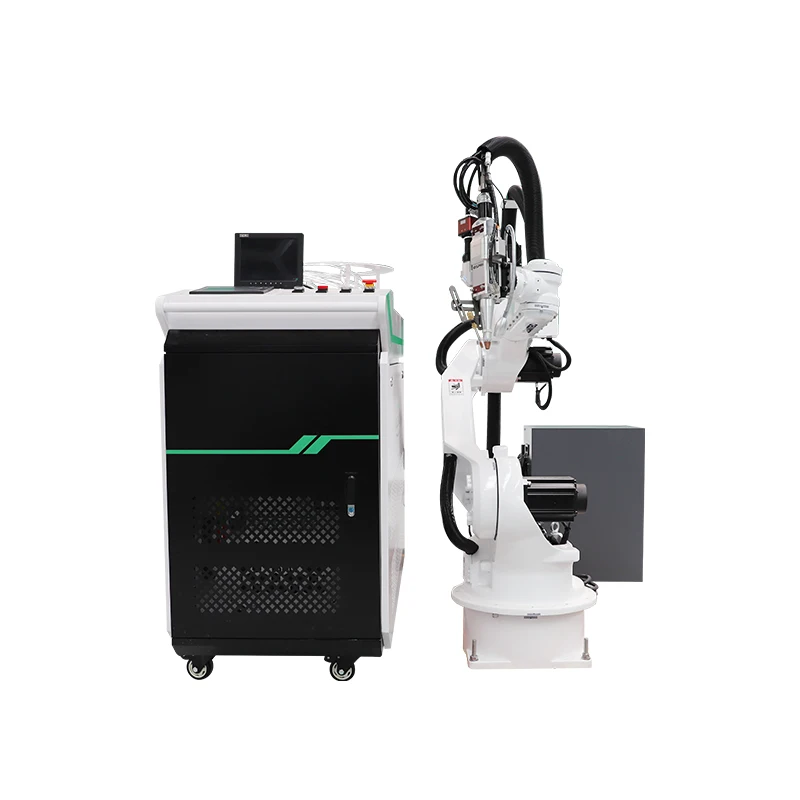

Automatic Fiber Laser Welding Metal 1000w 2000w Robot Fiber Laser Welding Machine
Products Description
OUR ADVANTAGE
1.Improve the labor intensity of workers, can work in harmful environment.
2.Shorten the production preparation cycle, reduce enterprise investment.
3.Stabilize and improve the welding quality of work pieces.
4.Reduced requirements for workers to operate skills.
5.Simple operation, convenient for users.
Product Parameters
Model | iGWL-RW- 1500 | iGWL-RW- 2000 | iGWL-RW- 3000 | ||
Laser power | 1500W | 2000W | 3000W | ||
Laser wavelength | 1080±10nm | ||||
Robot | FANUC--Six-axis welding robot | ||||
Maximum load on wrist | 12KG | ||||
Repositioning accuracy | ±0.03mm | ||||
Lower arm | J1 | 340º/370º | |||
J2 | 235º | ||||
J3 | 455º | ||||
Upper arm | J4 | 380º | |||
J5 | 380º | ||||
J6 | 900º | ||||
Lower arm | J1 | 260º/s | |||
J2 | 240º/s | ||||
J3 | 260º/s | ||||
Upper arm | J4 | 430º/s | |||
J5 | 450º/s | ||||
J6 | 720º/s | ||||
Thickness of welding material | ≤4mm | ≤6mm | ≤8mm | ||
Welding gap requirements | ≤0.3mm | ||||
Voltage | 380V±10% | ||||
Total power | ≤8kw | ≤10kw | ≤12kw | ||
Gross weight | 200KG | ||||
Details Images
JPT LASER
We use advanced fiber lasers with a service life of more than 10w hours, low energy consumption, low failure rate, flexible fiber
up to 10-15m, flexible and convenient, outdoor welding, equipped with a hard protective layer.
up to 10-15m, flexible and convenient, outdoor welding, equipped with a hard protective layer.

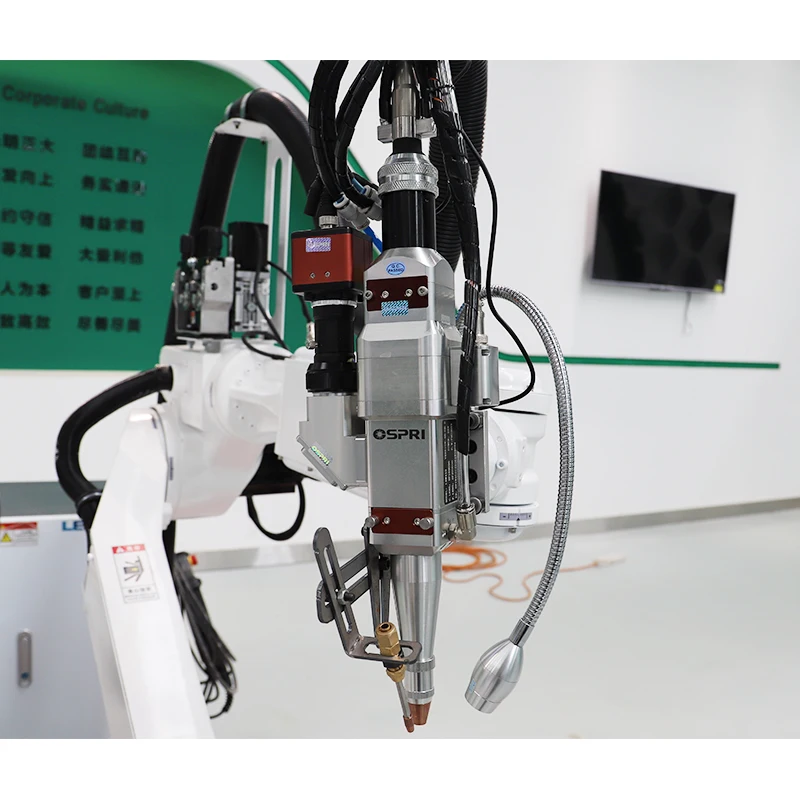

WSX PROFESSIONAI WELDING HEAD
1. This welding head has strong advantages in aluminum alloy welding and medium power welding applications, and it is a cost
effective welding head.
effective welding head.
2. The welding head uses a motor to drive the X, Y axis vibrating lens, with a variety of swing modes,
and the swing welding allows the workpiece to have irregular welds, larger gaps and other processing parameters, which can significantly improve the welding quality.
3. The internal structure of the welding head is completely sealed, which can prevent the optical part from being polluted by dust.
4. The protective lens adopts a drawer type structure, which is easy to replace.
5. It can be equipped with various lasers with QBH connectors.
and the swing welding allows the workpiece to have irregular welds, larger gaps and other processing parameters, which can significantly improve the welding quality.
3. The internal structure of the welding head is completely sealed, which can prevent the optical part from being polluted by dust.
4. The protective lens adopts a drawer type structure, which is easy to replace.
5. It can be equipped with various lasers with QBH connectors.
workbench, it can realize fully automatic welding with one clamping.
PRODUCT DETAILS
MATERIAL USED: stainless steel, carbon steel, galvanized sheet, aluminum alloy, copper, etc.
APPLICABLE INDUSTRIES: widely used in many new energy industries such as auto parts, stainless steel kitchenware, sheet metal processing, electronic chassis, door and window guardrails, steel structure industry, animal husbandry industry, furniture industry, hardware industry,etc.

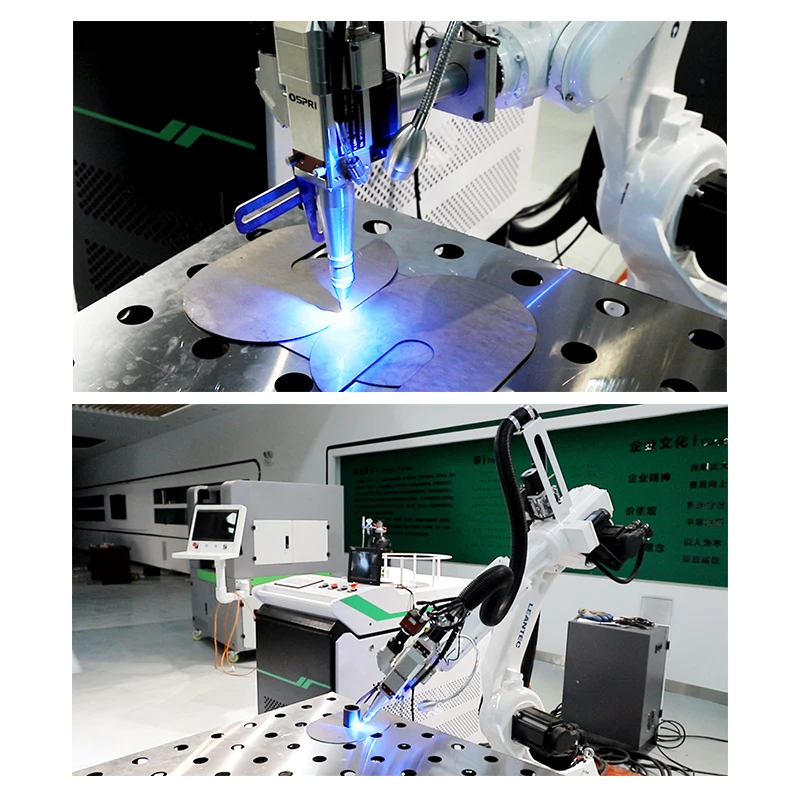

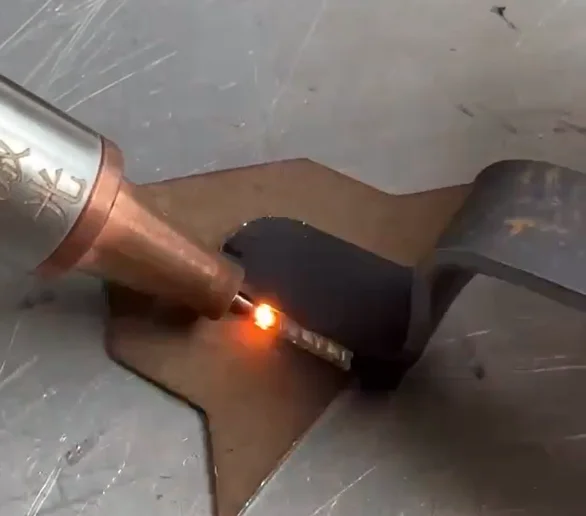

Sample
Suitable for welding of stainless steel, iron sheet, aluminum, copper, alloy, steel, diamond equivalent materials or dissimilar materials, cabinets, kitchens, stair elevators, shelves, ovens, stainless steel doors and windows guardrails, distribution boxes,Stainless steel household and other industries.
Why Choose Us
FAQ
Q1: How do I choose the right power?
A1: The power of the machine is determined by materials and thickness processed. You can tell us materials and thickness you want to cut, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
A1: The power of the machine is determined by materials and thickness processed. You can tell us materials and thickness you want to cut, our professional technicians will recommend the most suitable power for you.
Q2: If we have special needs and want to customize the machine, is this possible?
A2: Yes, please send us your requirements and our engineers will provide you with the suitable solution.
A3: Yes, of course we can. Our products have been shipped to dozens of countries and regions in the world, and we are very experienced. You can tell us the nearest port to you and the dedicated manager will check the freight for you and help you handle subsequent transportation.
Recommend Products
Похожие товары
2000 Вт красивый сварочный шов быстрая скорость автоматическая подача проволоки многоугольный ручной лазерный аппарат Новый по металлу

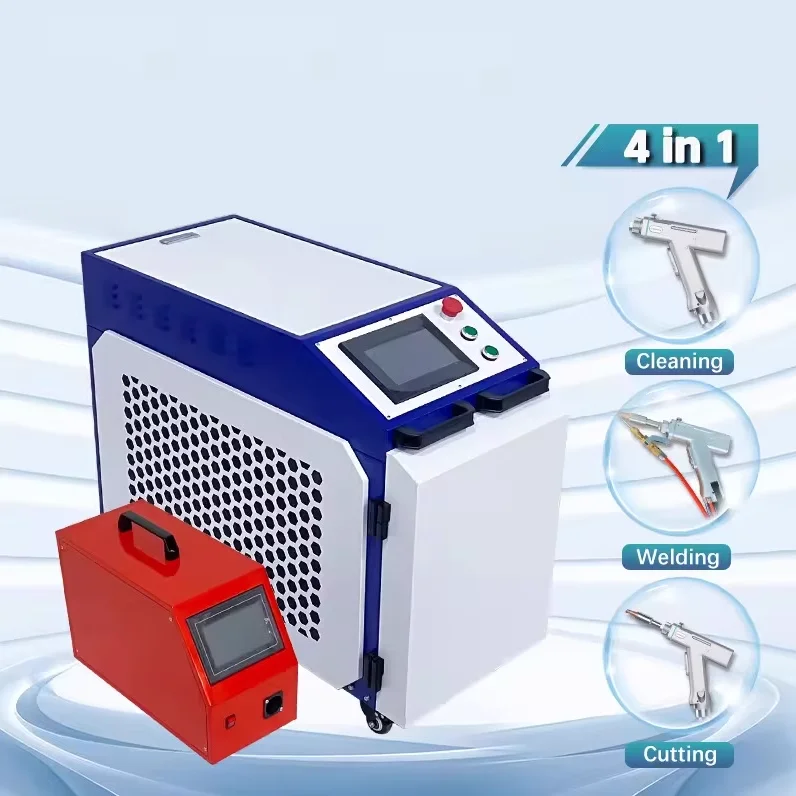

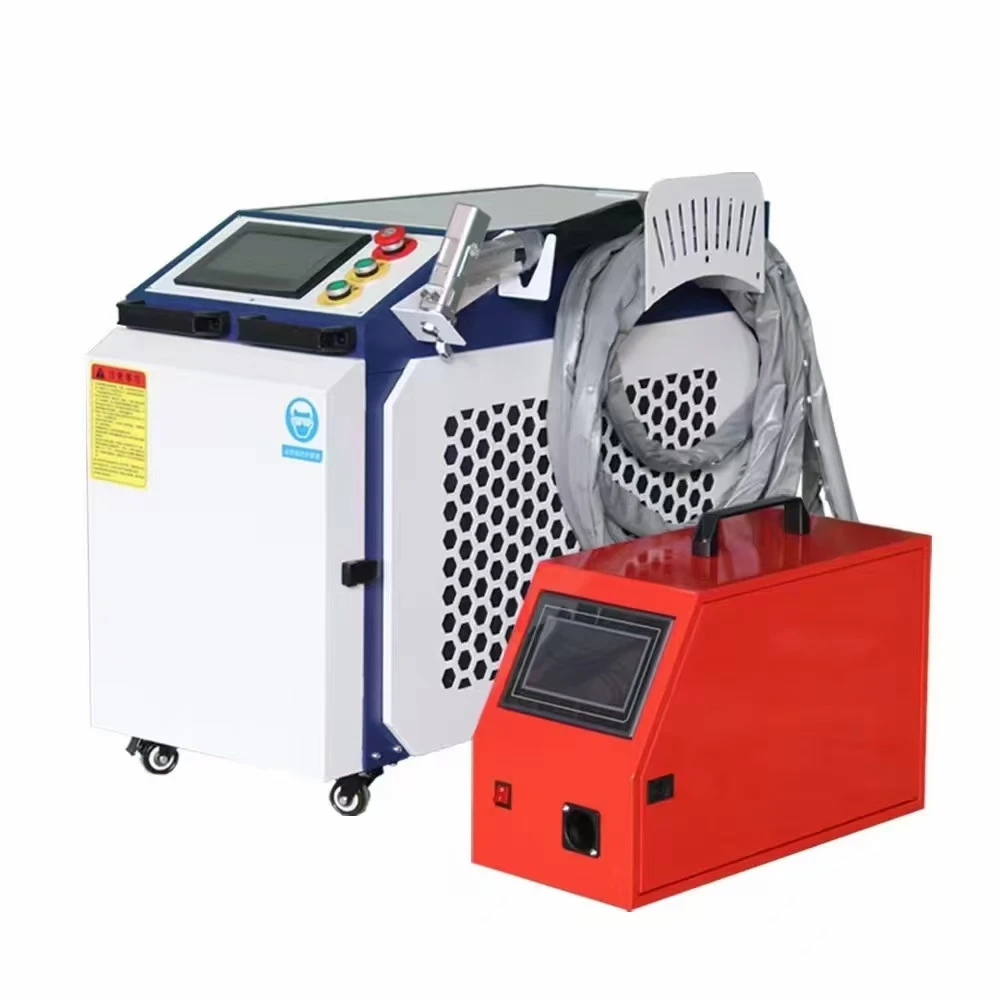

1000 Вт 3 в 1 лазерный сварщик очиститель резки мини портативный сварочный аппарат
332 918,84-367 358,72 ₽
Лазерная сварка 1000 Вт 2000 3000
401 798,60-608 437,88 ₽
1500 Вт мини из нержавеющей стали ручной лазерный сварочный аппарат паяльный для сварки металла
264 039,08-286 999,00 ₽

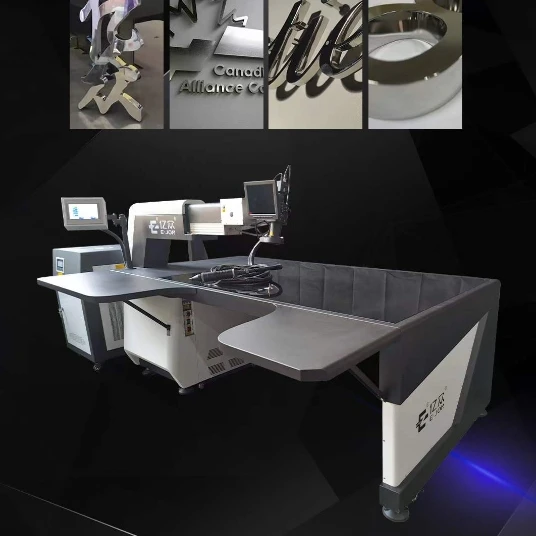

Xxx видео led открытый знак cnc автоматический канал письмо лазерная сварочная машина
