Products Description

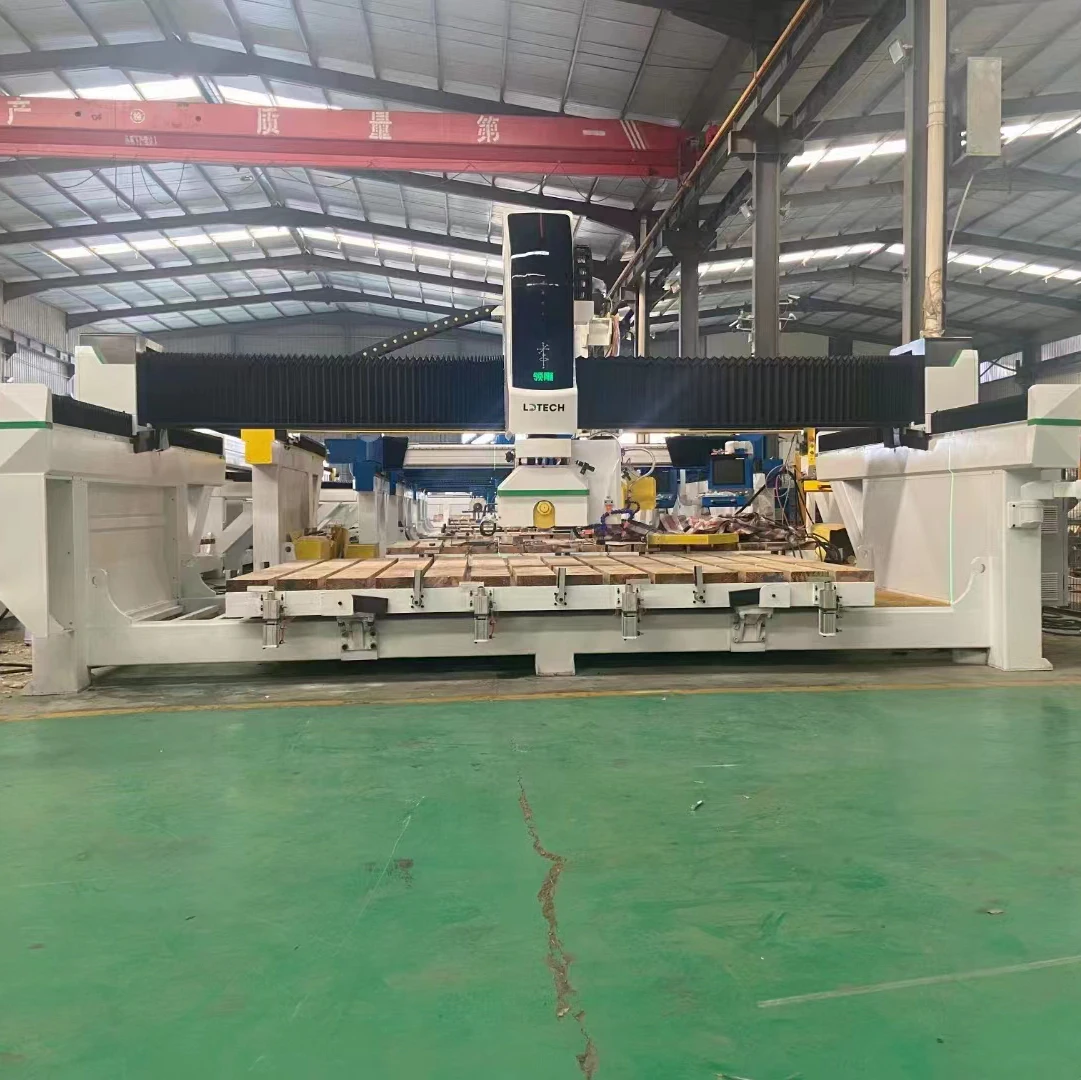

Stone CNC Machine

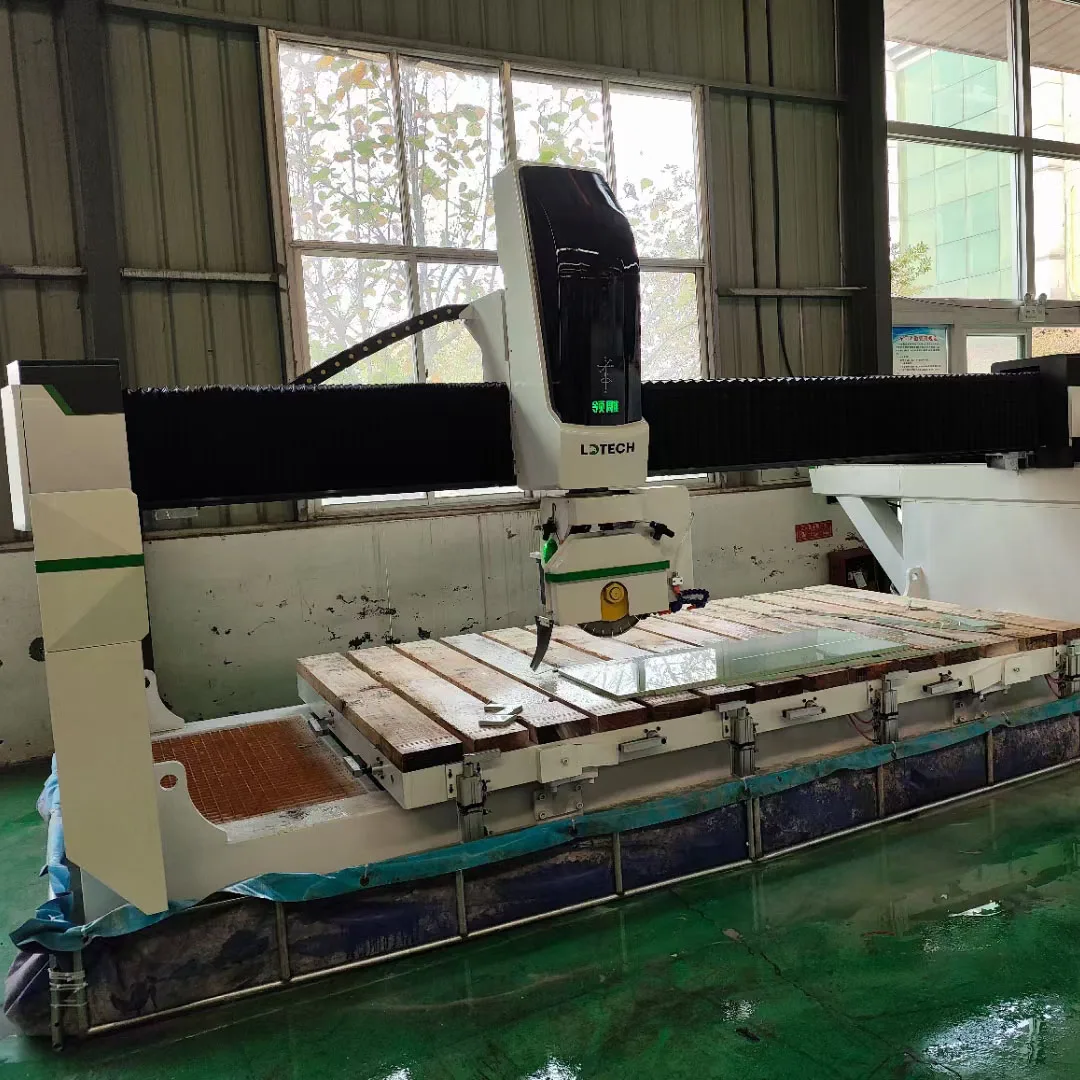

LD-Q4+1 Bridge Saw CNC machine.
It is a new generation of multi-function processing machine designed and manufactured by LDTech based on user experience. Using pattern operation and advanced touch operation industrial computer, the machine can be easily operated without complex CNC knowledge.
It is widely used for cutting countertops slabs, monument, tombstone cutting. such as quartz, granite, marble, sintered stone, ceramic etc.
Functions.
* Make Sink cutting, such as undermount sink cut out.
* Engraving, Polishing, Milling etc with Extra high speed spindle.
Features.
* Cost-Effective: Auto finish 5 axis working by Q4+1 Machine, Cheaper price get multi-function
machine.
* Easy Operation: Can easy edit/Read any drawings/.DXF drawing.
No need professional CNC Experience.
* High Processing Speed Machine:
Cutting speed Max. can be 60M/Meter
* Extra Spindle:
With High Speed Spindle: 24000RPM, compare standard 5 axis machine RPM( 0-6000RPM), Spindle more professional in engraving,
polishing etc.
Optional.
* Camera for local slab by picture.
* Suction cups for auto slab movement
* Cast Iron bridge for ensure that the accuracy of the machine is not affected by time
* Rubber table for ensure that table doesn't lose its shape due to moisture absorption
* Pulley for feeding slab easily.
* Laser measuring Tools for getting exactly size customized by different customer.
Technical Parameters | ||
Machine Model | LD-Q4+1 | |
Working Size | 3200*2000*400MM | |
Power of Main Motor | 15KW/(Optional: 18.5KW) | |
Dia of Saw Size | ø350-ø400( Customizable) | |
Extra Spindle Power | 6 KW (Optional:7.5KW) | |
Max. cutting thickness | 90mm | |
Tool Holder Type | Er32 (Optional BT40) | |
Commend | G Code | |
Max. Speed of X/Y axis | 60000mm/min | |
Max. Speed of Z axis | 8000mm/min | |
Spindle Rotating Speed | 0-18000 RPM | |
Dimensions (LxWxH) | 5300*3300*2450MM | |
Gross weight | 4200KGS | |
Working Voltage | AC380V/50HZ( Customizable) | |
Samples Display
Application.
* Processing for granite, marble, quartz, ceramic tile, sintered stone etc
* Auto all kind of counter tops processing, such as auto 45° miter, sink cut out etc
* Can polishing the edge
* Faucet holes, recessed drainer/drain grooves Processing
* Engraving patterns, carving words
* Can polishing the edge
* Faucet holes, recessed drainer/drain grooves Processing
* Engraving patterns, carving words
Details
Cast Iron Bridge
* Cast Iron bridge significantly improve structural stability.
* Avoid machine shake.
* Ensure accuracy remains unchanged.
Small factory use welded bridge, which will deformed after years working.
Easy Operation System
* LDTech-CAM System developed is based on user experience.
* CNC Machine, operation simple as PLC.
* Free update online.
* Devlelop functions based on customer applications.
* Can Read .DXF file, such as AutoCAD.
* Better hardware than **NC.
Bus Absolute Value Servo Motor & Driver
* Absolute Servo> Servo>hybrid Servo>Step.
* Higher accuracy, Powerful, more torque.
* Machine memory, machine can know the exactly location even when machine power off.
* Intelligent Saving Time, machine can working directly, no need mechanical origin.
* Machine memory, machine can know the exactly location even when machine power off.
* Intelligent Saving Time, machine can working directly, no need mechanical origin.
* SAFE. standard machine need limited sensor device, avoid machine C Axis no-stop circle to damage machine wire.
Slab Holder
* 4 sets of slab holder.
* Avoid slab movement when we need processing small size & lightweight slab.
* Auto Holder when we need Spindle working.
* Also can manual control to holder slab.
Slab Fixer
* 5 Sets of slab fixer.
* Cutting Direction.
To make sure the cutting direction is horizontal with the edge direction when we need retain the original edge without cutting.
* Manual control.
Industrial Design
* All the electric part had covered by thick sheet metal.
* Three-layer painting technology is used to achieve rust prevention.
* The whole machine is galvanized ( Optional).
* The whole machine is galvanized ( Optional).
RV Reducer
* RV100C manipulator reducer.
* More powerful than 50C Reducer.
* RPM Max. 20.
* Large wire holes to reduce wear.

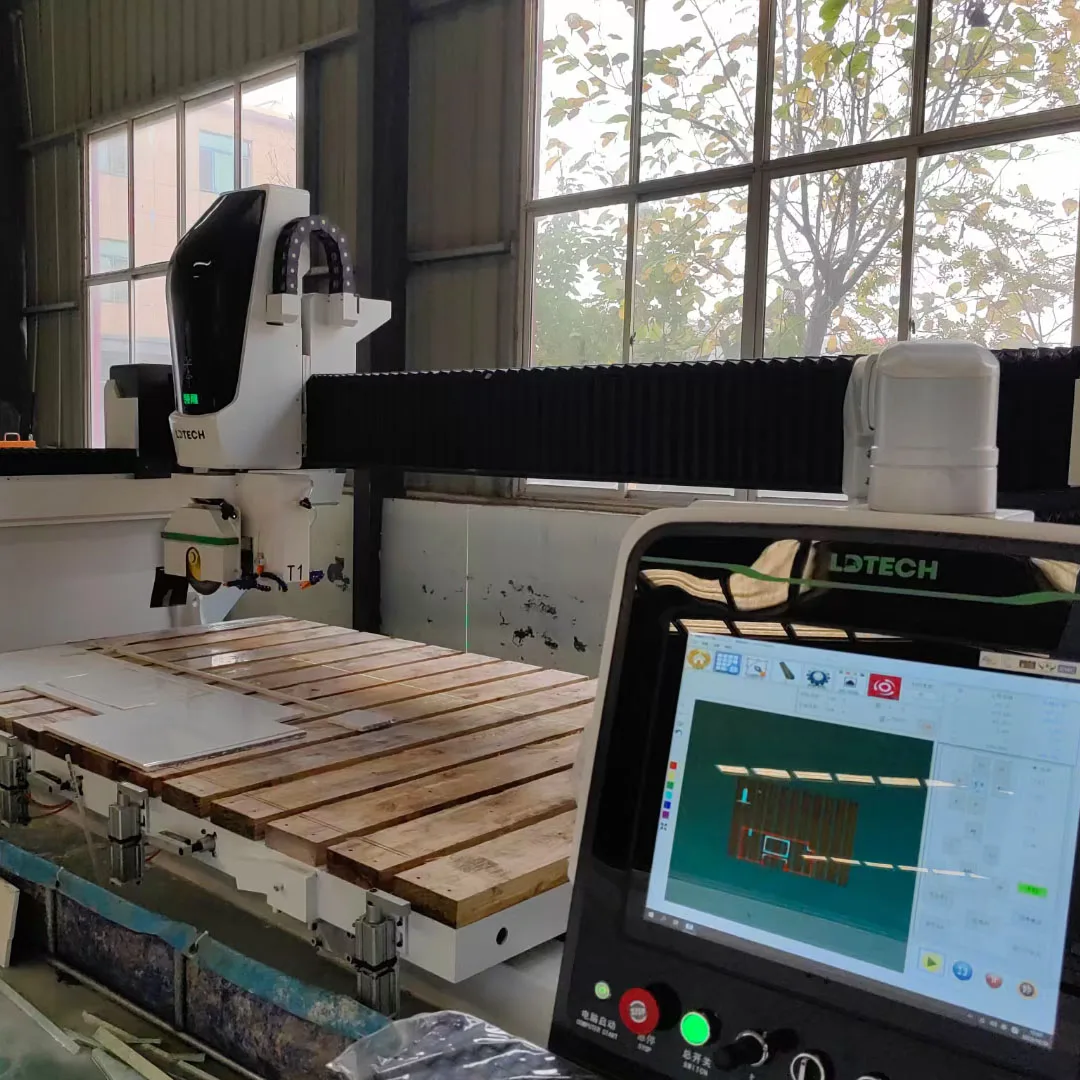

High Speed Machine & Industrial Computer
* High-precision industrial grade spare part make sure our machine have high Para.
* Max. Travel speed can be 60 Meter / minute.
* Max. Quartz Cutting Speed: 20 Meter/ Minute.
* Industrial touch-screen computer.
