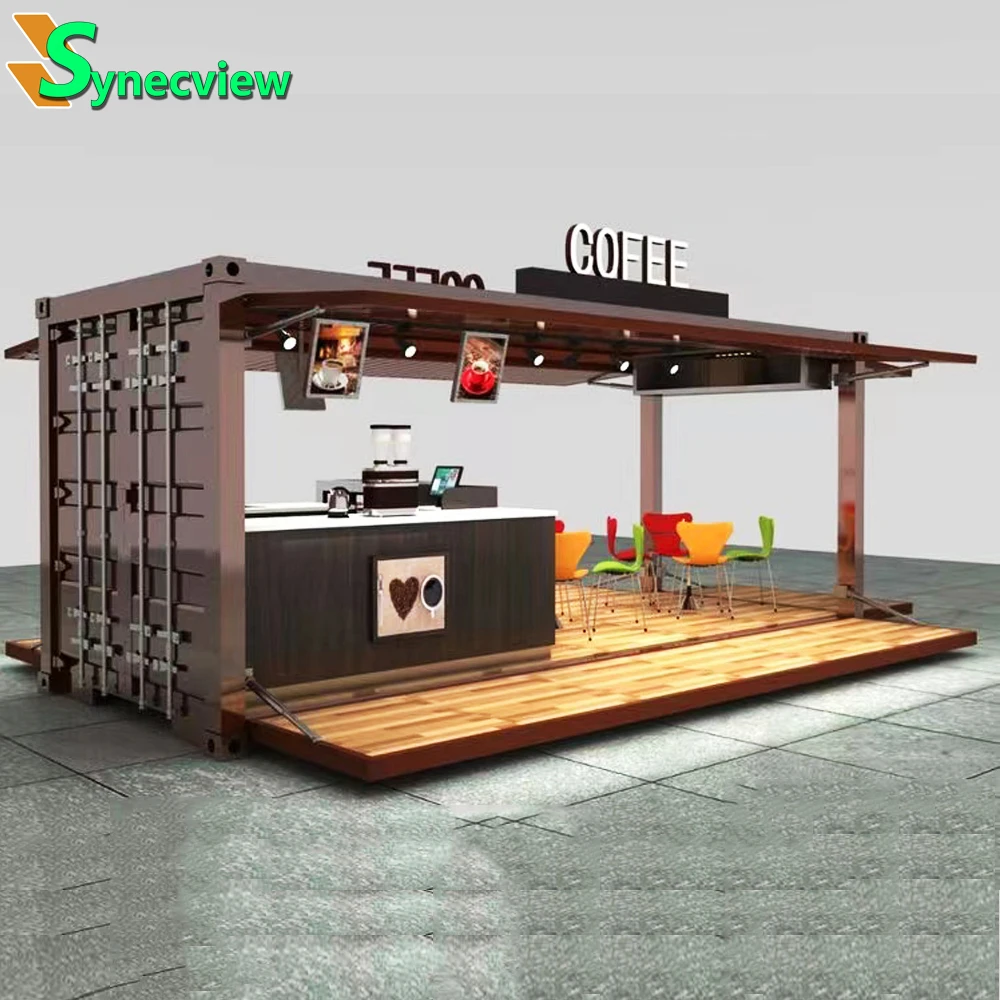

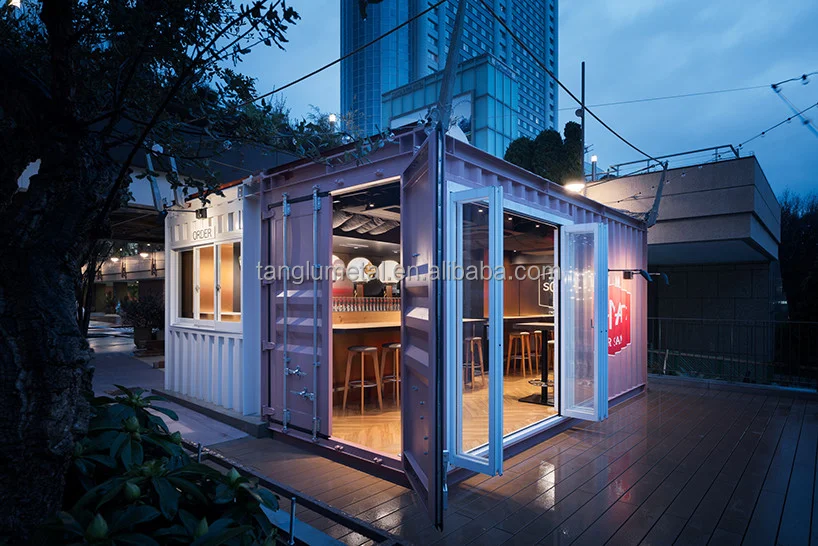

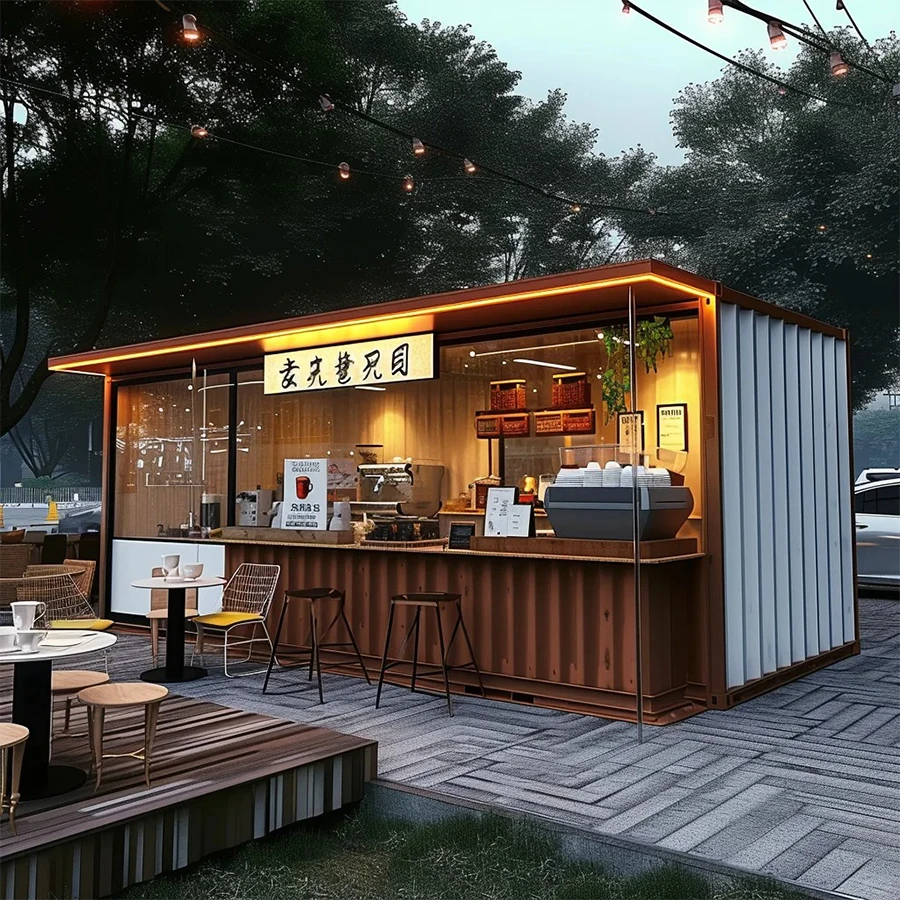

Изготовленный на заказ контейнер кафе с шкафом 3 м * 1 5 для бизнеса

Сохранить в закладки 1601298126010:


Цена:113 125,60-226 251,20 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики









Size
TYPE
A
B
External Dimensions (LWH)
6055*2990*2896mm
6055*2990*2896mm
Internal Dimensions (LWH)
5845*2780*2530mm
5845*2780*2530mm
Design
Parameters
Roof Type
Flat roof, organized internal drainage through 4 columns
Flat roof, organized internal drainage through 4 columns
Design Life
30 years
10 years
Stories
1-3 floors
1-3 floors
Earthquake Resistance
Level 8
Level 8
Structure
Angle Columns
4mm thick galvanized cold-rolled steel
3mm thick galvanized cold-rolled steel
Roof Main Beam
Specification: 180mm, 4mm thick galvanized cold-rolled steel
Specification: 180mm, 3mm thick galvanized cold-rolled ste
Ground Main Beam
Specification: 160mm, 4mm thick galvanized cold-rolled steel
Specification: 160mm, 3mm thick galvanized cold-rolled steel
Paint
One-coat paint, paint thickness >80μm, gray-white
One-coat paint, paint thickness >80μm, gray-white
Roof
Roof Panel
2mm thick welded top plate
0.5mm thick, aluminum-zinc coated steel plate
Insulation Material
100mm thick glass wool felt, single-sided aluminum foil,
density ≥14kg/m²
100mm thick glass wool felt, single-sided aluminum foil, density ≥14kg/m²
Ceiling Panel
0.5mm thick pressed, aluminum-zinc coated steel plate
0.4mm thick pressed, aluminum-zinc coated steel plate
Floor
Decoration Layer
2mm thick rubber floor
1.6mm thick rubber floor
Base Plate
19mm thick cement fiber board, density ≥1.3g/cm³
18mm thick cement fiber board, density ≥1.3g/cm³
Wall
Thickness
75mm thick steel sandwich panel, outer plate 0.4mm embossed,
aluminum-zinc coated steel plate,
inner plate 0.4mm flat, aluminum-zinc coated steel, color gray-white, PE coating
75mm thick steel sandwich panel, outer plate 0.4mm embossed,
aluminum-zinc coated steel plate,
inner plate 0.4mm flat, aluminum-zinc coated steel, color gray-white, PE coating
Insulation Material
Rock wool
Rock wool
Door
Specification
Width*high=840*2035mm
Width*high=840*2035mm
Material
Steel door
Steel door
Window
Specification
Width*high=1120*1100mm
Width*high=1120*1100mm
Frame Material
Plastic steel sliding window, 80 series,
with anti-theft bar, screen
Plastic steel sliding window, 80 series,
with anti-theft bar, screen
Glass
4mm+9A+4mm hollow glass
4mm+9A+4mm hollow glass
Electricity
Voltage
220V~250V
220V~250V
Wiring
Main circuit BVVB-36.0, air conditioning BVVB-34.0,
socket BVVB-32.5, lighting BVVB-31.5
Main circuit BVVB-36.0, air conditioning BVVB-34.0,
socket BVVB-32.5, lighting BVVB-31.5
Distribution Box
10-way concealed PVC distribution box*1
10-way concealed PVC distribution box*1
Lighting
LED strip light (LED 16.5W*2)*2
LED strip light (LED 16.5W*2)*2
Sockets
Industrial socket (3P/32A)*1, five-hole socket (250V 10A)*3,
three-hole socket (250V 16A)1, one switch1
Industrial socket (3P/32A)*1, five-hole socket (250V 10A)*3,
three-hole socket (250V 16A)1, one switch1
Decoration
Beam, Column Cladding
0.5mm thick aluminum-zinc coated steel plate bending piece,
color gray-white
0.5mm thick aluminum-zinc coated steel plate bending piece,
color gray-white
Skirting
0.7mm thick aluminum-zinc coated steel skirting,
color gray-white
0.7mm thick aluminum-zinc coated steel skirting,
color gray-white
