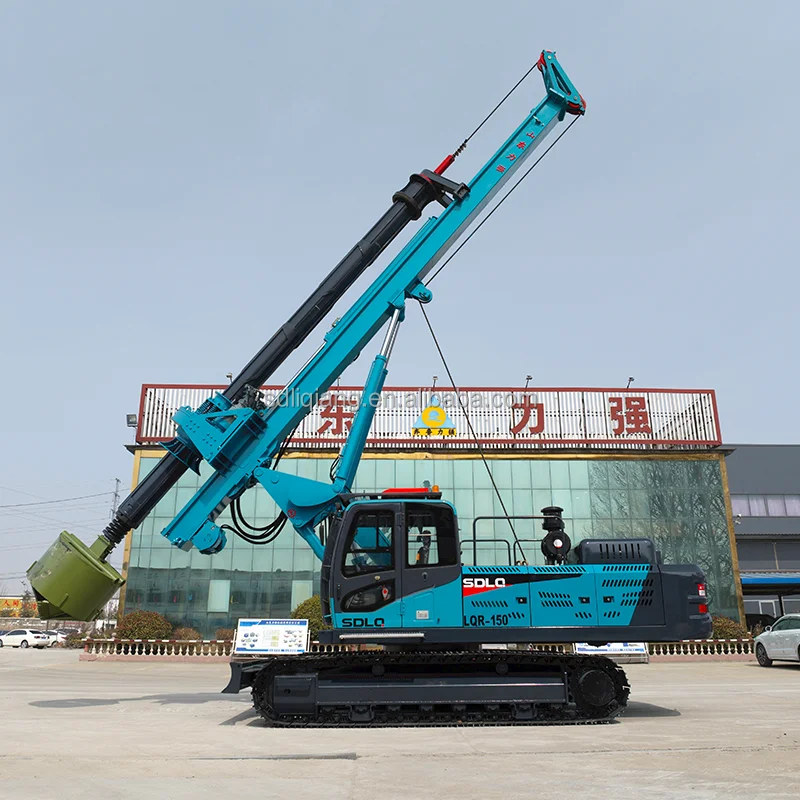

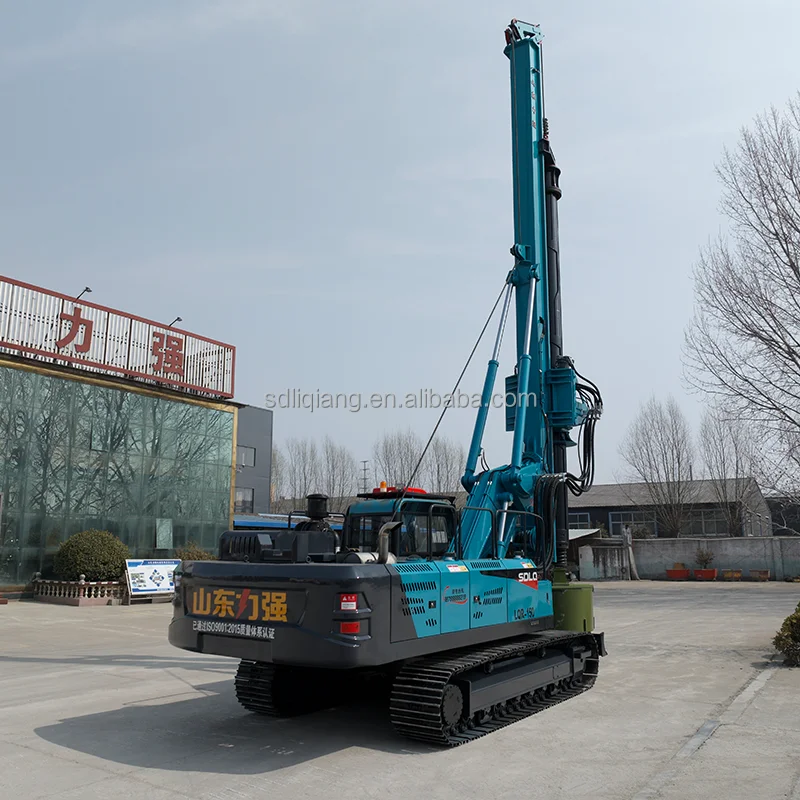

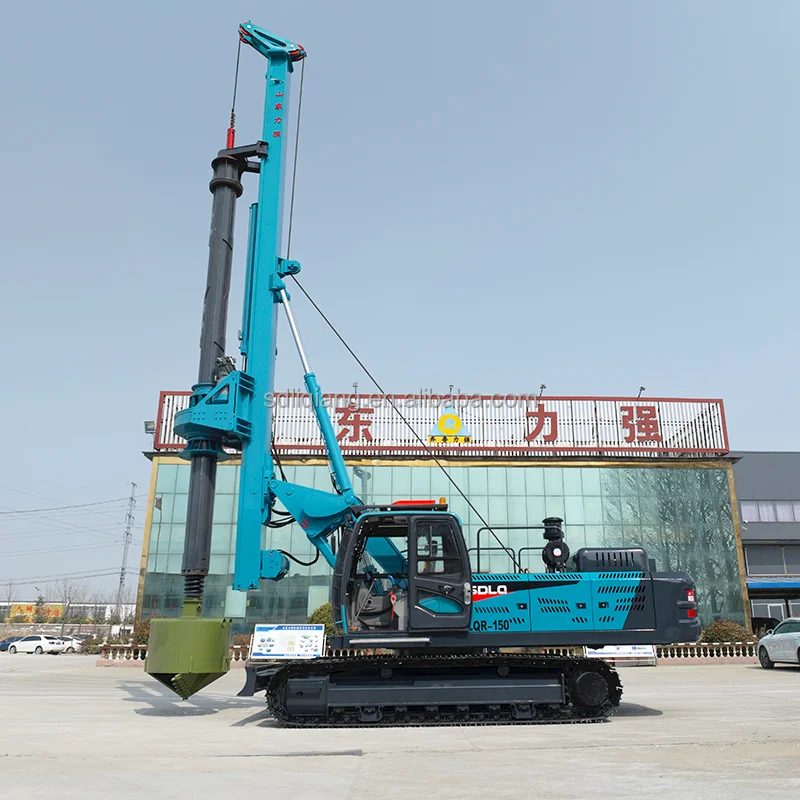

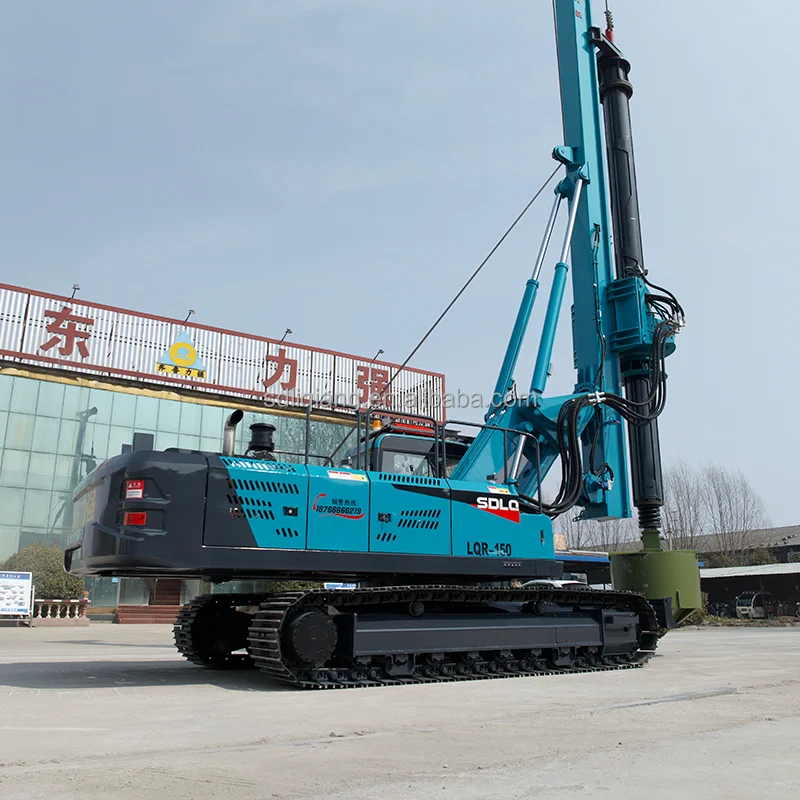

order number | unit | LQR150 | ||||
1 | Maximum drilling diameter | mm | 500-2500 | |||
2 | Maximum drilling depth | m | 40-60 | |||
3 | Safe drilling operation range (from the rotary center) | mm | 3500 | |||
4 | Drilling rig size under working condition (length * width * height) | mm | 6700*4000*15500 | |||
5 | Drilling rig size in transportation state (length * width * height) | mm | 13500*3000*3650 | |||
6 | Operating weight (including drilling tool under standard configuration) | t | 42.5 | |||
Motor | Brand | 。 | Cummins | |||
7 | Engine model | / | QSB7 | |||
Engine rated power/speed | kW | 169 | ||||
Emission stage | / | 3Stages | ||||
8 | Hydraulic system | Maximum working pressure of main pump | MPa | 30 | ||
9 | Power head | Rated output torque | kN·m | 150 | ||
Operating speed | r/min | 8-48 | ||||
10 | Feed cylinder | Maximum pressurization | kN | 120 | ||
Maximum lifting force | kN | 120 | ||||
Pressurization stroke | mm | 2500 | ||||
11 | Main winch | Main winch lifting force | kN | 150 | ||
Maximum single rope speed of main winch | m/min | 60 | ||||
Diameter of main winch wire rope | mm | 24 | ||||
12 | Auxiliary winch | Auxiliary winch lifting force | kN | 30 | ||
Maximum single rope speed of auxiliary winch | m/min | 55 | ||||
Diameter of auxiliary winch wire rope | mm | 12 | ||||
13 | Drill mast | Left/right inclination of mast | ° | ±4 | ||
Mast rake | ° | ±4 | ||||
14 | Turntable rotation | Turntable rotation angle | ° | 360 | ||
15 | Speed | Maximum traveling speed of the whole machine | km/h | 5 | ||
Maximum gradient of the whole machine | % | 30 | ||||
16 | chassis | track width | mm | 600 | ||
Total track width | mm | Telescopic chassis (3000-4000) | ||||
Wheel distance | mm | 56000 | ||||
17 | Drill pipe specification | 360Machine lock | ||||
18 | retractable track chassis | yes |
