SMA905 интерфейсное радиальное волокно/Коническое волокно/голые волокна для эндолазера лифтинга лица Урология хирургическое лечение EVLT 400/600/800 мкм

Описание и отзывы

Характеристики

SMA905 Bare Optical fiber with silicon cover 400um 600um 800um 3m EVLT endolaser lipolysis EVLT PLDD Homorrhoid Gynecology use

bare fiber diameter is 200µm/400µm/600µm/800µm

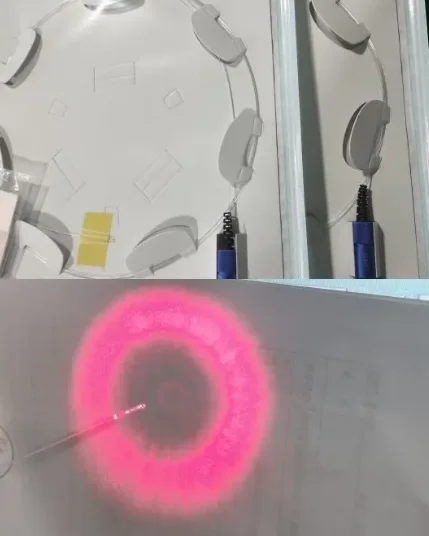

SMA905 international standard Core diameter 400µm 600 µm 800 µm optical laser fiber cable, radial fiber and bare fiebr, for surgery of EVLT ENT PLDD Lipolysis Hemorrhoid

SILICA OPTIC FIBER FOR LASER INTERVENTIONAL THERAPY

This silica/quartz optical fibers are used with laser therapy instruments, mainly transmitting 400-1000nm semiconductor laser,1604nm YAG laser, and 2100nm holmium laser.

The application scope of the laser therapy instruments includes: Lipolysis,Surgical cutting,Nail fungus,disc herniation etc.

Properties:
1. The fiber is provided with SMA905 standard connector;
2. The coupling efficiency of fiber is above 80% (λ=632.8nm);
3. The transmitting power is up to 200W/ cm2 (0.5m core diameter, continuous Nd: YAG laser);4. The fiber is interchangeable, safe
and reliable in operation;
5. Customer designs are available.
Applications:
Laser in operations, high power laser (e.g. Nd: YAG, Ho: YAG).
Urology (resection of prostate, opening of ureteral strictures, partial nephrectomy);
Gynaecology (septum dissection, adhesiolysis);
ENT (exision of tumors, tonsillectomy);
Pneumology (removal of lung, metastases);
Orthopaedics (diskectomy, menisectomy, chondroplasty).

                                 Construction of Fiber
This product consists of three parts.

They are SMA905 standard connector, optical fiber, and protection tube.

Optical fiber is made of quartz glass. SMA905 standard connector is copper. And protective tube is made of silicone rubber.

Optical fiber transmission efficiency: when the total length of the optical fiber is ≤ 5m, the transmission efficiency of the
corresponding wavelength is not less than 80% when it is placed flat.
