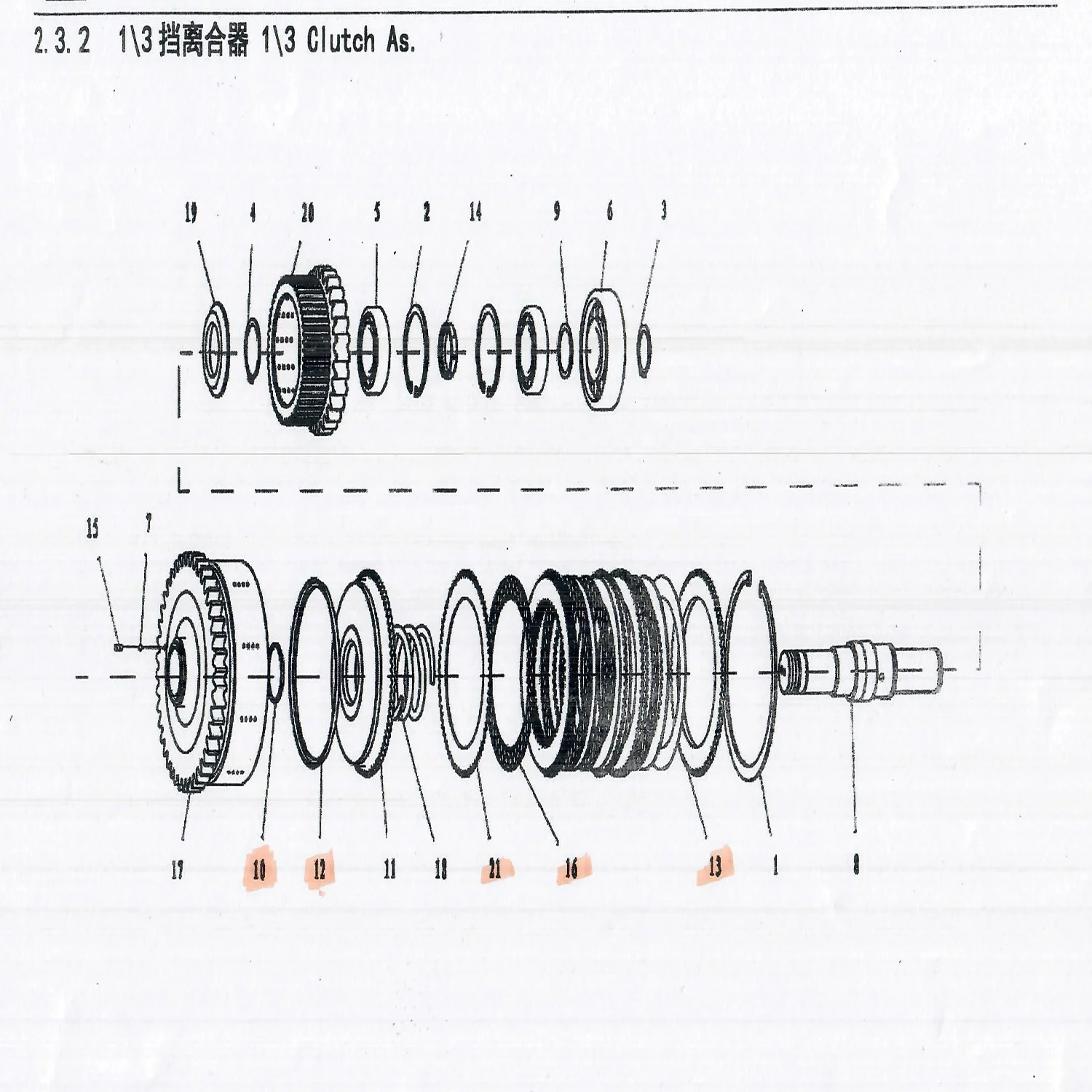

Запасные части для фронтального погрузчика 655D
1 304,70-1 423,31 ₽
RUNTX Китай одобренный CE 1 7 м3 объем ковша колесный погрузчик 3 тонны 5 тонн для продажи
- Категория: >>>
- Поставщик: Xiamen Runtx Machinery Co. Ltd.Xiamen Ltd.
Сохранить в закладки 1601298509957:
Описание и отзывы
Характеристики
Products Description

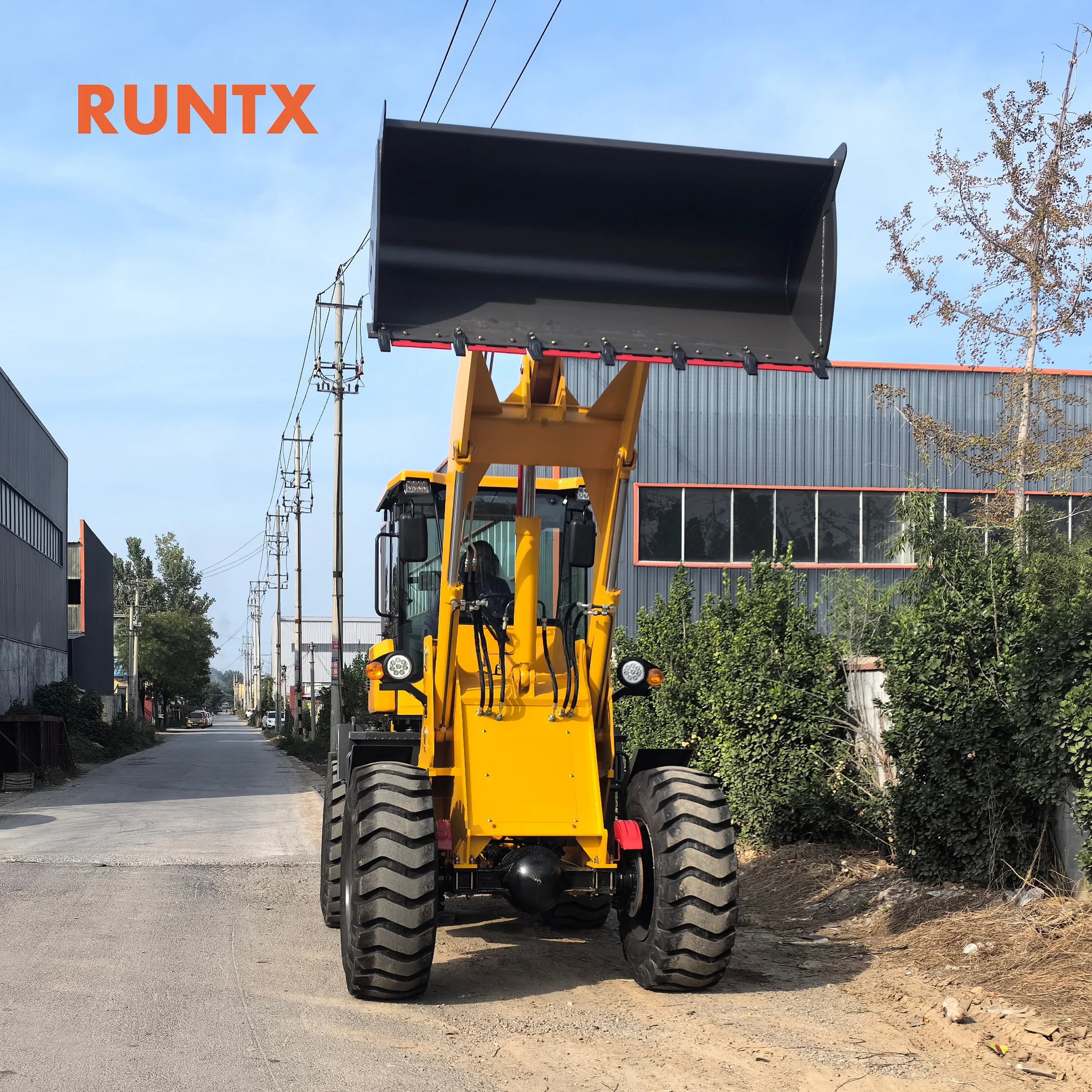

RUNTX 1ton wheel loader

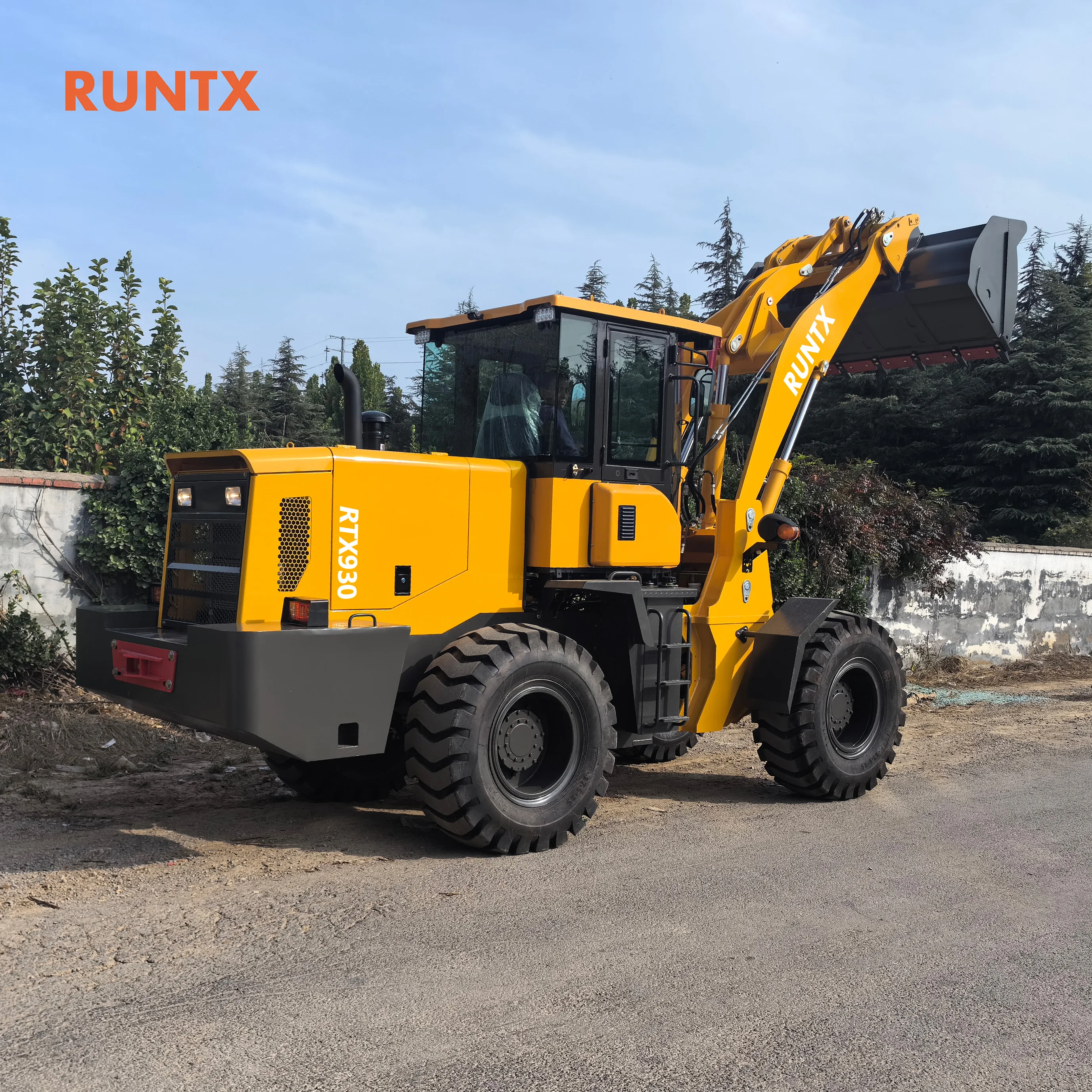

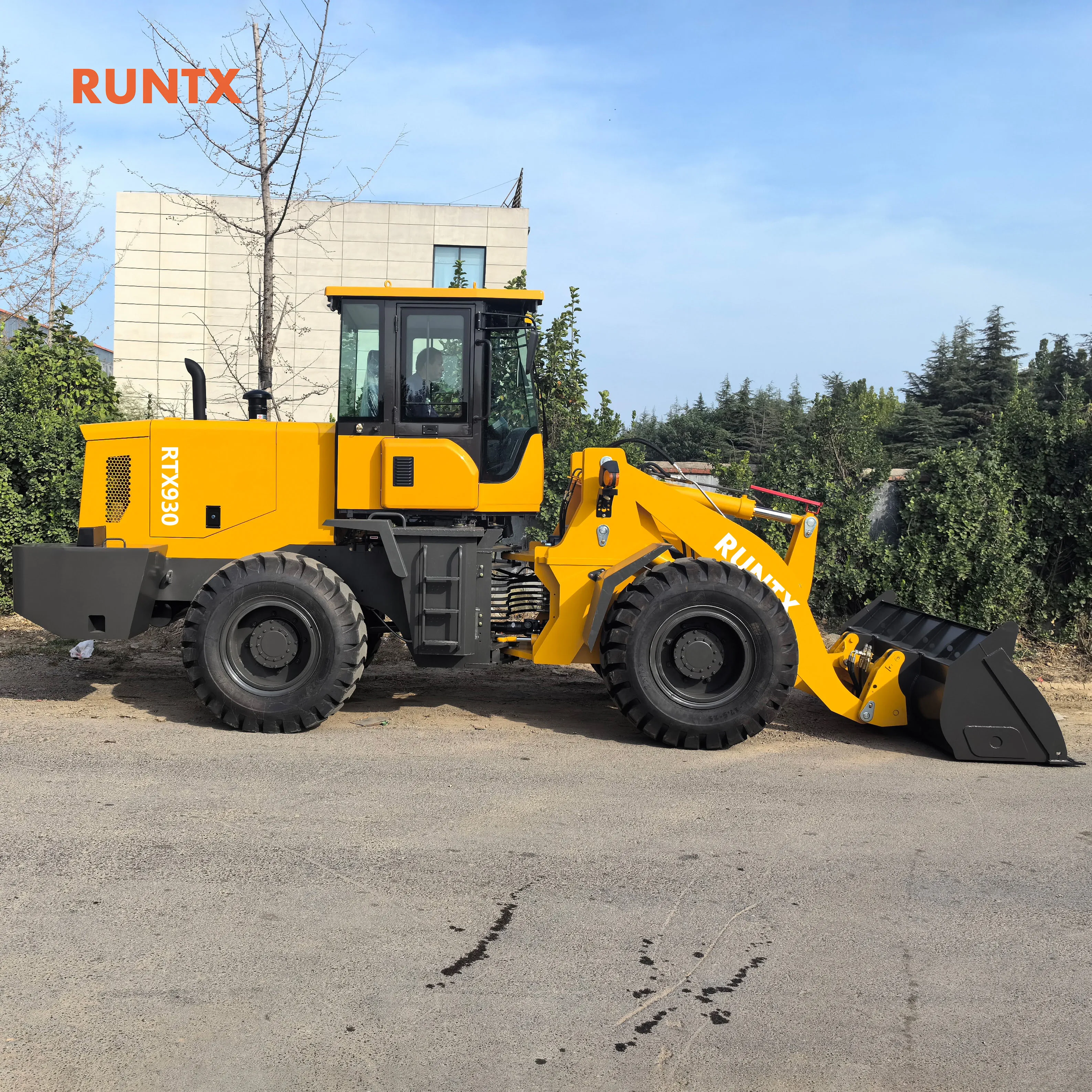

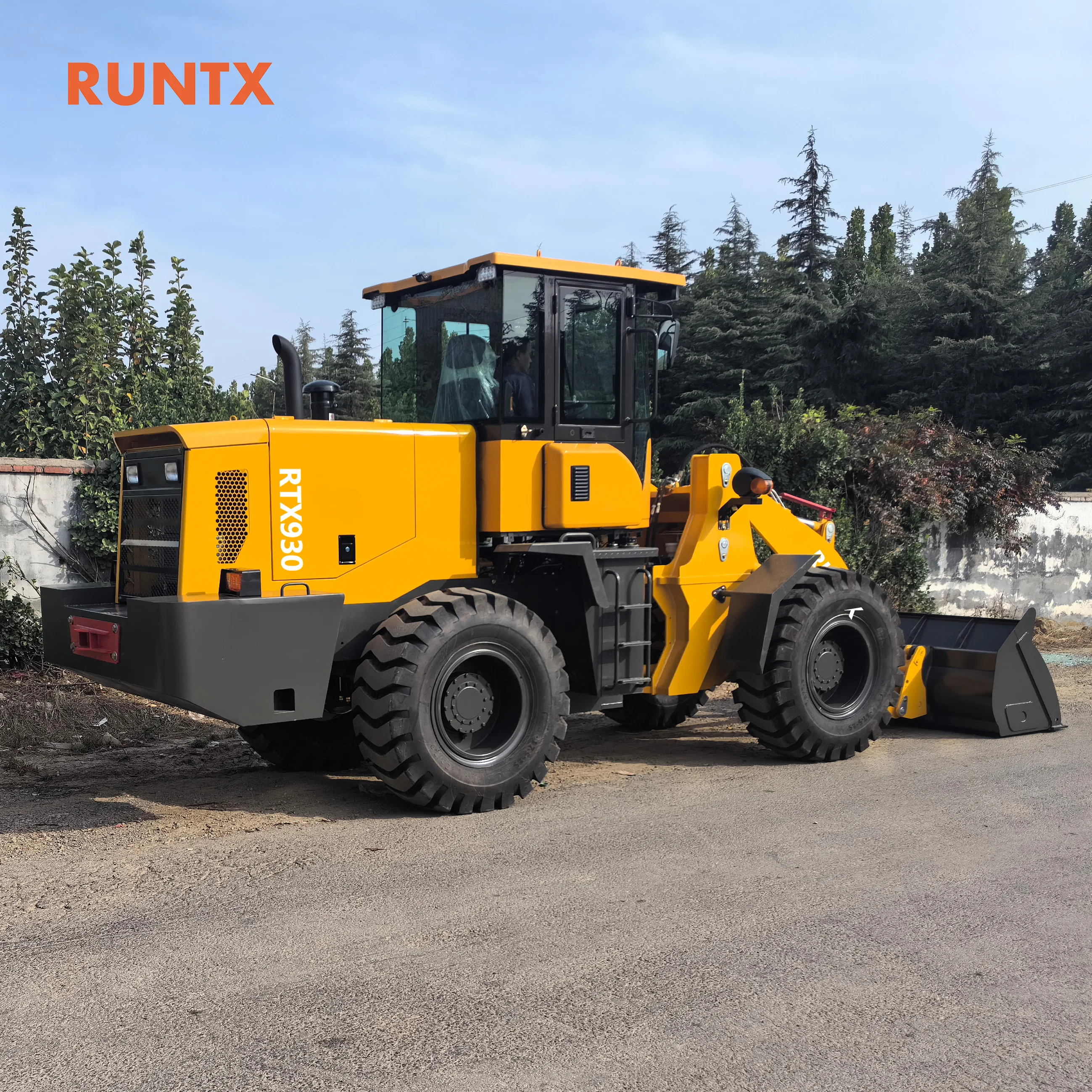

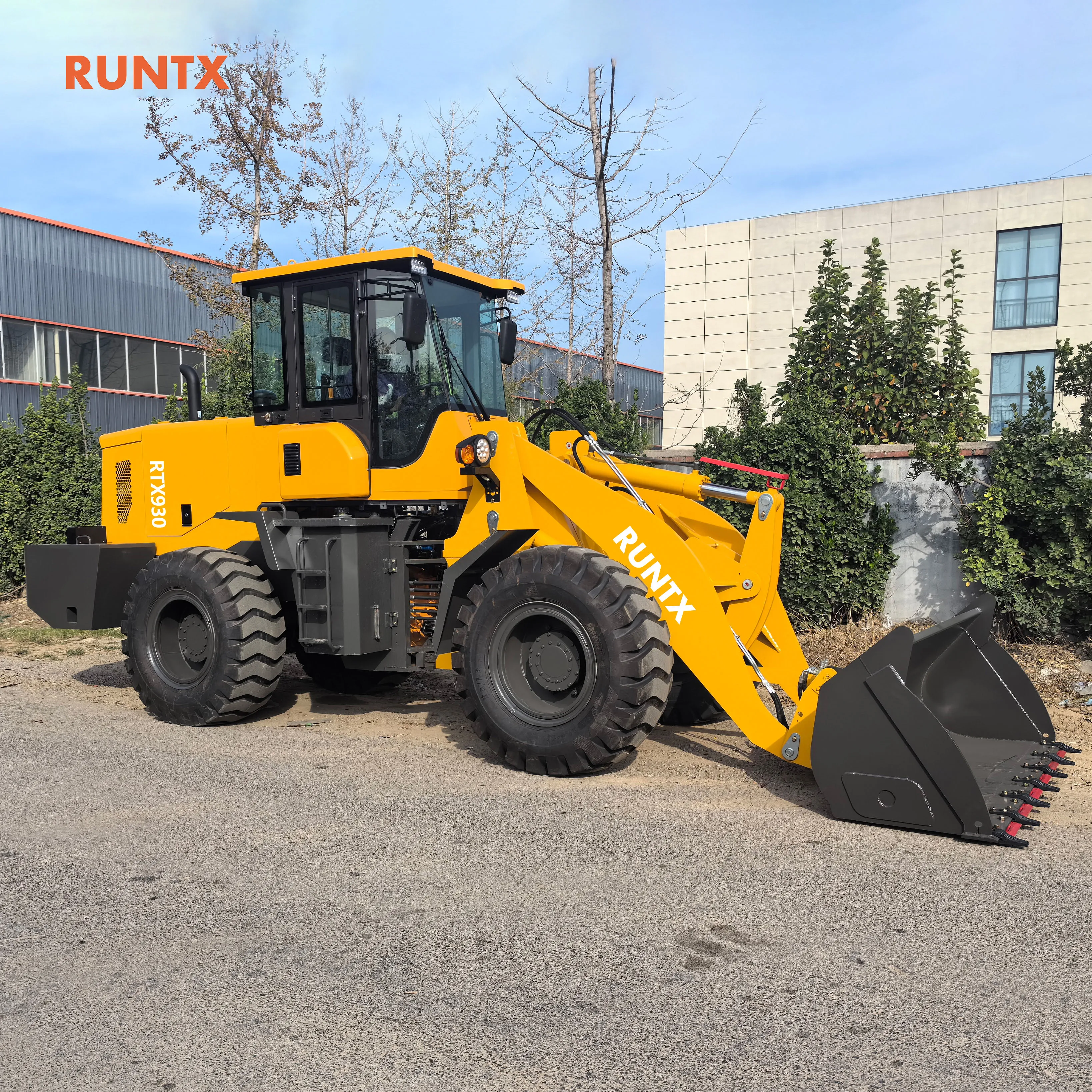

RUNTX 3ton wheel loader
RUNTX 5ton wheel loader
Product Paramenters
model | 1 | Model | RTX910 | RTX930 | RTX650 |
Performance | 2 | Rated loading | 1200kg | 3000kg | 5000kg |
3 | Overall weight | 3450kg | 9800kg | 15500kg | |
4 | Bucket capacity | 0.6m3 | 1.7m3 | 3m3 | |
5 | Maximum traction force | 90KN | 95KN | 148KN | |
6 | Maximum breakout force | 48KN | 127KN | 194KN | |
7 | Maximum grade ability | 25℃ | 30℃ | 30℃ | |
8 | Maximum dump height | 3200mm | 3500mm | 3200mm | |
9 | Maximum dump reach | 900mm | 1006mm | 1000mm | |
10 | Overall dimension | 5600*1810*2600mm | 7500*2200*3070mm | 7900*3000*3470mm | |
11 | Minimum turning radius | 5097mm | 7020mm | ||
Engine | 12 | Model | Yunnei YN25(490) | YuChai 110KW | weichai WD10G220E21 |
13 | Type | Vertical, in-line, water cooled, dry Cylinder injection | Vertical, in-line, water cooled, 4-stroke diesel engine | Vertical, in-line, water cooled, dry Cylinder injection | |
14 | NO. of cylinder-bore*stroke | 6-108*125 | 6-126*130 | ||
15 | Rated power | 36.8kw—2400r/min | 110kw—2200r/min | 162kw—2200r/min | |
16 | Maximum torque | 147N.m | 500N.m | 900N.m | |
17 | in. fuel-consume ratio | / | ≦210Kw/h | ≦198G/Kw.h | |
transmission system | 18 | Torque converter | / | YJ315-X | YJ315-X |
19 | Gearbox mode | / | Power shift normally engaged straight gear | Power shift normally engaged straight gear | |
20 | Gears | 2 forward 2 reverse | 4 forward 4 reverse | 4 forward 4 reverse | |
21 | Maximum speed | 25km/h | 40km/h | 38km/h | |
Drive axles | 22 | Main reducing spiral | bevel gear grade 2 reduction | bevel gear grade 21 reduction | bevel gear grade 30 reduction |
23 | Decelerating mode | Planetary reduction grade 1 | Planetary reduction grade 20 | Planetary reduction grade 29 | |
24 | Wheel base | 2250mm | 2750mm | 3200mm | |
25 | Wheel tread | 1600mm | 1800mm | 1500mm | |
26 | Ground clearance | 400mm | 450mm | ||
Hydraulic | 27 | System working pressure | 16MPa | 16,5MPa | 17MPa |
28 | Boom lifting time | 8.9S | 4.83S | 6.05 ± 0.25S | |
29 | Total time | 10±0.2s | 9.15±0.5s | 10.8±0.5s | |
Brake system | 30 | Service brake | air assist disc brake on 4 wheels | air assist disc brake on 4 wheels | air assist disc brake on 4 wheels |
31 | Parking brake | Hand Drum | Manual disk brake | Manual disk brake | |
Tyre | 32 | Type specification | 20.5-70-16 | 17.5-25 | 23.5-25 |
33 | Front tyre pressure | 0.4Mpa | 0.4Mpa | 0.4Mpa | |
34 | Rear tyre pressure | 0.35Mpa | 0.35Mpa | 0.35Mpa |
Customization
Company Profile
Shipping Packing
FAQ
1. Why choose us?
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
As a manufacturer,Runtx industrial is committed to offer not only skid steer loaders with high quality and performance and competitive price, but also in-time delivery and comprehensive 7/24 after-sale services.
2. What is the product range of our factory ?
Runtx industrial is a large-scale machinery manufacturing enterprise primarily specializes in supplying wheel loaders,skid steer loader,excavator and related attachments. We can also customize non-standard products according to customer's requirements.
3. What payment terms can we accept?
Normally 30% deposit is required in advance, 70% balance shall be settled before shipment. And 100% irrevocable L/C at sight with the terms we agreed can also be accepted.
4. What Certificates do we have?
All products meet with the ISO9001 Quality System and have acquired CE certificate. EPA approval will be available if
needed.
5. How about our delivery time?
Usually it will take 15 to 30 days after receiving your deposit. About standard products,we always have in stock and can deliver immediately. But customized products will take more time, depending on the requirements to
your order.
6. Can we provide OEM service?
We can provide customized products according to customers' requirements, both OEM and ODM are acceptable.
7. After-sales service
We can provide 12 months or 2000 working hours from BL date.
Похожие товары

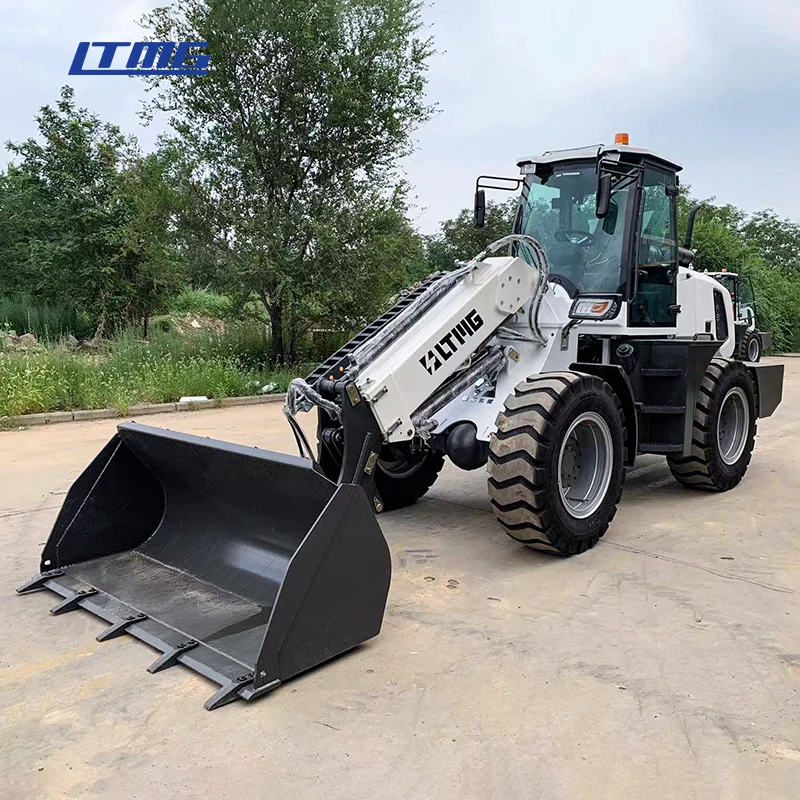

Лтмг телескопическая стрела погрузчик мини фронтальный 1500 кг 2000 3000 1.5ton 2 тонны 3 тонный небольшой телескопический
948 868,00-966 659,28 ₽
955 с вилкой Furukawa запасные части для фронтального погрузчика
3 534 533,30 ₽

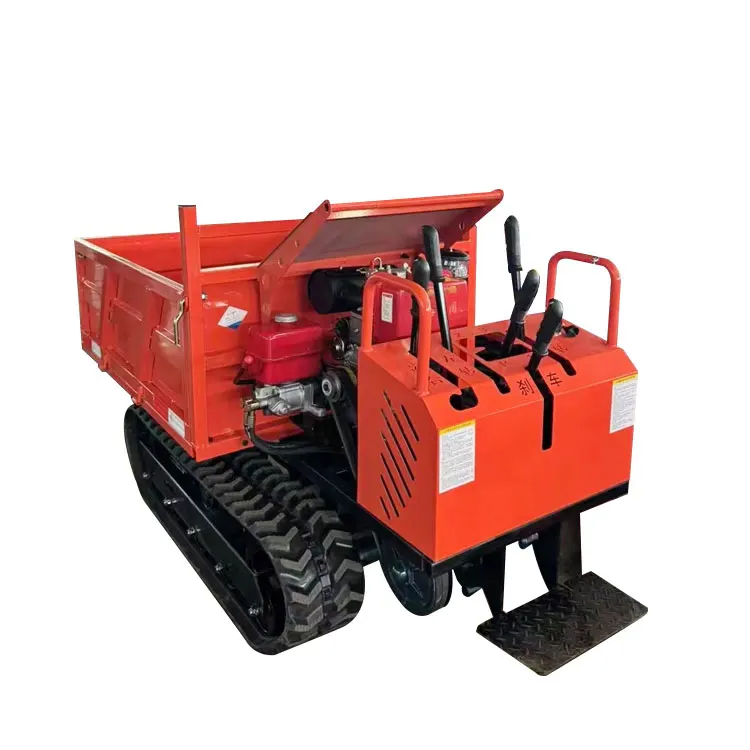

Самосвал гусеничный транспортный гидравлический автомобиль подходит для строительства сельскохозяйственный грузовик-амфибия
237 217,00-284 541,80 ₽

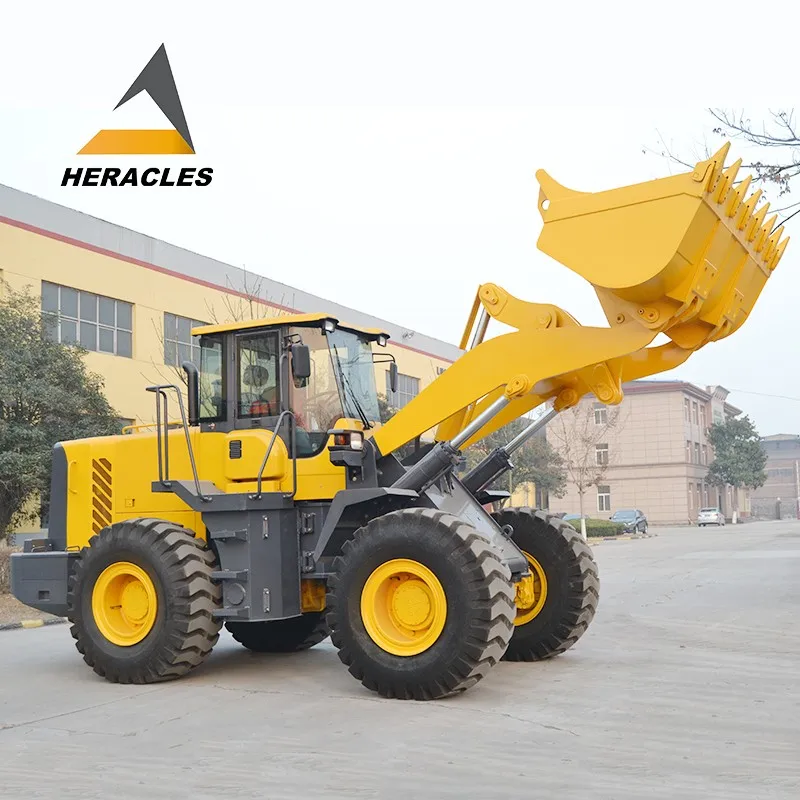

Heracles фронтальный погрузчик с гидравлическим цилиндром Eatont HR953 сверхмощный колесный для строительства и добычи полезных ископаемых
