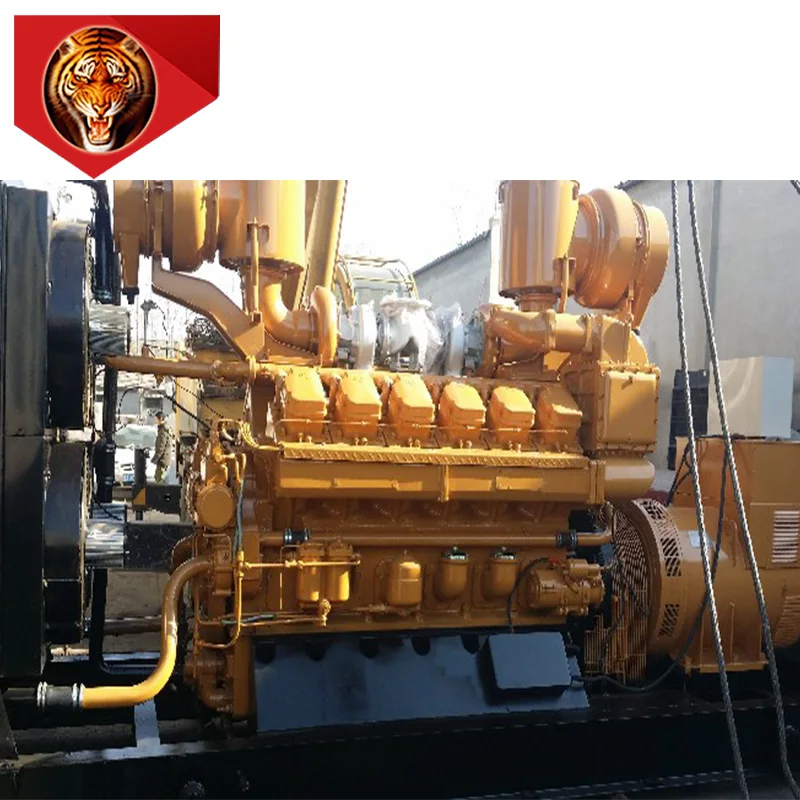

Бренд JICHAI государственный дизельный двигатель enterpise G12V190PZL-3 810 кВт для бурового насоса F1000 F800
999,00 $
API забойный двигатель для нефтепромысла и HDD
- Категория: >>>
- Поставщик: Yantai Sanmon Machinery Equipments Co. Ltd.Yantai Ltd.
Сохранить в закладки 1601298801146:
Описание и отзывы
Характеристики
Product Description

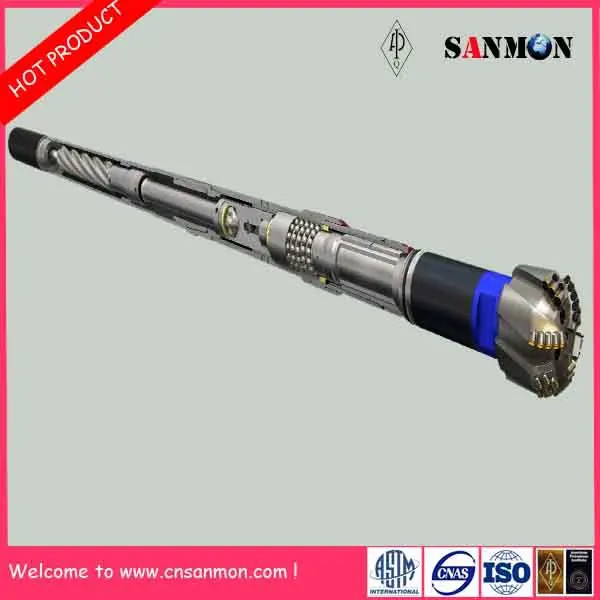

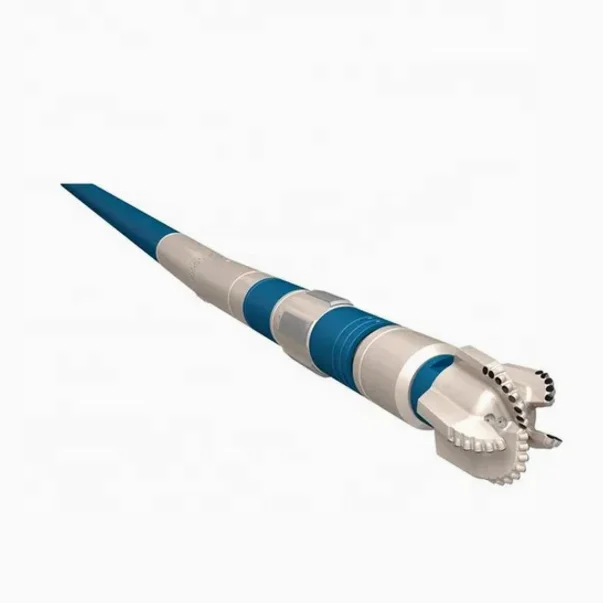

API 7-1 Drilling Motor Directional Drilling Downhole Mud Motor
API 7-1 Drilling Motor Directional Drilling Downhole Mud MotorMotor's Standard Configuration and Options:Downhole mud motor is also called Positive Displacement Motor(PDM) a kind of downhole dynamic drilling tool drove by the hydraulic power of drilling mud. Downhole motor normally used for directional drilling wells,which is consists of five assemblies, such as by-pass valve, Anti-drop assembly, motor, universal coupling and drive shaft.
Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The down hole motor property mainly depends upon its property parameters.
Mud stream from the outlet of mud pump flows through a by-pass valve into the motor. This stream produces pressure loss at both inlet and outlet of the pump, to push the rotor into rotating, and to transmit the torque and speed onto the bit. The down hole motor property mainly depends upon its property parameters.
SANMON Down hole mud motor adopts near bit structure, adjustable universal coupling housing, stabilizers with different sizes, types and structures, and also universal coupling specially designed for large drill bit & large torque with larger torque bearing capacity, better impact resistance performance and running stability, and integral or interchangeable stabilizers with different sizes are available.
•Size Range:
•Size Range:
Available from 1-11/16”OD to 11-1/4”OD
•Types:
•Types:
Adjustable bend housing type, Water based mud type (conventional type), Oil-based mud type, Salty based mud type
•Structure:
•Structure:
Consists of Bearing section assembly, Universal coupling assembly, Power section assembly, Anti-drop device assembly
and By-pass valve assembly or Crossover sub.
and By-pass valve assembly or Crossover sub.
Advantages
A Positive Displacement drilling Motor could be used in Extremely hard rock together with diamond or PDC bits. When the rotation speeds are high,Then High penetration rates can be achieved,in spite of the horsepower or torque produced by the motor, The drilling motor could allow circulation of the borehole.
A Positive Displacement drilling Motor could be used in Extremely hard rock together with diamond or PDC bits. When the rotation speeds are high,Then High penetration rates can be achieved,in spite of the horsepower or torque produced by the motor, The drilling motor could allow circulation of the borehole.
•With the diversity and flexibility to work in all drilling environments.
•Utilization of high quality materials, including forged steel drive shafts (laser welding alloy on drive shaft surface), which
reduces wear and tear and down-time for servicing.
•With safety anti-drop device which reduces the probability of residual motor parts left in the drill string in the event of
connection failure.
•High quality power section designs which efficiently maximize the amount of speed and torque being transmitted to the drill bit.
•Tungsten carbide radial bearings which significantly reducing wear and improves durability and consistency in performance.
Integrated Services:
* We can provide correct selection of downhole motors according to customer’s environmental and drilling conditions.
* The downhole motors including spare parts are available to be customized according to customer’s operation requirements.
* We can assist customer in setting up maintenance and service station for down hole motors.
* Mud motor for air drilling is also available upon your request
•Utilization of high quality materials, including forged steel drive shafts (laser welding alloy on drive shaft surface), which
reduces wear and tear and down-time for servicing.
•With safety anti-drop device which reduces the probability of residual motor parts left in the drill string in the event of
connection failure.
•High quality power section designs which efficiently maximize the amount of speed and torque being transmitted to the drill bit.
•Tungsten carbide radial bearings which significantly reducing wear and improves durability and consistency in performance.
Integrated Services:
* We can provide correct selection of downhole motors according to customer’s environmental and drilling conditions.
* The downhole motors including spare parts are available to be customized according to customer’s operation requirements.
* We can assist customer in setting up maintenance and service station for down hole motors.
* Mud motor for air drilling is also available upon your request
Specification
Spec. | Hole Size | Input | Pressure | Bit | Joint | Length | ||||
Flow | Loss | Speed | Thread | |||||||
Rate | ||||||||||
Unit | mm | In | L/S | Mpa | r/min | In | In | mm | ||
5LZ73×7.0 | 83-121 | 3 1/4-4 3/4 | 2-4 | 3.2 | 80-160 | 2 3/8REG | 2 3/8REG | 3423 | ||
9LZ89×7.0 | 105-143 | 4 1/8-5 5/8 | 3-8 | 3.2 | 147-392 | 2 7/8REG | 2 7/8REG | 2911 | ||
5LZ95×7.0 | 114-150 | 4 1/8-5 7/8 | 5-12 | 3.2 | 140-320 | 2 7/8REG | 2 7/8REG | 3920 | ||
5LZ120×7.0 | 152-200 | 6-7 7/8 | 8-16 | 3.2 | 80-180 | 3 1/2REG | 3 1/2REG | 5039 | ||
5LZ165×7.0V | 245-244 | 8 1/8-9 5/8 | 18-30 | 3.2 | 111-167 | 4 1/2REG | 4 1/2REG | 7408 | ||
5LZ165.5×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4 | 120-180 | 4 1/2REG | 4 1/2REG | 7748 | ||
5LZ172×7.0V | 215-244 | 8 1/8-9 5/8 | 18-30 | 4 | 120-180 | 4 1/2REG | 4 1/2REG | 7391 | ||
5LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4 | 115-180 | 4 1/2REG | 4 1/2REG | 8031 | ||
7LZ172.5×7.0V | 215-244 | 8 1/8-9 5/8 | 20-35 | 4 | 75-180 | 4 1/2REG | 4 1/2REG | 8631 | ||
5LZ185×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4 | 184 | 4 1/2REG | 6 1/2REG | 8120 | ||
5LZ185.5×7.0 | 215-244 | 8 1/8-9 5/8 | 20-35 | 4 | 173 | 4 1/2REG | 6 1/2REG | 8120 | ||
5LZ197×7.0 | 244-311 | 9 1/8-12 5/8 | 20-40 | 3.2 | 61-122 | 5 1/2REG | 6 5/8REG | 7998 | ||
5LZ197.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4 | 85-160 | 5 1/2REG | 6 5/8REG | 8598 | ||
7LZ203×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 3.2 | 70-155 | 5 1/2REG | 6 5/8REG | 7798 | ||
5LZ203.5×7.0 | 244-311 | 9 5/8-12 1/4 | 20-40 | 4 | 70-155 | 5 1/2REG | 6 5/8REG | 8598 | ||
5LZ244×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 3.2 | 91-136 | 6 5/8REG | 7 5/8REG | 8635 | ||
7LZ244.5×7.0 | 311-445 | 12 1/2-17 1/2 | 50-75 | 4 | 91-136 | 6 5/8REG | 7 5/8REG | 9235 | ||
FAQ
How to order?
Please send us your inquiry with detail item description or with Model number.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
If there is no packing demand we take it as our regular exported standard packing.
We will offer you an order form for filling. We will recommend you the most suitable model according to information you offered.
You send us your detail requirement, we provide quotation to you.
Can I expect a quality products?
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
All the production and processing are strictly according to ISO 9001:2008 and API standard. At the same time, mature production technology ensuring the quality satisfy international request. We also welcome the third party inspection, such as BV, SGS and TUV.
Похожие товары
Буровая установка

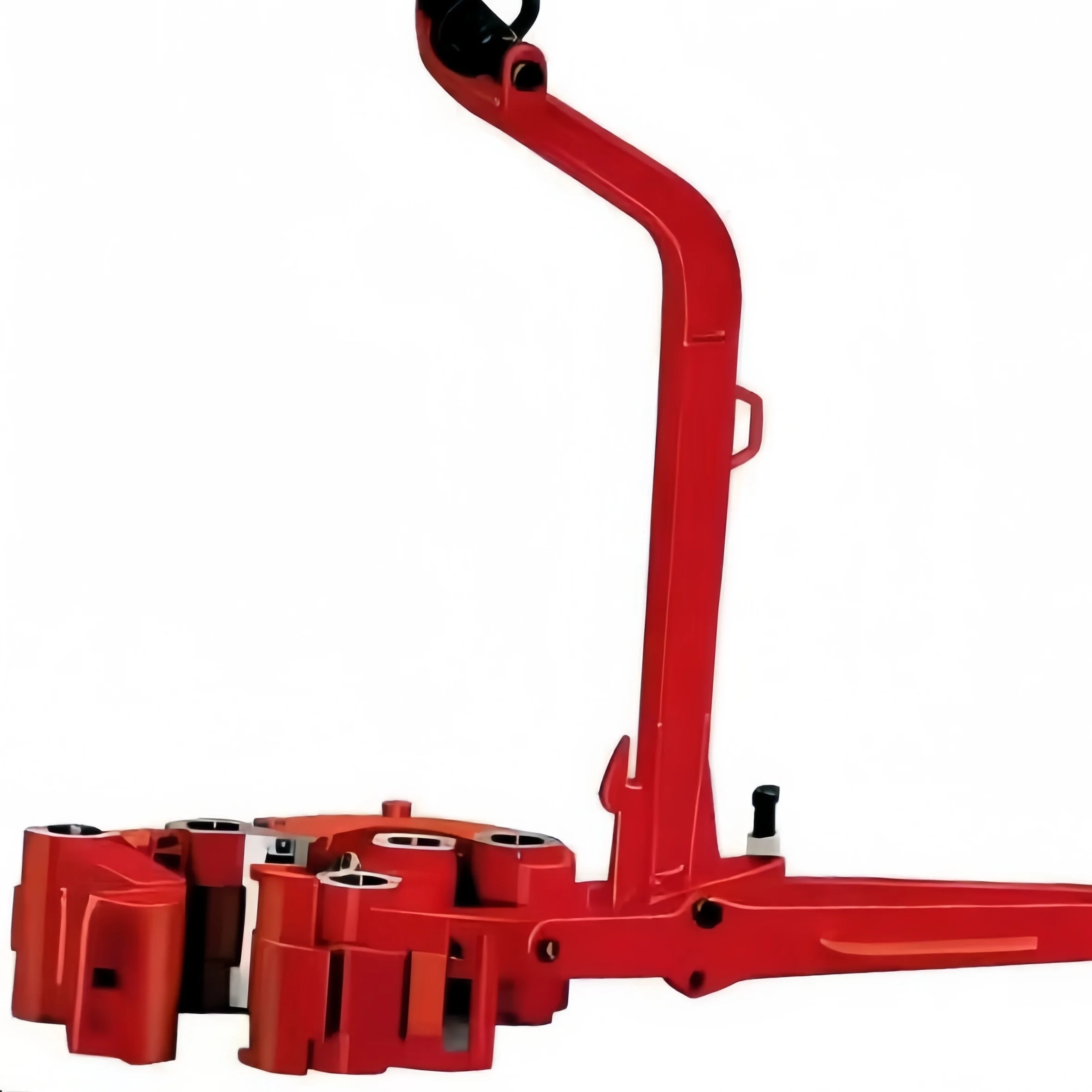

Ручные щипцы для нефтяных месторождений типа API 7K DB/B/C бурения на месторождениях
320,00-350,00 $
Китай API 7K обсадные пауки и вставные чаши для управления устьем нефтяных скважин

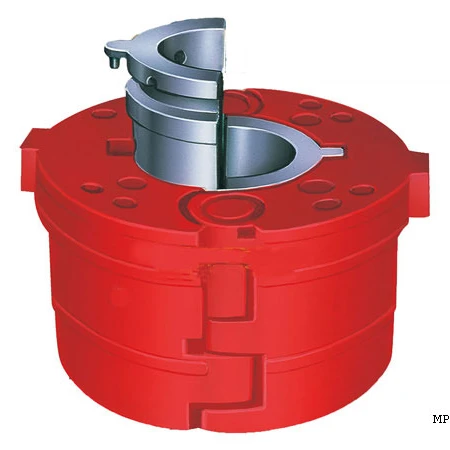

MSS MSPC мастер втулка вращающегося стола
2 800,00-3 000,00 $

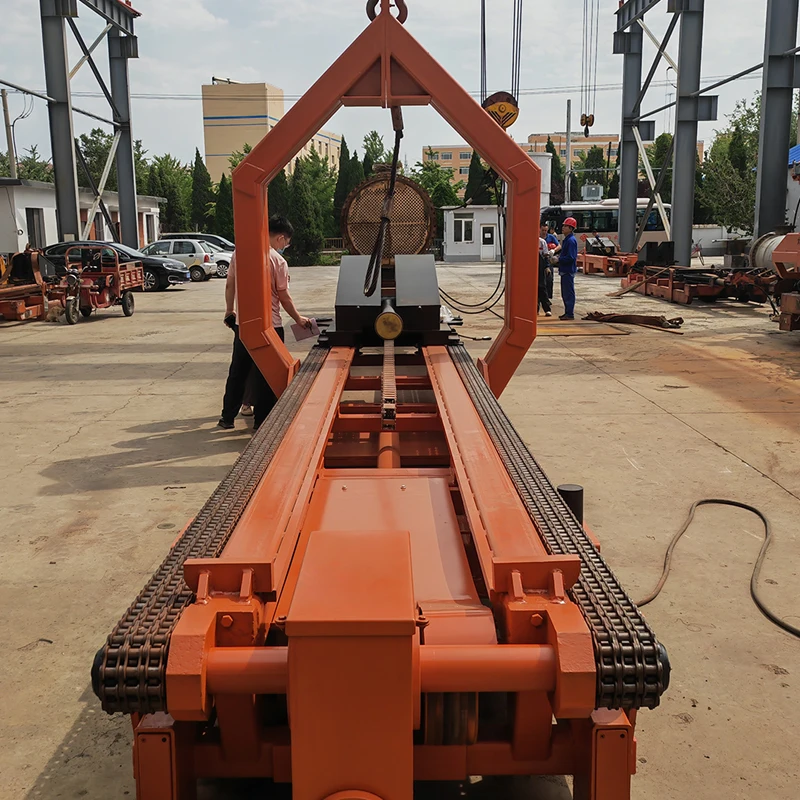

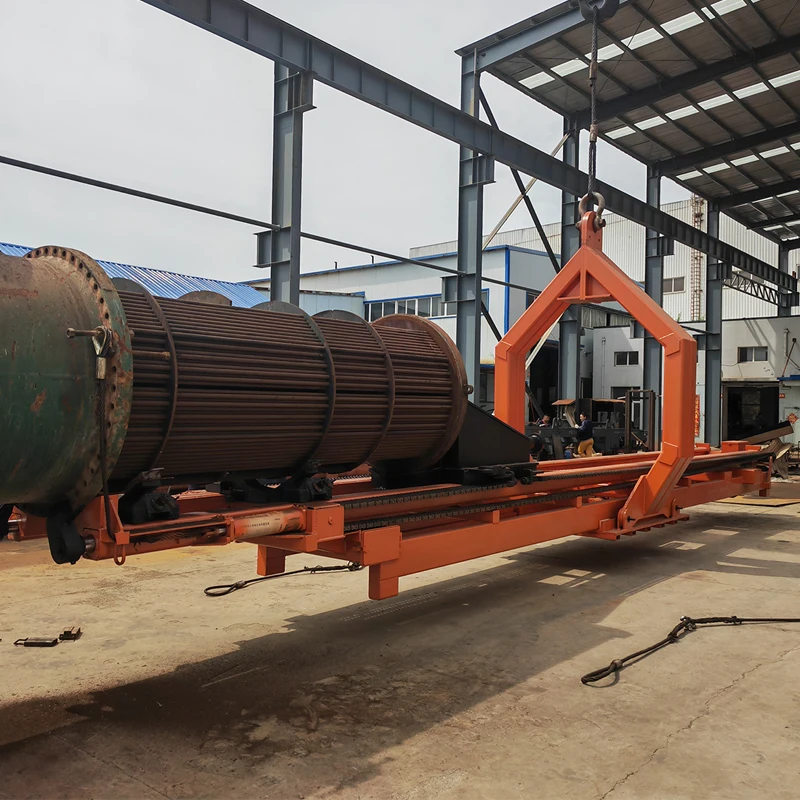

Китайский поставщик экстрактор теплообменника 85 тонн со всеми соответствующими аксессуарами SD260-12B
75 000,00-159 000,00 $
Новый экстрактор трубчатого пучка теплообменника грузоподъемностью 85 тонн с SD260-12B длиной 12000 мм
75 000,00-159 000,00 $

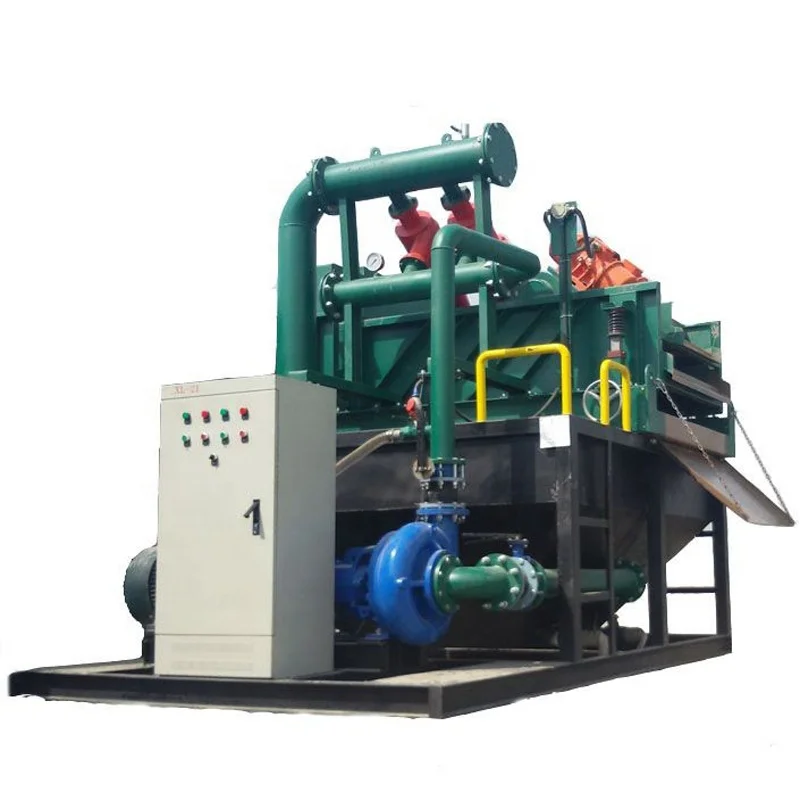

Небольшая многофункциональная система обработки грязи с твердым контролем серии DLQ напрямую продаваемая производителем
