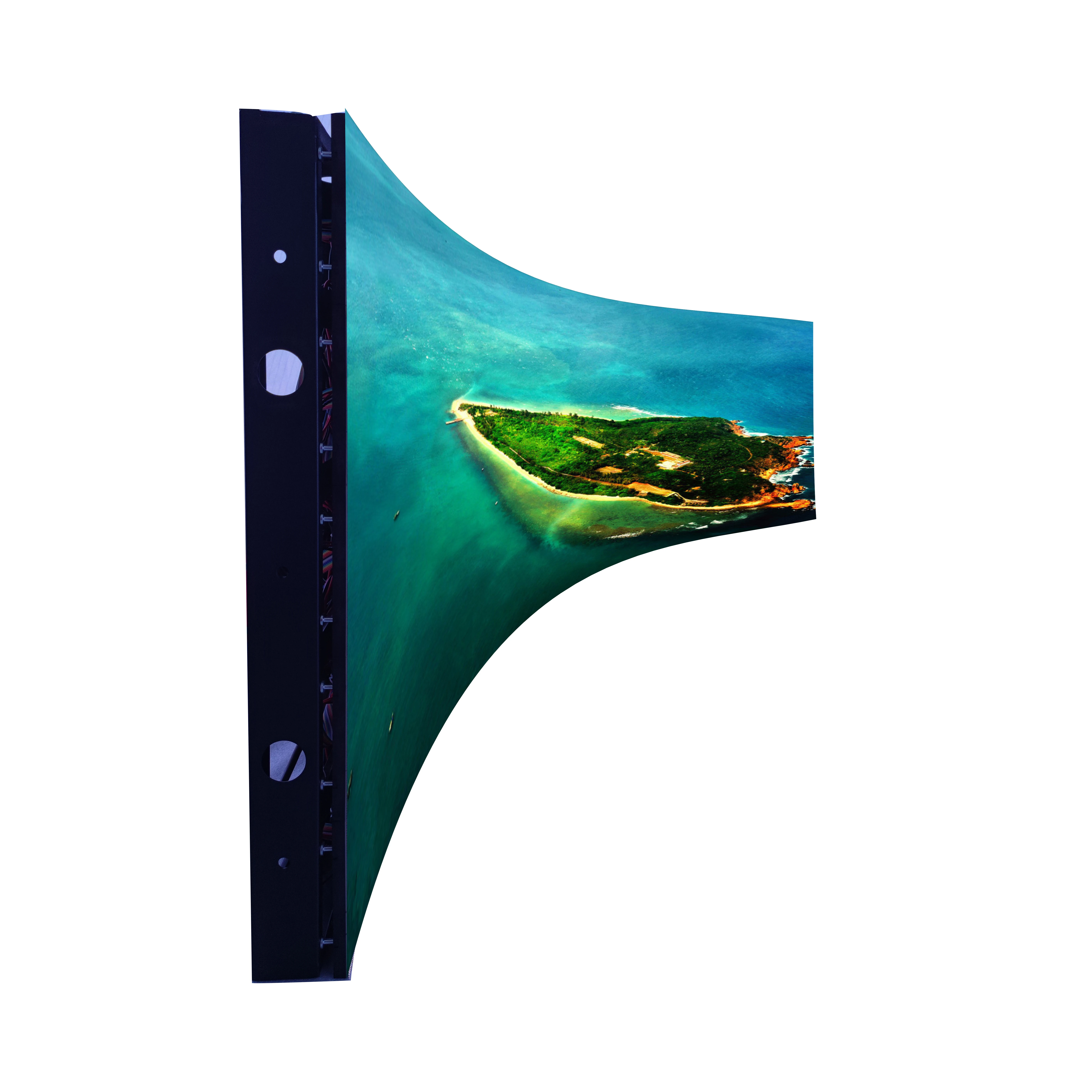

Горячая продажа Светодиодный дисплей P1.86 P2 P2.5 гибкий светодиодный изогнутый рекламный экран
114 799,60-137 759,52 ₽

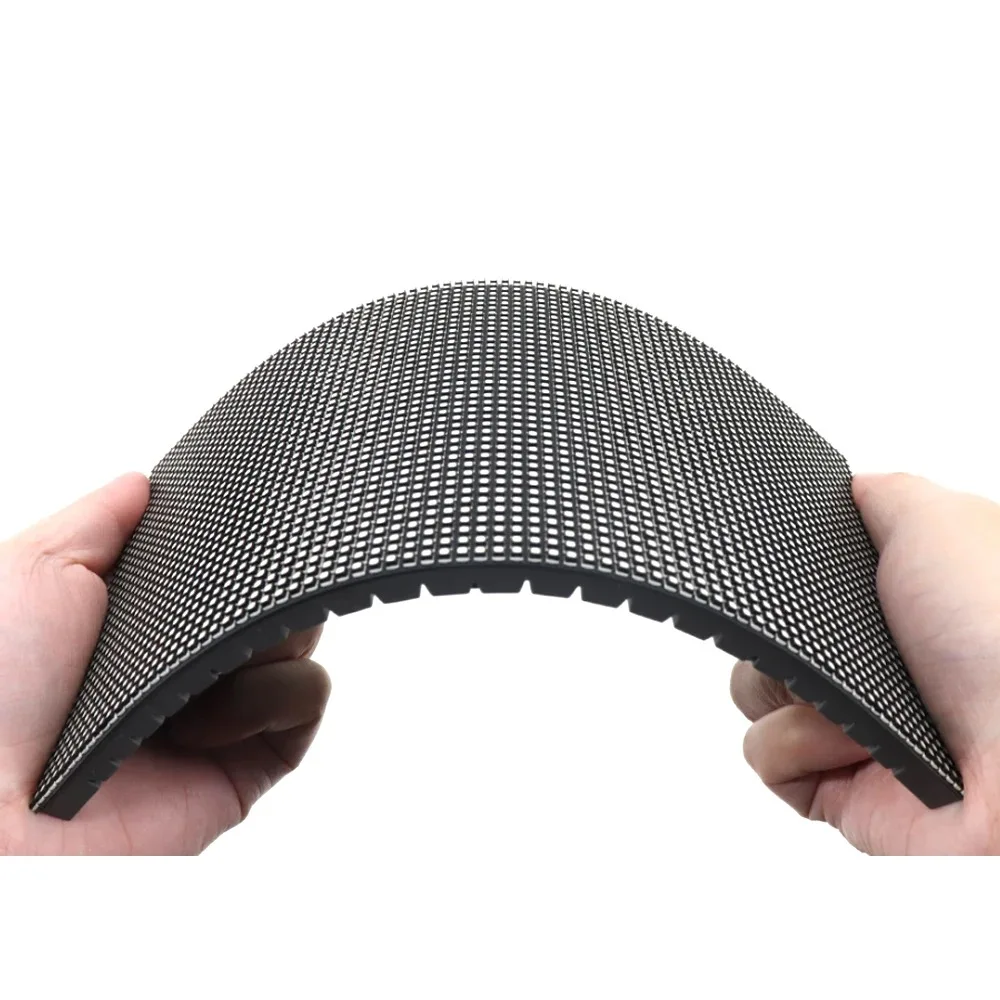

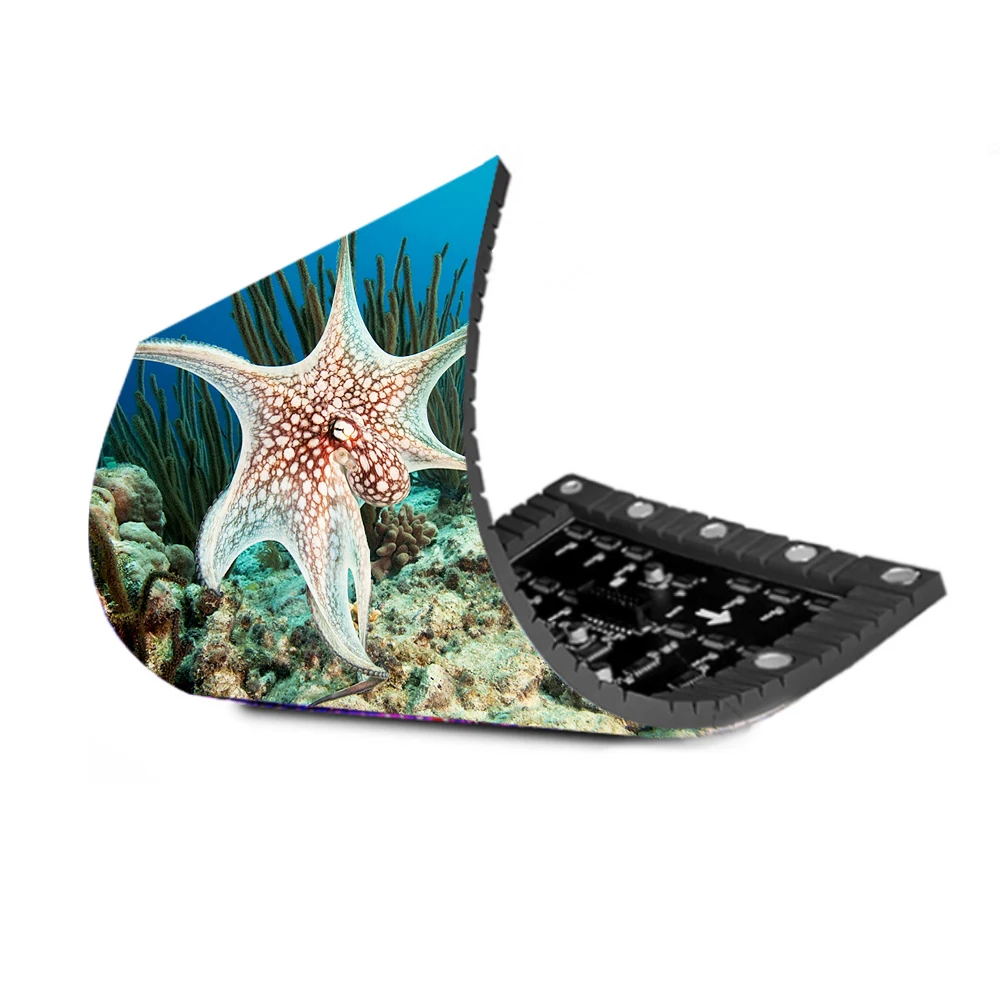

Гибкий светодиодный дисплей P2.5 P4 P5 внутренний мягкий гибкий экран P3 SMD модуль наружный
- Категория: >>>
- Поставщик: Shenzhen Shundarong Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601299081748:
Описание и отзывы
Характеристики

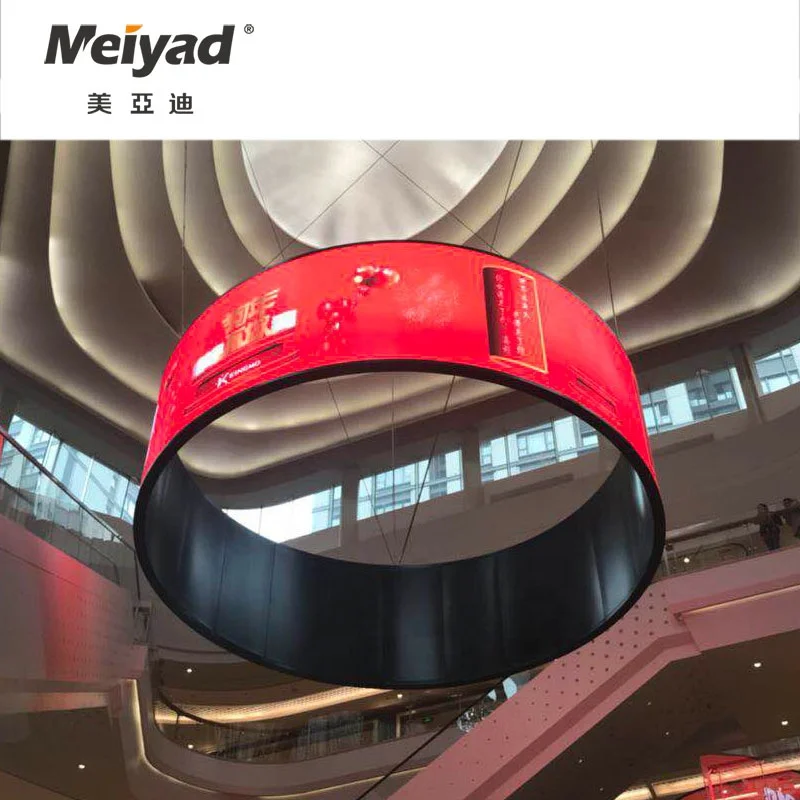

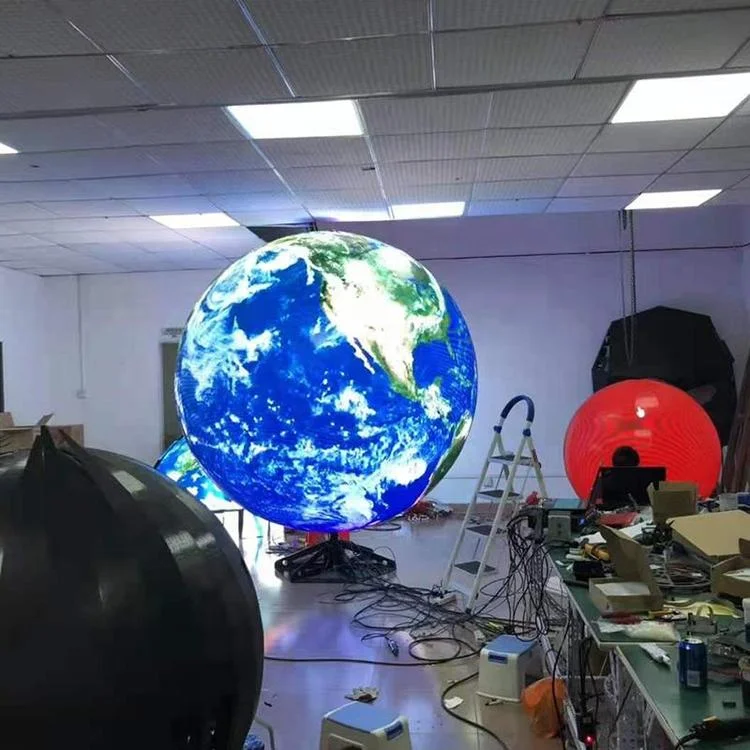

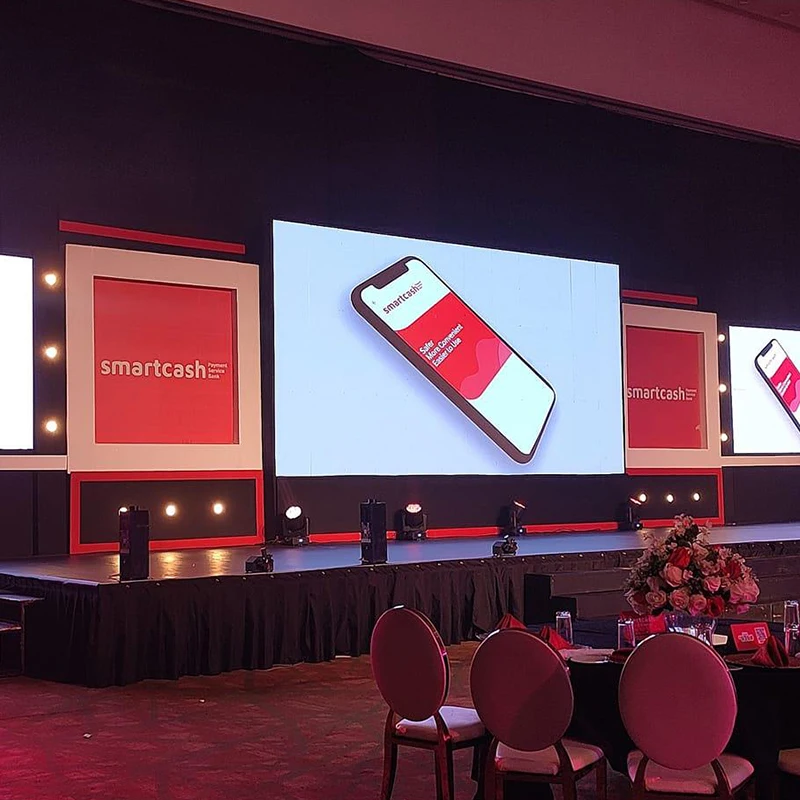

Some Of Our Customer Case
Products Description
name | technical parameter |
1. Pixel tube | Pixel spacing: 2.5mm Package: SMD2121 Primary color: 1red+1green+1blue Color combination of luminous point: 1R1G1B Physical density: 160000 points/㎡ |

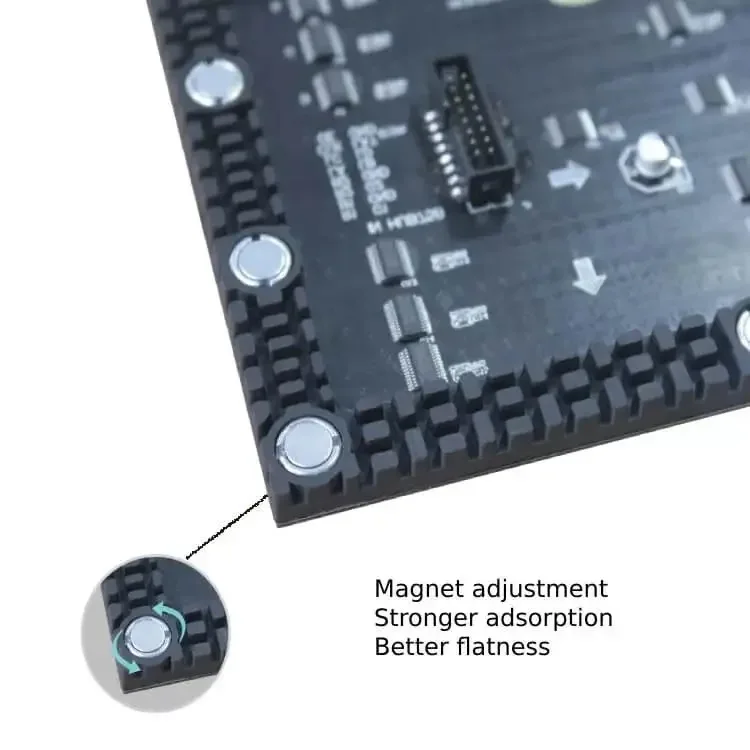

2. Unit board | Unit board resolution: 128 points wide × High 64 points Unit board size: 320 * 160 mm Number of unit boards: 8192 points/unit board Scanning mode: 32S Input voltage: DC5V Maximum current: 4.5A |
3. Unit box | Box size: 640*480mm Number of unit boards:Wide 2 * High 3= 6 units Physical resolution: 256*192 Maximum power: 200W Average power: 110W Receiving card: Nova 208 Working voltage: 220V ± 15% Angle of view: 120 ° ± 10 ° Storage temperature: - 30 ℃~+60 ℃ Working temperature: - 20 ℃~+45 ℃ Relative humidity: 10%~95% Net weight:5.6 Kg |
4.Control system | Control host: Lenovo Kaitian host or above Operating system: WIN 98/2000/XP Control mode: synchronous control or asynchronous control Video card: DVI independent video card |
5. Main technical parameters | 1) Driver: ICN2153 constant current 2) Drive mode: 1/32 sweep 3) Refresh frequency: ≥ 1920~3840Hz 4) Frame rate: ≥ 60Hz 5) Grayscale/color: 65536 grayscale, 16.7M color 6) Optimal sight distance: 2.5～25m 7) Brightness: 750cd/m2 8) Brightness adjustment mode: software 256-level adjustable 9) Video signals: RF, S-Video, RGB, RGBHV, YUV, YC, COMMISSION, etc 10) The control system adopts: PCTV card (optional)+DVI graphics card+master control card+optical fiber transmission (optional) 11) Mean time between failures: 1000 hours 12) Service life: 100000 hours 13) Flatness: ≤ 0.5mm between any adjacent pixels; Splicing clearance of unit plate ＜ 1mm; 14) Uniformity: uniform pixel light intensity and unit board brightness 15) Pixel runaway rate: ＜ 0.0002 16) Switching power supply load: 5V/40A 17) Computer display mode: 1280*1024 18) Effective communication distance: network cable 100m (no trunk), multi-mode fiber 500m, single-mode fiber 20km |
Company Profile
True chat record with customers |
Product packaging
1, Leading time: within 5-15 working days.
2, Payment terms: T/T, L/C, Alibaba online insurance order.

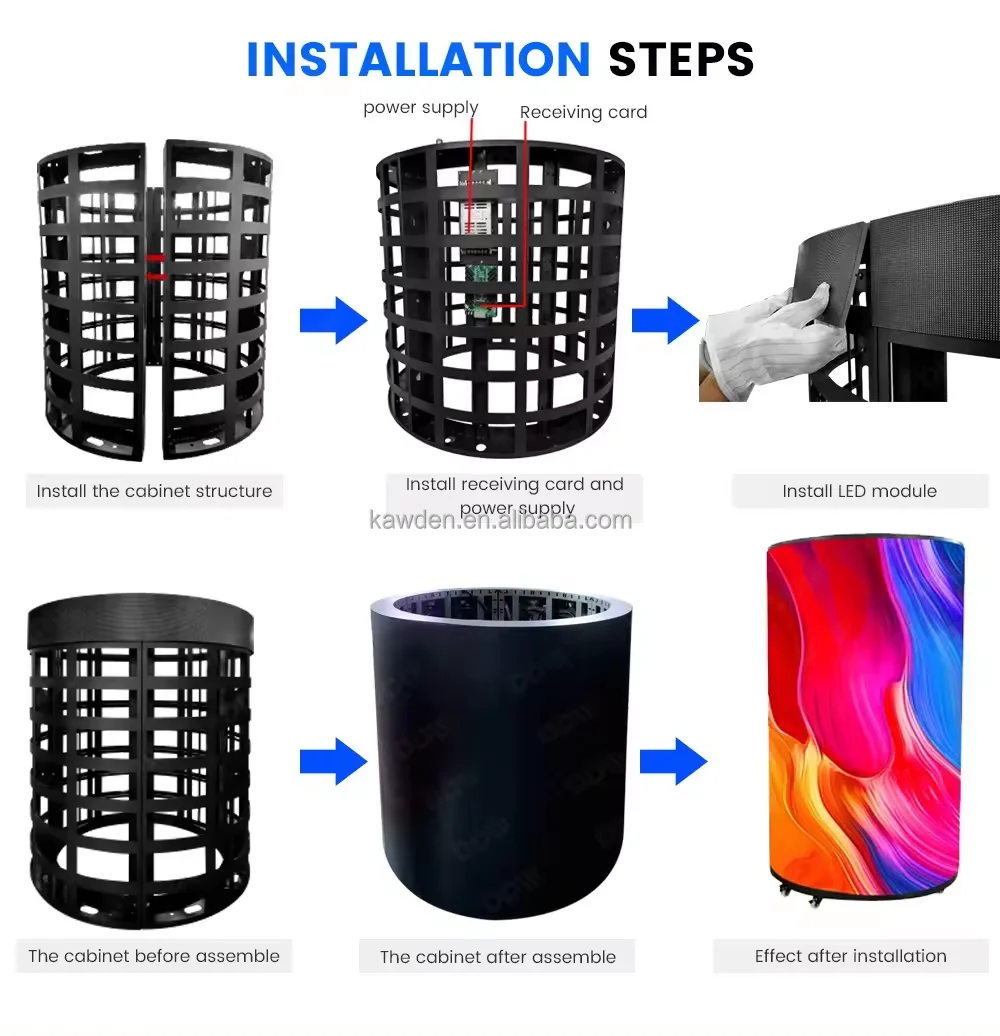

3, Full technical, installation guide & accessories will be provided according to customers's requests.
4, Warranty: 1 year.
5, Price validity: 1 month.
2, Payment terms: T/T, L/C, Alibaba online insurance order.
3, Full technical, installation guide & accessories will be provided according to customers's requests.
4, Warranty: 1 year.
5, Price validity: 1 month.
led screen led screen outdoor led display screen outdoor led screen transparent led screen flexible led screen led screen indoor led panel screen led screen display led stage screen led transparent screen flexible transparent led screen led glass screen led advertising screen outdoor led film screen transparent glass led screen led advertising screen indoor led screens stage led screen for concert indoor led display screen led wall screen led screen panel led display led screen led rental screen led screen film floor led screen advertising led display screen video wall outdoor advertising led display screen
FAQ
Q: Are you trading company or manufacturer?
A: KAWDEN as original OEM/ODM manufacturer over 10 years, serving domestic and overseas buyers with high reputation.
Q: What payment methods your company accept?
A: Mainly transact by Alibaba online insurance order, more convenient and safer for buyers, other also accept T/T, L/C, Western Union, Paypal and MoneyGram.
Q: How long is the warranty time for your products?
A: For main LCD LED display screen, official promised warranty time is one whole year after delivery. Every model support one year remote warranty service.
Q:I haven't done business with you guys before, how can I trust your company?
A: Well, KAWDEN is international verified member of alibaba, with certifications like CE, UL, RoHS, FCC, ISO9001etc. So, sincere and reliable professional services will be provided to you.
Q:Do you offer any discount?
A: Will offer certain price till match your target.
Q:I would like to ask you if it's possible to have my logo on the product.
A: Perfectly support customized logo service. as original OEM/ODM manufacturer of LCD/LED video wall screen, best service and products solution will provide to all customers.
A: KAWDEN as original OEM/ODM manufacturer over 10 years, serving domestic and overseas buyers with high reputation.
Q: What payment methods your company accept?
A: Mainly transact by Alibaba online insurance order, more convenient and safer for buyers, other also accept T/T, L/C, Western Union, Paypal and MoneyGram.
Q: How long is the warranty time for your products?
A: For main LCD LED display screen, official promised warranty time is one whole year after delivery. Every model support one year remote warranty service.
Q:I haven't done business with you guys before, how can I trust your company?
A: Well, KAWDEN is international verified member of alibaba, with certifications like CE, UL, RoHS, FCC, ISO9001etc. So, sincere and reliable professional services will be provided to you.
Q:Do you offer any discount?
A: Will offer certain price till match your target.
Q:I would like to ask you if it's possible to have my logo on the product.
A: Perfectly support customized logo service. as original OEM/ODM manufacturer of LCD/LED video wall screen, best service and products solution will provide to all customers.
