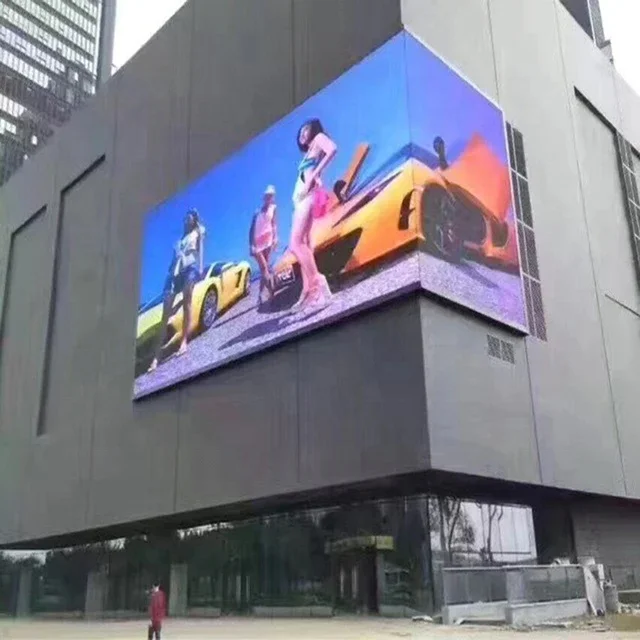

Наружный 3D светодиодный дисплей Naked-eye захватывающая реклама Интерактивная видеостена цифровой рекламный щит большой
67 356,82-69 766,73 ₽

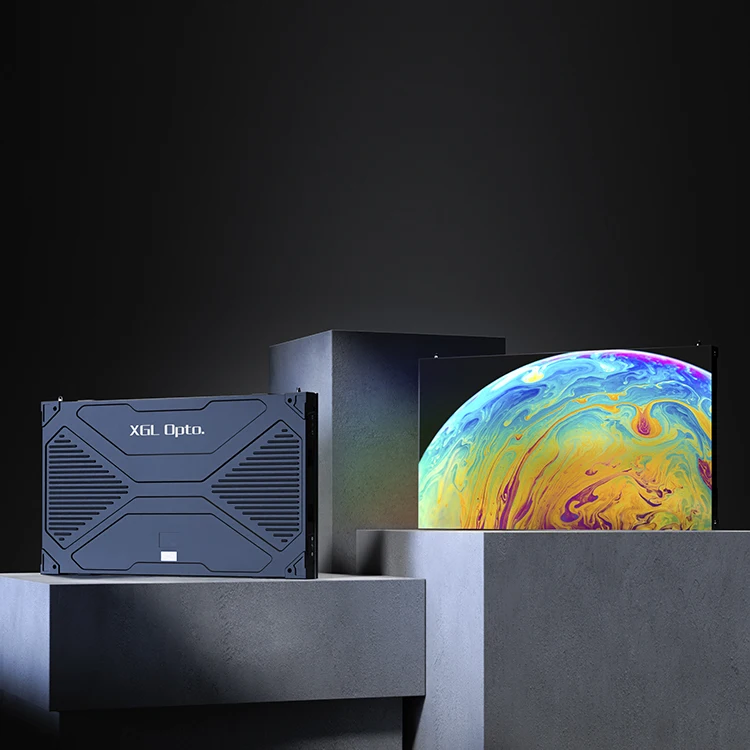

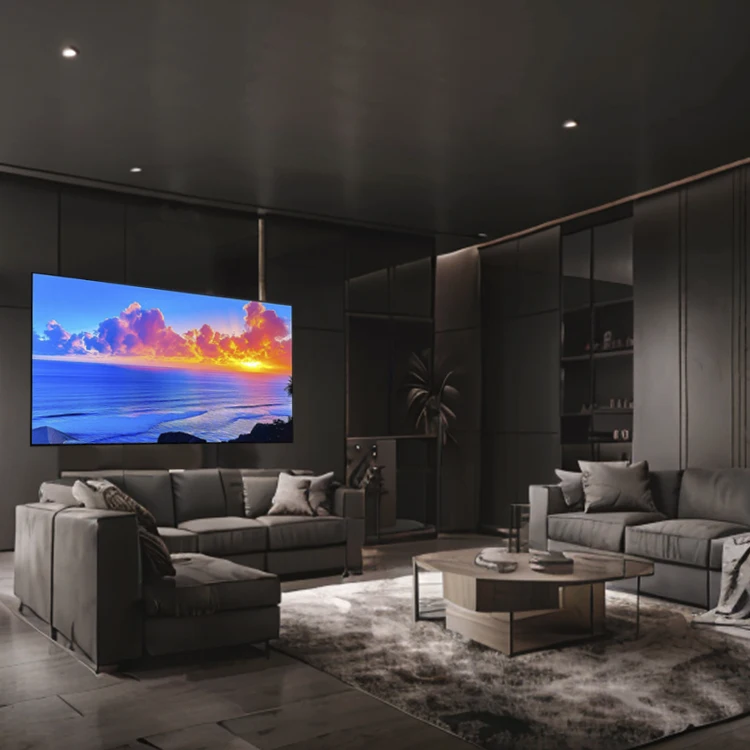

XGL P0.9 P1.2 P1.56 домашний кинотеатр HD высокопроизводительный светодиодный видео настенный дисплей
- Категория: >>>
- Поставщик: Dongguan Xinguanglian Optoelectronics Technology Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601299712094:
Описание и отзывы
Характеристики
Products Description

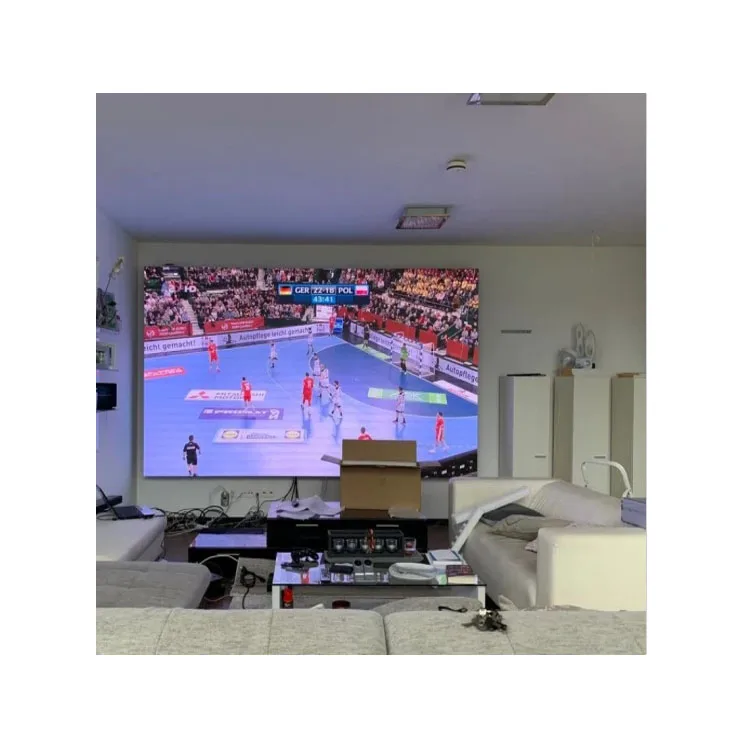

Project Case
Product Paramenters
Full Flip-Chip COB XGL | Small Pitch Series Chip on Board |
Pixel parameters | |

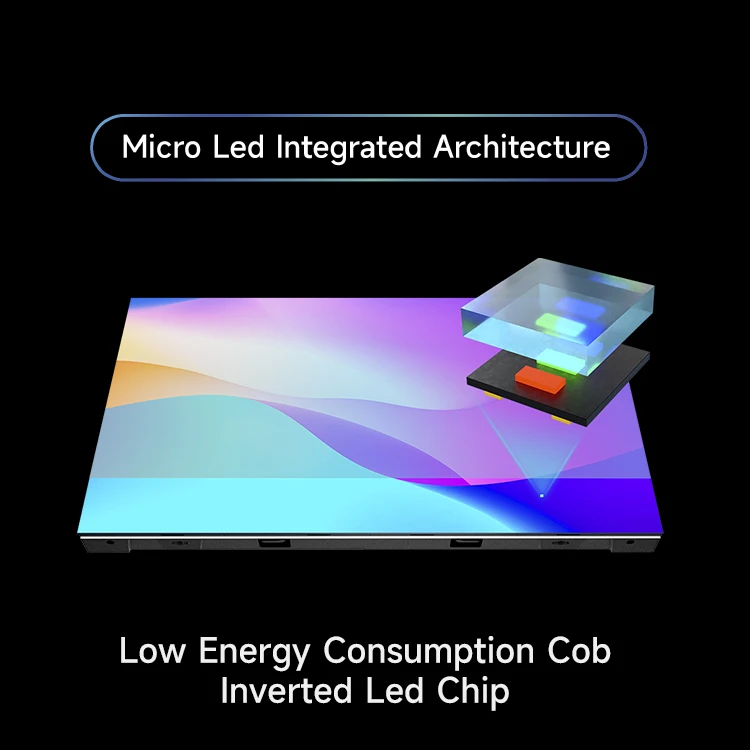

LED Type | Full Flip-Chip COB |
Pixel Pitch (mm) | 0.9375 |
Pixel parameters | R：G：B/3：6：1 |
Pixel composition | Full flip-chip integrated package |
Module technical parameters | |
Module Size(width x height) (mm) | 150×168.75 |
Module Resolution(width x height) (pixels) | 160X180 |
Box Technical Parameters | |
Flatness between modules | ≤0.15mm |
Panel Size (mm) | 600×337.5×42mm |
Panel Resolution(width x height) (pixels) | 640x360 |
Panel Weight (kg) | 6±0.5Kg/panel |

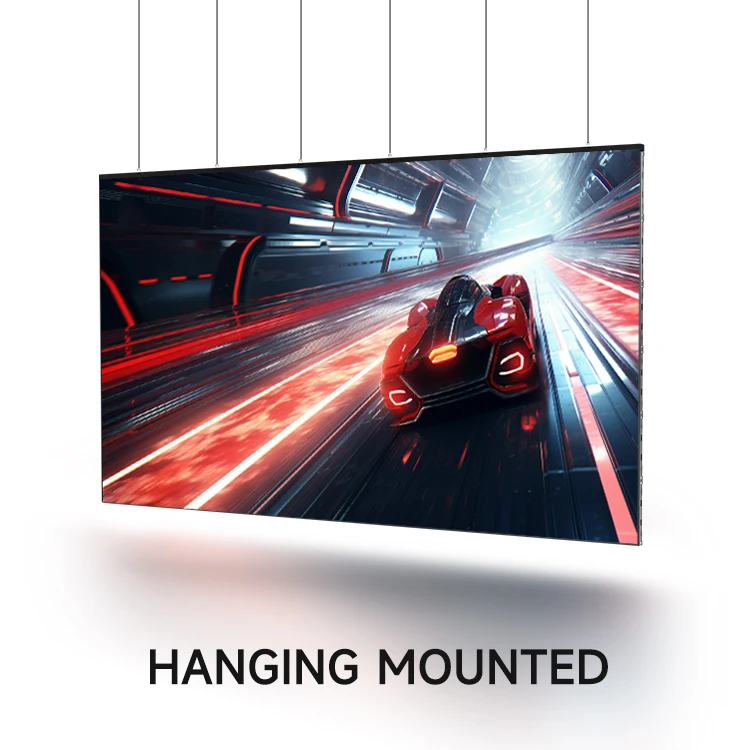

Installation method | Hoisting/Mounting/wall hanging |
Screen Technical Parameters | |
Brightness(cd/m2) | 600 |
Pixel Density | 1137778dots/m² |
Flatness | ≤0.15mm |
Luminous horizontal viewing angle/ vertical viewing angle(H/V) | 170°/170° |
Viewing Angle(H/V) | 140°/140° |
Highest contrast | 12000:1 |
System Control Parameters | |
Driving method | Common cathode |
Contrast Ratio | 1000000:1 |
Max power consumption (W/m2) | 280 |
Avg power consumption (W/m2) | 95 |
Frame Change Frequently (Hz) | 50/60 |
Signal Color Processing Bits | ≥13bit |
Brightness adjustment | Manual/automatic/program-controlled |
Control method | Sync control |
Pixel Correction | Equipped with brightness and color point by point correction |
Control distance | Category 5e twisted pair network cable, optical fiber transmission over 100 meters (optional) |
Software interface | WindowsXP/7/8/10 |
Refresh Frequency (Hz) | ≥3840 |
Color Temperature (K) | 3000-13000K adjustable |
Signal input | HDMI、DVI |
Screen running parameters | |
Continuous working time | ≥7×24hrs, support continuous uninterrupted display |
Voltage | AC：100V~240V |
Peak Power | 220W/ m² |
Average Power | 88W/ m² |
Operating Temperature Range | -20℃～50℃ |
Operating Humidity Range | 10%RH～95%RH |
Blind Spot Rate | ≤0.0001, 0 at factory |
LED Lifetime (h) | 100000 hours |
Why Choose Us
Exhibition
Product packaging
FAQ
Q1:What is the Minimum Order Quantity(MOQ)for XGL OPTO's COB LED displays?
A:The MOQ for our COB LED displays is 1 panel.However,for an enhanced visual experience,we recommend ordering larger video walls.
Q2:Does XGL OPTO include a video processor with the COB LED display?
A:Yes,we include a video processor from renowned brands like Brompton and Colorlight Novastar with our COB LED displays to ensure optimal performance.
Q3:How can XGL OPTO's COB LED displays be installed for rental purposes?
A:Our COB LED displays are designed for easy installation,suitable for both hanging and stacking methods commonly used in rental applications.
Q4:Does XGL OPTO provide installation structures for the COB LED displays?
A:Absolutely,we offer hanging beams for suspended installations and back brackets for stacking installations to facilitate various setup needs.
Q5:Is there a quality check before delivery of the COB LED displays?
A:Yes,we conduct a 100%quality test for 72 hours before delivery to ensure each unit meets our stringent quality standards.
Q6:What is the warranty period for XGL OPTO's COB LED displays?
A:We offer a 2-year warranty.During this period,we are responsible for the free repair or replacement of any defective parts.
Q7:What support does XGL OPTO provide if we encounter issues with installation,configuration,or usage?
A:Our dedicated after-sales service team is on standby to resolve any issues related to installation,configuration,or usage,ensuring your screen operates optimally.
Q8:What are XGL OPTO's payment terms for COB LED displays?
A:We require a 50%deposit,with the remaining 50%due before delivery.We will provide photos of the products and packaging for your approval before the final payment.
Q9:What are XGL OPTO's delivery terms for COB LED displays?
A:We offer flexible terms including EXW,FOB,CIF,CFR,DDP,DDU,and can work with customer-specified freight forwarders or negotiate the mode of transport.
Q10:How long is the delivery time for XGL OPTO's COB LED displays?
A:The standard delivery time is 15-20 days after receiving the deposit.However,the exact delivery time may vary based on the order quantity.
A:The MOQ for our COB LED displays is 1 panel.However,for an enhanced visual experience,we recommend ordering larger video walls.
Q2:Does XGL OPTO include a video processor with the COB LED display?
A:Yes,we include a video processor from renowned brands like Brompton and Colorlight Novastar with our COB LED displays to ensure optimal performance.
Q3:How can XGL OPTO's COB LED displays be installed for rental purposes?
A:Our COB LED displays are designed for easy installation,suitable for both hanging and stacking methods commonly used in rental applications.
Q4:Does XGL OPTO provide installation structures for the COB LED displays?
A:Absolutely,we offer hanging beams for suspended installations and back brackets for stacking installations to facilitate various setup needs.
Q5:Is there a quality check before delivery of the COB LED displays?
A:Yes,we conduct a 100%quality test for 72 hours before delivery to ensure each unit meets our stringent quality standards.
Q6:What is the warranty period for XGL OPTO's COB LED displays?
A:We offer a 2-year warranty.During this period,we are responsible for the free repair or replacement of any defective parts.
Q7:What support does XGL OPTO provide if we encounter issues with installation,configuration,or usage?
A:Our dedicated after-sales service team is on standby to resolve any issues related to installation,configuration,or usage,ensuring your screen operates optimally.
Q8:What are XGL OPTO's payment terms for COB LED displays?
A:We require a 50%deposit,with the remaining 50%due before delivery.We will provide photos of the products and packaging for your approval before the final payment.
Q9:What are XGL OPTO's delivery terms for COB LED displays?
A:We offer flexible terms including EXW,FOB,CIF,CFR,DDP,DDU,and can work with customer-specified freight forwarders or negotiate the mode of transport.
Q10:How long is the delivery time for XGL OPTO's COB LED displays?
A:The standard delivery time is 15-20 days after receiving the deposit.However,the exact delivery time may vary based on the order quantity.
Похожие товары
P5 Крытый полноцветный светодиодный дисплей HD световые панели уличный Встроенный кабельный экран мини Power Bank со светодиодным дисплеем
120 495,20 ₽

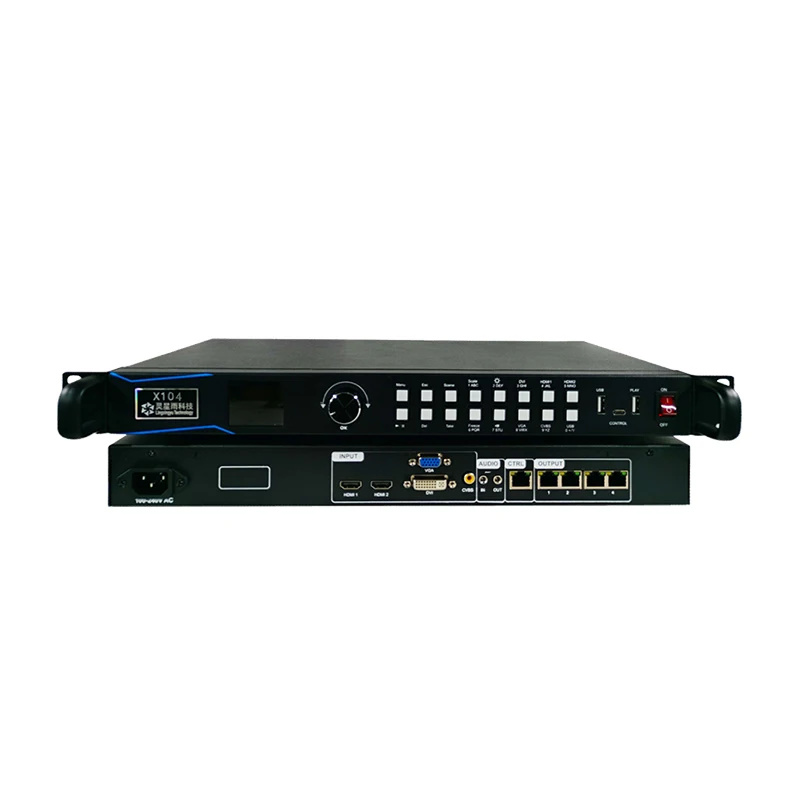

Linsn-светодиодный видеопроцессор X104 все в одном светодиодный дисплей Контроллер вместо Linsn X200 настенный
24 701,52-27 111,42 ₽

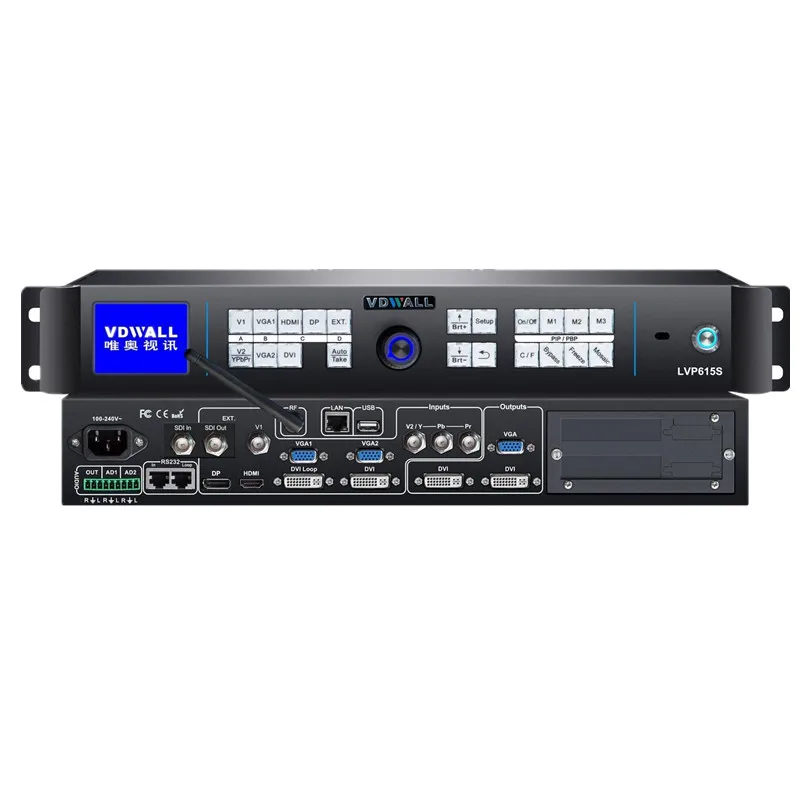

Видеопроцессор VDWALL LVP615S HD для очень большого пикселя светодиодный дисплей
