Products Description

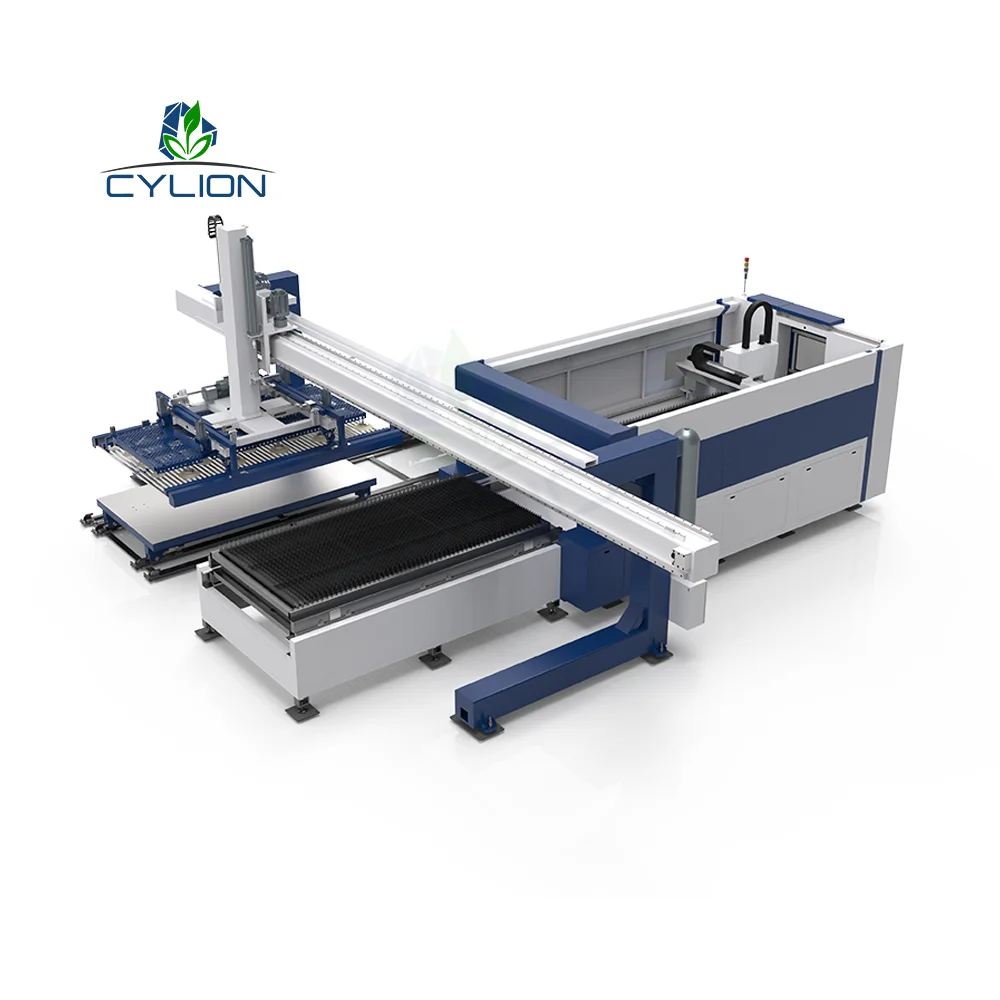

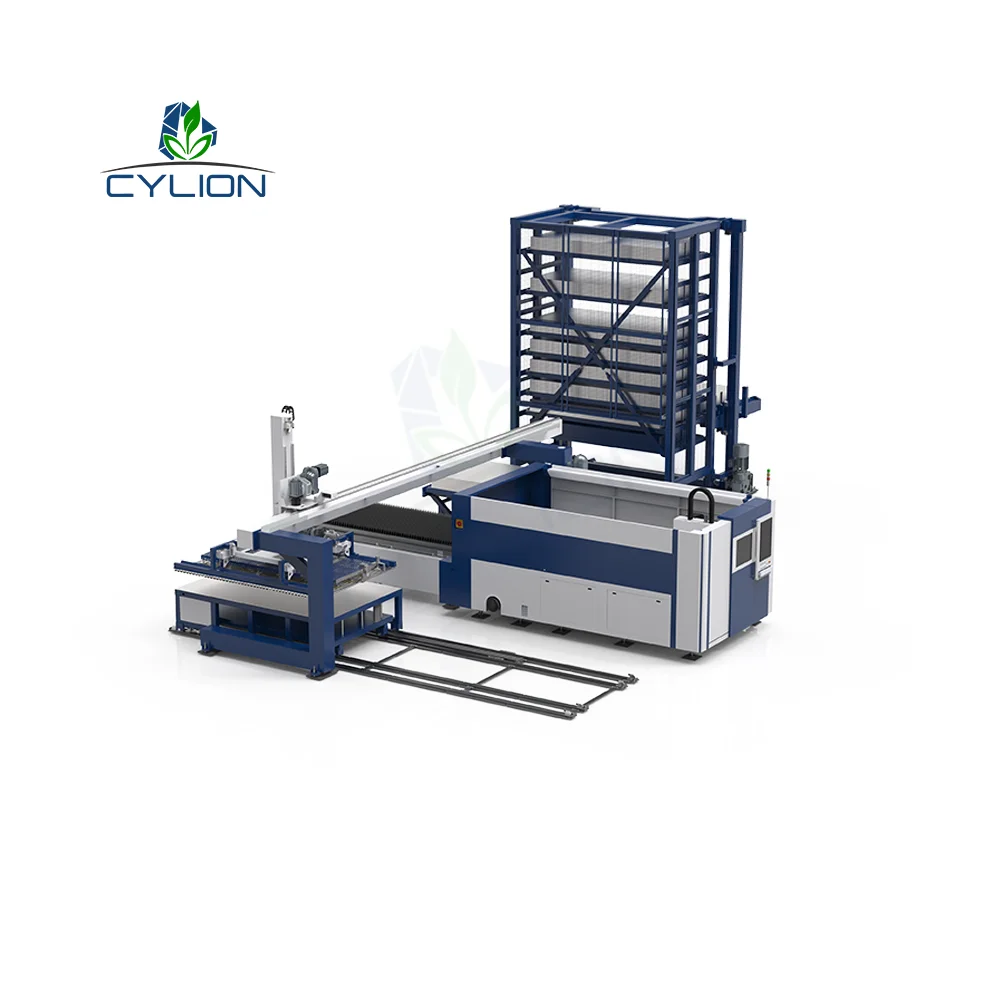

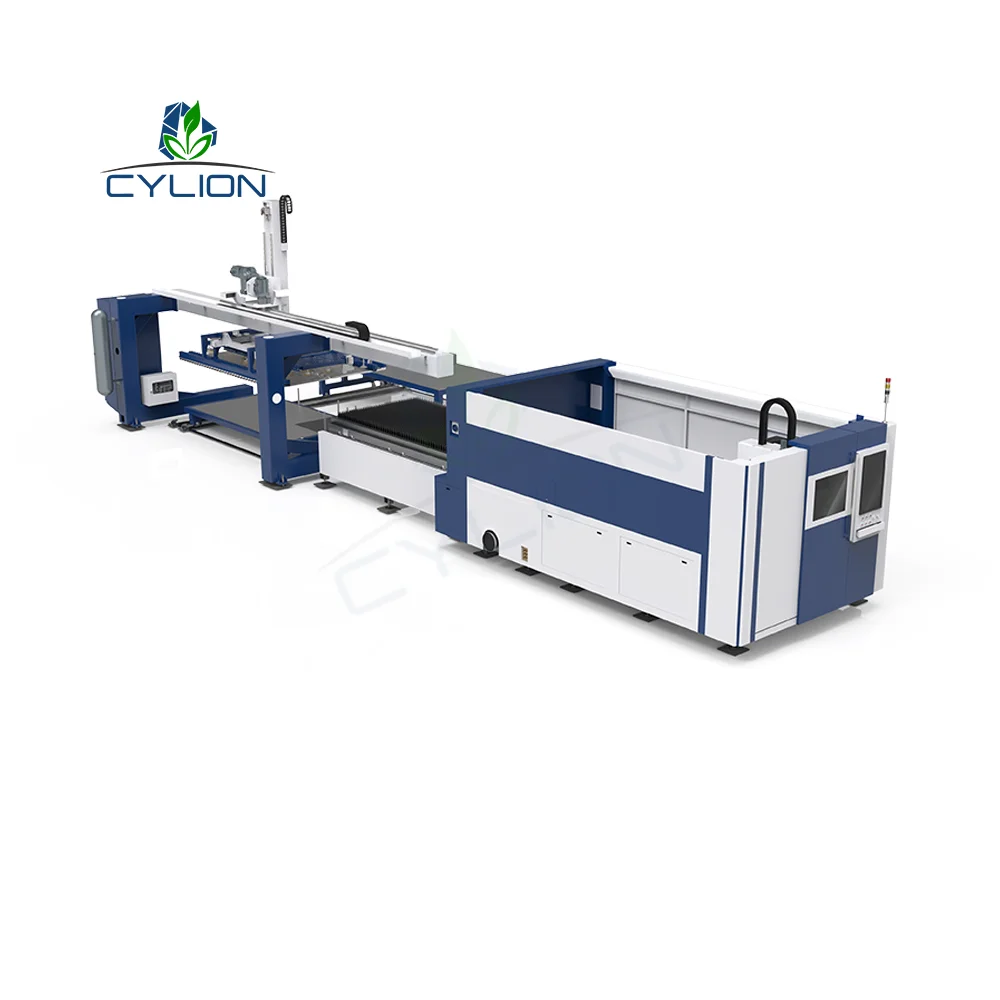

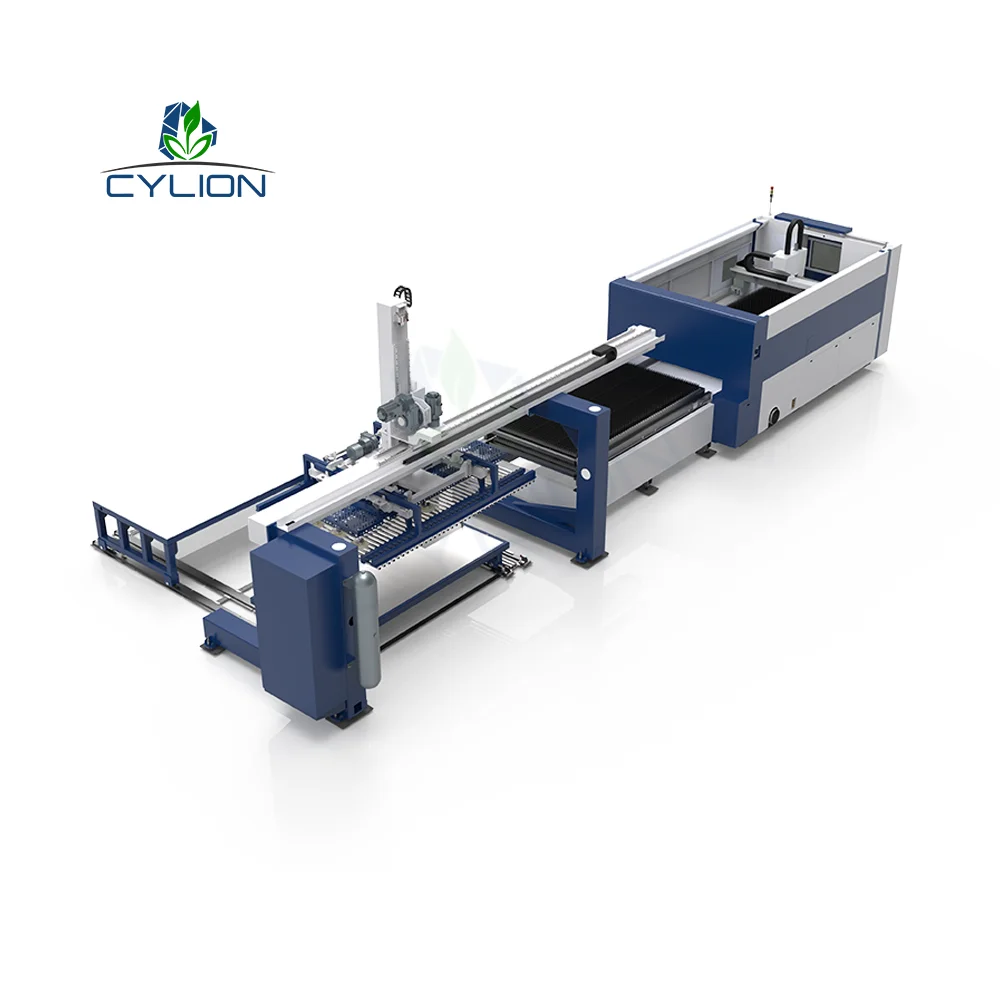

Fiber Laser Automatic Loading and Unloading Product Line Cutting Machine
1.Automated loading and unloading system is composed of automated loading and unloading control system, automated loading and unloading device, plane cutting machine and its CNC system, raw material cart and sorting cart.
2.Automated loading and unloading system can implement tasks such as automated pick-up, automatic loading, automatic processing, automatic unloading, and automatic collection according to the production scheduling plan.
3.The system supports automated and planned operation in the whole process, including programming, raw material loading and cutting, and transportation of cut workpieces and wastes, thereby greatly improving the production efficiency, relieving the labor burden, and reducing the production cost.
4.It features the characteristics of high efficiency, low cost and convenient operation.
There are two types of sheet metal warehouses, one is a cantilever warehouse and the other is a gantry warehouse.
Cantilever warehouse for laser cutting machine
The cantilever warehouse is completed by the cantilever when loading and unloading materials. The cantilever type needs to be avoided to discharge materials from the side;
The structure is simple and the appearance is beautiful;
It can be used in places with less space. The cantilever type can directly take materials. In addition to forklift loading, it can also be loaded by crane;
If it is not a side discharge (single warehouse), you should choose a cantilever warehouse, which is more convenient, simple and generous.
The structure is simple and the appearance is beautiful;
It can be used in places with less space. The cantilever type can directly take materials. In addition to forklift loading, it can also be loaded by crane;
If it is not a side discharge (single warehouse), you should choose a cantilever warehouse, which is more convenient, simple and generous.

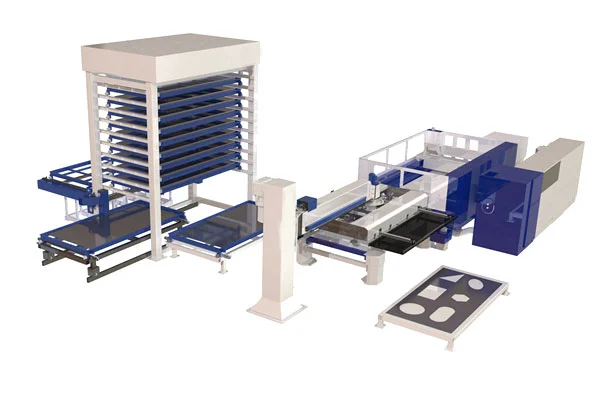

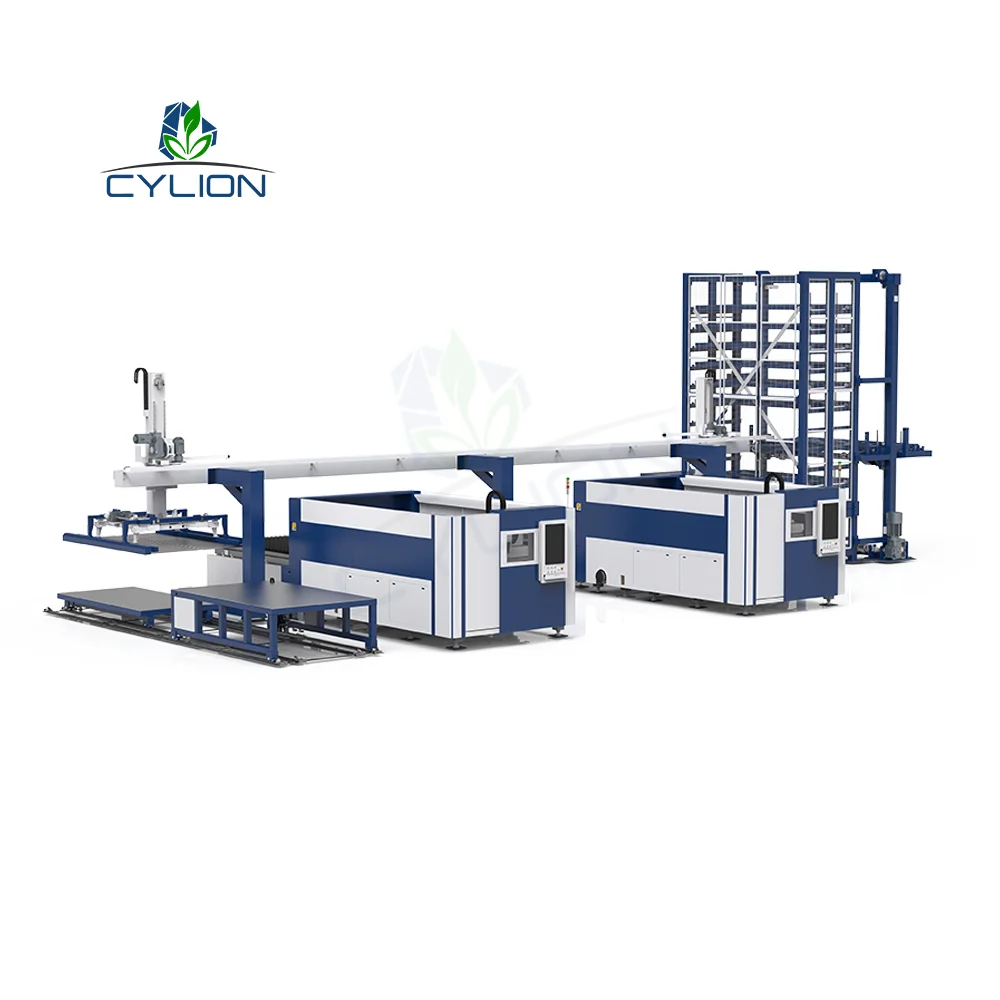

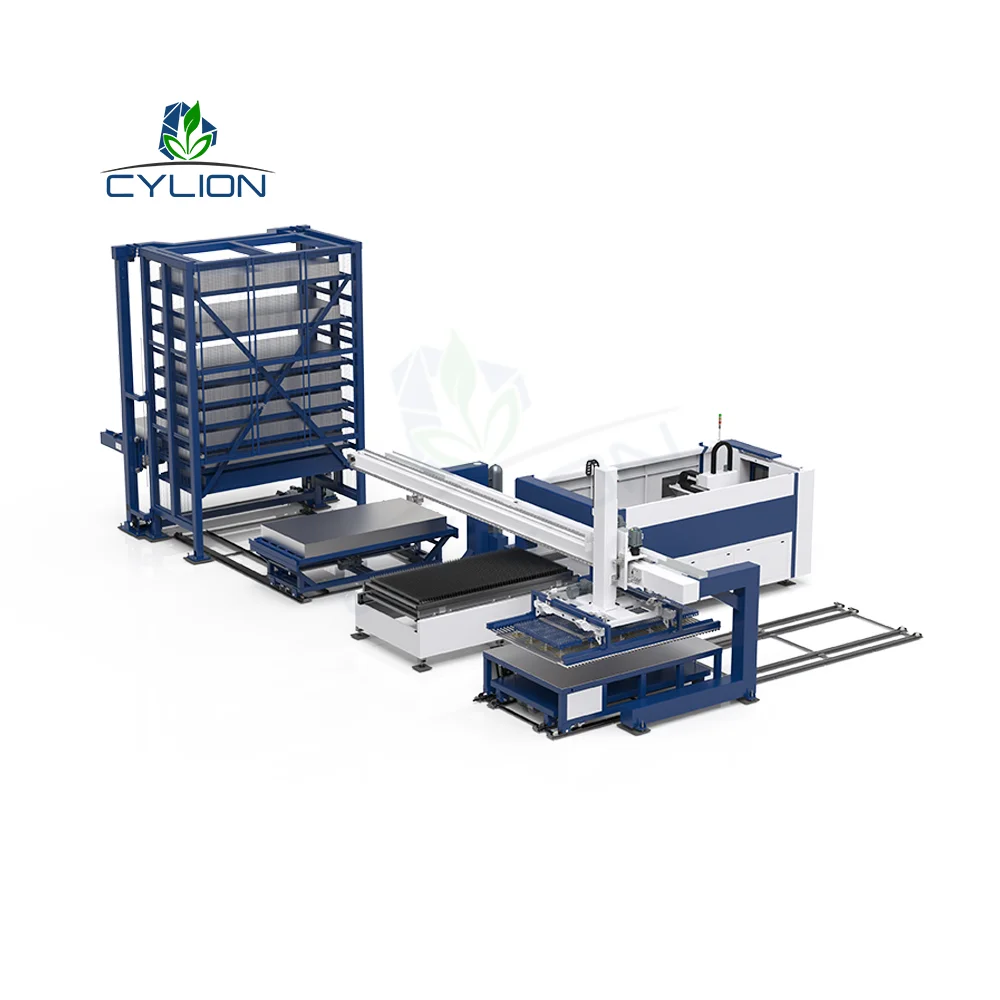

Laser cutting machine truss warehouse
The gantry warehouse relies on the upper and lower conveying of sheet materials on the gantry beam to enter the warehouse;
The gantry warehouse (multi-warehouse) is convenient for side discharge, and the row warehouses are all gantry warehouses without interference;
The gantry type cannot be loaded by crane.
When loading materials to the cantilever warehouse, it is difficult for the forklift to be placed in the precise position, while the crane is easy to be placed in the precise position;
In this way, the loading and unloading machine can take the materials and put them on the cutting machine in a very precise position.
The gantry warehouse (multi-warehouse) is convenient for side discharge, and the row warehouses are all gantry warehouses without interference;
The gantry type cannot be loaded by crane.
When loading materials to the cantilever warehouse, it is difficult for the forklift to be placed in the precise position, while the crane is easy to be placed in the precise position;
In this way, the loading and unloading machine can take the materials and put them on the cutting machine in a very precise position.

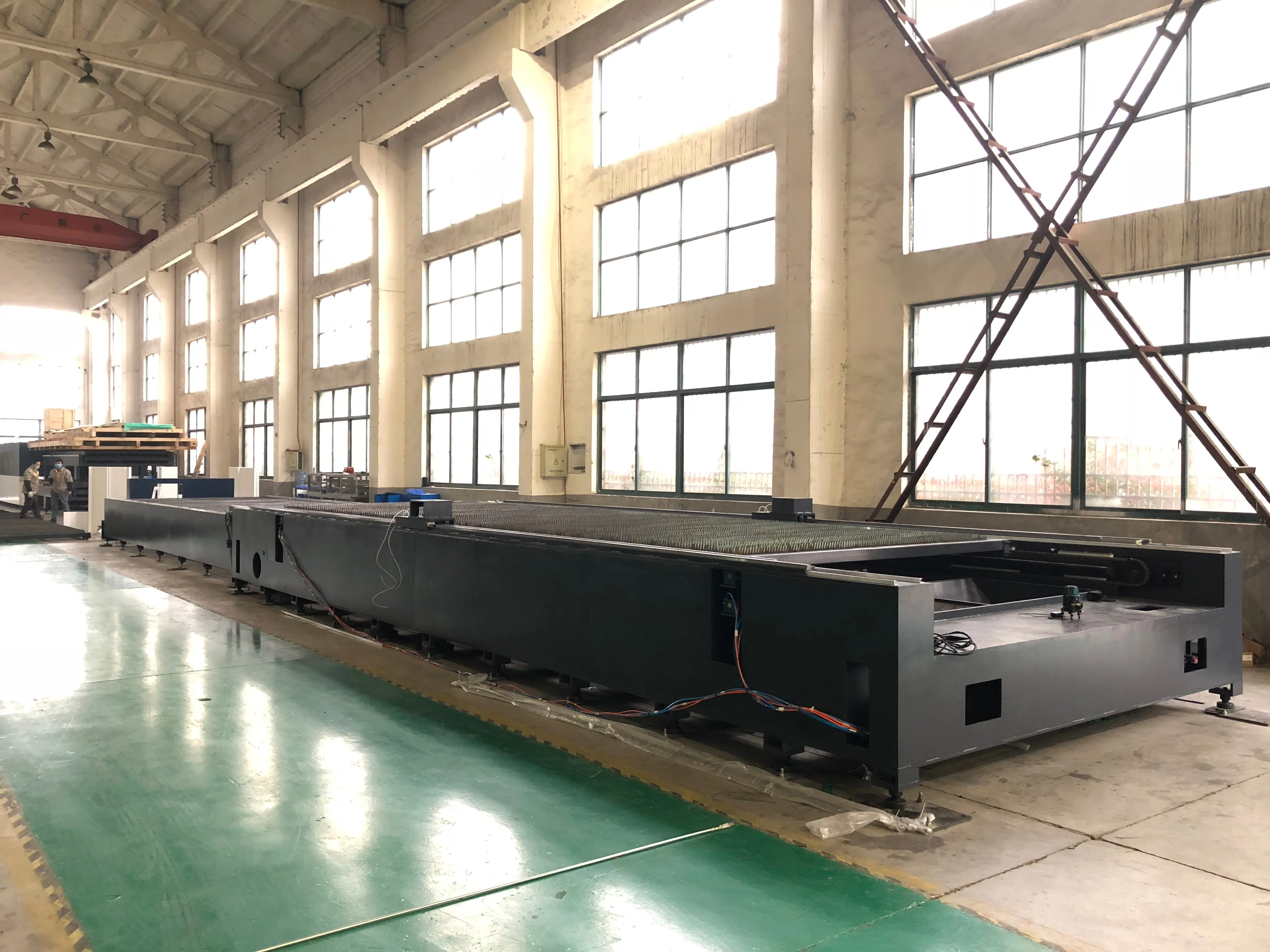

Machine Body (Plate welding with stiffener inside,not square pipe weld frame)
Square pipe welding frame table looks robust, but Pipe always has distortion along with time goes. That’s why top brand machines body all are plate welding design.
High efficiency speed cutting
Cutting Ultra-large forma：
3000x1500mm 4000x2000mm
6000x2500mm 8000x2500mm
Cutting power：
3000W~40000W
Cutting thickness：
≧80mm
3000x1500mm 4000x2000mm
6000x2500mm 8000x2500mm
Cutting power：
3000W~40000W
Cutting thickness：
≧80mm

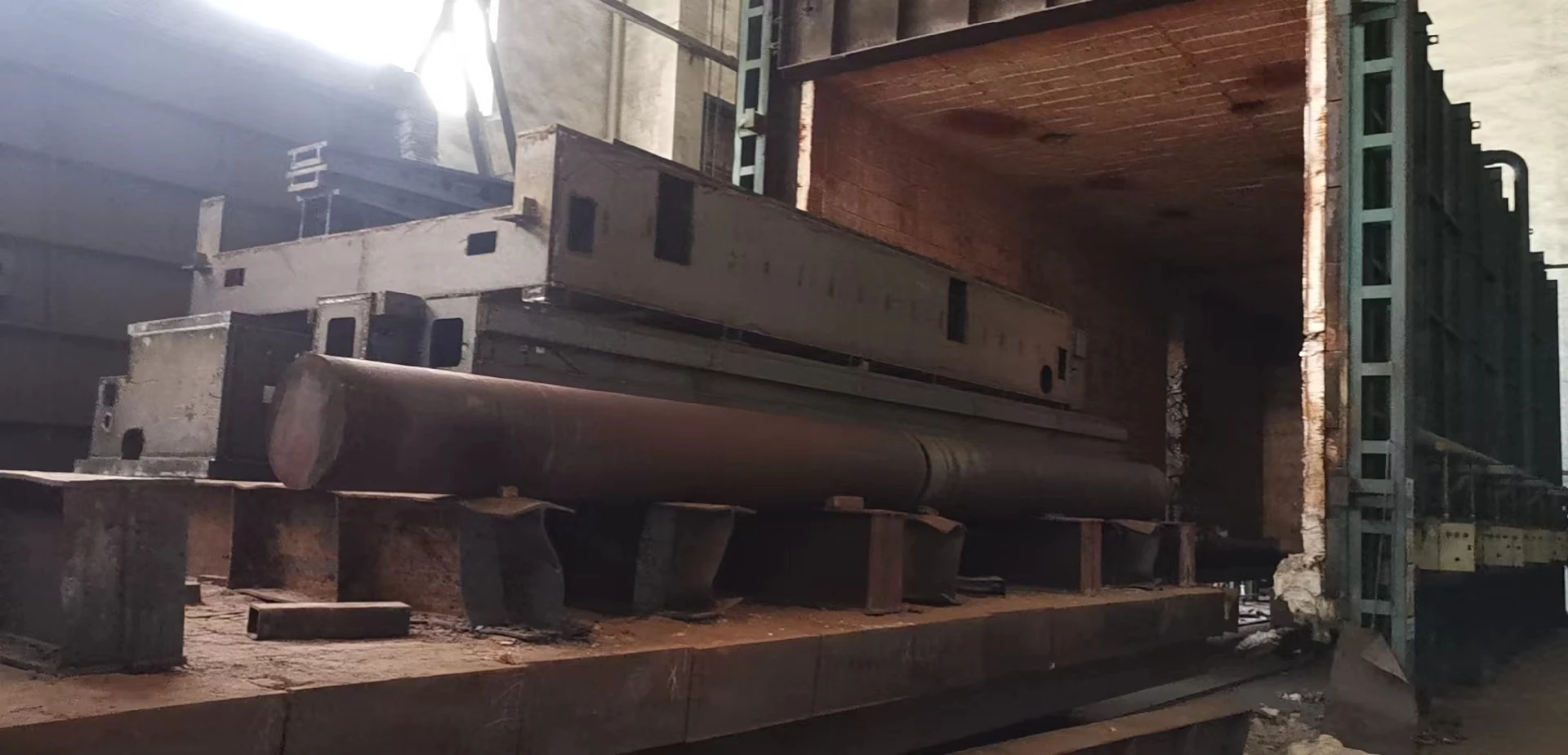

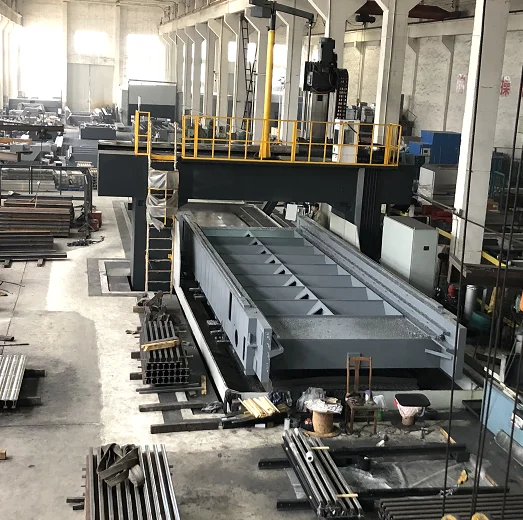

Annealing Stress
Own large equipment steel structure heat treatment furnace annealing treatment,Completely eliminate internal stress,plate welding structure
Multi-process lean processing, long-term use without deformation, no migration，Ensure high precision cutting.
Multi-process lean processing, long-term use without deformation, no migration，Ensure high precision cutting.

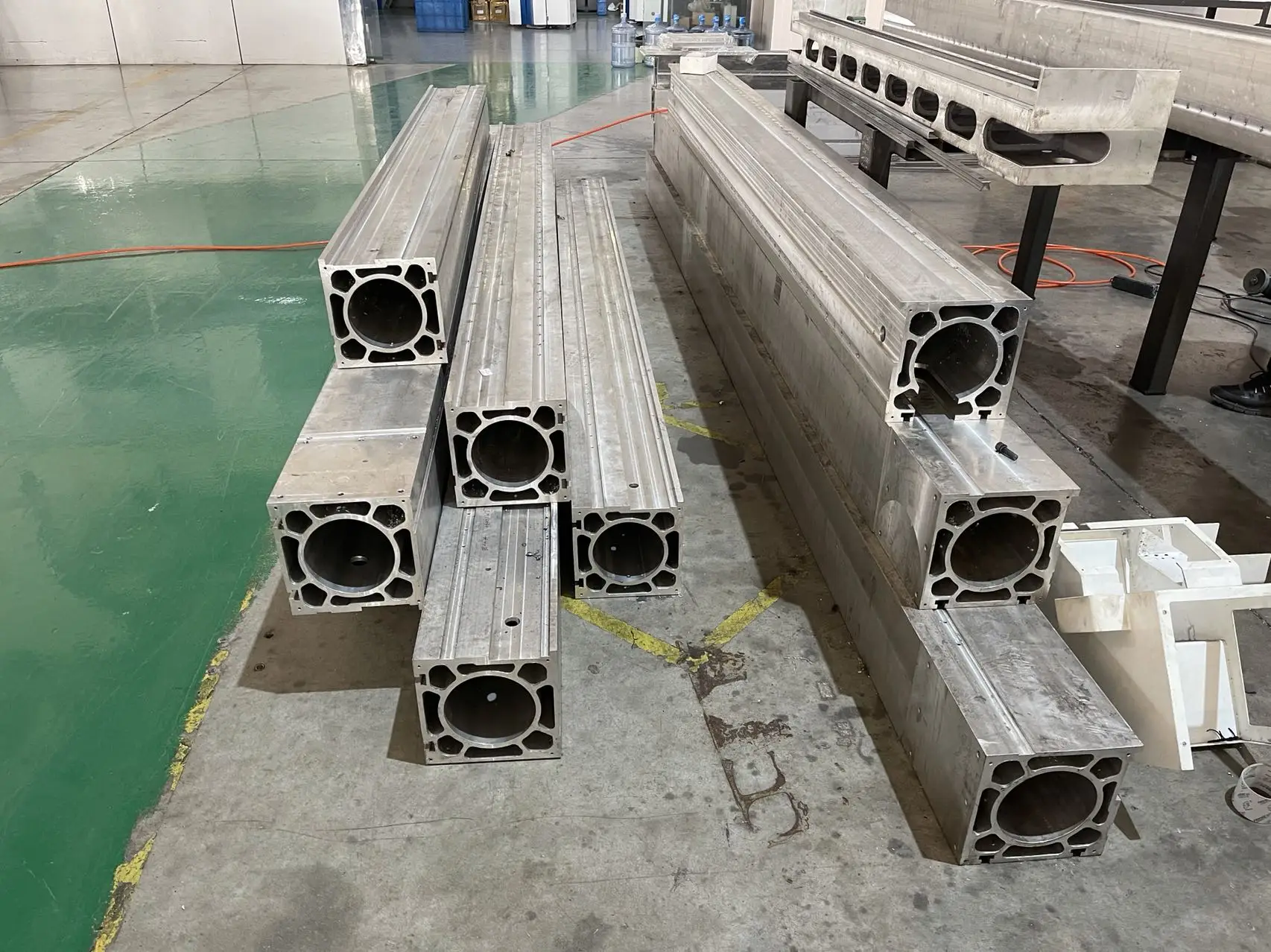

The beam body adopts the overall aluminum casting method
Lightweight gantry design of aviation aluminum, cutting freely, high-speed operation with small inertia, speed and acceleration switch freely, quick action response, accurate control.
Annealing eliminates internal stress and processes,the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
Linear guide
High positioning accuracy
High accuracy retention
High accuracy retention
Pinion and rack
High precision, high speed, low noise
Reducer
Large transmission torque and small error
Good dynamic performance
Good dynamic performance
Laser cutting head
Automatic height sensing, automatic focus
Can be remote assistance, low cost of use
Can be remote assistance, low cost of use
Fiber laser source
Electro-optic loading and changing rate exceeds 35%
Good beam quality
Good beam quality
Control system
Bus control, improve efficiency
Powerful and easy to operate
Powerful and easy to operate
Every small item in our products has a variety of brand models to choose from. You can contact us directly and tell us your requirements. We recommend high-quality products to you, or we design a product that suits you individually. Please contact us directly.
Mode | 3015 | 4020 | 6025 | 8025 | |||
Working Area | 3000*1500mm | 4000*2000mm | 6000*2500mm | 8000*2500mm | |||
Repeat Repositioning Accuracy | ±0.03mm/m | ||||||
Accuracy of Positioning | ±0.02mm | ||||||
X,Y Max linkage Speed | 145m/min | ||||||
Laser Power | 3000W / 4000W / 6000W / 12000W / 15000W / 20000W / 30000W / 40000W | ||||||
Laser Source | MAX / Raycus / IPG / Trumpf / FEIBO/GW | ||||||
Maximum acceleration | 2.5G | ||||||
Upgrade | Tube cutting / Exchange platform /Enclosed protection | ||||||

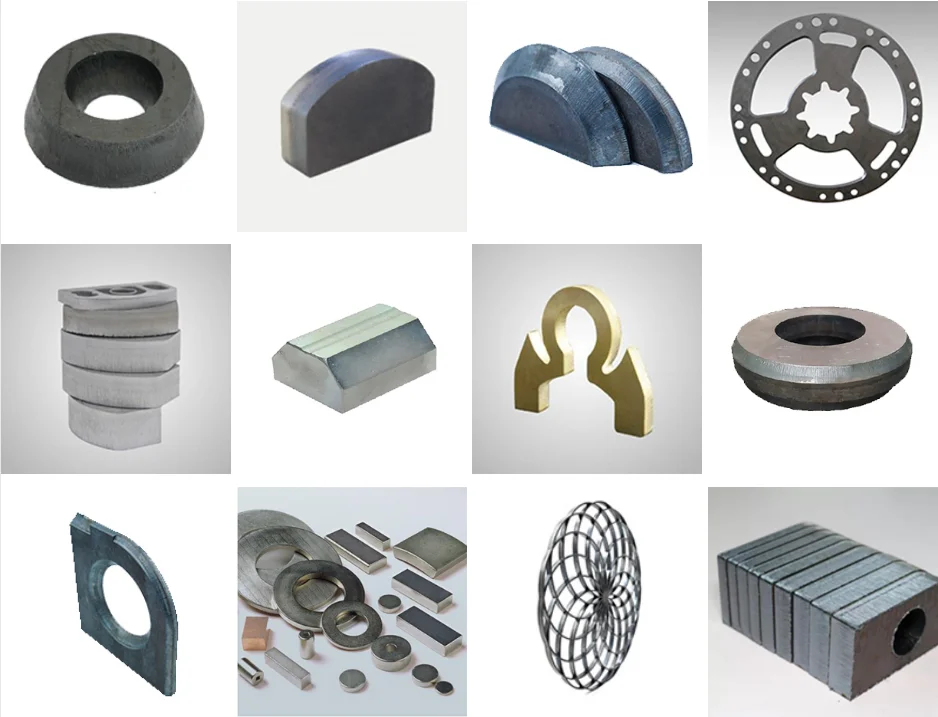

Sample
The straight cutting effect of the thin plate can reach the quality of the plane machine
Maximum ±45 degree bevel, can be cut with gradient bevel
Can meet various types of groove requirements
Can meet various types of groove requirements
Metal material
Suitable for stainless steel, carbon steel, silicon steel, aluminum alloy, titanium alloy, galvanized steel,aluminum-plating zinc plate, copper, and other metals.
Application Industry
Fiber laser cutting machine is widely used in automation industry, advertising industry, kitchenware industry, sheet metal industry, cabinet industry, fitness industry and so on. Specializing in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway parts, automotive,food machinery, textile machinery, engineering machinery, precision parts, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing, kitchen processing and other industries.
We have CE, ISO, SGS and other certificates, if you need it, you can contact us and we can send it to you.

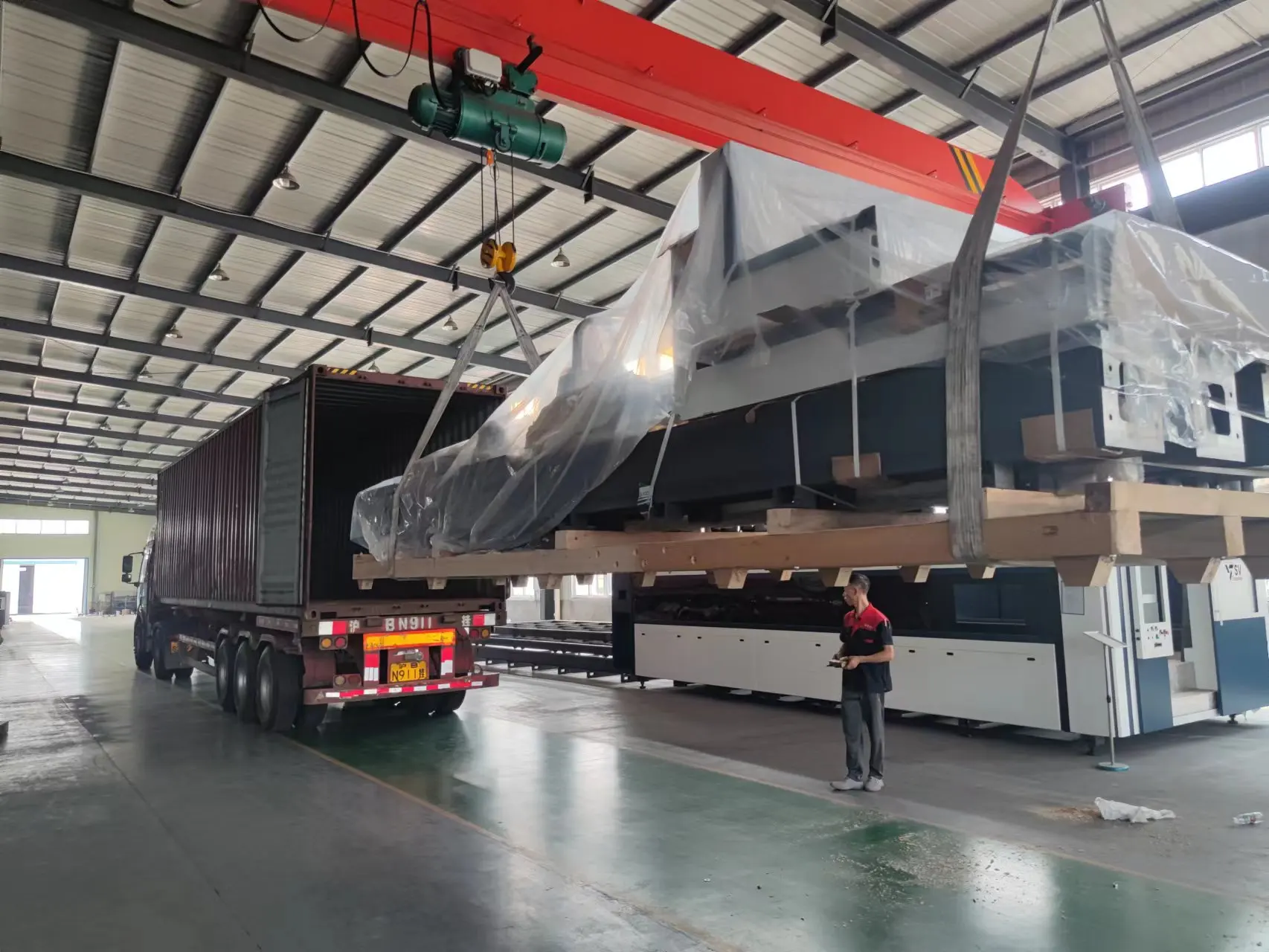

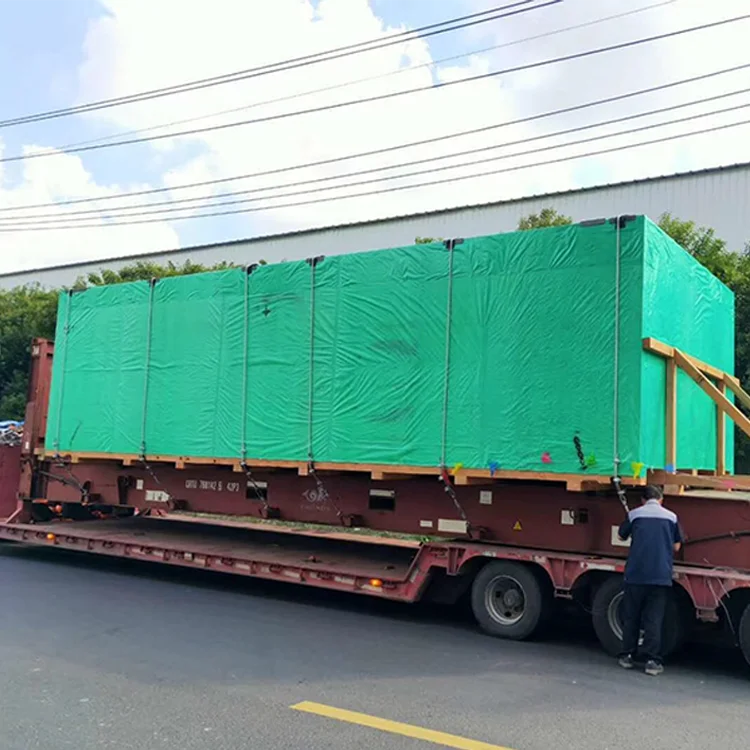

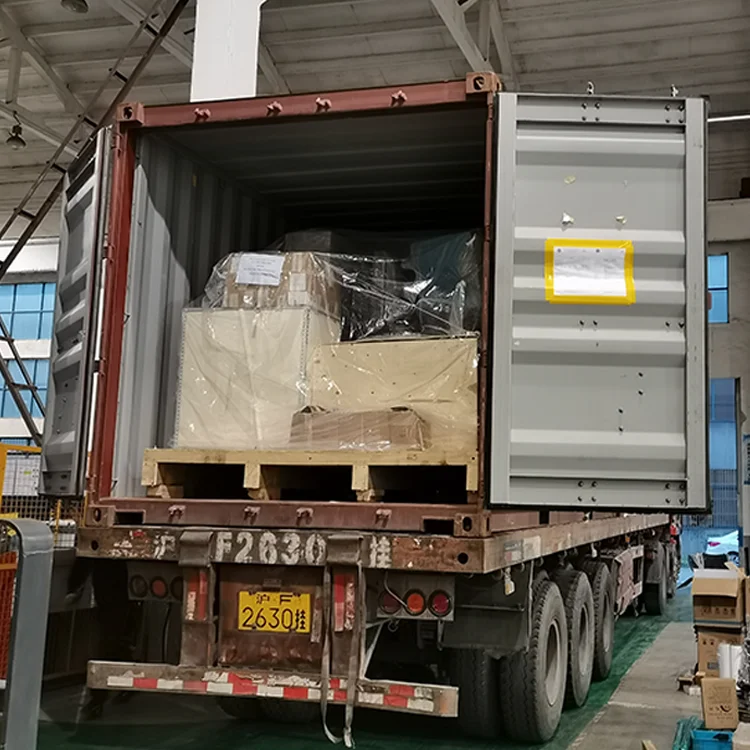

Packing
We are currently reviewing our product packaging from the angles of waste-reduction and resource-saving. We are also working on improving transportation efficiency from the design phase of product development.
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.
1.Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2.All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack, convenient to handing and transport.

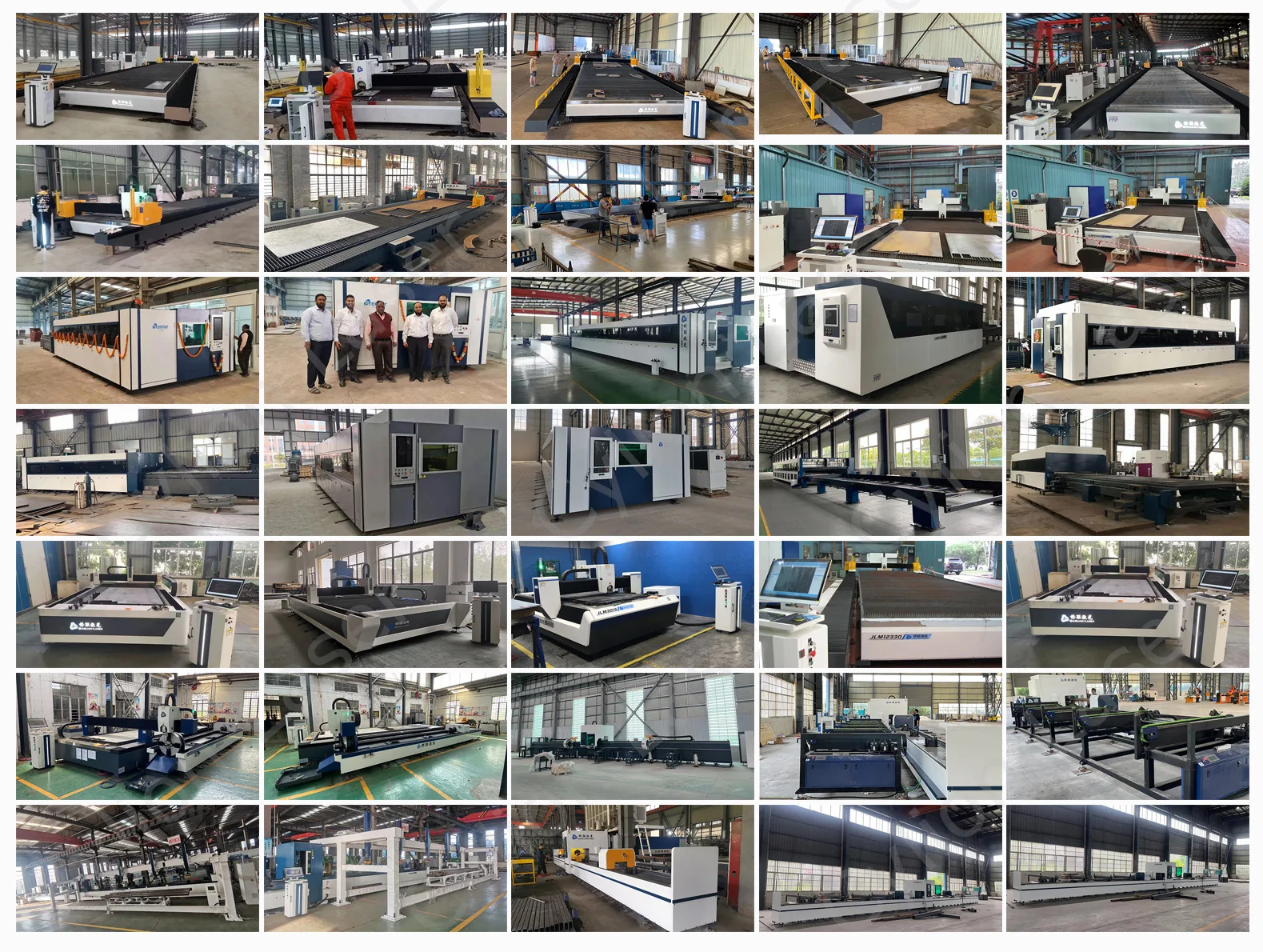

Wuxi Cylion CNC Equipment Co., LTD established in LuoShe Town, Wuxi, Jiangsu province in 1998.
Wuxi Cylion is solely responsible for the export , manages the operation of overseas business markets, and provides a professional technical service team and sales team.
Over two decades development, it has involved in the field of CNC lathe, CNC machining service, Plasma& Oxyfuel cutting machine, Laser cutting & welding machine, Automation production solution.
Our machines all passed the European CE authentication and are certified to ISO 9001.Products are sold to USA, Canada, Australia, Europe, South east Asia,Africa etc,more than 120countries and areas, and supply OEM service for more than 30 manufactures.
We empower tens of thousands of customers around the world to grow their business with our cutting-edge laser technology, reliable service, and life-long support.
Live by promise, and win by quality. We strive to build value with our customers and produce even more efficient, precise, and trustworthy laser products to our global customers.
Wuxi Cylion is solely responsible for the export , manages the operation of overseas business markets, and provides a professional technical service team and sales team.
Over two decades development, it has involved in the field of CNC lathe, CNC machining service, Plasma& Oxyfuel cutting machine, Laser cutting & welding machine, Automation production solution.
Our machines all passed the European CE authentication and are certified to ISO 9001.Products are sold to USA, Canada, Australia, Europe, South east Asia,Africa etc,more than 120countries and areas, and supply OEM service for more than 30 manufactures.
We empower tens of thousands of customers around the world to grow their business with our cutting-edge laser technology, reliable service, and life-long support.
Live by promise, and win by quality. We strive to build value with our customers and produce even more efficient, precise, and trustworthy laser products to our global customers.
FAQ
Q1: I knew nothing about this machine, what kind of machine i should choose?
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.
Q2:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q3: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q4: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q5:How can I get some samples?
We are honored to offer you samples.
Very easy to choose. Just tell us what you want to do by using CNC laser machine, then let us give you perfect solutions andsuggestions.
Q2:How can I choose the most suitable machine ?
Please tell us what kind of work you would like the machine to do? Engraving, cutting, marking?What kind of materials mainly?Cutting/engraving, Max thickness for cutting?How big working area you need?
Q3: When I got this machine, but I don’t know how to use it. What should I do?
We will send an English manual with the equipment, and arrange a colleague to connect and install it with you alone. If you haveany questions, we can also arrange for a maintenance person to come to commission and install it.
Q4: If some problems happen to this machine during warranty period, what should I do?
We will supply free parts during machine warranty period if machine have some problems. While we also supply free life longafter-sales service. So any doubts, just let us know, we will give you solutions.
Q5:How can I get some samples?
We are honored to offer you samples.
If you are interested in this machine,Pls contact with us in any time,Thank you!
Похожие товары
1540 1500 Вт-6000 Вт Металлическая Автомобильная дверь выхлопная труба волоконно-лазерная машина для резки
10 181 190,88 ₽
1500 Вт 2000 300 3015 волоконно-лазерная резка для листа и трубки из нержавеющей стали
3 144 891,68-3 280 642,40 ₽
3KW гальванометр волоконно-лазерный сварочный аппарат для разъема Смарт-часы
565 628,00-667 441,04 ₽
1080 4060 автоматический рулон ткани подачи лазерный Гальванометр CO2 резак и гравер для текстиля 50 Вт 60 80 100 150
400*600 мм автоматический рулон ткани подачи лазерный Гальванометр CO2 резак и гравер для текстиля 50 Вт 60 80 100 150
80 Вт 100 130 150 кожа акриловая древесина Co2 лазерная резка гравировальный станок 4060 6090
118 781,88 ₽

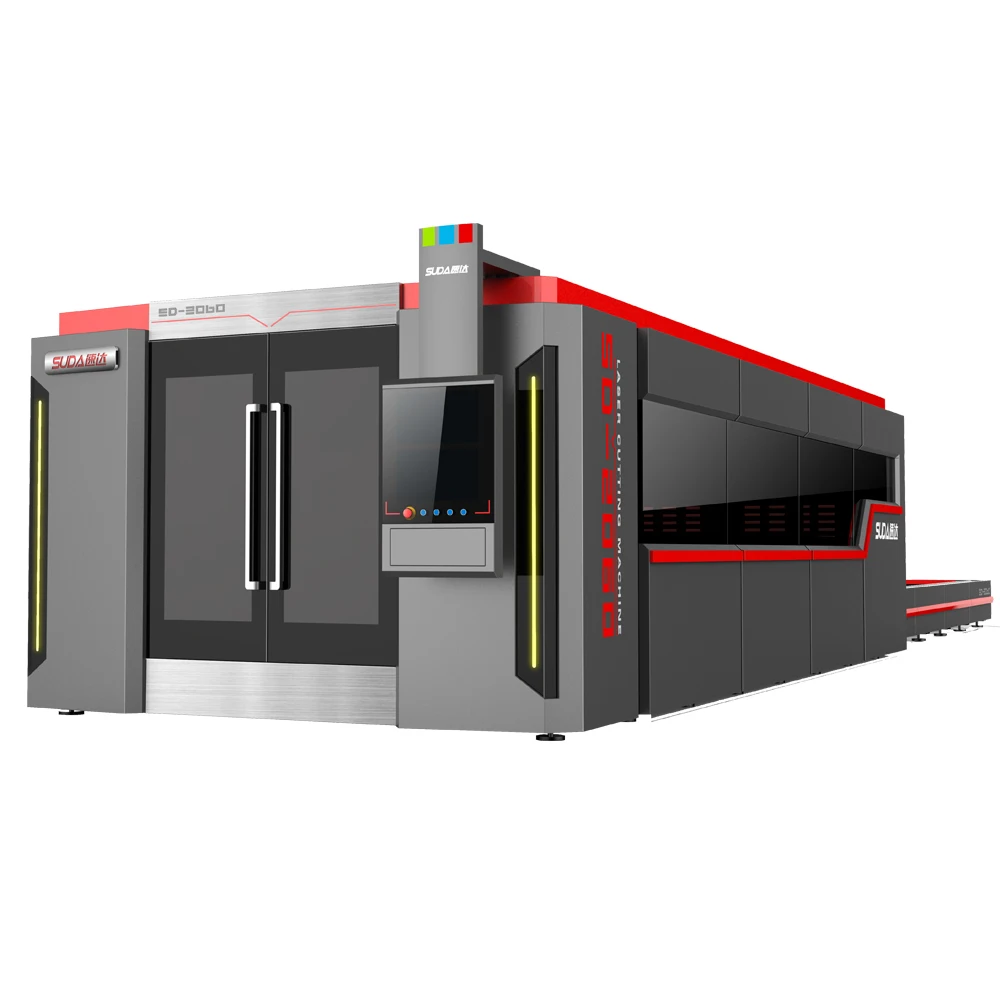

Промышленный закрытый автоматический настольный волоконно-лазерный станок для резки SUDA с большой крышкой FG 3015 DH 3000W
