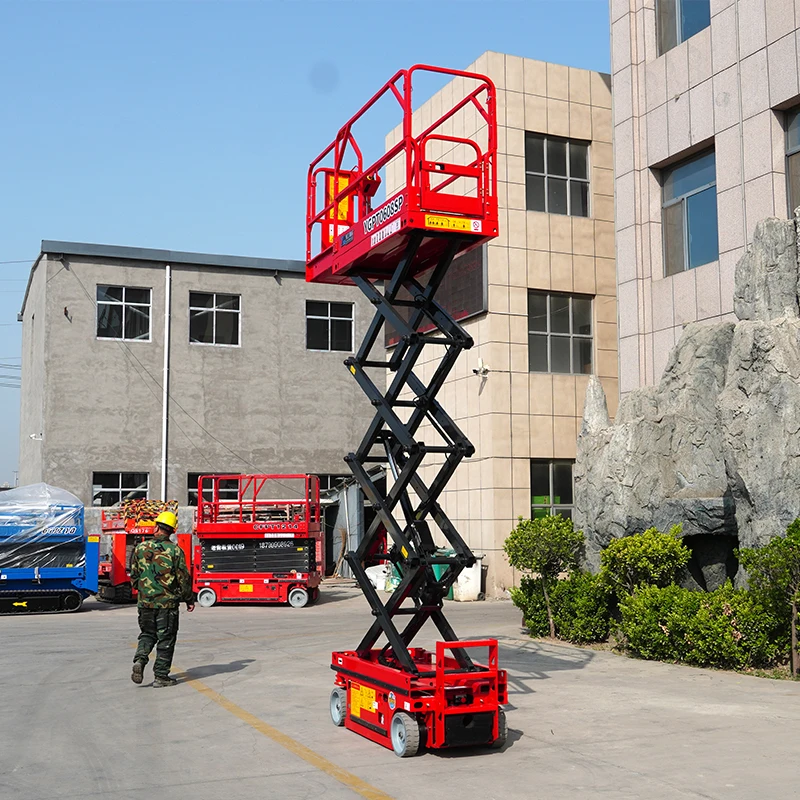

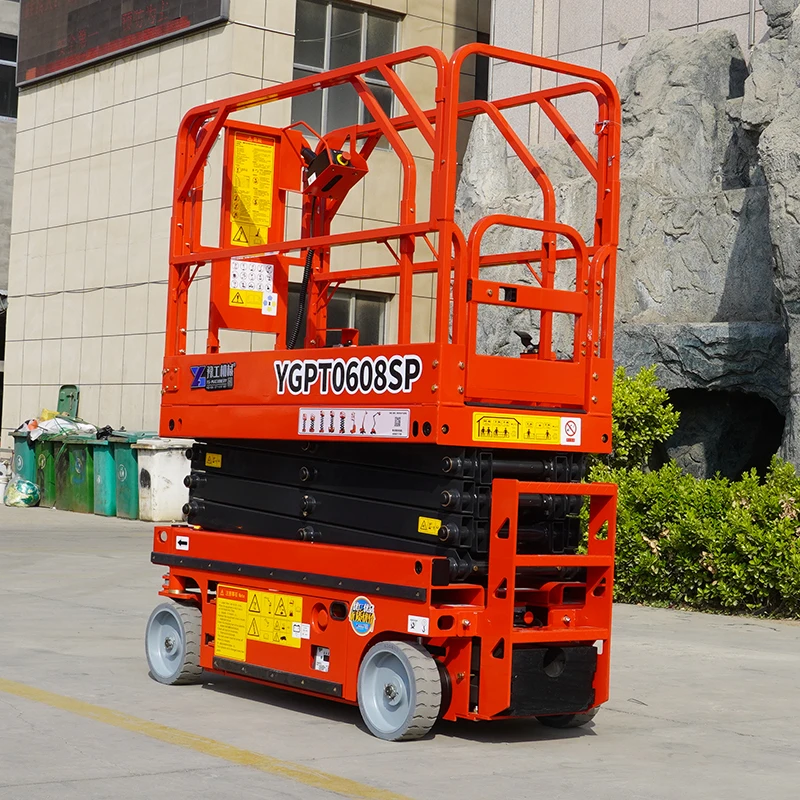

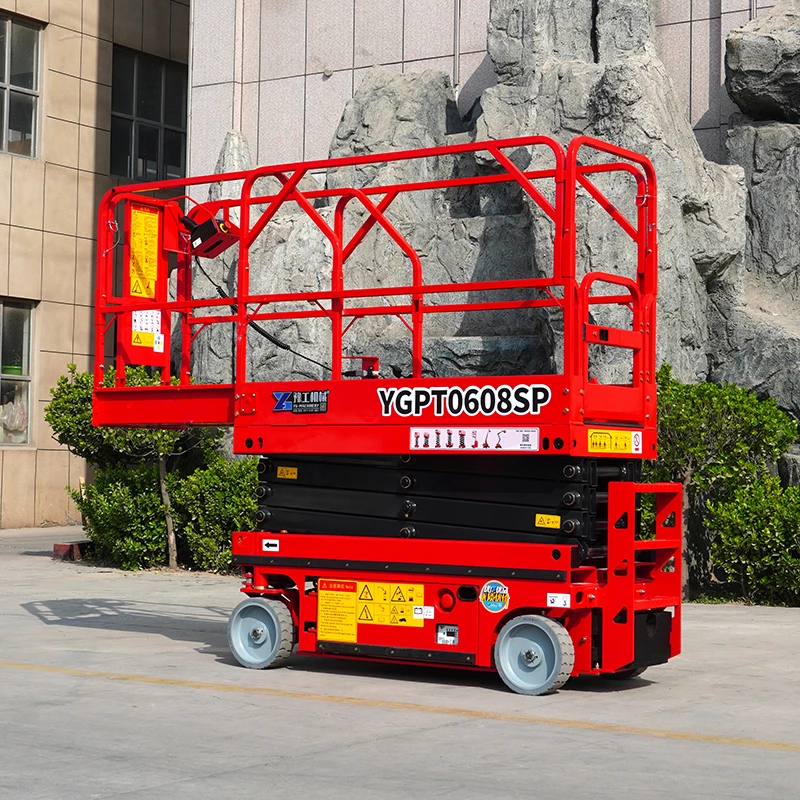

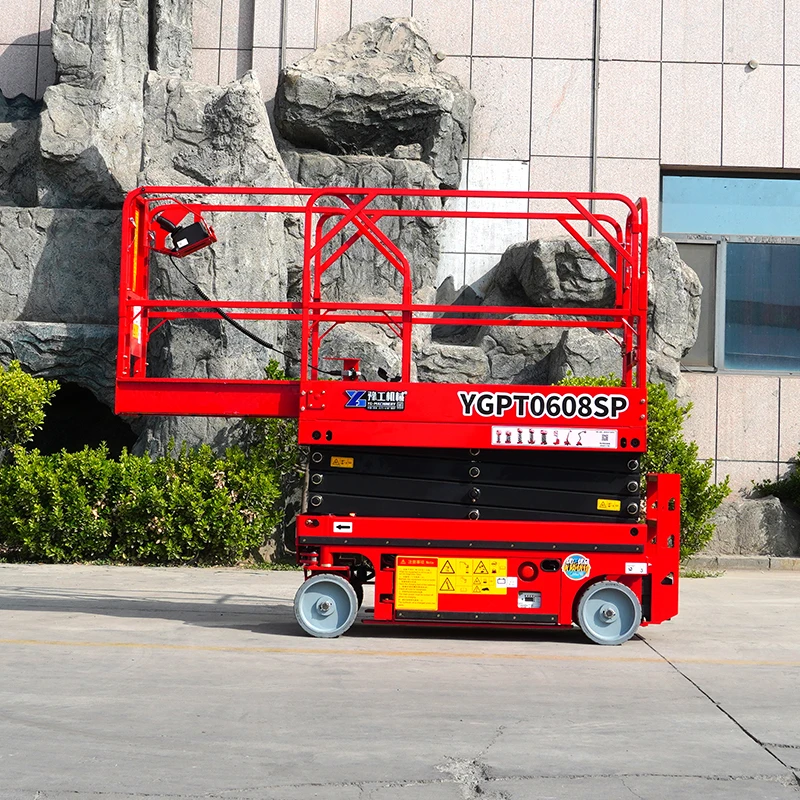

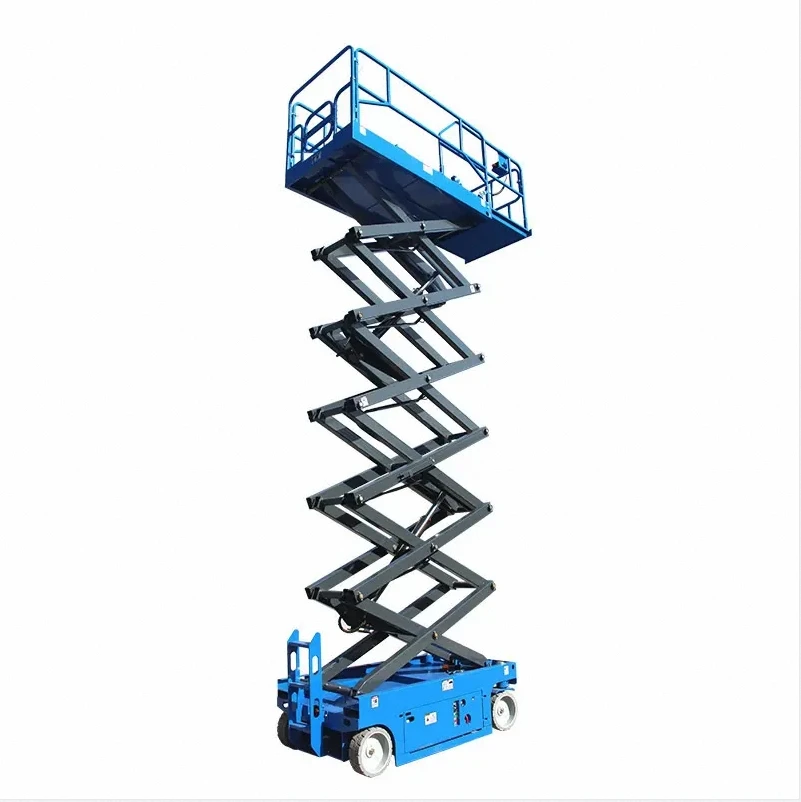

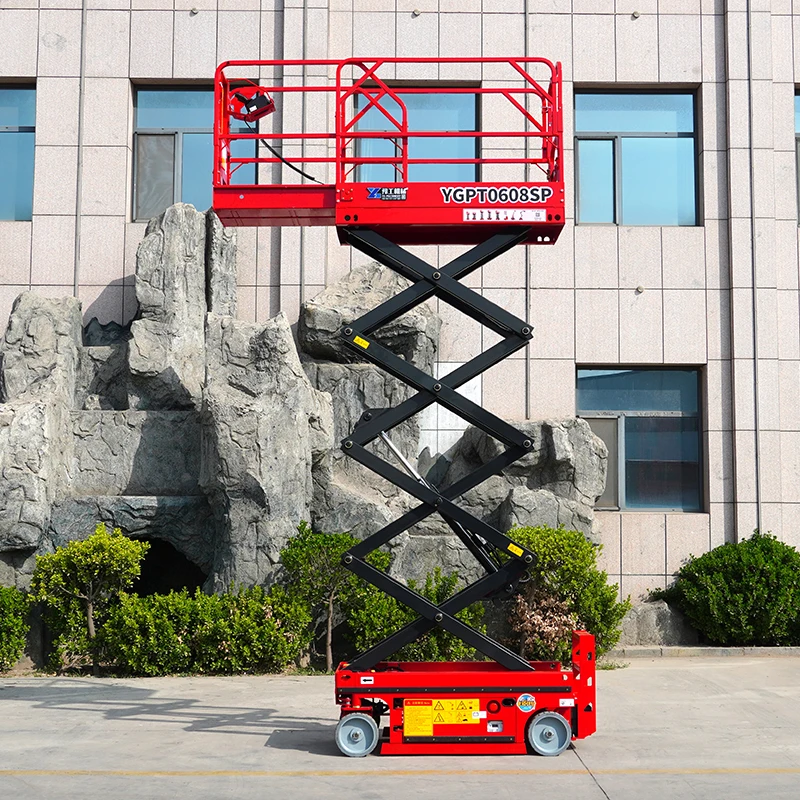

Scissor Lift Car Safe and Efficient Lifting for Automotive Maintenance and Repair

This platform has the work height at 11.8m, the vehicle width at 1.19m, the rated load at
320kg, max.platform length at 3.2m and max. gradeability at 25%.
This vehicle features compact structure, advanced performance,completed safety devices, specially suitable for construction.
In addition. It is free of any pollution, with steady lifting / lowering, easy control and maintenance. Therefore, this kind of
platforms are widely applied to warehouses, factories, airports, and train stations.
Advantages and features:
* Effective and energy-saving electric-drive system features zero emission and low noise, together with the traceless tires,
enabling this machine easily to work in enclosed environments such as office building, hospitals and schools and minimizing the effect on environment.
* Active protective mechanism such as pothole protective mechanism and the self-developed safety control system feature thehumanized design and the rich options, meeting the customer needing for safety, reliability and intelligence.
* Narrow- structure design enables the complete vehicle to easily pass through a single gateway; foldable fence could make the transportation easier.
* "Zero Turning Radius "is unique and enable machine to corner in narrow room.
* Max. payload at 320kg, leading the industry. Maximum traveling speed 4km/h and 25% gradeability make the driving easier.


Specification


Item
Unit
Parameters
Dimensions Length (without ladder)
mm
2477(2267)
Dimensions width
mm
1170
Dimensions Height (platform folded)
mm
2355(1805)
Wheel base
mm
1877
Wheel track
mm
1043
Min. Ground clearance (pit protector lifting / decline)
mm
100/20
Platform dimensions Length
mm
2277
Platform dimensions Width
mm
1120
Platform dimensions Height
mm
1263
Platform dimensions Platform extension length
mm
900
Vehicle center of mass position Horizonal distance from front axis
mm
950
Vehicle center of mass position Height of center of mass
mm
613
Total weight
kg
2620
Max. Platform height
m
8
Min. Platform height
m
1.2
Max. Working height
m
10
Min. Turning radius (inner wheel / outer wheel)
m
0/2.3
Platform rated load
kg
450
Extension platform rated load
kg
115
Platform lifting time
s
29-40
Platform decline tine
s
34-45
Max. Walking speed (low position)
km/h
4
Max. Walking speed (high position)
km/h
0.8
Max. gradeability
%
25
Tilt warning angle(side / forward and backward)
°
1.5/3
Lifting /walking motor Model
Lifting /walking motor Rated power
kW
3.3/0.75
Lifting /walking motor Manufacturer
Battery Model
T125/3-EV-225
Battery Voltage
v
24
Battery Capacity
Ah
225
Battery Manufacturer
Trojan/Leoch
Tire model
Non-trace solid/381×127


Product Description




Packing & Delivery




Company Profile








Henan Yugong Machinery Co., Ltd. located in China's national central city--Zhengzhou, with abundant resources and convenient transportation. Our company is a integrated large-scale manufacturing enterprise.
Our company experienced 15 years of high-speed development, gathering large number of talents and winning sound reputation and credibility. Our product quality, rapid and healthy development ensured by convenient transportation network, advanced management concepts, and comprehensive management system.
Henan Yugong Machinery Co., Ltd.: Take the reforming as the motive force, science and technology oriented, culture as the soul, continuously strengthen and improve enterprise management toward scientization, informatization, modernization. We sincerely expect to cooperate with various circles, achieve mutual benefit and win-win situation.


FAQ


1. Are you the manufacturer?
Yes, we are. And we also do OEM, ODM, customizing and labeling service.
2. Is your price the same for every client?
Yes, except that a large quantity is needed.
3. How is the quality of YUGONG Machinery ?
We have more than 10 years of manufacturing and selling experience and our products are mature on the market. We have exported to above 20 countries. And our equipment will be tested before leaving our factory. So the quality is very stable.
4. How about your after-sale service?
We can send the technician on site or supply technical support online and also spare parts at the lowest cost.
5. Do you have English edition or else?
Yes, we have the edition in English, Spanish and so on.
6. Can you deliver timely?
Yes, there are large stocks in our factory warehouse in case the clients need goods urgently, except that the equipment needs customizing (usually 10 days).
