Products Description

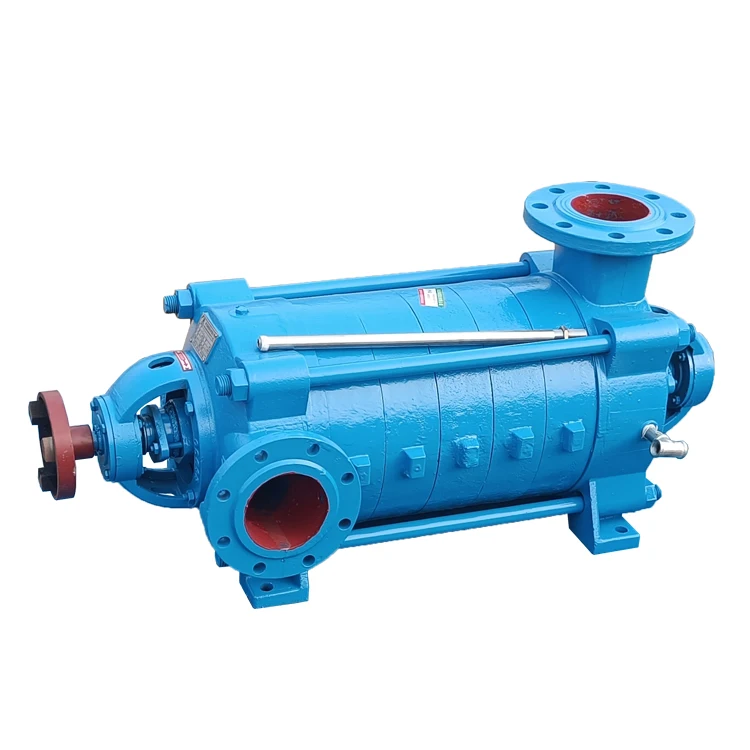

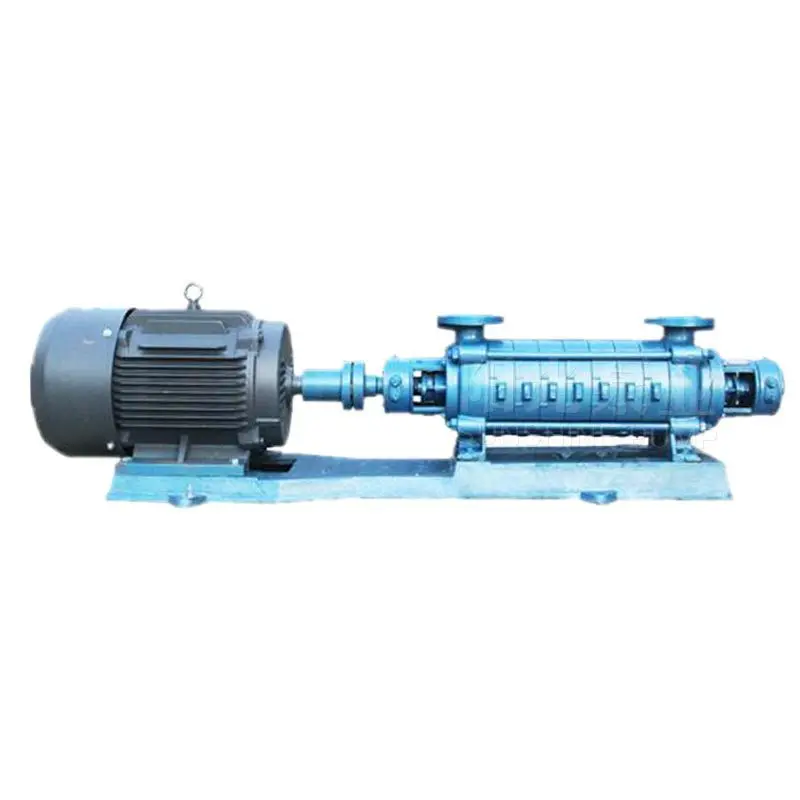

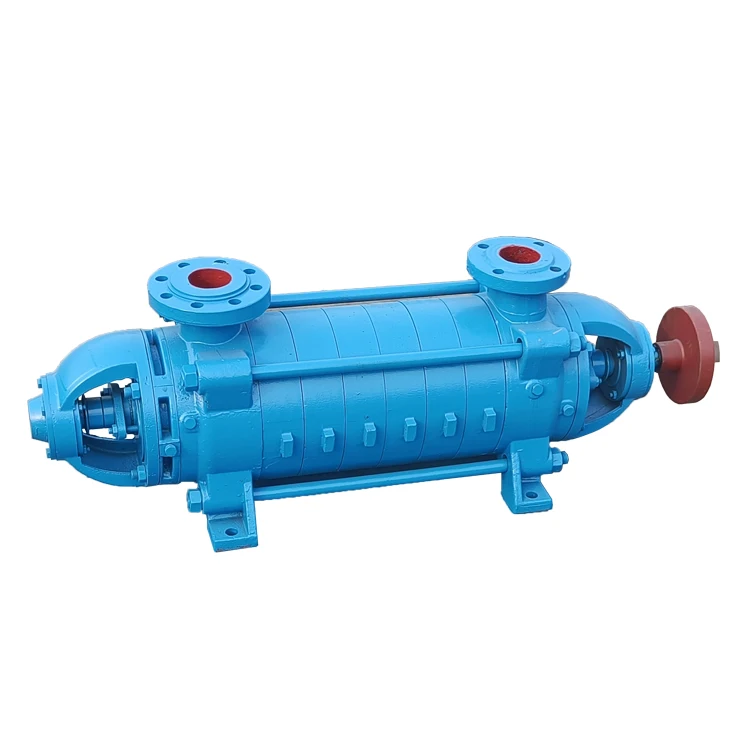

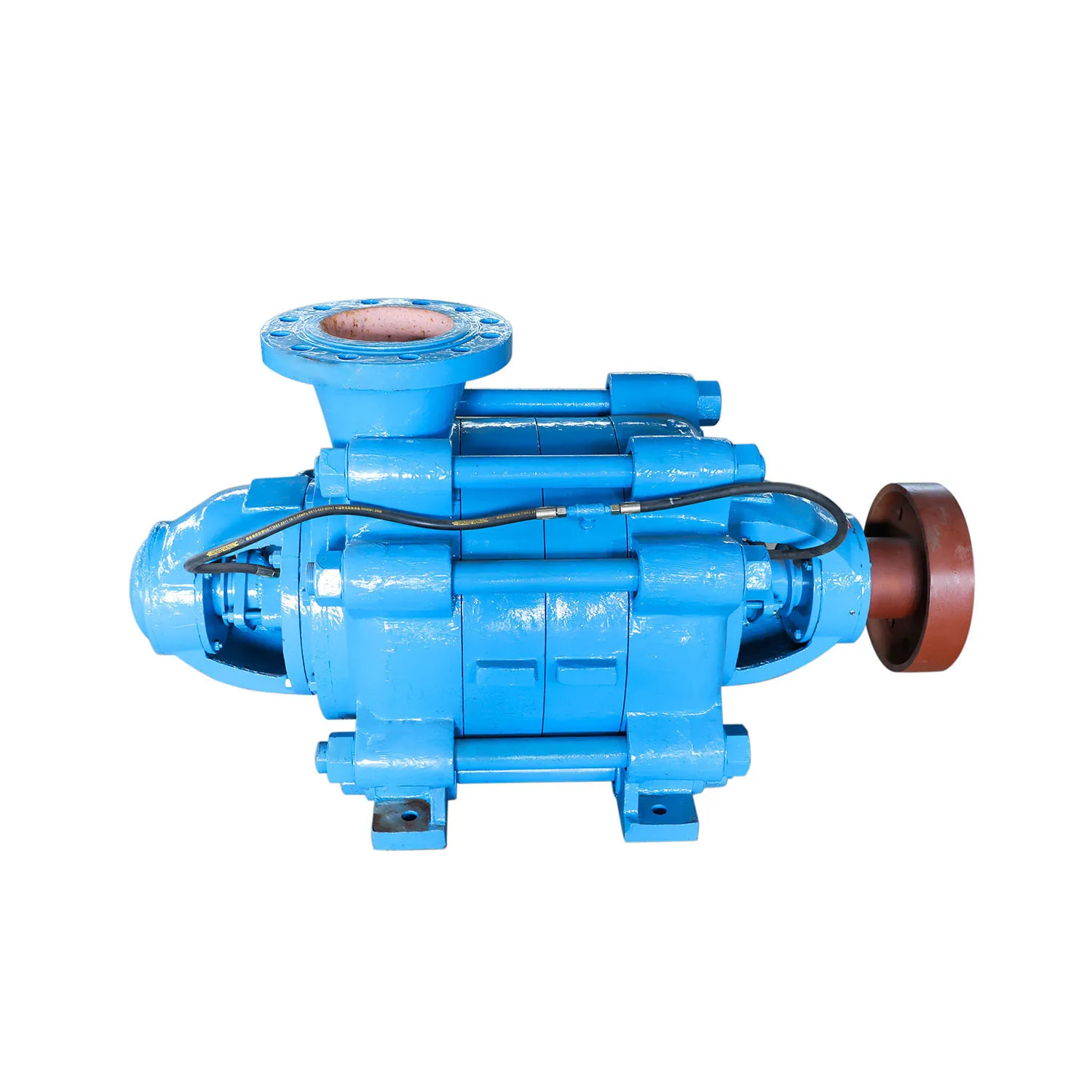

horizontal centrifugal mining multistage pump




D series pump are horizontal multistage centrifugal water pumps.
They are widely used in industry of minings, factories, urban water supply and drainage etc for transporting clean water (with impurities less than 1% and particle size less than 0.1 mm) and other liquids with physical and chemical properties similar to clean water.
The temperature of the medium conveyed by the D-type multistage pump shall not exceed 80ºC.

D series multistage pumps advantages are as follows:

1. It can transport both clean water and sewage.
2. Comprehensive performance is good, high head: long distance and high head transportion, single set head can reach to max 684m.
3. High flow rate capacity: can be reached 500m3/h.
4. Diameter size:outlet size from 40mm to 250mm.
5. Widely material optional: cast iron, stainless steel etc or custom materials.
6. Widely application: both clean water and sewage can be transported, widely used in industry of mining, factories, urban water supply and drainage etc.
7. Driving engine of motor and diesel are available.
8. Kinds of driving method satisfy different space need on site: DC, CL, CR, CV, ZV, HC.
9. Our company passed ISO certificate and all of our pumps pass CE certificate, comply with international standards.
10. Energy saving and cost reducing: pump itself water conservancy design advanced and mature. In the mode of traditional direct start increasing soft start and frequency start methods, it make sure energy saving and protection devices; Adjust the speed by soft connection mode in order to achieve the maximum utilization and tower results of work.
11. Easy operation, lower noise and vibration.








Product Parameters


D series slurry pumps construction:




1. Pump coupling
2. Shaft
3. Rolling bearing components
4. Packing gland
5. Suction section
6. Sealing ring
7. Middle piece
8. Impeller
9. Guide vane
10. Guide vane sleeve
11. Tension Bolt
12. Vomit section
13. Balancing sleeve (ring)
14. Balance disc
15. Stuffing box
16. Bearing


The following performance parameter table only shows part of the products. For details, please consult our company's account manager, so that you can choose products for you more professionally.


Model
Number of Stages
Capacity
(m³/h)
Head
(m)
Speed
(r/min)
Motor Power
(kw)
Inlet/Outlet
(mm)
D6-25
3-12
3.75-7.5
73.5-306
2950
5.5-18.5
40/40
D12-25
3-12
7.5-15
69-338.4
2950
7.5-30
50/40
D25-30
3-10
15-30
82.5-340
2950
15-45
65/65
D25-50
3-12
15-28
144-618
2950
30-100
80/80
D46-30
3-10
30-55
81-340
2950
22-75
65/65
D46-50
3-12
30-55
138-666
2950
37-132
80/80
D80-30
3-10
26-48
83-340
2950
18.5-55
80/80
D85-45
2-9
55-100
78-459
2950
37-160
100/100
D85-67
3-9
55-100
183-666
2950
90-250
150/150
D155-30
2-10
100-185
55-325
1480
55-220
150/150
D155-67
3-9
100-185
177-684
2950
132-440
150/150
D280-43
2-9
185-335
76-423
1480
110-450
200/200
D280-65
6-10
185-335
372-680
1480
500-850
200/200
D450-60
3-10
335-500
171-650
1480
355-1050
250/250


Applications


mining water supply and drainage
factory water supply and drainage
factory water supply and drainage


farmland irrigation
electric power
metallurgy


Real application photos:




Packaging and Shipping




Product packaging, boxing, nailing, loading, arrival at the port, transportation.

Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!


Company Profile



YONGSHUN Pump


Factory History: Established in 2016

Business Type: Manufacturer and exporter

Main Products: Slurry pumps, clean water pumps, sewage pumps, chemical pumps, multistage pumps, double suction pumps (split case pumps), booster pumps (pipeline pumps or inline pumps), self priming pumps, double stage filter press feed pumps, diesel water pumps and so on.








certificate:




Credit level certificate
Certificate No:
ZXXY-ZXDJ20158
CE
Certificate No:
M.2023.206.C82652
ISO9001
Certificate No:
626018Q12046R6S


Customer Feedback




Related Products




FAQ


Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have?
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
