Ферма селекционер откладывает яйца в гнездовые ящики для кур несушек откладывая автоматически

Сохранить в закладки 1601299899519:


Цена:120,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики




BREEDER CHICKEN FLOOR RAISE SYSTEM







Chain Feeding system for female


Corner
Import from South Africa
90 degree Corner and slideway surface are treated by special harden process, with alloy bearing no oiling injection.Compared with
other supplier, these parts are more durable and have long life.
Feed trough,Grill
The height of feed trough can be adjusted according to different raising period
Feed trough is made of anti-rust material, and grill with 44mm distance can effectively eparate the male and female birds. Can also be customized according to customer specifications with different grill distance.


Feed box
Material: hot dip galvanized steel
Zinc coated:275g/m2
Thickness:1.2mm
Capacity:240 kgs
Drive motor
Drive device adopt vertical reducer motor, which is more reliable and steady, lower noise and uniform delivery feed compared with
mechanical reduction gear. Delivery speed reach up to 36m/min.


Pan type Chain feeding for female




Feeder Pan
> 4 pan/3m or 3 pan/3m
> Material: PP
> Feed capacity : 12-14 bird per pan
Corner
>Corner and corner shell material- hot
galvanized sheet or stainless steel, the
idler material- cast iron.




Drive system HIGH STRENGTH DISC-CHAIN


Gear Motor:
1.5KW and 2.2KW can be choose
long lasting and anti- fracture
Drive System Sheed
Stainless Steel
Disc is durable and resist breakage after
Driving (driven) wheel
reinforced nylon
special processing.Breaking force : 1.6tons

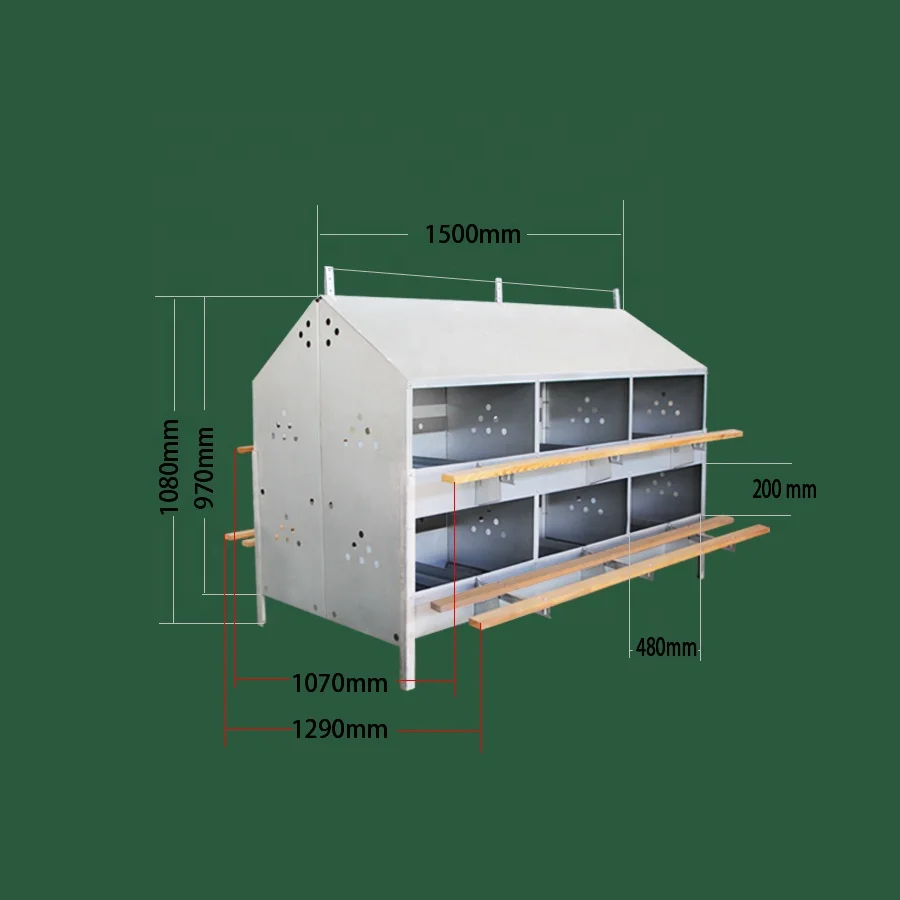

24 holes manual nest box
>Be made of 0.5mm galvanized steel plate. 24 hole design, galvanizing 275g/cm2 of the zinc, reach international standard
>High quality plastic pedal, smooth and no throns,
better than wood. can use long life

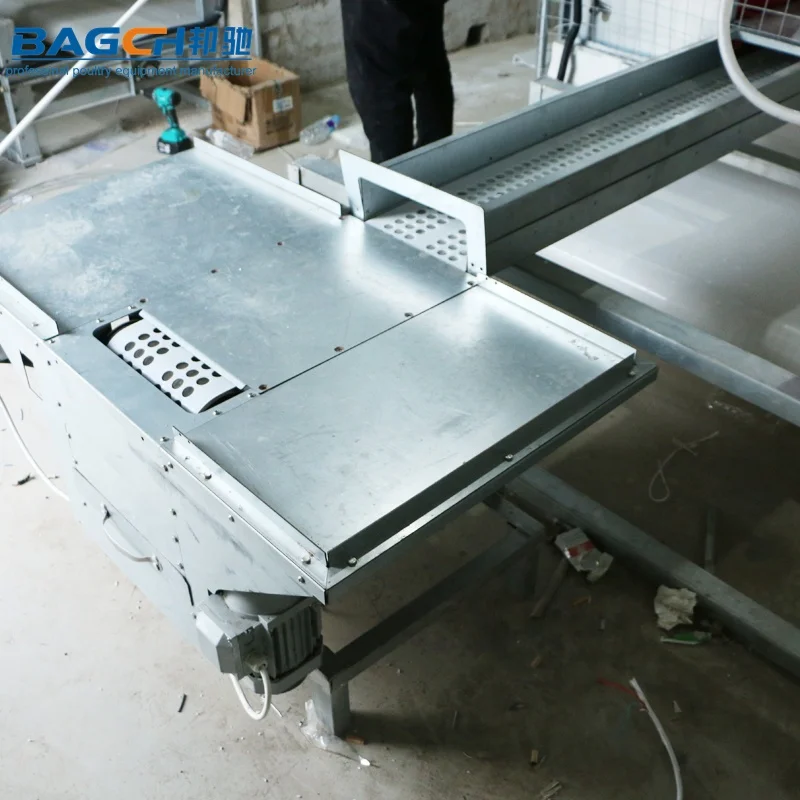

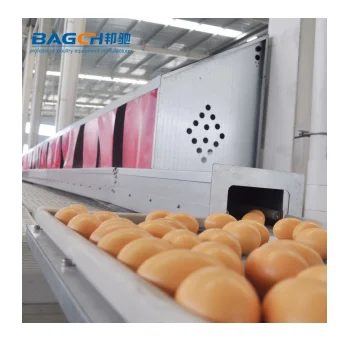

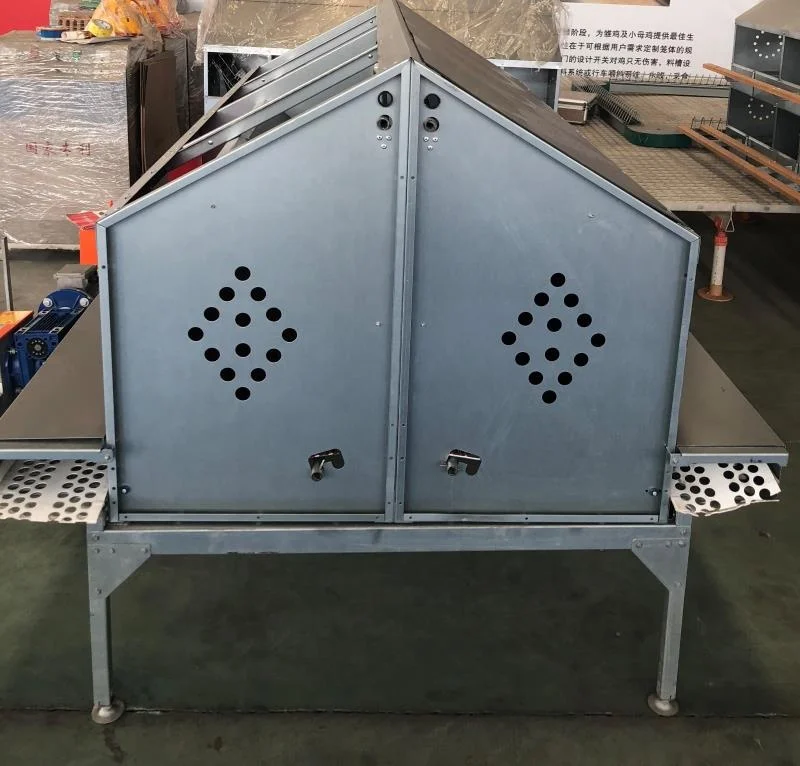

automatic nest box
Dimension:2000*724mm
Capacity:160 sets per set

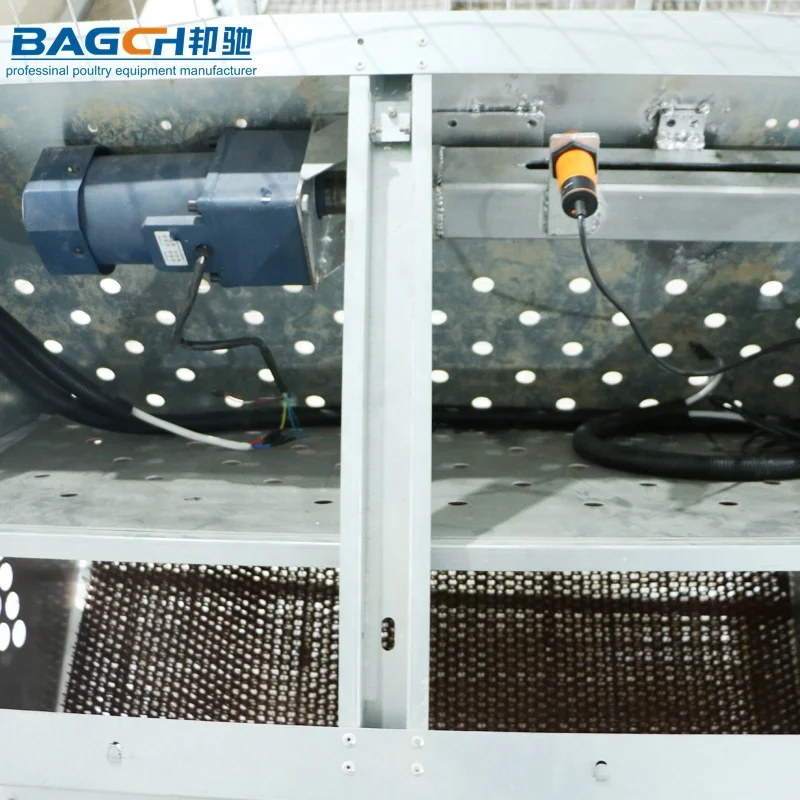

Automatic poultry nest can set on/off time every day automaticlly with timer, and adjust
the egg belt speed as need with converter, improve the automatic control, intelligent management level.



Cooling Pad function:
When the air goes through cooling pads, the heat will
be taken down by the evaporation of water. So the air
will be cooled before going into your poultry farms.
Exhaust Fan function:
Ventilation fan system controls poultry house inner environment, provides fresh air, proper humidity for
your chickens, ensuring your broilers provide
maximum production.


Foggy system
1) Pump: 1.5kw/2.2kw
2) Pipes: PE, Diameter:10mm
3) Nozzles: Pure copper
4) Nozzle base: Stainless steel
Environment Control system
Option 1: Agrologic Brand, imported from Israel, Model: T607/T610/T616
Option 2: Our own brand, also with good function.
















Qingzhou Bangchi Machinery Equipment Co.,ltd
Bangchi is a verified livestock farming equipment manufacturer ,reputable and trustworthy. We have more than 13 years of experience in poultry farm equipment supplying, serving for 5000+ farm projects in 25 different countries.Annual sales is 3millions USD dollar, We can provide most related poultry equipment like broiler farm equipment,breeder farm equipment and layer farm equipment.Since our company was founded we have always adhered to the principles of reputation as the basis, strategy of development through quality, improvement boosted by meditation, and pursuing the future based on learning.
