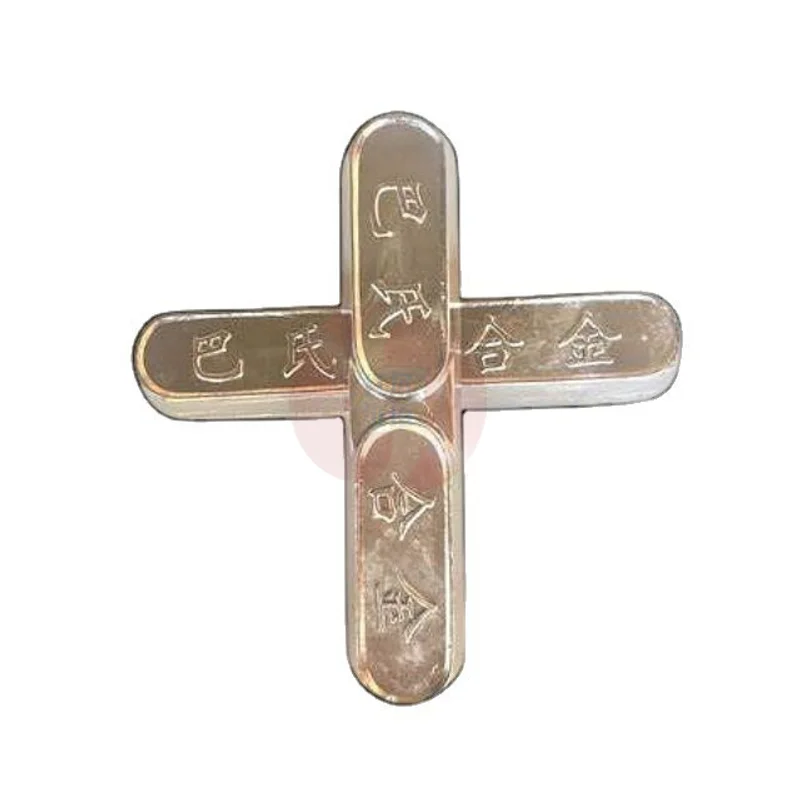

Низкая цена Babbitt по Заводской Цене слиток
118,61-355,83 ₽

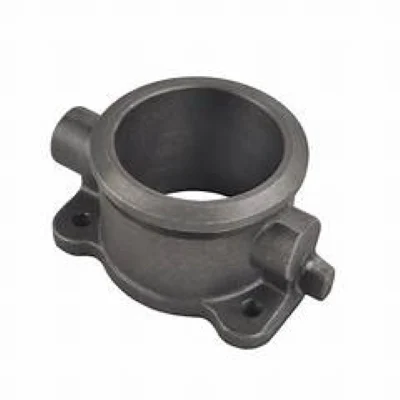

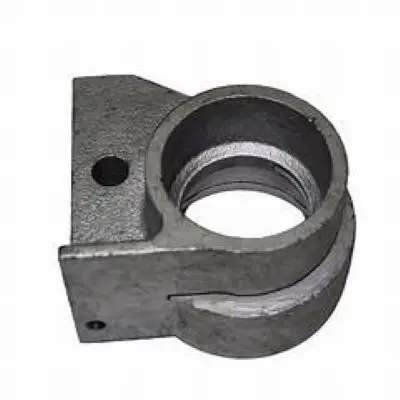

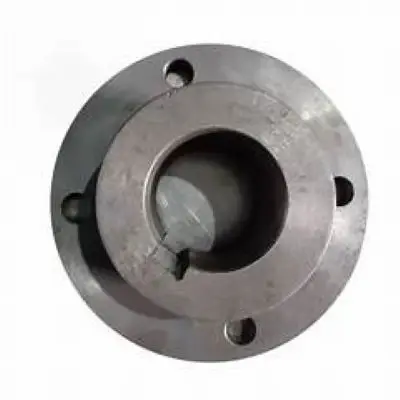

Передовые Литые стальные шестерни и валы для большой мощности
- Категория: >>>
- Поставщик: Jiangsu Shengrong High End Equipment Manufacturing Industry Co. Ltd.Jiangsu Ltd.
Сохранить в закладки 1601299899565:
Описание и отзывы
Характеристики

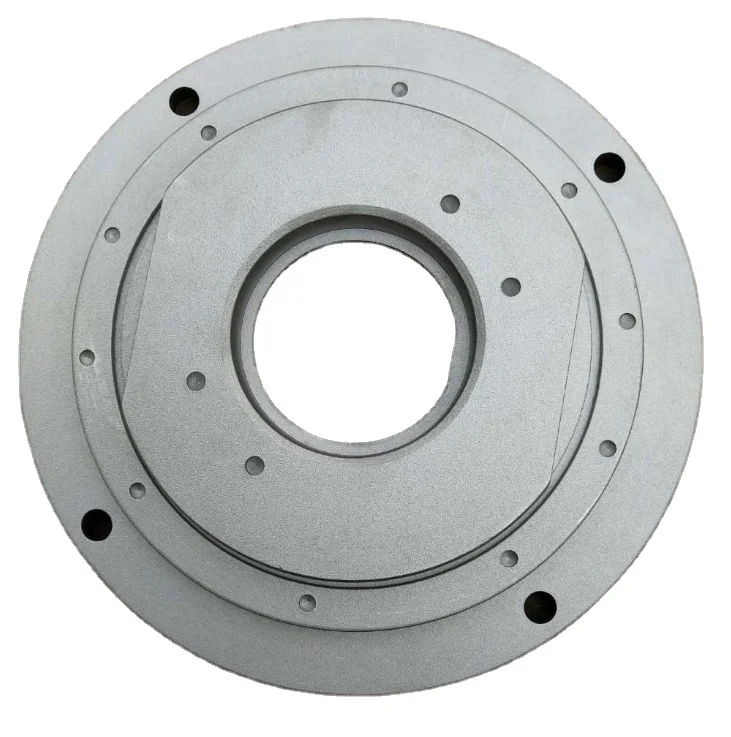

Products Description
1. Material: Gray Iron or Ductile Iron;
Gray iron HT200-350 (GG20-35, FC200-350);Ductile Iron QT400-QT600(GGG40-GGG60,FCD400-FCD600)
2. Surface treatment: Shot blast, painting; Heat treatment is optional;
3. Custom according to your drawing, specification or samples;
Gray iron HT200-350 (GG20-35, FC200-350);Ductile Iron QT400-QT600(GGG40-GGG60,FCD400-FCD600)
2. Surface treatment: Shot blast, painting; Heat treatment is optional;
3. Custom according to your drawing, specification or samples;
Material | Gray Iron Casting/Ductile Iron Casting |
Process | Resin sand casting/shell mold casting/investment + CNC machining |
Casting Tolerance | CT9-10 for Machine Molding Process, CT8-9 for Shell Molding and Lost Foam Molding Casting Process CT10-11 for Manual Molding Sand casting Process |
Casting surface roughness | Ra 12.5-25 um |
Casting weight range | 3kg to 2.5tons per piece |
Casting Size | As Requirement/As drawing |
Machining surface roughness | As Requirement |
Material standard | GB, ASTM, AISI, DIN, BS, JIS, NF, AS, AAR |
Surface treatment | KTL (E-coating), Zinc plating, Mirror Polishing, Sand Blasting, Acid pickling, black oxide, Painting, Hot galvanizing, Powder coating, and Nickel plating. |
Service available | OEM & ODM |
Quality control/Testing facility | Sectrometer, tensile test machine, hardness test machine,metallographic microscope. 100% inspection |
Application | Train & railway, automobile& truck, construction machinery, forklift, agricultural machinery, shipbuilding, petroleum machinery,construction, valves and pumps, electric machine, hardware, power equipment, and so on. |
Mechanical character
Grey Iron Grade in GB 9439 Gray iron Castings | ||||||
Gray Iron Grade | Single Specimen Tensile Strength σb≥/Mpa | Wall Thickness /mm | Tensile Strength σb≥/Mpa | |||
HT100 | 100 | >2.5~10 | 130 | |||
>10~20 | 100 | |||||
>20~30 | 90 | |||||
>30~40 | 80 | |||||
HT150 | 150 | >2.5~10 | 175 | |||
>10~20 | 145 | |||||
>20~30 | 130 | |||||
>30~40 | 120 | |||||
HT200 | 200 | >2.5~10 | 220 | |||
>10~20 | 195 | |||||
>20~30 | 170 | |||||
>30~40 | 160 | |||||
HT250 | 250 | >2.5~10 | 270 | |||
>10~20 | 240 | |||||
>20~30 | 220 | |||||
>30~40 | 200 | |||||
HT300 | 300 | >10~20 | 290 | |||
>20~30 | 250 | |||||
>30~40 | 230 | |||||
HT350 | 350 | >10~20 | 340 | |||
>20~30 | 290 | |||||
>30~40 | 260 | |||||
Ductile Iron Grade in GB1348 Ductile Iron Castings | ||||||||
Iron Grade | Wall Thickness /mm | Tensile Strength(Min Mpa) | Yield Strength(Min Mpa) | elongation % Min | ||||
QT400-18A | >30~60 | 390 | 250 | 18 | ||||
>60~200 | 370 | 240 | 12 | |||||
QT400-15A | >30~60 | 390 | 250 | 15 | ||||
>60~200 | 370 | 240 | 12 | |||||
QT500-7A | >30~60 | 450 | 300 | 7 | ||||
>60~200 | 420 | 290 | 5 | |||||
QT600-3A | >30~60 | 600 | 360 | 3 | ||||
>60~200 | 550 | 430 | 1 | |||||
QT700-2A | >30~60 | 700 | 400 | 2 | ||||
>60~200 | 650 | 380 | 1 | |||||
Gray Iron Material Grades | ||||||||||||||||
Country | Standard | Equivalent Grades of Grey Iron (Gray Cast Iron) | ||||||||||||||
ISO | ISO 185 | 100 | 150 | 200 | 250 | 300 | 350 | - | ||||||||
China | GB 9439 | HT100 | HT150 | HT200 | HT250 | HT300 | HT350 | - | ||||||||
USA | ASTM A48 | - | NO.20 | NO.30 | NO.35 | NO.40 | NO.50 | NO.55 | ||||||||
NO.25 | NO.45 | NO.60 | ||||||||||||||
Germany | DIN 1691 | GG10 | GG15 | GG20 | GG25 | GG30 | GG35 | GG40 | ||||||||
Austria | ||||||||||||||||
European | EN 1561 | EN-GJL-100 | EN-GJL-150 | EN-GJL-200 | EN-GJL-250 | EN-GJL-300 | EN-GJL-350 | |||||||||
Japan | JIS G5501 | FC100 | FC150 | FC200 | FC250 | FC300 | FC350 | - | ||||||||
Italy | UNI 5007 | G10 | G15 | G20 | G25 | G30 | G35 | - | ||||||||
France | NF A32-101 | - | FGL150 | FGL200 | FGL250 | FGL300 | FGL350 | FGL400 | ||||||||
UK | BS 1452 | 100 | 150 | 200 | 250 | 300 | 350 | - | ||||||||
India | IS 210 | - | FG150 | FG200 | FG260 | FG300 | FG350 | FG400 | ||||||||
Spain | UNF | - | FG15 | FG20 | FG25 | FG30 | FG35 | - | ||||||||
Belgium | NBN 830-01 | FGG10 | FGG15 | FGG20 | FGG25 | FGG30 | FGG35 | FGG40 | ||||||||
Australia | AS 1830 | - | T150 | T220 | T260 | T300 | T350 | T400 | ||||||||
Sweden | SS 14 01 | O110 | O115 | O120 | O125 | O130 | O135 | O140 | ||||||||
Norway | NS11 100 | SJG100 | SJG150 | SJG200 | SJG250 | SJG300 | SJG350 | - | ||||||||
Manufacturing&Testing equipment
Manufacturing Process:
Smelting → Mixing Sand → Modeling → Pouring → Picking → Shot Blasting → Polishing→ Inspection → Shot Blasting → Painting→Packing → Delivery
Product packaging
Company Profile
ABOUT US
Jiangsu Shengrong High-end Equipment Manufacturing Industry Co., Ltd. is a professional Gray cast iron/Ductile iron foundry in Jiangsu province in China,We produce iron casting parts:Machinery Bases,Construction machinery parts, Industrial pump parts,Gearbox parts,Automotive parts,Agriculture machine parts and OEM part. We have passed quality management system ISO 9001 and IATF16949. Our factory is located in Maba Town, Xuyi County, Huai'an City, Jiangsu province, covering an area of about 245 acres with new standardized factory building more than 200,000 square meters, office building of 6,000 square meters, more than 500 employees, including more than 100 technological engineers.
Our company produces ductile iron and gray cast iron series products, with an annual output of 80,000 tons,products are exported to the United States, Germany, Italy, Russia, Brazil, Vietnam, the Middle East and other regions.
Our company has a modern workshop, complete casting production equipment, advanced physical and chemical analysis, testing equipment, constantly importing the world's advanced technology and a large number of professional technical personnel, expanding advanced production and testing equipment, so that make our products can meet the different requirements of customers.
Jiangsu Shengrong does our best to provide high-quality foundry machinery parts for the market, Serves domestic and foreign customers with the most cost-effective products, and make our contributing to China's foundry industry.
Our company has a modern workshop, complete casting production equipment, advanced physical and chemical analysis, testing equipment, constantly importing the world's advanced technology and a large number of professional technical personnel, expanding advanced production and testing equipment, so that make our products can meet the different requirements of customers.
Jiangsu Shengrong does our best to provide high-quality foundry machinery parts for the market, Serves domestic and foreign customers with the most cost-effective products, and make our contributing to China's foundry industry.
Customer Photos
FAQ
Q1. Can I get samples?
Yes.
Q2. Can I use my own logo or design on the products?
Yes, we offer OEM/ODM service; your logo and design can be made on the products.
Q3. Do you have a factory?
Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and offer OEM/ODM
service to our customers.
Q4. What is the production capacity of your factory?
Annual production of 30,000 tons
Q5. When will the shipment be made?
We ship within 40 days after the order is confirmed.
Q6. Sample time
Samples will be shipped within 30 days after we receive the customer's mold fee.
Yes.
Q2. Can I use my own logo or design on the products?
Yes, we offer OEM/ODM service; your logo and design can be made on the products.
Q3. Do you have a factory?
Yes, we have a factory in Jiangsu. Welcome to visit our company and factory. We are a professional manufacturer and offer OEM/ODM
service to our customers.
Q4. What is the production capacity of your factory?
Annual production of 30,000 tons
Q5. When will the shipment be made?
We ship within 40 days after the order is confirmed.
Q6. Sample time
Samples will be shipped within 30 days after we receive the customer's mold fee.
Related Products
Похожие товары

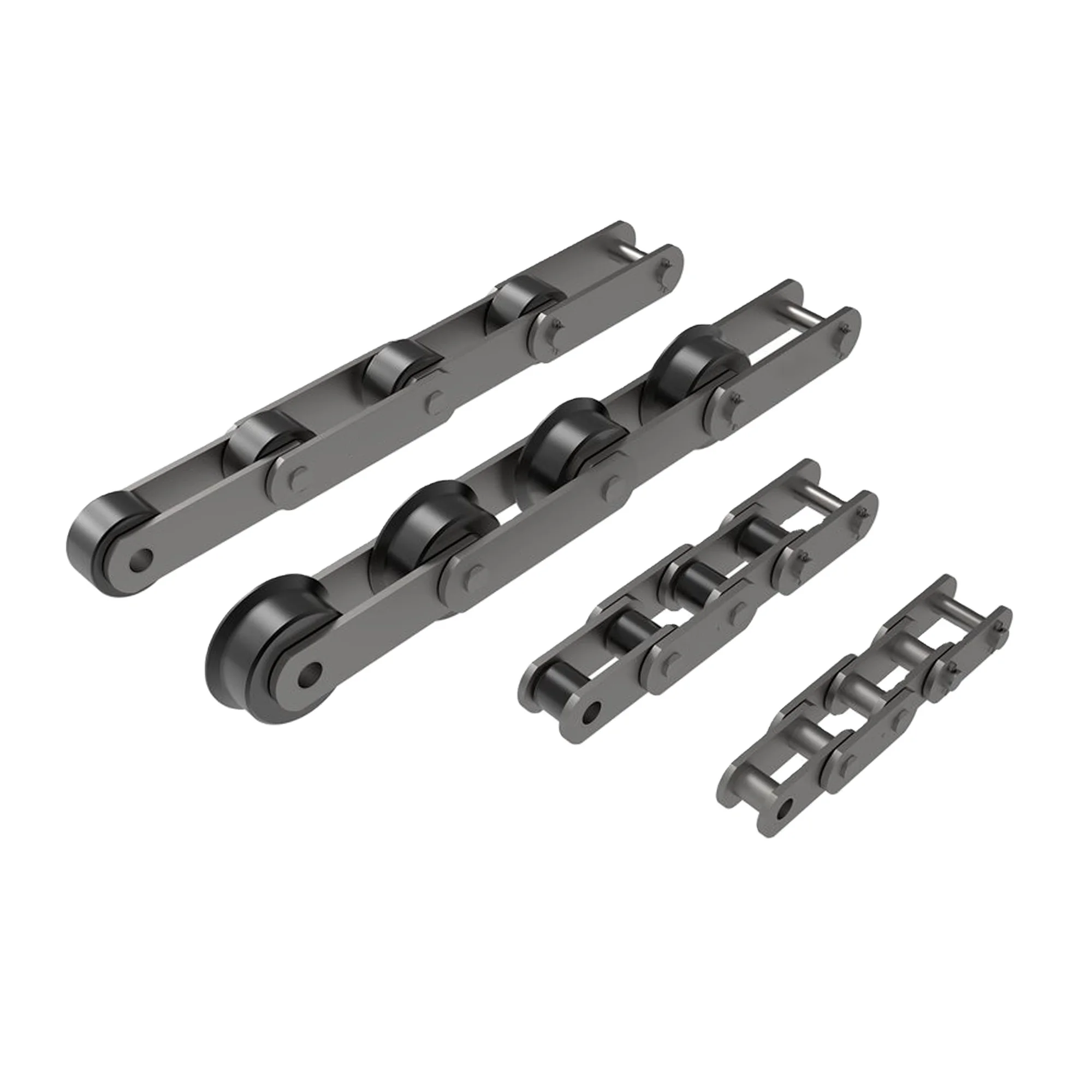

Профессиональная цепная конвейерная цепь для передачи нефтяных месторождений изготовленная в Китае
1 482,61 ₽

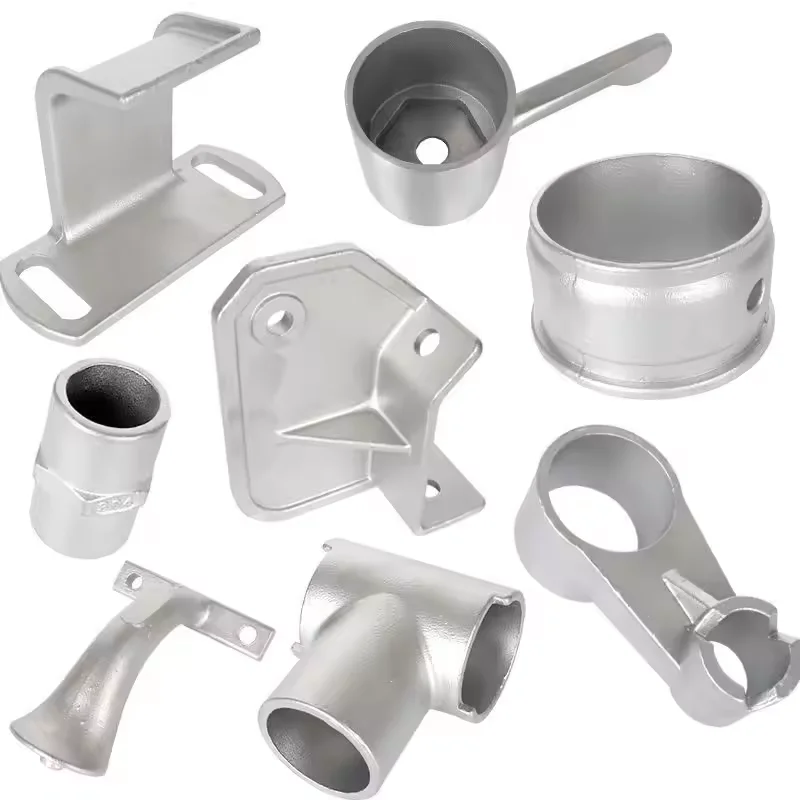

Изготовленный на заказ Высокоточный металлический прецизионный алюминиевый литой стальной потерянный воск Металлический Стальной латунный пресс-форма от надежного китайского поставщика

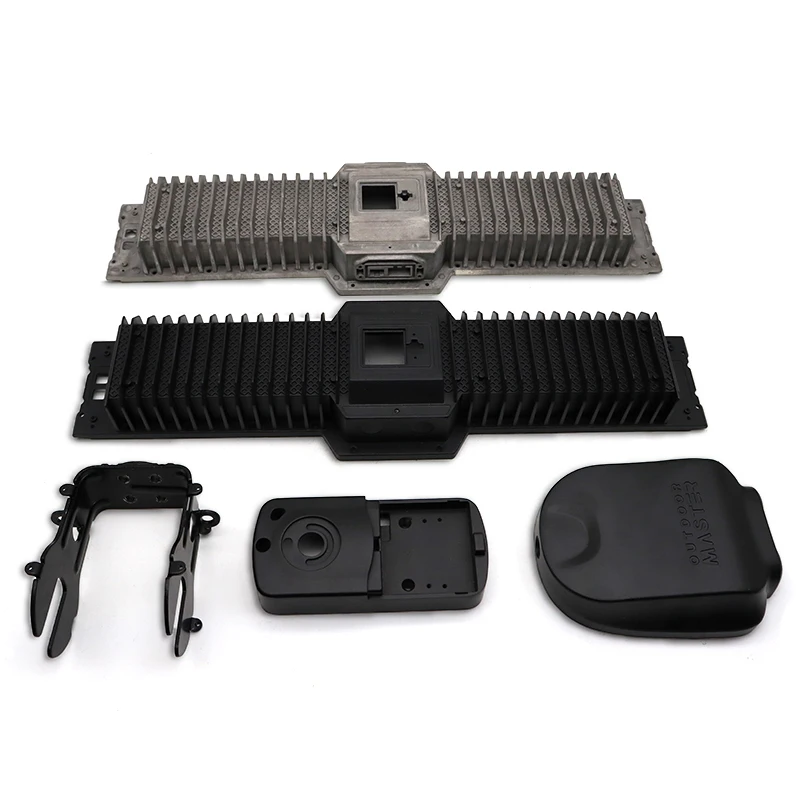

Индивидуальная машина для литья под давлением высокого давления небольшая точность обработки алюминиевый сплав ADC12 Zamak магний Цинковый Магний

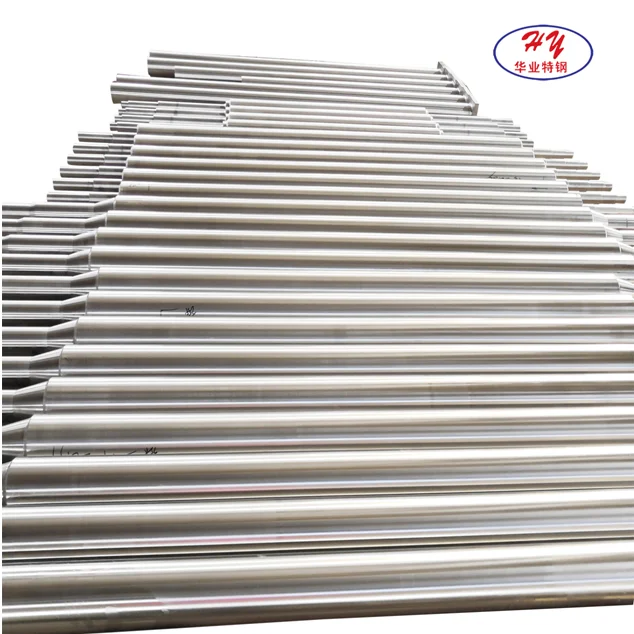

Центробежный литой термостойкий износостойкий нагревательный Ролик в непрерывной линии цинкования
1 482,61-1 530,05 ₽

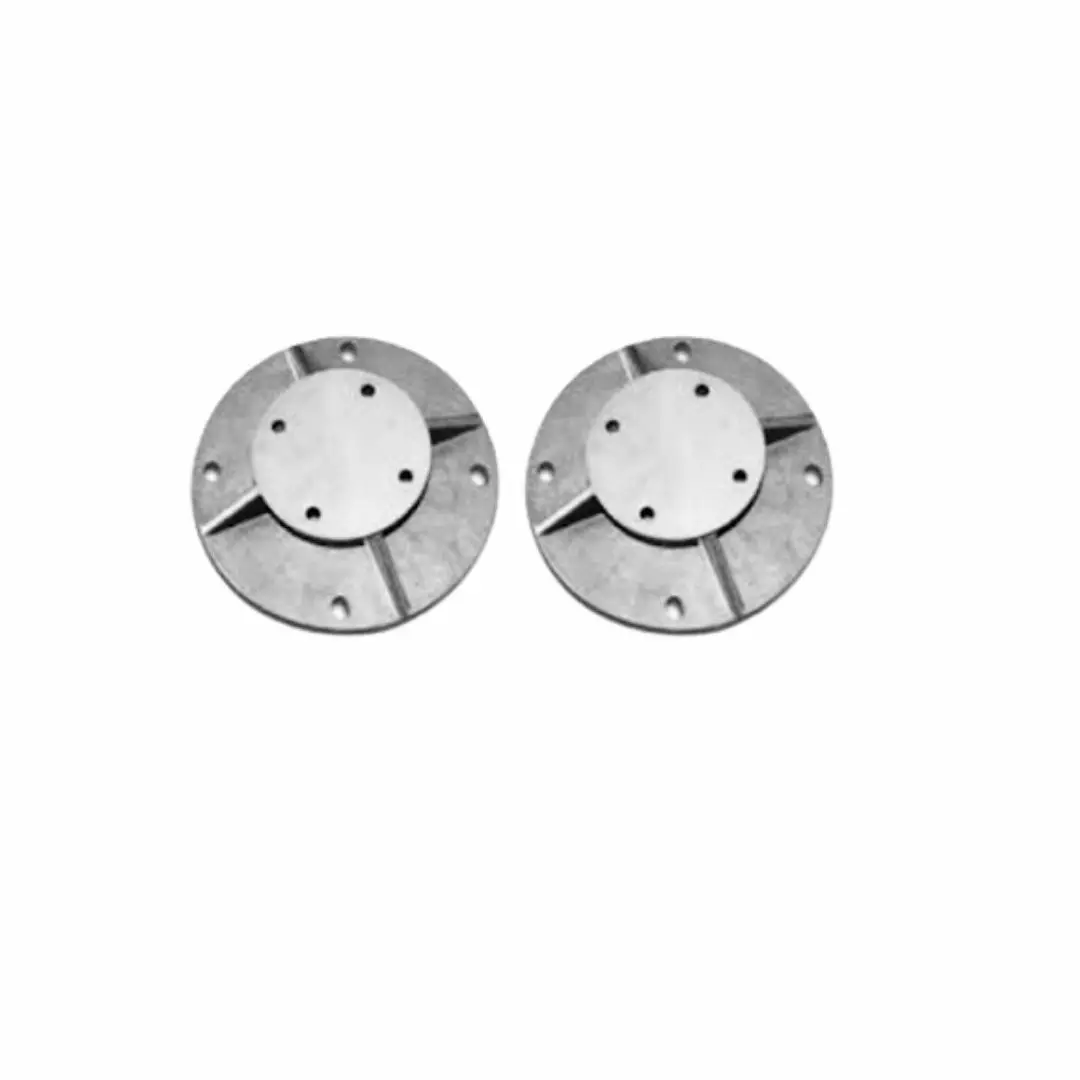

Китайские литейные производители прецизионные индивидуальные услуги по литью чугуна цинковые металлические алюминиевые детали для литья под давлением
