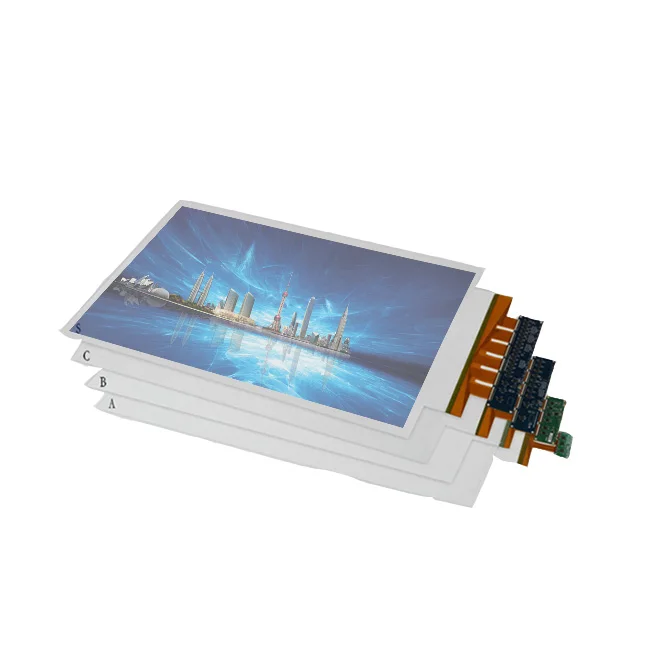

55 дюймов прозрачный Nano емкостный сенсорный экран пленка для ЖК-экрана проектор киоск рекламы
19 071,29 ₽
XGL COB серии 16:9 4K безкабельный Магнитный Cob P0.9 P1.2 P1.5 Крытый светодиодный видео настенный экран панели рекламных лифтов
- Категория: >>>
- Поставщик: Dongguan Xinguanglian Optoelectronics Technology Co. Ltd.Dongguan Ltd.
Сохранить в закладки 1601299929507:
Описание и отзывы
Характеристики
Products Description
Product Paramenters
Technical Parameter | ||||||
Product Model | Full Flip-Chip COB | |||||
Applications | Indoor | |||||
X series | X 0.93 | X 1.25 | X 1.56 | |||
LED type | Full Flip-Chip COB | SMD1515 | SMD1515 | |||
Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | |||
Panel Size (mm) | 600x337.5x42mm | |||||
Panel Weight (kg) | 6±0.5Kg/panel | |||||
Module Size(mm) | 150x168.75 | 250*250 | 250*250 | |||
Cabinet Resolution(Pixel) | 160*180 | 120*135 | 96*108 | |||
Brightness (cd/m²） | 600 | |||||
Color Temperature (K) | 3000-13000K adjustable | |||||
Refresh Frequency (Hz) | ≥3840 | |||||
Method of Installation | Hoisting/mounting/wall hanging | |||||
Viewing Angle(H/V) | H140°/V140° | |||||
Highest Contrast Ratio | 1000000:1 | |||||
Max power consumption (W/m²） | 280 | 270 | 210 | |||
Avg power consumption(W/m²） | 95 | 90 | 70 | |||
Frame Change Frequently (Hz) | 50/60 | |||||
Signal color processing bits | ≥13bit | 16bit | 16bit | |||
Pixel Density | 1137778 dots/m² | 640000 dots/m² | 409600 dots/m² | |||
Operating Voltage | AC:100V-240V(50~60Hz) | |||||
Continuous working time | ≥7x24hrs | |||||
Average trouble-free operating | ≥10000 hours | |||||
LED Life | 100000 hours | 100000 hours | ||||
Operating ambient temperature | -20°C~+50°C | |||||
Operating environment humidity | 10%~95%RH.no condensation | |||||
Manufacturing Technique
Process Grade | Flip COB (Full Flip Chip on Board) | Standard COB (Chip on Board) | SMD (Surface-Mount Device) | IMB (Integrated Module) |
Technical Difficulty | High | Moderately High | Low | Medium |
Display Quality | Excellent | Excellent | Good | Average |
Stability and Protection | Excellent | Good | Average | Average |
Energy Efficiency | High | High | Moderate | Low |
Cost | High | Moderately High | Low | Low |
Application Scenario | High-end market, occasions with strict display requirements | Mid to high-end market, occasions with high stability and protection requirements | Mid to low-end market, occasions sensitive to cost | Low-end market, occasions extremely sensitive to cost |

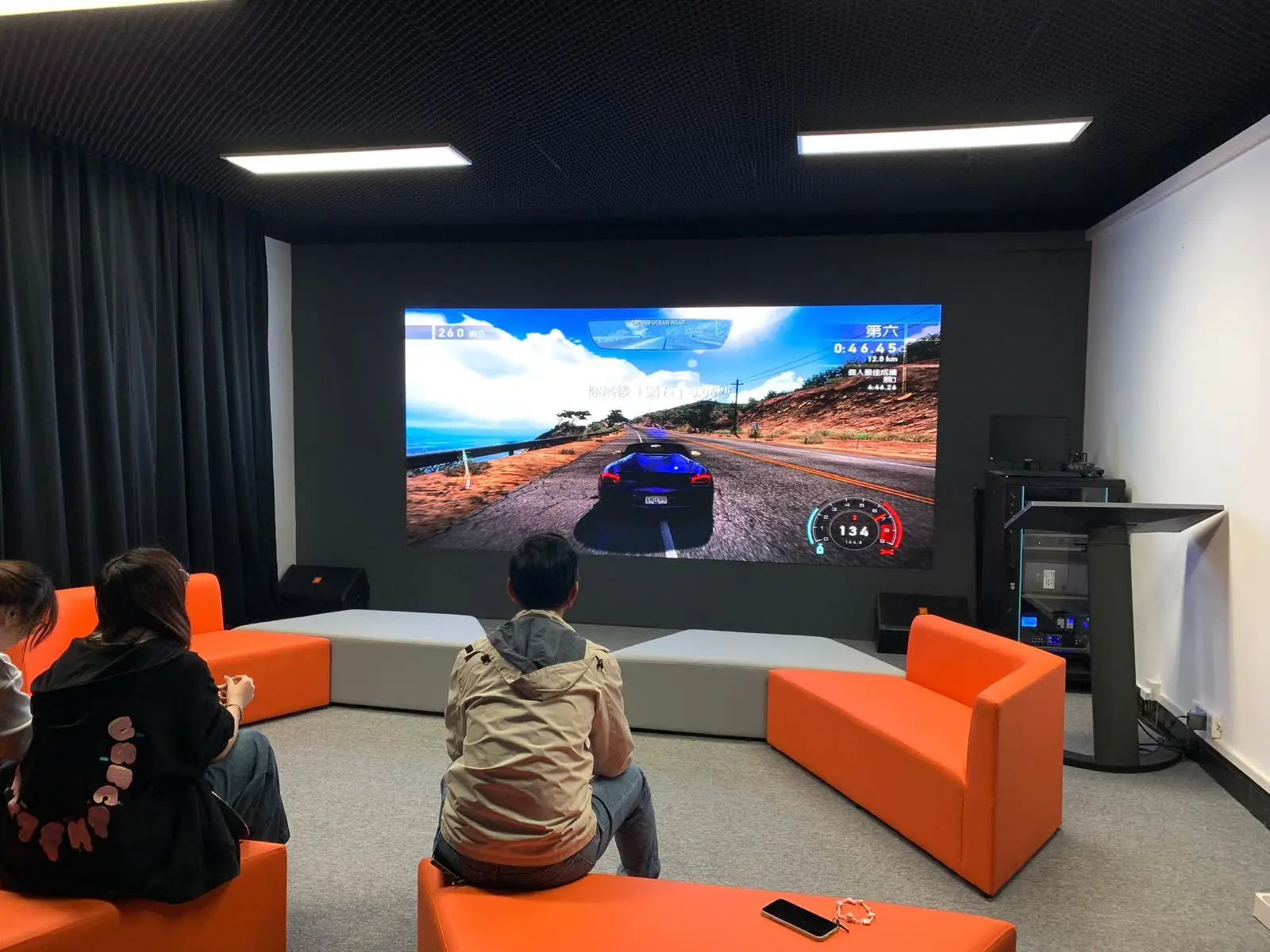

Project Case
Why Choose Us
Exhibition
Packaging & Logistics
FAQ
Q1: What is the Minimum Order Quantity (MOQ) for XGL OPTO's COB LED displays?
A: The MOQ for our COB LED displays is just 1 panel. However, for an enhanced visual experience, we recommend ordering larger video walls to achieve optimal performance.
----------------------------------------------------------------------------------------------------------------------------------
Q2: Does XGL OPTO include a video processor with the COB LED display?
A: Yes, we include high-quality video processors from trusted brands like Brompton and Colorlight Novastar to ensure superior
image quality and performance.
----------------------------------------------------------------------------------------------------------------------------------
Q3: How can XGL OPTO's COB LED displays be installed for rental purposes?
A: Our COB LED displays are designed for flexible installation, suitable for both hanging and stacking methods. They are ideal for
rental applications in various settings.
----------------------------------------------------------------------------------------------------------------------------------
Q4: Does XGL OPTO provide installation structures for the COB LED displays?
A: Yes, we offer a range of installation solutions, including hanging beams for suspended installations and back brackets for
stacking, making setup easier and more versatile.
----------------------------------------------------------------------------------------------------------------------------------
Q5: Is there a quality check before delivery of the COB LED displays?
A: Absolutely. We conduct a thorough 100% quality test with a 72-hour aging process to ensure each display unit meets our
stringent quality standards before delivery.
----------------------------------------------------------------------------------------------------------------------------------
Q6: What is the warranty period for XGL OPTO's COB LED displays?
A: Our COB LED displays come with a 2-year warranty, covering free repairs or replacement of any defective parts during this
period.
----------------------------------------------------------------------------------------------------------------------------------
Q7: What support does XGL OPTO provide if we encounter issues with installation, configuration, or usage?
A: Our dedicated after-sales support team is available to assist you with any installation, configuration, or usage issues,
ensuring that your display operates at peak performance.
----------------------------------------------------------------------------------------------------------------------------------
Q8: What are XGL OPTO's payment terms for COB LED displays?
A: We require a 50% deposit upon order, with the remaining 50% due before shipment. We will provide detailed photos of the
products and packaging for your approval prior to the final payment.
----------------------------------------------------------------------------------------------------------------------------------
Q9: What are XGL OPTO's delivery terms for COB LED displays?
A: We offer various delivery terms including EXW, FOB, CIF, CFR, DDP, and DDU. We are flexible and can work with
customer-specified freight forwarders or negotiate the best transport method based on your needs.
----------------------------------------------------------------------------------------------------------------------------------
Q10: How long is the delivery time for XGL OPTO's COB LED displays?
A: The typical delivery time is 15-20 days after receiving the deposit. However, delivery time may vary depending on order
quantity and specific requirements.
A: The MOQ for our COB LED displays is just 1 panel. However, for an enhanced visual experience, we recommend ordering larger video walls to achieve optimal performance.
----------------------------------------------------------------------------------------------------------------------------------
Q2: Does XGL OPTO include a video processor with the COB LED display?
A: Yes, we include high-quality video processors from trusted brands like Brompton and Colorlight Novastar to ensure superior
image quality and performance.
----------------------------------------------------------------------------------------------------------------------------------
Q3: How can XGL OPTO's COB LED displays be installed for rental purposes?
A: Our COB LED displays are designed for flexible installation, suitable for both hanging and stacking methods. They are ideal for
rental applications in various settings.
----------------------------------------------------------------------------------------------------------------------------------
Q4: Does XGL OPTO provide installation structures for the COB LED displays?
A: Yes, we offer a range of installation solutions, including hanging beams for suspended installations and back brackets for
stacking, making setup easier and more versatile.
----------------------------------------------------------------------------------------------------------------------------------
Q5: Is there a quality check before delivery of the COB LED displays?
A: Absolutely. We conduct a thorough 100% quality test with a 72-hour aging process to ensure each display unit meets our
stringent quality standards before delivery.
----------------------------------------------------------------------------------------------------------------------------------
Q6: What is the warranty period for XGL OPTO's COB LED displays?
A: Our COB LED displays come with a 2-year warranty, covering free repairs or replacement of any defective parts during this
period.
----------------------------------------------------------------------------------------------------------------------------------
Q7: What support does XGL OPTO provide if we encounter issues with installation, configuration, or usage?
A: Our dedicated after-sales support team is available to assist you with any installation, configuration, or usage issues,
ensuring that your display operates at peak performance.
----------------------------------------------------------------------------------------------------------------------------------
Q8: What are XGL OPTO's payment terms for COB LED displays?
A: We require a 50% deposit upon order, with the remaining 50% due before shipment. We will provide detailed photos of the
products and packaging for your approval prior to the final payment.
----------------------------------------------------------------------------------------------------------------------------------
Q9: What are XGL OPTO's delivery terms for COB LED displays?
A: We offer various delivery terms including EXW, FOB, CIF, CFR, DDP, and DDU. We are flexible and can work with
customer-specified freight forwarders or negotiate the best transport method based on your needs.
----------------------------------------------------------------------------------------------------------------------------------
Q10: How long is the delivery time for XGL OPTO's COB LED displays?
A: The typical delivery time is 15-20 days after receiving the deposit. However, delivery time may vary depending on order
quantity and specific requirements.
Похожие товары

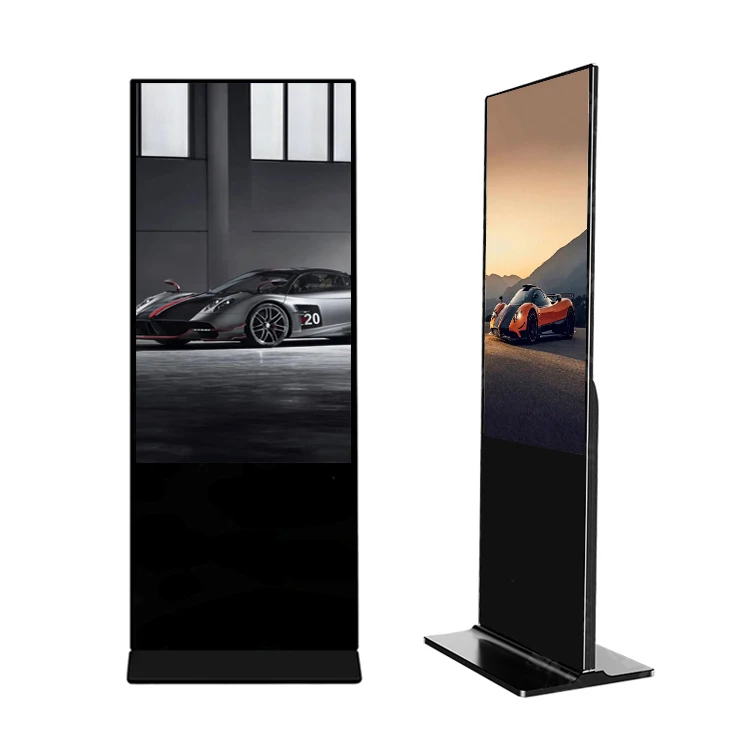

Напольный вертикальный интерактивный тотем ЖК-киоск рекламный дисплей цифровой сенсорный экран цифровая вывеска
25 301,24-43 355,39 ₽

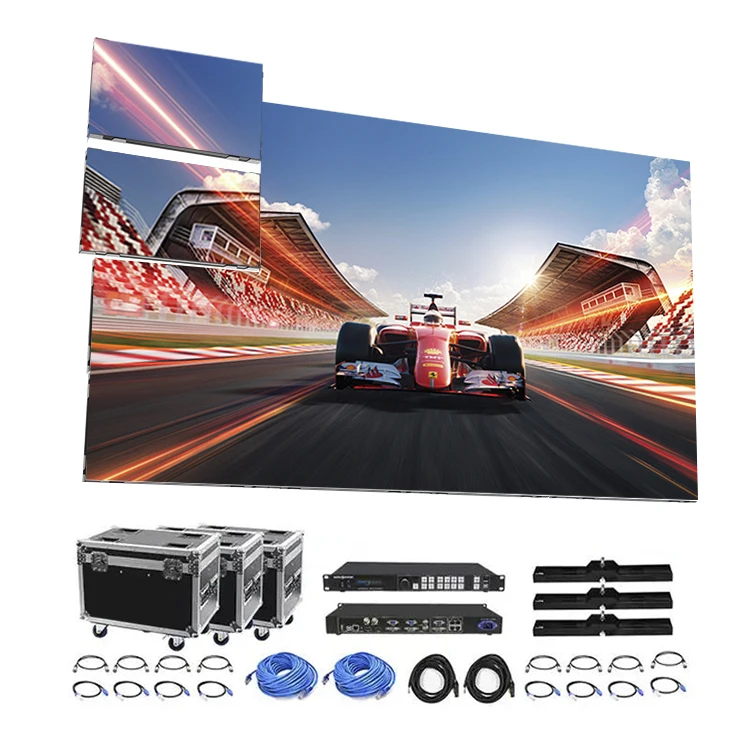

P1 P1.25 P1.5 P1.6 P1.8 P2 P2.5 Светодиодная панель светодиодная настенная реклама для внутреннего освещения

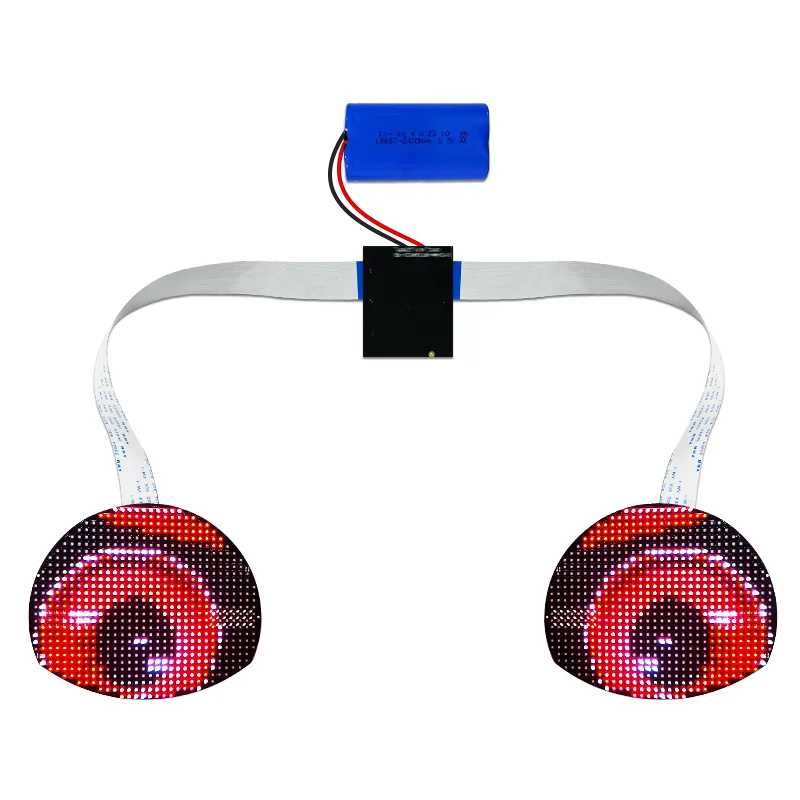

Программируемая Светодиодная панель для управления приложениями «Орлиный глаз»
2 860,70 ₽

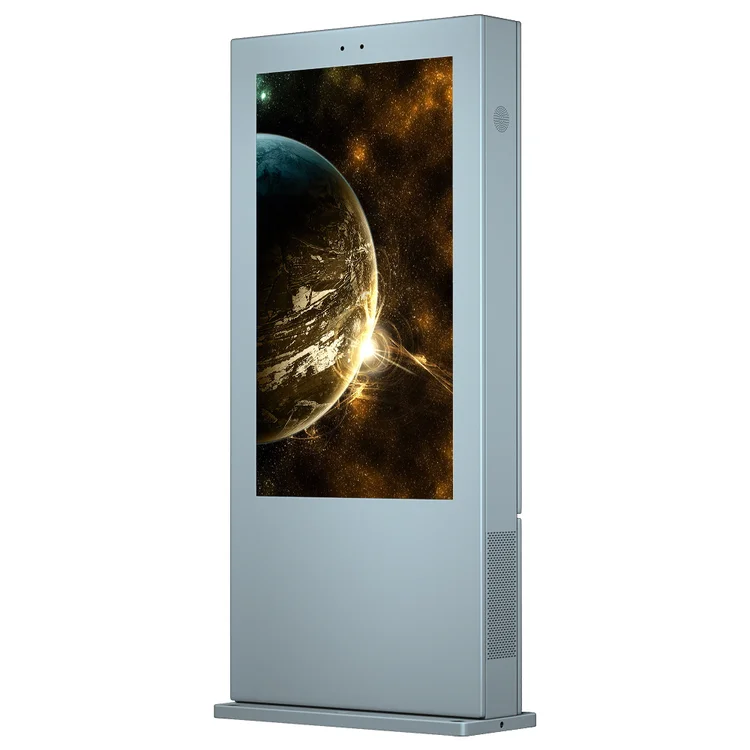

Наружный 43-дюймовый напольный 2500 nits монитор высокой яркости вертикальный тотем 4К цифровая вывеска и дисплей 43 49 55 65 дюймов
139 856,09-152 570,28 ₽

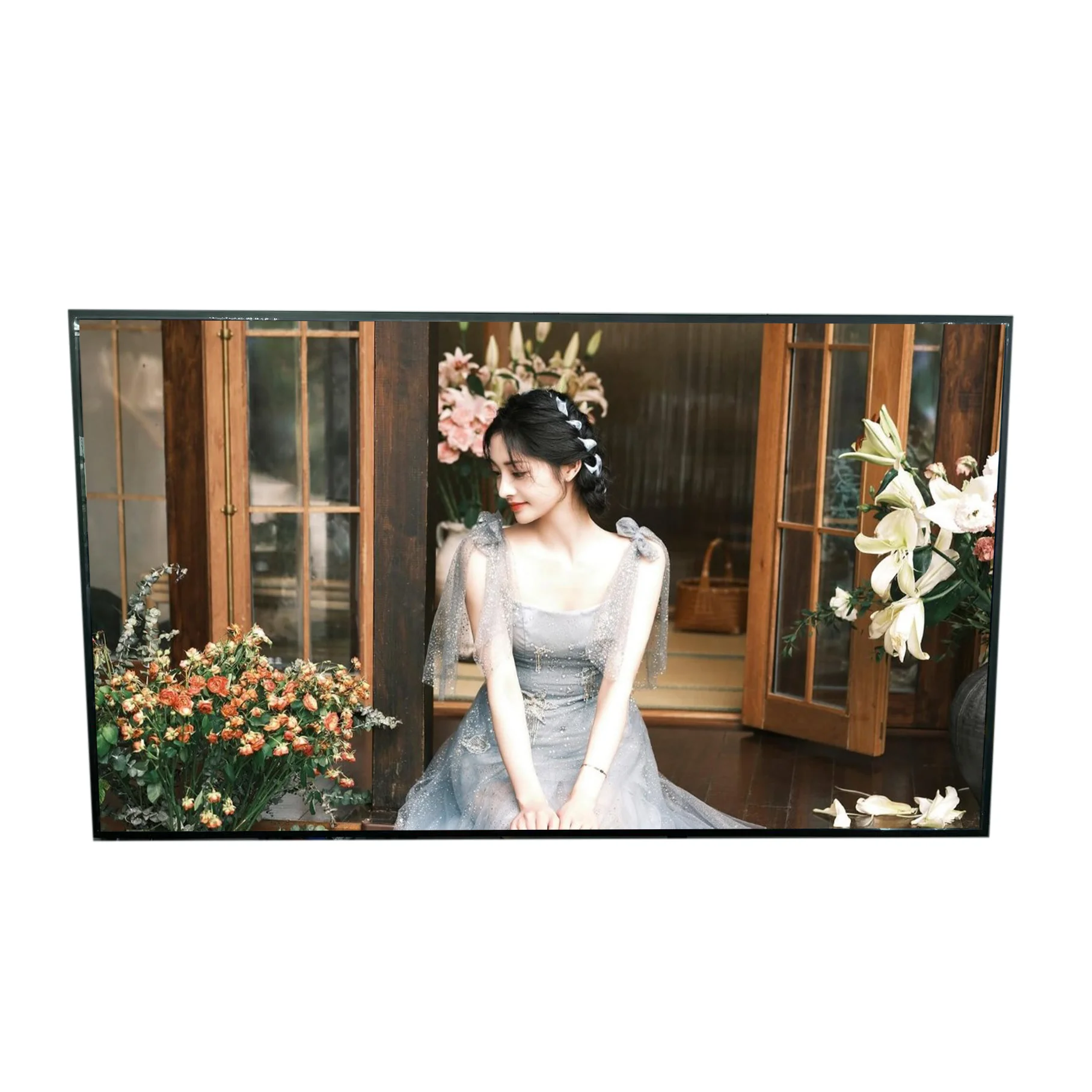

Квадратная ЖК-панель видео boe 33 2 дюймов 1920*1920 500nit квадратная цифровые вывески и дисплеи
