Китай горизонтальные направляющие буровые установки гусеничная анкерная буровая машина
10 300,00-15 000,00 $
Многофункциональная горизонтальная направляющая дрель 13ton 960KN XZ450 Plus буровая техника
- Категория: >>>
- Поставщик: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.
Сохранить в закладки 1601300018525:
Описание и отзывы
Характеристики
Product Description

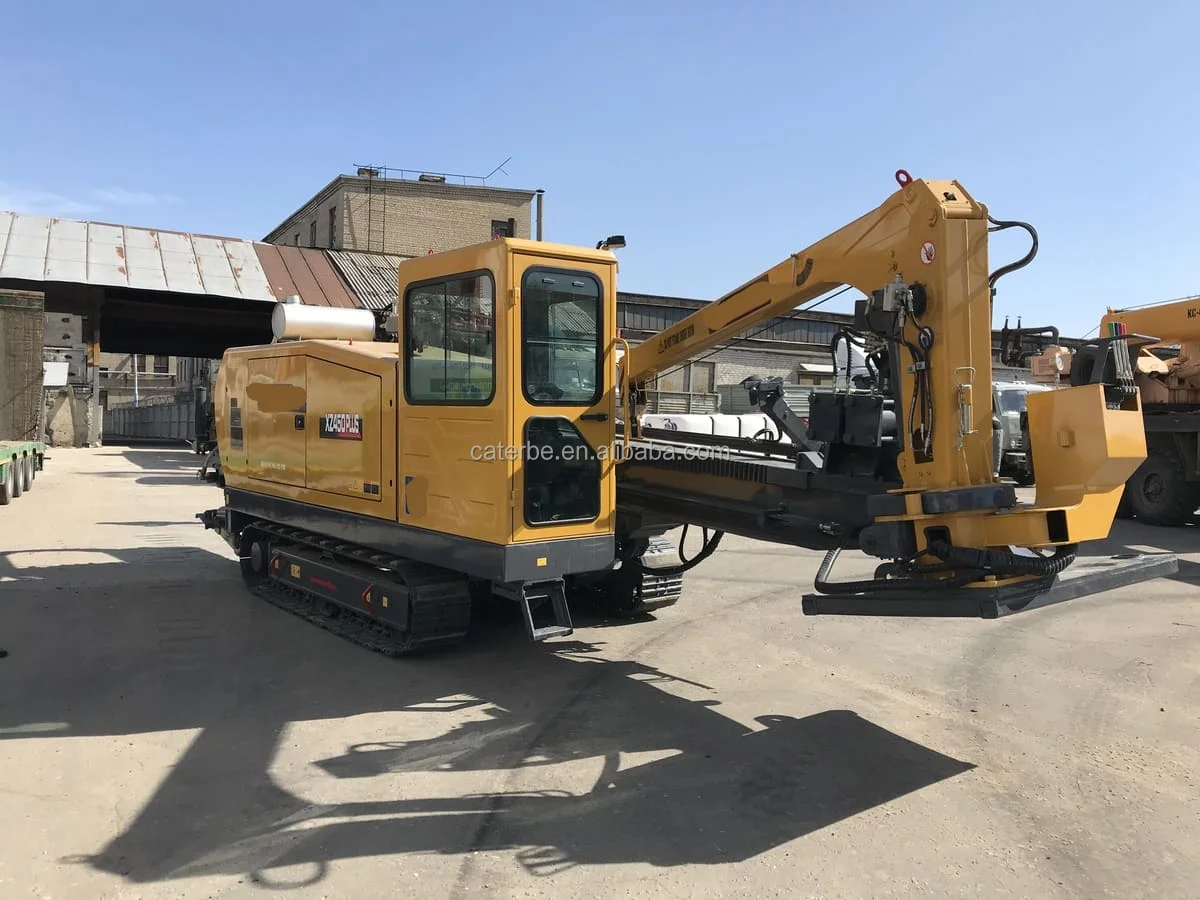

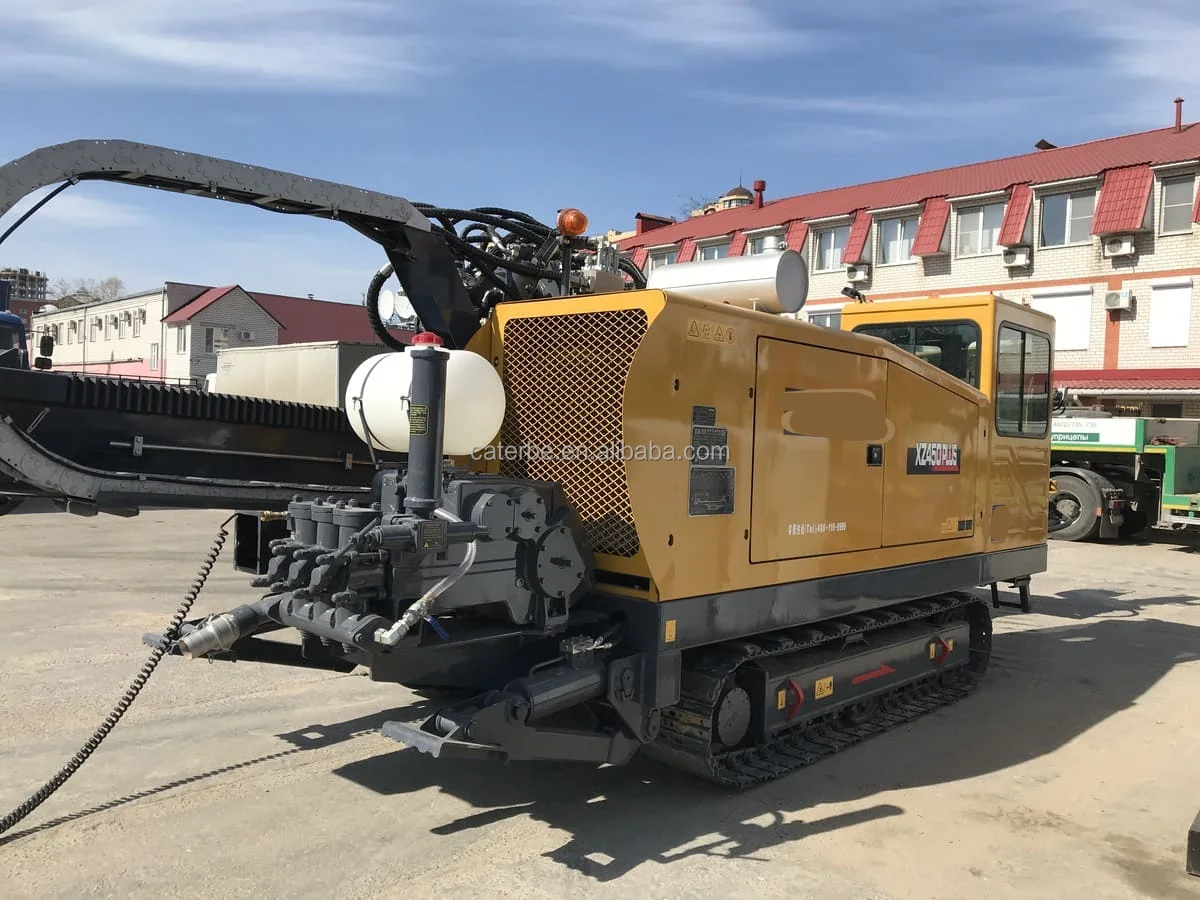

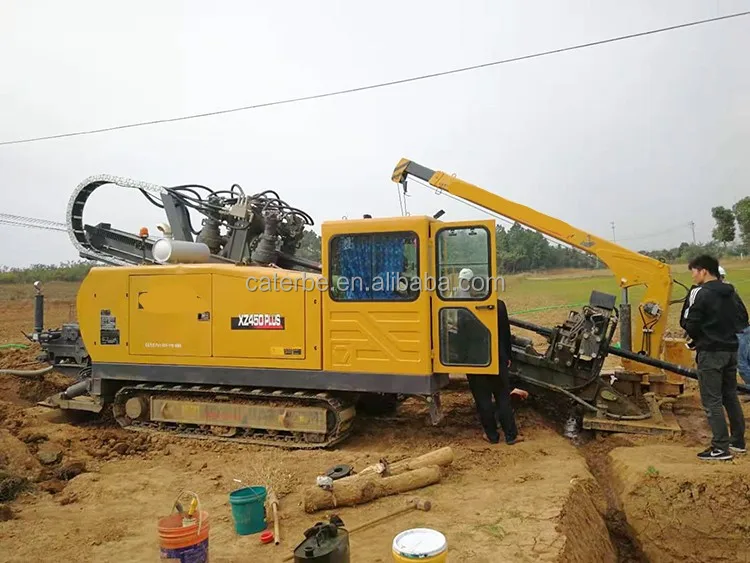

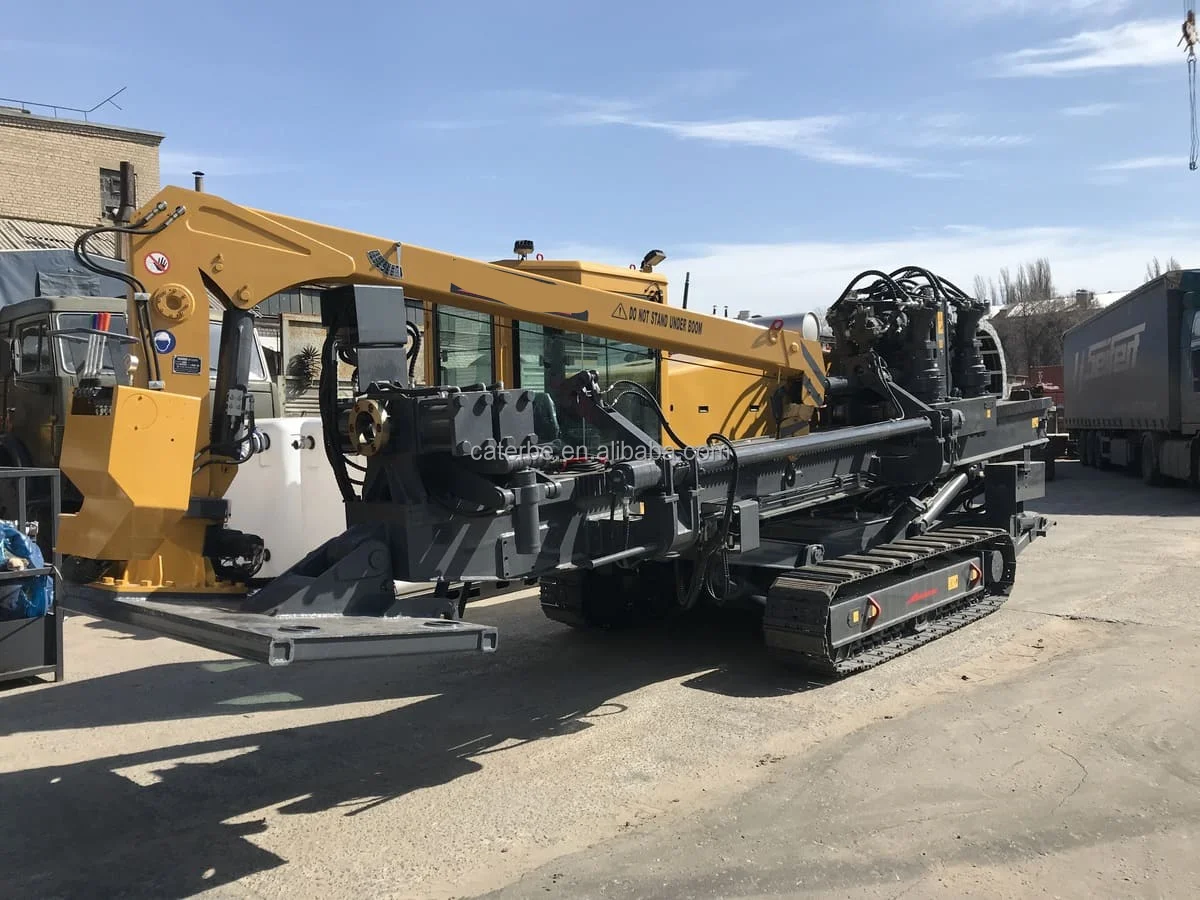

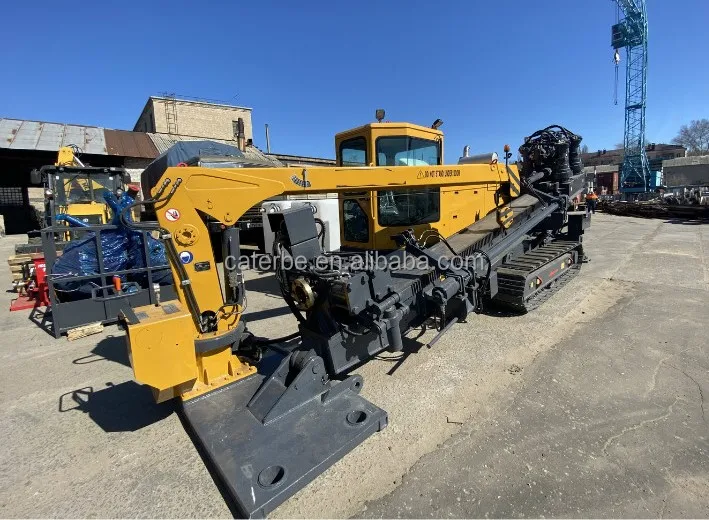

XZ450 Plus HDD Machine Hydraulic Horizontal Directional Drilling Rig
XZ Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe. The XZ Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation.
Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Many key components adopt international famous products to guarantee the quality. They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system, crude oil industry.
Performance Characteristic
1) Numerical meter display the working torque ,push or pull force and so on parametric in working conditions. Electronic sensor has rapid reaction and can show overload immediately.
2) It also endures accuracy and delay of the traditional hydraulic meter's indication. It solve the matter to depend the operator to calculate the torque and force by the equipment's switch directive.
3) Drill frame side by the cylinder. Combine with link weldment. It is easy safe and simple to adjust the entry angle of the equipment.
4) Dual-engines are used. The HDD has all the motion on the condition of any engine starting.Multi-condition technology of adjusting the travel speed combining with the multi-speed control of rotation and push or pull make HDD be suitable to the complex
geology. You can use one engine in the condition of small pipe diameter in order to reduce the project cost.
5)Hydraulic pilot control,load sensing control help to save energy and operate flexibly. The main part of hydraulic and electric and transmission are made of word frist-class brand products, good performance,good reliability.
1) Numerical meter display the working torque ,push or pull force and so on parametric in working conditions. Electronic sensor has rapid reaction and can show overload immediately.
2) It also endures accuracy and delay of the traditional hydraulic meter's indication. It solve the matter to depend the operator to calculate the torque and force by the equipment's switch directive.
3) Drill frame side by the cylinder. Combine with link weldment. It is easy safe and simple to adjust the entry angle of the equipment.
4) Dual-engines are used. The HDD has all the motion on the condition of any engine starting.Multi-condition technology of adjusting the travel speed combining with the multi-speed control of rotation and push or pull make HDD be suitable to the complex
geology. You can use one engine in the condition of small pipe diameter in order to reduce the project cost.
5)Hydraulic pilot control,load sensing control help to save energy and operate flexibly. The main part of hydraulic and electric and transmission are made of word frist-class brand products, good performance,good reliability.
Specification
XZ450PLUS HORIZONTAL DIRECTIONAL DRILL | ||||
ITEM | PARAMETER | |||
Engine | Make | Cummins | ||
Model | QSC8.3-C260 | |||
Rated Power | 194 KW / 2200 R/Min | |||
Operation | Type | Rack and pinion | ||
Max. Thrust /Pullback Force | 960/960 KN | |||
Max carriage thrust/pullback travel speed | 42M/Min | |||
Max. Spindle Torque | 23500 N·M | |||
Max. Spindle Speed | 135R/Min | |||
Type | Self-Propelled Steel Track | |||
Ground Travel Speed | 3.0 Km/h | |||
Drill Rod/ Drill pipe | Diameter ×Length | Φ89 mm×4500mm | ||
Entry Angle | 10~20° | |||
Mud Pump | Max flow rate | 600L/Min | ||
Max pressure | 10 | |||
Overall Weight | 13.3T | |||
Overall Dimension | 8800×2280×2610mm | |||
Detailed Images
