Underground Mining Work Anchor Rock Bolt Frp Anchors Fiberglass

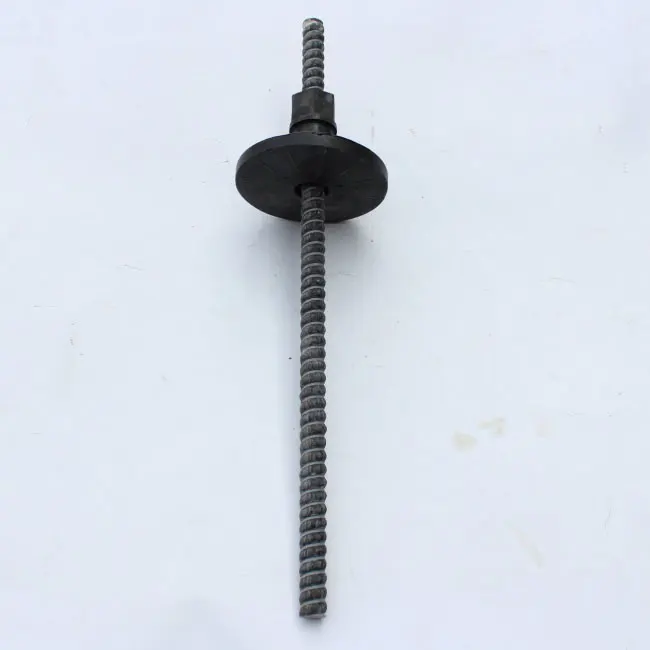

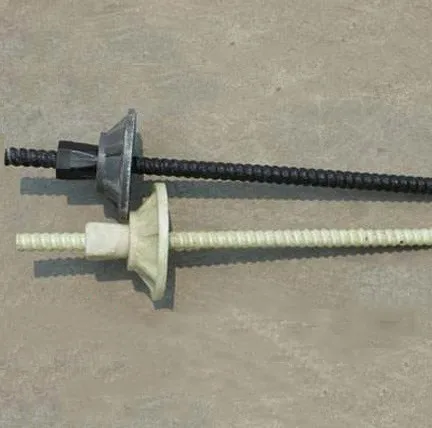

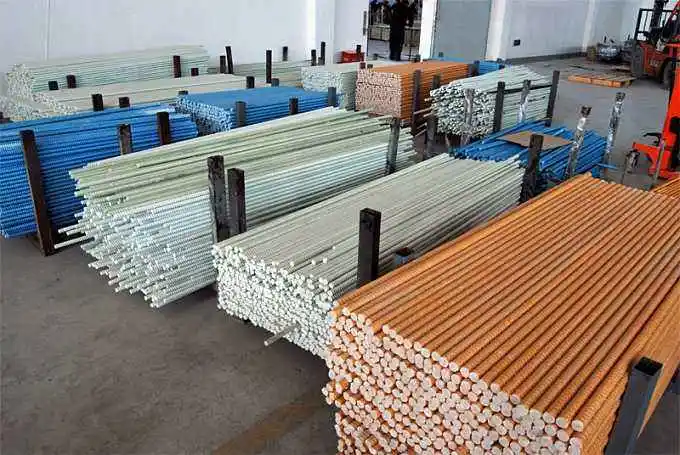

Supply full-thread fiberglass frp rock bolts used for coal mine:

1. Diameter Size(mm): 16.18.20.22.24.27.30.32 mm ( Outer diameter )

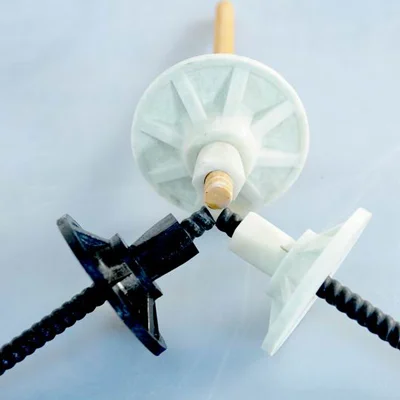

2. Accessories: tray & nut ( frp material or plastic)

3. Material & Characteristics:  FRP rock bolt is formed by glass fiber yarn, resin and curing agent after extrusion, drawing and high temperature curing. High tensile strength, easy to cut, no damage to the cutting teeth, no spark, safe mining high efficiency, light weight, high corrosion resistance, flame retardant, antistatic performance, long-term support and other characteristics.

4. Installation Method:

•

  Drilling with a bolt drill, after the completion, take out the drill pipe and push the resin capsule into the hole with the rock bolt;




•

  Screw on the FRP tray and nut;




•

  Screw the anchor to the end of the rock bolts, then insert the bayonet of the anchor into the drill link sleeve of the anchor drill to drill the resin capsule into the rock bolt hole;




•

  Use the top of the rock bolt to withstand the resin capsule. At this time, the anchor rig is driven to push the leg to make the ascending motion, and the rig motor does not rotate, and


  the resin capsule is pushed into the bottom of the hole;




•

  When the motor drilling machine is started to rotate, the rock bolt rotates while stirring andstirringthe resin capsule. When the frp rock bolts is pushed to the bottom of the hole, the


  drilling machine stops rising, and the drilling machine rotates and stirs the resin capsule


  rapidly. The stirring time is generally 10- 15S, that is, the drilling rig is closed. After resin


  capsules curing, unscrew the bolt mounter while lowering the rig, the frp rock bolt is installed.



5. Type of grout: Resin capsule or cement grout.

6. Application: Mainly used for the support of coal mine rock roadway, semi-coal rock roadway, coal wall, surrounding rock surface, slope anchoring and other underground projects.

Henan Zongxiang Heavy Industry Import & Export Co.,Ltd, established by experienced crowd on the rail & track field, is a professional & reliable supplier that provides all kinds of rail & track accessories. As an international trade subsidiary of Zhongxiang Steel Group, was founded in 1997. We have more than two decades experience on this field, covering an area of 33,000 square meters, with about 300 employees, 4 production lines, 2 R & D department, and 5 quality control staff. With  advanced technology, poweful processing capacity and excellent service, our products have been well recognized by our customers from domestic & overseas market.

Our company mainly provide a range of rails, rail accessories, rail processing, mining support products and so on.

Steel rail: GB standard( light rail, heavy rail, crane rail) and other standards steel rail.

Rail accessories: turnout switch, track spike, fish plate, rail clamp, rail clip, fish plate, rail bolt/nut/washer and etc.

Rail processing:  rail cutting, rail drilling, rail bending.

Mining support products:  Anchors & Rock bolt, Anchor net, Anchor washer, mine tray, mine plastic mesh, metal mesh.

Other steel products:  W-section strap, T-section strap, I-beam steel, U-beam steel, channel steel, angle steel.

1. What's your payment terms?

a. 30% deposit by T/T, balance against B/L copy

b. be negotiable as per order quantity

2. What's your delivery time?

Generally, it is 7-9 days after the order confirmed if the goods are in stock,

or it is 15-30 days if the goods are not in stock. It is according to the quantity.

3. Are you manufacturer or middlemen?

We are industry and trade as a whole.

4. Can we visit your factory?

Warmly welcome. Once we have your schedule, we can arrange everything in advance.

5. Do you provide samples? Is it free or extra?

Available upon request.
