Горизонтальный многоступенчатый водяной насос высокого давления для подачи котла промышленный Электрический центробежный заводской источник
305,00 $

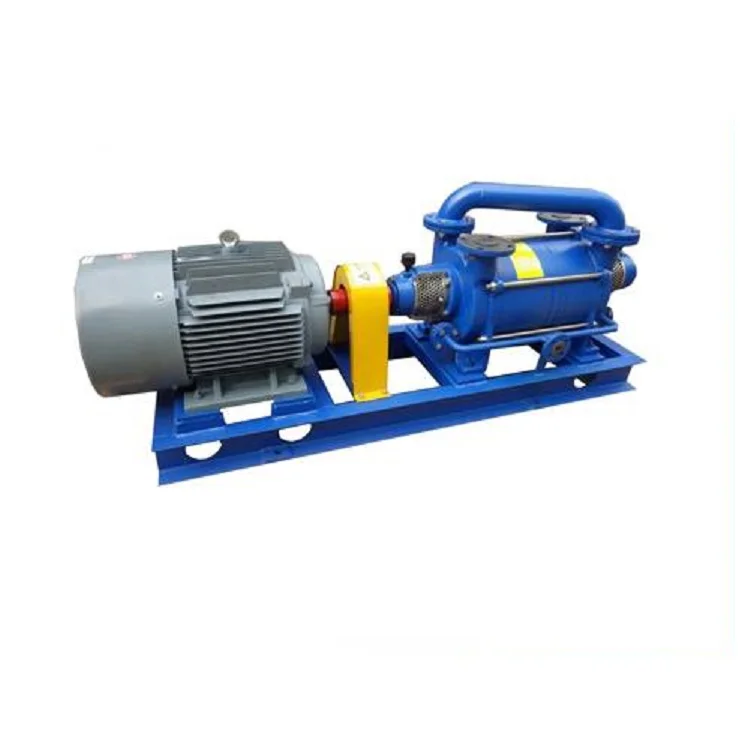

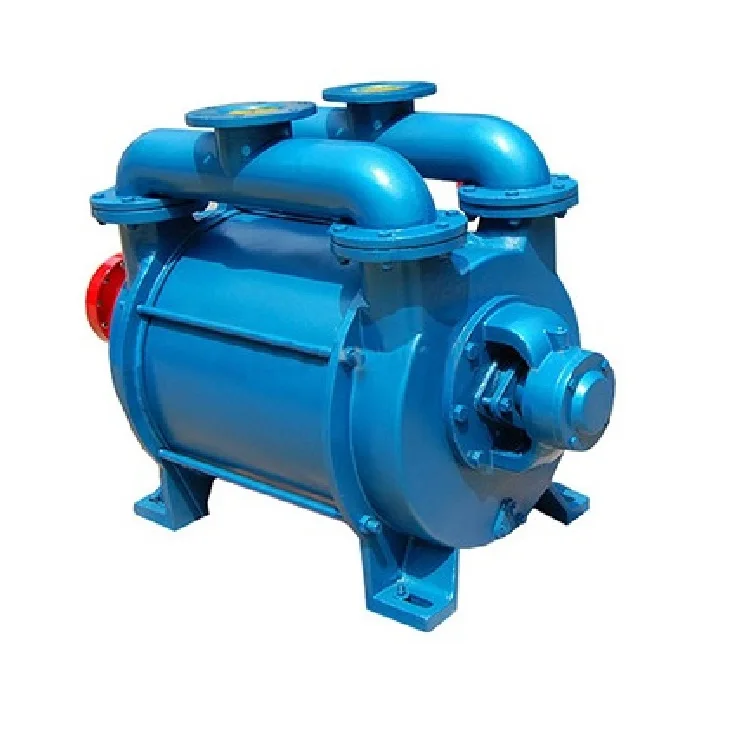

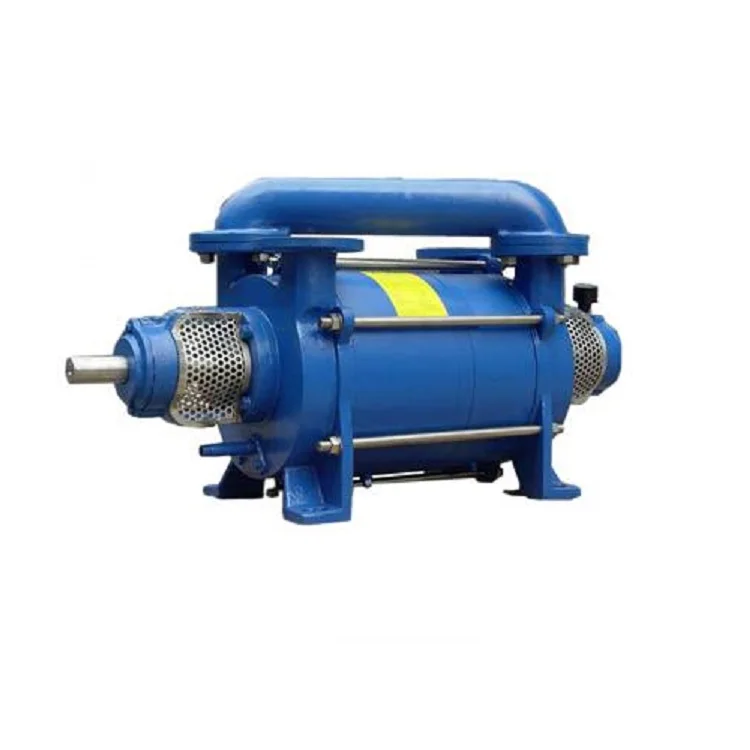

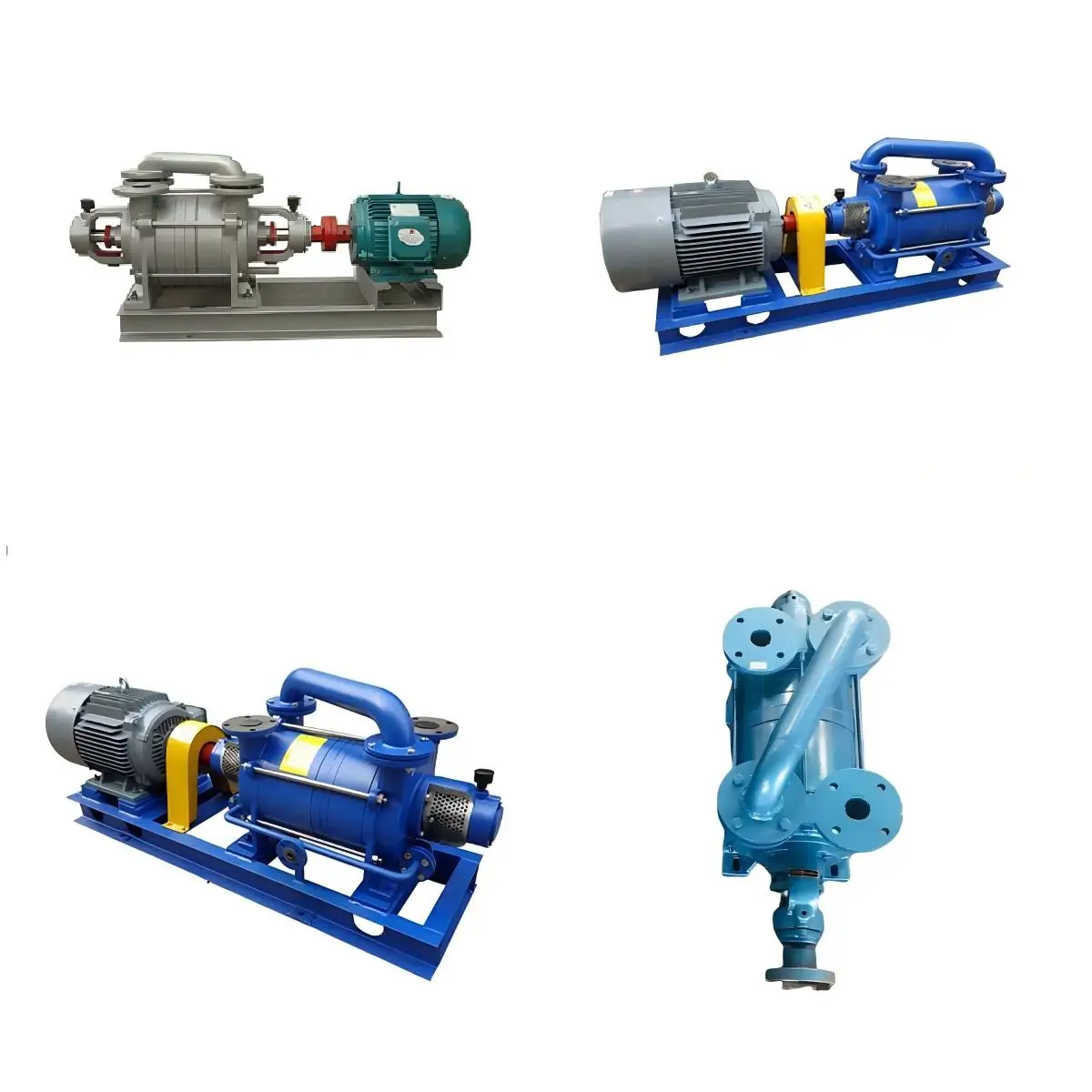

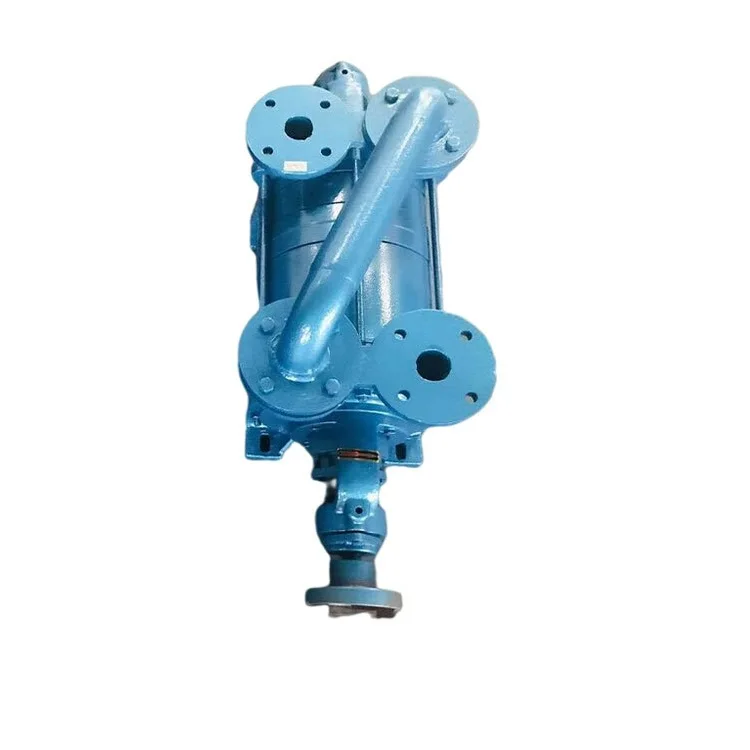

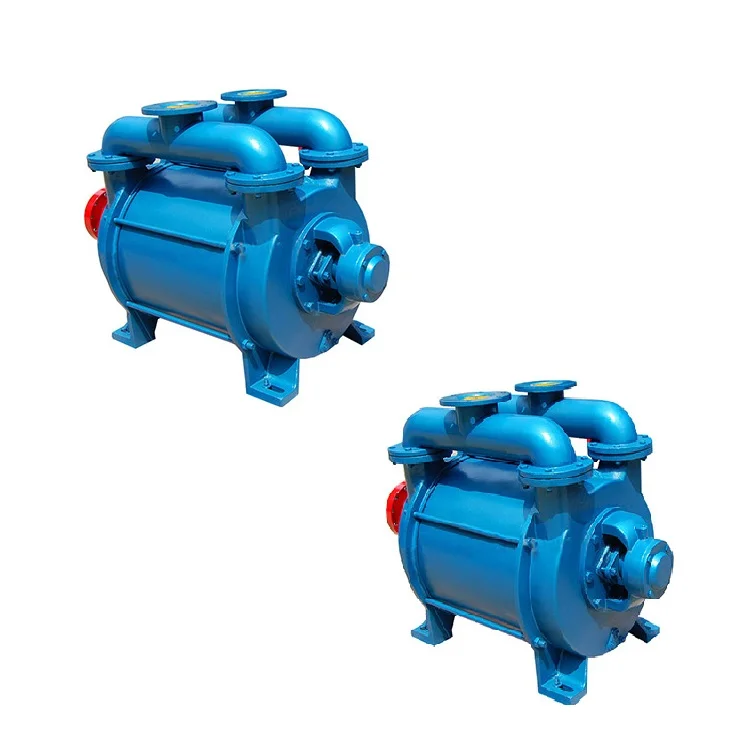

Двухступенчатый водяной кольцевой вакуумный насос серии 2SK и двухступенчатый 2SK P1
- Категория: >>>
- Поставщик: Xiamen Mibay Technology Co. Ltd.Xiamen Ltd.
Сохранить в закладки 1601300345665:
Описание и отзывы
Характеристики
SKseries water ring vacuum pump and compressor
Product Description:
Features:
Parameters:
* The 2SK series is suitable for operating conditions with a suction pressure below - 0.08MPa.
* The 2SK - P1 series is suitable for working conditions where the suction pressure is lower than - 0.096MPa. When using a large
air pump, the vacuum limit can reach - 750mmHg. The operating vacuum range is - 0.03 - - 0.08MPa.
Applications:
The 2SK series two-stage water ring vacuum pump and 2SK - P1 series two-stage water ring vacuum pump unit are used to extract air and other non-corrosive, insoluble gases without solid particles in order to obtain a higher vacuum in a
closed container.
closed container.
Features:
It has the characteristics of high vacuum degree, high pumping speed in the high vacuum area, compact structure,
reliable operation and convenient maintenance.
reliable operation and convenient maintenance.
Parameters:
* The 2SK series is suitable for operating conditions with a suction pressure below - 0.08MPa.
* The 2SK - P1 series is suitable for working conditions where the suction pressure is lower than - 0.096MPa. When using a large
air pump, the vacuum limit can reach - 750mmHg. The operating vacuum range is - 0.03 - - 0.08MPa.
Applications:
Widely used in vacuum evaporation, vacuum concentration, vacuum moisture return, vacuum soaking, vacuum drying
and vacuum smelting in medicine and electronics.
and vacuum smelting in medicine and electronics.
Performance parameter table
model | sucking rate(rice3/ component) | * Limit vacuum(MPa)(mmHg) | power(kilowatt) | Pump speed(Turn / score) | Water Consumption (L/min) | bore(mm) | Pump heavy(Including motor)(Kg) | ||||
Max | Inhalation pressure is-0.093MPa(-700mmHg) | advance | go out | ||||||||
2SK-1.5 | 1.5 | 0.9 | -0.097(-725) | 4 | 1440 | 10-15 | 40 | 40 | 140 | ||
2SK-3 | 3 | 2 | -0.097(-725) | 7.5 | 1440 | 15-20 | 40 | 40 | 180 | ||
2SK-6 | 6 | 4 | -0.098(-735) | 15 | 1460 | 25-35 | 50 | 50 | 250 | ||
2SK-12 | 12 | 8 | -0.098(-735) | 22 | 970 | 40-50 | 100 | 100 | 400 | ||
2SK-20 | 20 | 14 | -0.098(-735) | 45 | 740 | 60-80 | 125 | 125 | 550 | ||
2SK-30 | 30 | 20 | -0.098(-735) | 55 | 741 | 60-80 | 125 | 125 | 70 | ||
Notes
SK Series Water Ring Vacuum Pumps and Compressors – Reliable and Efficient Industrial Solutions
The SK series water ring vacuum pumps and compressors are designed to deliver reliable, efficient, and long-lasting performance in industrial applications. These pumps are ideal for handling wet and vapor-laden gases, ensuring low-maintenance operation and robust performance in demanding environments.
Key Features:
* Energy efficiency:Optimized for reduced power consumption.
* Robust design:Built for long-term reliability in industrial setups.
* Wet gas handling capability:Suitable for vapor-rich environments.
* Low maintenance:Simplifies operations and minimizes downtime.
* Versatile applications:Effective for both vacuum and compression tasks.
Applications:
* Chemical processing:Gas recovery, vapor handling, and moisture control.
* Power generation:Reliable vacuum systems for turbines and condensers.
* Food and beverage:Hygienic vacuum solutions for processing lines.
* Environmental systems:Gas handling in wastewater treatment plants.
* General industrial use:Suitable for drying, forming, and coating applications.
Advantages:
* Trusted performance in demanding industrial processes.
* Minimal maintenance requirements for consistent operation.
* Designed for diverse industrial applications, from food to power generation.
The image should feature the pump in an industrial setting, such as a manufacturing plant or chemical facility. Highlight its robust construction and energy-efficient performance with visual aids or annotations.
SK Series Water Ring Vacuum Pumps and Compressors – Reliable and Efficient Industrial Solutions
The SK series water ring vacuum pumps and compressors are designed to deliver reliable, efficient, and long-lasting performance in industrial applications. These pumps are ideal for handling wet and vapor-laden gases, ensuring low-maintenance operation and robust performance in demanding environments.
Key Features:
* Energy efficiency:Optimized for reduced power consumption.
* Robust design:Built for long-term reliability in industrial setups.
* Wet gas handling capability:Suitable for vapor-rich environments.
* Low maintenance:Simplifies operations and minimizes downtime.
* Versatile applications:Effective for both vacuum and compression tasks.
Applications:
* Chemical processing:Gas recovery, vapor handling, and moisture control.
* Power generation:Reliable vacuum systems for turbines and condensers.
* Food and beverage:Hygienic vacuum solutions for processing lines.
* Environmental systems:Gas handling in wastewater treatment plants.
* General industrial use:Suitable for drying, forming, and coating applications.
Advantages:
* Trusted performance in demanding industrial processes.
* Minimal maintenance requirements for consistent operation.
* Designed for diverse industrial applications, from food to power generation.
The image should feature the pump in an industrial setting, such as a manufacturing plant or chemical facility. Highlight its robust construction and energy-efficient performance with visual aids or annotations.
Exhibition
Contact us
FAQ
1. How should i pay for my order ?
what is the procession of this purchase ? We accept TT by bank or other methods. You can do 30%prepayment at first, then we will start to make production.When the machine is ready , we will take pictures to you, and then youcan do the balance. I will send the machine to you after we got your payment.
2. How about your service after sales ?
can your Engineer speak fluent english ? We offer the service from you got the machine, including how to install the machine,how to use machine, how to let machine work.,and so on. Usually ,we will teach you how to do by email or by skype our engineer who has many years of experience for cnc machine service . he can speak fulently in english .so he can slove the problem in short time.
3. Are you a factory or trading company?
We are the manufacturer . As only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory.
4. How long is the delivery time?
For standard machines, it would be 5-7 days; For non-standard machines and customized machines according to client s specific requirements, it would be 10 to 20 days. 5. How about the documents after shipment? Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
