10 м пневматическая телескопическая опора транспортного средства или наземная Антенная мачта
- Категория: >>>
- Поставщик: Tianjin Talents International Trade Company LimitedTianjin Limited
Сохранить в закладки 1601300659940:
Описание и отзывы
Характеристики
Product Description

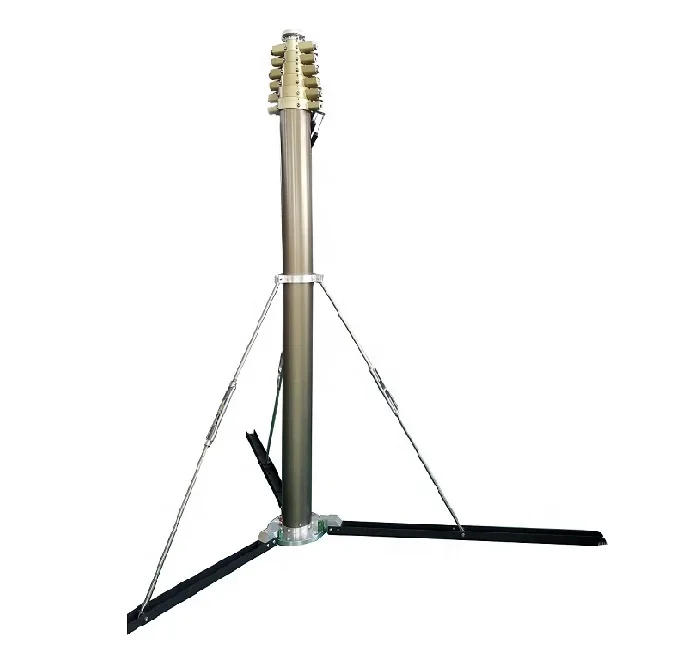

10m Pneumatic Telescopic Pole Vehicle Or Ground Mounted Telescopic Antenna Mast
Our product of the pneumatic telescopic masts has the advantages of energy saving and environmental protection, large payload, low noise, fast lifting, strong buffering & stable performance. With high strength aluminum alloy, our products can easily meet the needs of different height and load in different places.
It can be installed on the ground or on the vehicle to ensure the application effect. It can help lamplight,camera, Antenna,mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.
It can be installed on the ground or on the vehicle to ensure the application effect. It can help lamplight,camera, Antenna,mobile and other equipment rise and drop to a predetermined height after its work. It also plays an important role in natural disasters, emergency rescue at night and lightning at the Golf course and large football field.
Specification | ||
Material | Aluminium alloy 6063B | |
Color | Light brown | |
Surface Treatment | Hard anodized treatment | |
Extend height | 10m | |
Retracted height | 2.2m | |
Max. Vertical load | 20kgs | |
No. of sections | 6 sections | |
Top OD | 51mm | |
Bottom OD | 140mm | |
Lifting Method | Air compressor or hand(foot) pump | |
Wind load | 130km/h | |
Max pressure of air compressor | 0.20--0.25MPA | |
Accessories | Air Compressor/Manual hand (foot) pump——1pc Air hose——1pc Tripod——1pc | |
Type | Telescopic Antenna Mast | |
Model Number | TAL-P10.0-2.2-20-AT8 | |
Structure & Accessories

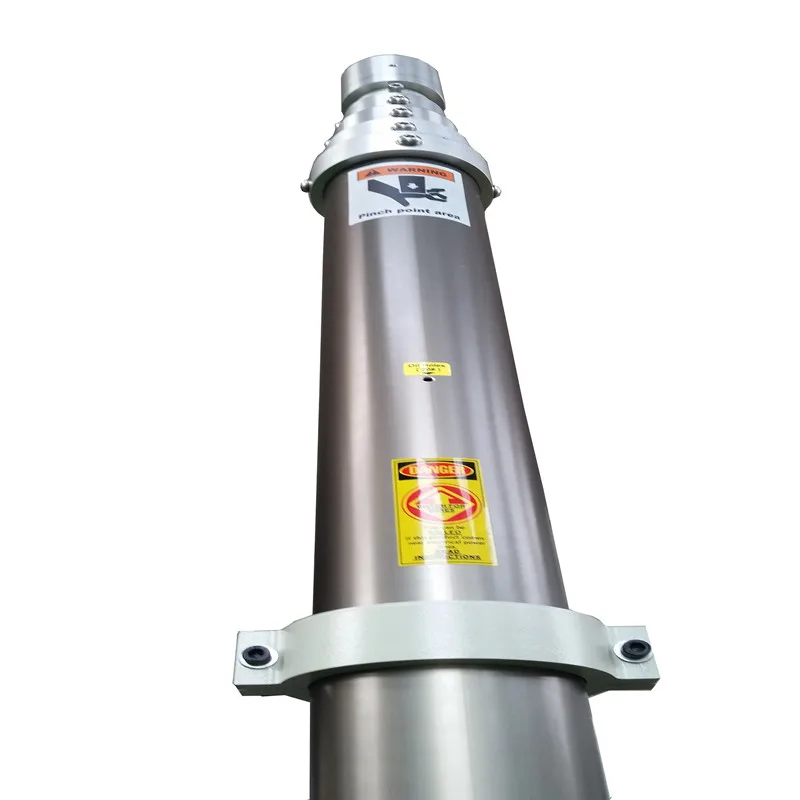

Collar & Lock
The color of the collar is usually silver white.
According to different cases, you can choose whether to with a locking:
NO.1: If the single use time does not exceed 12 hours, it is not convenient for people to operate the fall, we recommend that you choose without a lock.
NO.2: If the single use time is more than 1 day and the top payload weight is less than 15kg, we recommend choosing a small lock.
NO.3: If the single use time is more than 1 day, the top payload weight is more than 15kg and less than 200kg, we recommend choosing a big lock.
NO.1
NO.2
NO.3
Lifting Device
According to different cases, you can choose different lifting device:
(1) If there is no electricity, the mast height does not exceed 6m, the load does not exceed 10kg, you can choose hand pump and foot pump;
(2) If there is electricity, you can choose air compressor, then we will also match the air hose and control valve accordingly;
(3) If there is no place to install the air compressor and control valve, you can choose the control box.
(1) If there is no electricity, the mast height does not exceed 6m, the load does not exceed 10kg, you can choose hand pump and foot pump;
(2) If there is electricity, you can choose air compressor, then we will also match the air hose and control valve accordingly;
(3) If there is no place to install the air compressor and control valve, you can choose the control box.
Default Accessories
According to different installation positions and use scenarios, we will be equipped with different accessories:
(1) Vehicle-mounted: Car U-clamp (Mounted on the car surface) or Car roof fixed flange(Installed inside the car)

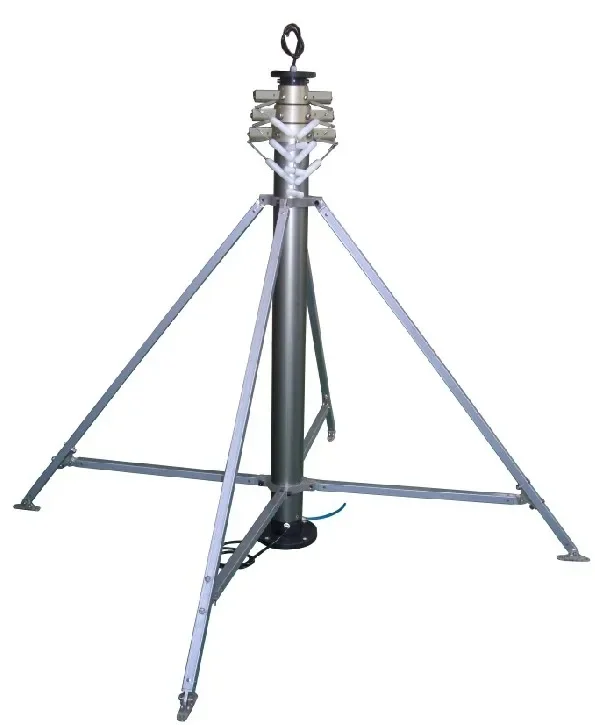

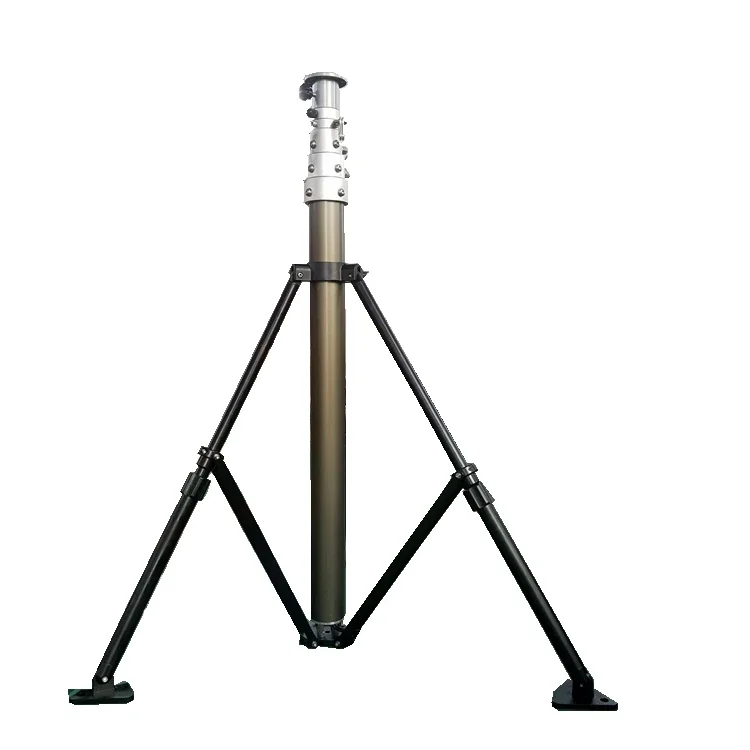

(2) Ground-mounted: Tripod, Pulling Ropes, Ground nails and anchors.
If you need other accessories, please contact us and we will do our best to meet your needs.
(1) Vehicle-mounted: Car U-clamp (Mounted on the car surface) or Car roof fixed flange(Installed inside the car)
(2) Ground-mounted: Tripod, Pulling Ropes, Ground nails and anchors.
If you need other accessories, please contact us and we will do our best to meet your needs.
Customized Service
(1)Top plate & Bottom Base
The shape, size, diameter of the hole, etc. can be customized according to your usage scenario.
(2)Spiral cable
The cable can be external or built-in, if you needed built-in (as shown on the left), please tell me the model of the cable. Please note that the built-in cable is not possible in all cases, it depends on the wire thickness, tube diameter and gap.
(3)Lubricating oil
Due to shipping reasons, we cannot ship lubricating oil, you need to purchase it in your country. If you want to extend the service life of the mast, the mast needs to be maintained regularly. Besides, the lubricating oil is dropped once every two or three month.
Application
Common Application
Our masts are in use for public office as well as civil purposes like communication, monitoring, camera, antenna, production, telecommunication,surveillance, broadcasting, disaster recovery, site surveys, energy site security, etc.
Installation Scenario
--- Our masts can be installed on any level ground, land, grass, wall, box side, container or interior or door of emergency vehicles, fire trucks, vans, small cars, SUVs, etc.
--- Different installation scenarios require different accessories, which are mainly divided into vehicle and ground installation.
--- In order to give you a more reasonable quotation, please tell us the installation scene or the accessories you need before inquiry.
Installation Procedure
* Connecting the air inlet of control valve with air compressor.
* Connecting the air outlet of control valve with the mast.
* Once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into
mast)
* Open the air compressor switch, at same time adjust the pressure regulating switch to reach 0.2MPa which the pressure gauge shows.
* Then pull up the lifting valve handle bar, mast will rise.
* If you want to make the mast stop in some height, just make the handle bar in middle.
* When lift down the mast, please pull down the lifting control valve handle bar.
* In case, there is no electricity and head load is not heavy, lifting could be made by foot pump or hand pump
* For a locking mast extending, when the mast tube sections in extending,you can hear a clear sound when locking pins in the locking slot, that means the section was locked firmly.
* When retracting the mast with locking, to disengaged the latch pins by pulling the bottom T handle or the lock rings on each section, then exhaust the air from the air from the mast, when the mast or each section is fully retracted, stop exhausting air pressure and release the T handles or the lock rings on each section.
* Connecting the air outlet of control valve with the mast.
* Once all mounted, you must keep the lifting control valve handle bar in middle location. (it make the air do not come into
mast)
* Open the air compressor switch, at same time adjust the pressure regulating switch to reach 0.2MPa which the pressure gauge shows.
* Then pull up the lifting valve handle bar, mast will rise.
* If you want to make the mast stop in some height, just make the handle bar in middle.
* When lift down the mast, please pull down the lifting control valve handle bar.
* In case, there is no electricity and head load is not heavy, lifting could be made by foot pump or hand pump
* For a locking mast extending, when the mast tube sections in extending,you can hear a clear sound when locking pins in the locking slot, that means the section was locked firmly.
* When retracting the mast with locking, to disengaged the latch pins by pulling the bottom T handle or the lock rings on each section, then exhaust the air from the air from the mast, when the mast or each section is fully retracted, stop exhausting air pressure and release the T handles or the lock rings on each section.
Packing & Delivery
We will choose the appropriate mode of transportation according to your delivery address and your needs, generally including land, sea, rail, air, express, multimode transport and so on.
Type of packaging:
(1)Carton: extended height: ≤6 m ,top payload: ≤20 kg,purchasing quantity: ≤2 sets;
(2)Plywood case: extended height: ≥6 m ,top payload: ≥20 kg,purchasing quantity: ≥ 2 sets;
(3)Backpack: The total weight of the mast and tripod is not more than 10 kg, suitable for long distance.
This backpack needs to be customized and purchased in quantities greater than 30 sets.
(2)Plywood case: extended height: ≥6 m ,top payload: ≥20 kg,purchasing quantity: ≥ 2 sets;
(3)Backpack: The total weight of the mast and tripod is not more than 10 kg, suitable for long distance.
This backpack needs to be customized and purchased in quantities greater than 30 sets.
Package way
One set mast with accessories wrapped by polyester tapes, then packed into a plywood case.
The mast is tightly wrapped around to ensure that the mast body is not damaged during long-distance transportation.
If you have any special requirements, please contact us!
Shipping
We ship to most countries. However, international buyers are advised to inquire first.Delivery time depends on the destination country.
Recommended By Seller
About us
Company Profile
Talents is an experienced designer, supplier and exporter focuses on manual/electric/pneumatic/hydraulic operated telescopic mastsand lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube. Talents provides different types of telescopic mast to the main market of Europe (25%), Mid East(20%), America (25%)and Asia(15%), helping the customers there to get a competitive advantage in their marketplace and won their praise with the certificate of CE, Since Talents was founded in 1995, Talents team gained large amount of specialized knowledge and experience of solutions and designing of the products and update them as time going on to meet varieties demands of the customers all over the world.
CE Certificate and Customer Feedback
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers, giving feedback timely one by one, we have organized an expert team for quality control and inspection system and have Multi-way fast delivery channels, we are supplying one year free after-sale warranty to the buyer.
Why Choose Us
What Service Can We Provide
1. Products can be customized as per your drawing with the workable quantity;
2. Search for related products and accessories to meet your requirements;
3. Small order of one package for stocks or sample order for one piece acceptable.
4. Supply multi-way fast door to door delivery and all possible shipping ways to save your time, lower your cost and bring you in convenience.
5. Professional after-sales service for Guide usage and maintenance.
6. OEM/ODM service available for the buyers.
7. One year free after-sale warranty after delivery.
Why Choose Us
1. Our team has 29 years of importing and exporting experience since 1995;
2. Talents is an over 18years gold supplier on Alibabasince 2007;
3. Talents had built up a strict and complete quality control system;
4. Our telescopic masts passed the CE authentication.
FAQ
Q1: How long is warranty?
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Available for indoor or outdoor?
A5: indoor/ outdoor both are available
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Available for indoor or outdoor?
A5: indoor/ outdoor both are available
