Product Description

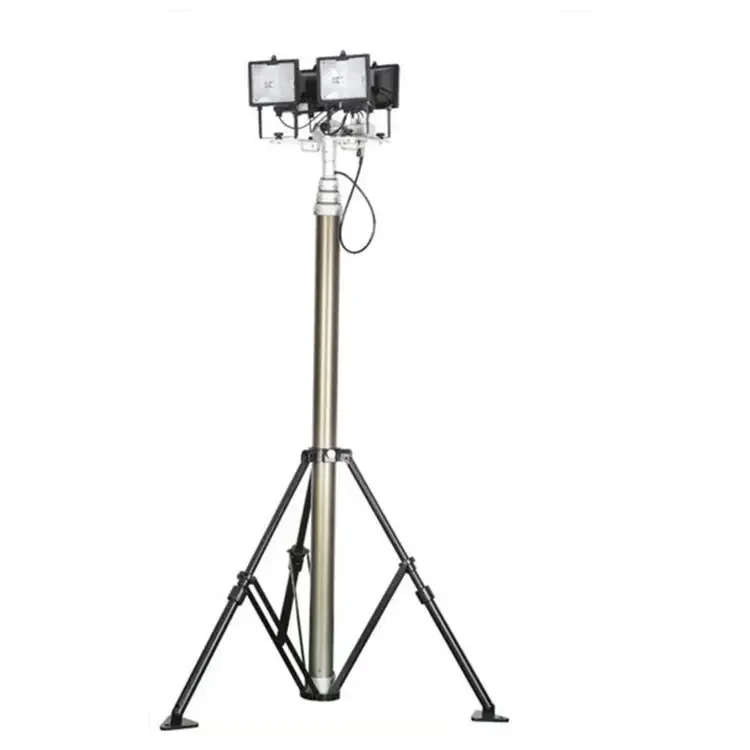

Mobile Pneumatic Telescoping Mast Lighting Tripod Pole Tower
* Durable and Versatile Design: This aluminium alloy telescoping mast is designed for various applications, including emergency
lighting, antennas, and mobile communication towers, making it an ideal choice for users in different industries.
* High Wind Load Capacity: The product can withstand winds of up to 120km/h, ensuring stability and security in harsh weather conditions.
* Wide Operating Temperature Range: With a working temperature range of -30°C to +70°C, this mast can be used in various environments, from extreme cold to hot climates.
* Convenient Lifting Mechanism: The manual pump lifting system allows for easy and efficient deployment and retraction of the mast.
lighting, antennas, and mobile communication towers, making it an ideal choice for users in different industries.
* High Wind Load Capacity: The product can withstand winds of up to 120km/h, ensuring stability and security in harsh weather conditions.
* Wide Operating Temperature Range: With a working temperature range of -30°C to +70°C, this mast can be used in various environments, from extreme cold to hot climates.
* Convenient Lifting Mechanism: The manual pump lifting system allows for easy and efficient deployment and retraction of the mast.
Specification | ||||||||
Material | Aluminium alloy 6063B | |||||||
Color | Light brown | |||||||
Surface Treatment | Hard anodized treatment | |||||||
Extend height | 6m | |||||||
Retracted height | 1.8m | |||||||
Max. Vertical load | 15kgs | |||||||
No. of sections | 4 sections | |||||||
Top OD | 51mm | |||||||
Bottom OD | 98mm | |||||||
Lifting Method | Air compressor or hand(foot) pump | |||||||
Wind load | 120km/h | |||||||
Max pressure of air compressor | 0.20-0.25MPA | |||||||
Accessories | Air Compressor/Manual hand (foot) pump——1pc Air hose——1pc Tripod——1pc | |||||||
Type | Telescopic lighting mast | |||||||
Model Number | TAL-P6.0-1.8-15-AT8 | |||||||
Classification of masts
Model"AT8"---no cable and no lock, for Short time using
Model"AT9"---with lock. for long time using
Model"AT7"---with cable. for mounting camera, lights or antenna.
Essential features
Internal Cable Model | ||||||||
Extended height | 3.3 m | 4.5 m | 6 m | 8 m | ||||
Closed height | 1.3 m | 1.4 m | 2 m | 2.4 m | ||||
Payload capacity | 20 kg | 15 kg | 20 kg | 80 kg | ||||
Tube diameter range | 98mm to 51mm | 98mm to 36mm | 98mm to 51mm | 140mm to 82mm | ||||
Internal cable | 4*1.5 mm2+ 1*CAT5 | 2*1 mm2+ 2*0.2 mm2 | 1*CAT5+ 2*AWG14 | 12*1.0mm2 | ||||
Max. operation pressure | 1.5 bar | 1.5 bar | 1.5 bar | 2.5 bar | ||||
Locking Heavy-duty Model | ||||||||
Extended height | 3.2 m | 6 m | 18 m | 25 m | ||||
Closed height | 1.6 m | 2 m | 4 m | 4 m | ||||
Payload capacity | 250 kg | 100 kg | 300 kg | 150 kg | ||||
Tube diameter range | 180 mm to 140 mm | 160 mm to 98 mm | 316 mm to 160 mm | 316 mm to 98 mm | ||||
Max. operation pressure | 2.5 bar | 2.5 bar | 2.5 bar | 2.5 bar | ||||
Detail
Mast material and Color
Anodized aluminum alloy 6063B/T5
Color: Bronze of standard, customized nature color of aluminum or black
Acessories
Lift operation choose
If no electricity and head load is not heavy, lift control could be foot pump or hand pump---manual lift.
If thers is electricity and head load is heavy, lift control should be air compressor, easily and quickly.
Air compressor is available with DC12V/ DC24V/ DC48V/ AC110V/ AC220V
Application for the Pneumatic Mast payloads up to 400kg
Our telescopic masts can be used for many different applications,ideal for fire- fighting, telecommunications,monitoring and photography fields.Vehicle-mounted and ground-mounted use heavy-duty models up to 32 m.More than 500 different models can be offered.Customized electric cable, locking and non-locking system suitable for different application
Operation steps
1.check the mast in good condition
2.fixed the mast on the ground. tripod and guy wire fixed diameter
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
2.fixed the mast on the ground. tripod and guy wire fixed diameter
3.air inlet of control valve connect with air compressor.
4.air outlet of control valve connect wtih the mast.
5. once all mounted, you must keep the lifting control valve handle bar in middle location.
(it make the air do not come into mast)
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa
6.open the air compressor switch, at same time adjust the pessure regulating switch to reach 0.2MPa
which the pressure gauge shows.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
7.then pull up the lifting valve handle bar, mast will rise.
8.if you want to make the mast stop in some height, just make the handle bar in middle.
9. when lift down the mast, please pull down the lifting control valve handle bar..
Packing & Delivery
package | ||||||
carton packed | normal package is carton for the extended height less than 9m, weight less than 70kg mast, also can be plywood case at customers request | |||||
plywood packed | normal package is plywood case for extended height more than 10m, weight more than 70kg mast | |||||
Catalog
Pneumatic telescopic mast | ||||||||||||
MODEL No. | Extended Height (m) | Retracted Height (m) | Bottom OD (mm) | TOP OD (mm) | Section NO. | Head-load (KG) | ||||||
TAL-2.0-1.3-150-AT8 | 2 | 1.3 | 118 | 98 | 2 | 150 | ||||||
TAL-3.0-1.5-50-AT8 | 3 | 1.5 | 98 | 66 | 3 | 50 | ||||||
TAL-4.0-1.3-20-AT8 | 4 | 1.3 | 87 | 43 | 4 | 20 | ||||||
TAL-4.5-1.65-50-AT9 | 4.5 | 1.65 | 118 | 66 | 4 | 50 | ||||||
TAL-5.0-1.7-40-AT8 | 5 | 1.7 | 98 | 51 | 4 | 40 | ||||||
TAL-5.0-1.75-30-AT9 | 5 | 1.75 | 98 | 51 | 4 | 30 | ||||||
TAL-6.0-1.7-30-AT8 | 6 | 1.7 | 118 | 51 | 5 | 30 | ||||||
TAL-6.0-1.75-12-AT8 | 6 | 1.75 | 87 | 28 | 5 | 12 | ||||||
TAL-6.0-2.0-50-AT9 | 6 | 2 | 118 | 66 | 4 | 50 | ||||||
TAL-6.0-1.95-30-AT8 | 6 | 1.95 | 87 | 43 | 4 | 30 | ||||||
TAL-6.0-1.5-25-AT9 | 6 | 1.5 | 118 | 51 | 5 | 25 | ||||||
TAL-7.0-1.95-40-AT8 | 7 | 1.95 | 118 | 51 | 5 | 40 | ||||||
TAL-8.0-1.8-50-AT9 | 8 | 1.8 | 160 | 51 | 7 | 50 | ||||||
TAL-8.0-2.2-60-AT7 | 8 | 2.2 | 140 | 66 | 5 | 60 | ||||||
TAL-8.0-2.0-25-AT8 | 8 | 2 | 118 | 36 | 6 | 25 | ||||||
TAL-9.0-2.15-30-AT8 | 9 | 2.15 | 140 | 51 | 6 | 30 | ||||||
TAL-10.0-2.4-30-AT7 | 10 | 2.4 | 140 | 51 | 6 | 30 | ||||||
TAL-12.0-2.7-250-AT8 | 12 | 2.7 | 279 | 140 | 7 | 250 | ||||||
TAL-15.0-3.5-150-AT9 | 15 | 3.5 | 229 | 98 | 6 | 150 | ||||||
TAL-16.0-3.0-30-AT8 | 16 | 3 | 180 | 51 | 8 | 30 | ||||||
TAL-18.0-3.0-100-AT8 | 18 | 3 | 279 | 66 | 10 | 100 | ||||||
TAL-20.0-3.3-55-AT8 | 20 | 3.3 | 229 | 66 | 9 | 55 | ||||||
TAL-30.0-4.0-30-AT8 | 30 | 4 | 316 | 51 | 13 | 30 | ||||||
NOTE:
above specification are standard model, customized size accepted
Similar Display
Certifications
FAQ
Q1: How long is warranty?
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
A1: 1 year
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q2: What's the payment term?
A2: T/T, Paypal, Western Union or Alibaba trade assurance
Q3: How to order?
A3: By email or Alibaba
Q4: How long is production?
A4: 7-10 days , if more than 10 sets, will be negotiated
Q5: Avaible for indoor or outdoor?
A5: indoor/ outdoor both are avaible,
Q6: Do we accept OEM/ ODM?
A6: Yes
Q7: What's the extended height we can produce?
A7: Any height of mast can be produced from 1.5m to 32m
Welcome to contact
Company profile
About"Talents"
Talents is a Chinese company that design, manufacture and supply a range of manual/electric/pneumatic/hydraulic operated telescopic masts and lifting devices that made of aluminum alloy tube, stainless steel tube, fiberglass tube and carbon fiber tube.
Our masts are CE certified, we have been a golden supplier on Alibaba since 2007, we are keeping with our customers an one for one timely information feedback, we have organized an expert team for quality control and inspection system, we have built up Multi-way fast delivery channels and we are supplying one year free after-sale warranty to the buyer.
We are continually developing new products to meet customer requirements.What you are asking for is our motive power of task, and we wish one of our products will well-meet what you demand.
Any questions or inquiry, welcome to contact us at any time
Reply the inquiry by email within 24 hours
