Высококачественный 3 г насос для перекачки тяжелого мазута пищевой нержавеющей стали с прогрессивной полостью трехвинтовой
90 500,48-113 125,60 ₽

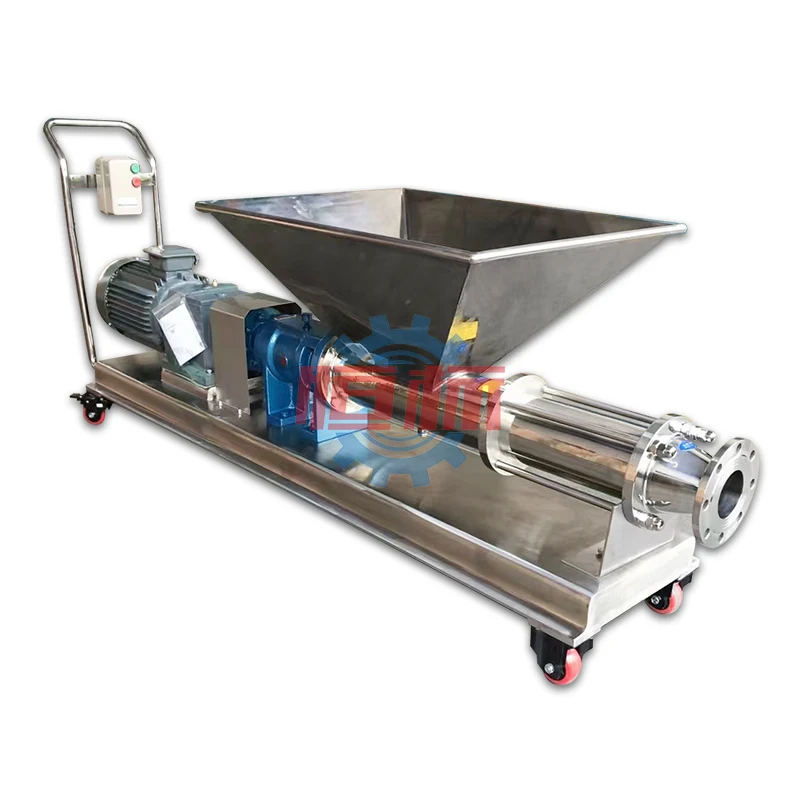

Чугун/нержавеющая сталь электрические стандартные механические уплотнительные прогрессивные полостные насосы моно винтовой насос с бункером
- Категория: >>>
- Поставщик: Hebei Shenghui Pump Co. Ltd.Hebei Ltd.
Сохранить в закладки 1601301037204:
Описание и отзывы
Характеристики
Product Description

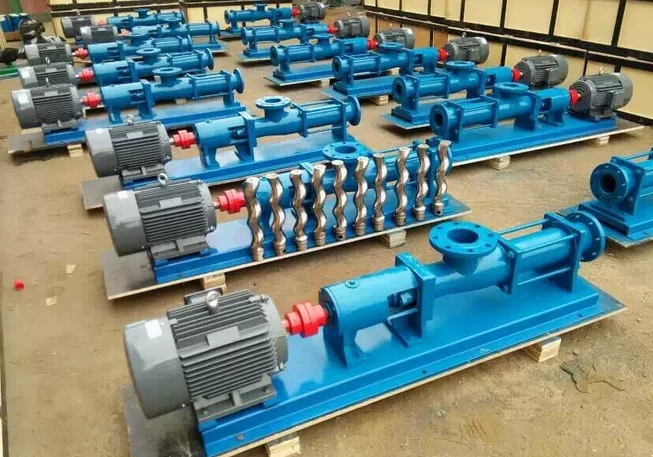

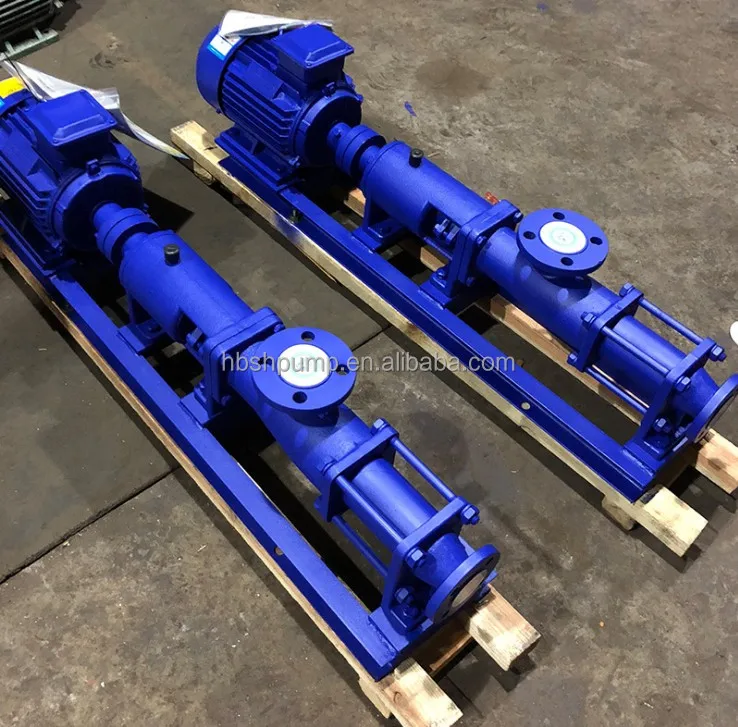

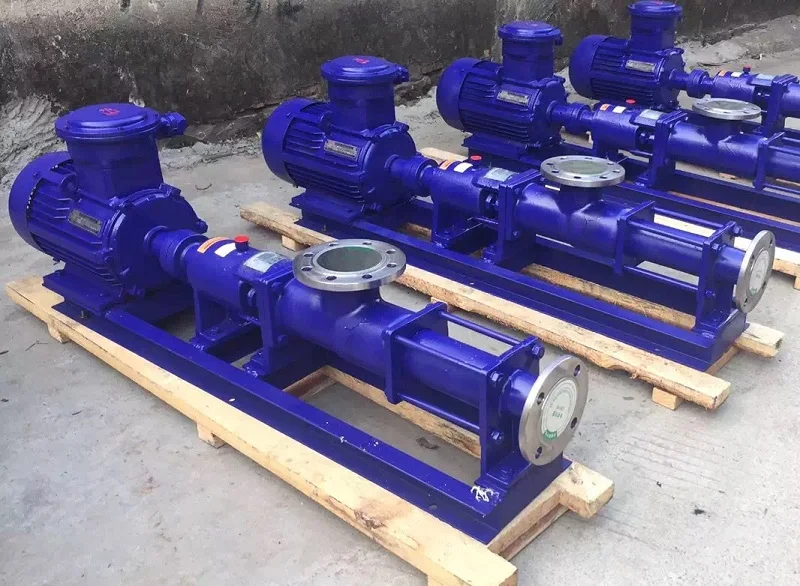

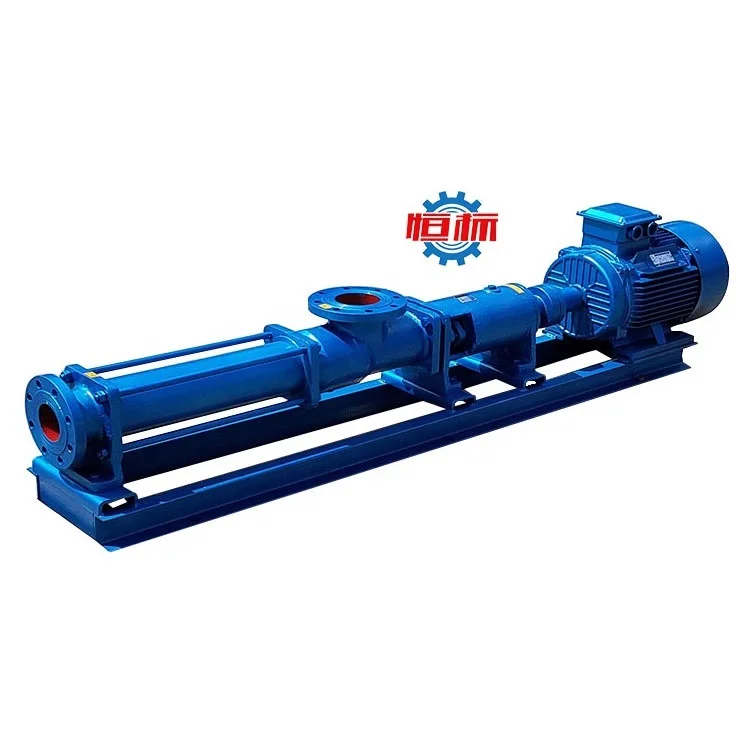

G Series Screw Pump
The G series single-screw pump main working parts are eccentric screw (rotor) and fixed bushing (stator). Due to the special geometry of the two components, a separate sealed cavity is formed, the medium is uniformly flowed from the axial direction, the internal flow velocity is low, the volume remains unchanged, and the pressure is stable, so that eddy current and agitation are not generated. The output pressure of each pump is 0.6MPa, the head is 60m (clean water), and it is suitable for conveying medium temperature below 80 °C (special requirements up to 150 °C).
Generally used in:
1. Environmental protection: Industrial sewage, domestic sewage, and sludge turbid water containing solid particles and short fibers are especially used in oil-water separator plate and frame filter press equipment.
2. Shipbuilding industry: round bottom cleaning, oil water, oil residue, oil sewage and other ring transportation.
3. Petroleum industry: transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation, and the like.
4. Medicine, daily: a variety of thick paste, emulsion, various ointment cosmetics
5. Food canning industry: all kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry
6. Construction industry: spraying of cement mortar, lime slurry, paint and paste
7. Mining industry: solid particles, groundwater, and slurry water in mines
8. Chemical industry: various suspensions, greases, various colloidal pastes, various adhesives
9. Printing, paper making: high viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry
10. Industrial boilers, power plants: coal water slurry transportation
2. Shipbuilding industry: round bottom cleaning, oil water, oil residue, oil sewage and other ring transportation.
3. Petroleum industry: transporting crude oil, a mixture of crude oil and water, a mixture of coal gas and water, pouring polymers into the formation, and the like.
4. Medicine, daily: a variety of thick paste, emulsion, various ointment cosmetics
5. Food canning industry: all kinds of viscous starch, distiller's grains, grain slag, various sauces, pulp, solid slurry
6. Construction industry: spraying of cement mortar, lime slurry, paint and paste
7. Mining industry: solid particles, groundwater, and slurry water in mines
8. Chemical industry: various suspensions, greases, various colloidal pastes, various adhesives
9. Printing, paper making: high viscosity ink, wallpaper PVC polymer paste and various concentrations of pulp, short fiber slurry
10. Industrial boilers, power plants: coal water slurry transportation
Features:
1.High solid content(diameter of the biggest particle is 50mm)or no solid content
2.Medium with all viscosities(1mPas-3, 000, 000mPas)
3.Medium that is easy to be generated and swelled
4.Shearing sensitive medium
5.Medium with erosion
6.Medium with/without self lubrication
7.Erosive medium(PH=0-14)
8.Adhesive medium
9.Toxicity hazard medium
2.Medium with all viscosities(1mPas-3, 000, 000mPas)
3.Medium that is easy to be generated and swelled
4.Shearing sensitive medium
5.Medium with erosion
6.Medium with/without self lubrication
7.Erosive medium(PH=0-14)
8.Adhesive medium
9.Toxicity hazard medium
Model | Q m3/h | Pressure (Bar) | Max Rev (r/min) | Motor Power (kw) | NPSHr (m) | Inlet Size (mm) | Outlet Size (mm) | Max Particles Size (mm) | Max Fiber Size (mm) |
G20-1 | 0.8 | 6 | 960 | 0.75 | 4 | 25 | 25 | 1.5 | 25 |
G20-2 | 12 | 1.5 | |||||||
G25-1 | 2 | 6 | 960 | 1.5 | 40 | 32 | 2 | 30 | |
G25-2 | 12 | 2.2 | |||||||
G30-1 | 5 | 6 | 960 | 2.2 | 50 | 40 | 2.5 | 35 | |
G30-2 | 12 | 3 | |||||||
G35-1 | 8 | 6 | 960 | 3 | 65 | 50 | 3 | 40 | |
G35-2 | 12 | 4 | |||||||
G40-1 | 12 | 6 | 960 | 4 | 80 | 65 | 3.8 | 45 | |
G40-2 | 12 | 5.5 | |||||||
G50-1 | 14 | 6 | 720 | 5.5 | 4.5 | 100 | 80 | 5 | 50 |
G50-2 | 12 | 7.5 | |||||||
G60-1 | 22 | 6 | 720 | 11 | 5 | 125 | 100 | 6 | 60 |
G60-2 | 12 | 15 | |||||||
G70-1 | 38 | 6 | 720 | 11 | 150 | 125 | 8 | 70 | |
G70-2 | 12 | 18.5 | |||||||
G85-1 | 56 | 6 | 630 | 15 | 150 | 150 | 10 | 80 | |
G85-2 | 12 | 30 | |||||||
G105-1 | 100 | 6 | 500 | 30 | 200 | 200 | 15 | 110 | |
G105-2 | 12 | 35 | |||||||
G135-1 | 150 | 6 | 400 | 45 | 250 | 250 | 20 | 150 | |
G135-2 | 12 | 90 |
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM, OBM |
Brand Name | Hengbiao |
Model Number | G |
Place of Origin | China |
Hebei | |
Application | District Energy, Industrial Utilities, Mining industry |
Power Source | Electric |
Pressure | High Pressure |
Structure | SCREW PUMP |
Cable Length | Depending on the type |
Outlet Size | |
Voltage | 220V/380V/415v/460v/Customization |
Power | 0.75-60kw |
motor | AC power electric motor |
Model Number | G Series Screw Pump |
Type | Screw Pump |
Flow rate | 0.1-150m3/h |
Power supply | 0.75-60kw |
Head lift | 0.6-2.4MPa |
Body material | Cast iron/stainless steel |
Motor | Explosion Proof Or Not |
Voltage | 220V/380V/415V-480V |
Type of connection | Flange, Thread, Quick Coupled |
Packing & Delivery
wooden case packing, safe and reliable.
customize the packing according to clients' requests.
customize the packing according to clients' requests.
Company Profile
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology and get clients' acceptation to cooperate with Globe 500 enterprises .Rely on high precision numerical control and advanced testing equipments, and level B bed stand, the company can ensure the products quality and precision. The company has passed ISO9001:2008 certificate.
Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.
Our products are consist of gear pump,screw pump,centrifugal pump,high viscosity rotator pump series and the main products are RY hot oil pump, KCB gear pump,YCB arc gear pump,2CY gear pump,3RP cam follower rotator pump,SHGB cam follower rotator pump,3G,SN,SM three screw pump,3GCL vertical screw pump,3GB heat preservation pitch three screw pump,2W.W sealing twin screw pump,G single screw pump,NYP,GNB inner ring high viscosity pump,LYB vertical arc gear pump,JQB turbine shear pump,CYZ self-suction centrifugal oil pump,KCG,2CG high temperature gear pump,LC,LCW roots pump,LCB pitch heat preservation pump,TSB chemical decoloration pump,LB refrigerating pump,ZYB,ZYB-B coke oil pump,oil pump,RJB solvent pump,CBN thickened oil pump,AH,H,M slurry pump,vertical slurry pump,YHCB circular gear pump,FXA-FXB stainless outer lubrication gear pump,ZA,ZE petrochemical process pump,IH single suction centrifugal pump,IHF fluoroplastic centrifugal pump,pneumatic and electric diaphragm pump,water ring and rotary vacuum pump,FB,AFB stainless corrosion resisting centrifugal pump ect. Totally more than 1200 types of products and some of them have received domestic initiate patent and reach the international advanced level.
FAQ
1. who are we?
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump
4. why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
We are based in Hebei, China, start from 2010,sell to Mid East(20.00%),Southeast Asia(15.00%),Western Europe(10.00%),Central America(10.00%),Eastern Europe(10.00%),South Asia(5.00%),North America(5.00%),South America(5.00%),Southern Europe(5.00%),Northern Europe(5.00%),Africa(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Lobe Pump/Gear Pump/Screw Pump/Centrifugal Pump/High Viscosity Liquid Rotor Pump
4. why should you buy from us not from other suppliers?
Hebei Shenghui Pump Co., Ltd is a professional pump manufacturing base with research,developing,manufacturing and operating enterprise. And it has rich manufacturing experience and technology.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
