Product Description

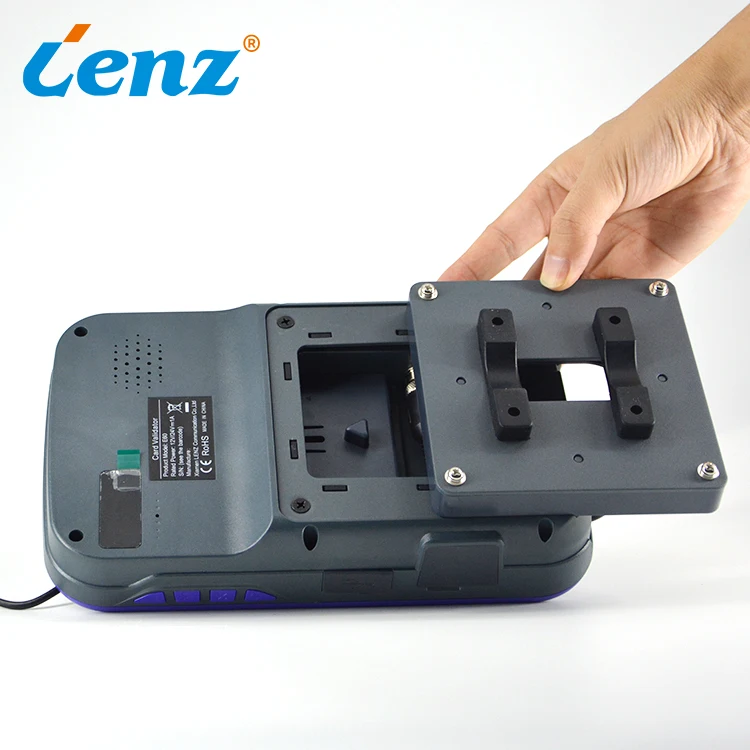

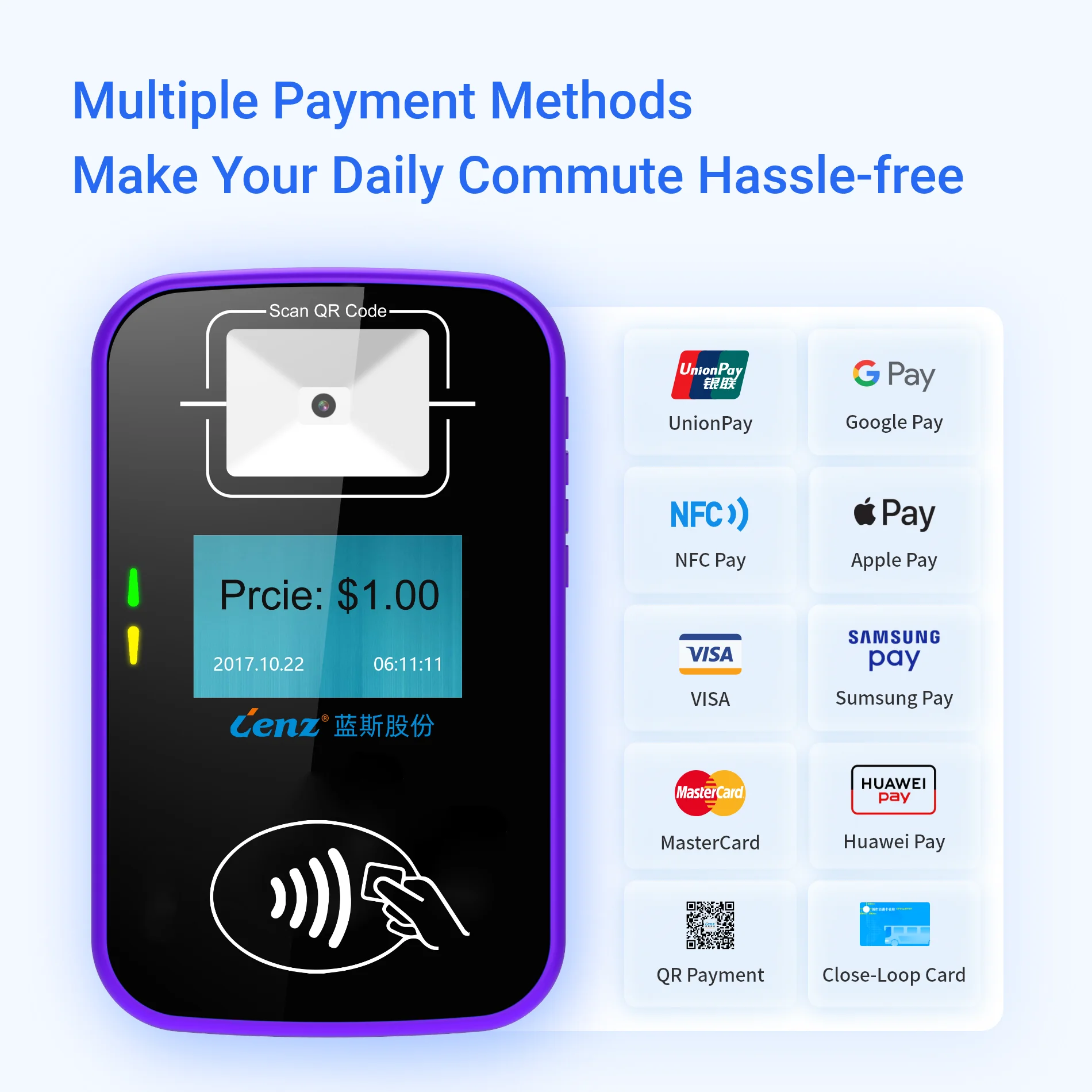

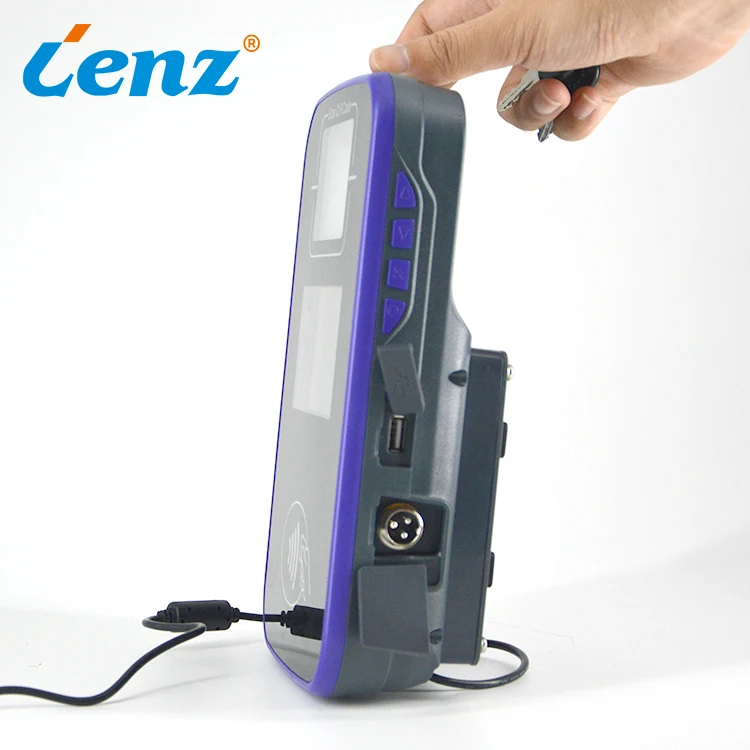

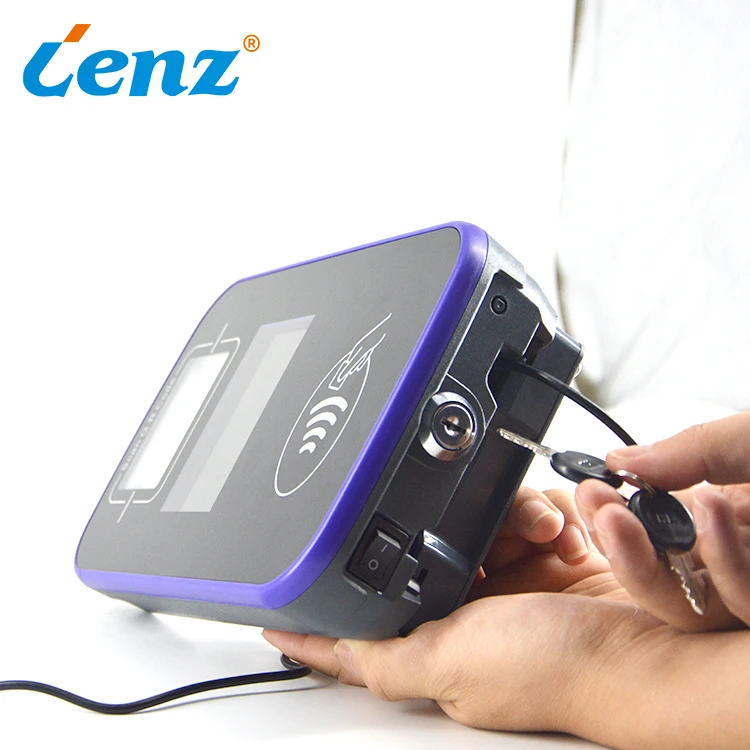

E60 Bus Validator is an EMV L1 L2 complied bus validator, which enables rapid fare collection through smart card, NFC processing and QR code ticketing.
Its system integration capabilities allow connection to devices such as GPS tracker and Mobile DVR, to obtain the vehicle location and route data for fare collection.
Its system integration capabilities allow connection to devices such as GPS tracker and Mobile DVR, to obtain the vehicle location and route data for fare collection.

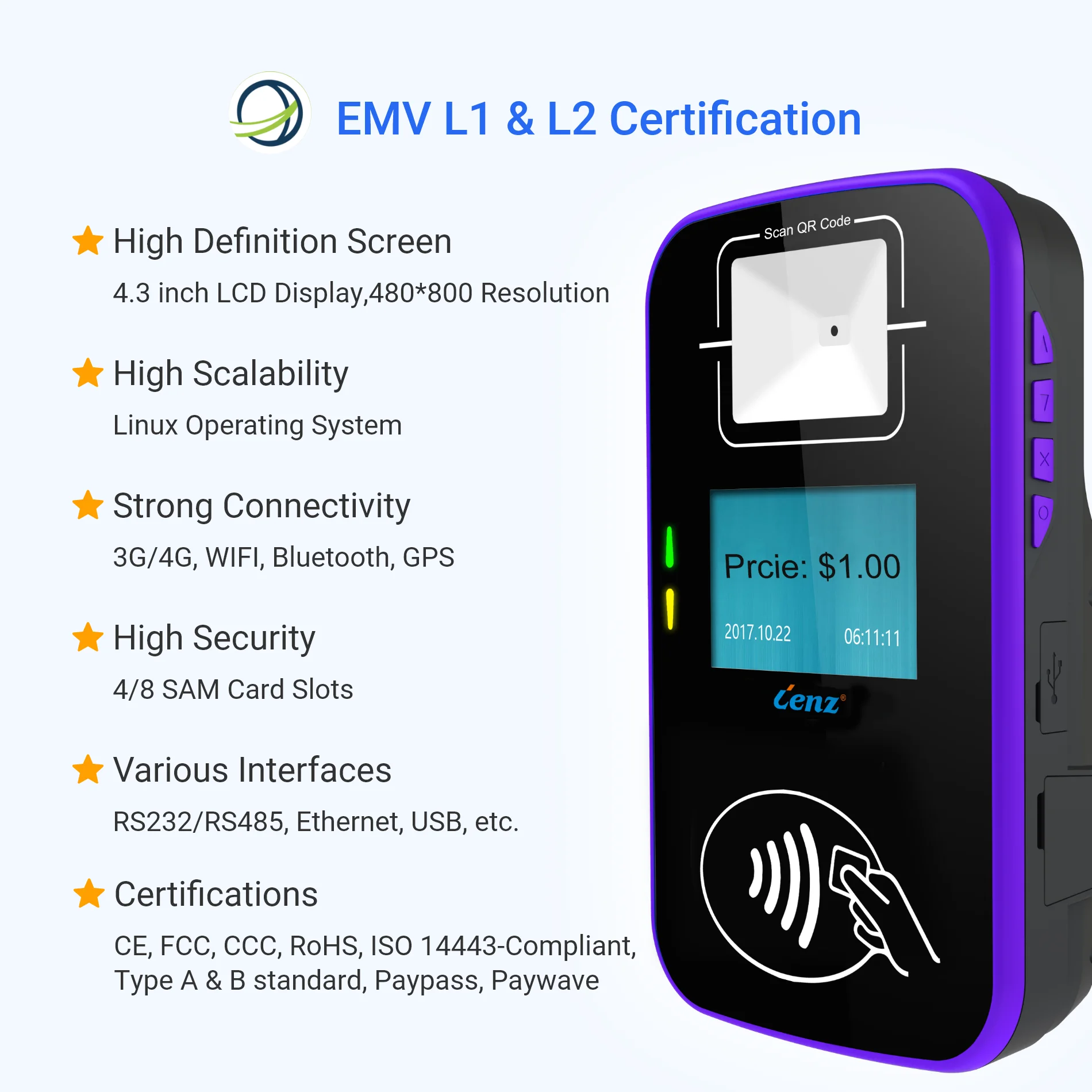

Technical Specification
Item | Technical Specification | ||
System | CPU Processor | Quadcore ARM Cortex A7 CPU, 1.1GHz | |
Operation System | Linux | ||
Encryption Algorithm | HASH, MD5, DES, AES, RSA, ECC, SM2, etc | ||
Communication | WAN | 3G, 4G LTE | |
Wi-Fi | 802.11b/g/n, 2.4G Wi-Fi | ||
Bluetooth | BLE 2.1-4.0 | ||
GPS | Embedded with GPS module for distance based fare | ||
Storage | RAM | 1G | |
Flash | 8G | ||
Micro SD(TF) | Max 32G (for option) | ||
Black List | 500000 pcs (64 byte/pcs) | ||
Display | Screen Size | 4 inch | |
Resolution | 800*480 | ||
LCD | TFT Color LCD, with backlight | ||
Language | Chinese, English, etc | ||
Contactless Card Reader | Card Reader | ISO/IEC 14443 Type A&B, Mifare Classic, Mifare DesFire and CPU card based on Mifare PRO | |
SAM Slot | 4 PSAM slots | ||
SAM Card Standard | ISO7816 card, 1.8V, 3V or 5V | ||
Working Frequency | 13.56MHz | ||
Transaction Speed | <0.3S | ||
Reading Distance | ≤10cm | ||
QR Code Payment | Scanning System | Image sensor and CMOS sensor | |
QR Code Standard | International Standard 1D, 2D QR code | ||
NFC Payment | NFC RCC Standard | 2.4G RCC | |
Audio Announcement | Volume | Adjustable audio announcement | |
Audio File | Configurable audio file | ||
TTS | TTS announcement supported in different language | ||
Interface | RS232 | 1 channel RS232 | |
RS485 | 1 channel RS485 | ||
USB | 1 channel USB Host, type A | ||
Working Environment | Power Iutput | DC 8V ~ 40V | |
Working Temperature | -20°C to 50°C | ||
Storage Temperature | -40°C to 80°C | ||
Humidity | 95% RH | ||
Others | Dimension | L 250*W 155*H 50 mm | |
Net Weight | 1.50 kg | ||
Service Life | >6 years | ||
Certificate | CCC, CE, RoHS, EMV L1 | ||
Automatic Fare Collection System
The Automatic Fare Collection System provides the functionality of initializing smart cards, developing pricing models, analysing income, acquiring customers. It brings different payment channels to the customers: passengers could pay for the trip through smart card, NFC processing and QR code. The integrated customer management function makes the multi-client-capable system an end-to-end e-ticketing solution
Recommend Products
Case Study
Thailand Smart Bus Project
Project Background
Thai Smile Company Limited is public transport operator, providing the 3000+buses and 150 ferries for pubic transit service in Bangkok.
Scope of Project
Issue 1million cards to passengers
Issue 1million cards to passengers
Install E60 bus validator and R20K AVM in each bus;
Install AI MDVR and CCTV cameras in each bus
Install passenger counting cameras to each door
Target of Project
1.Integrate with bank for online top up
Target of Project
1.Integrate with bank for online top up
2.The AI algorithm enables the safety driving of driver
3.The CCTV cameras protects the passengers in bus
4.The advanced transport system provides the schedule planning and route optimization to
TSB
TSB
City bus in Ulaanbaatar, Mongolia
Project Background
1.Ulaanbaatar City Bus implement the whole APTMS solution provided by Lenz
2.Installed 1,100 buses from 2023 to now
2.Installed 1,100 buses from 2023 to now
Target of Project
1.Jointly develop AFC system, support VISA, UB CARD QR code, IC card，Shift from cash payments to mobile payments
2.Ticket Vendor Machine are deployed, and citizens can purchase bus cards anytime and anywhere to enjoy convenient services
1.Jointly develop AFC system, support VISA, UB CARD QR code, IC card，Shift from cash payments to mobile payments
2.Ticket Vendor Machine are deployed, and citizens can purchase bus cards anytime and anywhere to enjoy convenient services
Prasarana Malaysia Berhad Project
Project Background
Prasarana Malaysia Berhad is a system integrator driving the transformation of Malaysia's public transport systems and services. It has built a Mass system and will deploy QR code payments on buses in 2021.
Target of Project
Integrated with the myrapid* Mass system to provide mobile QR code payment services in Malaysia. In the near future, the smart card system will be upgraded to the latest technology so that existing carrier cards can be used within the same system.
Bhutan Capital Bus Project
Project Background
In 2021, Bhutan's capital Thimphu launched 27 new city buses, smart card system and mobile app Gakyid Ride under the operation of the City Bus Service, citizens and the Thimphu government.
In 2021, Bhutan's capital Thimphu launched 27 new city buses, smart card system and mobile app Gakyid Ride under the operation of the City Bus Service, citizens and the Thimphu government.
Target of Project
1. Provide contactless payment for passengers
2. Provide card recharging service.
3. There are different discounts for passengers on buses
4. In the near future, mobile QR code payment will be supported
1. Provide contactless payment for passengers
2. Provide card recharging service.
3. There are different discounts for passengers on buses
4. In the near future, mobile QR code payment will be supported
Gabon Bus Project
Project Background
The Gabonese government is committed to improving the public transport system in Libreville and surrounding cities. In 2017, the government imported 300 buses from China. By implementing advanced public transport management systems and automated ticketing systems, public transport operators are able to provide safer, more convenient and cost-effective transport.
The Gabonese government is committed to improving the public transport system in Libreville and surrounding cities. In 2017, the government imported 300 buses from China. By implementing advanced public transport management systems and automated ticketing systems, public transport operators are able to provide safer, more convenient and cost-effective transport.
Target of Project
1.Bus closed circuit television camera system
2.Mobile DVR with passenger counting
3.Card payment bus validator
4.GPS system for fleet tracking
2.Mobile DVR with passenger counting
3.Card payment bus validator
4.GPS system for fleet tracking
Company Introduction
Established in 2006
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
220 staffs from China and overseas talents
40+ engineers provide off-site and on-site English and Arabic technical supporting
Listed in public stock in 2014
AI powered company, closely cooperation with high schools for technology innovation
4,000㎡state of the art manufacturing centre
4,000㎡ office building in national high technology software park
220 staffs from China and overseas talents
40+ engineers provide off-site and on-site English and Arabic technical supporting
R&D Centre
100+ professionals R&D engineers;
175+Intellectual properties, including industrial design patents and software copyrights;
More than 15% of sales revenues invested in research and development every year;
Millions of USD investment to R&D devices for in-vehicle environment simulation and test;
175+Intellectual properties, including industrial design patents and software copyrights;
More than 15% of sales revenues invested in research and development every year;
Millions of USD investment to R&D devices for in-vehicle environment simulation and test;
Support EMC testing, ISO 7637 testing, temperature testing, vibration and life testing, etc.;
CMMI Level 5 Software Programming
Maturity Products certified with CCC, CE, FCC, EMC, EMV, RoHS, E Mark, SRRC, EMVCo L1, VISA, Mastercard and so on.
Maturity Products certified with CCC, CE, FCC, EMC, EMV, RoHS, E Mark, SRRC, EMVCo L1, VISA, Mastercard and so on.
Technical Innovation
As an ITxPT member, our company is dedicated to providing intelligent transportation products and ensuring compliance with high standards. We offer a range of customised solutions, including the Advanced Public Transportation Management Solution, the Automatic Fare Collection Solution, Smart Telematics and more, to customers worldwide, with a particular focus on the Middle East and Asia.
Production Centre
4,000㎡ production centre
100% fully tested before delivery the goods
Anti-static production environment
IATF16949: 2016 Quality Management System
ISO9001: 2015 Quality Management System
ISO14001: 2015 Environment Management System
ISO45001: 2018 Occupational health system
ISO20000: 2018 IT Service Management System (ITSMS)
ISO27001:2013 Information Security Management System (ISMS)
100% fully tested before delivery the goods
Anti-static production environment
IATF16949: 2016 Quality Management System
ISO9001: 2015 Quality Management System
ISO14001: 2015 Environment Management System
ISO45001: 2018 Occupational health system
ISO20000: 2018 IT Service Management System (ITSMS)
ISO27001:2013 Information Security Management System (ISMS)
Our Customer
Market Coverage
Lenz has successfully implemented the projects in more than 40 countries and 400 cities;
More than 1,000,000 vehicles have been installed our devices and management system.
