Китай завод колесный погрузчик экскаватор для продажи
3 259 715,20-3 317 924,40 ₽
Китай 1 м3 ковш 0.18 экскаватор погрузчик B876F
- Категория: >>>
- Поставщик: Tewrex Industrial Machinery (Suzhou) Co. Ltd.Tewrex Ltd.
Сохранить в закладки 1601301758047:
Описание и отзывы
Характеристики
Product Description

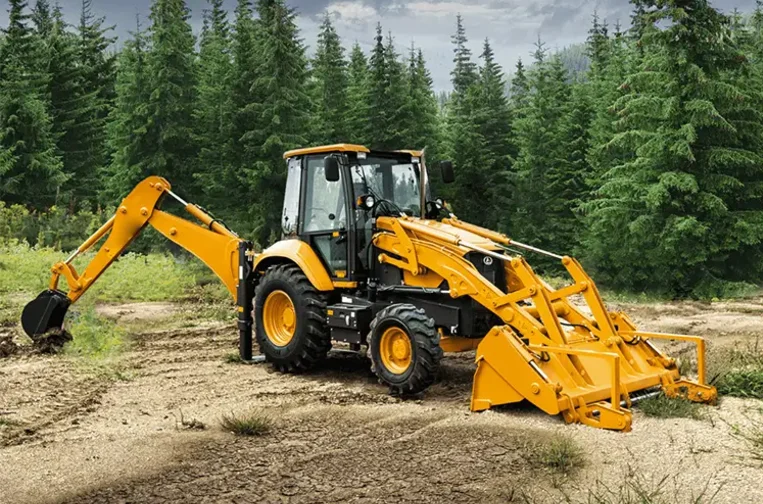

High Efficiency 74kw Backhoe Loader 620CH
Characteristics
Performance features
The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
The domestic leading hydraulic system distribution technology features high energy-saving and efficiency. Themaximum flow is 154L/min to meet the configuration demands of more attachments.
It can be applied with diversified environment adaptability technologies, including the high temperature, low temperature, highland, and heavily dusty environments, upon the user's customization depending on own needs.
The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Environmental-friendliness
The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
The independently developed load-sensing system features smoothdigging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.
During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.
The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.
Performance features
The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
The domestic leading hydraulic system distribution technology features high energy-saving and efficiency. Themaximum flow is 154L/min to meet the configuration demands of more attachments.
It can be applied with diversified environment adaptability technologies, including the high temperature, low temperature, highland, and heavily dusty environments, upon the user's customization depending on own needs.
The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models. The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.
Environmental-friendliness
The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.
The independently developed load-sensing system features smoothdigging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.
During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.
The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.
Contact Way
Email: sharon@tewrex.com
Wechat/Mobile:+86 15651750088
Whatsapp:+86 18706251057
Company name:Tewrex Suzhou subsidiary
Address:Room705, Building 2,Tiandu Building,No.211Changjiang Road,High-tech Zone, Suzhou City
Model | 620CH | ||||
Length×width×height(mm) | 5835×2313×3548 | ||||
Operating weight(Kg) | 8000 | ||||
Diesel engine type | DongFeng 4BTA3.9-C110 /B4.5 /1104D | ||||
Rated output(KW) | 82/74/74.5 | ||||
Transmission famous brand type | CARRARO | ||||
Gear shift position | 4 Forward and 4 reverse gears | ||||
Max. traction force(KN) | 70 | ||||
Rated load(Kg) | 1700 | ||||
Rated load bucket capacity(m3) | 1.0 | ||||
Max. breakout force(KN) | 60 | ||||
Max. dump clearance(mm) | 2714 | ||||
Dump reach(mm) | 845 | ||||
Wheel base(mm) | 2155.5 | ||||
Total time of elevating, loading and unloading | 9.5 | ||||
Rated digging bucket capacity(m3) | 0.2 | ||||
Max. digging depth(mm) | 4405 | ||||
Max. digging radius(mm) | 5390 | ||||
Max. dumping height(mm) | 3510 | ||||
Max. digging force(KN) | 56 | ||||
