Рифленый компенсатор из нержавеющей стали

Рифленый компенсатор из нержавеющей стали

Категория: >>>
Поставщик: Henan Huanzhong Water Supply Material Co. Ltd.Henan Ltd.

Цена:2 254,67-2 491,16 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

HUAN ZHONG

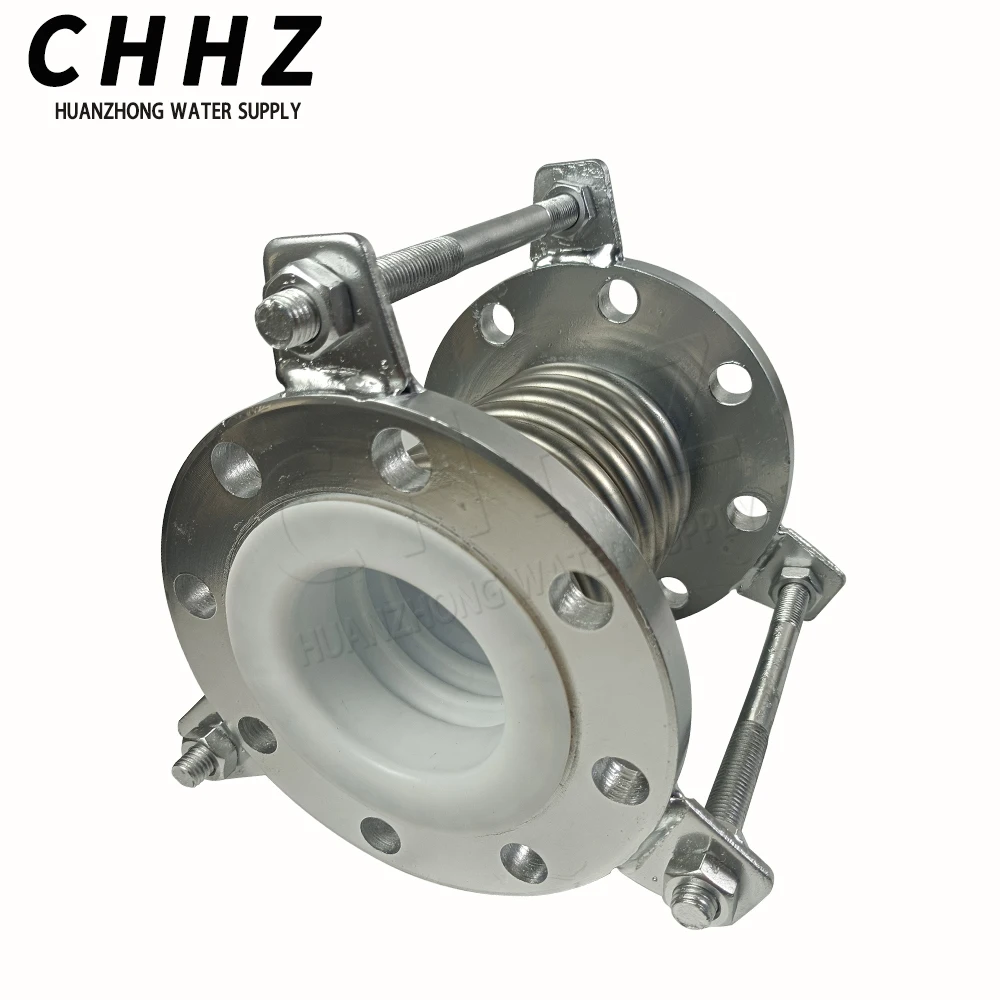

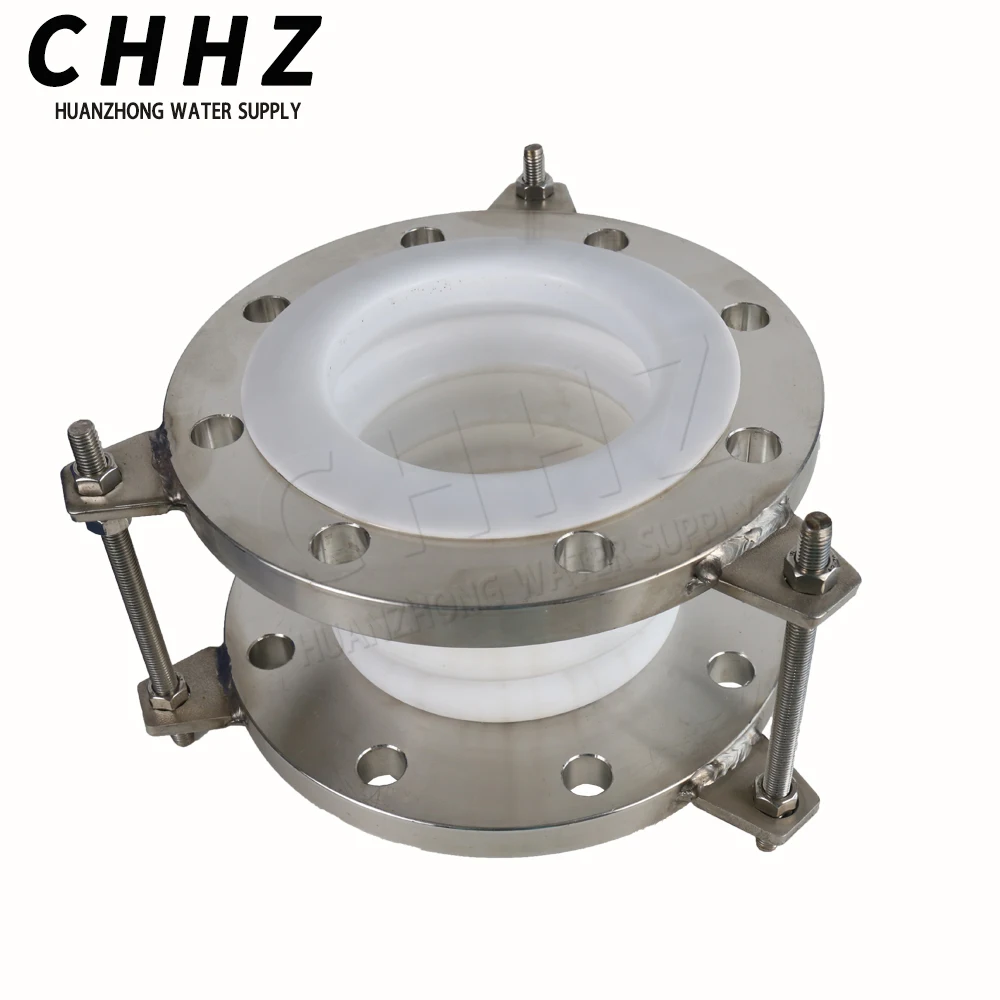

Metal expansion joint

Axial internal pressure type corrugated compensator consists of body, end receiver and two bellows, which can compensate the axial and transverse expansion and contraction displacement of the pipeline.

INFORMATION

BASIC INFORMATION

Product Name:	Metal expansion joint
Brand Name:	HUANZHONG
Product Model:	JDZ
Pressure:	PN10-PN40
Applicable Temperature:	-10℃~+300℃
Material:	Water, hot water ,Steam,oil,air,etc
Application:	Construction, water supply and drainage, and heavy industry, refrigeration, sanitation, plumbing, fire, electricity, etc.

COMPENSATOR7 Product Performance -1

Pressure and explosion proof

Surface burr-free, compact structure, high strength, strong pressure resistance, bellows weight up to standard, long service life.

COMPENSATOR9 Product Performance -2

Excellent material

Strong corrosion resistance, long service life, withstand high temperature without deformation, absorb equipment vibration, reduce the impact of equipment vibration on the pipeline.

COMPENSATOR11 Product Performance -4

High temperature and anti-aging

The planar stability, circumferential stability and corrosion resistance of corrugated compensators are all related to their displacement, i.e. fatigue life.

COMPENSATOR13 Product Performance -3

Operational Stability

Carbon steel flange product surface fine processing, surface burr-free, natural weld fittings at the appearance of beautiful, quality and beauty at the same time, chisel-shaped structure, easy to install and save time and effort.

INSTALLATION INSTRUCTIONS

WE ARE IN ACTION

1 . Installation bolts should be symmetrical and gradually pressurized to prevent local leakage.

2 . 1.6MPa above working pressure, installation bolts should have elastic pad to prevent bolts loosening when working.

3 . Vertical force support should be provided at both ends of the joint pipe during vertical installation, and anti-pull-off device can be adopted to prevent working pressure pull-off.

4. Rubber joints should be installed away from the heat source. Ozone. Strictly prohibit strong radiation light exposure and the use of non-conforming media.

5. Rubber joints shall be strictly prohibited from cutting the surface and sealing surfaces during transportation and handling.

Company Profile

WHO ARE WE?

	HuanZhong Pipe Henan Huanzhong Water Supply Materials Co., Ltd. is a professional production-oriented enterprise integrating technology research and development, manufacturing, market development, business negotiation and import and export of goods and technologies.
Quality-Certified Our company has strong technical force, sophisticated production equipment, advanced production technology and complete product quality testing equipment.
	Products Lines Our company specializes in producing and selling reinforced flanged COMPENSATORs, flexible single ball COMPENSATORs, double spherical COMPENSATORs, different diameter COMPENSATORs, rubber elbows, rubber compensators, synthetic COMPENSATOR protection devices, anti-drop devices, and stainless steel bellows expansion joints.
Our Vision It is our eternal goal to build a famous brand enterprise, develop the international market, and advance to the first-class enterprise management level.Hope we can cooperate sincerely and develop together.

PARAMETER

Technical Conditions of Rubber Expansion Joint

Name	Material
Body	NR,CR,IIR,NBR,FKM,EPDM
Inner & Outer Rubber	NR ,CR,IIR, NBR,FKM,EPDM
Material of clamp	SS304

Nominal Diameter (mm)	Number of Convolution (mm)	Pressure Grade Mpa					Effective Area of Bellows cm 2	Max Size of External Diameter mm	Length
		0.25	0.6	1.0	1.6	2.5			Length
		Axial Compensation mm, N/ram							Flange JDZ/F mm	Connection Tube JDZ/F mm)
32	8	25/21	22/26	20/26	18/63	15/98	16	110	160/250	264/210
32	16	50/11	46/14	41/14	36/32	31/47	16	220	224/291	316/320
40	8	25/28	22/44	20/44	18/89	15/106	23	130	164/259	269/260
40	16	50/14	46/22	41/22	36/45	31/55	23	240	230/304	319/402
50	8	25/30	22/51	20/70	18/70	15/138	37	150	172/276	282/230
50	16	50/16	46/16	41/35	36/35	31/70	37	260	240/342	347/450
65	8	33/28	30/35	26/44	22/55	19/68	55	170	315/294	300/260
65	12	42/16	38/22	38/22	34/40	29/50	55	280	260/334	340/470
80	8	40/20	36/26	34/33	28/41	24/54	81	200	240/338	344/260
80	10	53/14	49/17	49/21	43/26	38/33	81	230	270/368	374/300
100	8	45/47	45/60	40/75	35/93	29/117	121	220	235/317	323/280
100	10	76/26	74/32	64/40	57/50	49/63	121	260	305/381	387/320
125	6	48/38	42/47	38/59	34/74	29/92	180	250	282/314	316/320
125	8	85/23	77/29	66/36	58/45	50/56	180	290	356/399	388/360
150	6	49/42	44/50	40/62	34/78	29/97	257	250	282/339	338/320
150	8	79/34	71/43	64/51	54/59	46/65	257	290	356/399	402/360
200	6	52/49	46/55	42/68	38/78	34/111	479	300	280/348	348/370
200	8	73/31	65/44	59/52	53/58	48/78	479	340	340/402	402/360
250	6	72/30	63/34	59/42	52/45	47/55	769	300	315/379	415/420
250	8	108/16	97/21	87/35	79/39	71/47	769	360	393/459	493/460
300	6	72/51	65/55	59/59	52/65	47/71	1105	340	366/427	466/488
300	8	108/32	97/35	87/37	79/41	71/45	1105	400	464/525	564/520
350	6	72/58	65/62	59/67	52/74	47/81	1307	340	397/452	497/480
350	8	108/38	97/41	87/44	79/48	71/47	1307	420	509/564	609/540

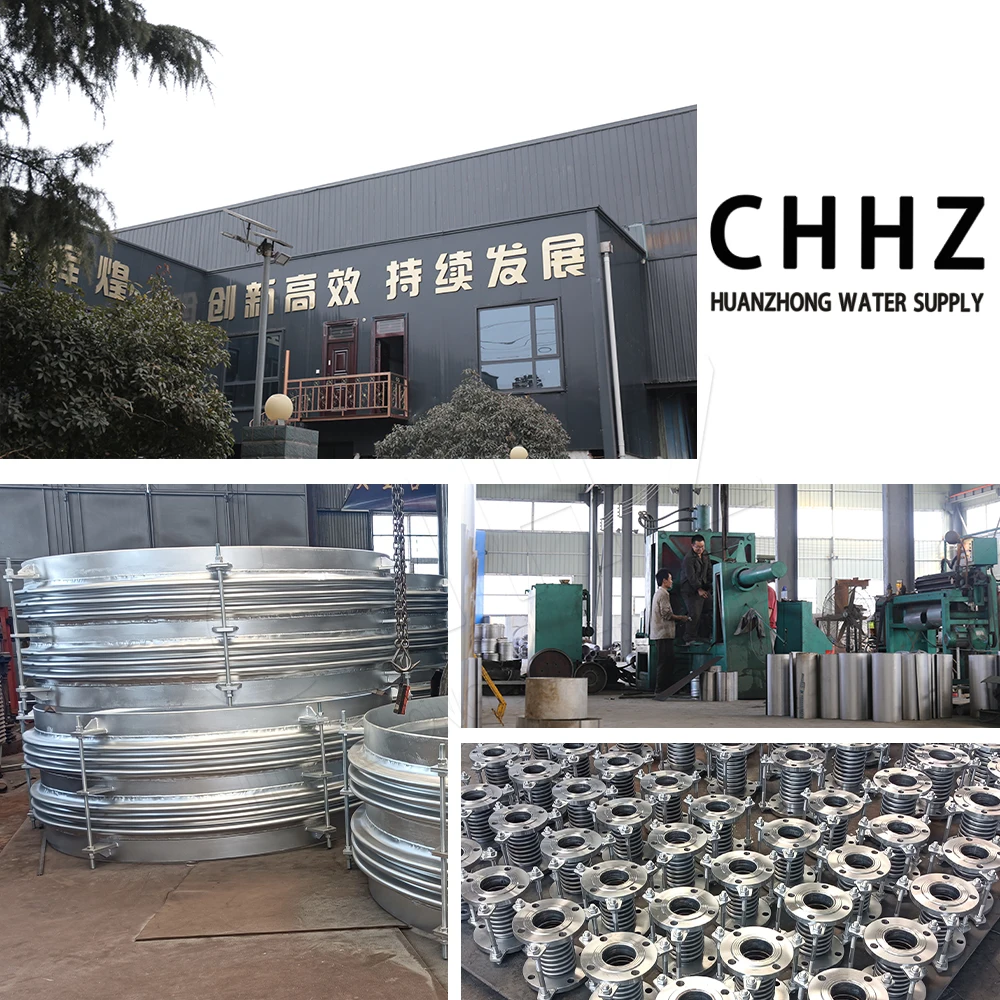

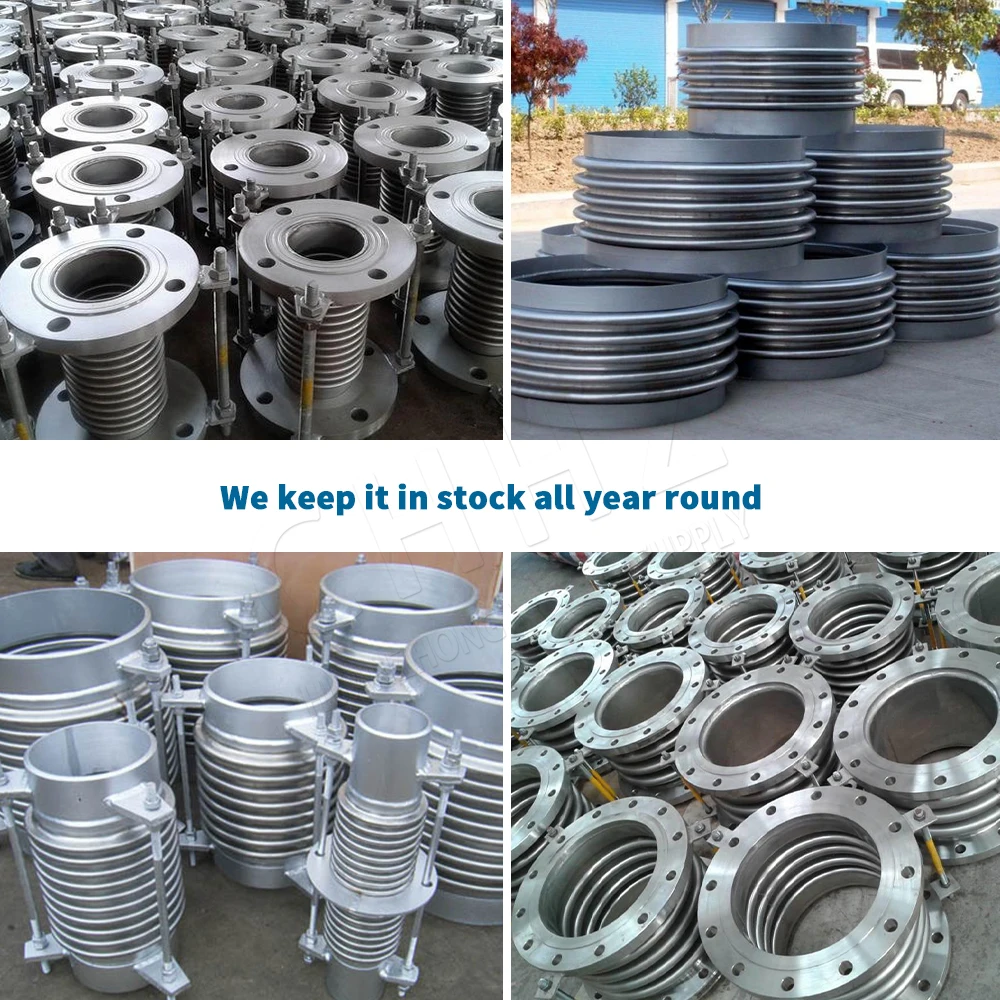

FACTORY STRENGTH

FAQ

Q:What’s your MOQ?

A: Our MOQ is 1 set.

Q: Can you provide the custom service according to the drawing?

A: Yes, we can provide the custom service for our customers.

Q: When will you delivery.

A: We have lots of goods in stock, so once the customers pay us, we can delivery as soon as possible. If the goods we don’t have in stock, we can delivery within 7-15 days.

Q: How can I pay?

A: We accept all kinds of payment methods. Such as T/T, L/C, West Union or Paypal.

Q: How long is your warranty?

A: Usually, our warranty is 12 months.
