Наружная солнечная панель системы постоянного тока 12 В 80Ah литиевая батарея cctv Солнечный источник питания с poe для камеры видеонаблюдения
- Категория: >>>
- Поставщик: Shandong Xiyuan Solar Energy Co. Ltd.Shandong Ltd.
Сохранить в закладки 1601302238257:
Описание и отзывы
Характеристики
Product Description
Solar power systems offer good reliability, safety and ease of use. A power generation system that uses power generation + energy storage to supply power to external loads without relying on the power grid for independent operation. It has the quality of flexible construction, charging the battery pack by solar power generation and supplying power to loads at the same time, and building an integrated solar power system with high efficiency, safety and stability. It solves the problem of energy supply from the root in remote mountainous areas, oceanic islands and other areas with poor infrastructure, where there is no electricity or power supply difficulties.
Product Name | all in one 150w80ah dc 12v output solar power system |
Solar panel | 150w 18v mono solar panel |
Solar panel size | 1150*670*30mm |
Solar panel weight | 10kg |
Battery type | Ternary lithium polymer battery (inside all-in-one bracket) |
Battery capacity | 12V 80ah |
Max pulse discharge current | 40A |
Battery shell size | 430*165*70mm |
Solar controller type | PWM (inside battery shell) |
LCD display | Support |
Output voltage | 12V, 5A max |
Output cable | 5521 male connector |
Package size | 1155*675*140mm |
Package weight | 24kg |
** Changes and parameters are updated without prior notice **

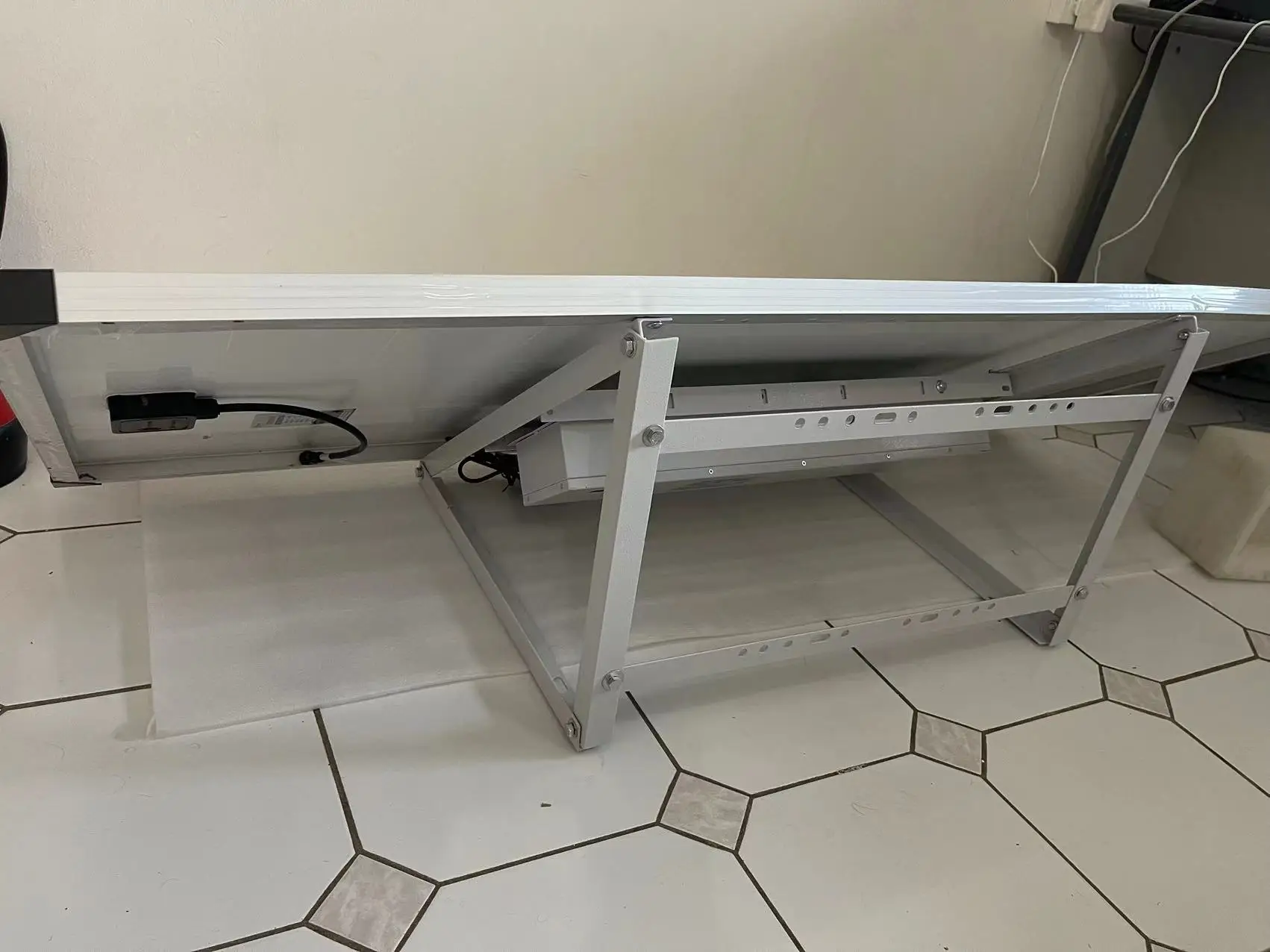

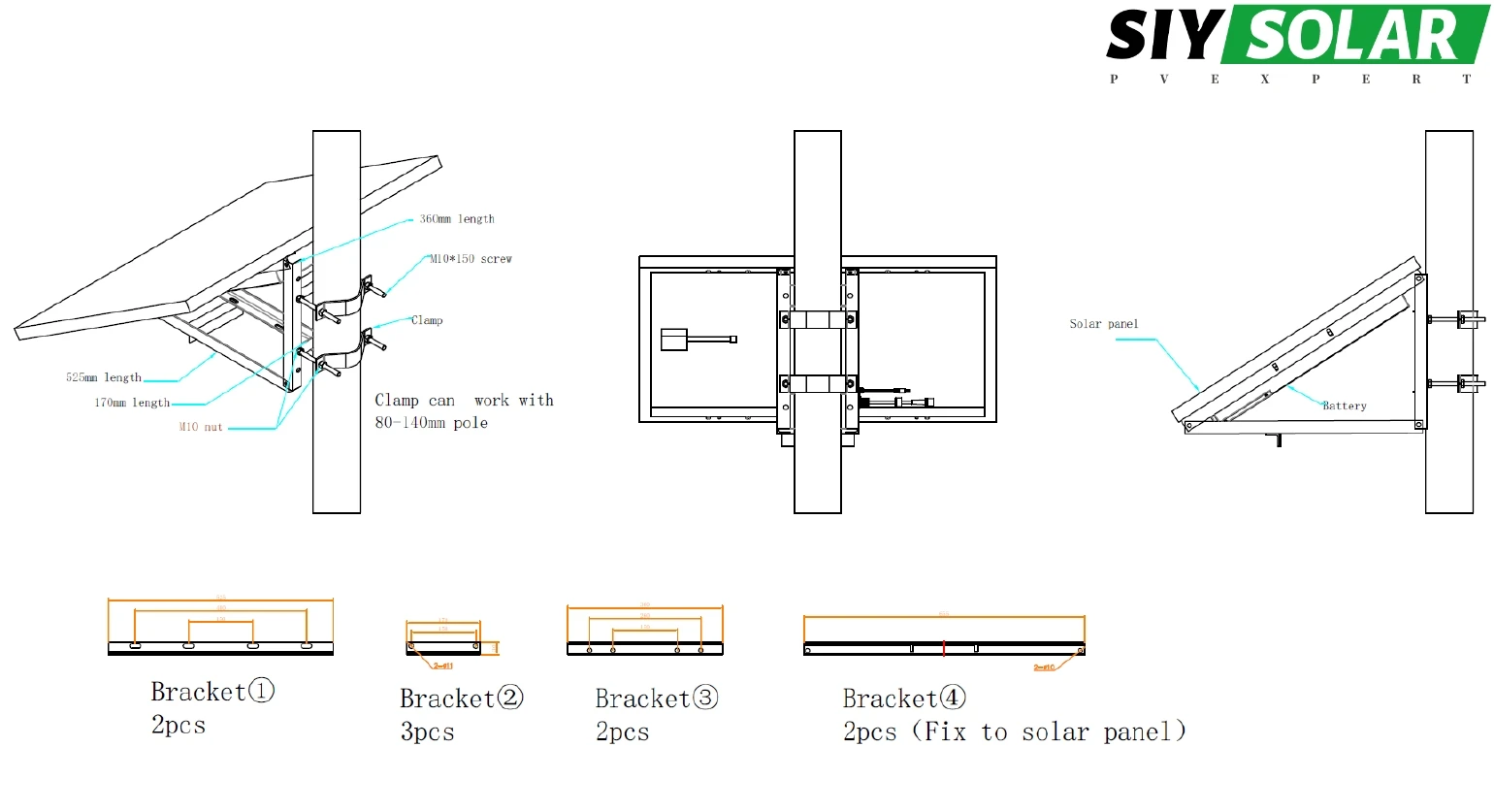

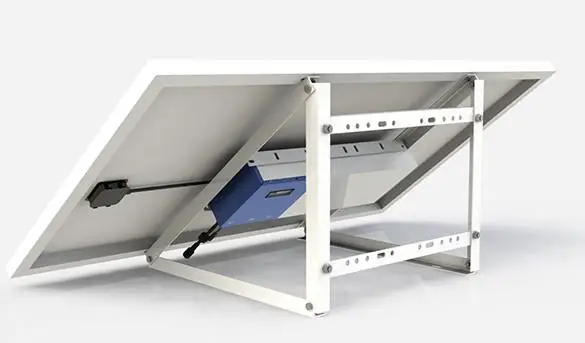

The Backpack Solar Power Kit adopts an innovative triangular bracket design, all key components are integrated into a compact enclosure behind the triangular bracket (waterproof case can be customized upon request), which reduces installation space and cost, enhances the stability and wind resistance of the outdoor Off-grid solar power system bracket structure, and the one-piece triangular bracket design allows the system to maintain stable performance in a variety of environments while being easy to Installation and deployment without complex wiring and commissioning.

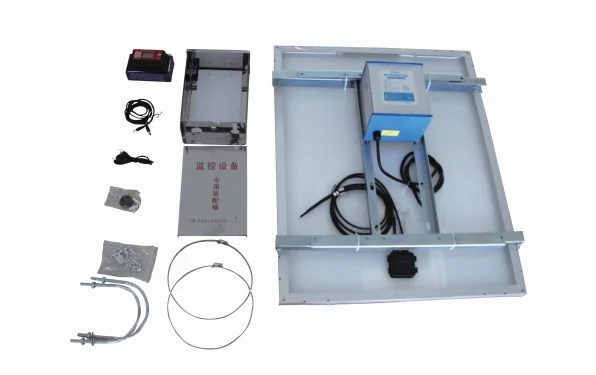

HERE ARE WHAT INCLUDED IN THIS KIT | ||
150W solar panel | 1 Piece | |
12V 80Ah lithium battery | 1 Piece | |
PWM solar controller | 1 Piece(Inside battery shell) | |
Mounting bracket | 1 set | |
U shape climp | 2 Pieces | |
5521 output cable | 1 Piece | |
DC 12V OUTPUT SOLAR SOLUTION
Smart solar kits consist of solar panel, controller, battery and mounting brackets. Our smart solar kits are widely used in a variety of occasions that require independent power supply, such as cctv products, base station, river monitoring, agricultural irrigation, and so on. Its unique design and efficient performance make it an ideal choice for these occasions, and it can support the customized of suitable solar electric system according to the power consumption of the load.
Product Advantage
This solar kit is IP65 rated waterproof, especially for its external devices such as solar panels and controller housings. The solar power system is suitable for a variety of harsh environments, such as rainy, humid, dusty areas, to ensure that in extreme weather conditions can still maintain normal working conditions, to avoid short-circuit, damage caused by water ingress and other problems.
High-efficiency and durable solar panels, designed to last up to 10 years, ensure long-term stable power supply. High efficiency, long life, environmental protection and energy saving, easy maintenance. The solar panels are made of high quality materials, such as high transmittance tempered glass, high quality EVA film, high efficiency battery cells and weather resistant backsheets, which can withstand all kinds of harsh weather conditions, such as strong winds, torrential rains, hailstorms, etc., to ensure trouble-free long-term use.
Product Usage
GEOLOGICAL HAZARD MONITORING
2024.4 Canada
- Power for GNSS
- 7*24h running
-60w 30ah kit
-60w 30ah kit

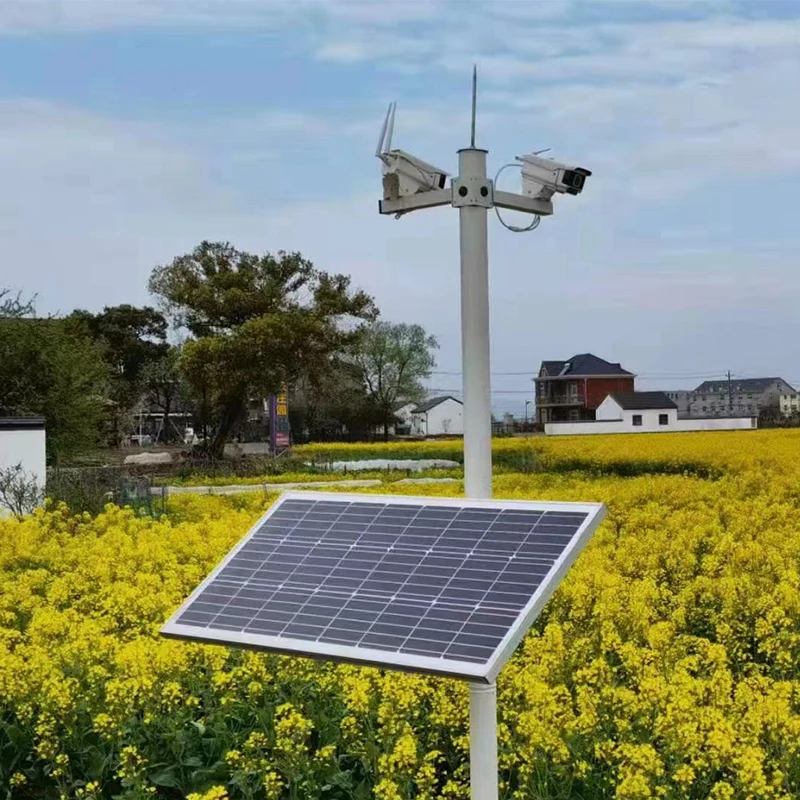

SMART AGRICULTURE
2023.7 China
- Power for weather station
- 7*24h running
-200w 120ah kit
-200w 120ah kit
FLOWMETER MONITORING
2024.5 Japan
- Power for flowmeter
- Power for PTZ
- Power for PTZ
- Standby 3 rainy days
MINING AREA
2023.10 Israel
- Power for 3 cameras
- Power for Acousto-optic alarm
- Ground mounting

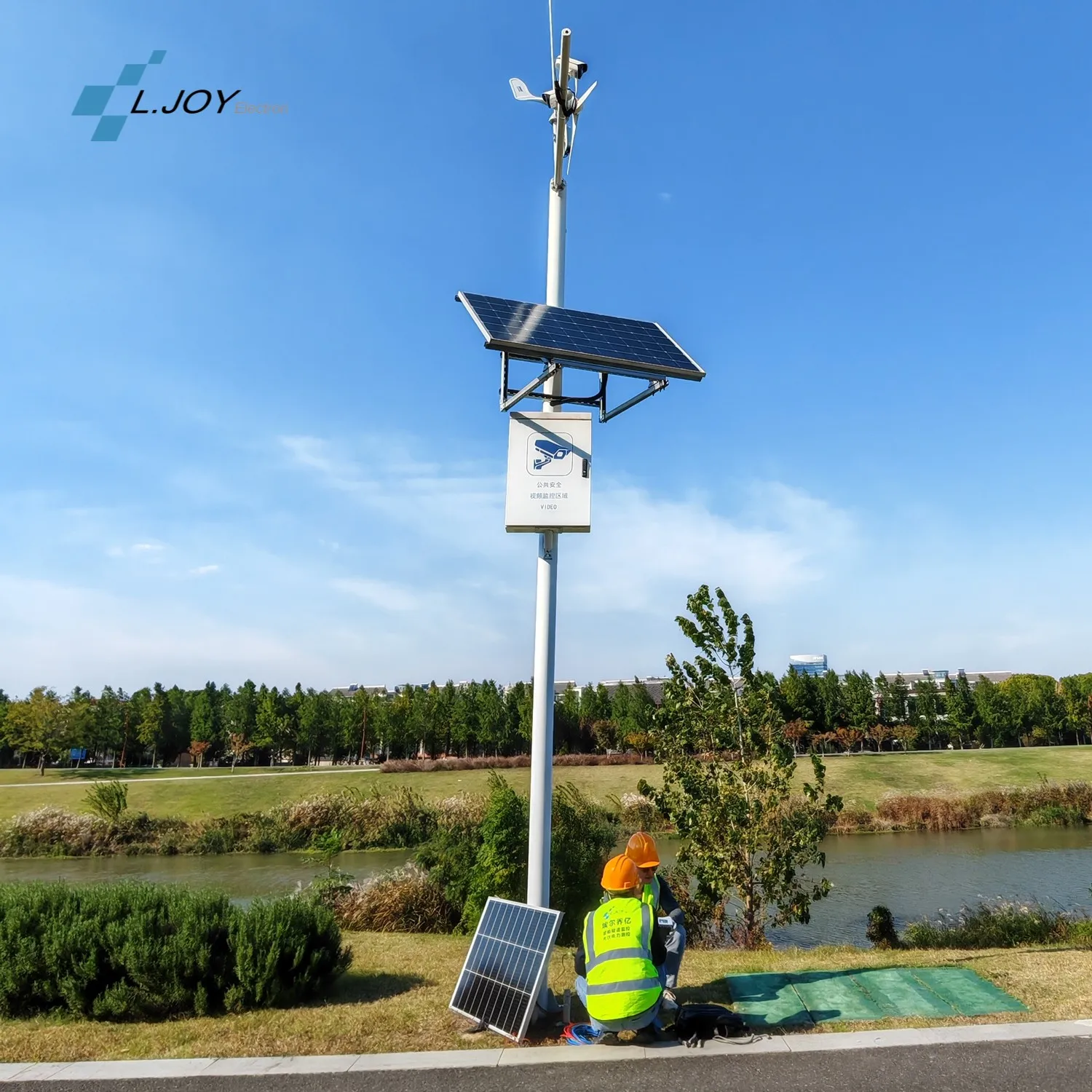

RIVER MONITORING
2024.2 USA
- Power for camera
- Monitor channel condition
- Pole mounting with cabinet
PLANTATION MONITORING
2024.6 Malaysia
- Power for hyetometer
- Power for insecticidal lamp
Power for PTZ
Certifications
Shandong Xiyuan Solar Energy Co., Ltd.Produces solar power systems kit with integrated battery and controller design. This design not only simplifies the system structure and reduces the installation space, but also improves the overall efficiency and reliability of the system by optimising the control strategy. Selection of high-quality battery materials and control technology, multiple safety protection, support for over-charging, over-discharging, over-current, over-temperature, short-circuit protection, the battery can be discharged and used in the environment of -20 ~ 60 ℃, -20 ℃ discharge can reach 80%, -40 ℃ can reach 70%. Ensure the battery in discharge cycle 2500 times.
Company Introduction
Shandong Xiyuan Solar Energy Co., Ltd. Is a focus on photovoltaic power generation integrated application, the main solar photovoltaic panels, solar power supply system, solar off-grid power generation system product design, research and development, production and sales of high-tech enterprises. For forest fire prevention, hydrology and water conservancy, meteorological monitoring, road monitoring, outdoor security and other equipment to provide power supply and can provide professional photovoltaic technical support (according to the project to provide design drawings, 3D animation, design solutions, remote technical support, etc.) has 15 years of professional experience for 15,000 enterprises to provide project services, the use of fully automated advanced production equipment, precision testing instruments. We use fully automatic advanced production equipment and precise testing instruments to manufacture high quality and reliable products. The company's independent research and development of a number of series of products has obtained the CE certification of the European Union, at the same time, the company has a maritime identification certificate, strict requirements for product quality, focus on technical training, attach importance to after-sales service in Europe, the United States, Southeast Asia, has a wealth of experience in the project!
Packing&Shipping
Good packaging can prevent the system components from being affected by physical shock, vibration, moisture, corrosion and other unfavourable factors, so as to ensure the performance and life of the system after installation. The size of the packing box should be designed according to the actual size and weight of the product, and fixing devices and cushioning materials should be set up inside the package to ensure that the components remain fixed during transport and reduce the damage caused by shaking.
Procurement process
Our Clients
Похожие товары

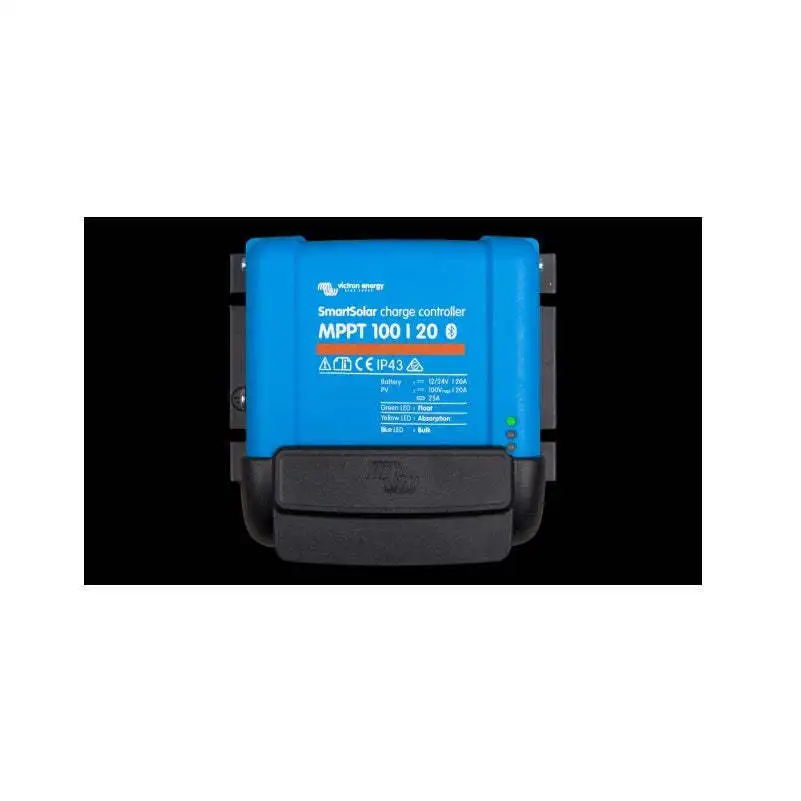

Victron MPPT WireBox-S 100-20 (для 100/20) - SCC950140000
18,74 $

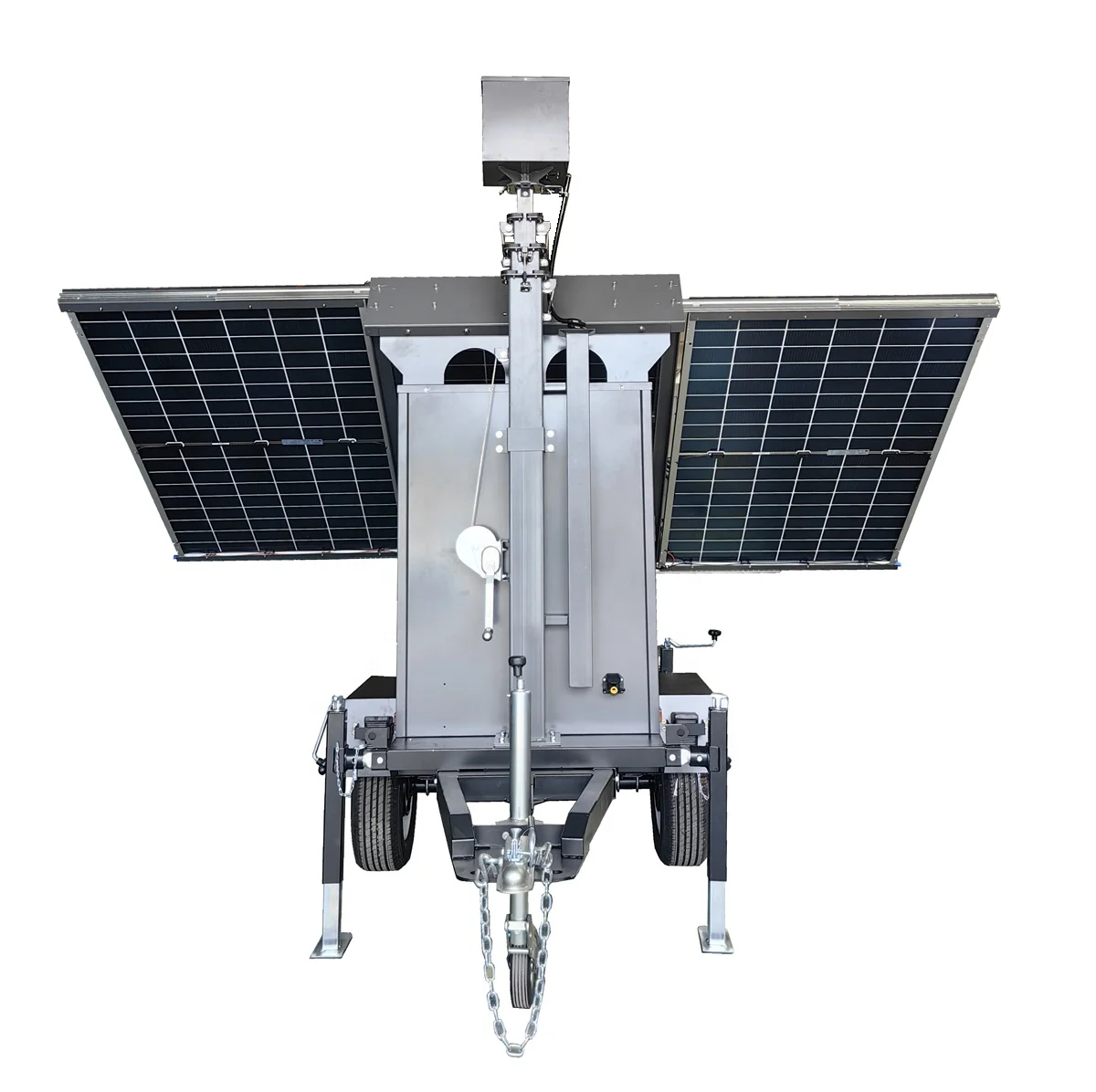

Отличная стабильная Солнечная Мобильная камера наблюдения cctv видео трейлер для строительства шоссе
6 250,00-6 450,00 $
Быстрая установка IP65 150 Вт 80Ah системы мониторинга камеры видеонаблюдения
185,00-195,00 $
60 Вт 30Ah наружная камера видеонаблюдения с солнечной энергетической системой быстрой установки IP65 системы мониторинга
85,00-95,00 $
Наружная солнечная система камер видеонаблюдения 100 Вт 200 панель мониторинга для сельского хозяйства
650,00-1 000,00 $

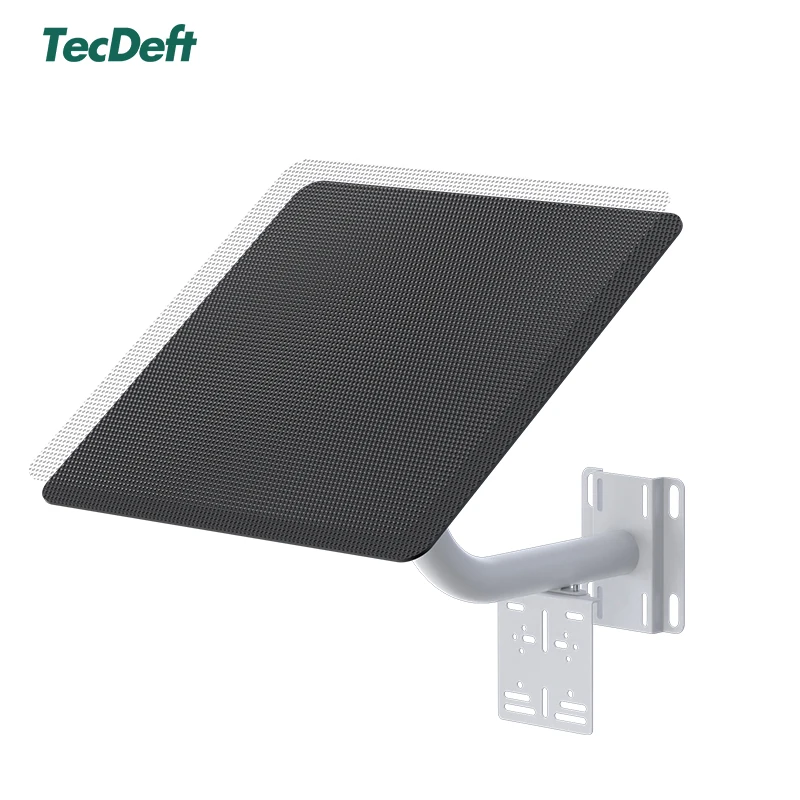

Tecdeft Строительная площадка солнечная система видеонаблюдения 60 Вт панель литиевая батарея 4g камеры DC12v Солнечная наблюдения
