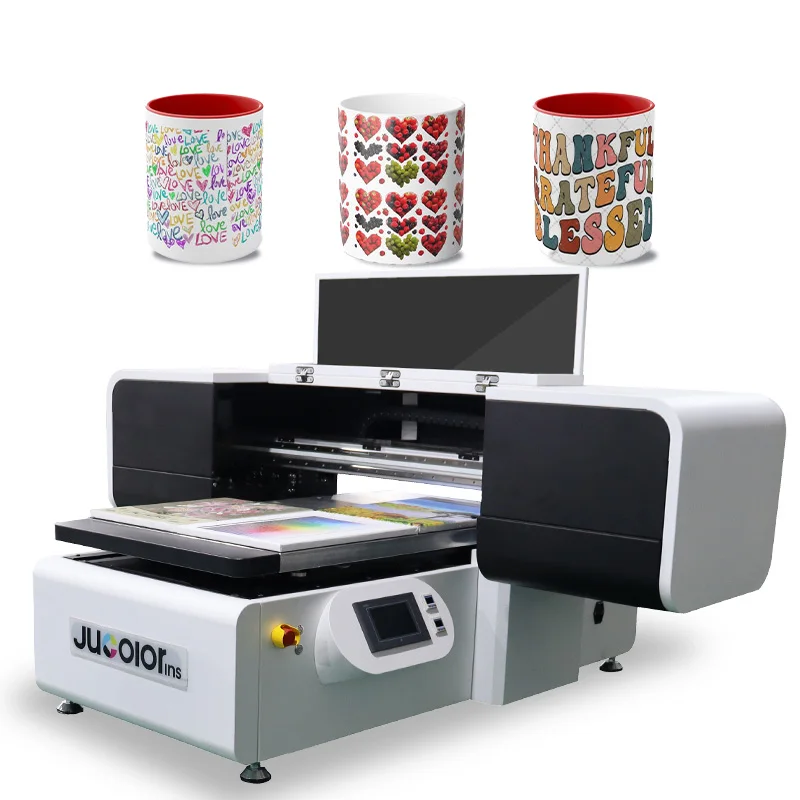

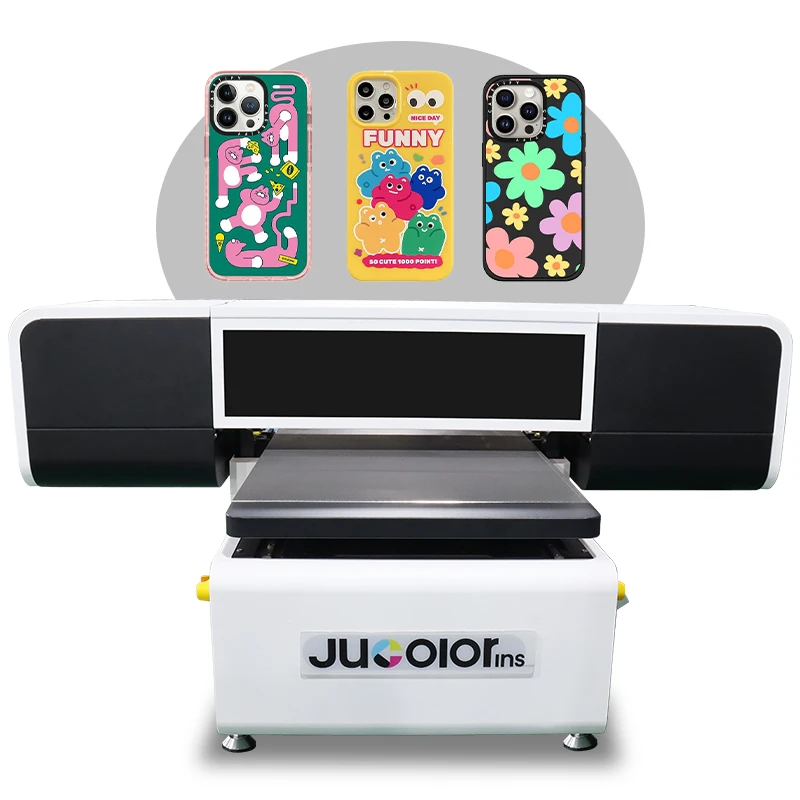

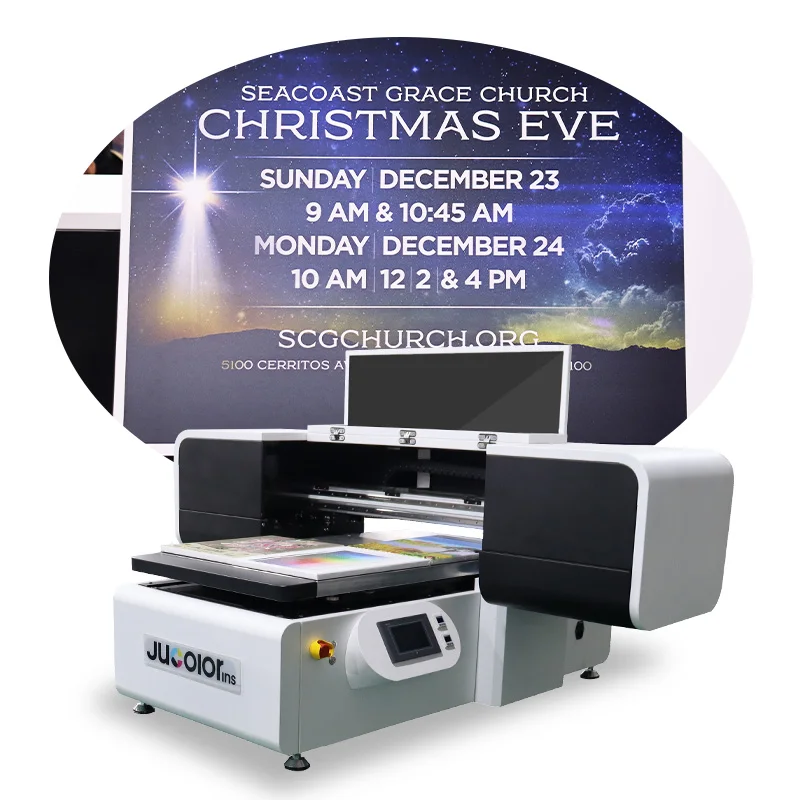

Визуальная камера CCD позиционирования A1 6090 УФ планшетный принтер для стекла/дерева/металла/ПВХ/кожи печатная машина
- Категория: >>>
- Поставщик: Shanghai Colorjet Industry Co. Ltd.Shanghai Ltd.
Сохранить в закладки 1601302255018:
Описание и отзывы
Характеристики

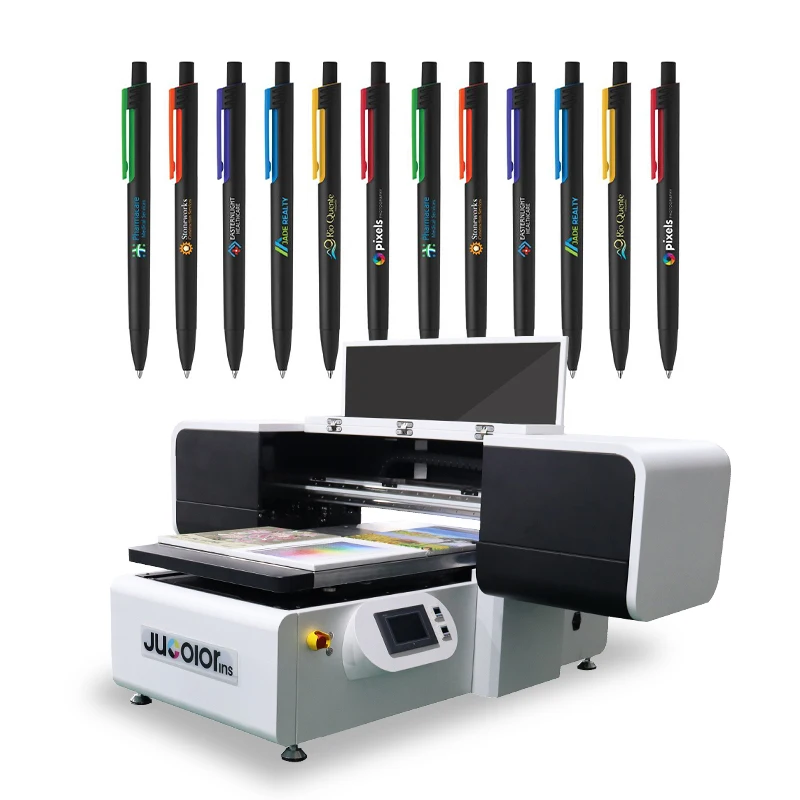

CJ-UVF6090Pro-V is A1 industry uv printer is the latest generation of CJ-UV6090Pro series of Jucolor Group, It uses a more stable board control system and Ricoh stainless steel Industry inkjet print heads, which is more stable, faster printing speed, and higher printing gap, greatly meets the customer's requirements for speed, printing accuracy and high-injection printing.
Jucolor 2*3ft uv flatbed printer is an ideal economical and efficient solution for personalized souvenirs, customized gifts, advertising printing, industrial production and special promotional materials. Can print high-thickness media, high print quality, large print drop, low maintenance, flexible printing
* RICOH GEN6 stainless steel industry print head
* 10-color White+CMYK+LC, LM, Grey, Red+Varnish
* Photo-level printing out
* AI Camera Auto-Visual Position system available
* Magnetic grating, more accurate printing and lower failure rate
* 15/20 mm max high gap printing
* 61*91cm print size, 20cm/7.87" print height
* 3D embossed printing, Varnish glossy & matte printing
* Bi-direction Faster printing
* One-piece Aluminum Alloy Casting Fuselage
* Less Maintenance, heavy duty, reduce maintenance cost and time
* SAI FlexiPRINT UV 22 JUCOLOR Permanent free Edition
* Double quiet ball screw guides
* Variable droplet technology minimizes graininess
* Vacuum suctions platform for increased print accuracy
* 10-color White+CMYK+LC, LM, Grey, Red+Varnish
* Photo-level printing out
* AI Camera Auto-Visual Position system available
* Magnetic grating, more accurate printing and lower failure rate
* 15/20 mm max high gap printing
* 61*91cm print size, 20cm/7.87" print height
* 3D embossed printing, Varnish glossy & matte printing
* Bi-direction Faster printing
* One-piece Aluminum Alloy Casting Fuselage
* Less Maintenance, heavy duty, reduce maintenance cost and time
* SAI FlexiPRINT UV 22 JUCOLOR Permanent free Edition
* Double quiet ball screw guides
* Variable droplet technology minimizes graininess
* Vacuum suctions platform for increased print accuracy
Machine Model | CJ-UVF6090Pro-10C-Gen6 CJ-UVF6090Pro-10C-Gen5 CJ-UVF6090Pro-10C-I3200HD CJ-UVF6090Pro-10C-DX7 | Print Head | RICOH Gen6(MH5320/MH5340) RICOH Gen5(MH5420/MH5420) EP SON I3200-HD Enter class EP SON DX7 Classic & durable | ||
Max Print Size | 61*91cm/24*35.8 inch | Max Print Height | 20 cm/ 7.87 inch | ||
Print Resolution | High speed： 720*600 DPI Standard： 720*900 DPI High-quality： 720*1200 DPI | Print Quality | Real photo level photographic quality | ||
High Droplet distance | 15mm/20mm | Ink Colors | W+CMYK+LC,LM+Grey+Red+V | ||
Workable medias | Metal, Toy, Bottle, Braille,Small Tube,Pen, Phone Case, Glass, Plastic, Board, Leather, Rubber, Lighter, Wood, PVC, Acrylic , Aluminum, Ceramic Tile, Marble, etc | ||||
RIP Software | SAI FlexiPRINT UV 22JUCOLOR Edition Permanent free version | Printing Tech | Micro Piezo Technology | ||
Voltage | AC220/110±1050HZ-60HZ | Type of Ink | UV LED curing ink | ||
Environment | 20-30℃ 35*65%Rh | Power Consumption | 2500 W/ Hour | ||
Machine Size | 145*170*75cm, 220 kg | Packing Size | 189x178x110cm 405 KG | ||
Jucolor 6090Pro A1 industry uv printer Adopt Japanese Ricoh Gen6 industrial-grade print head, this model Ricoh print head is all-steel structure with extremely strong working stability, strong corrosion resistance, more than 4 years super long working life, greatly reducing maintenance time and cost, 5.0 pl drop volume, variable drop technology makes it have excellent print output quality, 54.1 mm effective print width makes the printer achieve much faster printing speed than EP SON heads
Compared with EP SON series print heads, the comprehensive use cost is lower, the output is higher, the maintenance time and cost are lower, and users can have more time for production instead of maintenance
Compared with EP SON series print heads, the comprehensive use cost is lower, the output is higher, the maintenance time and cost are lower, and users can have more time for production instead of maintenance
CJ-UVF6090Pro-10C-GEN6 | CJ-UVF6090Pro-10C-GEN5 | CJ-UVF6090Pro-10C-I3200 | CJ-UVF6090Pro-10C-DX7 | |
Print head | RICON GEN6(MH5320)Industry Metal Head | RICON GEN5(MH5420) Industry Metal Head | EP SON I3200-U1 Enter-Class Head | EP SON DX7 Classic Durable Head |
Print Heads | 4 PCS | 4 PCS | 3 PCS | 3 PCS |
Head type | Industry | Industry | Enter-Class | Classic Durable |
Head lifespan | more than 4 years | 4-6 Years | more than 1 years | 2-4 years |
Ink Configurations | Wh+KCMY,LC,LM,Grey+Red+Vr+(Primer) | Wh+KCMY,LC,LM,Grey+Red+Vr+(Primer) | Wh+KCMY,LC,LM,Grey+Red+Vr+(Primer) | Wh+KCMY,LC,LM,Grey+Red+Vr+(Primer) |
Ink Drop Size | 5PL, 10PL, 15PL | 7PL, 14PL, 21PL | 3.8PL, 6.1PL, 9.4PL | 1.5PL/3.5LPL |
Max Droplet Print Height | 15MM/20MM(special inks needed) | 11MM/15MM(special inks needed) | 7MM | 5MM |
Max Print Area | 61*91cm/24*36 inches | 61*91cm/24*36 inches | 61*91cm/24*36 inches | 61*91cm/24*36 inches |
Max Print Height | 20cm/7.87 inches | 20cm/7.87 inches | 20cm/7.87 inches | 20cm/7.87 inches |
Resolution | 720*600DPI, 720*900DPI, 720*1200DPI | 720*600DPI, 720*900DPI, 720*1200DPI | 720*1200DPI, 720*1800DPI, 720*2400DPI | 720*720DPI, 720*1080DPI, 720*1440DPI |
Vacuum Bed | Yes | Yes | Yes | Yes |
Print Direction | Uni-& Bi-directional available | Uni-& Bi-directional available | Uni-& Bi-directional available | Uni-& Bi-directional available |
Automatic Height Sensor | Yes | Yes | Yes | Yes |
Control Panel | Yes | Yes | Yes | Yes |
White Circulation | Yes | Yes | Yes | No |
Ink Supply System | Negative Pressure Ink Supply System | Negative Pressure Ink Supply System | Negative Pressure Ink Supply System | Siphon Ink Supply System |
Auto Cleaning Cap Station | Yes | Yes | Yes | Yes |
10-COLOR Photo level printing quality
Jucolor 9060 inkjet industry uv printer equipped 10-COLOR White+KCMY, LC, LM, Grey, Red+Varnish eco friendly uv led curing ink.
Jucolor 9060 inkjet industry uv printer equipped 10-COLOR White+KCMY, LC, LM, Grey, Red+Varnish eco friendly uv led curing ink.
The light-colored ink effectively improves the saturation, delivers bright, colorful, tactile prints with low graininess and smooth gradation. so the 10-color inks Print output quality is much more higher than CMYK or CMYK , LC, LM
Variable drop technology
5PL, 10PL,15PL, Small/middle/large, three different dot sizes switched freely, provide smooth quality and less graininess high quality printing without noticeable banding
5PL, 10PL,15PL, Small/middle/large, three different dot sizes switched freely, provide smooth quality and less graininess high quality printing without noticeable banding
15/20mm High droplet printing
The Jucolor CJ-UVF6090Pro uv printer using RICOH GEN6,MH5340/MH5320 print heads which can achieve effective 3-15mm high droplet printing distance. If use special ink the high gap distance can reach to 20 mm. Greatly expands users' business scope, available to print on Curved board, toy, shoe, special cover, helmet, mouse, balls, bottles
3D embossed printing
Jucolor 6090pro 9060 A1 industry uv printer equipped with 4 pcs RICOH GEN6 print heads
Support, White+CMYK+lc+lm,Grey+Red +Varnish inks print one pass 3D embossed printing
varnish inks glossy or matte effect printing
Support, White+CMYK+lc+lm,Grey+Red +Varnish inks print one pass 3D embossed printing
varnish inks glossy or matte effect printing
White ink circulation system
Jucolor group has developed its own white ink circulation system. White ink can circulate in the ink tube and secondary ink cartridge to ensure that white ink does not precipitate. Effectively reduce white ink precipitation, ensure the flow of ink, avoid white yellowing and print heads clogging during printing, etc. Effectively improve the life of print heads
Jucolor group has developed its own white ink circulation system. White ink can circulate in the ink tube and secondary ink cartridge to ensure that white ink does not precipitate. Effectively reduce white ink precipitation, ensure the flow of ink, avoid white yellowing and print heads clogging during printing, etc. Effectively improve the life of print heads
SAI FlexiPRINT uv22 jucolor Edition
SAI FlexiPRINT RIP software is much popular rip software, easy to operate, versatile, high color reproduction
We use genuine SAI FlexiPRINT No monthly or annual payment required, permanent free version.
We use genuine SAI FlexiPRINT No monthly or annual payment required, permanent free version.
Flat-rotary dual-purpose UV printer
This Jucolor 6090Pro model A1 size uv printer can not only print flat objects but also cylindrical materials. It is equipped with a rotating fixture independently developed by Jucolor group, can directly print various cups, such as straight-through cups, cone cups, thermos cups, electronic cigarettes, candles, and mugs with handles.
AI Camera Auto-Visual Position system
Use the newest technology, AI Camera Auto-Visual Position system,
Automatically identify the position, quantity, and shape of materials, and automatically achieve accurate matching of the position and size of images and materials without manual typesetting
and control of recognition error within ±0.1mm.
Automatically identify the position, quantity, and shape of materials, and automatically achieve accurate matching of the position and size of images and materials without manual typesetting
and control of recognition error within ±0.1mm.
Double Negative Pressure Ink Supply
White and color ink supply adopts independent negative pressure system, digital control, larger pressure display and large-capacity stainless steel air bottle to make negative pressure change more stable, ink supply more smooth, ensure stability of ink supply during high-speed continuous printing. imaging effect is more realistic, not easy to clog PRINT HEADS.
All Metal Seconard Ink Cartridge
The all-metal secondary ink cartridge
Excellent corrosion resistance. UV ink is corrosive chemical liquid. so corrosion resistance of secondary ink cartridge is very important, which can effectively prolong working life. Avoid high failure rate and high maintenance rate
Excellent corrosion resistance. UV ink is corrosive chemical liquid. so corrosion resistance of secondary ink cartridge is very important, which can effectively prolong working life. Avoid high failure rate and high maintenance rate
Automatic Capping Station with Wiper
Capping Station With Auto-Wiper
Jucolor team develop auto cap station with wiper it can
* Automatic Hed Maintenance Function
* Automatic Head Cleaning
* Automatic head Moisturizing
* Automatic head wipe
Very useful to avoid print heads clogging easily
Jucolor team develop auto cap station with wiper it can
* Automatic Hed Maintenance Function
* Automatic Head Cleaning
* Automatic head Moisturizing
* Automatic head wipe
Very useful to avoid print heads clogging easily
Anti-collision and Light block system
Jucolor team developed large-width, highly sensitive printhead anti-collision and light-avoidance system. Effectively protect printhead. sensor bottom is lower than printhead surface, when touch medias, will stop printhead moving.After adjusting height, will continue print to avoid wasting materials.
this system is located center of heads and UV lamp, which can effectively shield the reflected light, protect printhead, avoid printhead from being blocked due to reflection.
Magnetic grating
Jucolor A1 industry uv printer adpot High-precision (1um) magnetic grating counting ruler, compared with linear grating, magnetic grating has better durability, stability, and longer service life, not need to be replaced. accurate positioning.
Completely solve problem of inaccurate counting and printing failure caused by frequent worn or position deviation of traditional plastic encoder, Users do not need to frequently troubleshoot printer failures.

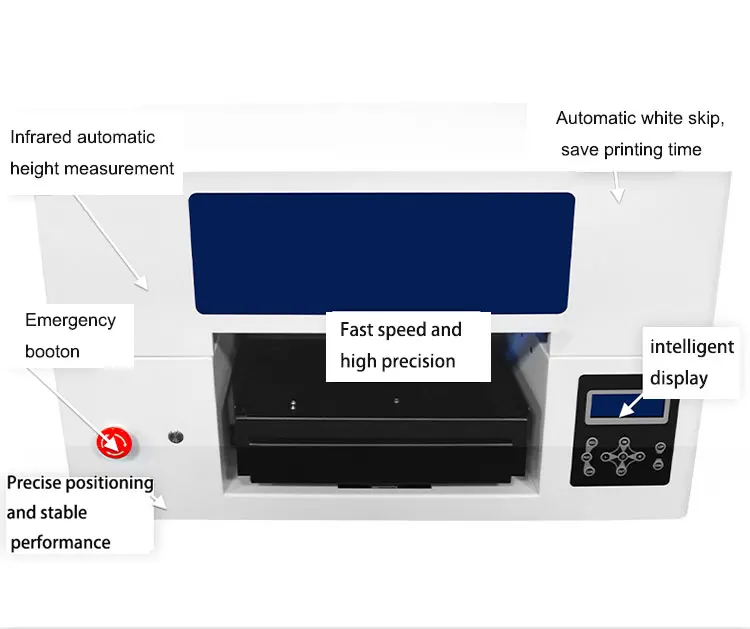

Laser height measure & anti-collision system
Jucolor uses laser sensor to detect height of printing material, effectively ensure that distance between print head material is within a safe range, avoid touch or collision between print head and material, causing damage to print head.
Supports bidirectional printing, no need customers to recalibrate bidirectional value because of changes in different medias
Supports bidirectional printing, no need customers to recalibrate bidirectional value because of changes in different medias
After-sales service
Any Questions Please Require Us
Q1: What material can be printed by uv printer?
A: UV printer can print for most of materials ,like phone case ,wood ,metal ,glass,acrylic, bottle, pens, books,box,golf ball ,
canvas ,toys,plastic ect. One set earn money product which good for advertise personalized custom printing on flatbed and rotary items
canvas ,toys,plastic ect. One set earn money product which good for advertise personalized custom printing on flatbed and rotary items
Q2: What is the durability of the ink after printing and put outdoor?
A: If you want to print on glass, acrylic, metal, then you will need to use the primer before printing, then the ink will not peel
off after printing. We use good quality UV ink, so normally the ink will not easy to fade outdoor, it can last long time
off after printing. We use good quality UV ink, so normally the ink will not easy to fade outdoor, it can last long time
Q3: Can uv printer print a strong 3D embossed Braille effect?
A: Yes,Whether it is printed on acrylic, metal or other materials, it can produce a strong three-dimensional relief effect. It can also be printed on canvas paintings, and you can feel the clear texture by touching it with your hands.
Q4: What is ink consumption per square meter?
A: 1liter ink can print 50-65 square meter, per square meter need 15ml for CMYK, 15ml for White, 15ml for Varnish(depends on which color print more)
Q5: Can I get some samples?
A: Yes, sure ,free samples, we can print your or our patterns on the items you specify according to your needs
Q6: What language is the printer?
A: Our printer can set up in Chinese and English
Q7: Does this work with Mac OS or just windows? And does it use Corel draw or Adobe illustrator?
A: For our printer only can support windows system, so you need to prepare a windows system computer, you can use the photoshop to process the picture
Q8: What is the difference of the UV printing and UV DTF printing?
A: UV printing is print directly to the items, you can print big image and different effect,can save ink and time, printing quality is better and ink is more scratch-resistant. UV DTF printing is print on the film, you need to print full colors and varnish, also can't print a very big image, and ink not last longer, but more flexible , it can stick on different products
Q9: How many days will it take me to learn to use the machine?
A: For EPSON configuration printer, training time normally is around 3 days, for Ricoh print head training time is around 3-7 days, our technicians will teach you step by step and till you use well
Q10: What temperature and humidity environment does the machine need to be in?
A: Temperature 18-40°C relative humidity 30%-80%. 25-30℃ is the most suitable temperature
Q11: What’s the daily maintenance?
A: Our printer is equipped with automatic cleaning unit , everyday before printing business, you can print a test to check the printing quality, if print good, then you can start to print, if print test not good, you can click the printer to do automatic cleaning.
Похожие товары
Готовый к отправке логотип hine с низким весом Самые продаваемые товары 2024 торта
Беспроводной струйный принтер для индивидуальных фотографий и татуировок с передовыми технологиями

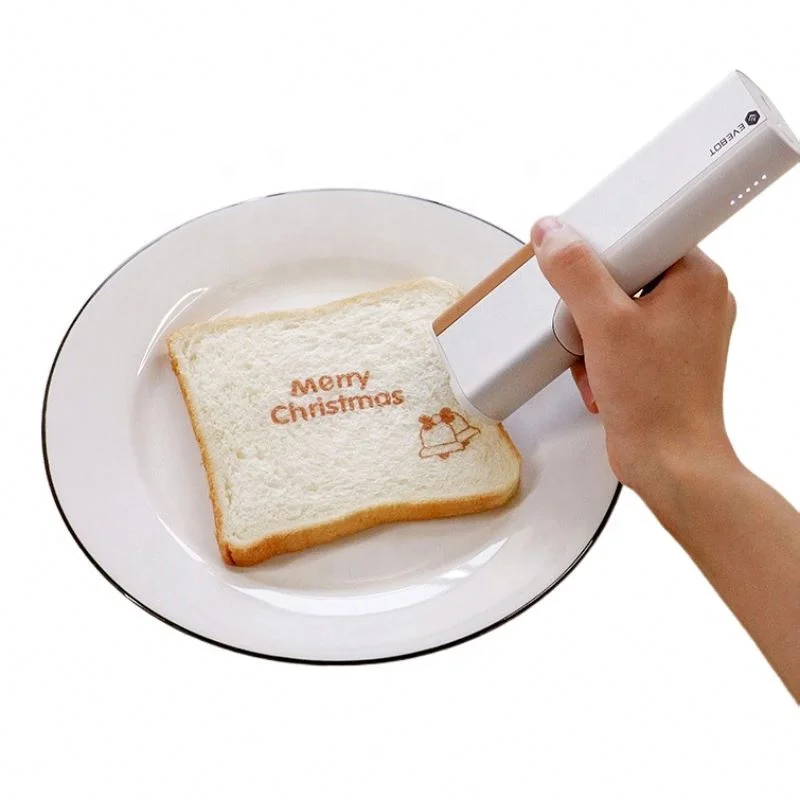

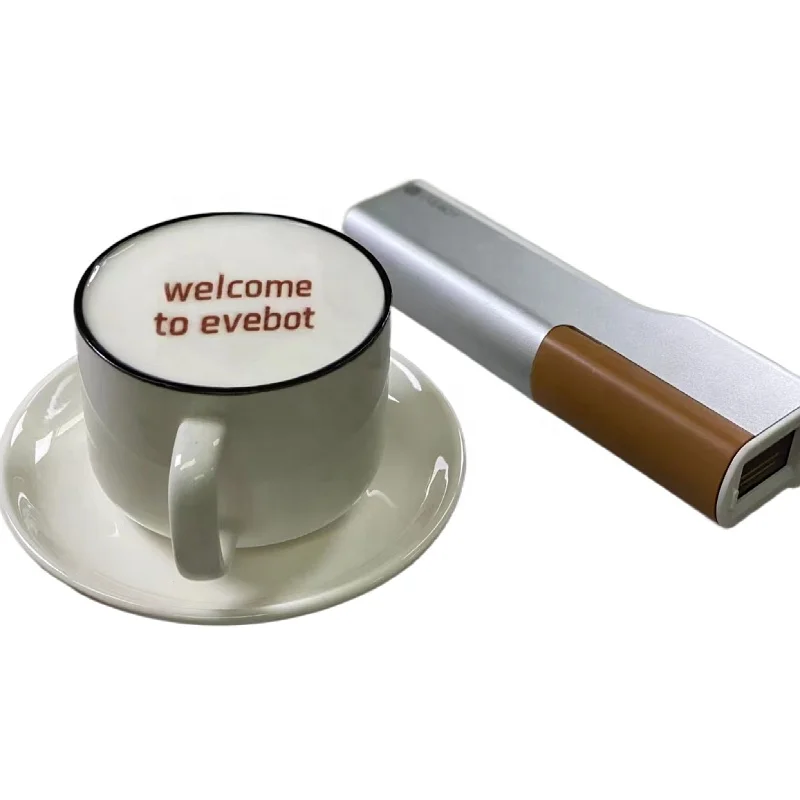

Ручной принтер для печати прецизионный дизайн брендинга Кофейни
