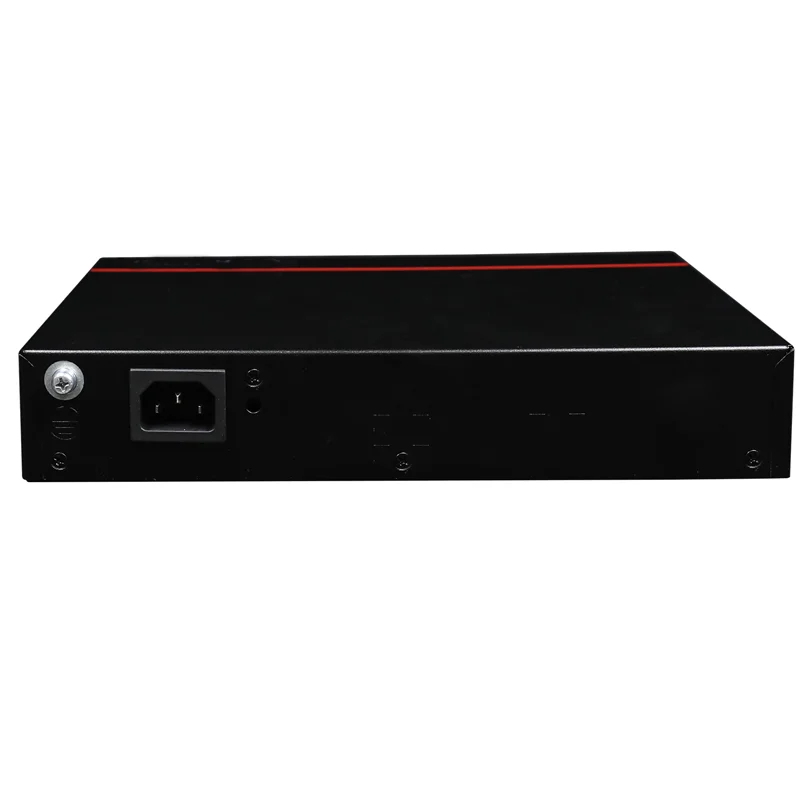

CloudEngine S5735 L10T4X TA V2 (10*10/100/1000BASE T порты 4*10GE SFP волоконно оптический коммутатор
- Категория: >>>
- Поставщик: Chongqing Yujia Technology Co. Ltd.Chongqing Ltd.
Сохранить в закладки 1601304187188:
Описание и отзывы
Характеристики
Product Description
Based on the latest generation of high-performance hardware and hw software platform, CloudEngine S5735-L-Q-V2 series switches feature flexible Ethernet networking, diversified security control, simple operation and maintenance, and support multiple Layer 3 routing protocols, providing higher performance and diversified service processing capabilities. The whole system of switches adopts fanless design, quiet and energy saving, widely used in medical, retail, mining, Internet and other industries
Item | Details |
Description | S5735-L10T4X-TA-V2 (10*10/100/1000BASE-T ports, 4*10GE SFP+ ports, HTM, AC power, Only for Overseas) |
Part Number | 98011983 |
Model | S5735-L10T4X-TA-V2 |
First supported version | V600R022C01 |
Details Images
Specification
Item | Specification |
Dimensions without packaging (H x W x D) [mm(in.)] | Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 250.0 mm x 180.0 mm (1.72 in. x 9.84 in. x 7.09 in.) |
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 250.0 mm x 187.0 mm (1.72 in. x 9.84 in. x 7.36 in.) | |
Dimensions with packaging (H x W x D) [mm(in.)] | 90.0 mm x 370.0 mm x 380.0 mm (3.54 in. x 14.57 in. x 14.96 in.) |
Chassis height [U] | 1 U |
Weight without packaging [kg(lb)] | 1.41 kg (3.11 lb) |
Weight with packaging [kg(lb)] | 2.22 kg (4.89 lb) |
Typical power consumption [W] | 21.74 W |
Typical heat dissipation [BTU/hour] | 74.18 BTU/hour |
Maximum power consumption [W] | 32.04 W |
Maximum heat dissipation [BTU/hour] | 109.32 BTU/hour |
MTBF [year] | 72.49 year |
MTTR [hour] | 2 hour |
Availability | >0.99999 |
Noise at normal temperature (acoustic power) [dB(A)] | 44.5 dB(A) |
Noise at normal temperature (acoustic pressure) [dB(A)] | 32.5 dB(A) |
Number of card slots | 0 |
Number of power slots | 0 |
Number of fans modules | 1 |
Redundant power supply | Not supported |
Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
Devices cannot start when the temperature is lower than 0°C (32°F). | |
Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
Long-term operating relative humidity [RH] | 5% RH to 95% RH (non-condensing) |
Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
Power supply mode | AC built-in |
Rated input voltage [V] | AC input: 100–240 V AC; 50/60 Hz |
Input voltage range [V] | AC input: 90–290 V AC; 45–65 Hz |
Maximum input current [A] | 0.8 A |
Memory | 2 GB |
Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
Console port | RJ45 |
Eth Management port | Not supported |
USB | Not supported |
RTC | Not supported |
RPS input | Not supported |
Service port surge protection [kV] | Common mode: ±7 kV |
Power supply surge protection [kV] | Differential mode: ±6 kV; common mode: ±6 kV |
Types of fans | Built-in |
Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
Airflow direction | Air intake from left and front, air exhaustion from right |
PoE | Not supported |
Certification | EMC certification |
Safety certification | |
Manufacturing certification |
Packing & Delivery
Company Profile
Chongqing Yujia Technology Co., Ltd. was established in 2010, we have been engaged in this industry more than 10 years. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price. we are devoted to offering Switches, Routers, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc. our long-term aim is to provide users high-quality, efficient, economic, timely services. The rich experience of our wealth, serious and responsible attitude is our responsibility. Looking forward to establish long-term and win-win business relations with you.
Why Choose Us
A)Stable and Wide Supply Chain System
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the
price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most
competitive discounted price.
C) Safe and Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)Complete and powerful pre-sales and after-sales service system
To provide customers with professional pre-sales service, as well as after-sales technical services
F)More Than 10 Years Industry Experience
we have been engaged in this industry more than 12 years, we have rich industry experience.
we have established a perfect supply chain system to provide a wide range of products with reliable quality and reasonable price.
B)Competitive Price
We ensure the most competitive price. Warm reminders here, telecommunications equipment configuration is quite different, the
price shown on the website is only for reference. After configuration and quantity been confirmed, we will give the final most
competitive discounted price.
C) Safe and Easy Payment Solutions
We support a variety of payment methods, such as T/T, credit card, et
D)Fast Delivery and Shipping
Fast, professional and reliable delivery.
E)Complete and powerful pre-sales and after-sales service system
To provide customers with professional pre-sales service, as well as after-sales technical services
F)More Than 10 Years Industry Experience
we have been engaged in this industry more than 12 years, we have rich industry experience.
FAQ
1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,
Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,
Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
Похожие товары

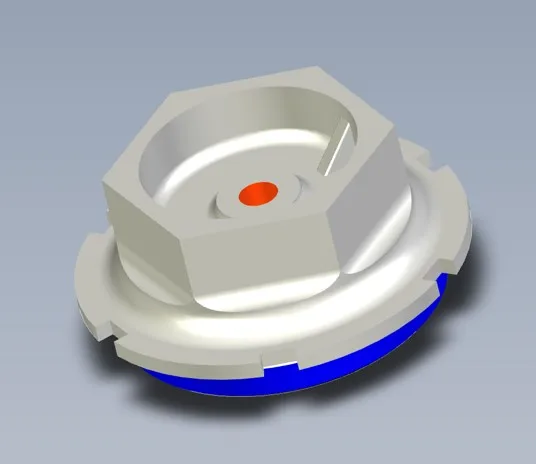

OEM литье из цинкового сплава
Шанхайская рекламная 2025 Алюминиевая выдвижная стойка для баннеров
5,50-10,00 $
Детали из T250P-002 стали
7,43 $

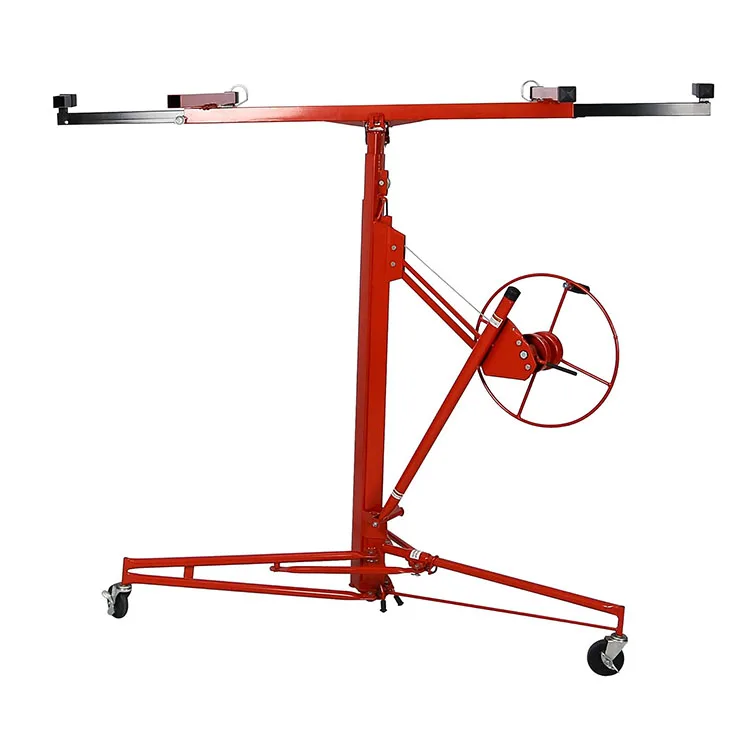

Сверхмощный подъемник для гипсокартона 11 дюймов
54,50-54,90 $

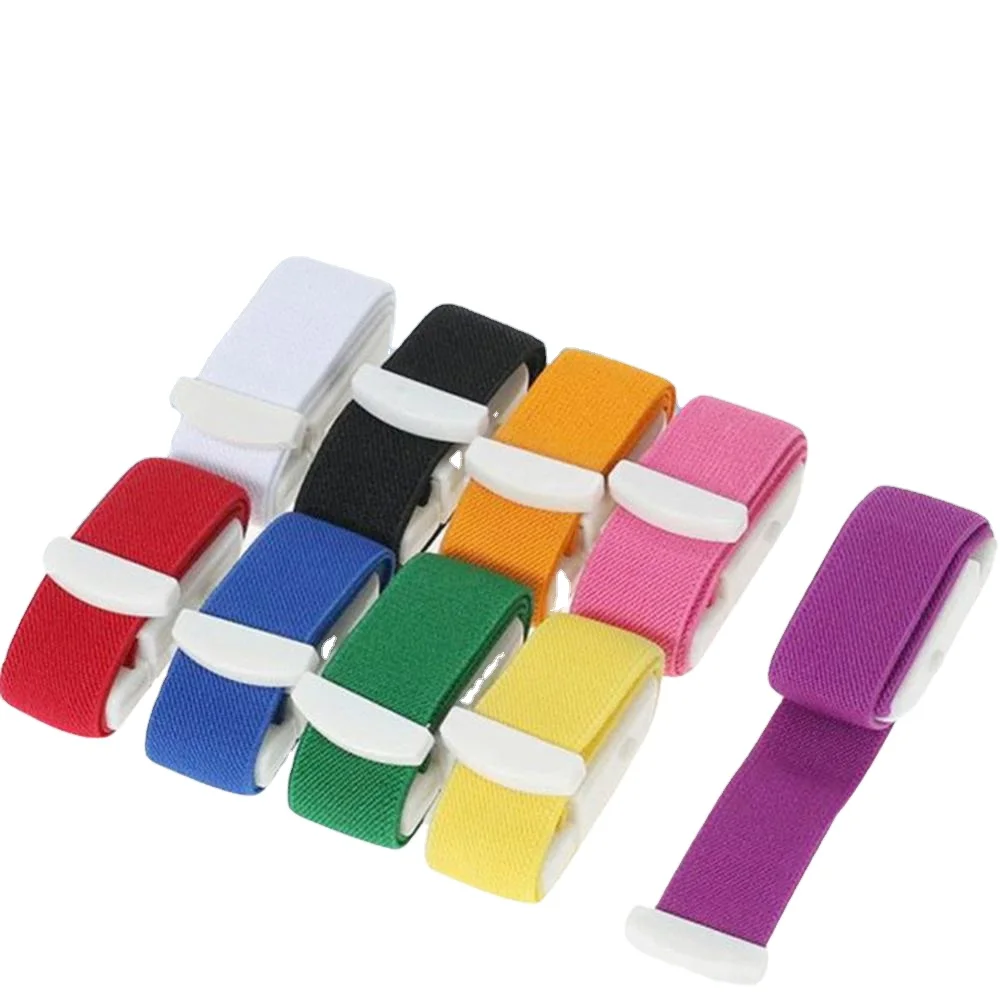

Бестселлер, экстренный гибкий медицинский эластичный бандаж, пряжка, жгут, чехол, подходит для всех видов турникетов
37,19 ₽
Велосипедный стержень длина 80 мм 31 8 15 градусов велосипедный руля для горного и дорожного велосипеда MTB BMX
3,10-3,50 $

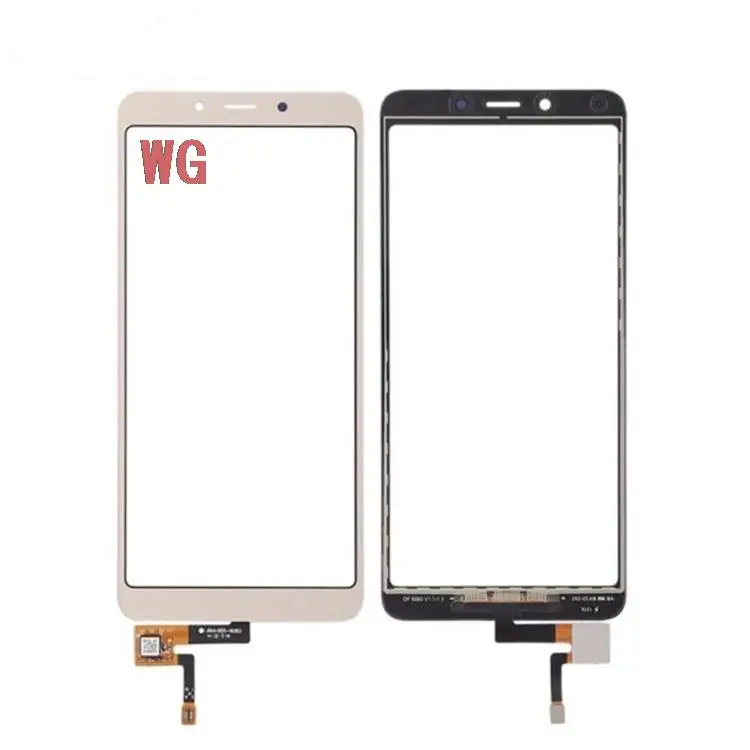

Мобильный телефон мобильный сенсорный экран для Redmi 6A Переднее стекло дигитайзер панель Датчик объектива WG
