Премиум качество индивидуальный Реверс R & D Hastelloy X 276 услуги по отливке для энергоснабжения

Сохранить в закладки 1601304257002:


Цена:155,00-174,00 $*

Количество:

  • В избранное

Описание и отзывы

Характеристики







Special process capability
1.heat treatment
2.NDT(nondestructive testing)(PT/X-RAY)
3.Welding (argon arc welding/electron beam
welding/resistance welding)
4.Surface treatment
(plating/oxidation/cleaning)

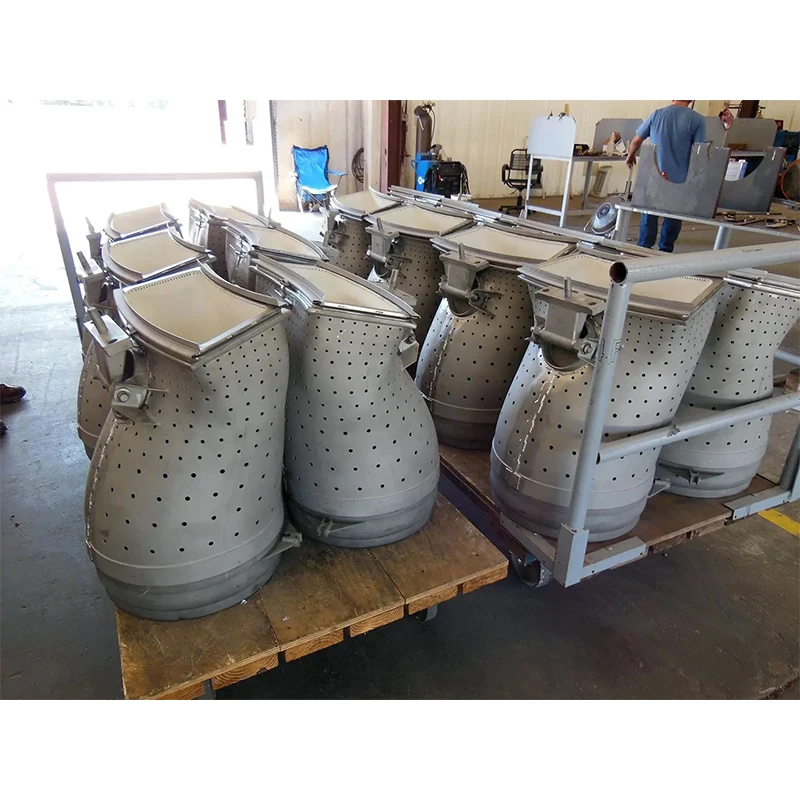

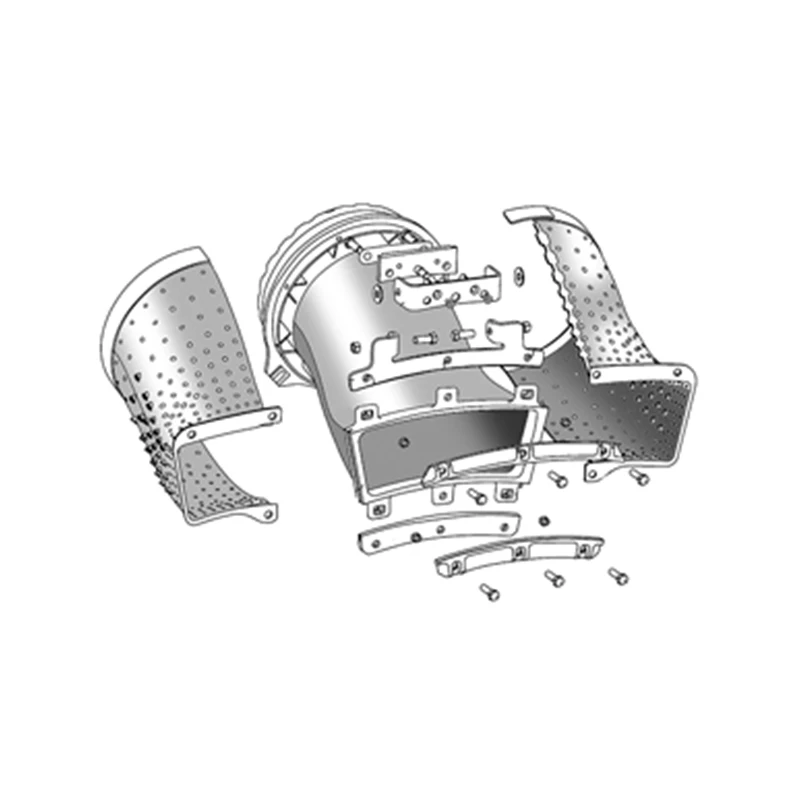

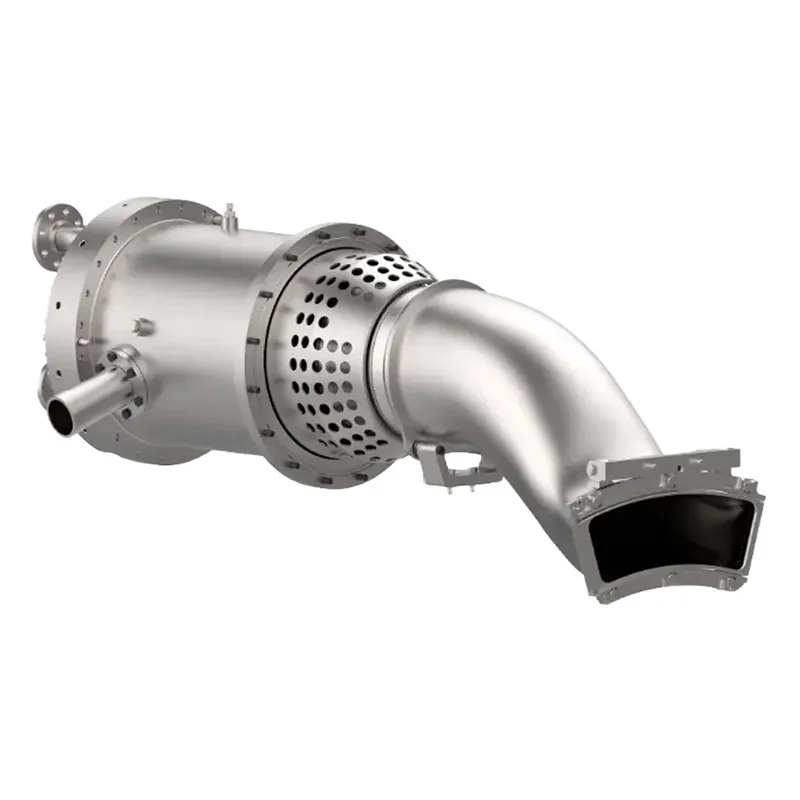

Superalloy combustion chambers in industrial production and practical applications show the following significant characteristics:
1.can withstand the high temperature of more than 1000℃.
2.Strong antioxidant capacity: maintain good performance in the range of 700-900 ° C.
3.High strength and toughness coexist: high tensile strength and fracture toughness.
4.Long life: More than 20 years of service life
Wide application: suitable for a variety of industrial fields.
5.Good environmental benefits: help to reduce energy consumption and control pollutant emissions.


Parameter name
unit
Typical value
remark
Operating temperature
°C
1200 - 1500
Maximum operating temperature
Pressure range
bar
10--30
Inlet pressure
Fuel type
-
Aviation kerosene
Or other fuel
Mixing ratio (air: fuel)
-
15:1 - 20:1
Theoretical mixing ratio
Ignition mode
-
Spark ignition
High energy ignition system
Combustion efficiency
%
>99
Actual efficiency
Heat load
MW/m³
100 - 200
Heat release rate per unit volume
Life span
Hour (s)
5000+
Under rated conditions
material
-
Such as Nickel-based superalloy
Such as Inconel 718
Surface treatment
-
Thermal barrier coating
Improved heat resistance






Production and testing

productive process:
Raw material preparation → Melting and casting → Heat treatment → Machining → Surface treatment → Welding and assembly →Nondestructive testing →Final inspection and testing → Finished product delivery

Detection:
Metallographic detection
ICP detection
salt spray detection
fatigue test
durability test
3D detection

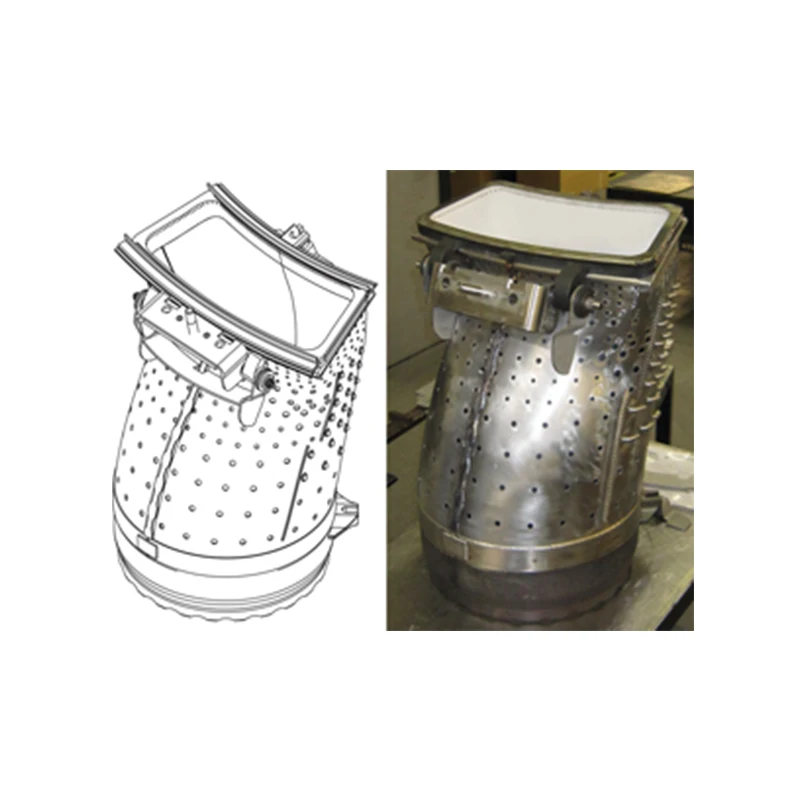

Product Name
Superalloy combustion chamber
Tolerance
CNC Machining ±0.001mm/Casting ±0.1mm
Place of Origin
Shandong, China
Processing Craft
Sand Casting/Lost Wax Casting/Investment Casting/Vacuum Casting/Forging/CNC Machining/etc
Surface Treatment
A variety of surface treatments and coatings can be produced and customized according to your requirements.
Type
OEM; Customized
Certification
ISO9001:2015 Certified, UL Certification,GE,SGS,TUV,etc
Packing
Carton/Wooden box
Inspection
1.Foundry in-house: 100% inspection on critical dimension; 100% on appea rance.
2.Third Party inspection available upon requirement.
3.Optional X-ray detection
4.Fluorescence detection
Service
Customization and reverse development of drawings and samples
Mainly Testing Facility
Spectrometer,CMM, Tensile testing machine, Impact tester,Hardness tester,X-Ray,Salt spray test box, Pneumatic detection,UV
accelerated weathering tester,dynamic balancing, high-temperature tensile testing,fluorescence test,room temperature mechanical
property testing and other testing.
Quality Guarantee
1.5Years
Features & Advantage
1.High machining accuracy, the flatness within 0.001mm
2.High finish appearance, smooth surface roughness is Ra0.6 after machining.
3.The machining precision is high and the assembly structure is seamless.
4.Smooth appearance, corrosion resistance.
5.Pass Salt Spray Test with 144 Hours.
Standard
ISO , DIN, AISI, ASTM, BS, JIS, etc.
GB/T 14992 GJB 5512.1 HB 7763 HB/Z 140
Payment
L/C,D/A,D/P,T/T,Western Union,Money Gram


We commonly use the process
The materials we usually use
Casting process
Welding and joining technology
machining
Inconel 625
René 41
Investment casting
Electron beam welding
turning
Inconel 718
René 80
Directional solidification
Laser welding
milling
Inconel 751
René N5
Single crystal casting
Friction welding
grinding
Inconel 903
CM247LC
Centrifugal casting
Resistance welding
borehole
Inconel X-750
Waspaloy
Forging technology
Surface treatment technology
wire-cut
Hastelloy X
GH4169
Free forging
Carburizing/nitriding
Special technology
Hastelloy C-276
GH3125
Die forging
Thermal spraying
Powder metallurgy
Haynes 230
GH3536
Hot extrusion
electroplate
Superplastic forming
Haynes 282
GH4099
Ring rolling
Physical Vapor Deposition (PVD)
Diffusion connection
GH4169
GH3039
Chemical Vapor Deposition (CVD)
Explosive welding
Special technology
Powder metallurgy
Superplastic forming
Diffusion connection
Explosive welding
















Q: What types of combustion chambers do you offer?
A: We offer a variety of models and brands of superalloy combustor, including fixed combustor and adjustable combustor. Please refer to our product catalog for specific specifications and models, or contact our sales team, we will provide detailed solutions according to your specific needs to ensure that you are provided with the most suitable combustion chamber for your equipment.
Q: What materials are used in your combustion chamber? How to ensure quality?
A: Our combustion chambers are made of high-quality, high-strength materials such as nickel-based alloys, cobalt-based alloys and stainless steel. These materials are able to withstand extreme working conditions and ensure long-term stable operation. All materials are strictly controlled and tested to meet international standards. We have passed quality certifications such as ISO 9001 to ensure the quality and consistency of our products.
Q: Do you offer customized combustion chambers? What is the customization process?
A: Yes, we offer customized combustion chamber service. You can provide specific technical parameters and design requirements, and our engineering team will work closely with you to support the whole process from design to production. The customization process includes initial consultation, design validation, prototyping, and final production and delivery. We will ensure that every step is in line with your expectations and provide a detailed project progress report. Customized services are designed to meet your specific application needs.
Q: What kind of after-sales service and technical support do you provide after purchasing the combustion chamber?
A: We provide comprehensive after-sales service and technical support, including 24-hour responsive customer service. If you encounter any problems in the process of use, our technical team will be ready to provide you with technical support and solutions. In addition, we also provide a warranty service to ensure that you are worry-free during use. Our goal is to ensure that your equipment is always in top working condition.
Q: What are your delivery times and shipping methods?
A: The lead time for standard products is usually 4-6 weeks, and the lead time for custom products may vary due to design complexity and production arrangements. We will provide accurate delivery times according to your requirements. Transport by sea, air or land depending on your location and urgency. We work with a number of international logistics companies to ensure your products are delivered safely and on time. If you have any special needs, please inform us in advance and we will try our best to meet your requirements.
