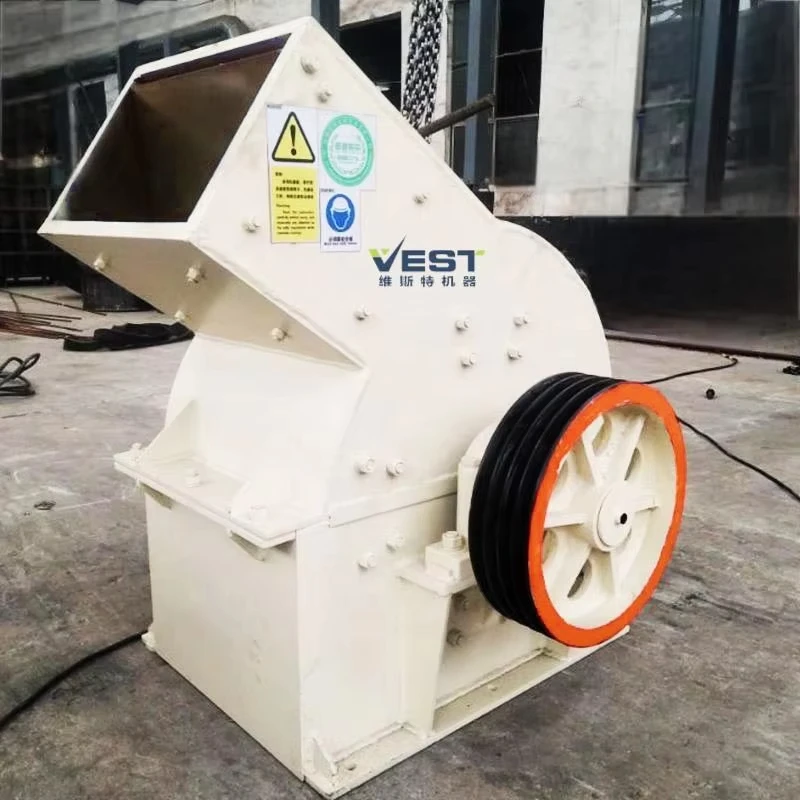

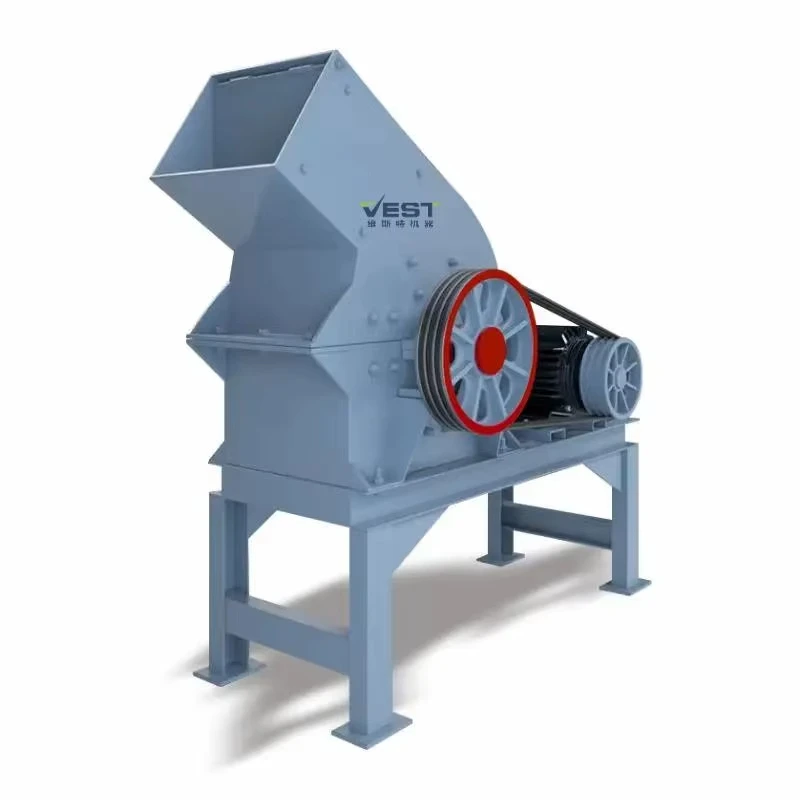

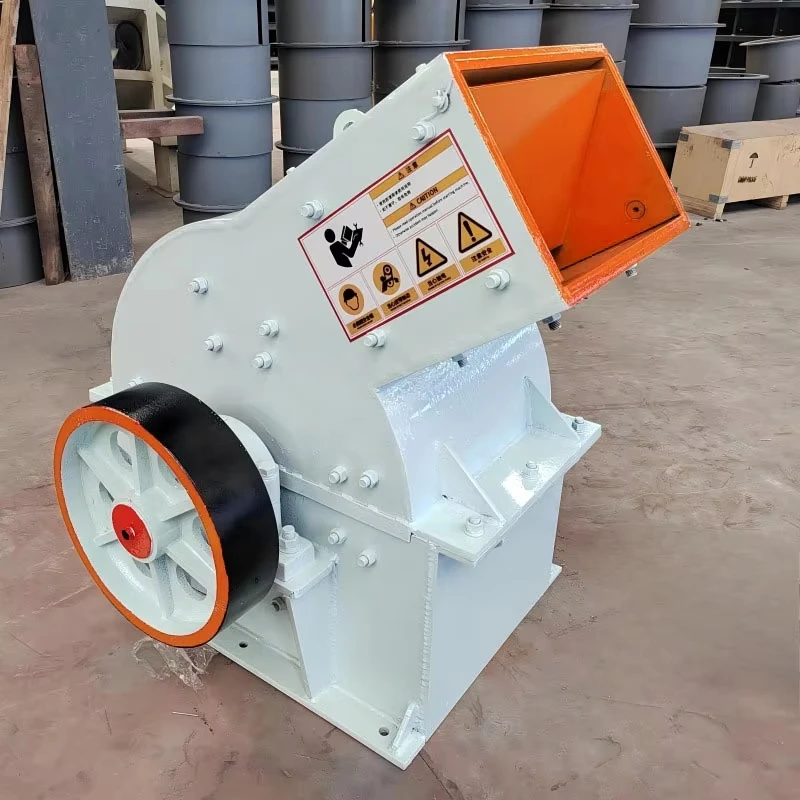

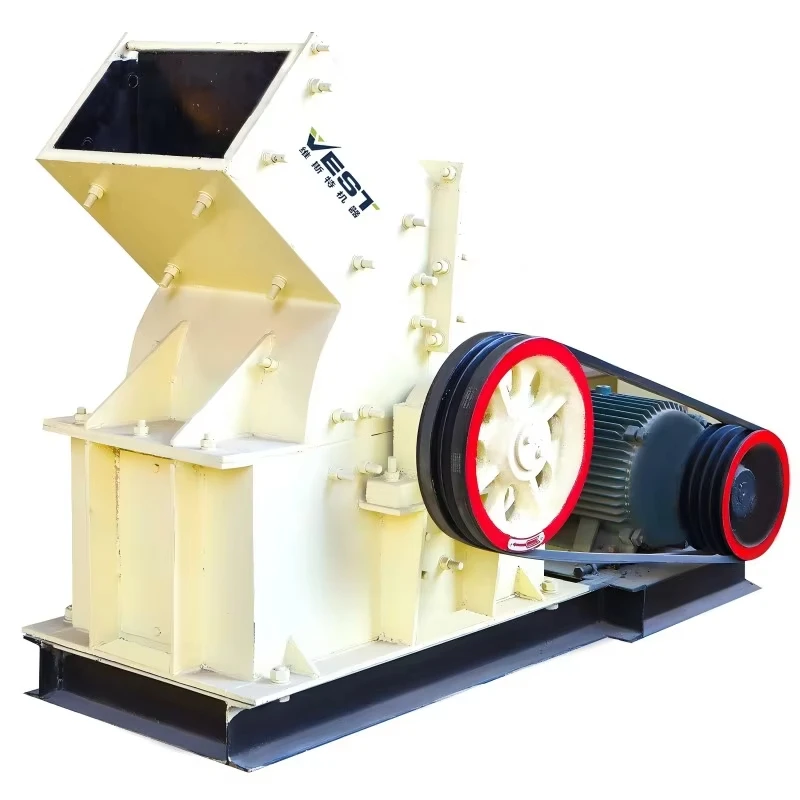

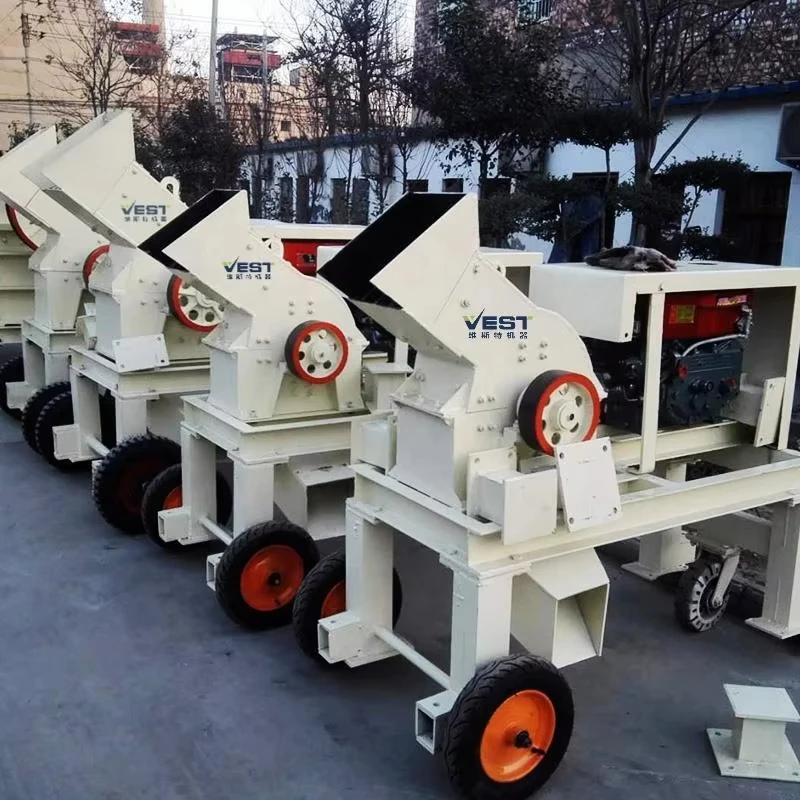

Высококачественная молотковая дробилка серии PC для дробления известняка базальтового гранита портативная каменной руды
- Категория: >>>
- Поставщик: Henan Vest Machinery Co. Ltd.Henan Ltd.
Сохранить в закладки 1601304633005:
Описание и отзывы
Характеристики
Product Introduction:
PC hammer crusher can be used to crush large solid stones into medium & small stones. With low investment, high capacity, high crushing ratio.
• Processing capacity: 5-30t/h
• Feeding size: <350mm
• Output size: 5-20mm
• Processing capacity: 5-30t/h
• Feeding size: <350mm
• Output size: 5-20mm
Application Field:
PC hammer crusher is a kind of industrial machinery, the principle is to crush the material by the collision of the high-speed rotating hammer body and the material. It has the characteristics of a simple structure, a large crushing ratio, and high production efficiency. It can be crushed in dry and wet forms. It is suitable for mining, cement, coal, metallurgy, building materials, highway, combustion, and other departments to finely crush medium-hard and brittle materials.
Technical Features:
• The working hammer is cast with a new technology, which is wear-resistant and impact-resistant.
• The required granularity can be adjusted according to customer requirements.
• The structure of the machine body is sealed, which solves the problems of dust pollution and ash leakage of the machine body in the crushing workshop.
• The overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.
• The structure of the machine body is sealed, which solves the problems of dust pollution and ash leakage of the machine body in the crushing workshop.
• The overall design has the advantages of beautiful appearance, compact structure, few wearing parts, and convenient maintenance. It is an upgraded product.
Working Principle:
The motor of the PC hammer crusher drives the rotor to rotate rapidly in the crushing chamber. The raw materials enter the crusher from the feed port and are impacted, sheared, and ground by the high-speed rotating hammer.
The lower part of the rotor assembly is equipped with grate bars. The materials smaller than the grate mesh are screened out, and the rest of the materials are left for further hammering until they reach the standard particle size.
The size of the final product can be adjusted by replacing the grate bars, and the gap between the rotor assembly and the grate bars can also be adjusted according to different requirements.
The lower part of the rotor assembly is equipped with grate bars. The materials smaller than the grate mesh are screened out, and the rest of the materials are left for further hammering until they reach the standard particle size.
The size of the final product can be adjusted by replacing the grate bars, and the gap between the rotor assembly and the grate bars can also be adjusted according to different requirements.
Model | Input Size (mm) | Output Size (mm) | Capacity (t/h) | Motor Power (kw) |
PC400x300 | <100 | <15 | 5-10 | 11 |
PC600x400 | <220 | <15 | 10-25 | 22 |
PC800x600 | <350 | <15 | 20-40 | 55 |
PC1000x800 | <400 | <15 | 25-80 | 110 |
1. Are you a manufacturer or trading company?
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
We are a factory, founded in 1987 and restructured in 2010.
2. How long is your delivery time?
7-10 days for the stock, 15-30 days for the mass production.
3. What is your payment method?
There is a 30% deposit in T/T advance and a 70% balance before shipment.
4. How long is the warranty? Does your company supply the spare parts?
One year. Spare parts for you at the lowest cost.
5. How can I get the free solution and quotation?
Please send an inquiry to us, leave your WhatsApp and email, and our sales manager will contact you within 1 hour.
Похожие товары

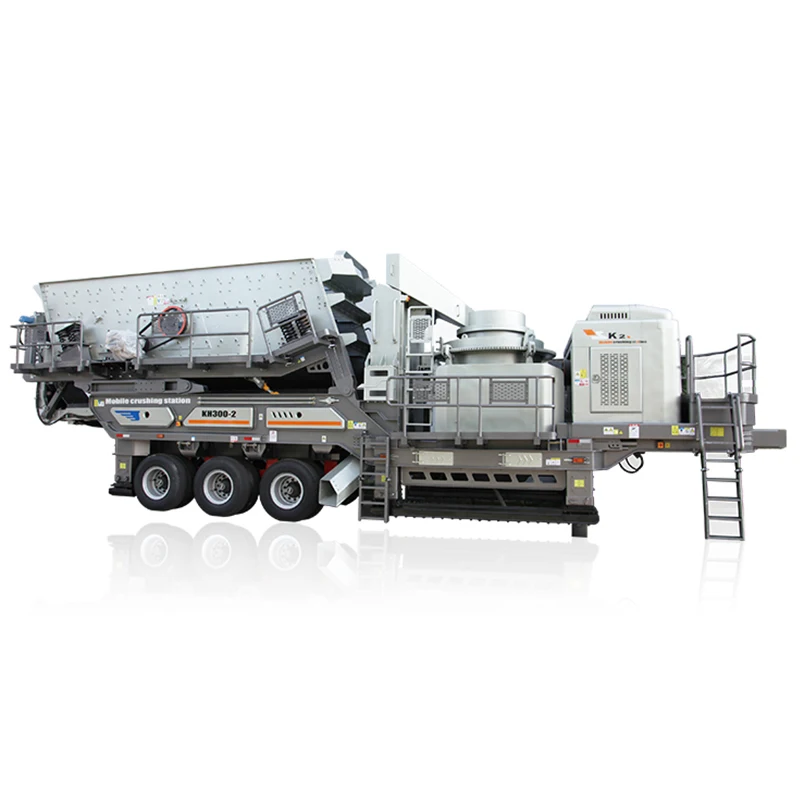

Высокоэффективная гусеничная передвижная каменная дробилка 400tph для продажи
28 281 400,00 ₽

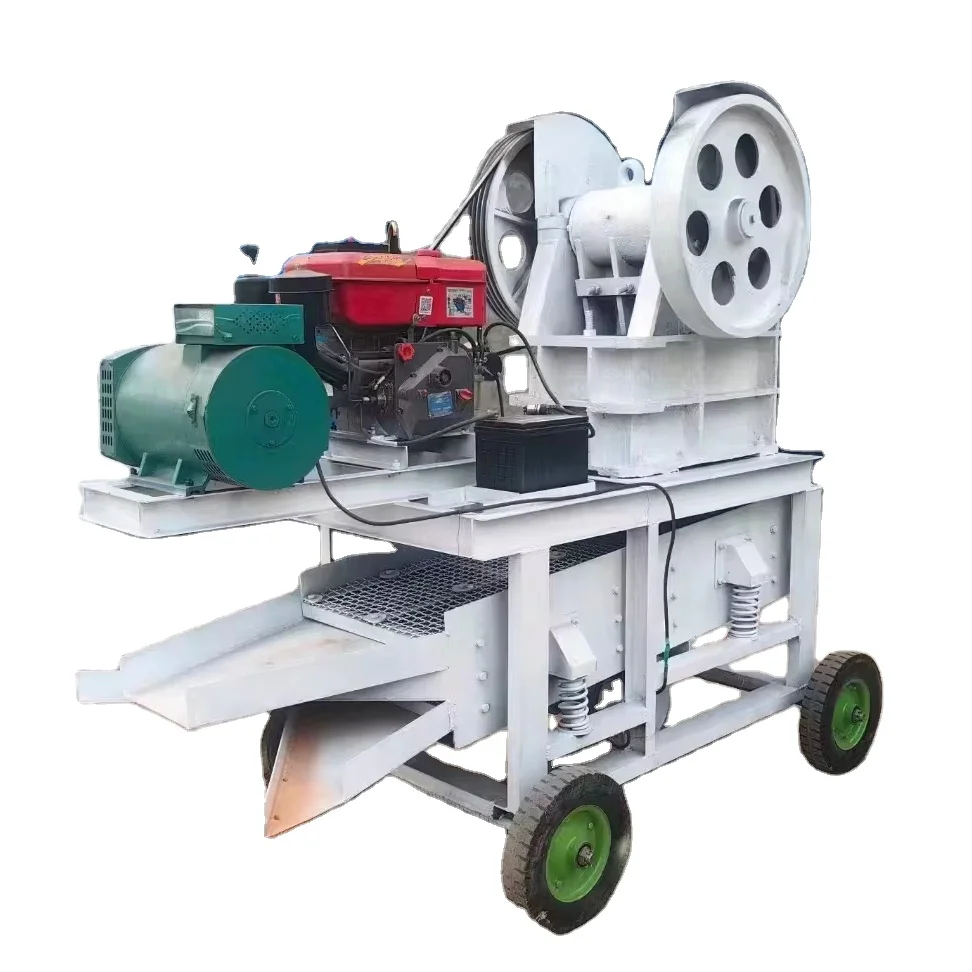

Используемая маленькая щековая дробилка для продажи каменная в Пакистане мини-дробилка
145 366,40-165 163,38 ₽
Заводская цена pe 400x600 150x250 каменная щековая дробилка хорошее качество с высокой эффективностью
145 366,40-165 163,38 ₽

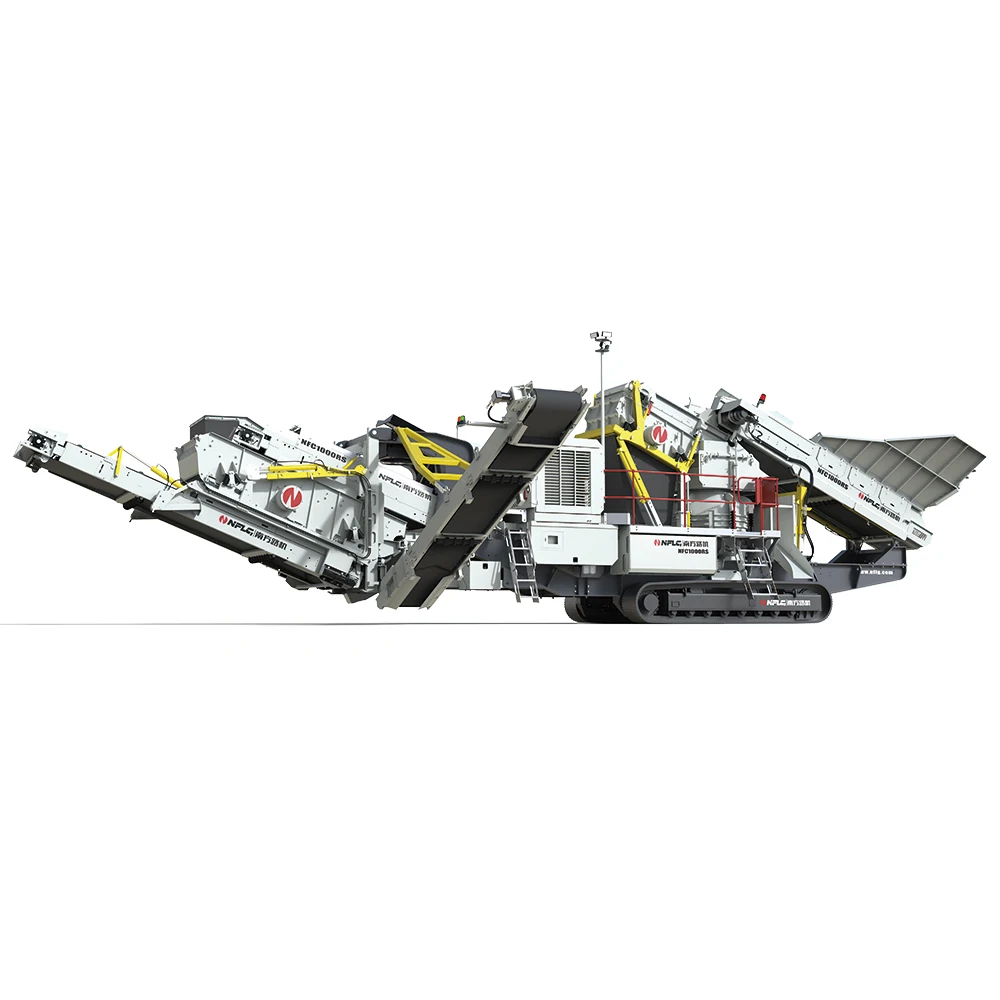

Небольшая гусеничная дробилка щековая руда для гравийной добычи строительный мусор дробление с сердечником экспорт двигателя Европа Америка
113 125,60 ₽
Высококачественная молотковая дробилка серии PC портативная каменной руды известняк базальт гранит новое состояние щековая подшипник шестерни
Установка для дробления камней карьерная дробилка продажи Гана
1 414 070,00-1 448 007,68 ₽

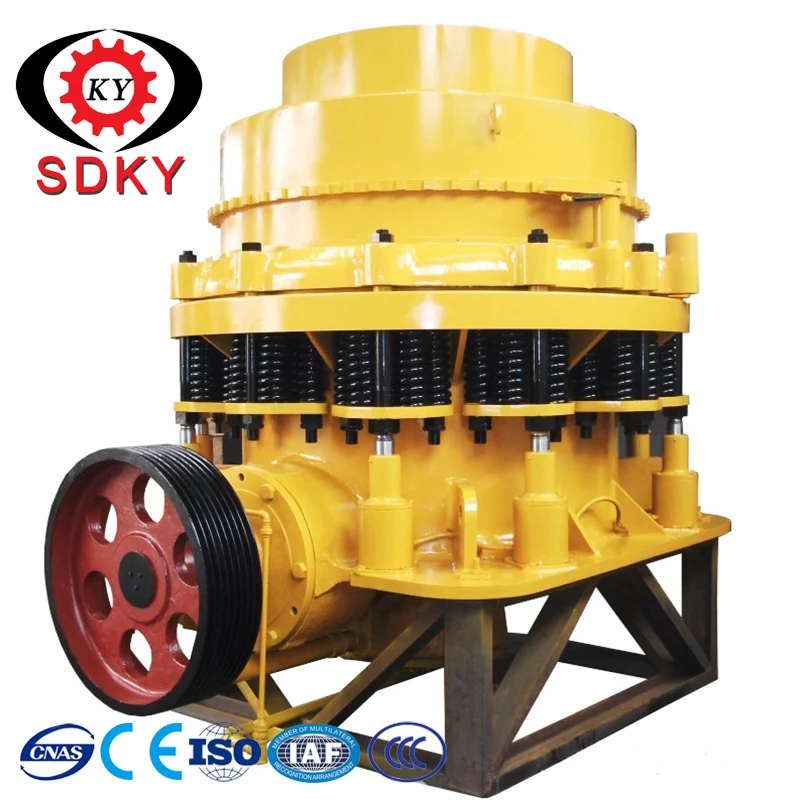

20-500 т/ч карьерная каменная дробилка/Конусная дробильная машина
