Настраиваемый пластиковый сварочный аппарат suyusonic для пайки горячей пластиной продажи
63 500,00-66 500,00 $

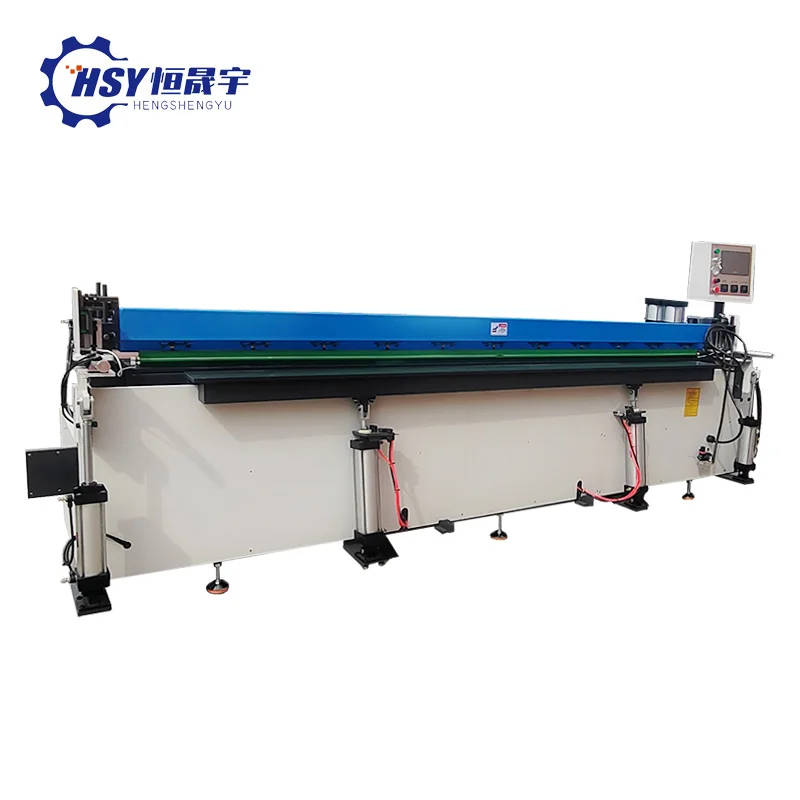

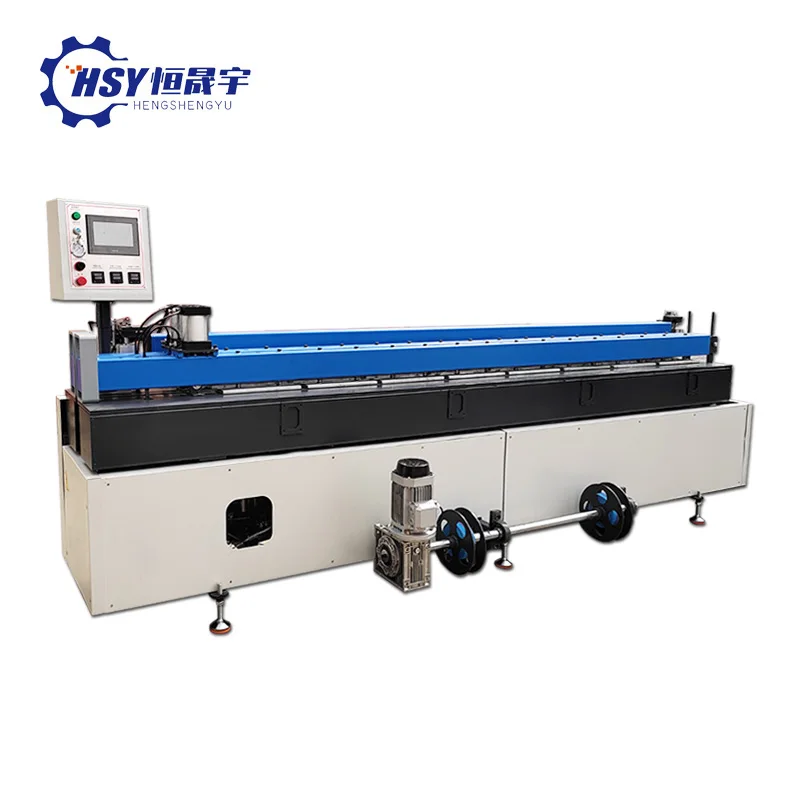

Гибочный и сварочный аппарат для гибки пластиковых листов 3 в 1 CNC прокатная труба пластиковая Стыковая сварочная машина
- Категория: >>>
- Поставщик: Qingdao Hengshengyu Machinery Co. Ltd.Qingdao Ltd.
Сохранить в закладки 1601304895654:
Описание и отзывы
Характеристики
Products Description
Heating element Taiwan imported heating knife, the surface is coated with Teflon;
Device equipped with automatic winding device mechanism;
Suitable material: PP, PE, PVDF, PVC, PPN, etc;
Suitable material: PP, PE, PVDF, PVC, PPN, etc;

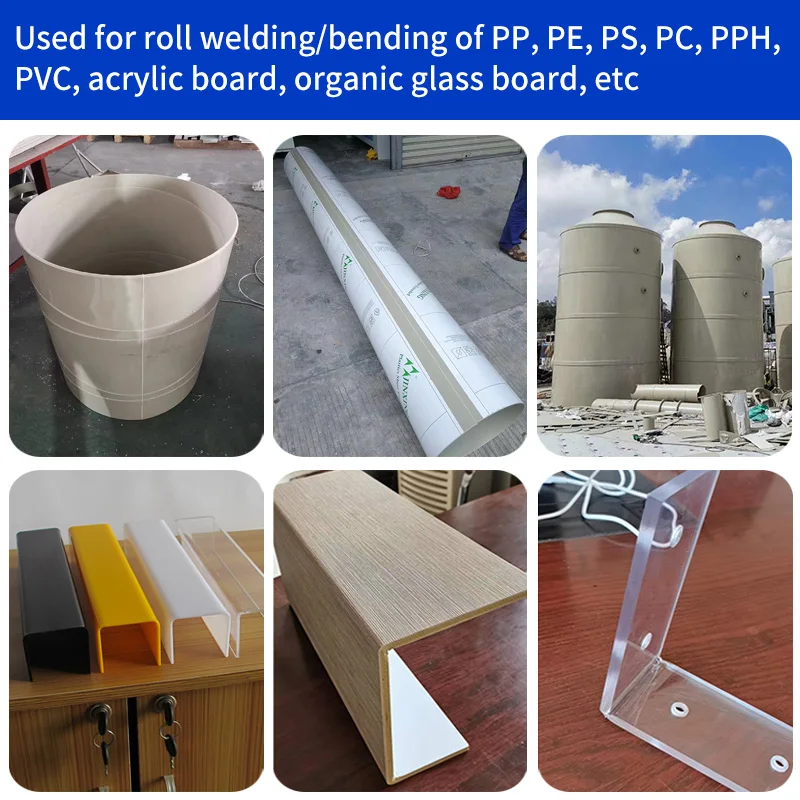

Scope of application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries;
Device equipped with automatic winding device mechanism;
Suitable material: PP, PE, PVDF, PVC, PPN, etc;
Suitable material: PP, PE, PVDF, PVC, PPN, etc;
Scope of application: electroplating equipment, environmental protection equipment, chemical containers, sewage treatment, piping, ventilation systems and other industries;
Product Specifications
Model | SY2000 | SY3000 | SY4000 | SY5000 | SY6000 | SY7000 | |||||
Processing Length(mm) | 2000 | 3000 | 4000 | 5000 | 6000 | 7000 | |||||
Butt-Fusion Thickness(mm) | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | |||||
Bend Thickness(mm) | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | |||||
Rolling Thickness(mm) | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | 3~50 | |||||
Range of Rolling Diameter(mm) | ≥360mm | ≥360mm | ≥450mm | ≥550mm | ≥600mm | ≥600mm | |||||
Range of Bend | 0~180° | 0~180° | 0~180° | 0~180° | 0~180° | 0~180° | |||||
Pressure of Air Supply | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | 6-8kg.f/cm² | |||||
Rated Voltage | 220V | 220V/380V | 220V/380V | 380V or customized | 380V or customized | 380V or customized | |||||
Heating Plate Power(weld) | 3.0KW | 4.5KW | 6.0KW | 7.5KW | 9KW | 10.5KW | |||||
Heating Plate Power(bend) | 7KW | 9.6KW | 12.4KW | 16KW | 20KW | 21KW | |||||
Power of Rolling Motor | 2.2KW | 4KW | 6KW | 7.5KW | 9KW | 11KW | |||||
Dimension (mm) | 3700*3200*1100 | 4700*3200*1100 | 5770*3200*1200 | 6860*3500*1250 | 7860*3550*1400 | 9060*3500*1450 | |||||
Application | Plastic Sheet/Board made from HDPE,PP,PVC,PVDF,PPS,PPN,PPH...... | ||||||||||

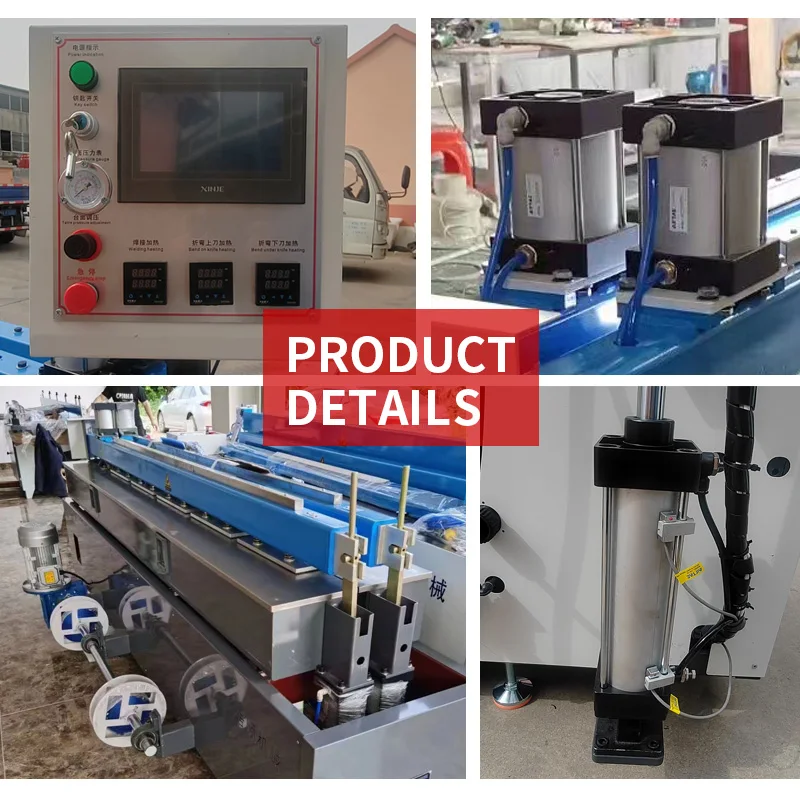

Product Details
Control panel
Adopting an automatic control system, the heating time, temperature, and pressure can be intelligently set according to the material and thickness of the sheet metal. The operation is simple, convenient, and reliable
Welding is perfect
Welding is beautiful and firm, with a PTFE coated heating knife that can be directly heated and welded without the need for welding rods. The plates melt and are assembled together, resulting in a smooth and beautiful interface with high welding strength and no weld leakage

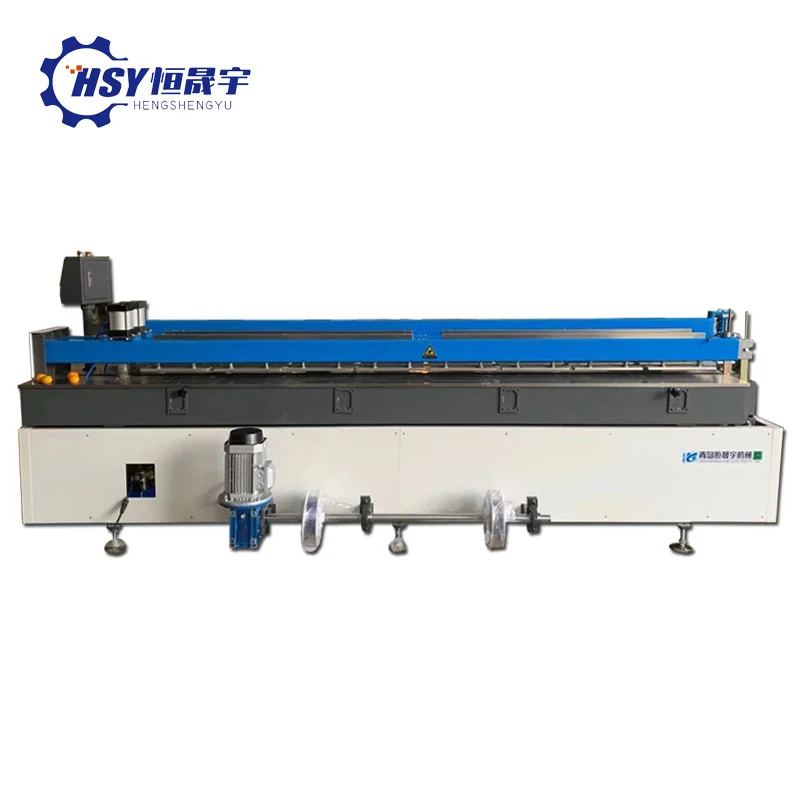

Rolling round motor
Adopting a motor buckle belt assisted rolling system to reduce manual labor intensity, using buckle belt to roll plastic sheets saves a lot of manual operation, and it is also easy to roll thick sheets
Pressure plate
The pressure plate adopts anti slip design, and the manganese steel tabletop is milled flat as a whole and then milled with anti slip patterns to make it difficult to slide when pressing the plate
Product Display
Why Choose Us
Qingdao Hengshengyu was founded in 2018, formerly known as "Qingdao Hengshengyu Machinery Co., Ltd." with a 30-year development history. It is mainly engaged in the research and development of metal deburring machines, flame cutting slag removal machines, flat wire drawing machines, metal sanding machines, woodworking sanding machines, water sandblasting machines, plastic processing welding bending equipment, acrylic bending and polishing equipment, etc. The company's headquarters is located in the West Coast New Area of Qingdao City, Shandong Province, with a factory area of 9000 square meters and more than 150 employees.
Our products have been exported to 60 countries and regions including the United States, Russia, Brazil, Argentina, Italy, Australia, Mexico, Denmark, South Korea, Malaysia, Vietnam, India, Poland, etc. Customers have given us high praise after using our equipment, and many of them have made multiple repurchases.
We mainly engage in professional customization of metal surface deburring equipment, woodworking board and other types of board surface polishing equipment, plastic welding, plastic bending and other equipment. After years of persistence and effort in metal surface grinding technology and automation equipment. The product is mainly used for sanding, grinding, deburring, polishing, drawing, etc. on metal surfaces. The fields of circular welding and plastic bending processing of plastic sheets. Customer first, daring to innovate "is the key to our success in the market. Professional, responsible, and shared "is the company's business philosophy. We hope to realize our value in society through the efforts of all employees of Hengshengyu Company.
Service
1. Installation video and User's Manuals and instructions with the machine.
2 .Remote training.
3. Overseas training
service, but the round-tickets and accommodation should be paid by client.
2 .Remote training.
3. Overseas training
service, but the round-tickets and accommodation should be paid by client.
AFTER-SALES SERVICE
1. Respond to the buyer's demand within 24 hours via email or the platform's official communication tool, and send relevant
documents or materials remotely.
2. Free replacement parts, delivery of parts within 48 hours (except imported parts or customized parts, subject to the parts list
agreed by the buyer and seller).
documents or materials remotely.
2. Free replacement parts, delivery of parts within 48 hours (except imported parts or customized parts, subject to the parts list
agreed by the buyer and seller).
Product packaging
WAREHOUSE
We will send you the picture of the machine you ordered, and then after you confirm, pack it in a standard export wooden box, and the packing of different machines will be different.
PACKING AND SHIPPING
We suggest to use export wooden case,carton packing, if it is a large machine and a production line machine, It will be directly packed in the container.
FAQ
Q: Do you have CE certification and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you Packing list/Sales contract for customs clearance.
Q: If we are interested in your machine, how do we choose?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you Packing list/Sales contract for customs clearance.
Q: How about warranty?
A: Please tell us your product information, then we can recommend the suitable machine to you.
Q. It's not convenient for me to go to China, but I want to see the condition of the machines
in the factory. What should I do?
A: If it's not convenient to come to China, our sales manager can take you to know the factory by online video conference.
