Гидравлическое давление для кварцевого мрамора/машина производства искусственных кварцевых каменных плит и прессовочной машины

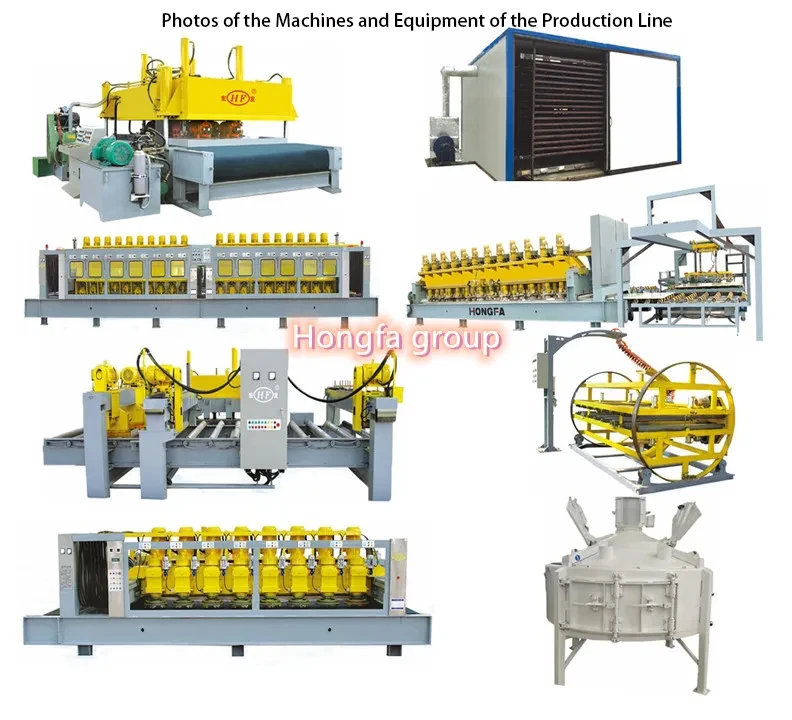

The layout of the quartz production line other equipments

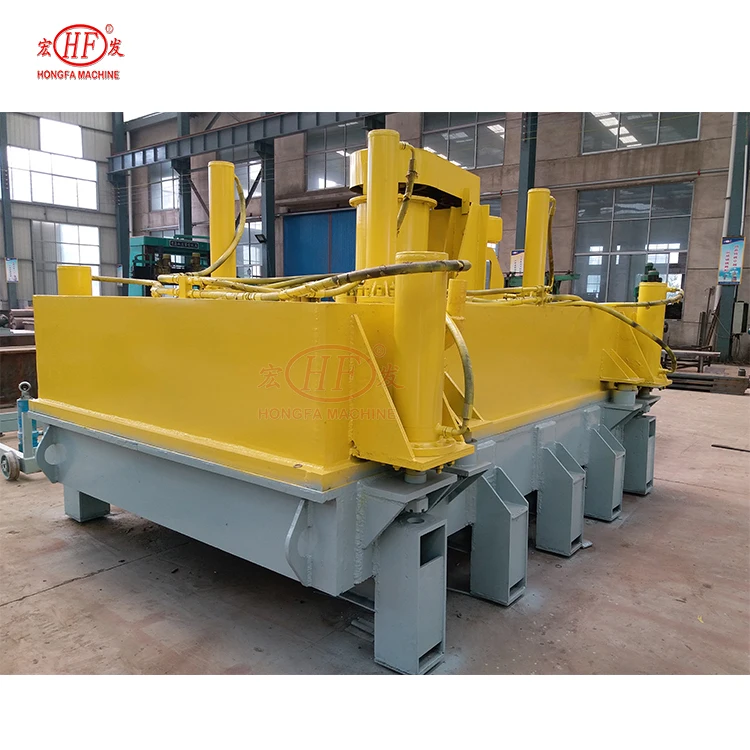

LY series Vacuum Vibration Pressing Machine is used to make bulk material Artificial quartz stone plate into blank plate.Pressing machine contains machine, vacuum box, vibration plate, vibration motor , oil cylinder lifting, cylinder pressure, transmission parts, vacuum parts, hydraulic electric control, etc., compared with external type compressor, it has advantages such as low power consumption, light weight , low cost, etc.Can do the maximum thickness of 60mm plate, three of the maximum width specifications of 1000mm, 1700mm and 1900mm.

It adopts energy-saving burner furnace with diesel fuel, and the box burner has been completely sealed so that it can heat up quickly. It can also heat 10 pieces plates at the same time, so it can save remarkable energy compare with other type. solidify furnace.(The common type furnace heated with heat plate and heat oil frame should heat the dozen steel plates to reach the solidifying temperature, the panel can power.So it will consume more power.) There are 10 levels in total and the solidify time is about 1-3 hours according to the thickness of the panel.This oven is suitable for the panel with 760*3000mm size and it mainly includes solidify box, burning room , wind tube, fan and layer weft

LX thickness gauge machine has unique structure, main shaft and guide rail. All part lubrication is automatic, controlled and displayed by computer. Splash, water and mist test condition is good. Osciallation and baud rate is adjustable. It is designed for the process of gauging the thickness before polishing the artificial quartz stone. There are three types: 4 Ends, 6 Ends, 8 Ends. It can make three kinds of quartz stone size 1m width, 1m, 7m, 1.9m.Range of the vertical stroke of the mower is 60mm, the maximum number of thickness of processable artificial quartz stone is 50mm

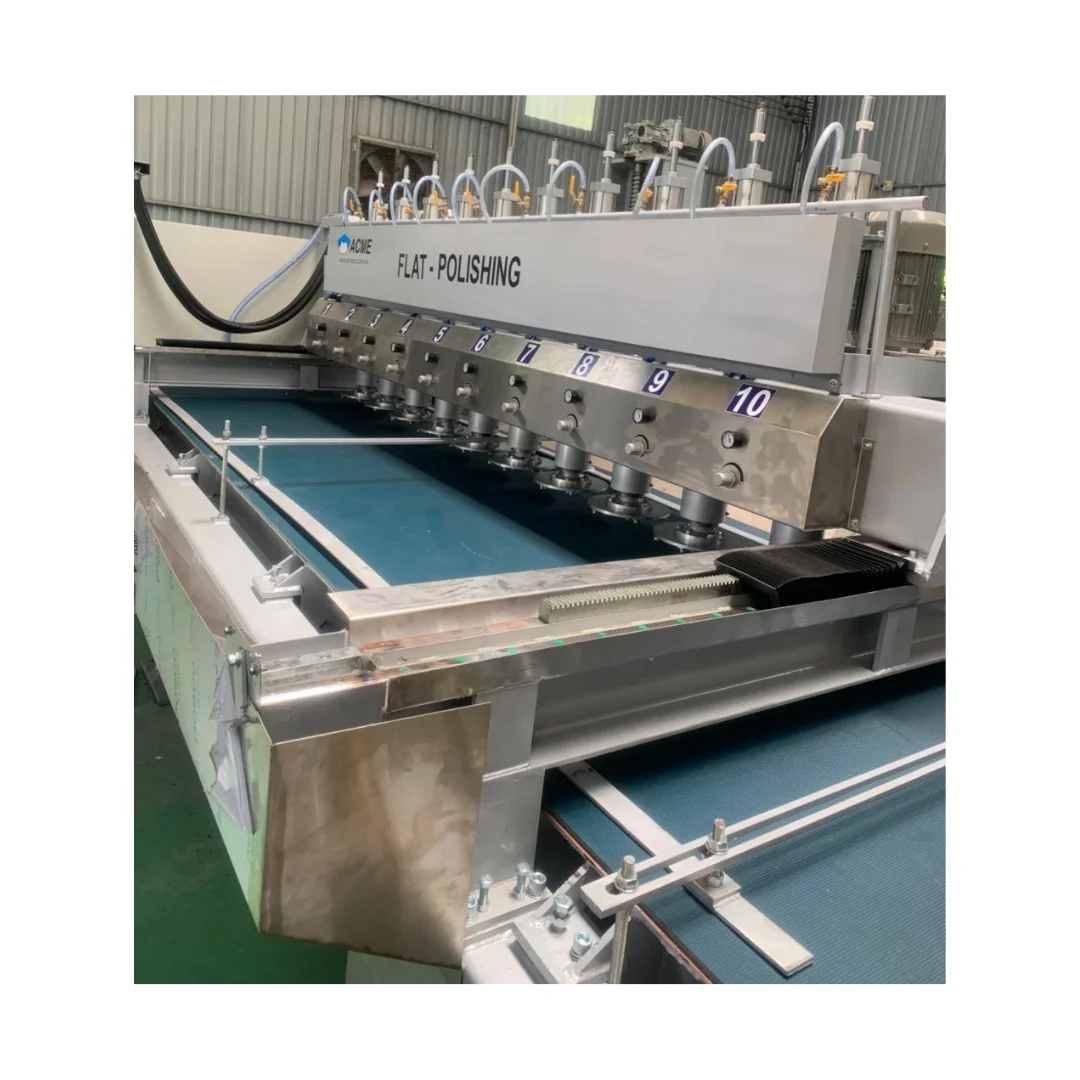

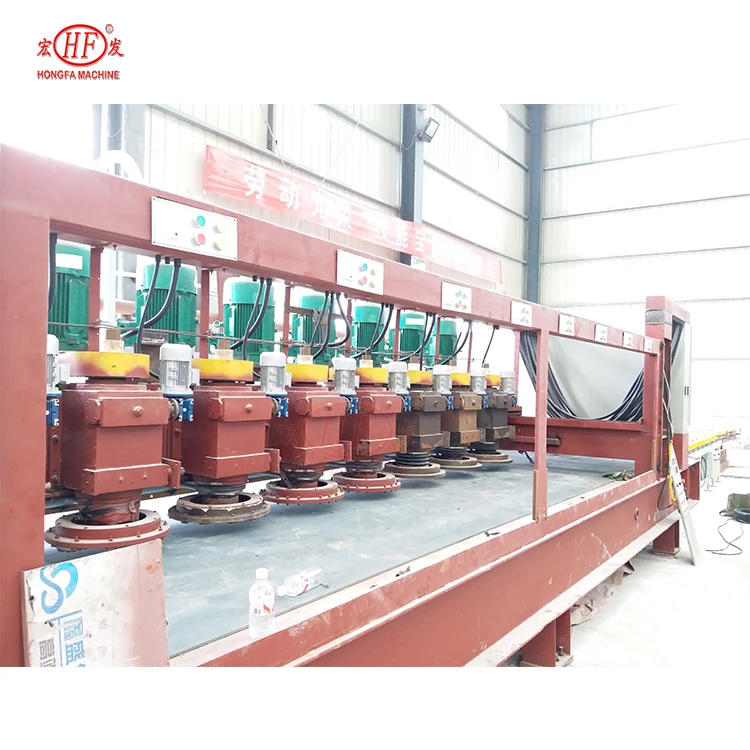

LM series continuous automatic grinding machine is used in the process of artificial quartz stone slab. There is no 4/12/16/20 machine heads size difference, and there is 1m / 1.9m / 1.7m width of most designed difference grind. The maximum lifting range of the machine head is 100mm, which allows 50mm plate thickness at most. The machine has been optimized and upgraded on the basis of the combination of advanced technology from domestic and foreign, which improves its shipping position in the field. and displayed on the computer, automatic alarm detection and reporting system on the status of plate and abrasive, excellent performance of water and mist resistance, adjustable speed of oscillation and dransmission, and be more convenient and safe to replace to grinding head.

separation and recycling of wastewater purification

The wastewater discharges from the processing converge the sewage into the tank workshop by the ditch. At the same time the liquid pool pour the precipitant and water according to the proportion into the prepared sewage pool, and then pour the pump sludge in the sewage tank. The chemical flocculation of the sewage liquid in the sewage tank can accelerate the precipitation, and the suspension of the liquid is divided into two layers, the upper part is clear and the lower part is cloudy. which pour sewage into the sewage tank, forcing the water overflow top into the water purifiers tank and lower the slurry pouring into the slurry pool intermittently. The water in the water tank after the second of the precipitation returns to the combined workshop cycle, and in the lower part of the tank precipitate the slurry pour the slurry into the pool. After the mud mix the mud into the hole, the pump pumping plunger to the filter pressure filter. The mud is formed to be filter cake in the room. Filter cake is delivered and the treatment of landfills .The clean water that is filtered by the pressure filter re-flows to the recycling workshop.

Our service

1. One year warranty after sale and lifetime service. To offer free space design, free technology support and free machine maintenance training.

2.We will provide you with a set of spare parts for free.

3. We have 4 artificial quartz slab production lines in our subsidiary plant, we will send 10 experienced workers to your country to assist your work get familiar with the whole production process.
