Product Overview
Boom Retracting Stroke Welding Manipulators Cross Column And Boom For 1m 1.5m 2m 4m 5m 8m 10m Tank Length
Advantages：Using digital control mode, it is convenient to operate, precise to control, and easy to control with other equipment.
Scope of Application：Wind power equipment, pressure vessels, petrochemicals, pipelines, steel structures, boilers, shipbuilding,surfacing repair, and many other industries.

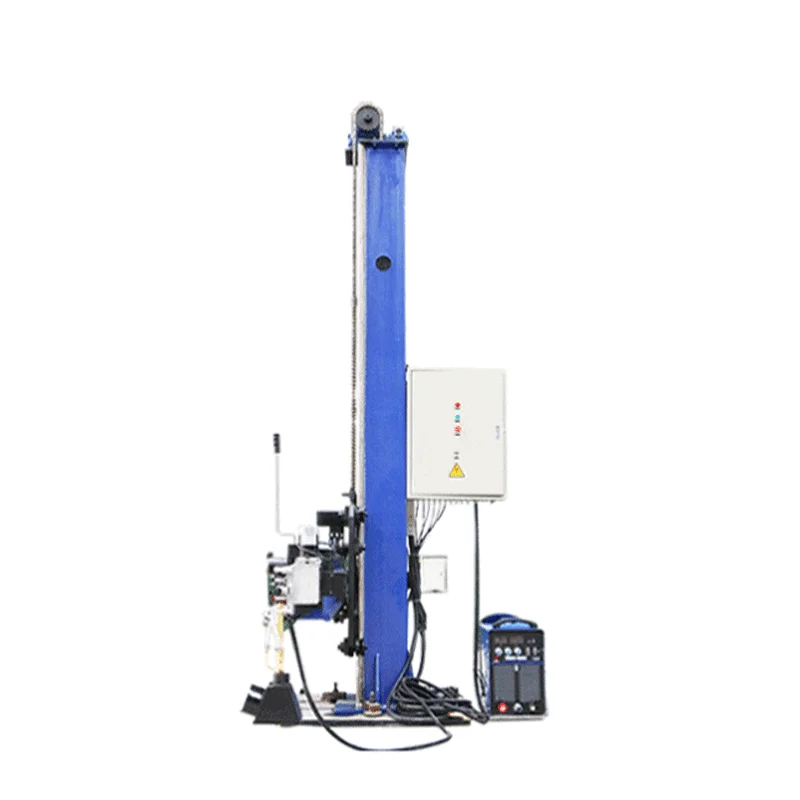

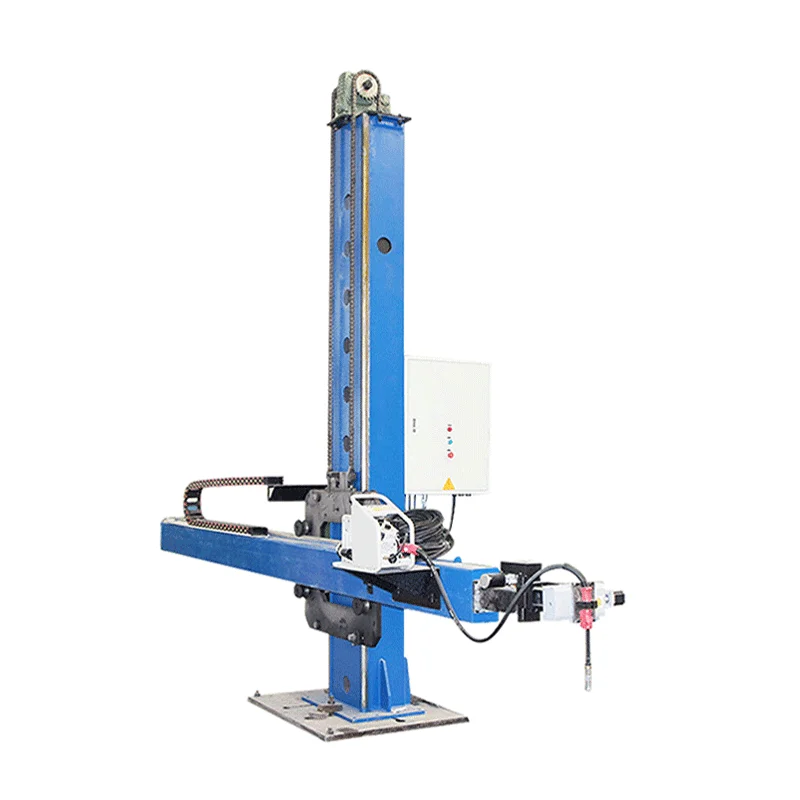

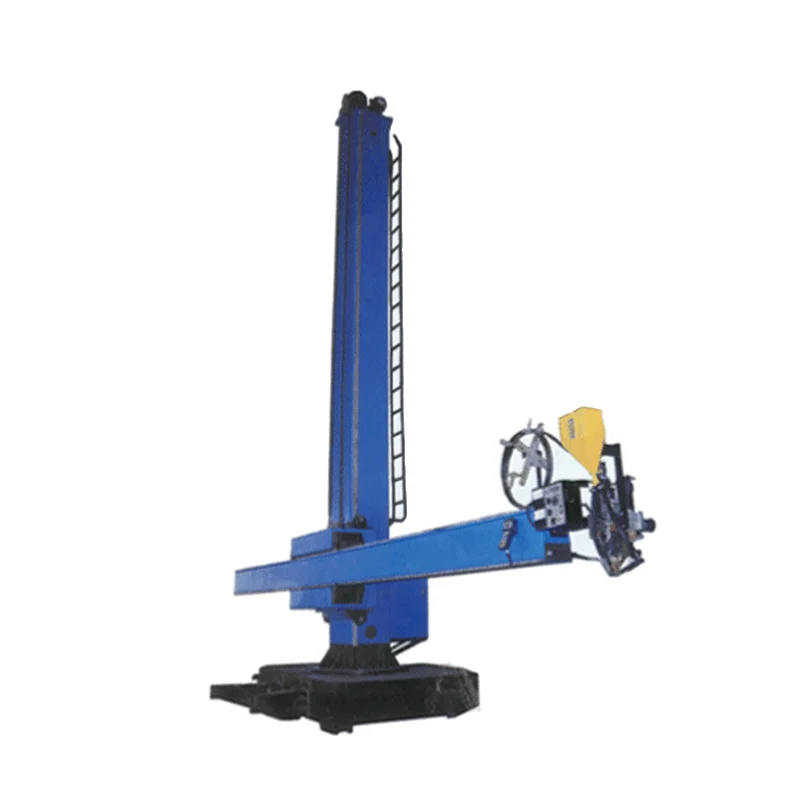

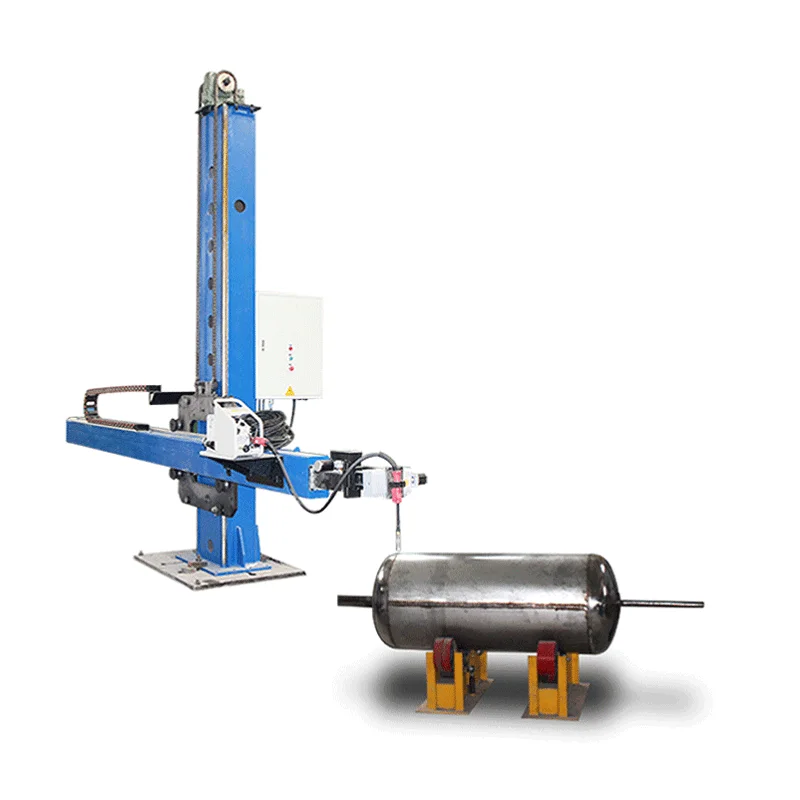

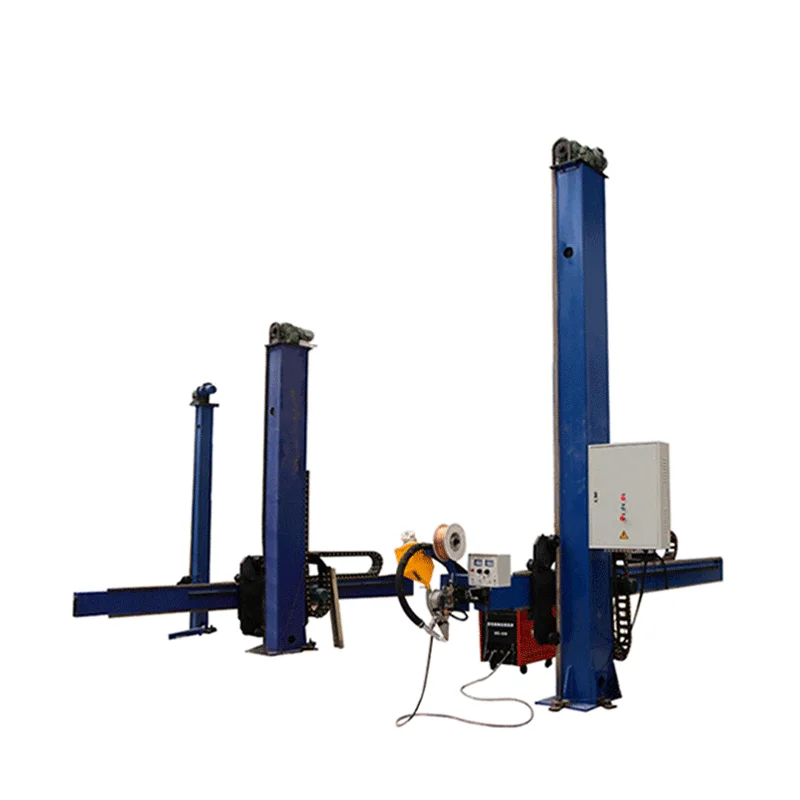

Brief Intro：The column and boom welding manipulator can perform various welding seams and various ways of welding on metal containers and metal welding structural parts.
Scope of Application：Wind power equipment, pressure vessels, petrochemicals, pipelines, steel structures, boilers, shipbuilding,surfacing repair, and many other industries.
Brief Intro：The column and boom welding manipulator can perform various welding seams and various ways of welding on metal containers and metal welding structural parts.
Details Images
Features:
1. The welding manipulator consists of a fixed base, a column member, a cross arm member, and a guide seat member. Cross arm lifting and telescopic driving parts, cross arm end cross fine adjustment parts, and other components.
2. The effective stroke of the transverse arm ensures that the weld to be welded can complete the longitudinal seam welding at one time.
3. The lifting stroke of the cross arm ensures the change of workpieces of different sizes to meet the circumferential seam welding of the workpiece.
4. The combination of the two together with the control and protection function can complete the action of the workpiece.
1. The welding manipulator consists of a fixed base, a column member, a cross arm member, and a guide seat member. Cross arm lifting and telescopic driving parts, cross arm end cross fine adjustment parts, and other components.
2. The effective stroke of the transverse arm ensures that the weld to be welded can complete the longitudinal seam welding at one time.
3. The lifting stroke of the cross arm ensures the change of workpieces of different sizes to meet the circumferential seam welding of the workpiece.
4. The combination of the two together with the control and protection function can complete the action of the workpiece.
Product Paramenters
The CNC column and boom welding manipulator can perform various welding seams and various welding methods on metal containers and metal welding structural parts. OUKA CNC automatic welding machine can weld the longitudinal seams of the inner and outer rings of diameter pipes, as well as the spherical heads.
There are two types of automatic operators: light and heavy. There are four types of structure: fixed type, fixed rotary type,
fixed-mobile type, and mobile rotary type.
The column and boom welding manipulator is the special equipment for automatic welding of the inner and outer circumferential seams, fillet welds, and inner and outer longitudinal seams of components, which is combined with the welding rotator, welding positioners, etc.According to the user's requirements, we can add an electric pallet, inner extension arm, manned device, and maintenance ladder.It can also be equipped with a welding seam tracker, welding oscillator, flux recovery device. The control system of the operator adopts the digital control mode, which is portable, precise, and convenient for linkage with other equipment.
There are two types of automatic operators: light and heavy. There are four types of structure: fixed type, fixed rotary type,
fixed-mobile type, and mobile rotary type.
The column and boom welding manipulator is the special equipment for automatic welding of the inner and outer circumferential seams, fillet welds, and inner and outer longitudinal seams of components, which is combined with the welding rotator, welding positioners, etc.According to the user's requirements, we can add an electric pallet, inner extension arm, manned device, and maintenance ladder.It can also be equipped with a welding seam tracker, welding oscillator, flux recovery device. The control system of the operator adopts the digital control mode, which is portable, precise, and convenient for linkage with other equipment.
Model No. | HC-2*2 | HC-3*3 | HC-4*4 | HC-5*5 | HC-6*6 | HC-7*7 | HC-8*8 | ||||||
Up/down stretching stroke of cross arm (m) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ||||||
Optional stretching stroke of cross arm (m) | 2-4 | 2.5-5 | 3-7 | 3-8 | 4-8 | 4-8 | 4-8 | ||||||
Rotating angle of the stand column(°) | ±180° | ||||||||||||
The up/down speed of cross arm(mm/min) | 850 | 1150 | |||||||||||
Expansion speed of cross arm(mm/min) | 140-1400 | ||||||||||||
Rotating speed of stand column(r/min) | 0.2 | ||||||||||||
The total load of cross arm | 100 | 200 | 300 | 400 | 500 | 600 | 700 | ||||||
Center to center distance of the track(optional) | 2000/2500 | ||||||||||||
Recommend Products
Company Profile
Since established, Shandong Ouka Intelligent Equipment Co., Ltd.. has focused on introducing and cultivating high-tech talents and takes it as development strategy at present, many professionals have been brought together who specialize in researching and developing of CNC welding and cutting equipment. technical strength is always cherished as core competitiveness of our company.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in theworld, including Australia, Indonesia, India, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During establishing the national brand of Ouka, we always hold the responsibility of culture communication between china and the world.
With constant efforts of all staffs, our products have been sold well in domestic market and exported to many countries in theworld, including Australia, Indonesia, India, Burma, Iran, Spain, Brazil, Peru, Russia, Azerbaijan, KZ, UZ, Sri Lanka, etc. During establishing the national brand of Ouka, we always hold the responsibility of culture communication between china and the world.
Product packaging
FAQ
1.When the machine can’t work well, What should I do?
(1)Engineer is online for 24-hours, they can check the problems and then give you solutions in two hours.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily. Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions andsolutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it. Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
(2)our machine is with one’s year warranty, If any problems of machine parts under “normal use”, new machine parts will be sent by air In free.
(3)Please rest assured that operation CD and manual will be offered along with the machine, making you can operate the machine easily. Professional engineering and technical personnel. We will provide you with reasonable and valuable Suggestions andsolutions according to your requirements, the engineering feasibility and economic benefit, etc.
Provide knowledge of equipment operation and maintenance, Allows you to accurately grasp the characteristics of the machine. one year warranty, life-long maintenance services through email or telephone. Please feel free to use it. Supply all kinds of accessories and replacements.
2. Does your company accept the customized offer, we have a special need.
Ouka CNC is a company that focuses on research and manufacture of modular CNC machines. We have very rich experience and strong machine tool research and development capability. We are very willing to offer you customized highly-efficient equipment as long
as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need. CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
as you have a certain amount of needs.
3. What certificate the machine in your company get?
We’ve passed the ISO9001 Quality System Approval and CE Certification.
4. Does your company accept CIF price?
CIF price includes the shipping cost of the CNC machine which needs to quote according to the different destination port and various in different months. Please contact us when you have such a need. CIF price also includes marine premium which is 2‰ of 1.1*total amount.
5. What are your methods of transportation?
For most countries, we will transport our machine by sea, as for inland countries, we may use railway or highway transportation. The exported CNC machine is all be packed by a wooden case which can be fixed into a 40 HQ.
6.If the machine is out-of-warranty, how to charge the cost of accessories?
For the out of warranty machine which needs to replacement parts, we will charge according to the parts quotation. If you have any questions, please email us for consultation.
7. Does MC have a maintenance manual and operation manual?
Each CNC machine leaving the factory will be along with a related series or model the English instructions including maintenance manual and operation manual. Attached documentation may also include CNC controller instruction, parts instruction you bought(like
a rotary table, oil cooler).
