Внесетевой ветряной генератор с горизонтальной осью от 100 кВт до 500 360 В выходным напряжением 220 для ветроэнергетических приложений

Описание и отзывы

Характеристики

The 100kw household variable pitch wind turbine system, as a high-quality small-scale wind turbine system, has enjoyed a good reputation abroad, especially in European countries such as Italy, France, the United Kingdom, Ireland, Austria, Poland, Denmark, etc. They praised the technical stability of our SWT-100KW variable pitch wind turbine. They are familiar with the operation of our pitch controlled wind turbine and the solutions for this type of wind turbine. Therefore, our products have won the favor of many European customers.In recent years, due to the low cost of solar panels in photovoltaic systems, this situation has also forced us to produce higher quality and cheaper wind turbines to meet current market demand, solve the market bottleneck of small wind turbines, and enable users to use better and higher quality small wind turbines at lower costs. This system enables users to afford variable pitch controlled wind turbines and install small variable pitch wind turbines.

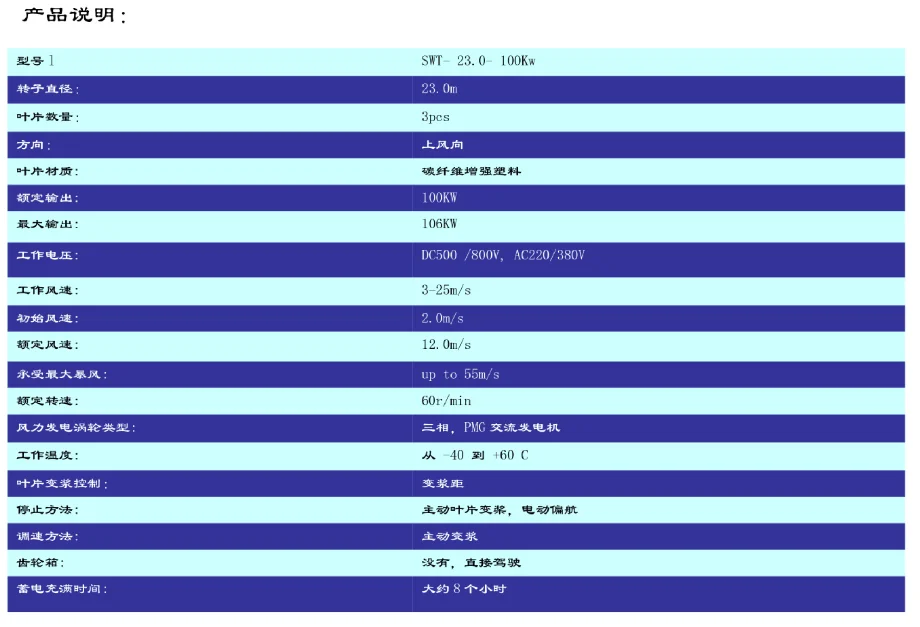

At the same time, it caters to photovoltaic systems and collaborates with them to build complementary wind solar systems, making the entire alternative energy system more complete and bringing more benefits to end-users, making customers feel that if they invest in alternative energy, they will no longer face risks.The SWT-100KW variable pitch wind turbine consists of variable pitch blades, permanent magnet generators, rotating bodies (including slip rings and mechanical braking devices), wind towers, brake switches, electrical controllers, battery packs, inverters, cables, etc., and adopts mechanical variable pitch technology.

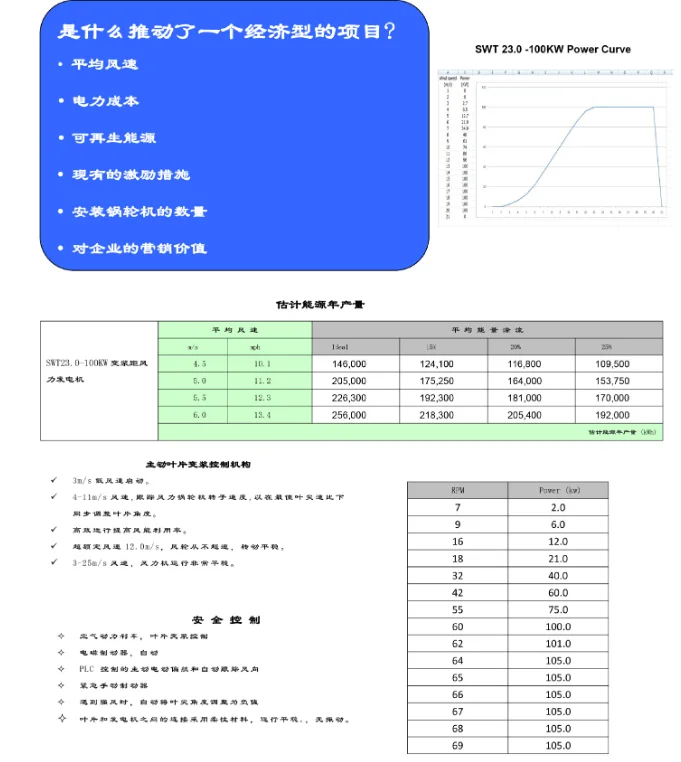

When the blades are stationary, they can be easily started; Once the wind speed reaches 3 meters per second, the rotor will begin to rotate. Within the wind speed range of 4-11m/s, driven by centrifugal force, the blades will gradually change their position and track relatively high lift to drag ratios to achieve better operating efficiency; When the blade rotates rapidly, the centrifugal hammer pulls the blade backwards to its original position, keeping the blade running at rated speed, with a maximum speed not exceeding 69r/min.Windward type, without trailing blades. All exposed components have undergone long-term effective anti-corrosion treatment to protect them.
