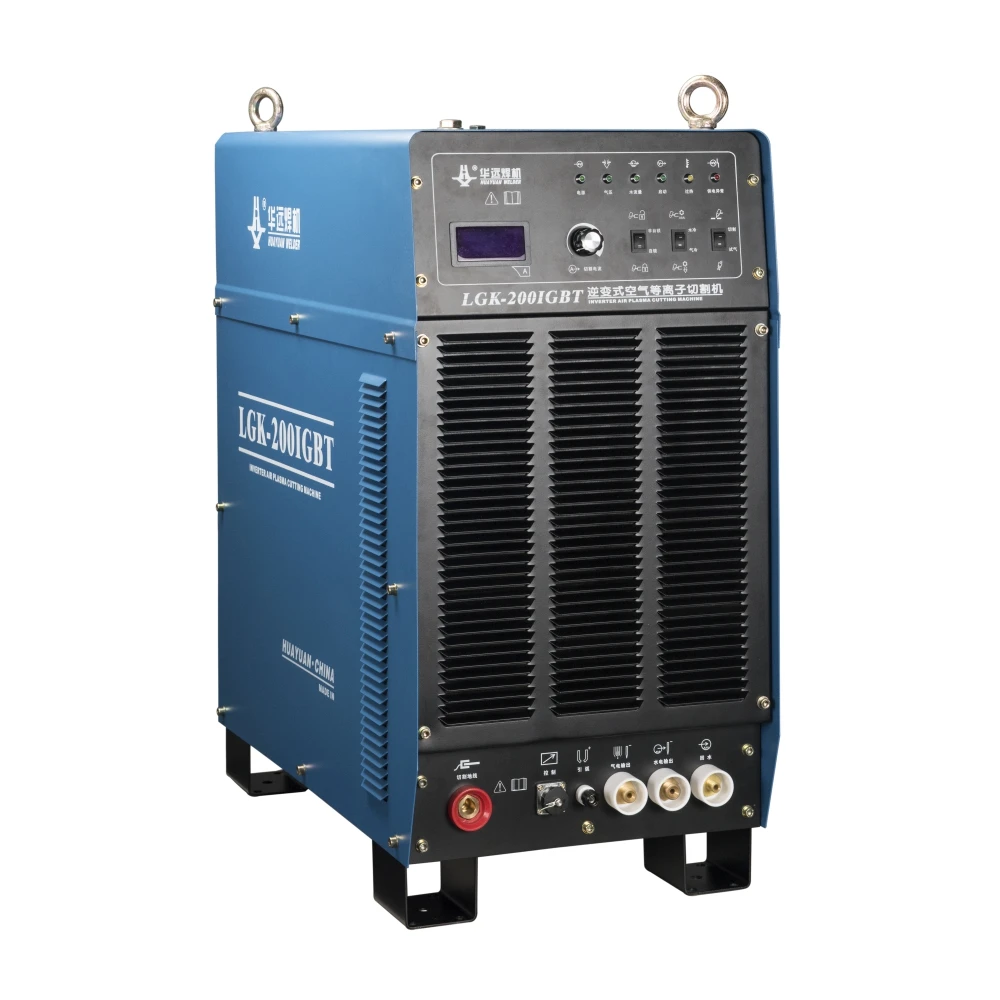

LGK 200IGBT горелка водяного охлаждения HFT300 плазменный резак тонкая резка для строительства и сварки новое состояние промышленного использования
- Категория: >>>
- Поставщик: Shenzhen Hafnium Technology Co. Ltd.Shenzhen Ltd.
Сохранить в закладки 1601306004552:
Описание и отзывы
Характеристики
Products Description

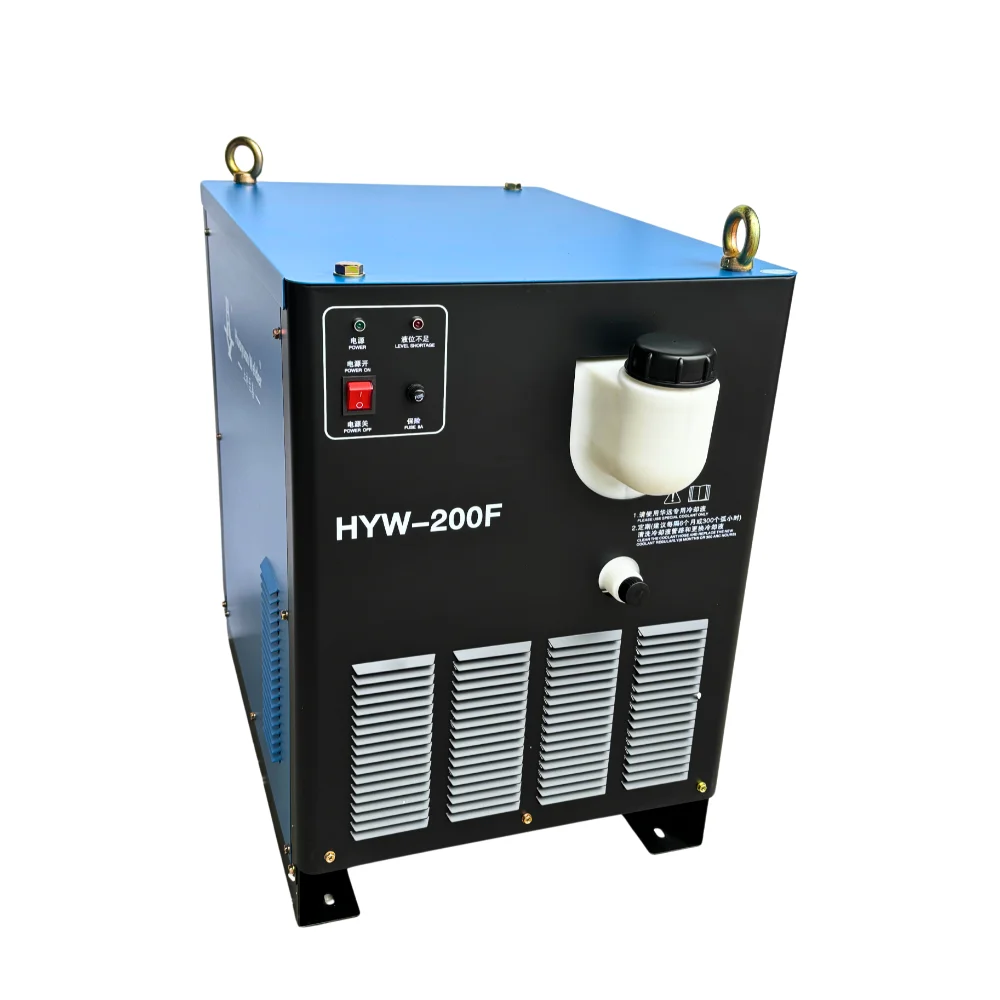

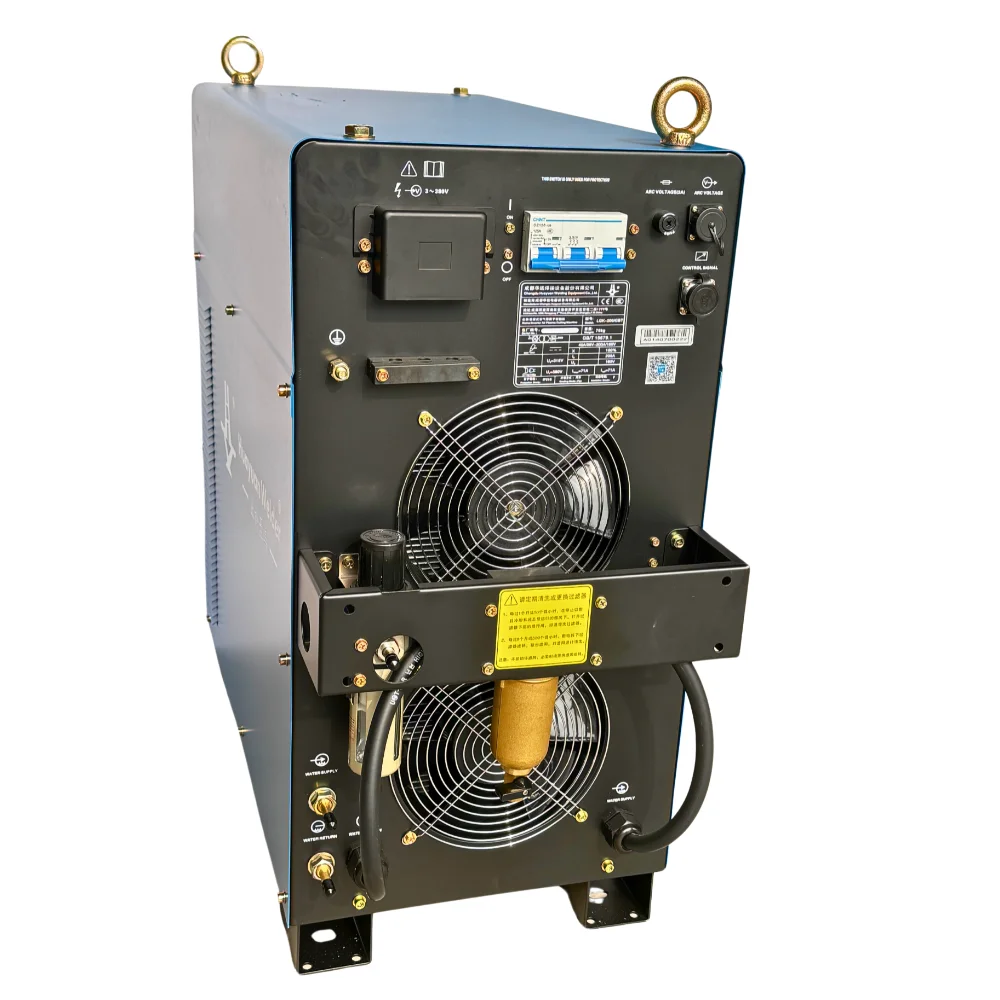

LGK-200IGBT + cooling tank + HFT300B water cooling machine torch 8m cable

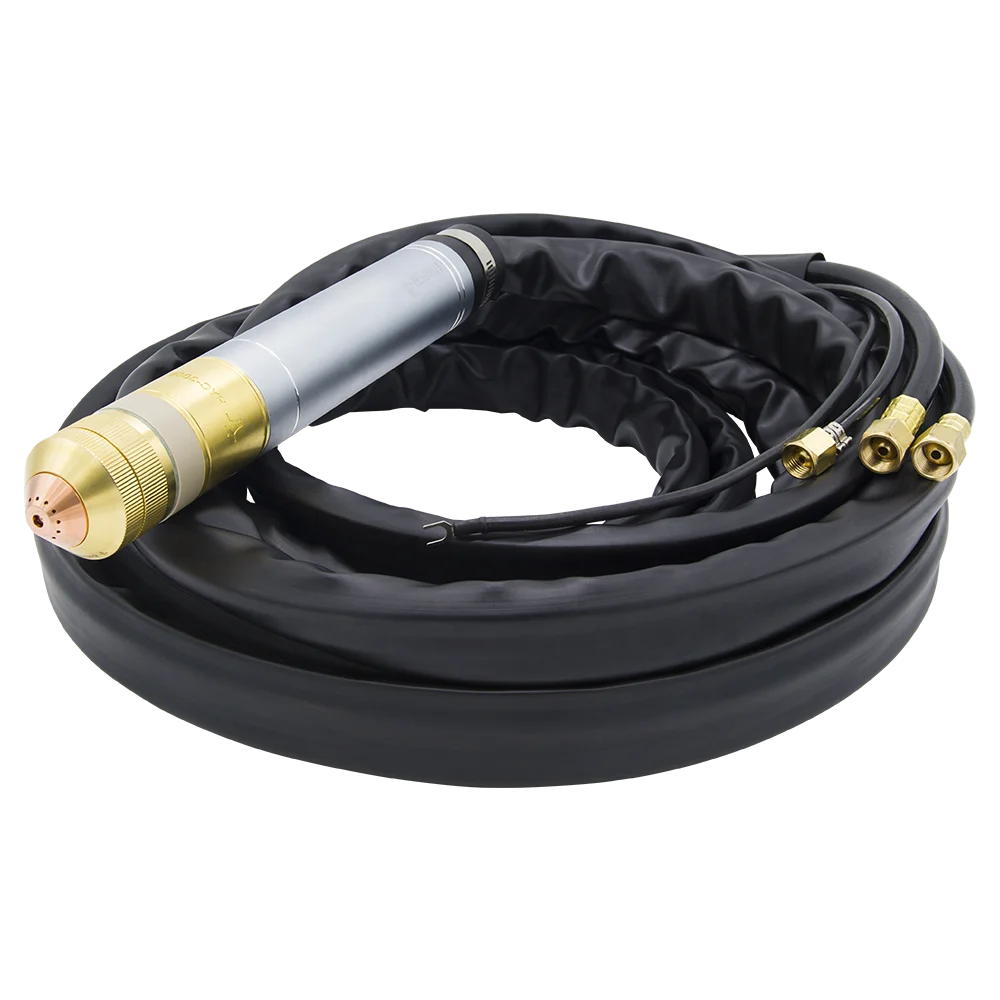

HFT300B water cooling machine torch 8m cable
HFT300B water cooling torch consumables
Widely used for shipyard building, bridge, pressure vessel, stainless steel, aluminum, copper and its alloy etc metal.
Stable output current
good grooving shape
Faster than air gouging machine Lower cost
Faster
Max Air gouging machine speed=1m/min ( 8mm carbon rod )
Max plasma gouging speed=1.5m/min (120A)
Lower cost
Plasma gouging samples are well formed, the grooving groove is uniform, and there is no sticky slag, which basically does not require
secondary grinding to save labor costs
Max Air gouging machine speed=1m/min ( 8mm carbon rod )
Max plasma gouging speed=1.5m/min (120A)
Lower cost
Plasma gouging samples are well formed, the grooving groove is uniform, and there is no sticky slag, which basically does not require
secondary grinding to save labor costs
Suitable most metal
Suitable most metal
Plasma gouging does not require carbon rod electrodes compared to carbon arc gouging, which reduces the consumption of consumables
and reduces the overall cost of use Compare to carbon arc gouging Weak arc, less smoke, and lower noise
and reduces the overall cost of use Compare to carbon arc gouging Weak arc, less smoke, and lower noise
Duty cycle 100%(40° )
Non-load Voltage up to380V
Good HF generator
Arc strike success rate
Arc strike success rate
Adopt dust-proof,moisture-proof and salt
spray-proof spraying process
spray-proof spraying process
Good air filter
With overload,input fault protection
Output with protection cap
Machine Torch (optional configuration)
If use on automation machine,choose straight torch YX200 or other model torch
Hand-held Torch (optional configuration)
If use manual cutting,choose handhold torch YX200 or other model
Packaging | ||||
Model | LGK-120IGBT-B | LGK-200IGBT-B | ||
Package | Plywood case | Plywood case | ||
Size | 725x410x750 | 850x500x980 | ||
Weight | 58kg | 105kg | ||
Product Paramenters
Item | Unit | LGK-120IGBT-B | LGK-200IGBT-B | |||||
Gouging | Cutting | Gouging | Cutting | |||||
Input Power | V/Hz | 3~380±15%50/60 | ||||||
Rated Input Capacity | KVA | 34.4 | 22.4 | 55 | 46.7 | |||
Rated Input Current | A | 52.3 | 34 | 83.6 | 71 | |||
Rated Output Current | A | 120 | 200 | |||||
Rated Output Voltage | V | 200 | 128 | 200 | 160 | |||
Rated Open Circuit Voltage | V | 380 | ||||||
Rated Duty Cycle | 100%(40℃) | |||||||
Output Current Adjust Range | A | 30~120 | 40~200 | |||||
Arc Voltage Output Ratio | 1:1/1:20/1:50/1:100 | |||||||
Quality Cut Thickness | mm | 0.3~25 | 1~45 | |||||
Severance Cut Thickness | mm | 45 | 65 | |||||
Plasma Gas | Compressed Air | |||||||
Air Pressure | MPa | 0.4~0.5 | 0.4~0.6 | 0.4~0.5 | 0.4~0.6 | |||
Torch Cooling Mode | Air Cooling | Water Cooling | ||||||
Power Source Cooling Mode | Air Cooling | |||||||
Insulation Grade | F | |||||||
Ingress Protection | IP21S | |||||||
Dimension(L×W×H) | mm | 675x320x605 | 800x380x810 | |||||
Net Weight | Kg | 48 | 83 | |||||
Company Profile
Manufacturing Process
Exhibition & Customer Visit Company
Package&Delivery
Aftersales Service
FAQ
Q1: Can you customize welding and plasma cutting torches?
A1: Yes, customization is common. We support OEM and ODM services for torches and can customize cable lengths, branding, or even the torch design to suit specific needs
Q2: What is the delivery time and minimum order quantity (MOQ)?
A2: Delivery times varies from 3 to 30 days, depending on order size and customization requirements. MOQs can vary, with some models available for as low as 1 piece (ideal for sampling), while bulk orders might have higher MOQs for discounted pricing.
Q3: What payment and protection options are available?
A3: Alibaba Trade Assurance is a common protection, ensuring secure payments and quality control. Buyers can also use secure payment options, such as SSL-encrypted transactions, with refunds available in case of issues.
Q4: Where is your factory located? How can I visit there?
A4: Our factory is located in Yiyuan City, Shandong Province, China. You can visit us by air or by the high-speed train. All the customers, from domestic China or abroad, are warmly welcome to visit us!
Q5: What's the quality of your products?
A5: We are very focused on the quality of the products. We are ISO certified manufacturer. Our CNC plasma cutting machines are built to last. Each machine is carefully assembled by experts out of the finest materials.
Q6: What shall we do if don't know how to operate your machine after bought from you?
A6: We have detailed installation and operating instructions attached, also comes with detailed video instructions. What’ more ,we have experienced engineers on call 24 hours to support you.
Q7: What are your payment terms?
A7:We support T/T, L/C and so on. We also accept other payment terms upon agreement.
Q8: All products have a warranty?
A8:YES, Our warranty term is One Year.
A1: Yes, customization is common. We support OEM and ODM services for torches and can customize cable lengths, branding, or even the torch design to suit specific needs
Q2: What is the delivery time and minimum order quantity (MOQ)?
A2: Delivery times varies from 3 to 30 days, depending on order size and customization requirements. MOQs can vary, with some models available for as low as 1 piece (ideal for sampling), while bulk orders might have higher MOQs for discounted pricing.
Q3: What payment and protection options are available?
A3: Alibaba Trade Assurance is a common protection, ensuring secure payments and quality control. Buyers can also use secure payment options, such as SSL-encrypted transactions, with refunds available in case of issues.
Q4: Where is your factory located? How can I visit there?
A4: Our factory is located in Yiyuan City, Shandong Province, China. You can visit us by air or by the high-speed train. All the customers, from domestic China or abroad, are warmly welcome to visit us!
Q5: What's the quality of your products?
A5: We are very focused on the quality of the products. We are ISO certified manufacturer. Our CNC plasma cutting machines are built to last. Each machine is carefully assembled by experts out of the finest materials.
Q6: What shall we do if don't know how to operate your machine after bought from you?
A6: We have detailed installation and operating instructions attached, also comes with detailed video instructions. What’ more ,we have experienced engineers on call 24 hours to support you.
Q7: What are your payment terms?
A7:We support T/T, L/C and so on. We also accept other payment terms upon agreement.
Q8: All products have a warranty?
A8:YES, Our warranty term is One Year.
Похожие товары
Машина для плазменной резки Huayuan LGK-100P1/120 P1 ручная машина
756,00-768,60 $

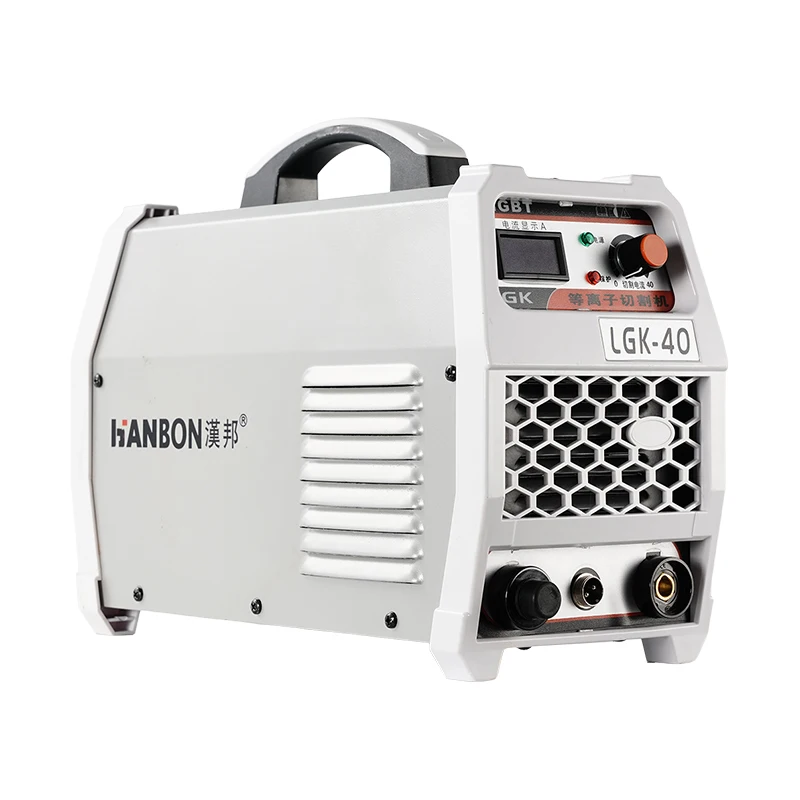

Цифровой инвертор плазменной резки LGK-40 воздуха плазменный резак с низкой ценой
76,00-79,00 $

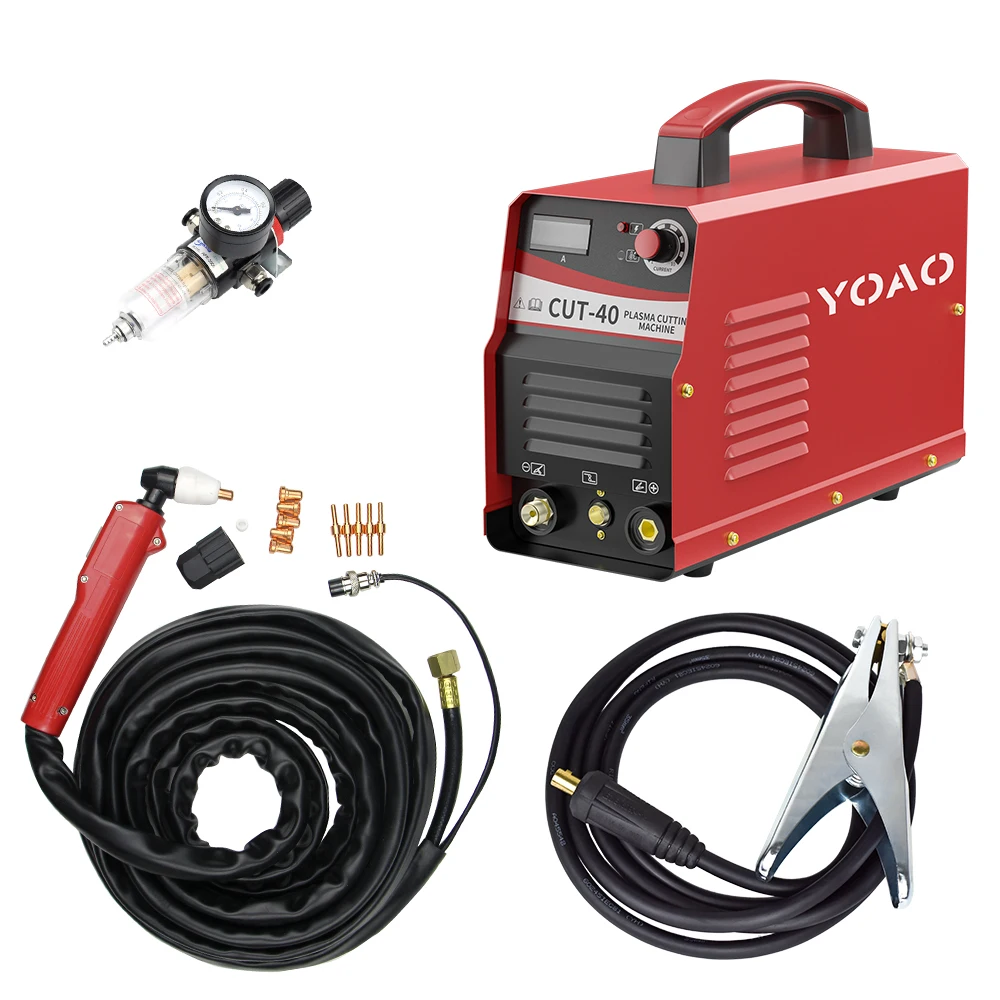

YOAO Perfect Power Plasma Cut 40 IGBT инверторный плазменный резак 40a
130,00 $

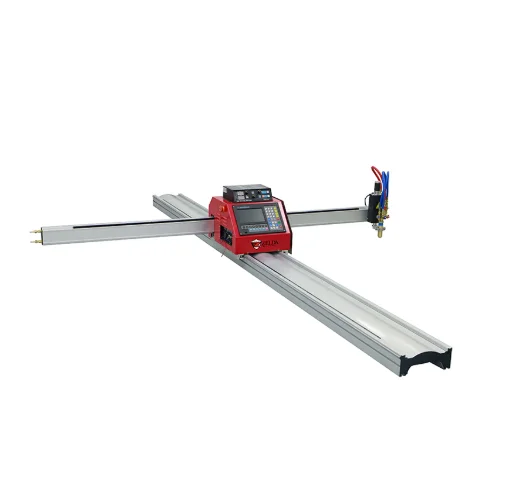

Простота в эксплуатации 1500x3000 мм Smart CNC плазменная резка пламенная Резка плазменные резаки для продажи
1 276,00-1 340,00 $

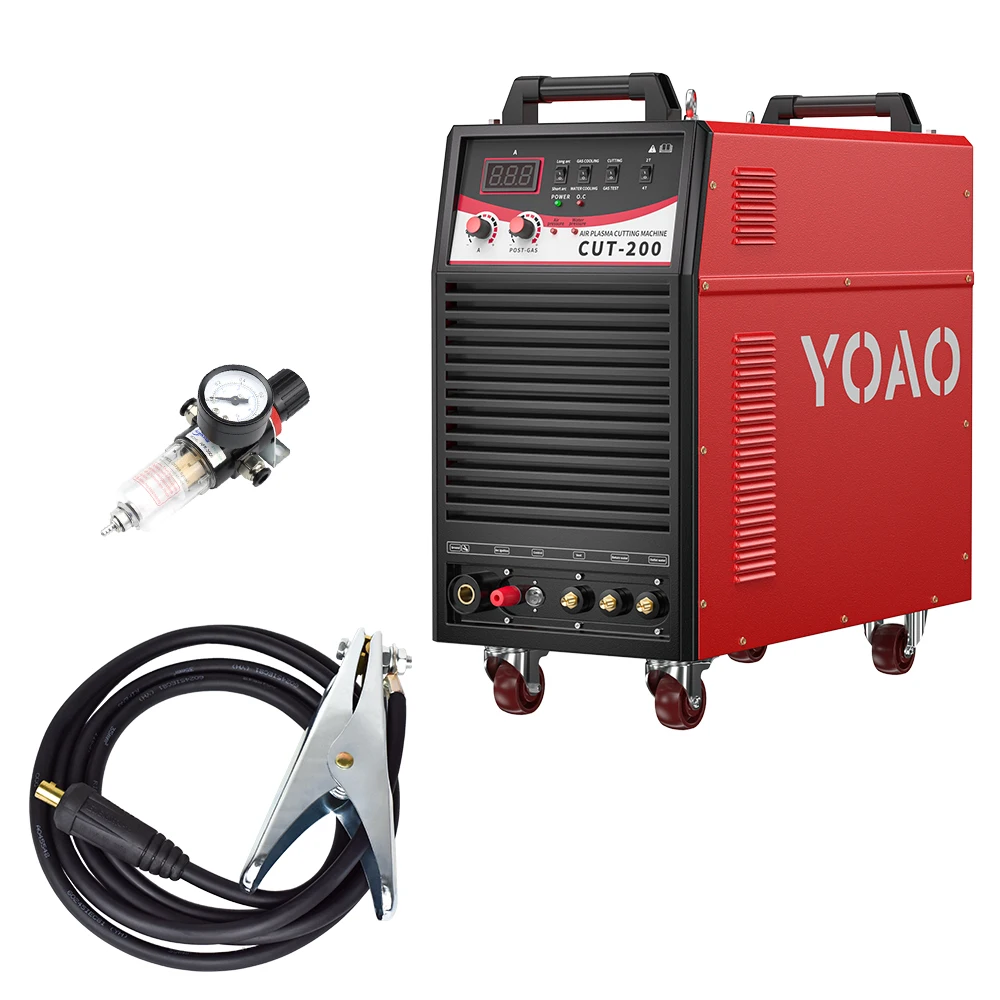

Заводская цена 100 Ампер плазменный резак CUT-100A плазменной резки 3 фазы 380 В 120A воздушный 40 мм
256,00-260,00 $
Плазменный резак с 200 управлением ручной плазменный
1 088,00 $

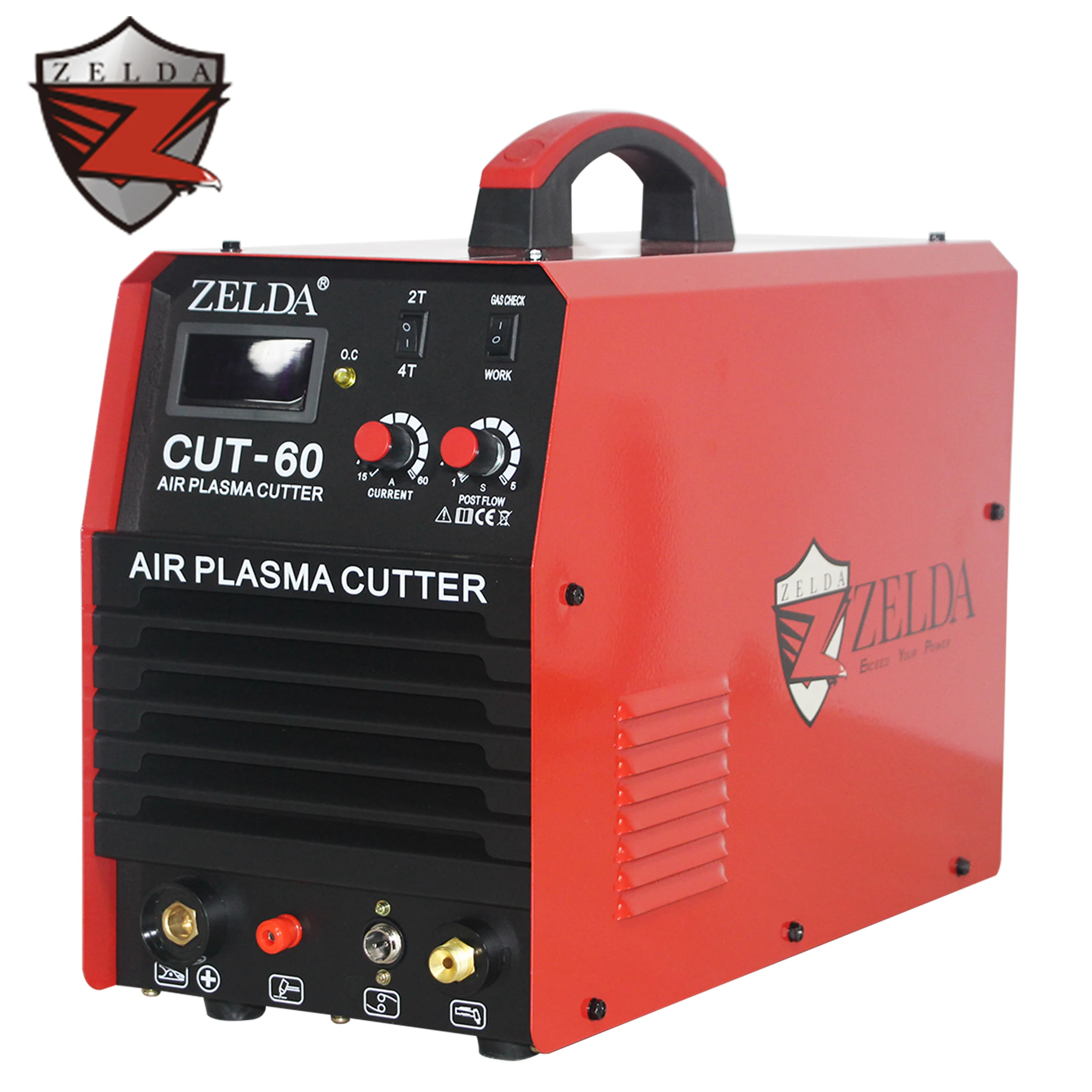

Термозащищенный портативный плазменный режущий резак 60 220 В dc инвертор для алюминиевой латунной меди б/у новые плазменные резаки
