Specification

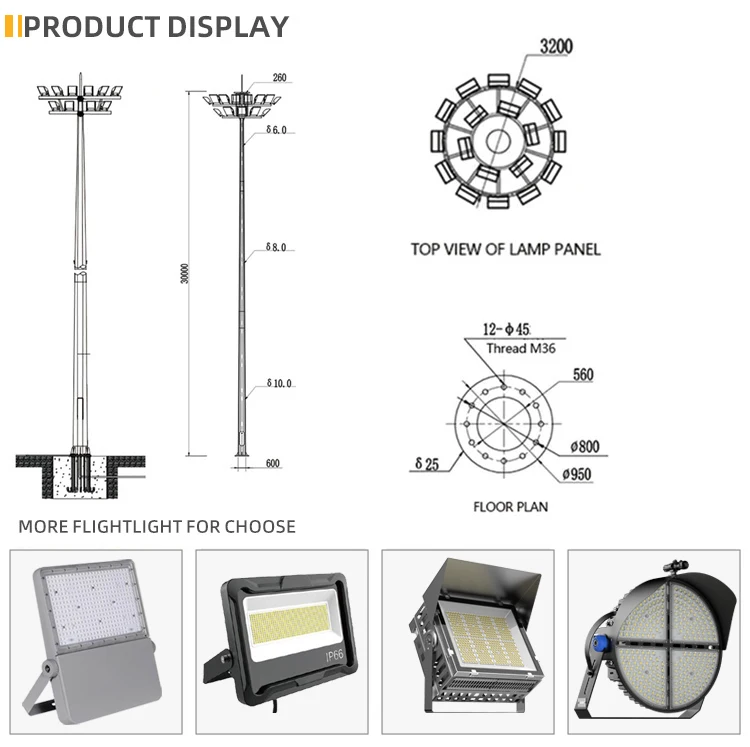

Hot-dip Galvanized 15M~40M High Mast Light Pole Technical Data


Common High Mast Light Pole Diameter
Application
Airports,docks,square,intersections etc.
Material
Q345B/A572,Q235B/A36,Q460,ASTM573 GR65,GR50,SS400,SS490,ST52
Height
15m
20m
25m
30m
40m
Dimensions (d/D)
120mm/280mm
220mm/ 460mm
240mm/520mm
280mm/600mm
300mm/700mm
Thickness
5mm+6mm
6mm+8mm
6mm+8mm+10mm
8mm+8mm+1 0mm
6mm+8mm+1 0mm+12mm
LED Power
200W x 6
200W x12
300W x 12
400W x 16
1000W x 12
Surface treatment
Hot-dip Galvanized and Electrostatic Spraying, Rust Proof, Anti-corrosion performanceClass ll
Shape Type
polytagonal pole
Stiffener
With big size to strength the pole to resist the wind
Powder coating
Thickness of powder coating>100um.Pure polyester plastic powder coating is stable, and with strong adhesion & strong ultraviolet ray resistance.
Wind Resistance
According to local weather condition, General design strength of wind resistance is2150KM/H
Price
Professional Team




Key Takeaways
Customization and Efficiency: High mast light poles are engineered to meet diverse requirements acrossvarious applications, offering tailored solutions for efficient and effective illumination.
Advanced Technology: Modern high mast light fixtures leverage LeD technology to minimize servicerequirements,reduce maintenance costs, and enhance overall performance.
Safety and Accessibility: HENGTONG prioritizes safety and accessibility in high mast light pole design, providing convenient access for maintenance while minimizing disruptions to surrounding areas.




Types

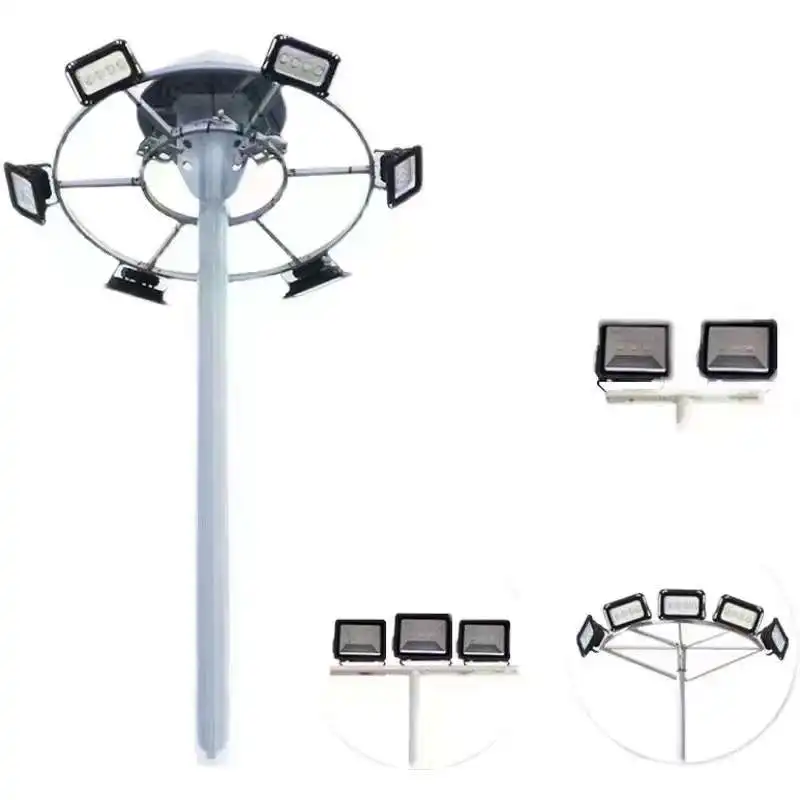

The high mast light pole have different types, we can install all the lights in one direction or install in a circle direction. Also, it can use the lifting system or fixed ladder, We can design it as your request.


To assure our Poles qualified, we take steps as follows :

A.Management team:
We have a professional design team to
provide service for customers. Provide
design drawings.

B.Certificate provided.

C.QC Inspection:
We have an inspector team to inspect thewhole production line, and each pole
should be inspected in accordance
with the drawing,to make sure all poles
are passed before delivery.

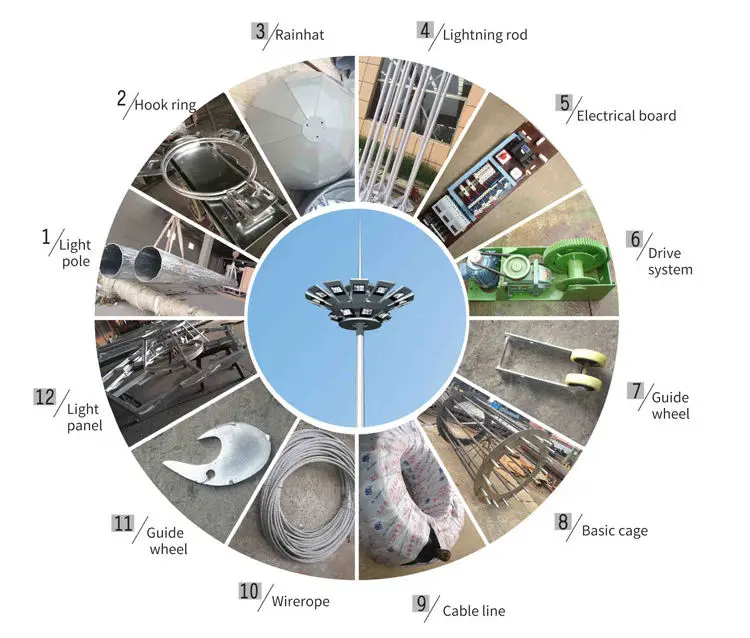

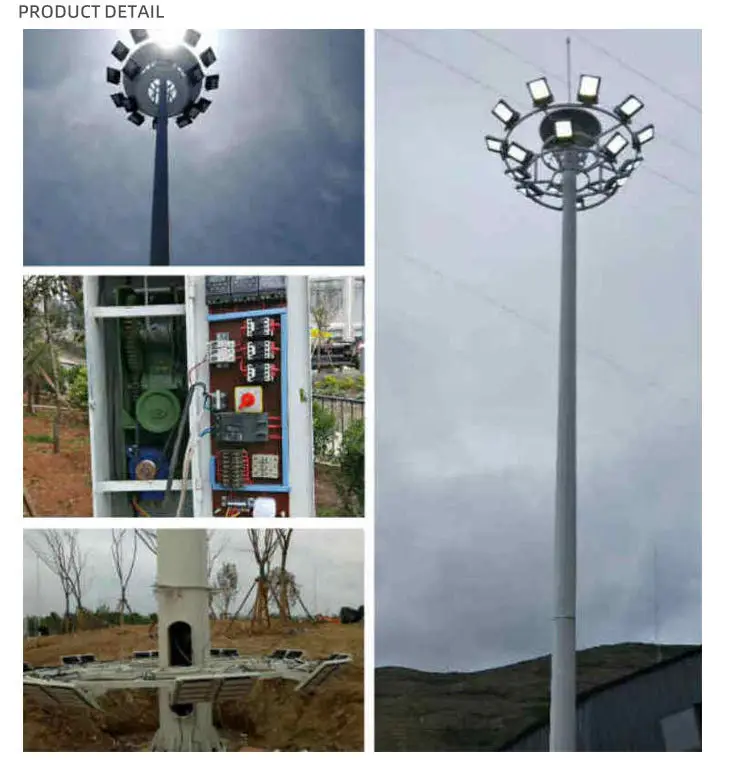

The configuration of high mast light pole with lifting system
1. The shape usually are dodecagon or octagonal conical pole, by high strength steel plate after cutting,bending, automatic welding, the general height is 25m, 30m and 35, the maximum wind resistance design of up to 60 m/s.
2. In the functional framework, but also to decorative materials mainly to steel, steel pipe, lamp post, lamp plate are hot dip galvanizing.
3. Electric lifting system consists of electric motor, winch, three sets of hot dip galvanized steel wire rope and cable and so on. The inside of the lamp post is mounted with a lifting speed of 3 to 5 meters per minute.
4. The guiding and unloading system is composed of guide wheel and guide arm to ensure that the lamp platedoes not move transversely during the lifting process. When the lamp plate is in place, the lamp plate can beautomatically dropped and locked by the hook.
5. Lighting electrical system is equipped with 6 to 24 lamps, 400w, 1000W, metal halide (white light), light andfloodlight. The computer time controller can automatically control the switching time, part lighting or fullilumination.
6. Lightning protection system: the lamp top is equipped with 1.5 meters long lightning rod, the undergroundfoundation is equipped with 11 meter long grounding wires and is welded with the underground bolt.







Advantages
* Short Construction Cycle
* Less Land Occupation
* Low Overall Cost
* Easyinstallation and Maintenance
* Weather Resistance
* Anti-corrosion
* ODM & OEM are available
* Capable to Handle Volume Orders
* Provide Professional Design by Our Experienced R&D Engineers







High Mast Light Poles Options
When it comes to high mast light poles, there's no one-size-fits all solution. Each pole must be meticulously engineered to meet a myriad of requirements, ensuring optimal functionality, safety, and durability in diverse environments.
At HENGTONG, we understand the importance of customization and offer a range of options to tailor high mast poles to your specific needs.
While high mast light poles can range in height from 30 feet to towering heights of 240 feet, it's essential to select the right height for your application. Factors such as the area to be iluminated, local regulations, andaesthetic considerations all play a role in determining the appropriate height of the pole.
Engineering considerations
Beyond height, numerous engineering factors come into play when designing high mast light poles. Theseinclude wind speed calculations based on the location's geographical features, soil conditions, and temperaturevariations. Each pole must be structurally sound to with stand the forces exerted by wind loads andenvironmental conditions
Service Requirements
High mast poles serve as platforms for mounting lights and other equipment, necessitating carefulconsideration of service requirements. This includes ensuring adeguate access for maintenance and inspection,as well as accommodating the electrical and mechanical needs of the installed fixtures and accessories.
Customization Options
HENGTONG offers a wide range of customization options to meet your specific requirements. Whether you need specialized coatings for corrosion resistance, integrated electrical conduits for seamless installation, ormounting brackets for additional equipment, we have the flexibility to accommodate your needs.




Company Profile










Why Our HDG Pole Is Your Best Business Decision?

1. Longevity That You Can Count On Imagine not having to worry about component replacement for years. Our hot-dip galvanizing poles ensures an extended 20+ years lifespan, giving you peace of mind and reducing your long-term costs.

2. Corrosion Resistance for Your Toughest Projects
Do you operate in harsh environments? Our corrosion-resistant features ensure that our poles withstand the elements, not matter by seaside or desert, making your projects resilient and long-lasting.

3. Safety and Reliability You Can Trust
Your public safety is our priority. Our galvanized pole meet and exceed industry safety standards, not matter wind ressistance or earthquake ressistance, ensuring that you can execute your projects with complete confidence.

4. Customization That Meets Your Specific Needs
Do you have unique project requirements? Our customizable features and breakthrough design ablility adapt to your specific needs,offering you unparalleled flexibility.

5.Global Reach for Your International Operations
Are you expanding your operations globally? With a strong presence in key export markets like the Middle East and Southeast Asia market, we ensure seamless logistics and supply chain efficiencies.
So, ready to make a smart business decision? Contact us now for a consultation.


FAQ


Q1: Are you a manufacturer ?
HENGTONG: Yes, we have our own factory with over 20 years R&D and manufacture experience.

Q2:Do you accept OEM/ODM?
HENGTONG: Yes, we 're factory with standard production lines to fulfill different requirements from our clents.

Q3.What about the lead time?
HENGTONG: 5-7 days for sample order, 15-25 days for mass production order base on order quantities.

Q4: How do you ship the goods and how long does it take to arrive?
HENGTONG: Sample shipped by DHL, UPS, FedEx ,TNT etc. it usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: How to proceed an order for Stadium Light ?
HENGTONG: Firstly, please let us know your detail requirement and application environment,secondly we wilrecommend some suitable products and solutions to you according to your request.
Thirdly, after confirm all the details, customers wiLl issue the purchase order and make the payment to confirm, then we start for the production and arrange the shipment.

Q6: What's your service with your product?
HENGTONG: We have a strong after-sale service team for our product and any of your project with 7*24hours.


HENGTONG -Experienced supplier in street lighting industry for 20+ years.
OEM/ODM service are available,welcome custom sample order.
Thanks for your attention on our Street Light Pole.
