BME 6 геокомпозитный дрель высокоизносостойкий резьбовой хвостовик для сверления металла

BME 6 геокомпозитный дрель высокоизносостойкий резьбовой хвостовик для сверления металла

Категория: >>>
Поставщик: Changzhou Bomi Tools Co. Ltd.Changzhou Ltd.

Цена:0,06-0,13 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Product Overview

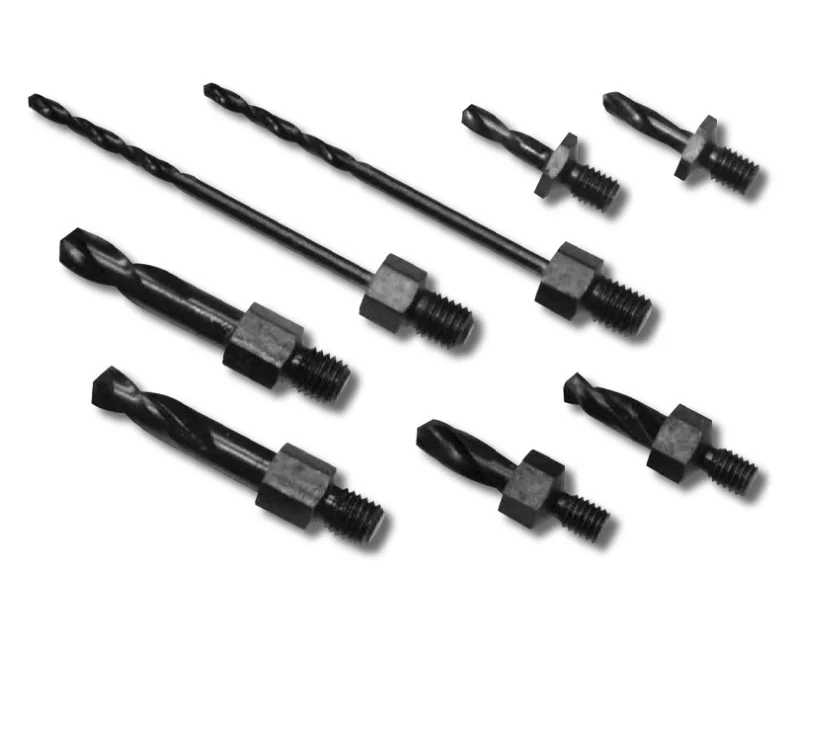

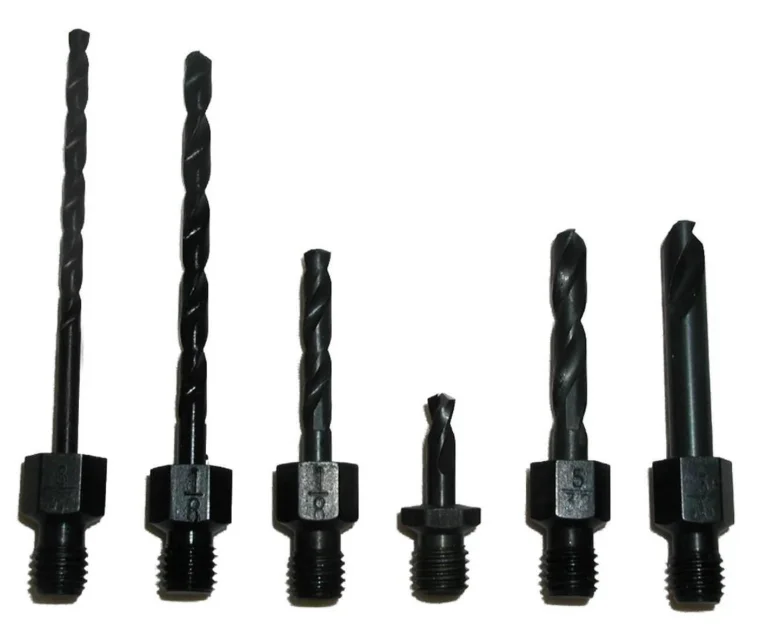

Product Name	M2 High Speed Steel HSS NAS 965 Type B Threaded Hex Shank Drill Bit
Material	HSS (HSS Cobalt is Available)
Process	Fully Ground (Rolled & Polished, Rolled, Milled are Available)
Standard	Stub DIN1897 (DIN338, Long DIN340, Extra Long DIN1869, DIN345 Taper Shank, Blacksmith Reduced Shank 10mm. 13mm are Available) Stub Screw Machine Length (Jobber Length, Long Taper Length, 6 ,12 inch Airctraft Extensoin Silver & Deming 1/2" Reduced Shank are Available)
Size	Stub, Short, Long length are Available
Point Type	135 Degree Split Point (118 Degree Regular Point. Turbo Max Point. Pilot Point are Available)
Shank Type	Threaded Hex Shank (Straight Shank. Hex Shank. Tri-Flats Shank. Double R Hex Shank. Reduced Shank. Taper Shank are Available)
Helix Angle	Regular Spiral Type N (Slow Spiral Type H. Fast Spiral Type W. Left Hand Spiral are Available)
Web &Flute Type	Regular V\\feb & Flute (Thick Web with Parabolic Flute. Heavy Duty Web with Regular Flute are Available)
Surface Finish	Black Oxide (Bright. Amber Color. Titanium. Black & Gold. Black & Bright are Available)
Package	10/5 Pcs in PVC Pouch. Plastic Box. Individually in Skin Card, Double Blister. Clamshell.
Features	1. High-speed steel tools are good for most general purpose applications, otfering a combination of lardness and toughness for wear resistance. 2. No center punch is needed—the aggressive 135° Quick-Cut points are self-centering and penetrate quickly with less pressure. Will not "walk" or "wander". 3. AII are manufactured with 1J4-28 UNF threads and 5/16" wrenchina flats.

Right elevation

Left elevation

Front elevation

Short

Size	Decimal Equivalent	Flute Length (inch)	overall Length (inch)
Size	Decimal Equivalent	Flute Length (inch)	overall Length (inch)
60	0400	9/16"	r
1/16"	0625	9/16"	r
52	0635	9/16"	r
50	0700	9/16"	V
5/64"	0781	9/16"	V
42	0935	9/16"	V
3/32"	0938	9/16"	V
41	0960	9/16"	V
40	0980	9/16"	V
39	0995	9/16"	V
38	1015	9/16"	V
36	1065	9/16"	V
7/64-	10Q4	9/16"	1"
9/64"	.1406	9/16"	1-1/4"
27	.1430	9/16"	1-1/4"
26	.1470	9/16"	1-1/4"
24	.1520	9/16"	1-1/4"
5/32"	.1562	9/16"	1-1/4"
22	.1570	9/16"	1-1/4"
21	.1590	9/16"	1-1/4"
20	.1610	9/16"	1-1/4"
19	.1660	9/16"	1-1/4"
18	.1695	9/16"	1-1/4"
11/64	.1719	9/16"	1-1/4"
17	.1730	9/16"	1-1/4"
16	1770	9/16"	1-1/4"
8	1990	9/16"	1-1/4"
6	2040	9/16"	1-1/4"
5	2055	9/16"	1-1/4"
7/32"	2188	9/16"	1-1/4"
2	2210	9/16"	1-1/4"
A	2280	9/16"	1-1/4"
15/64"	2344	9/16"	1-1/4"
B	2380	9/16"	1-1/4"
C	2420	9/16"	1-1/4"
D	2460	9/16"	1-1/4"
1/4"	2500	9/16"	1-1/4"
F	2570	9/16"	1-1/4"

SALES AND SERVICE NETWORK

SIMILAR PRODUCTS

Company Overview

Changzhou Bomi Tools Co., Ltd is a manufacturer and trader specialized in the research, development and production of Long length
twist drills, Taper drills, Step drills. All of our products comply with international quality standards and are greatly
appreciated in a variety of different markets through out the world.

FACTORY

1) We're a direct manufacturer and 100% export to worldwide
2) We have around 10 years producing experience.
3) Our drill product:HSS drill bits, masonry drill, SDS drill,glass&tile drill, step drill,Taper Point Drill Bit ，Center Drill Bit, Brad Point Drill Bit, drill set etc.
4) Above 95% customers will place a formal order after testing the samples.

A variety of product classification details

More product details are displayed for reference

application

Used for woodworking, wall, metal

packaging and shipping

Transport by sea freight by air express

Photos of hardware Exhibition

Participated in Shanghai hardware exhibition, Japan exhibition, Zhejiang Yongkang show pictures

Display of packaged products

step drill bit set ,sds plus drill bit set,wood spade drill bit set

FAQ

1. who are we?
We are based in Jiangsu, China, start from 2017,sell to North America(24.00%),Western Europe(18.00%),South America(17.00%),Southern Europe(10.00%),Eastern Asia(7.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Domestic Market(5.00%),Mid East(3.00%),Northern Europe(3.00%),Oceania(2.00%),South Asia(00.00%),Africa(0.00%),Central America(0.00%). There are total about 1-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Drill Bit/Hole Saw/Saw Blade/

4. why should you buy from us not from other suppliers?
We have a professional service team, with product quality as the core, customer as the center, to provide quality service chain, to solve all customer concerns.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDU；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: null;
Language Spoken:English,Chinese,Korean
