Дорожная техника 735 т 35-тонный грейдер производитель китайский бренд гидравлический цена
7 336 213,51-7 467 169,66 ₽
Известный китайский бренд 220HP 922F автогрейдеры с высокой эффективностью хорошая цена распродажа
- Категория: >>>
- Поставщик: Caterbe Construction Equipment (Wuhan) Co. Ltd.Caterbe Ltd.
Сохранить в закладки 1601308200851:
Описание и отзывы
Характеристики
Product Description

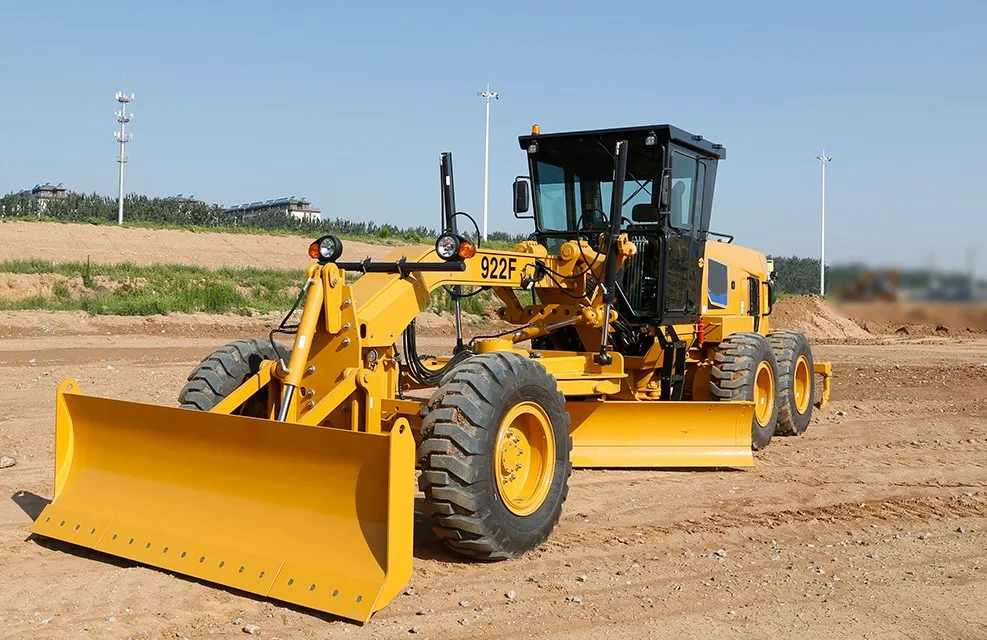

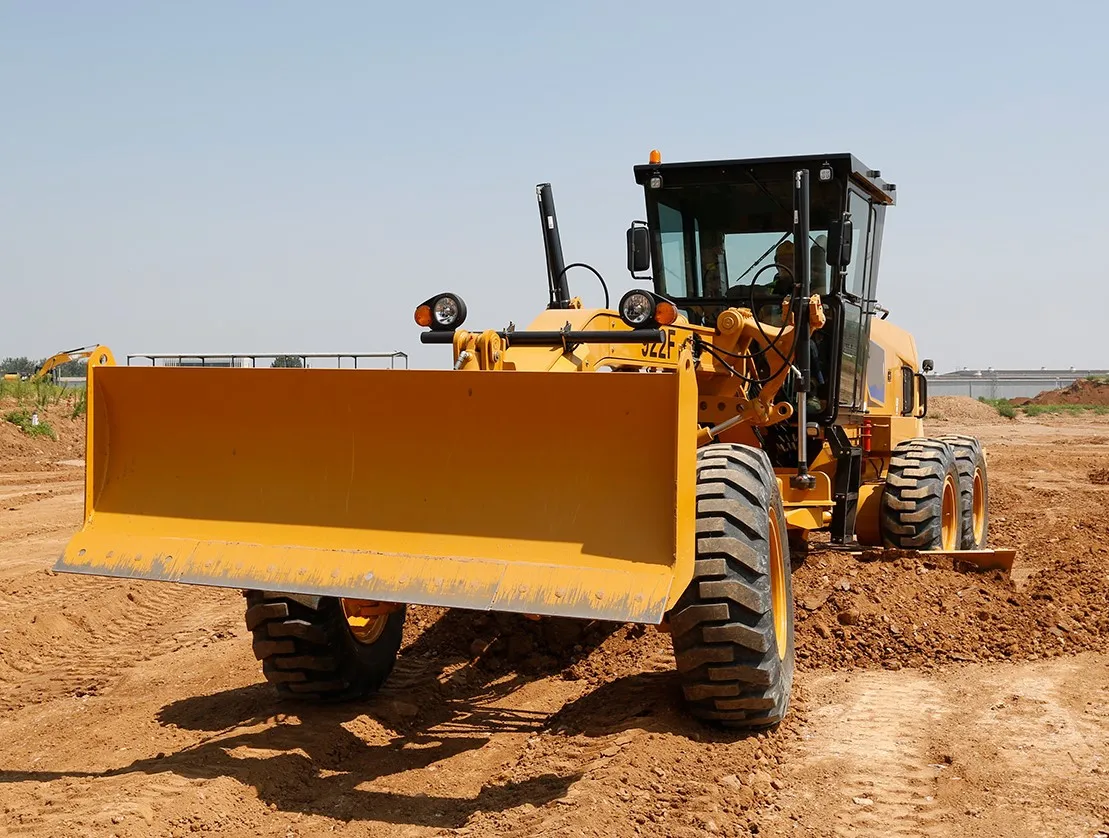

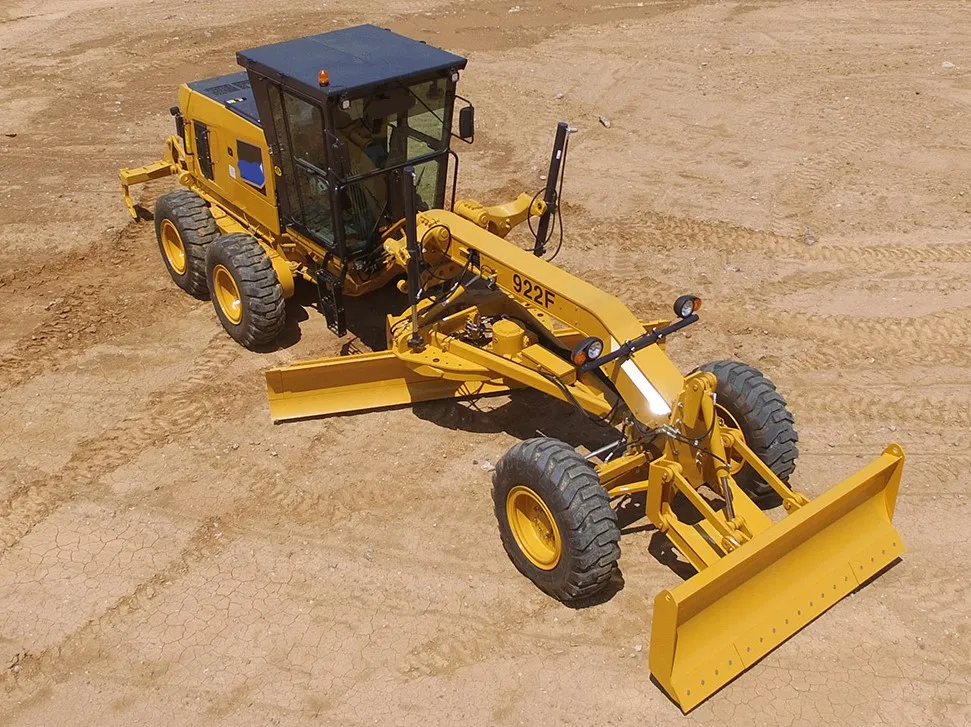

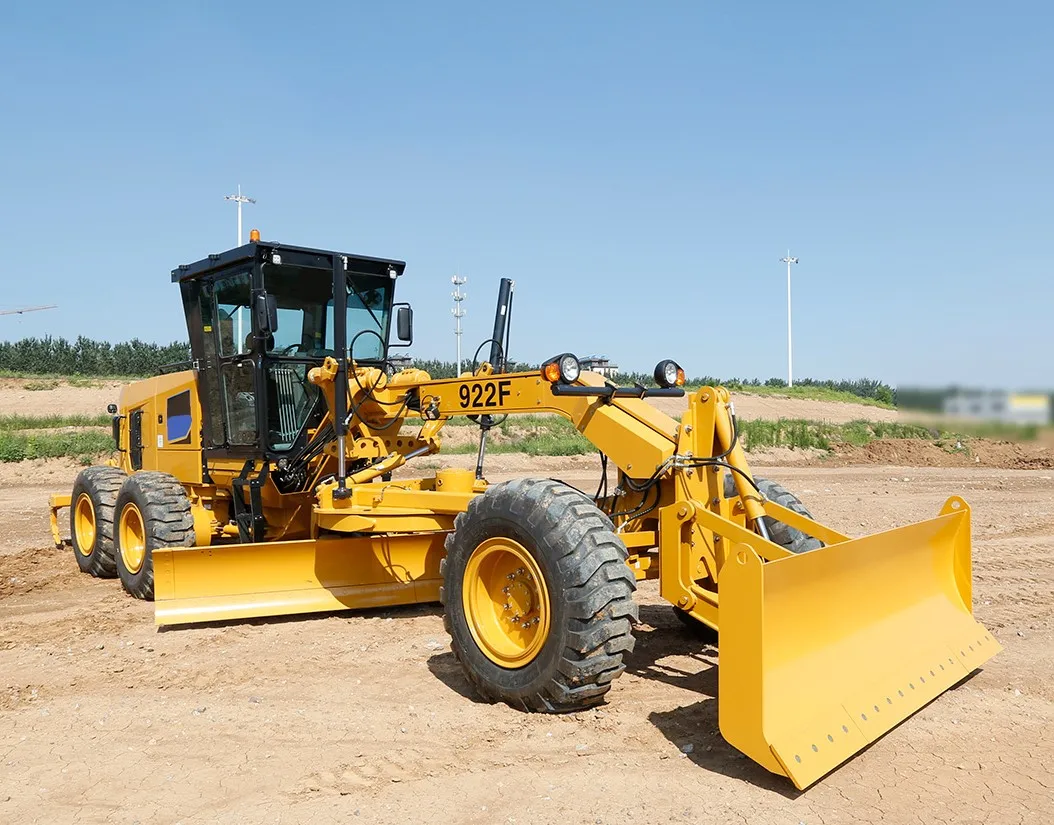

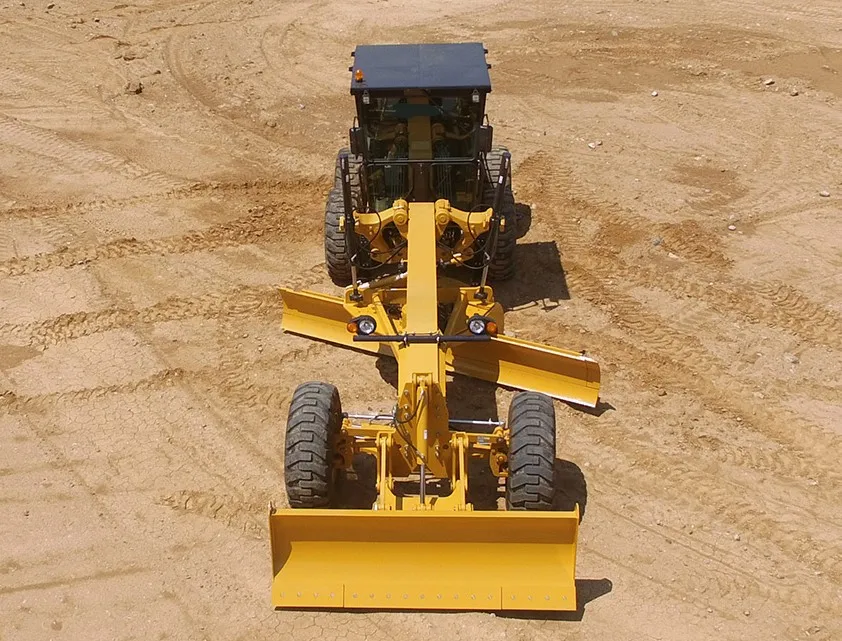

220Hp Motor Grader 922F Hot Sale With Factory Price
The S-E-M F series Tier 2 Motor Grader is equipped with an SDEC engine and a PPPC load-sensing hydraulic system for consistent and precise blade movement and reduced fuel consumption. The S-E-M rear tandem axle, designed and manufactured by Cater-pilar, leverages the proven Cater-pilar tandem axle design to deliver differentiated reliability and a longer service life, resulting in lower owning & operating costs.
In response to customer suggestions and feedback, the new generation F series Motor Grader has been upgraded to better meet the needs of customers and further improve machine performance. This includes the removal of the transmission shaft, direct connection of the hydraulic pump to the gearbox, and a new molded engine hood with a contemporary aesthetic, providing the machine with a striking and impactful visual design.
Advantages and Features：
Operate in comfort
* Standard float function for high efficiency and simple operation.
* Caterpillar's classic lever control with a short distance and stroke.
* Adjustable console and seat with optimized ergonomics.
* Cab with improved airtightness and noise reduction.
* Added vents in the new dashboard and cab columns for increased comfort.
* Caterpillar's classic lever control with a short distance and stroke.
* Adjustable console and seat with optimized ergonomics.
* Cab with improved airtightness and noise reduction.
* Added vents in the new dashboard and cab columns for increased comfort.
Low cost per hour
* Less heat and fuel consumption; load-sensing and PPPC hydraulic system offer increased efficiency.
* Hydraulic cooling fan, high efficiency in various ambient temperature conditions and enhances cooling effect.
* Caterpillar (Qingzhou) in-house tandem axle, final drive units with four planetary gears, oil-bath lubrication, and maintenance-free and adjustment-free chain support a higher carrying capability.
* Hydraulic cooling fan, high efficiency in various ambient temperature conditions and enhances cooling effect.
* Caterpillar (Qingzhou) in-house tandem axle, final drive units with four planetary gears, oil-bath lubrication, and maintenance-free and adjustment-free chain support a higher carrying capability.
Performance you need
* Up to 2 times more circle drive torque than the industry standard for increased working efficiency.
* PPPC hydraulic system ensures precise, predicable and consistent operational movement regardless of engine speed.
* Cab is mounted in the frontal frame to provide enhanced visibility for convenient operations.
* 7-hole linkbar of Electro Hydraulic pin puller offers excellent extensibility of the moldboard, delivering superior performance.
* PPPC hydraulic system ensures precise, predicable and consistent operational movement regardless of engine speed.
* Cab is mounted in the frontal frame to provide enhanced visibility for convenient operations.
* 7-hole linkbar of Electro Hydraulic pin puller offers excellent extensibility of the moldboard, delivering superior performance.
Robustness and durability
* Leveraging Cater-pilar's design and experience with the Motor Grader tandem axle, there's an improved bearing layout and optimized load distribution with a final drive featuring four planetary gears, oil bath tandem axle, and longer service intervals for lubrication oil changes without the need to fill in grease frequently.
Operational safety
* The disk service brake features dual circuit braking separately for front/rear braking and left/right braking, ensuring high safety standards.
* The dashboard includes a 3-level alarm monitoring system.
* A three-point contact handrail is provided for easy access and regular inspection and maintenance.
* The dashboard includes a 3-level alarm monitoring system.
* A three-point contact handrail is provided for easy access and regular inspection and maintenance.
Product Paramenters
Model | 922F |
Standard Weight (Non ROPS base) | 16,313kg |
Standard Weight (with ROPS) | 16,640kg |
Overall Dimensions (L*W*H) | 11,100*2,630*3,140mm |
Travel Speed (Forward/Reverse) | 40km/25h |
Max. Drawbar traction | 99kN |
Frame Articulation Angle | 20° |
Min. Turning Radius | 7,800mm |
Tire | 17.5-25 12PR |
Engine Manufacturer | SDEC |
Engine Model | SC9D220G2 |
Max. Torque | 920N.m @ 1400RPM |
Net Power | 162kW @ 2200RPM |
Emission | Tier 2 |
Brand / Manufacturer | Advance/HangChi |
Type | Converter, Powershift |
Forward / Reverse Gears | 6 Forward / 3 Reverse |
Brand / Manufacturer | SEM/Caterpillar |
Differential | No-Spin |
Service Brake | Air over oil, Disc |
Oscillation Front Up | 15° |
Oscillation Front Down | 25° |
Ground Clearance | 630mm |
Wheel Lean, Left / Right | ±18° |
Max. Oscillation | ±16° |
Steering Range, Left / Right | ±47.5° |
Circuit Type | Load Sensing, PPPC |
Pump Type | Variable Piston |
Blade Width, Standard | 4,279mm |
Blade Width, Optional | 3,669/3,974mm |
Blade Height | 610mm |
Blade Thickness | 20mm |
Float Function | YES |
Max. Cutting Depth | 715mm |
Max. Lifting Height | 475mm |
Fuel Tank | 280L |
Engine Oil | 26L |
Coolant | 50L |
Transmission | 36L |
Differential Case | 33L |
Tandem Case, Each Side | 63L |
Circle Drive, Non Slip Clutch | 2L |
Circle Drive, With Slip Clutch | 7L |
Hydraulic Oil Tank | 60L |
Contact Way
Melody Ai
Sales Manager
Email: melody@caterbe.com
Tel/Wechat/Whatsapp: +86-17386567051
Welcome to contact me
