Products Description
Laminar flow ceiling
The Laminar Flow Ceiling is installed at the ceiling of Operating room to offer the uniform air flow and clean class, like for the class I clean operating room, class II clean operating room, class III clean operating room. It can ensures efficient protection against contamination which can occur during invasive acts and caused by airborne dead or living particles.
There are two HEPA filtersmounting styles for laminar flow ceilings
The hepa filters are covered all over the air diffusers.
The hepa filters are side mounted in the air intake flanges
Laminar flow ceiling use
Laminar flow air supply ceiling is the air supply end device of clean operating room and laminar flow ward, which has the function of high efficiency filtration and even flow. The air supply ceiling sends clean and soft air into the room according to the requirements of different purification level standards, so that the operating area is enveloped under clean airflow.
Laminar flow ceiling characteristics
Laminar air flow ceiling has 3 purification levels:Class Ⅰ,Class Ⅱ, Class Ⅲ.
The HEPA Filter installed type: Horizontal type, Vertical type.
Product Paramenters
Model | Class Ⅰ | Class Ⅱ | Class Ⅲ | ||
Efficiency | 99.99% | ||||
The wind speed(m/s) | 0.45 | 0.3 | 0.23 | ||
Air supply size(mm) | 2600×2400 | 2600×1800 | 2600×1400 | ||
Boundary dimension | 2680×2480×500 | 2680×1880×500 | 2680×1480×500 | ||
HEPA size and QTY | 610×305×292mm 8 pcs | 610×305×292mm 6 pcs | 610×305×292mm 4 pcs | ||
Usage occasion | Class Ⅰ Special clean operating room | Class ⅡStandard clean operating room | Class Ⅲ General clean operating room | ||
Laminar Flow Ceiling
Product Description
Laminar air supply ceiling is a non-inductive air supply device centrally arranged above the operating table in the clean operating room of a modern hospital. It is the purification air supply terminal of clean operating room and laminar flow ward. It has high-efficiency filtration, flow equalization and airflow compensation.
The cabinet is made of electrolytic steel plates, the high-efficiency filter is laid out in a tiled arrangement, which fully guarantees the laminar flow area of the ceiling filter to achieve a higher cleaning effect; at the same time, the filter can be put at side according to customer needs, providing HVAC designers with a variety of options.
The air supply ceiling center uses an airflow compensating device to fully offset the interference of personnel on the laminar flow effect. It is divided into I，II，III, IV laminar flow purification air supply ceiling, laminar flow ceiling in burn ward, laminar flow ceiling in blood ward and laminar flow ceiling in ophthalmic operating room.
The cabinet is made of electrolytic steel plates, the high-efficiency filter is laid out in a tiled arrangement, which fully guarantees the laminar flow area of the ceiling filter to achieve a higher cleaning effect; at the same time, the filter can be put at side according to customer needs, providing HVAC designers with a variety of options.
The air supply ceiling center uses an airflow compensating device to fully offset the interference of personnel on the laminar flow effect. It is divided into I，II，III, IV laminar flow purification air supply ceiling, laminar flow ceiling in burn ward, laminar flow ceiling in blood ward and laminar flow ceiling in ophthalmic operating room.
Product Parameters | |||||||||
Product Model | Model/Parameter | Dimensions W*H*D(mm) | HEPA Filter Siz W*H*D(mm) | HEPA Filter Qty | Remarks | ||||
YN-CL01-001 | Laminar flow ceiling I | 2600*2400*500 | 1196*676*69(H14) | 4 Pcs | Special size can be customized upon request | ||||
946*366*69(H14) | 4 Pcs | ||||||||
YN-CL02-001 | Laminar flow ceiling II | 2600*1800*500 | 1196*546*69(H14) | 4 Pcs | |||||
946*462*69(H14) | 2 Pcs | ||||||||
YN-CL03-001 | Laminar flow ceiling III，IV Laminar flow ceiling in burn ward | 2600*1400*500 | 1196*346*69(H14) | 4 Pcs | |||||
946*462*69(H14) | 2 Pcs | ||||||||
YN-CL04-001 | Laminar flow ceiling in blood ward | 2850*2500*500 | 1321*726*69(H14) | 4 Pcs | |||||
946*366*69(H14) | 4 Pcs | ||||||||
YN-CL05-001 | Laminar flow ceiling in ophthalmic OT | 1500*1500*500 | 662*646*69(H14) | 2 Pcs | |||||
Specification
item | value |
Condition | New |
Applicable Industries | Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Retail, Food Shop, Food & Beverage Shops, Other |
Weight (KG) | 150 |
Showroom Location | None |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | Engine |
Place of Origin | China |
Brand Name | YN |
Warranty | 1 Year |
Voltage | 220V/ 50Hz |
Power | 170W |
Dimension(L*W*H) | Customized |
Material | Powder Coated Steel / SUS304 |
Air Filter | HEPA Air Filter |
Grade | I ,II ,III ,IV laminar flow purification air supply |
Medical Equipment Series
Laminar Flow Ceiling
Filter Media: H13 or H14 glass fiber
Cabinet Material: Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304
Air Speed : 0.25-0.60m/s
* Easy installation and filters replacement.
* Simple fixation system.
* Air diffusion through metal grill or stretch fabric.
* Lateral duct connections.
Cabinet Material: Aluminum galvanized sheet / powder coated steel / Stainless steel 201/304
Air Speed : 0.25-0.60m/s
* Easy installation and filters replacement.
* Simple fixation system.
* Air diffusion through metal grill or stretch fabric.
* Lateral duct connections.
PLC Control Panel / Door Phone
①The product has the characteristics of high transparency, high strength and high light transmittance;
②Compared with the button-type operatingroom control panel，it is more convenient ;
③International capacitive screen，the surface is tempered glass;
④Industrial-grade control，system stability, high sensitivity，support for various communications，energy saving and consumption reduction;
④Industrial-grade control，system stability, high sensitivity，support for various communications，energy saving and consumption reduction;
⑤The flat type is easy to clean and scratch resistant，and it can be touched after being wetted with water，and no dirt
can be hidden.
can be hidden.
⑥ It is easy to set and check the working status of various equipment in the operating room，fault conditions，and environmental parameters such as temperature and humidity in the operating room.
Hospital Door
①The surface of the door leaf can be optionallycoated with antibacterial coating to prevent crossContamination and meet the needs of a sterileenvironment
②Double sealing of leaf and frame with uniquealuminum structure and sealing tape, with goodairight effe ct
③The door opens and closes quickly,and alsoprovides dual doorinterlock function,locking everybit of clean air for you
④A wide range of product styles,materials andglass viewing window structures are available tomeet customer needs
⑤Automatic swing door features. high qualityimported humanized control and operation of thedrive motor, automatic delayed closing (timeadiustable),also provide automatic,normalopen,normal closed,half open one-way passageand othermodes
Medical Cabinets
Anesthesia Cabinet Medicine Cabinet Instrument Cabinet Catheter Cabinet
Other Materials
Gas Socket Box Power Socket Box Writing Desk X-ray Viewing Box
Success case show
Our Factory
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than 30,000 square meters, and an annual output value of more than 300 million RMB.
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and
ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong
Packing&Delivery
Exhibition
FAQ
1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter,Clean Bench,Scrub Sink.etc.
4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.
5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
Похожие товары
Производитель 1170x575x320 мм ламинарный фильтр hepa Fffu для чистой комнаты
24 099,04-26 508,95 ₽

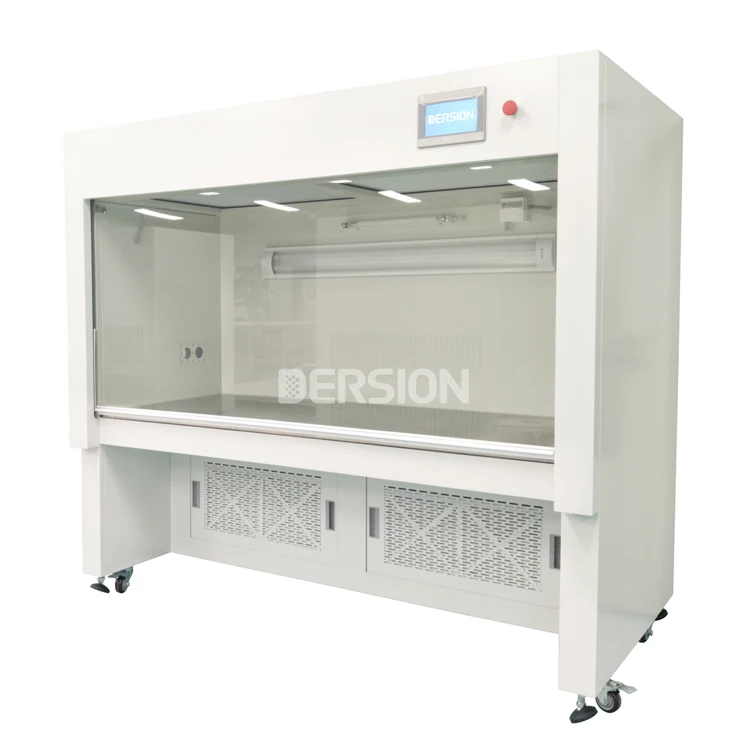

Лабораторный горизонтальный ламинарный вытяжной шкаф с фильтром Hepa
132 544,72-180 742,80 ₽

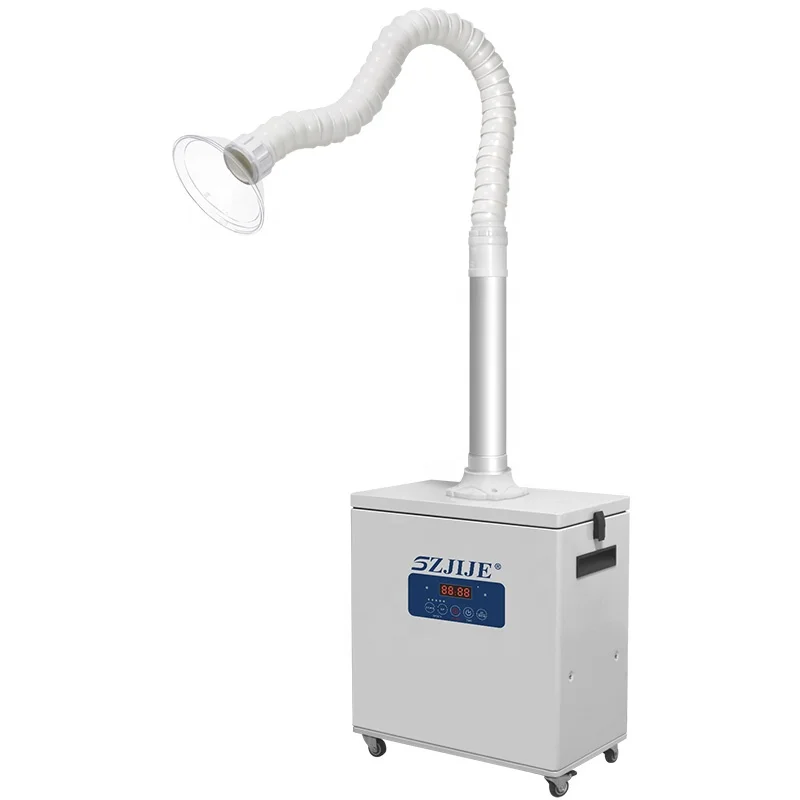

SZJIJE Заводская розетка JM01S медицинская эвакуация дыма co2 Фракционное лазерное удаление
44 221,74-49 764,52 ₽
Горизонтальная Грибовидная ламинарная Вытяжка с воздушным потоком чистая скамья для культивирования клеток

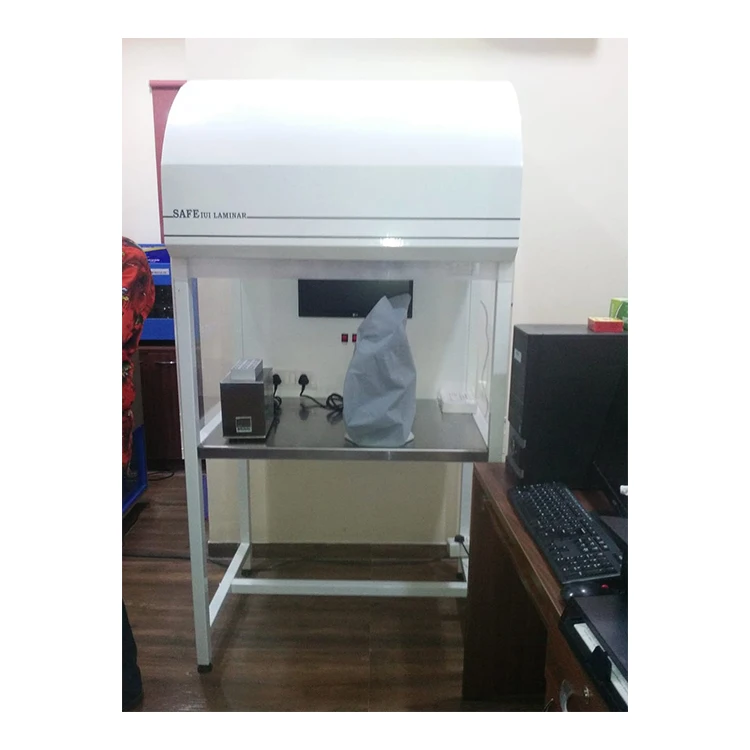

Натуральная андрологическая рабочая станция или IUI от индийского поставщика по хорошей цене
