Factory Direct OEM ODM CE Certified 1200mm Emergency Light LED 180min Battery Emergency Kit Fixtures 40W Waterproof Light
Details:











FANXSTAR LED Tri proof light Trilamp A9 Specification
Item | Part Number | A9-2FT20-MMK- E | A9-4FT40-MMK-E | |

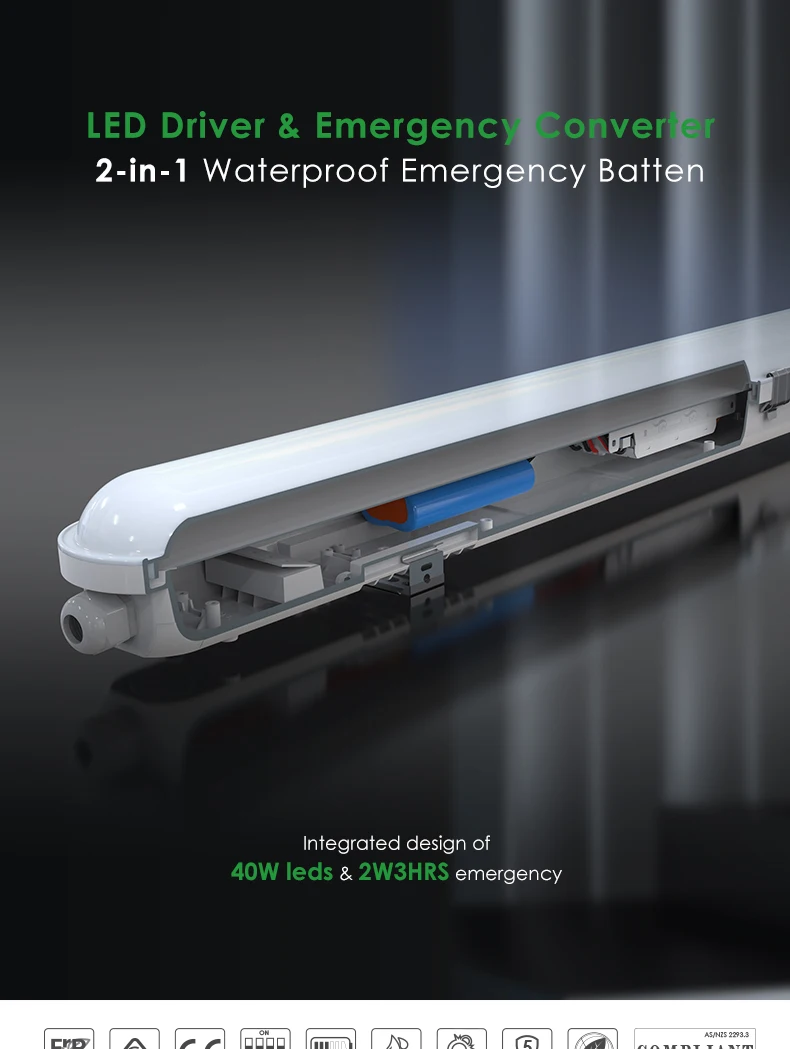

Description | Driver & Emergency Converter 2-in-1 Waterproof Emergency Batten | |||
Working | Mode of Operation | Maintained | ||
Input | Voltage&Frequency | 220-240Vac, 50/60Hz | ||

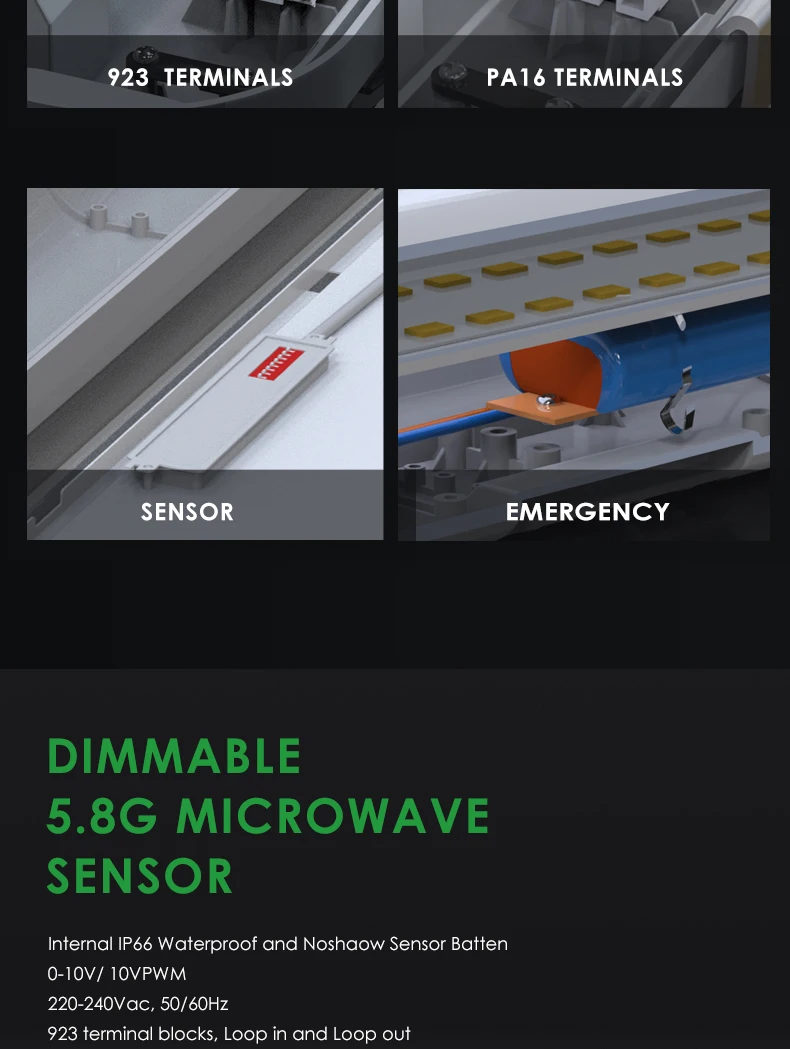

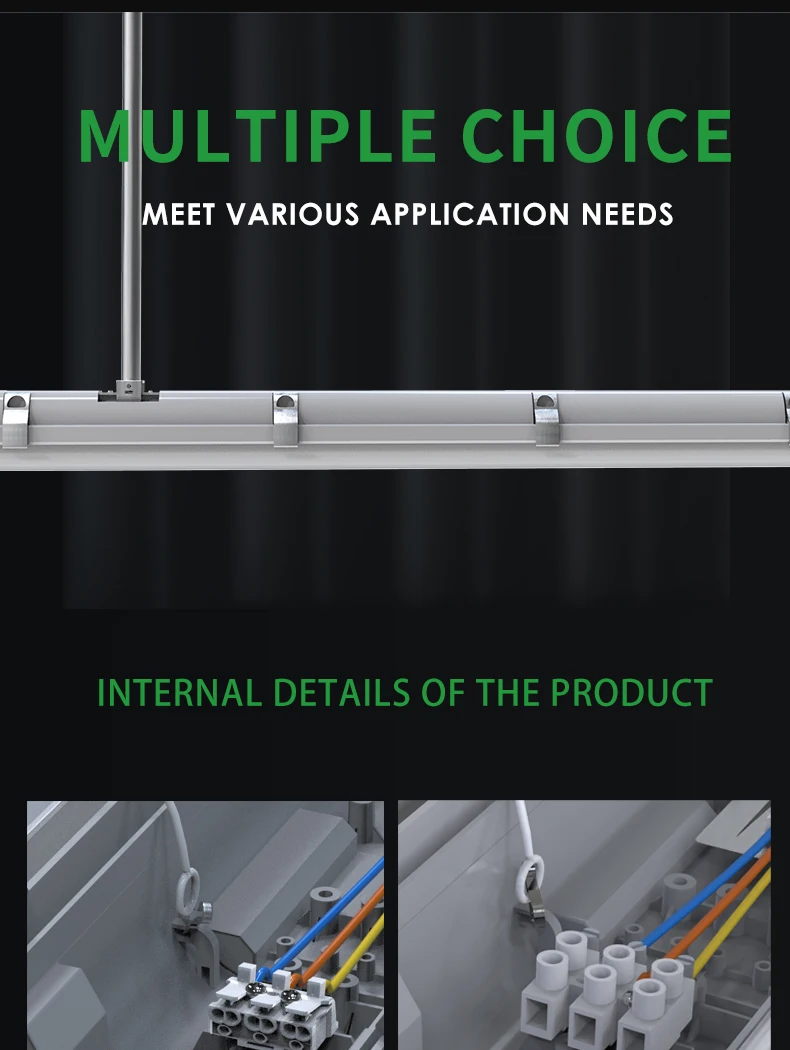

Wiring Connection | 923 terminal blocks, Loop in and Loop out | |||
Output | Light Source | High lumens SMD2835 | ||
Color Temperature | MM=27-65 stands for 2700-6500K | |||
Luminous Flux | 120lm/w±10% | |||
Power Consumption | 20W | 40W | ||
Controls | Protection | Overcharge, low voltage disconnect, overcurrent, short circuit | ||
Multimode | Standy, Microwave Sensor and Emergency | |||
Emergency | Charger | 16hr intelligent 3-stage charger with battery management system | ||
Emergency Power | 2W | 3W | ||
Duration Time | 3 hours | 3 hours | ||
Testing Facility | Manual test, Self test | |||
Indicators | Battery charger green LED, Function failure through red LED. | |||
Physical | Construction | Diffuser - high transmission opal polycarbonate, chassis - polycarbonate | ||

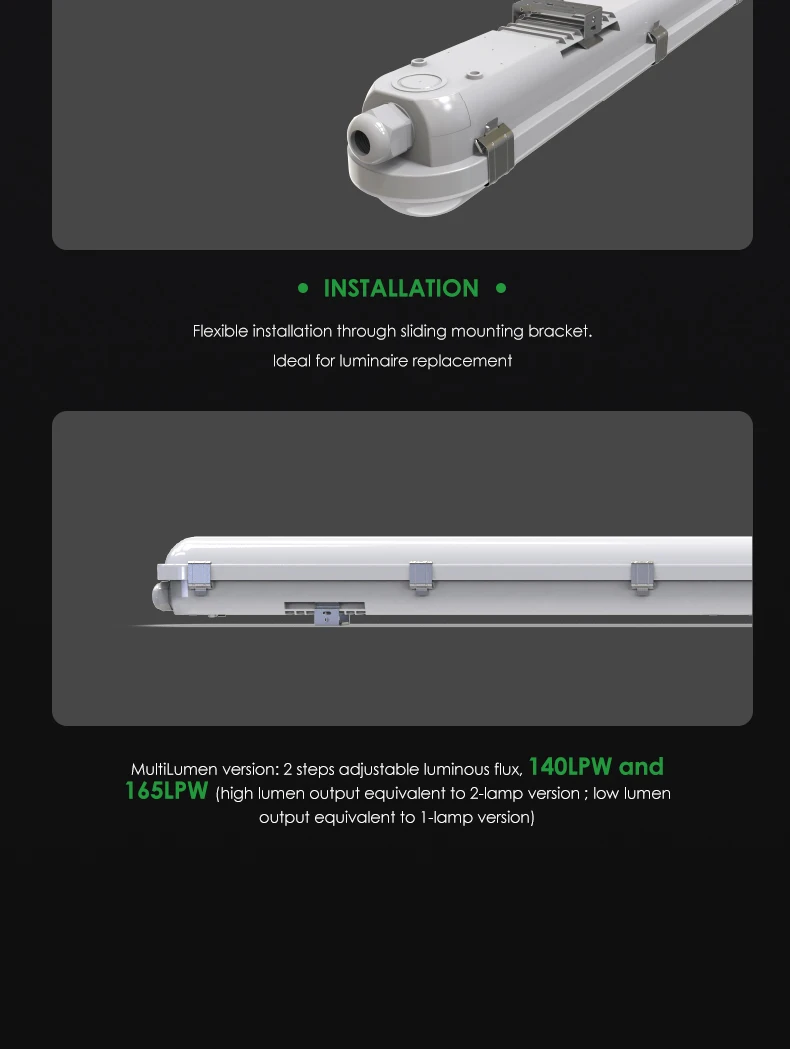

Mounting | Surface mounted - ceiling / wall | |||
Colour | Gray RAL7035 | |||
Dimensions L x W x H(mm) | 600x83x72 | 600x83x72 | ||

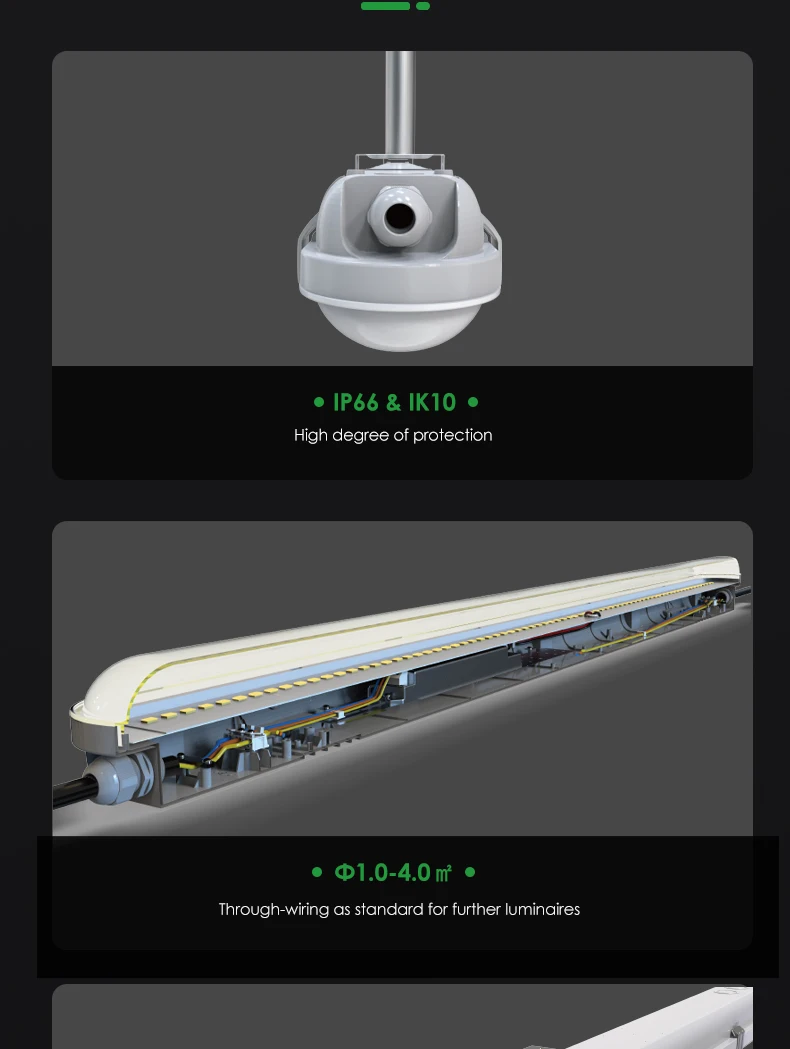

IP/IK Rating | IP66 & IK10 | |||
Weight | 1.0kg | 2.0kg | ||
Warranty | 5 years on product, 3 years on battery | |||
Environment | Operating Temperature | -20° to 50°C | ||
Relative Humidity | -10 to 95% | |||
Compliance | Standards | CE/UKCA/RCM, EN1838, IEC60598.1, AS/NZS 2293 | ||
AS/NZS 2293 Classification | C0 D63, C90 D40 | |||

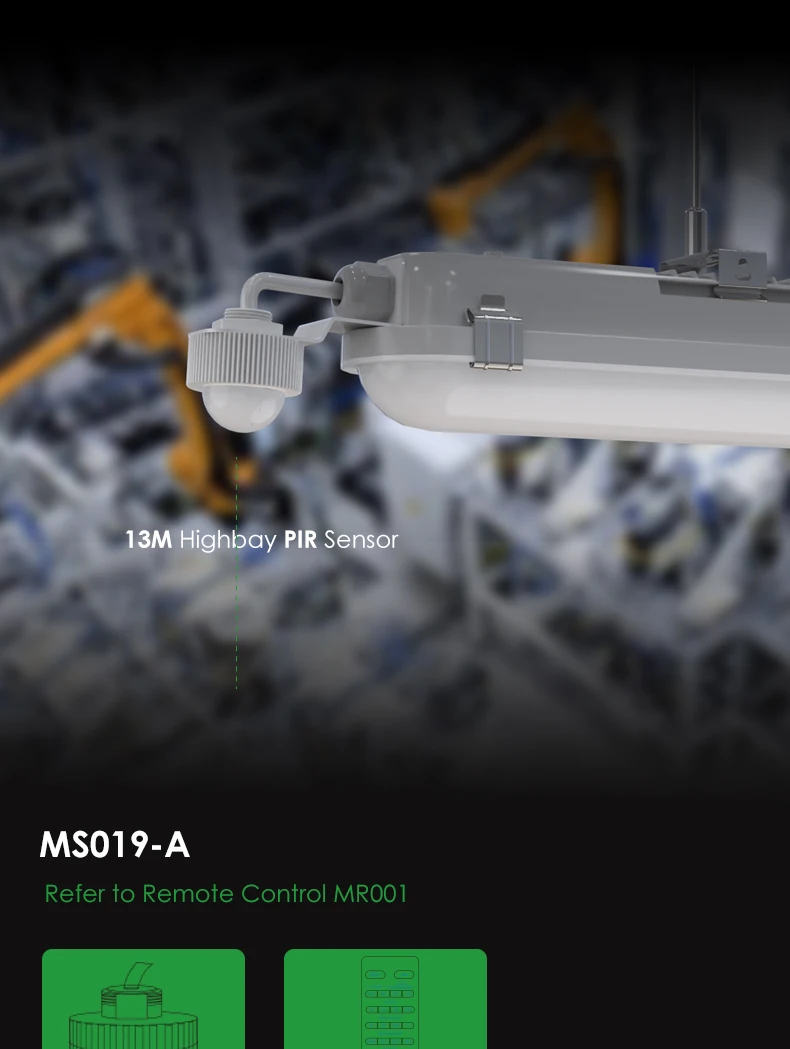

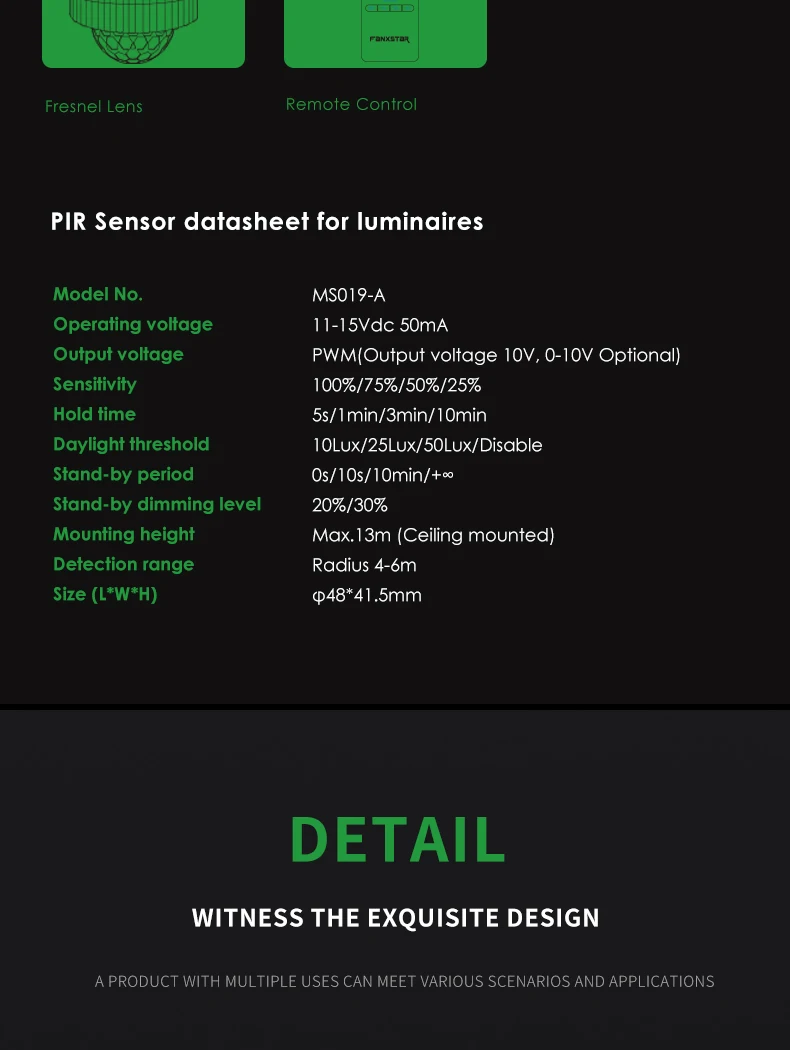

Accessories | Microwave Dimming Sensor | P/N: A9S: FS010ER | ||
Replacement Battery | P/N: A9E: LiFePO4 6.4V 1600/2000mA | |||





1. We are direct factory with the strong production capacity, fast timely delivery,high
guaranteed quality ,100% professional,can give you pretty reasonable and competitive price.
2. For all your our inquiry about us or our products,we will reply you in detail within 24 hours.
3. Well-trained and experienced staffs can offer professional advice for practical application.
4. OEM & ODM are welcomed, OEM brand is available.
5. Distributor ship is offered for your unique design and some our current models,strong
protection of your sales area, ideas of design and all your private information.
6. Led information, lighting solution and suggestions, technical support are offered freely.
7. High quality component and material,Osram,Epistar,COB or Cree chips or others,various of choices depend on your needs.

Q1. Can I have a sample order for led light?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
Sample order will needs 3-5 working days, mass order will needs 7-15 working days for reference.
Q3. Do you have any MOQ limit for led light order?
Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to delivery.
Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production and shippment.
Q6. Is it OK to print my logo on led light product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
Yes, we offer 5 years warranty to our products.
Q8: How to deal with the faulty?
Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend to you or we can discuss the solution including re-call according to real situation.
