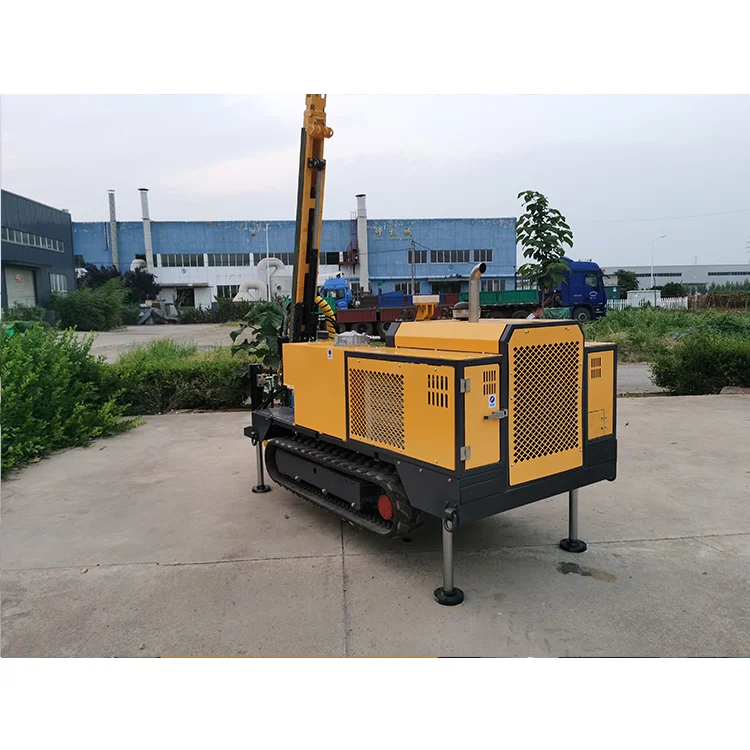

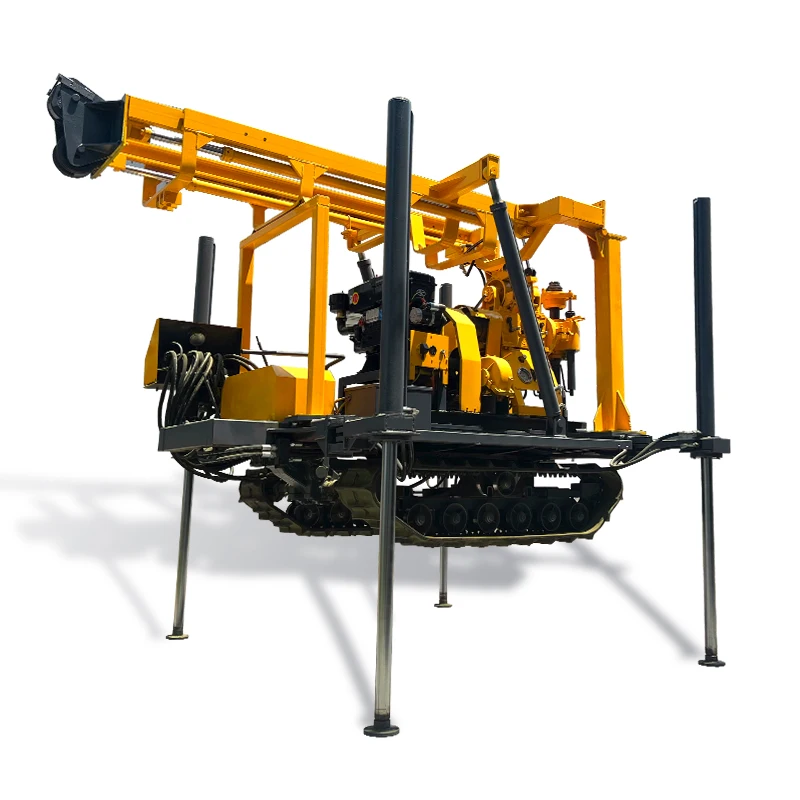

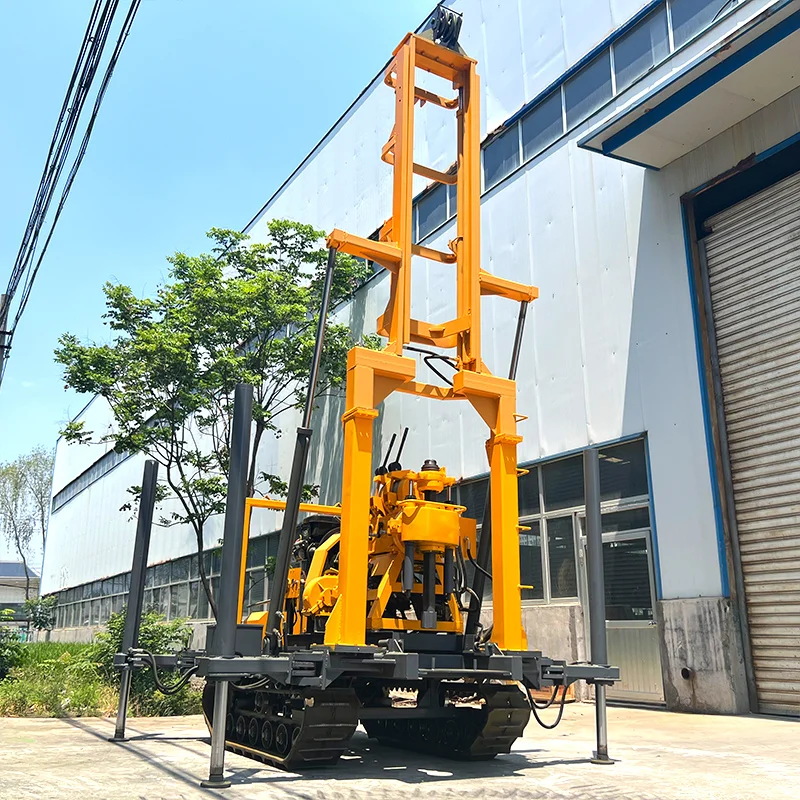

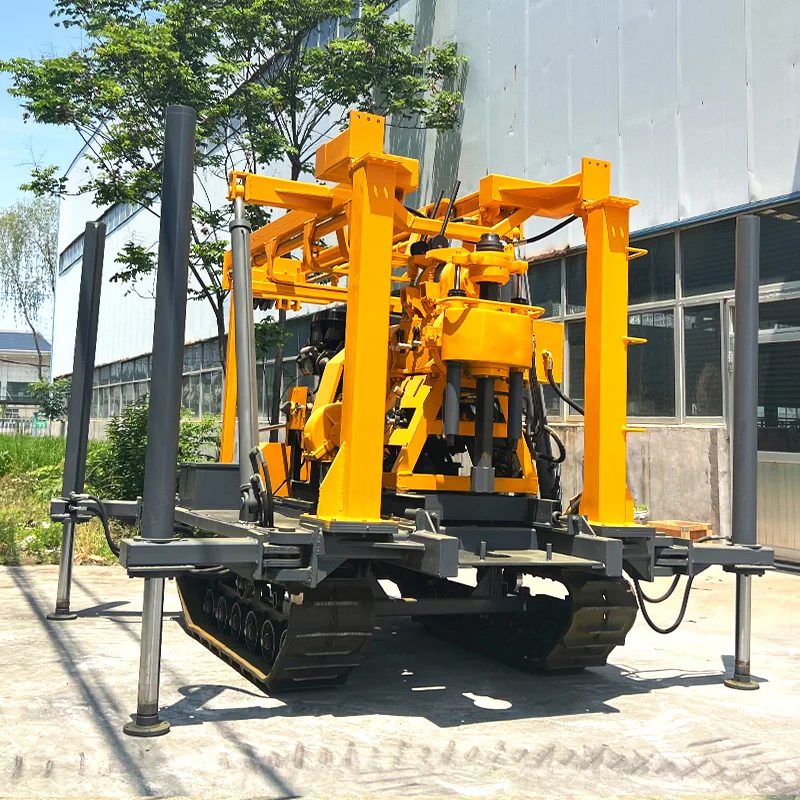

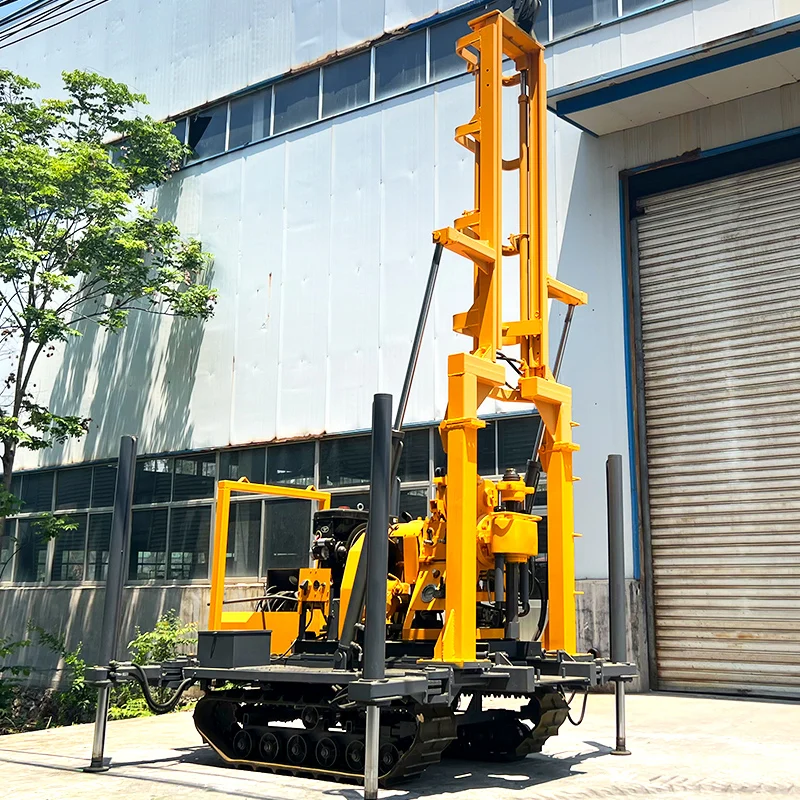

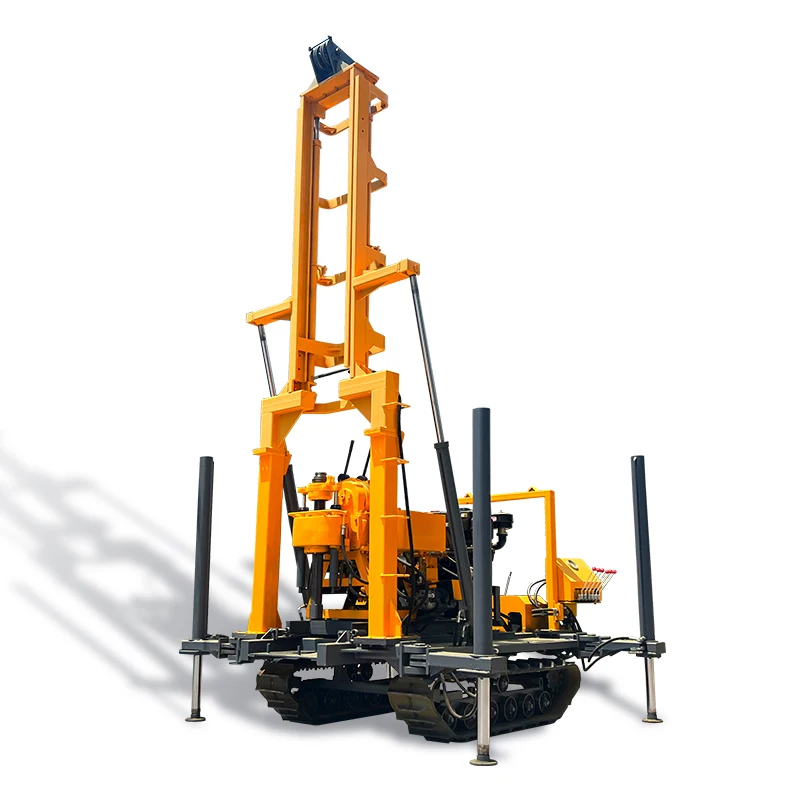

Professional Machinery 200m Hydraulic Core Drilling Rig Multifunctional Sampling

Сохранить в закладки 1601314264224:


Цена:*

Количество:

  • В избранное

Описание и отзывы

Характеристики





II. Characteristics




1. This drilling rig is a high-speed drilling rig suitable for general survey exploration, geophysical exploration, road and construction exploration and blast hole drilling projects.
2. Drill bits such as alloys, diamonds and composite chips can be selected for drilling according to the different bottom layers.
3. It can drill sandy clay and rock formations of grade 2-9.






Tech paraneter
Model
XYD-130
XYD-180
XYD-200
Drilling depth(m)
130
180
65
Open hole dia (mm)
220
220
325
End hole dia(mm)
75
75
75
Drill rod dia(mm)
42-60
42-60
42-60
Drill angle(°)
90-75
90-75
90-75
Matching power(kw)
13.2
13.2
15
Weight without power(kg)
3350
3400
3600
Dimension(m)
3.8*1.95*2.7
3.8*1.95*2.7
3.8*1.95*2.7

Spindle
Speed(r/min)
142/285/570
130/300/480/730/830/1045
64/128/287/557
Stroke(mm)
450
450
450


Crawler chassis
Crawler size(m)
350*90*48
350*90*48
350*90*48
Clinbing angle(°)
20°
20°
20°
Walking speed(kn/h)
10km/h
10km/h
10km/h
hydraulic landing leg valid height(mm)
1300
1300
1300
Drill mast
Rated load(ton)
18
18
18
Height(m)
6.5
6.5
6.5

Winch
Dispalcement(L/min)
160
160
160
Max. pressure(MPa)
1.3
1.3
1.3
Times/min
165
165
165
Inlet hose dia(mm)
51
51
51
0ut let hose dia(mm)
32
32
32




FAQ


1, What’s your MOQ?
Minimum order is 1 pc only, dealership is warmest welcome.

2, What’s the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process from raw materials to final products. Beside, we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2. 100% inspection in assembly lines. All controls, inspections, equipment, fixtures, total production resources and skills are inspected to ensure they consistently achieve the required quality levels.

3, How do you transport the trucks?
Our company has long -term cooperation with ship agency which can provide you lowest shipping fee.

4, Can you satisfy my special requirement?
Yes, We can make customized design to utmost meet your special requirements.
